IMSA MF1750BB , 5-Axis, 1.97" Max. Drill Dia., X-128", Y-59", 78" x 98" Rtab, Milling Spindle, iTNC 640 CNC, #43080

Manufacturer

IMSA

Category

Drilling Machines

Type

DRILLS, GUN

Stock

43080

Model

MF1750BB

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43080

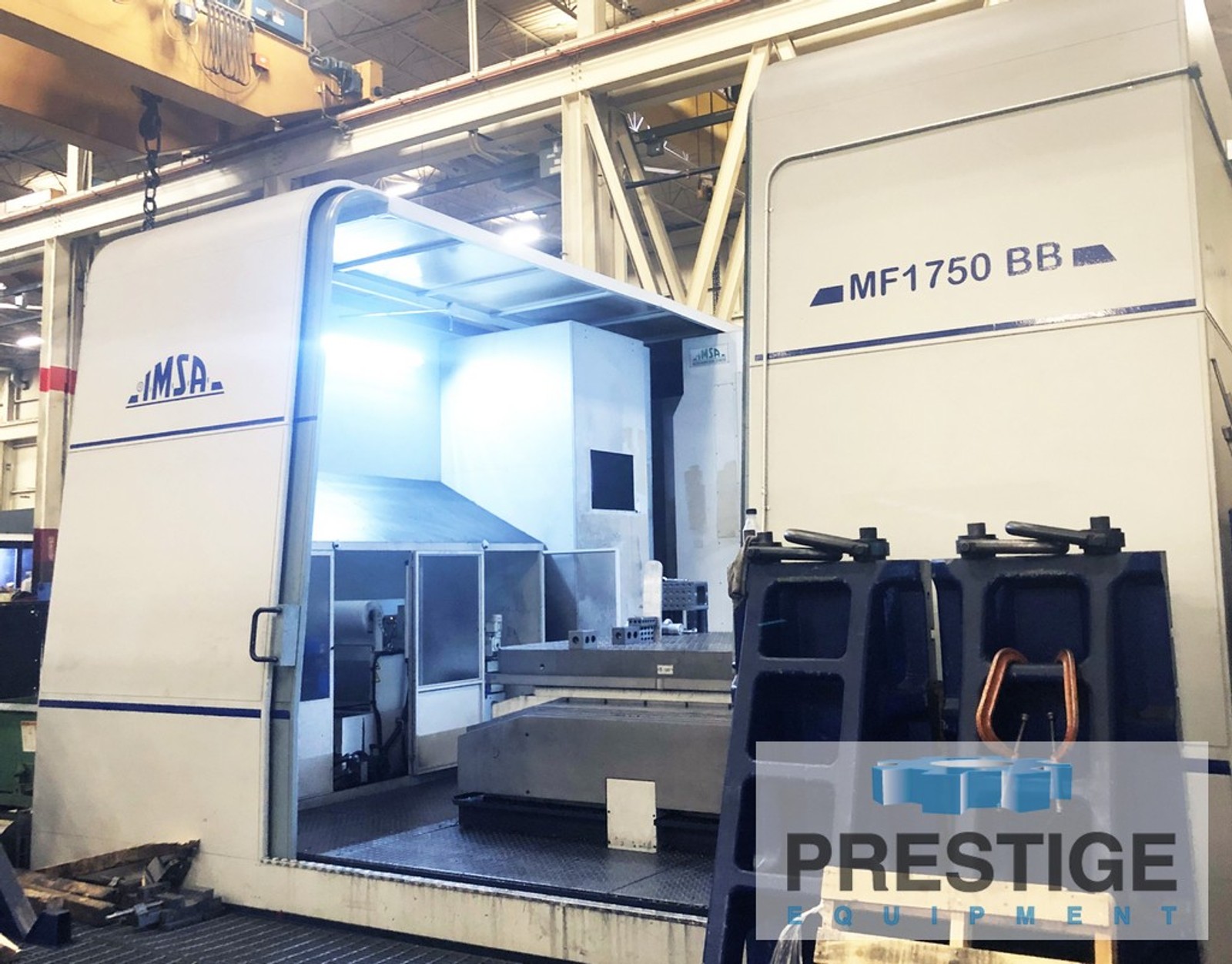

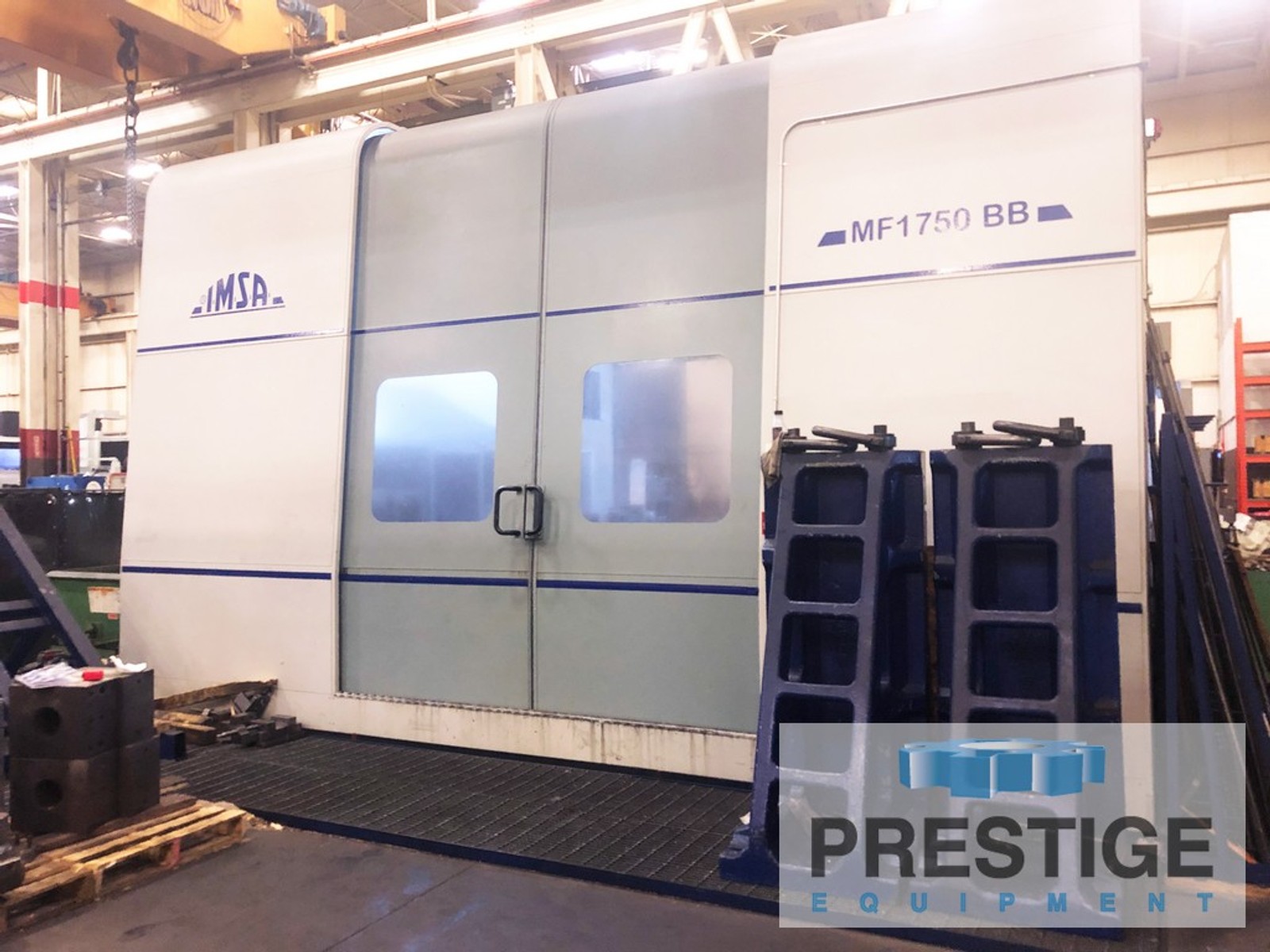

IMSA MF1750BB 5-Axis CNC Gun Drilling & Milling System

FEATURES:
2-Spindles For Gun Drilling and Milling
Gantry Style Column
RTCP For Compound Angle Machining
Installed New 2018

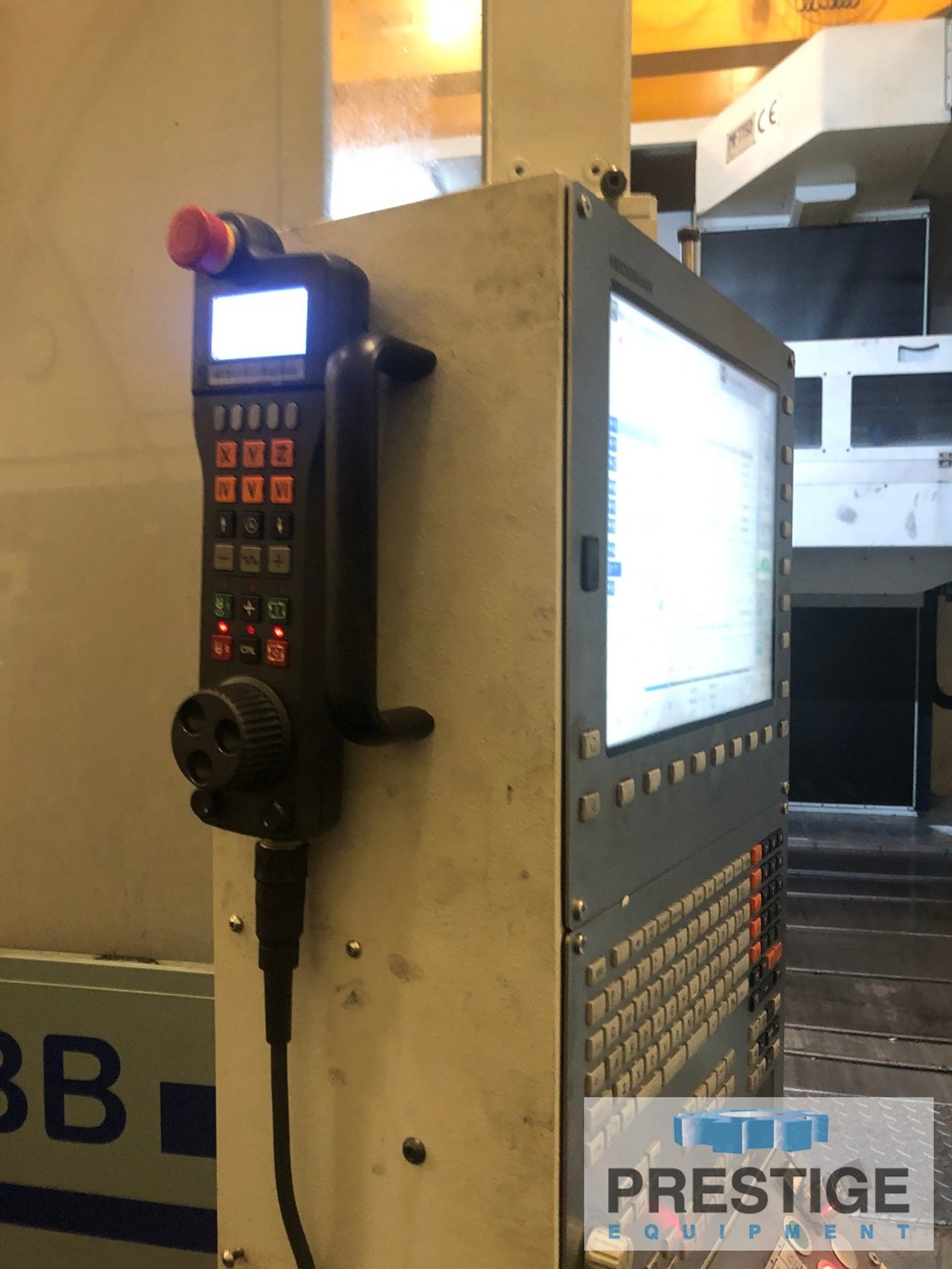

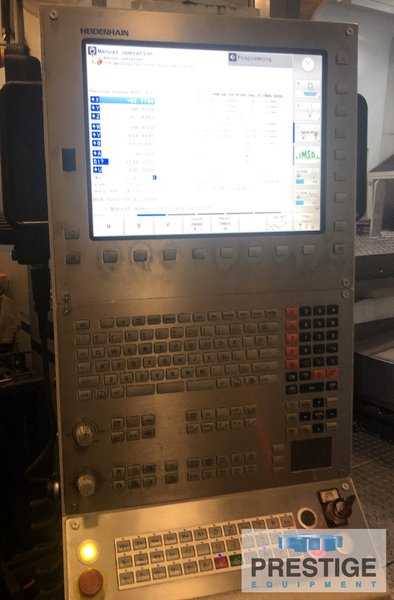

Heidenhain iTNC 640 CNC Control

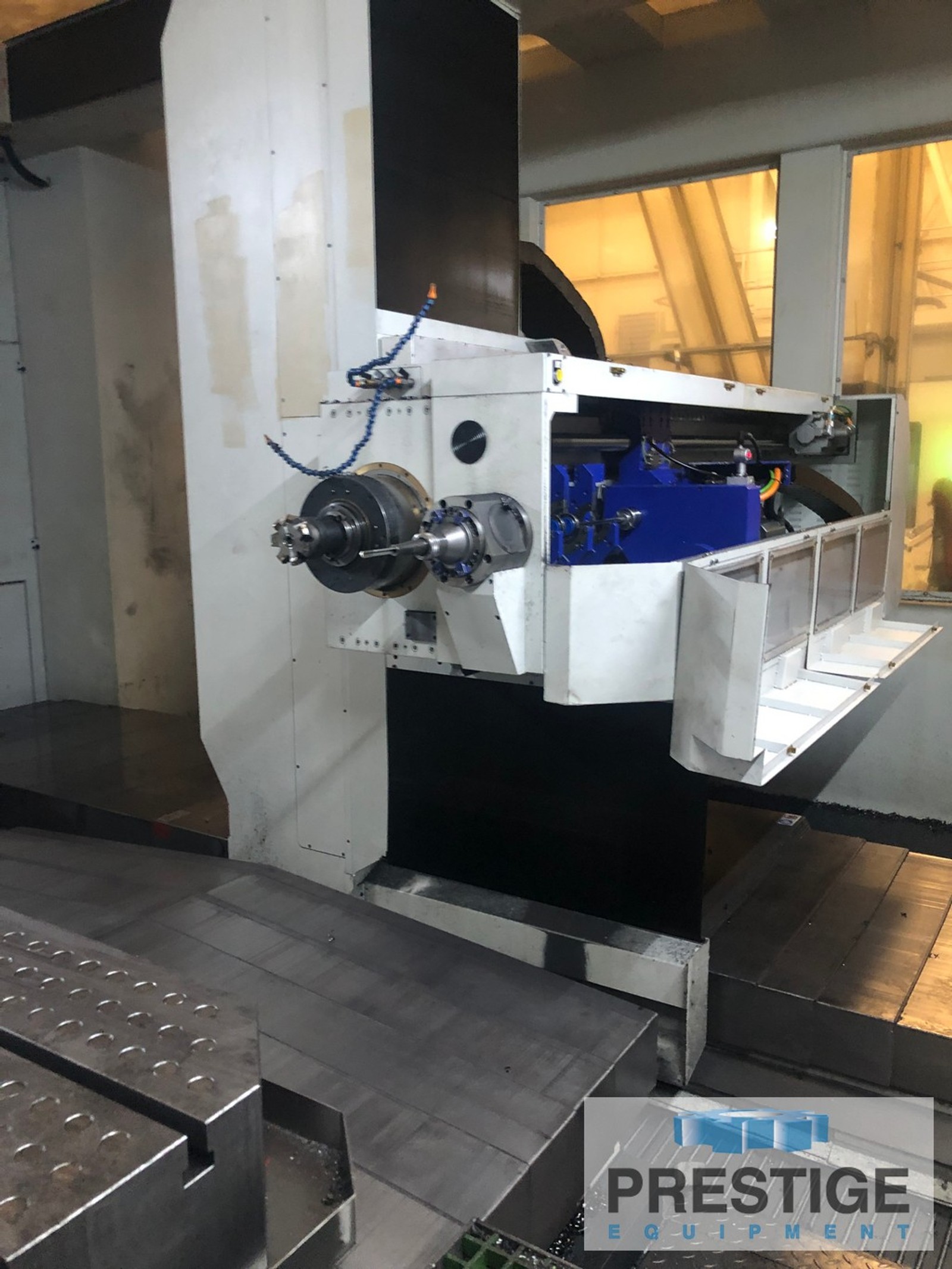

A-Axis Tilting Headstock

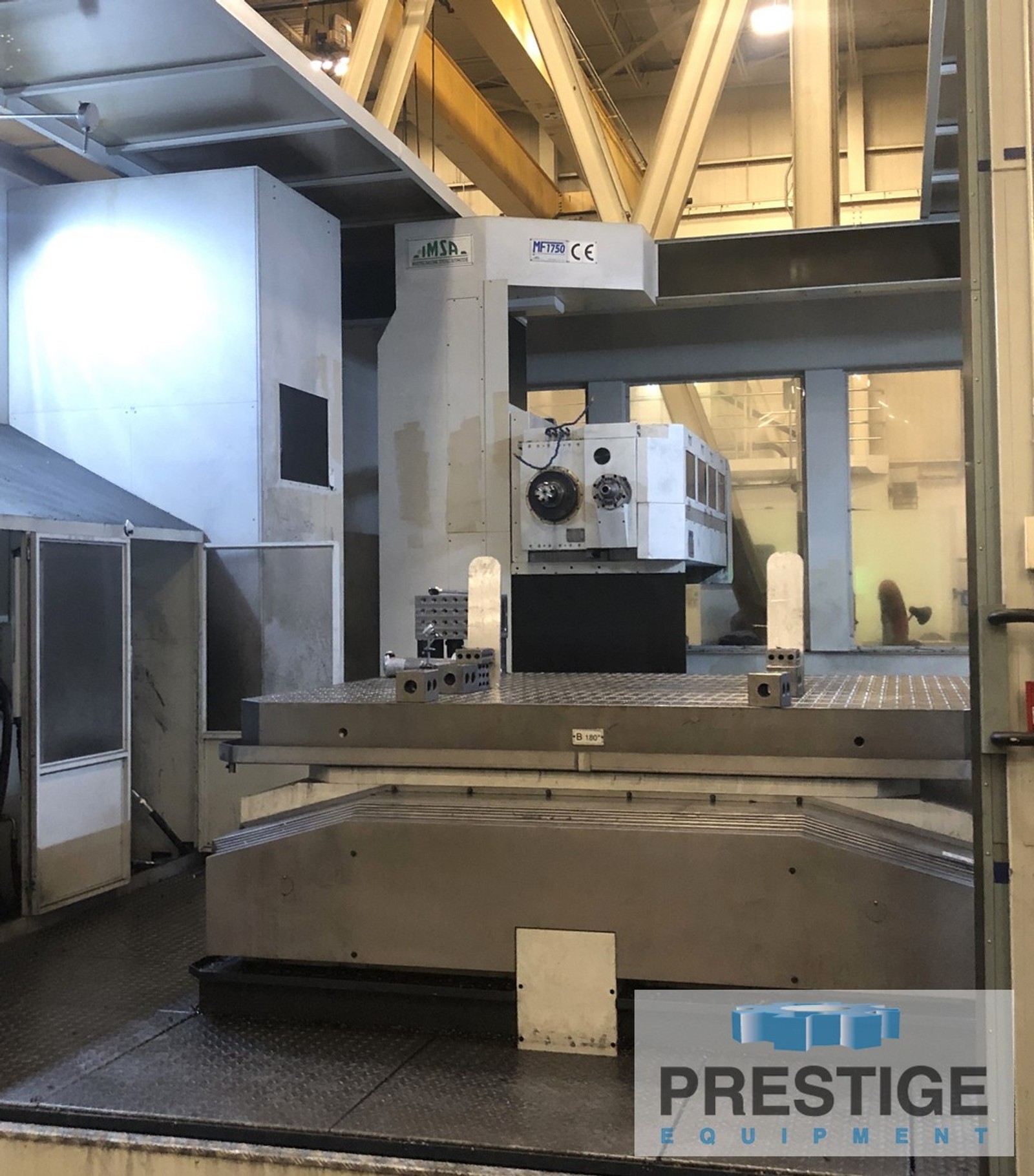

Full B-Axis Rotary Table
40-Position Automatic Tool Changer

DRILLING:
Maximum Drilling Depth ................ 68.89"
Maximum Drilling Speed ................ 1 to 4,200 RPM
Optimal Drilling Diameter, Solid ...... 0.1968" to 1.968"
Drilling Spindle Motor ................ 20 HP

MILLING:
Spindle Taper ......................... ISO 50
Milling Spindle Speed ................. 0 to 4,500 RPM
Maximum Horizontal Stroke Z+W Axes ... 43.30"
Milling Spindle Motor ................. 60 HP

TRAVELS:
V-Axis Drilling Depth ................. 68.89"
X-Axis Column Longitudinal Travel ..... 127.95"
X-Axis Offset Between Spindles......... 11.81"
X-Axis Usable Longitudinal Travel ..... 116.14"
Y-Axis Headstock Vertical Travel ...... 59.05"
W-Axis Approach Stroke Drill Slide .... 23.62"
A-Axis Head Tilt, Infinite Position ... +/- 20 Degrees
U-Axis Translation Movement of Table .. 0.03937"
B-Axis Table Rotation ................. 360,000 Position

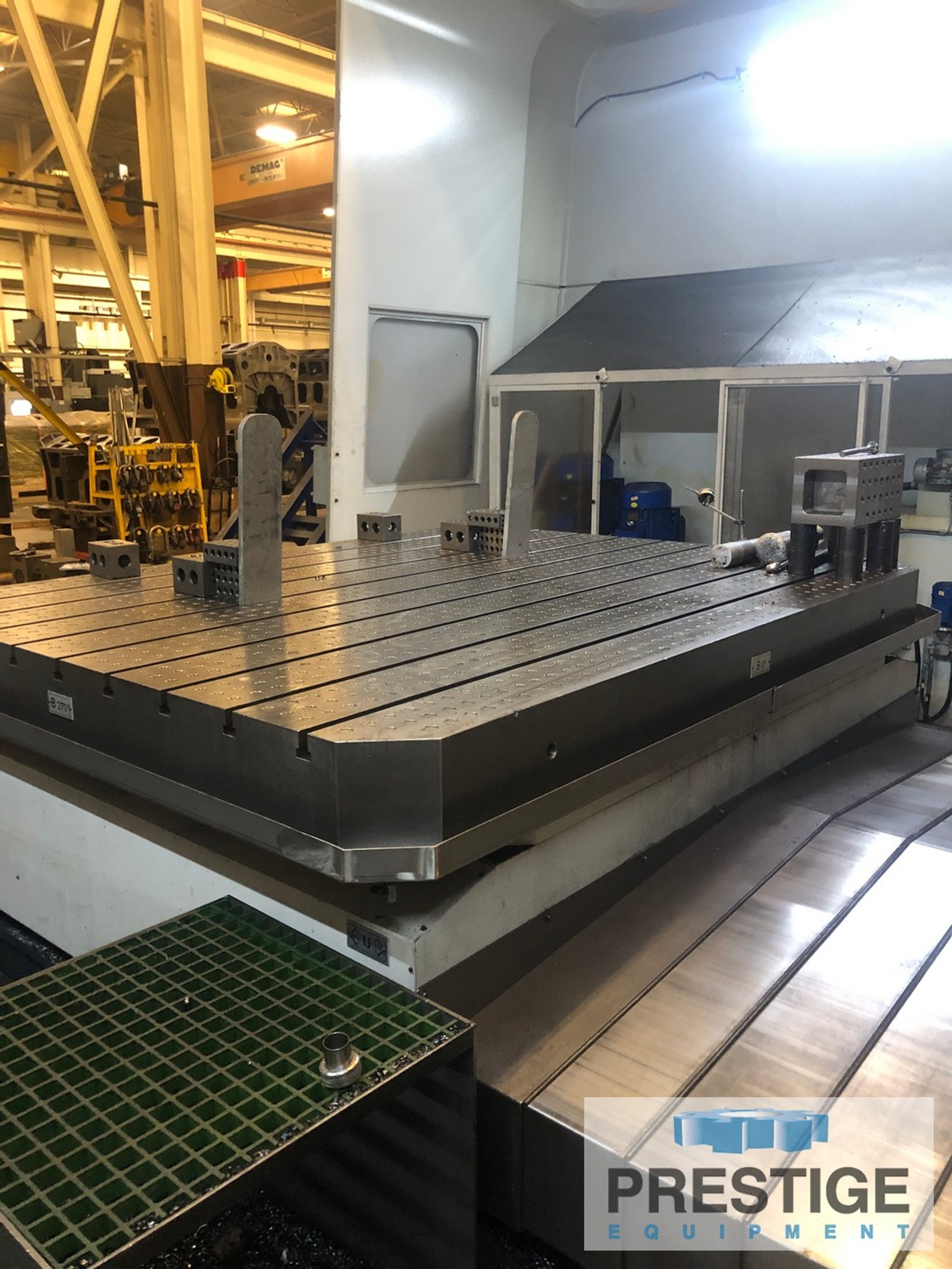

ROTARY TABLE:
Table Dimensions ...................... 78.74" x 98.4"
B-Axis Feed Rate, Maximum ............. 0.31496" IPM
Table Weight Capacity ................. 66,000 Lbs.
Maximum Part Size Inside Enclosure .... 118.11" x 118.11"
U-Axis Table Translation .............. 0.03937"
Locking Mechanism ..................... Hydraulic
CNC Measuring ......................... Rotary Scale

MACHINE WEIGHT:
Total Machine Weight .................. 185,000 Lbs.

EQUIPPED WITH:

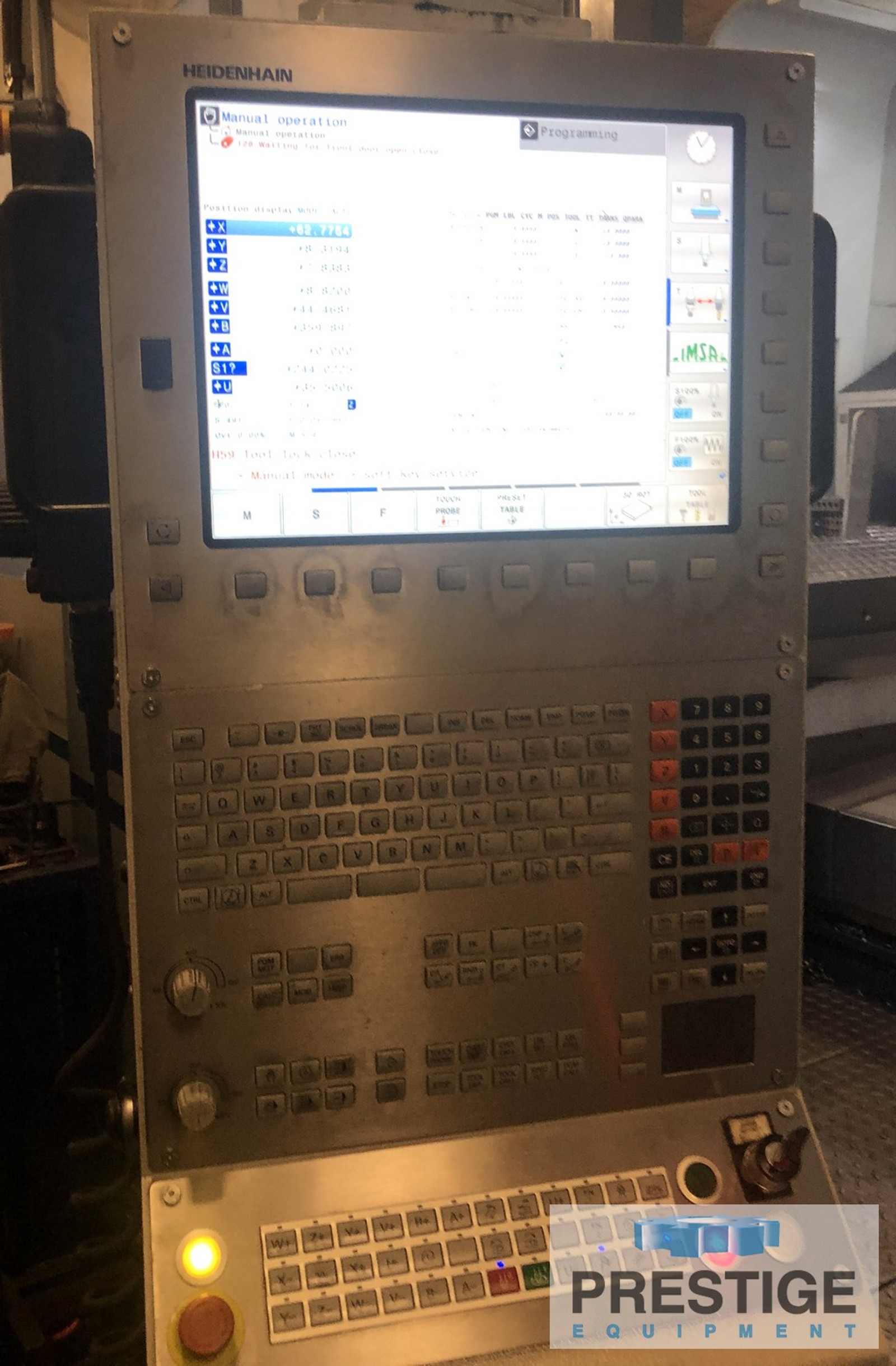

Heidenhain iTNC 640 CNC Control
Full Enclosure
Built In B-Axis Rotary Table
A-Axis Tilting Head
40-Position Automatic Tool Changer For Milling Spindle

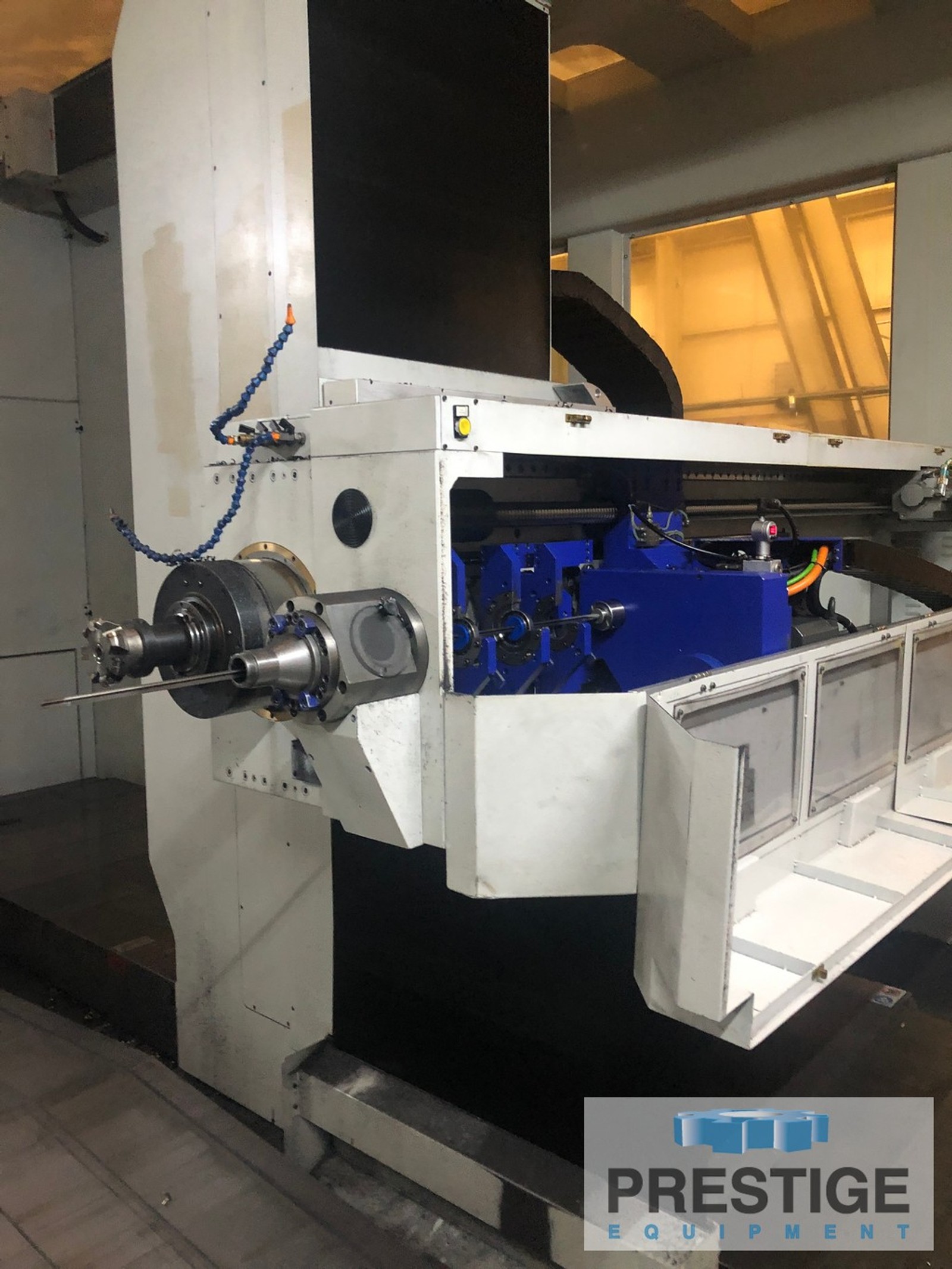

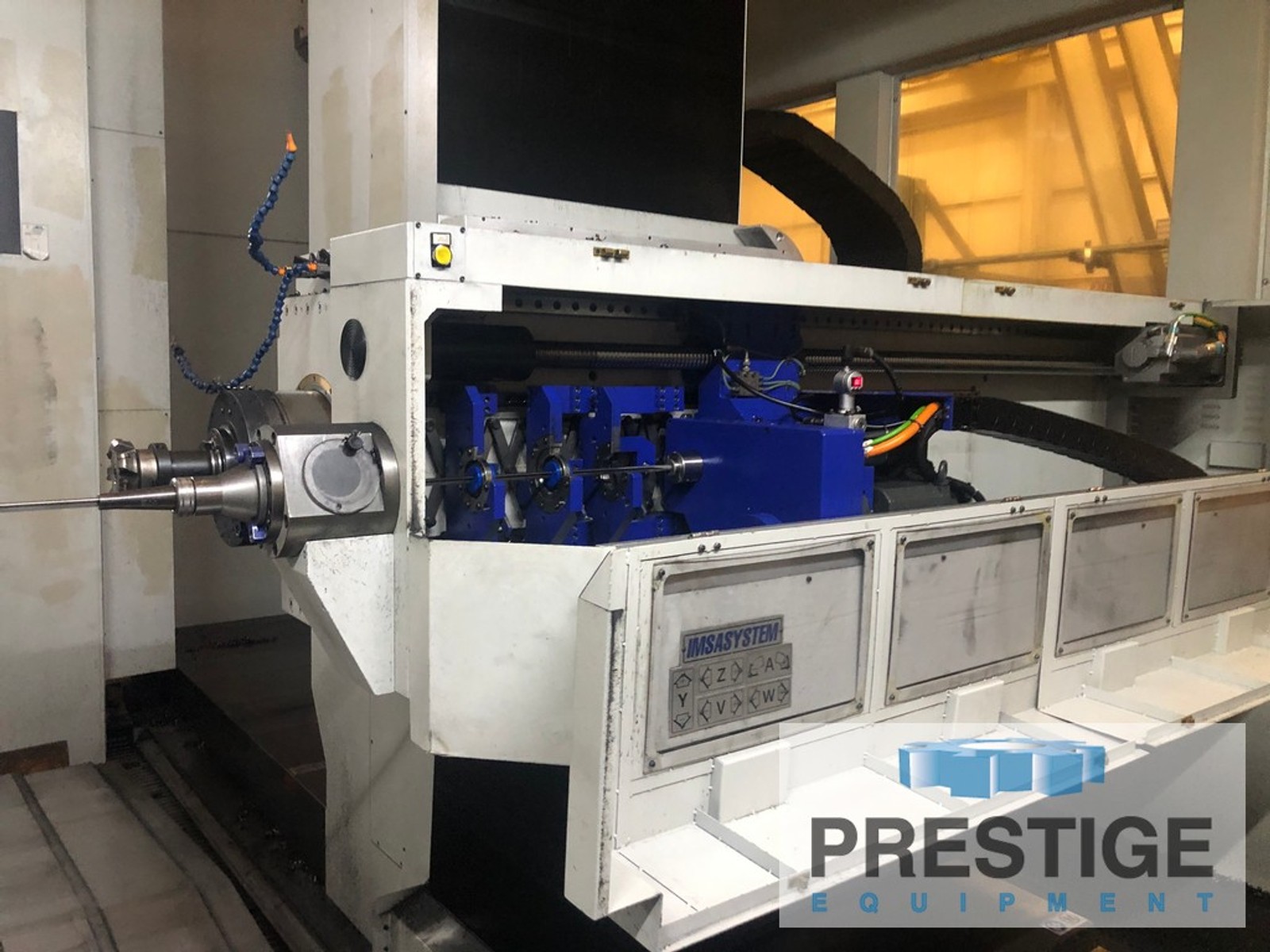

Drill Guide with 3-Steady Rests
Angle Plates
Assorted Drills
Thru Spindle Oil Coolant System, 120 Bar
Paper Filtration With Magnetic Separator
Chiller

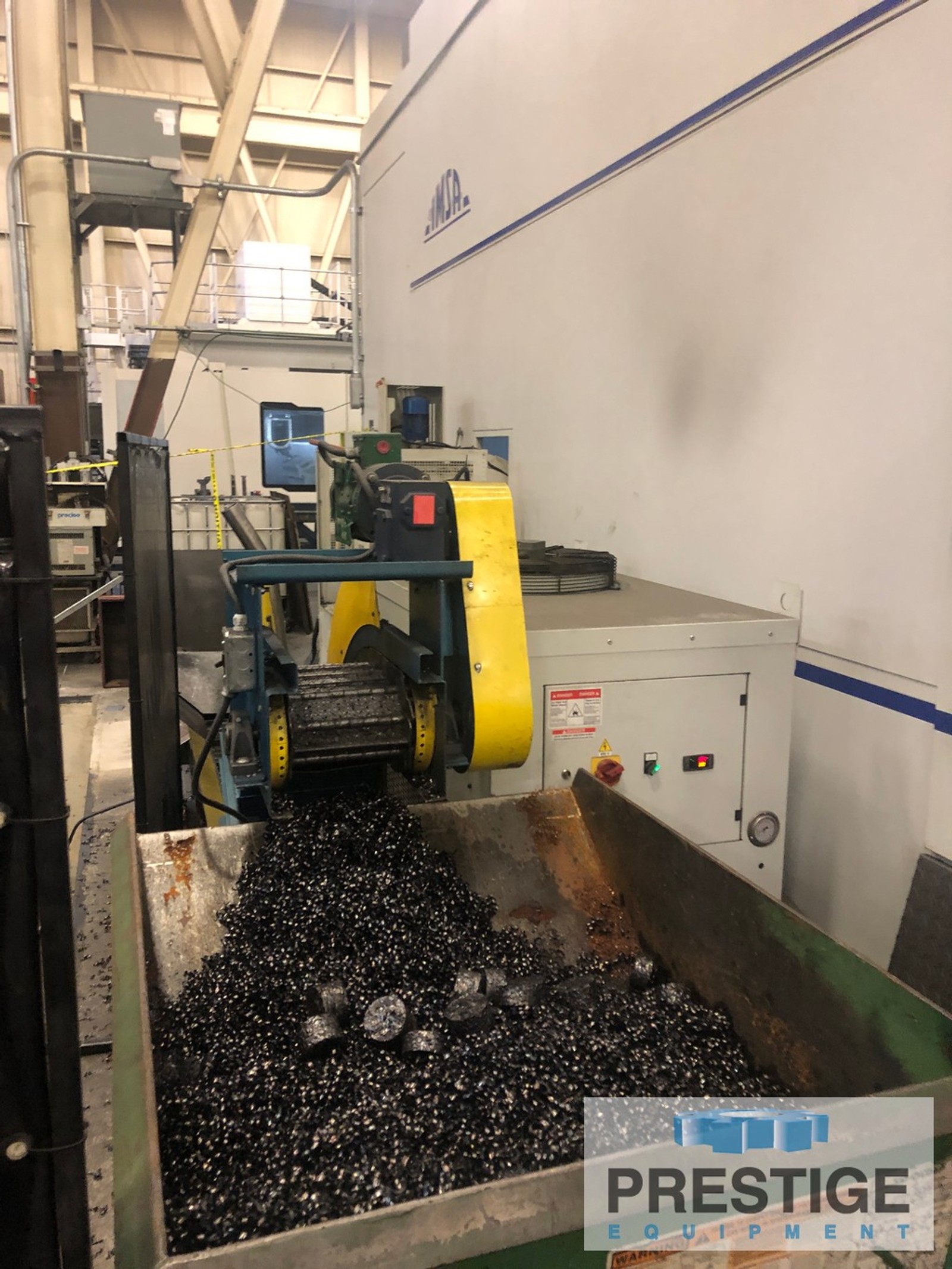

Chip Conveyor
Full Enclosure

NOTE:
Installed 2018
Inspect in Plant Under Power

No Video Available
