75 ton Minster Press Model #7SS - Used OBS Geared Mechanical Metal Stamping Press For Sale, Year

Stock

2878

Model

#7-SS OBS Geared Press

Dealer Location

Michigan

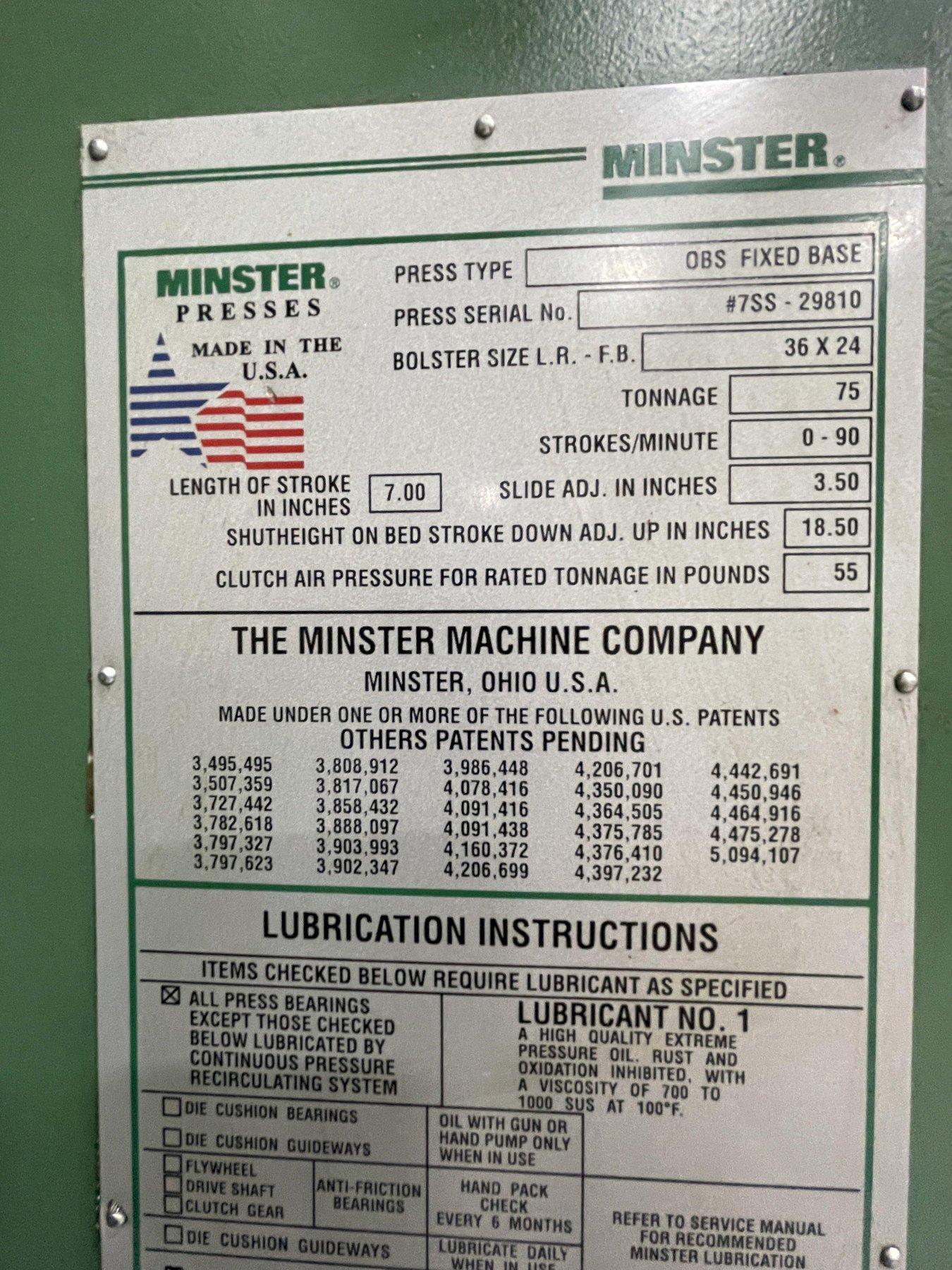

Spec Sheet

Tonnage - 75
Stroke - 7 inches
Shut Height - 18.5 inches
Adjustment - 3.5 inches
Bed Size - 36" LR x 24" FB
Ram Area - 21" LR x 17" FB
SPM - 0-90


Standard Specifications

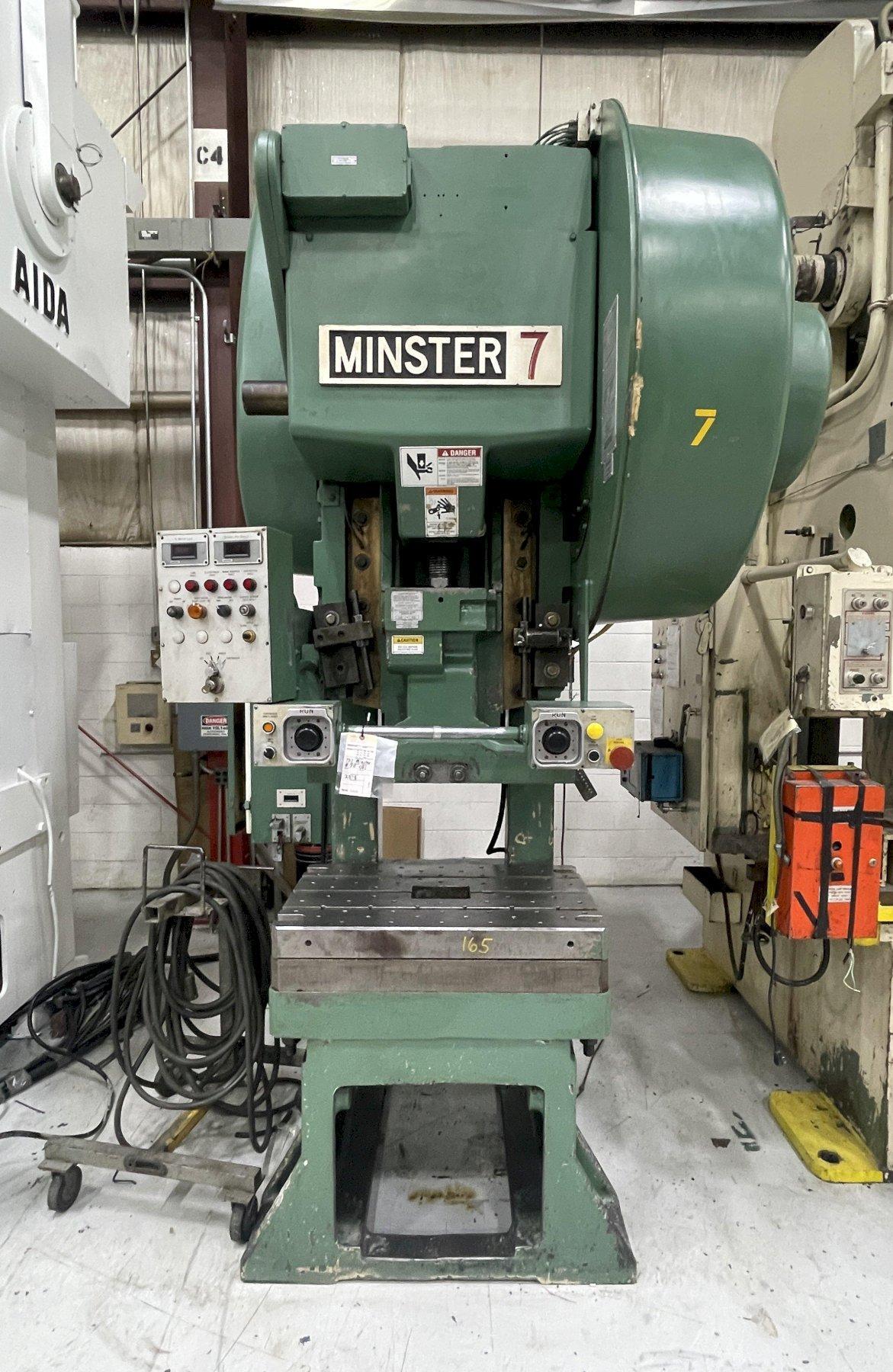

75 ton Minster Gap Press
Model#7-SS - sn/ 29810
YEAR 2000 - Like New!
75 ton Capacity
7" Stroke
18.5" Shut Height
3.5" Adjustment
36" LR x 24" FB Bed
21" LR x 17" FB Slide Area
45-90 VSPM

Equipment and Features
Air Clutch and Brake
Recirculating Lube System

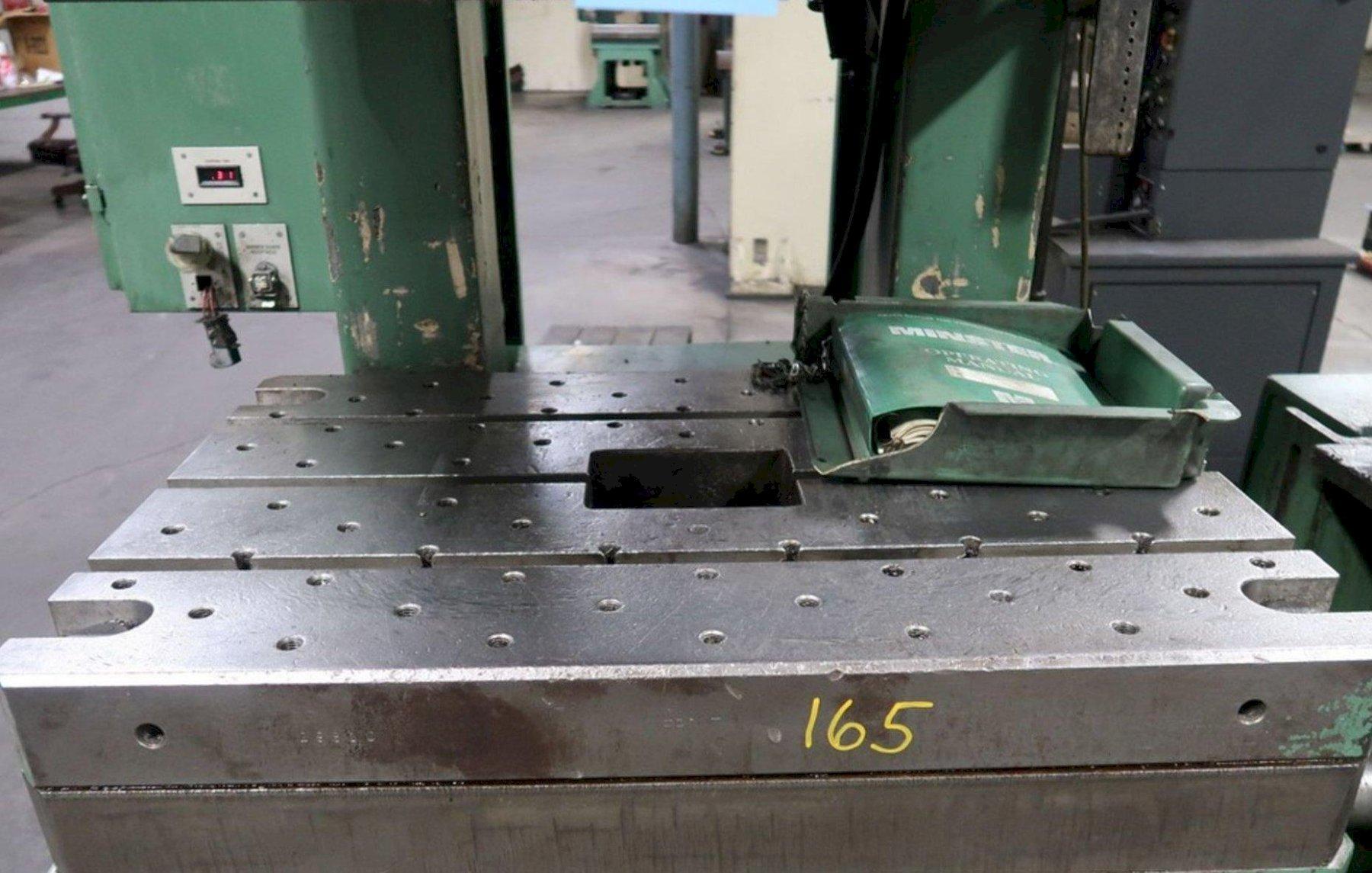

3.5" Thick Additional Riser on Bed  (Can be Removed to make Shut Height 22")
Motors and Controls
Eddy Current Drive
15 HP - 1800 RPM

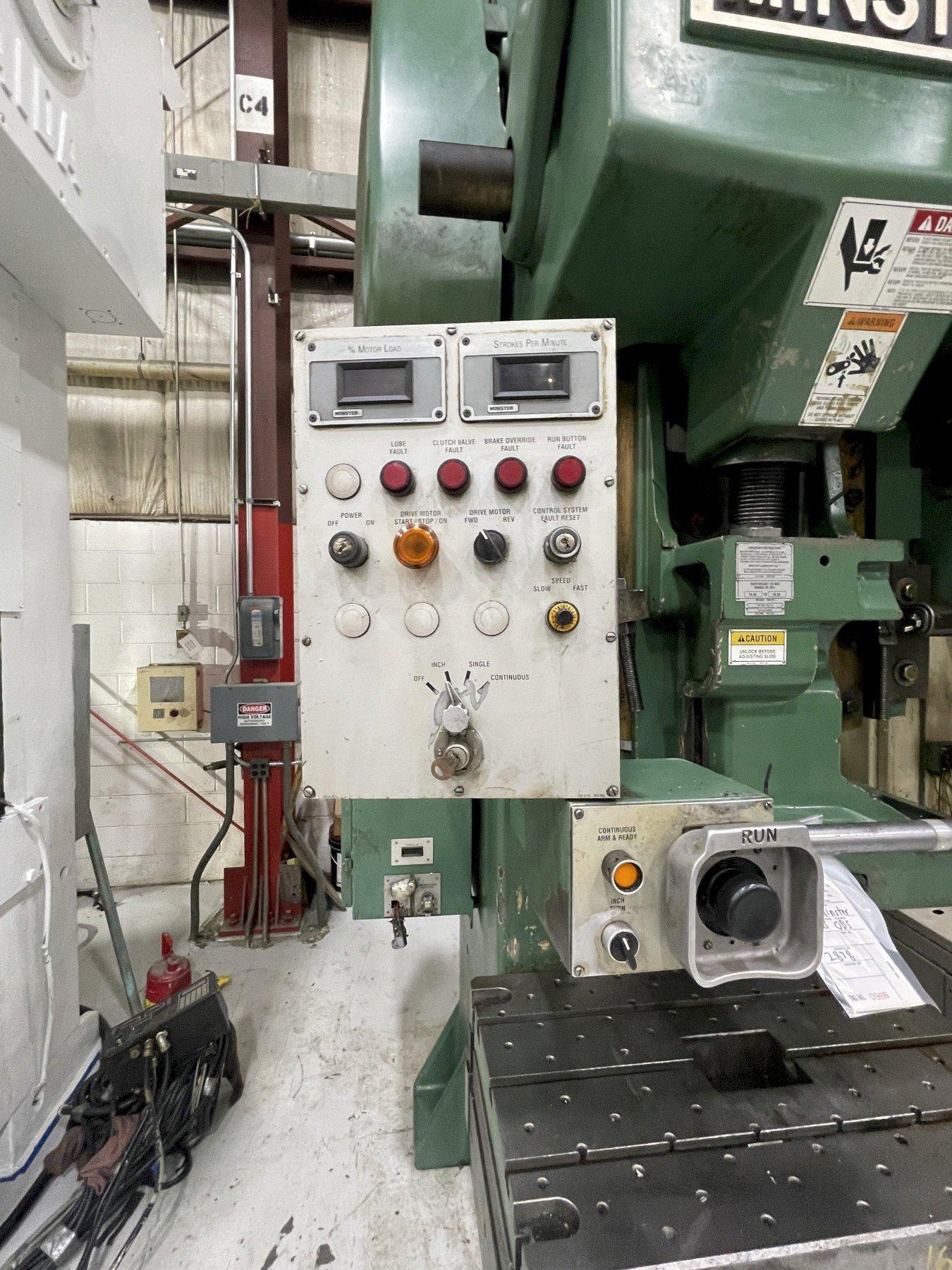

Minster Press Controls
Single Inch and Continuous
Flywheel Brake
Palm Button
OBS Fixed Base
T-Stand Palm Buttons

Press Weight: 23,100 lbs.

See attached PDF File For General Assembly Drawing

This Used 75-ton Minster OBS Mechanical Metal Stamping Press can be seen under power upon request in the S&G Press Livonia MI warehouse!

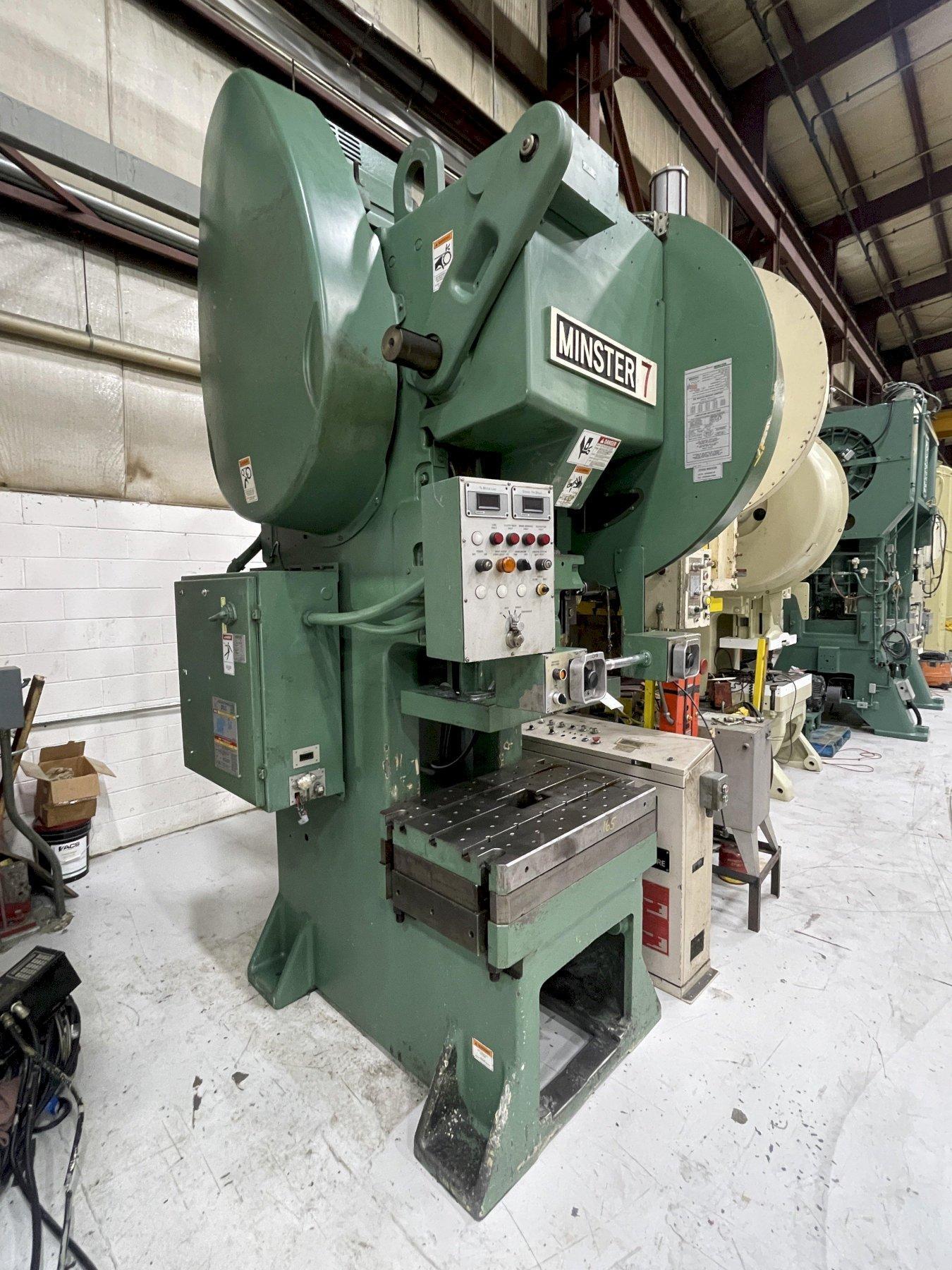

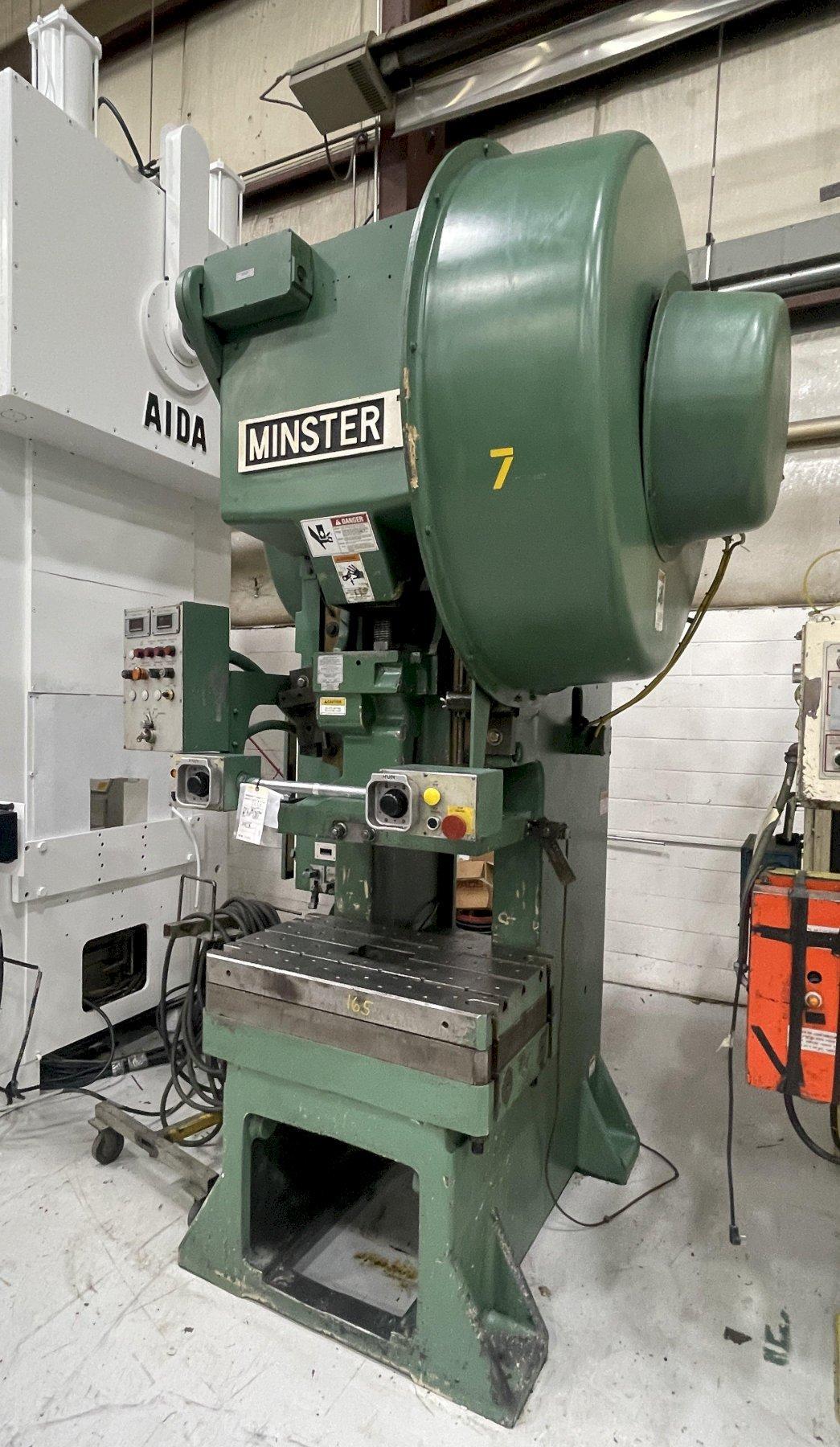

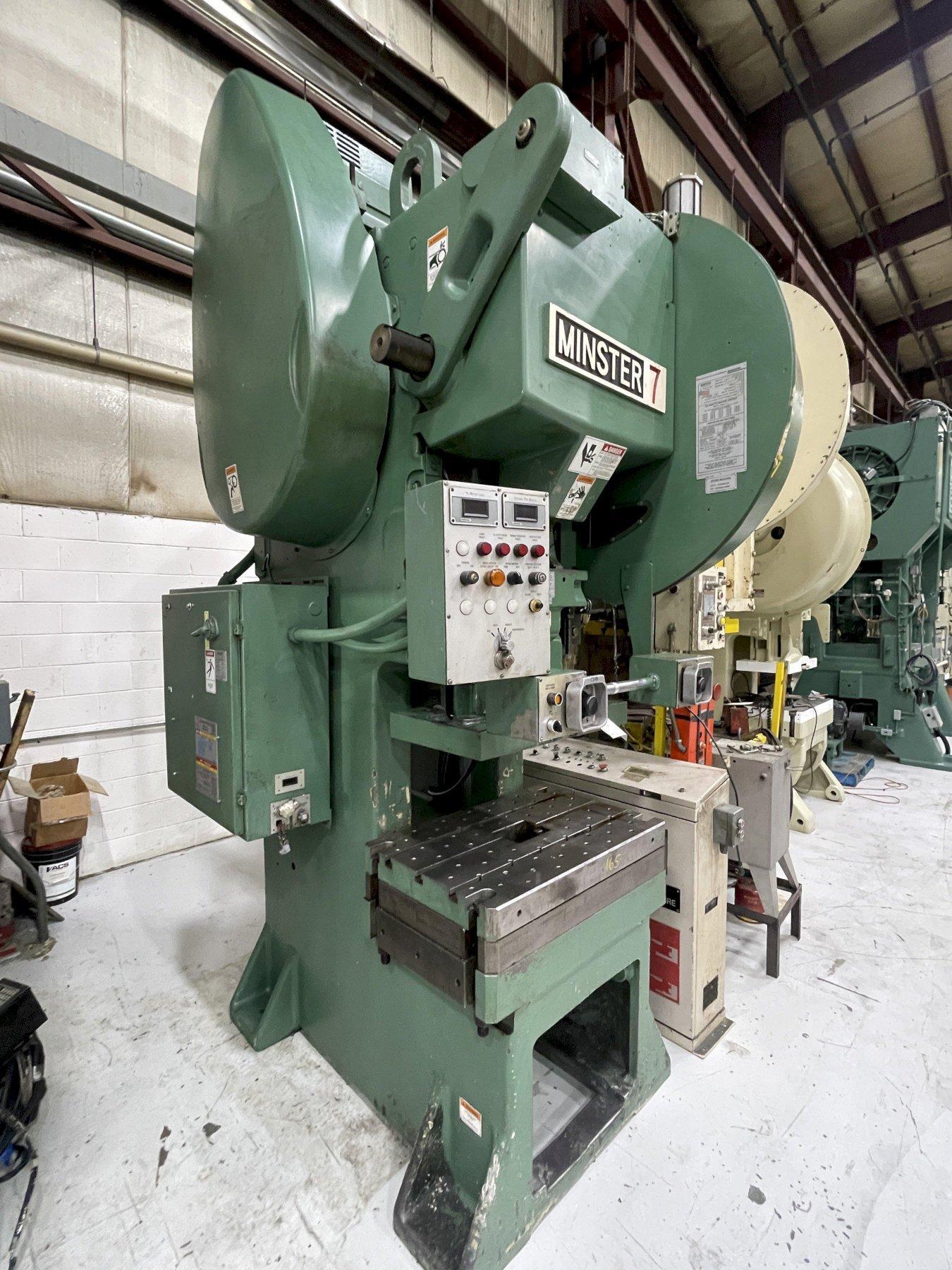

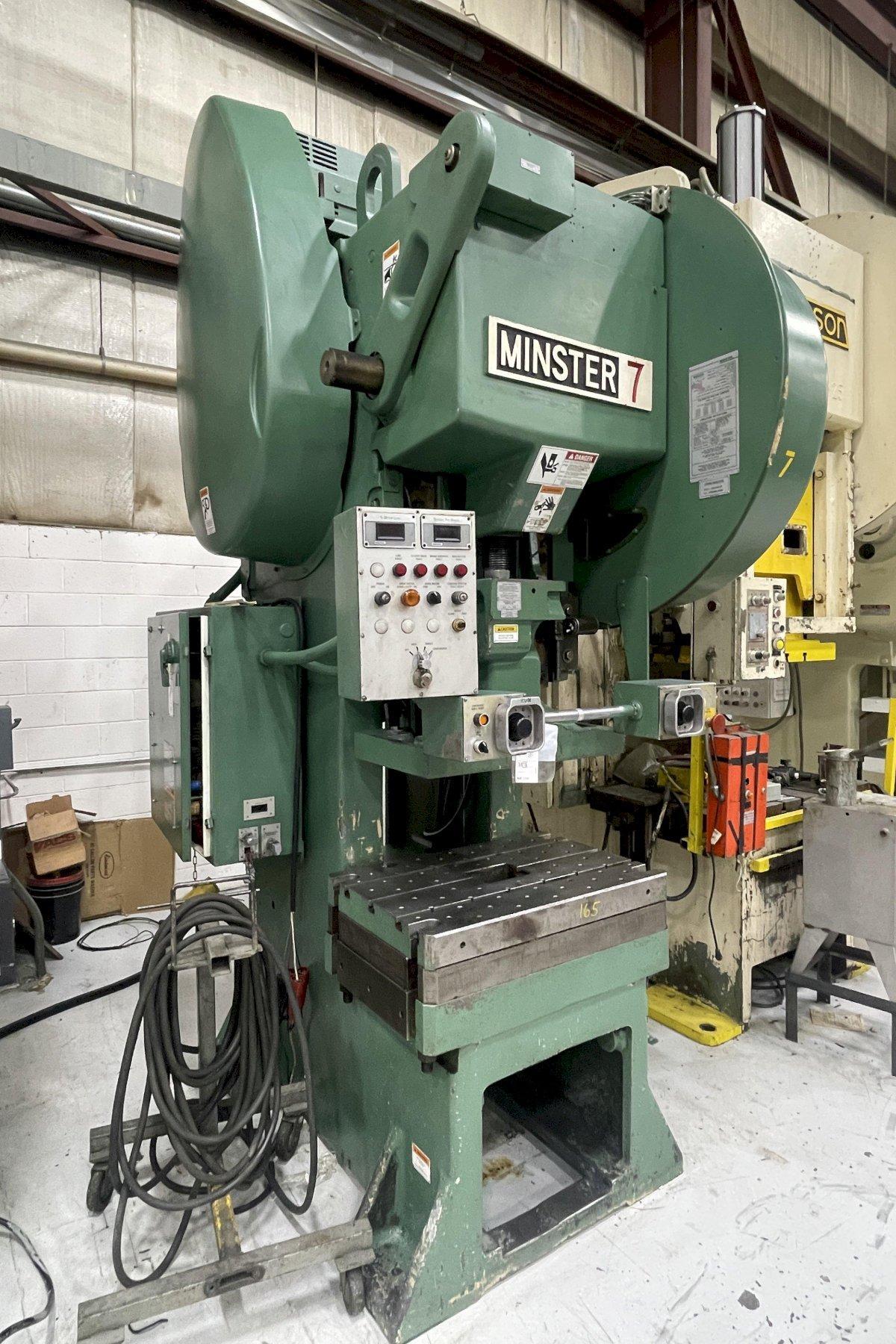

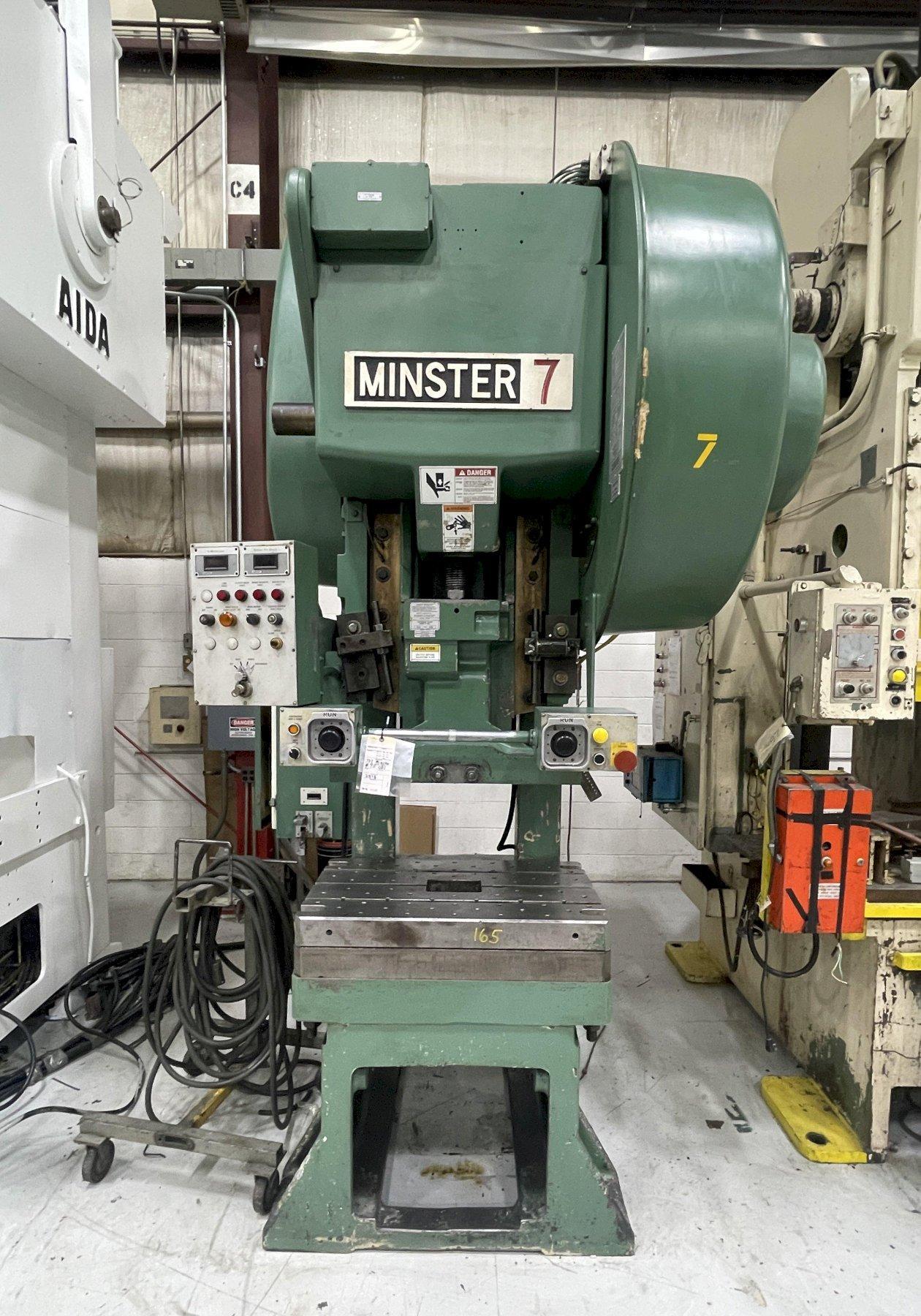

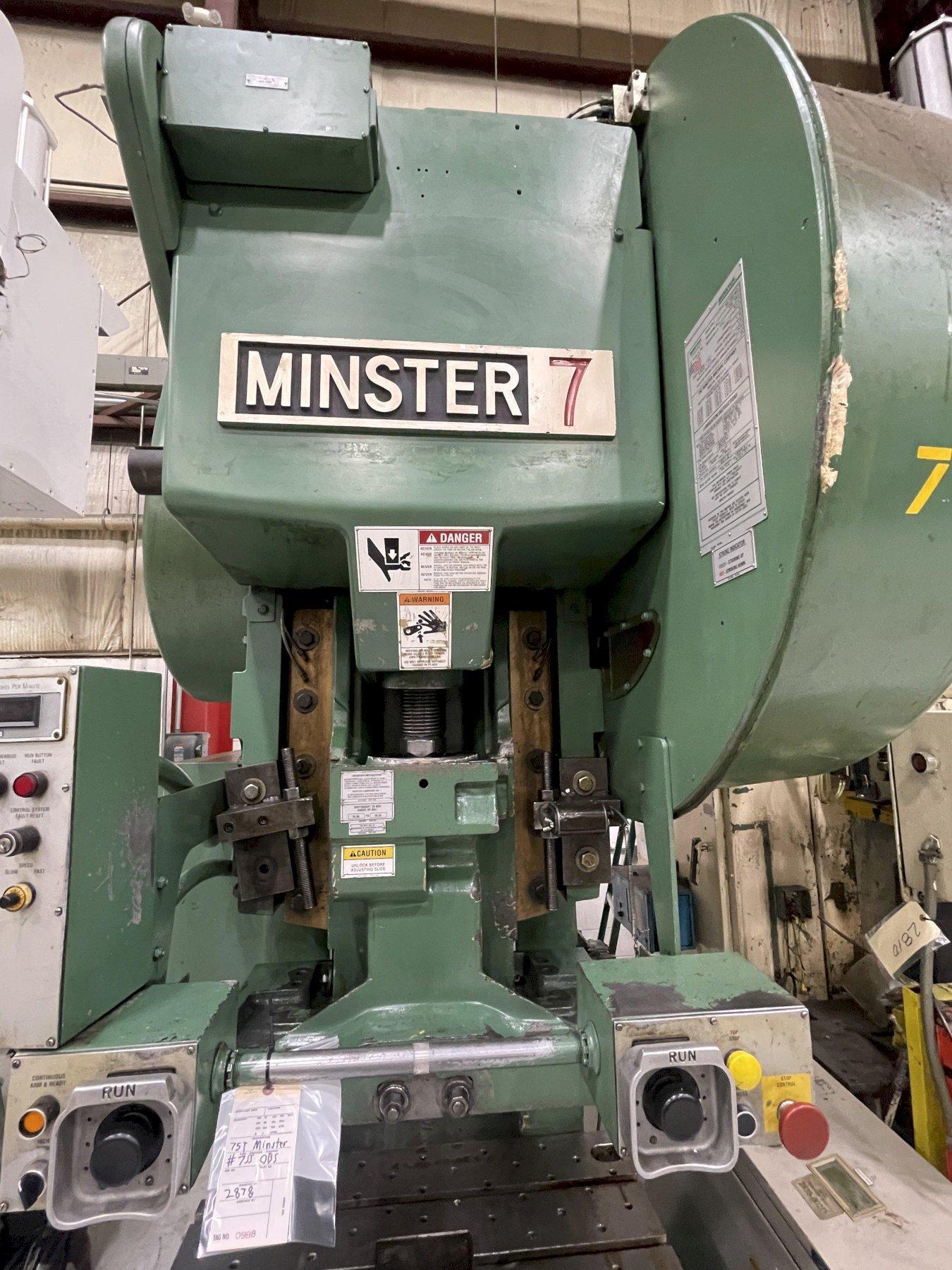

Minster 75 ton Capacity Mechanical Geared Single Crank Gap Press For Sale!
