10,000 lbs. x 26" Minster "Conventional" Servo Coil Feed Line, Year 1995

Manufacturer

MINSTER

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2877

Model

MEF-526 / MS-20-26-7 / MR10-26S

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 10000 pounds
Coil Width - 26 inches
Coil Thickness - .090 inches


Standard Specifications
Minster "Conventional" Servo Coil Feed Line
10,000 lbs. Maximum Coil Capacity
26" Maximum Coil Width
Stock Thickness Capacities:
.090" @ 26" Maximum Thickness at Full Width
.180" @ 5" Maximum Coil Thickness

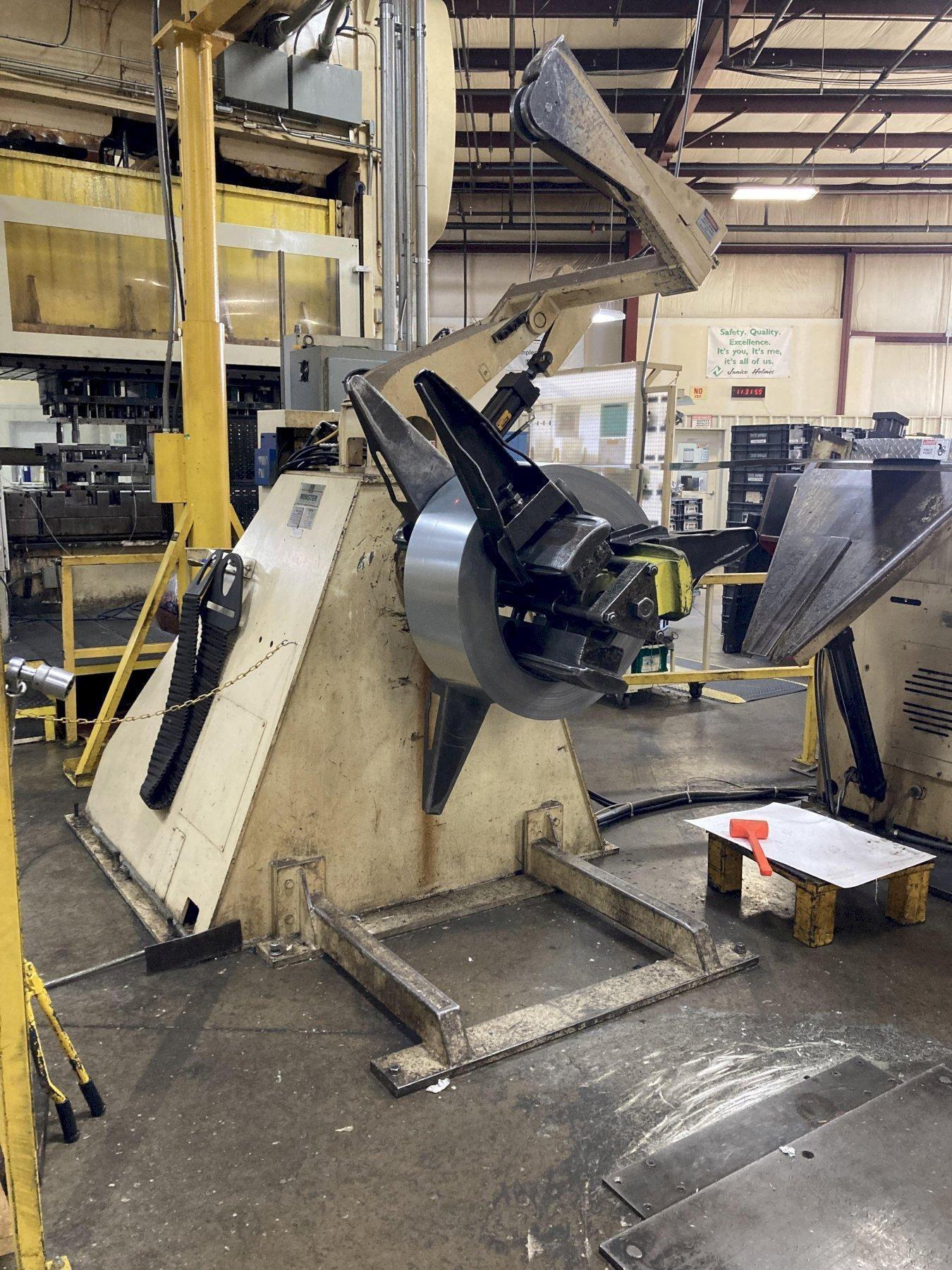

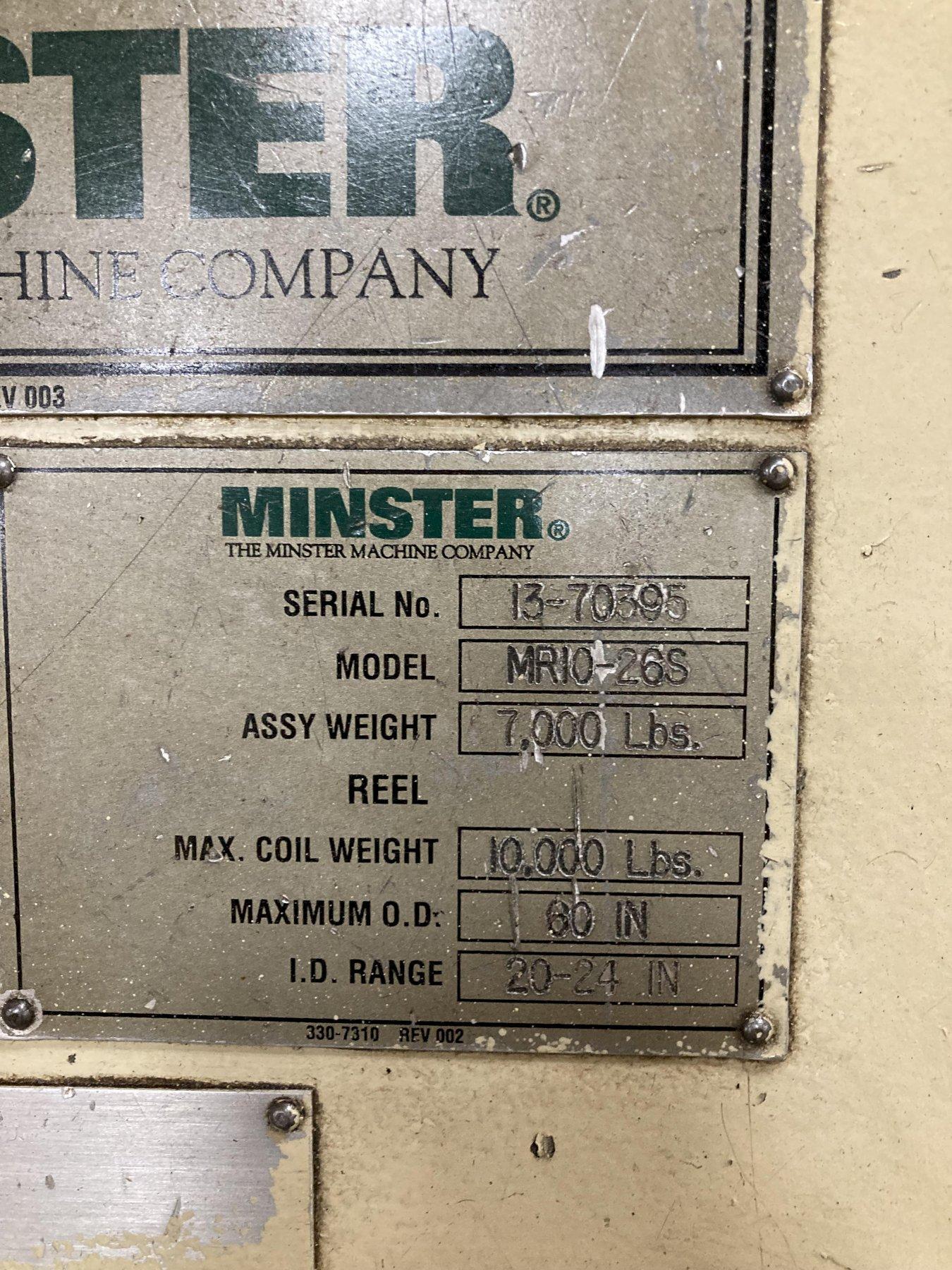

MINSTER Coil Reel Model No. MR10-26S
Three leaf mandrel
Hydraulic mandrel expansion
Air brake (adjustable tensioning)
Fail-safe brake during power off / loss
Jog drive for threading
Coil hold down arm with driven end wheel

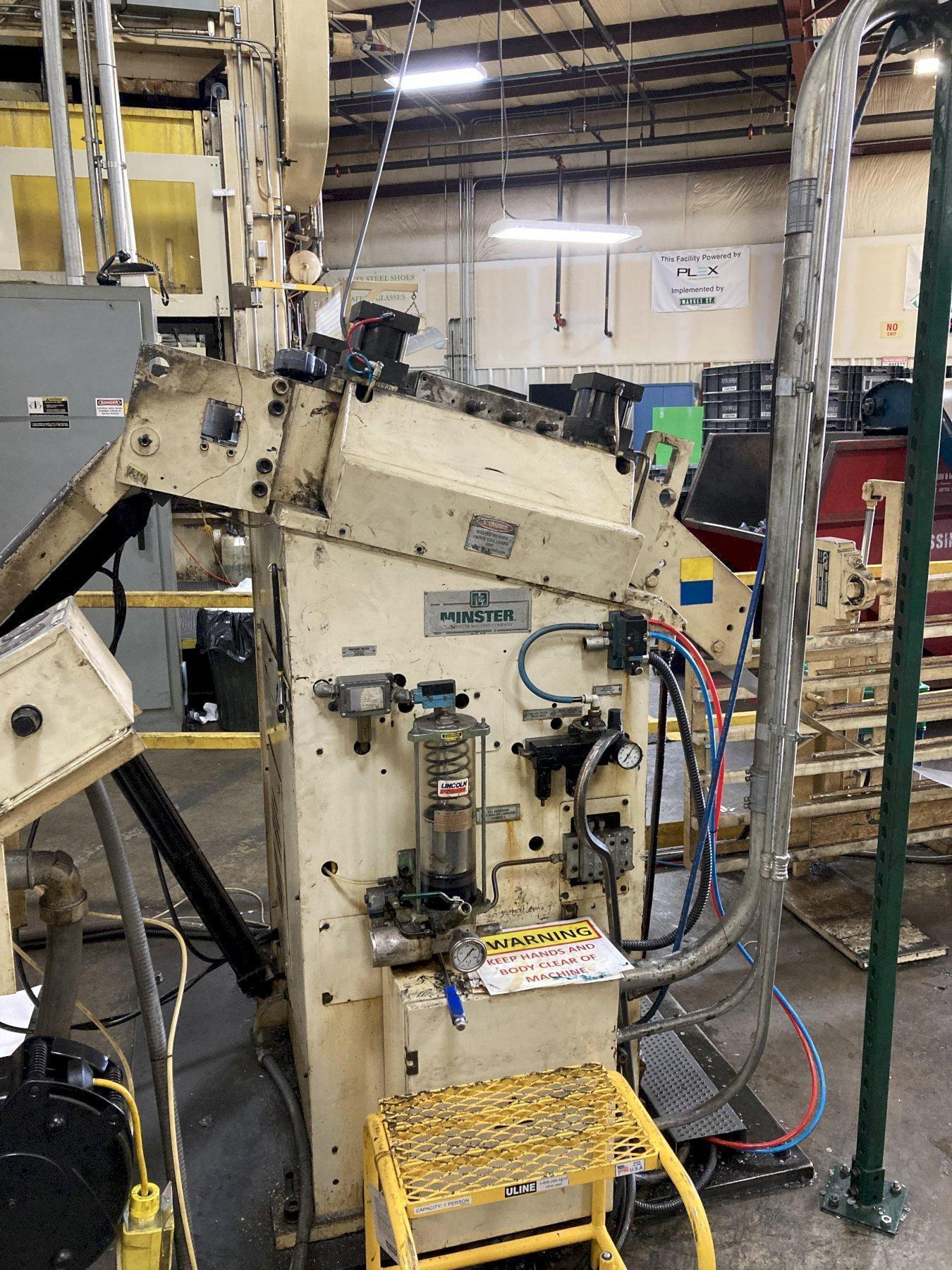

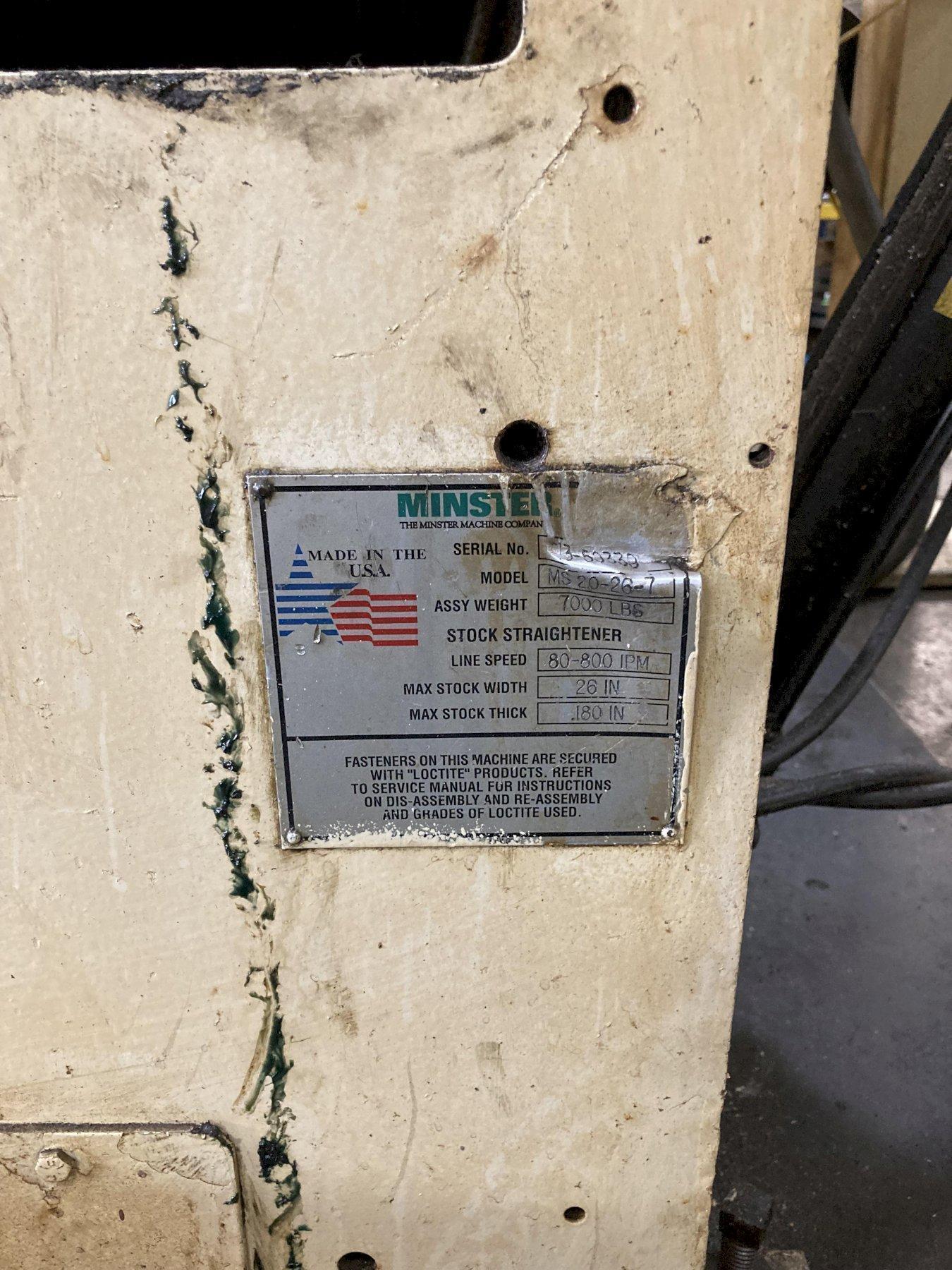

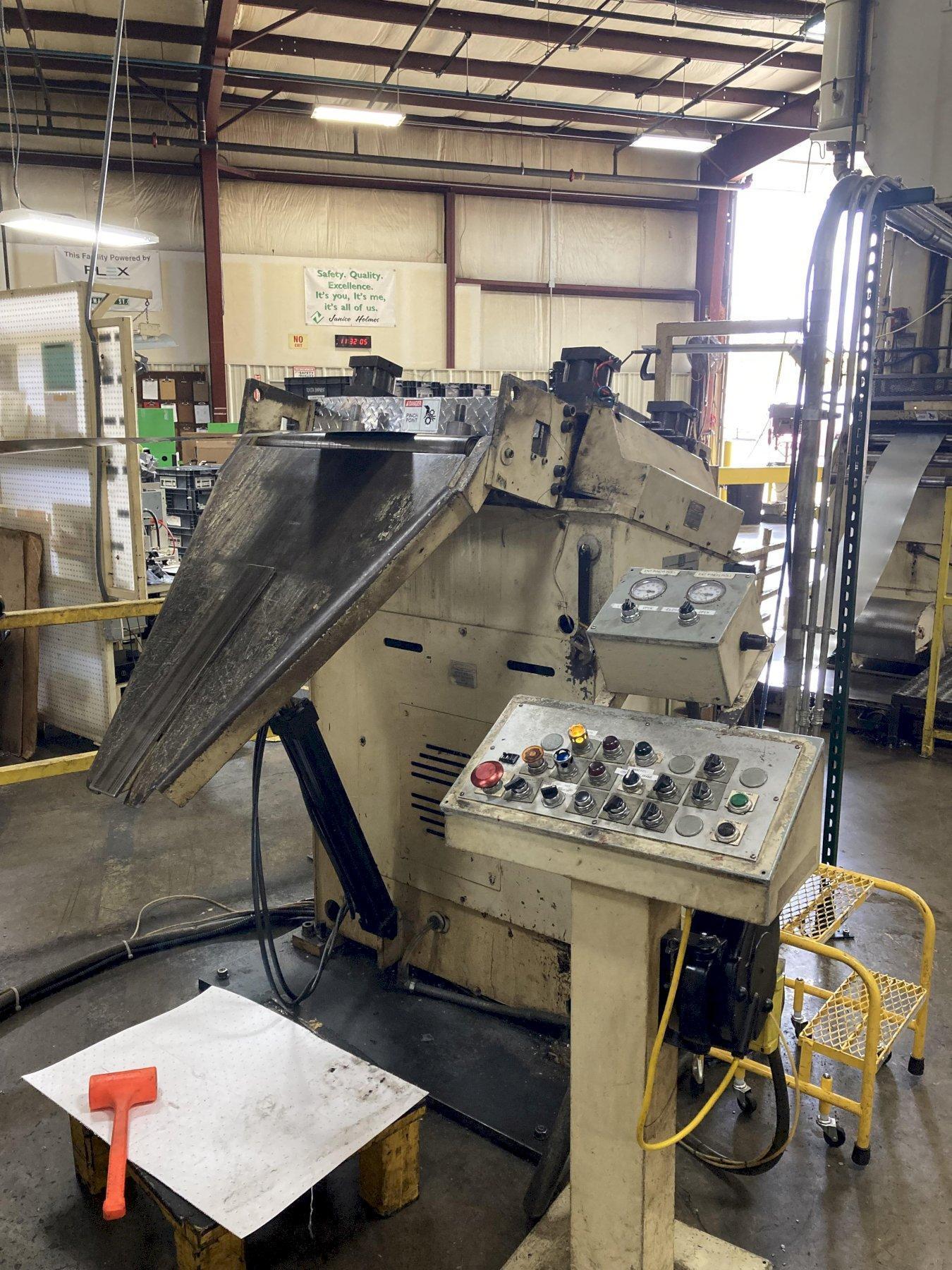

MINSTER Powered Coil Straightener Model No. MS-20-26-7
Seven straightening rolls
Individual upper straightening roll adjustments
Individual upper roll adjustments
Pinch rolls with air operated adjustments
Stock peeler table
Adjustable stock width edge guides

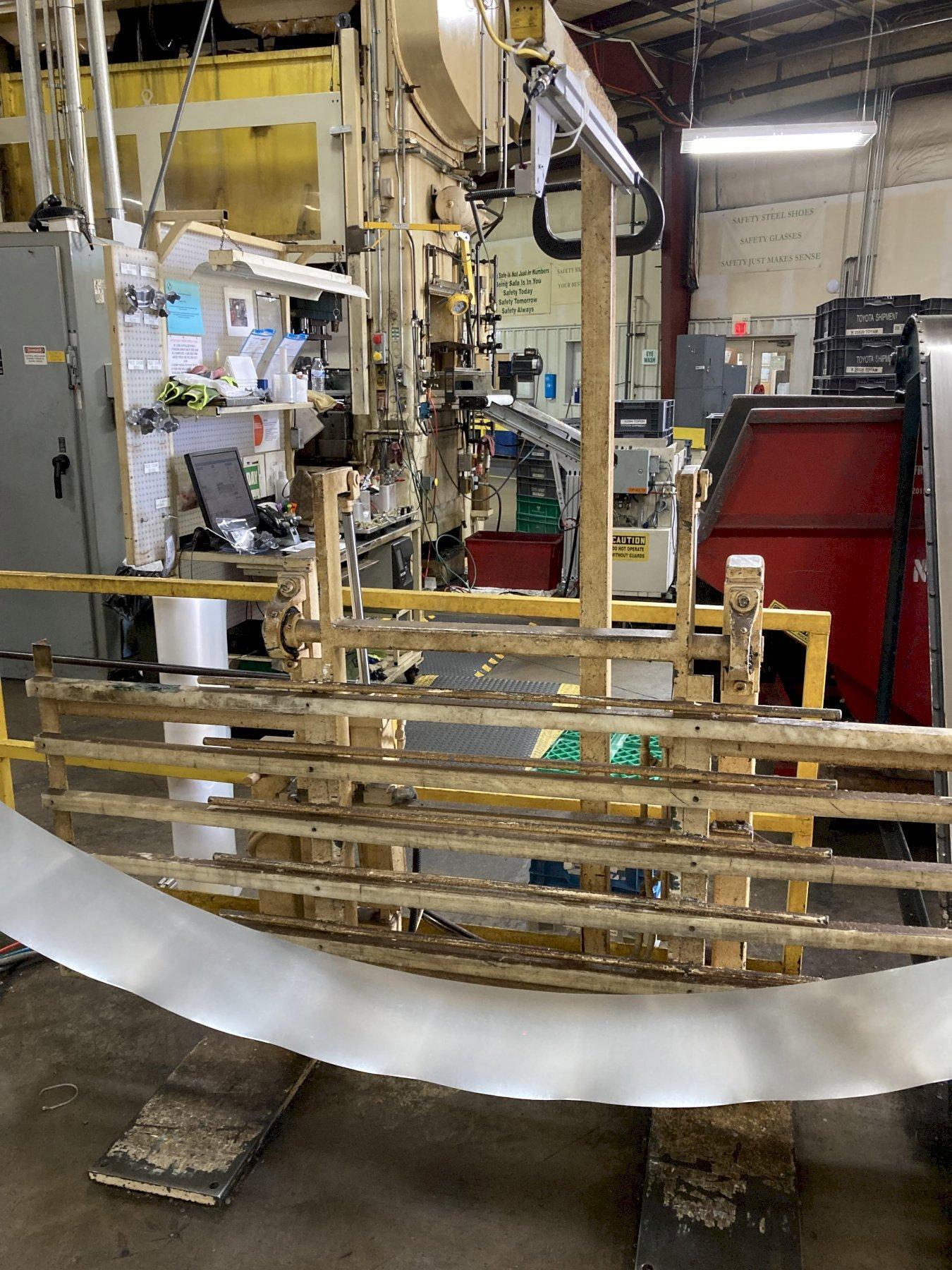

Exit cascade loop support rollers
Variable speed drive
Auto / run loop control
Operator's stations
Jog forward and reverse

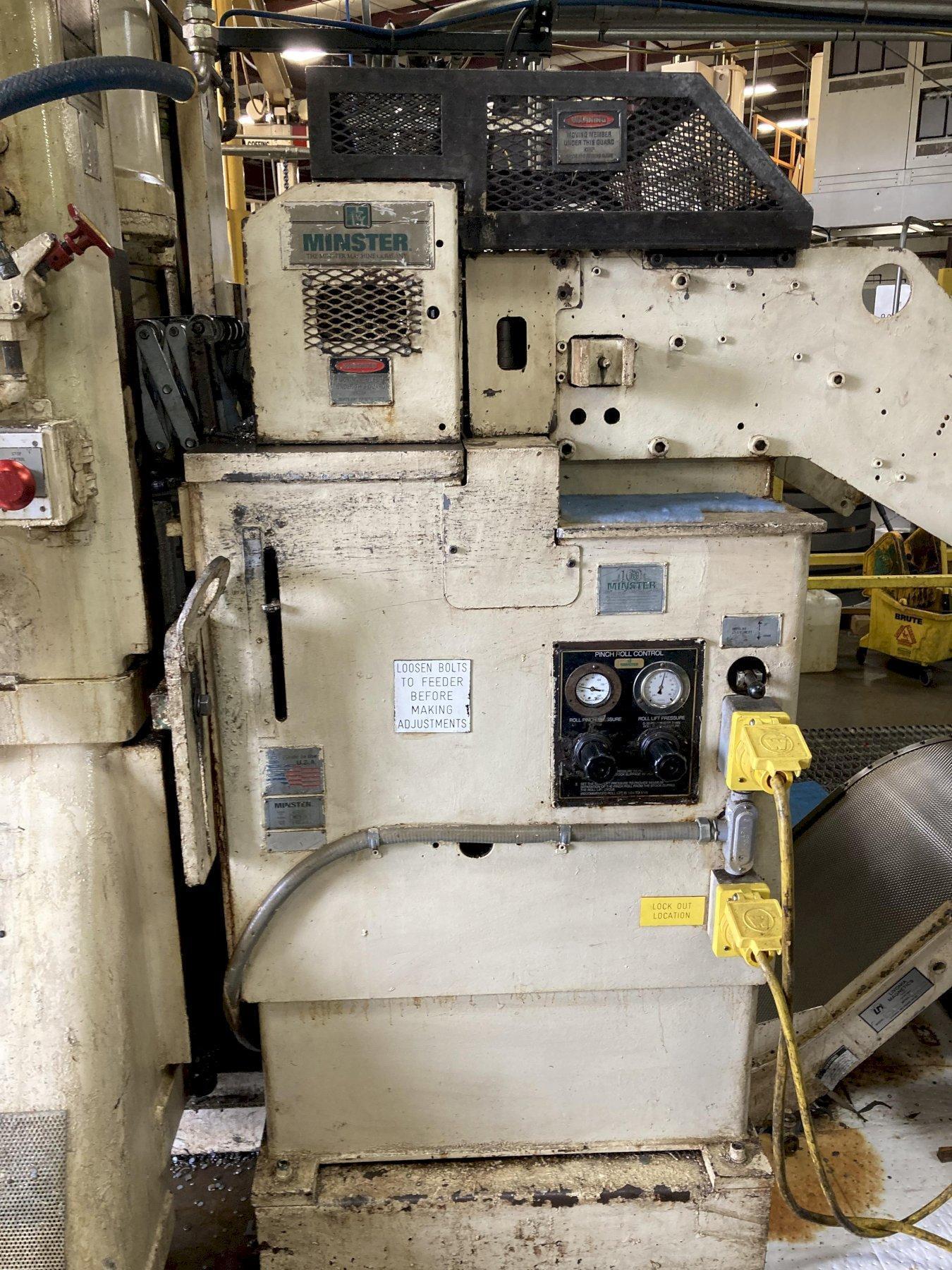

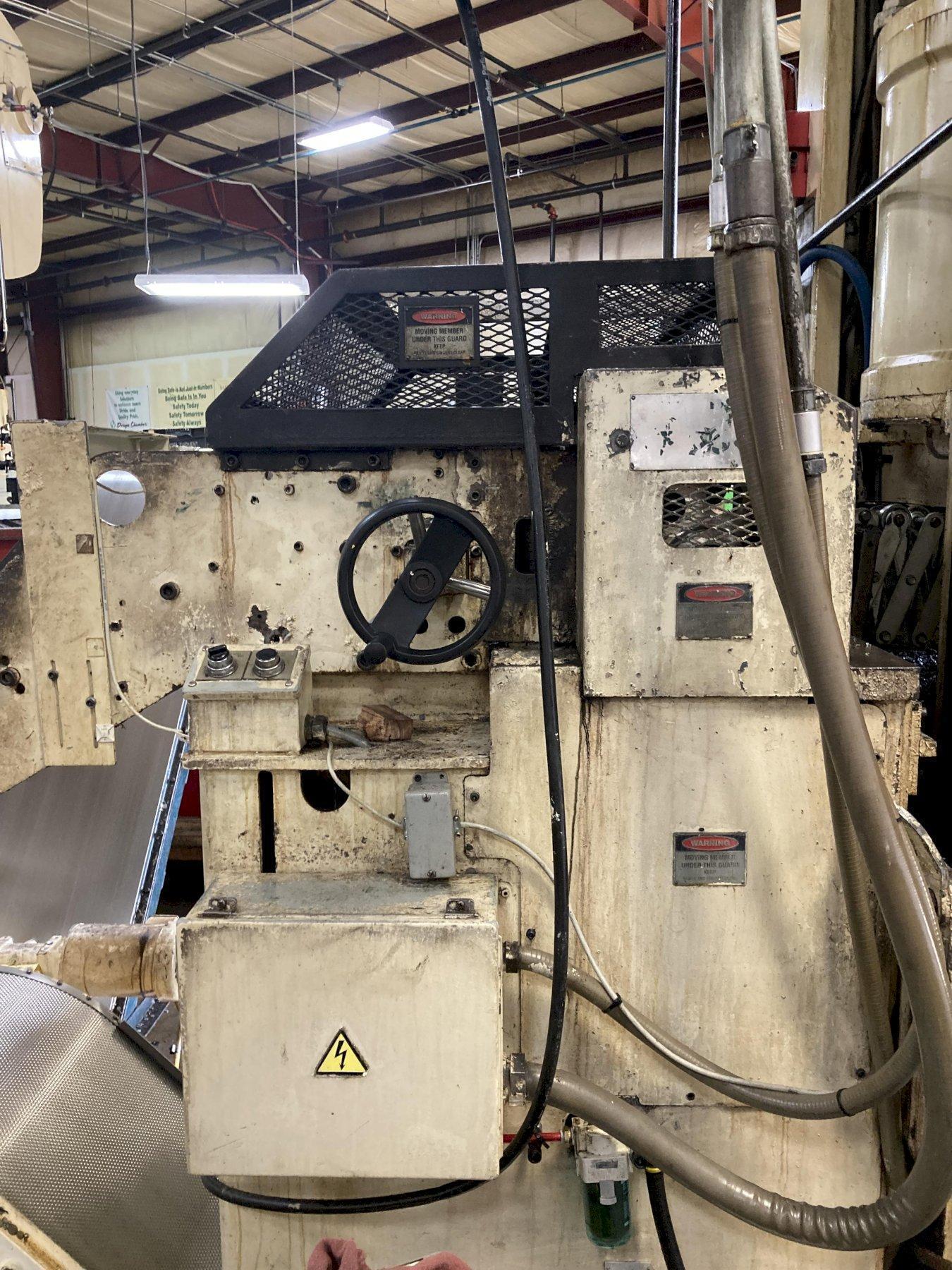

MINSTER Servo Roll Feed Model MEF-526
Five inch diameter upper and lower feed rolls
Piloting upper feed roll (pneumatically actuated)
Hand crank adjustable stock width edge guides
Entry cascade loop support rollers
Cabinet base mounted with adjustable pass line
Motorized pass line adjustment
Servo drive and controls

Attached:  See a Minster Line Layout Drawing

This 10,000 lbs. x 26" Minster Coil Feed Line Can Be Seen Under Power in the S&G Press Livonia Michigan Warehouse.

Used Minster Servo Coil Feed Line For Sale


No Video Available
