Haas ST-20Y, 21" Swing, Y-Axis, C-Axis, Live Milling, Prog. Tailstock, Tooling, Bar Feed, HP Coolant, 2022, #32943

Manufacturer

HAAS

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32943

Model

ST-20Y

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32943

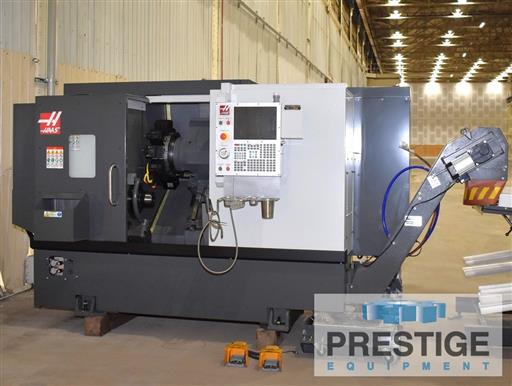

Haas ST-20Y CNC Turning Center

FEATURES:
Haas CNC Control w/ 15" Color LCD Monitor
8" Chuck

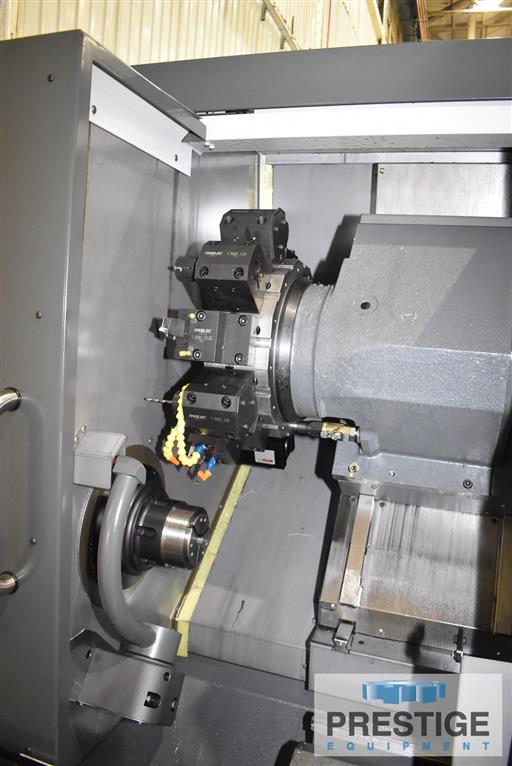

12-Station Turret w/ Milling
Y-Axis & C-Axis

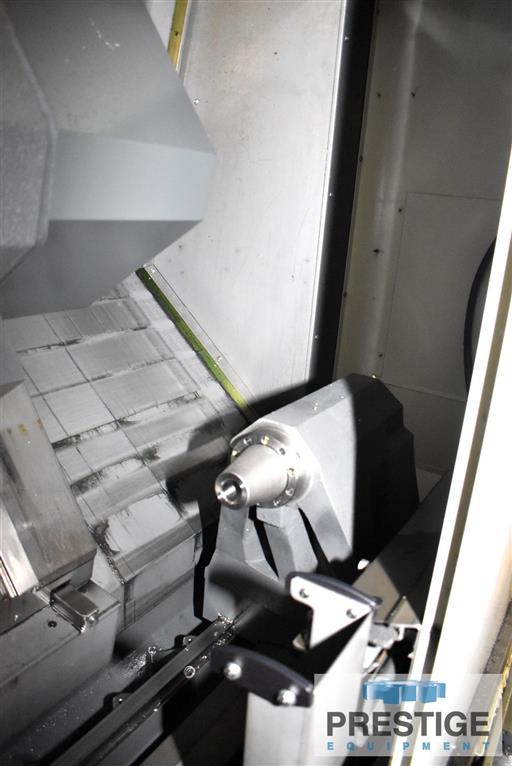

Fully Programmable Tailstock with 4MT Live Center
Automatic Tool Pre-Setter
High Pressure Coolant (300 PSI)
Haas V2 Barfeeder
Tooling

CAPACITIES:
Maximum Part Swing .................... 21"
Maximum Cutting Diameter .............. 11.75"
Maximum Cutting Length ................ 22.5"
Bar Capacity .......................... 2.5"
Spindle Nose .......................... A2-6
X-Axis Travel ......................... 8.4"
Z-Axis Travel ......................... 22.5"
Y-Axis Travel ......................... +/- 2"
C-Axis Rotation ....................... .001 Degree
Spindle Speed (Main/Live).............. 4000 RPM
Spindle Motor ......................... 20 HP
Turret Stations ....................... 12-Station

EQUIPPED WITH:
Haas CNC Control w/ 15" Color LCD Monitor
Collet Chuck
12-Station Turret w/ Milling
Y-Axis & C-Axis
Fully Programmable Tailstock with 4MT Live Center
Automatic Tool Pre-Setter
High Pressure Coolant (300 PSI)
Haas V2 Barfeeder
Chip Strainer-Chip Tray Filter Kit
Coolant Tank Oil Skimmer
Belt Type Chip Conveyor
Tooling Package

NOTE:
This Machine Was Taken Off-Lease Due to an Ownership Change and is in Pristine Condition

LOCATION:
Our Philadelphia Warehouse
