Nakamura-Tome WY-100, Twin Spindles, Twin Turrets, C-Axis, Fanuc CNC, LNS Barfeed, 2013, #43201

Manufacturer

NAKAMURA TOME

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

43201

Model

WY-100

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43201
Nakamura-Tome WY-100 Multi Axis Turning Center

CAPACITY:
Max. turning diameter ................. 6.89"
Standard turning diameter ............. 6.69"
Distance between centers max, Min ..... 32.28", 7.87"
Max. turning length ................... 23.15"
Bar capacity .......................... 1.65"
Chuck size ............................ 6"
X1 / X2 Axis Travel ................... 5.31"
Z1 / Z2 Axis Travel ................... 23.1"/ 22.7"
Y1 / Y2 Axis Travel ................... + 1.22"
B-Axis Travel ......................... 24.41"
Rapid feed X1 / X2 .................... 629" IPM
Rapid feed Z1 / Z2 ................... 1574" IPM
Rapid feed B-Axis ..................... 1574" IPM
Rapid feed Y1 / Y2 ................... 236" IPM

LEFT & RIGHT HAND SPINDLES:
Spindle speed ......................... 6000 RPM
Spindle speed range ................... Stepless
Spindle nose .......................... A2-5
Hole through spindle .................. 2.2"
I.D. of front bearing ................. 3.15"
Hole through draw tube ................ 1.69"
Spindle Power ......................... 14.75 /9.38 HP
C-Axis Positioning .................... 0.001°
C-Axis Rapid index speed ............. 600 RPM
C-Axis Cutting feed rate .............. 1 - 4800°/min
Number of rotation tool stations ...... 12 x 2

EQUIPPED WITH:

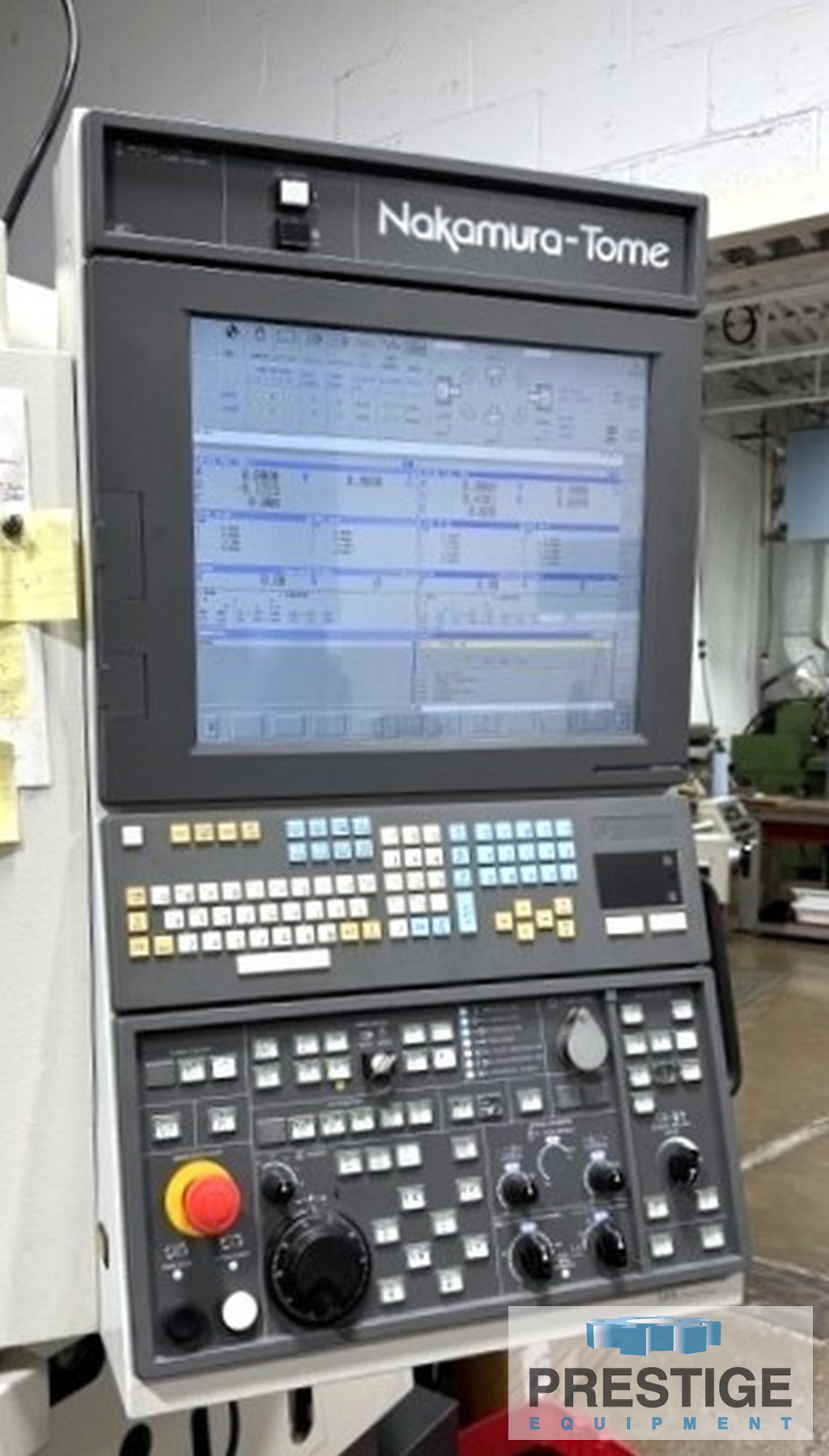

Fanuc CNC 9-Axis Control
Twin Spindles With C-Axis
Extended Memory

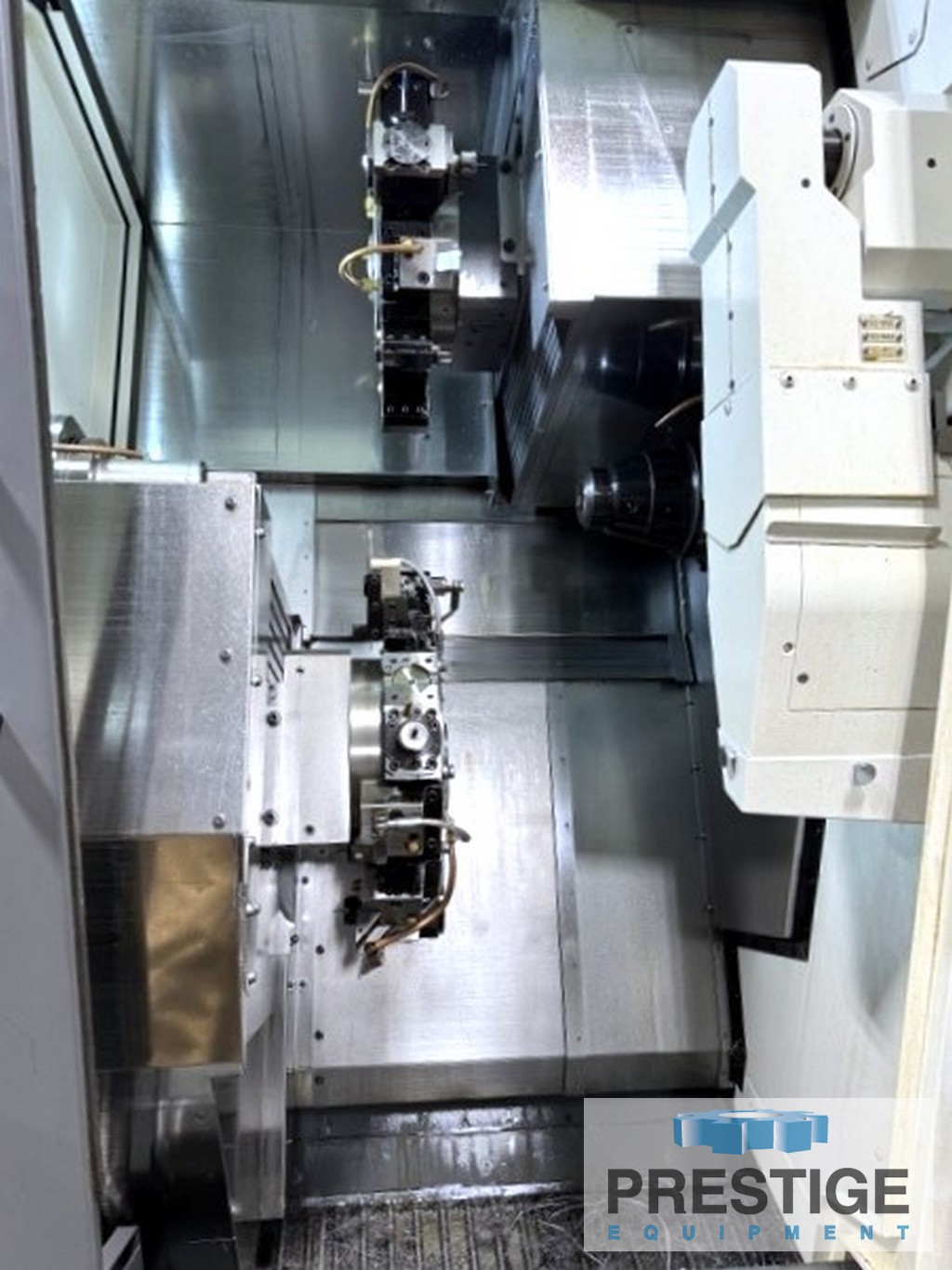

Upper & Lower Turrets With Y-Axis
48-Tool Stations With 24-Driven Stations
Chip Conveyor
Parts Catcher
LNS Quick Load Barfeed

NOTE:
Inspect In Plant Under Power
