39" x 314" Poreba TR100B/8M 39" x 314", Inch/metric Threading, Taper, 630 RPM, 42 HP #32621

Manufacturer

POREBA

Category

Lathes

Type

LATHES, ENGINE

Stock

32621

Model

TR100B1/8M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32621

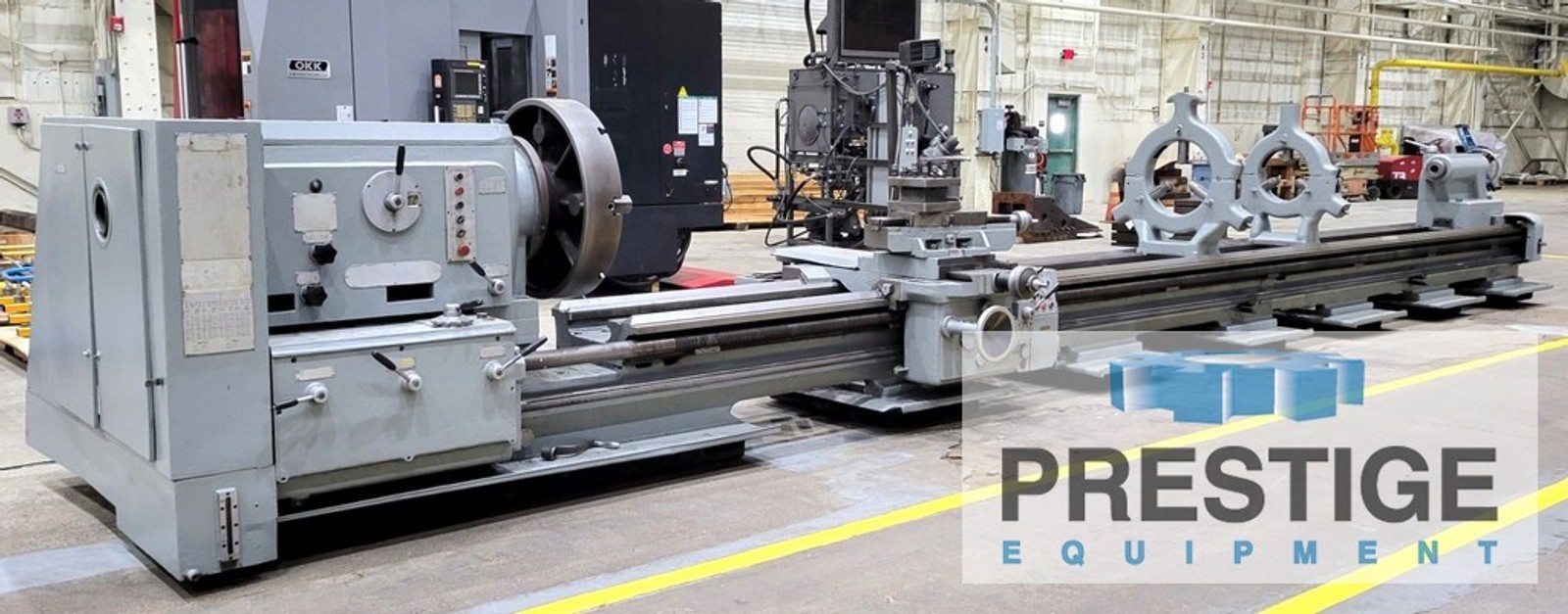

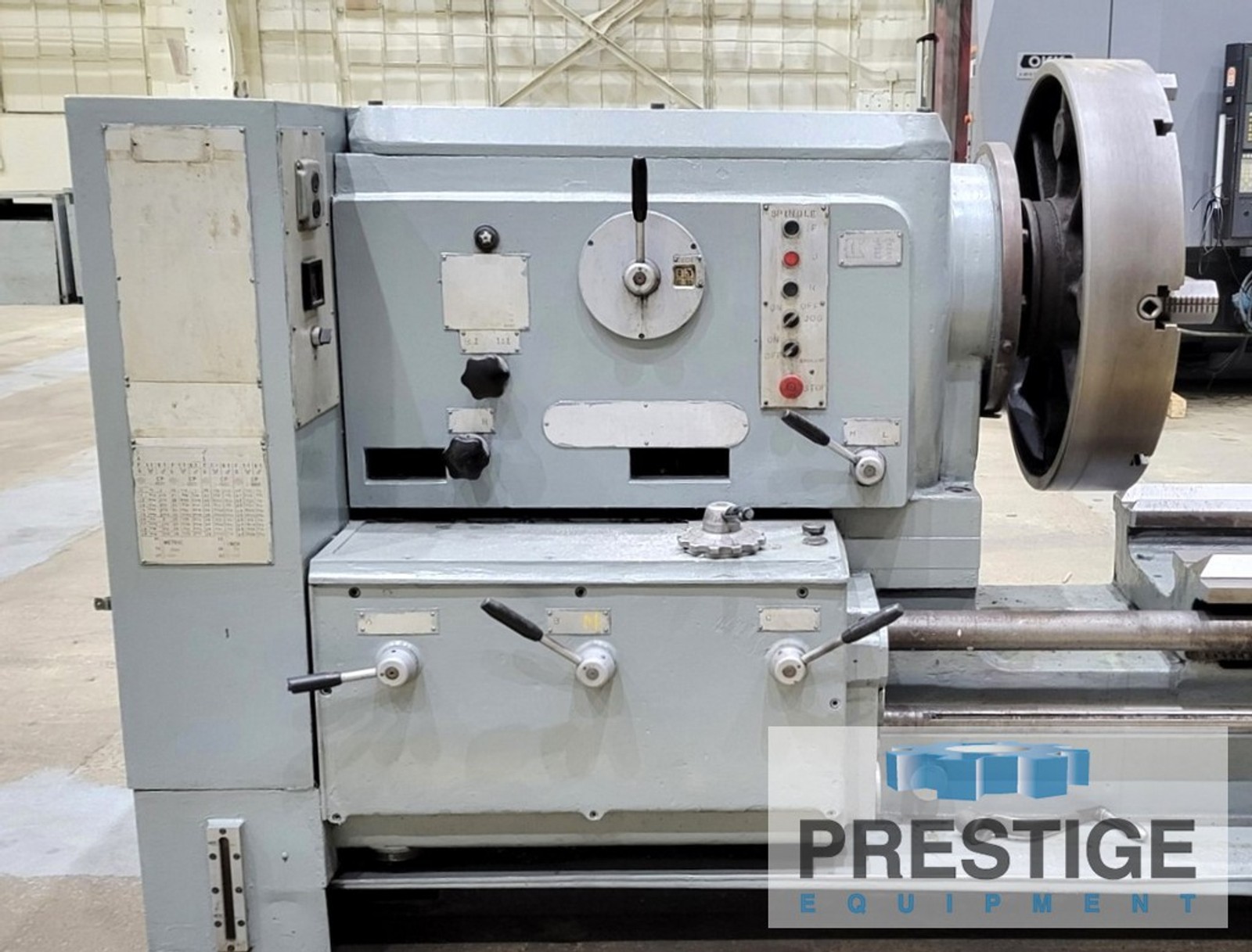

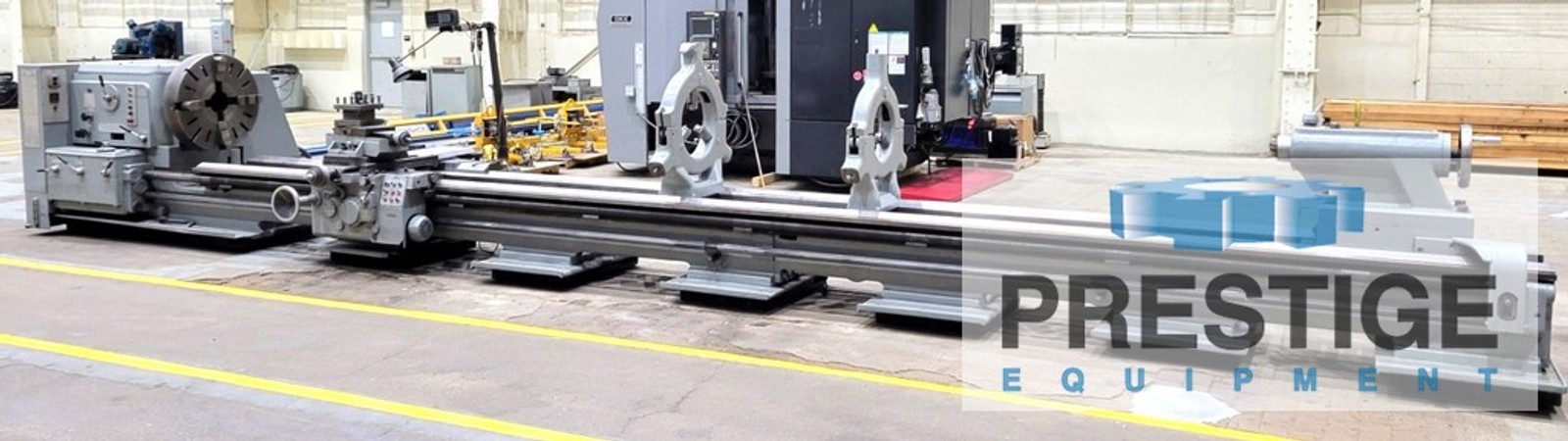

39" x 314" POREBA TR100B/8M Manual Lathe w/Taper Attachment

FEATURES:
31.25” Diameter 4-Jaw Chuck
Inch/Metric Threading
Power Compound for Taper Turning
Taper Attachment
6-Way Power Rapid Traverse
2-Steady Rests
Hardened Ways

SPECIFICATIONS:
Swing Over Bedways .................... 39.37"
Swing Over Saddle ..................... 26.77"
Swing In Removable Gap ................ 49.21"
Turning Length in Gap ................. 15.35"
Distance Between Centers ............. 314.96"
Spindle Speeds (36)................... 6.5-630 RPM
Number of Speeds ...................... 21
Spindle Bore ......................... 4.75"
Tailstock Quill Diameter .............. 5.51"
Tailstock Quill Travel ................ 11.8"
Electrics ............................ 480V
Main Motor ............................ 33 HP/42 HP
Floor Space: L x W x H ................ 434" x 86" x 80"
Machine Weight ........................ 35,000 Lbs

EQUIPPED WITH:

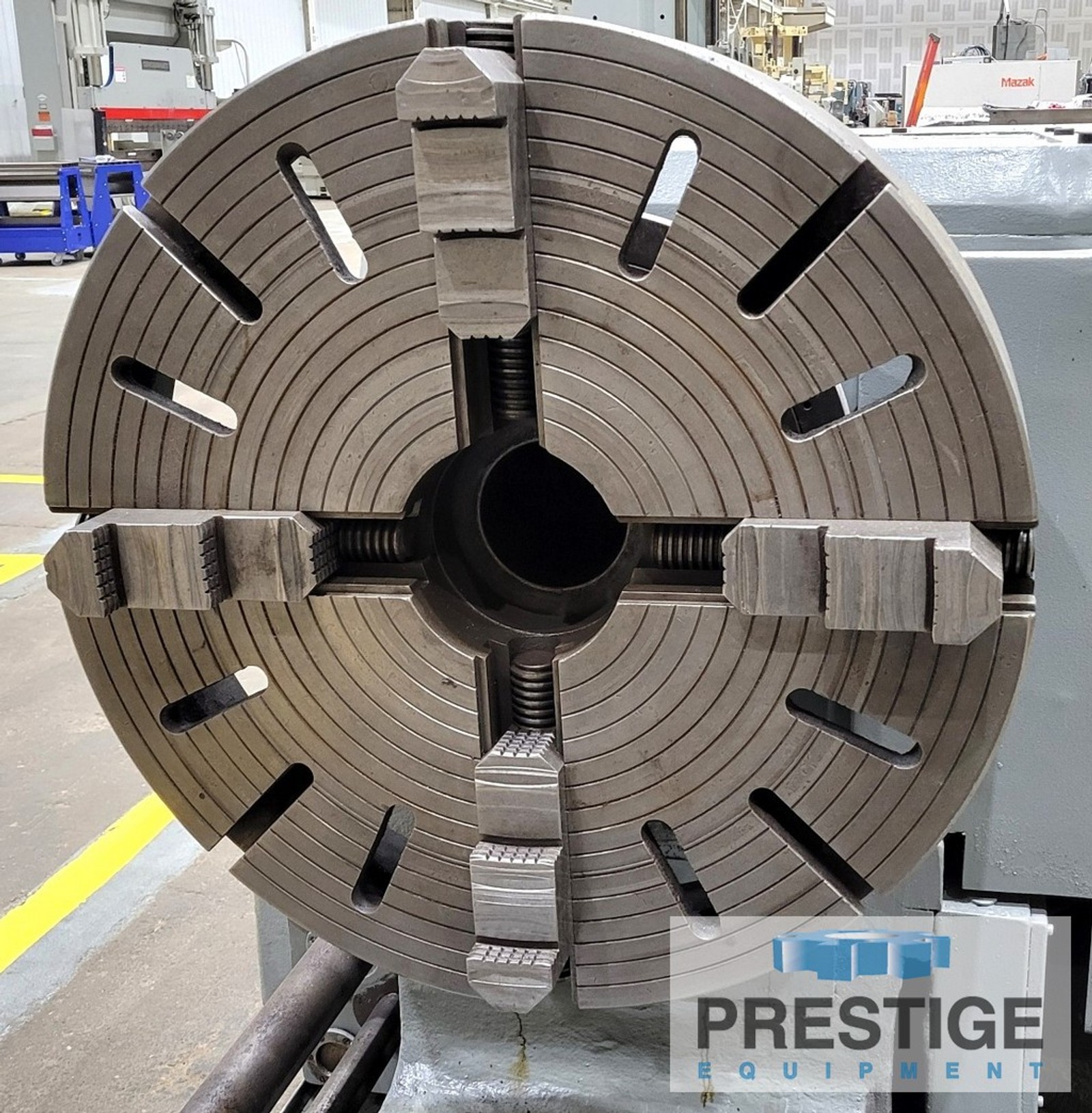

31.25” Diameter 4-Jaw Chuck

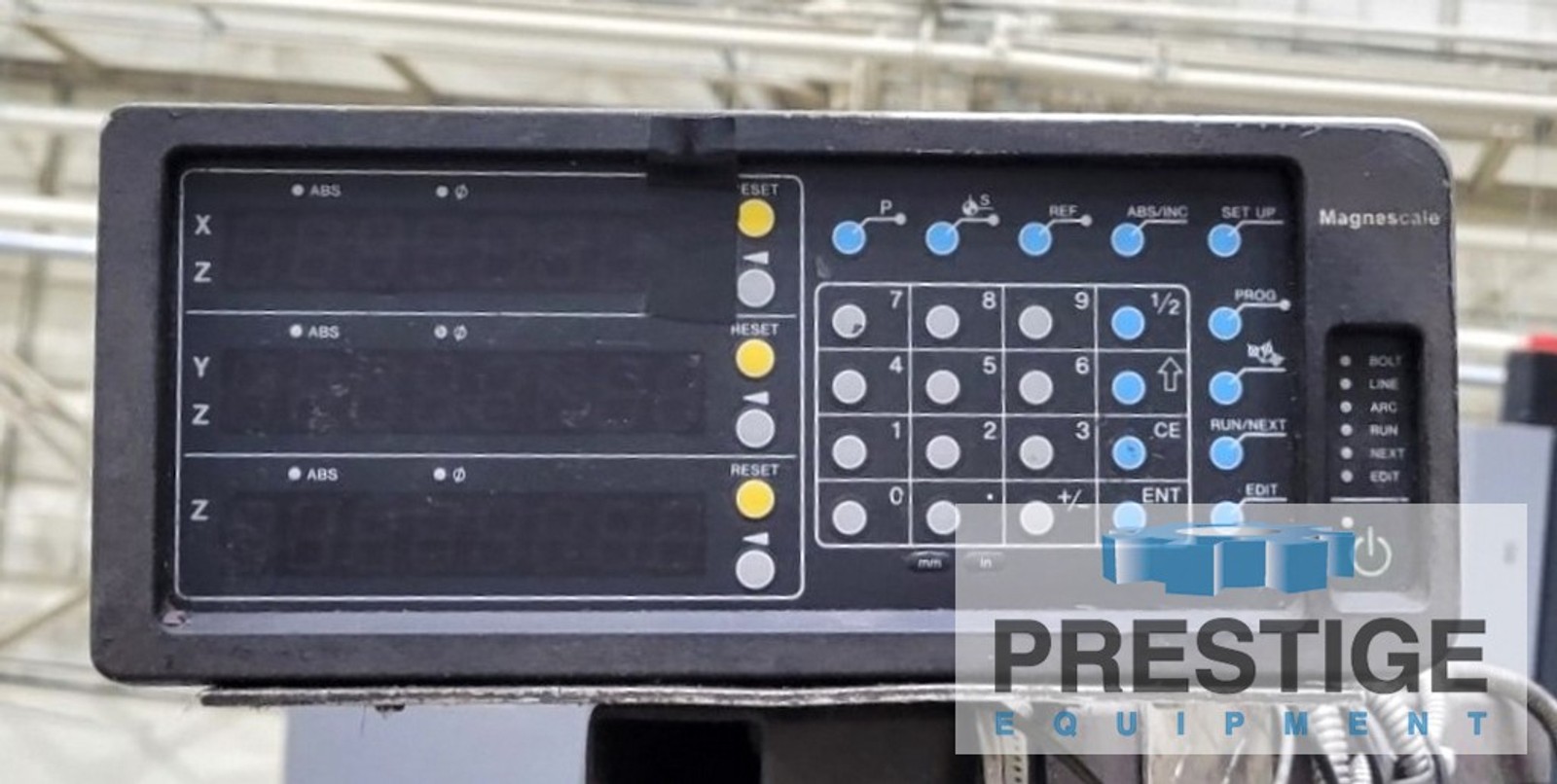

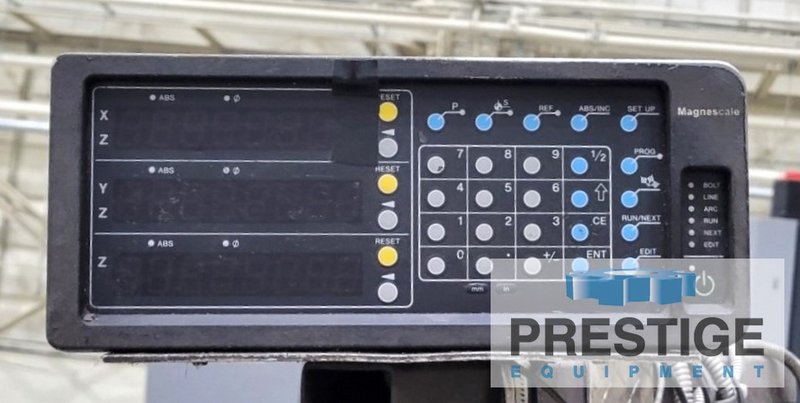

2-Axis Sony Magna-scale Digital Readout
Inch/Metric Threading

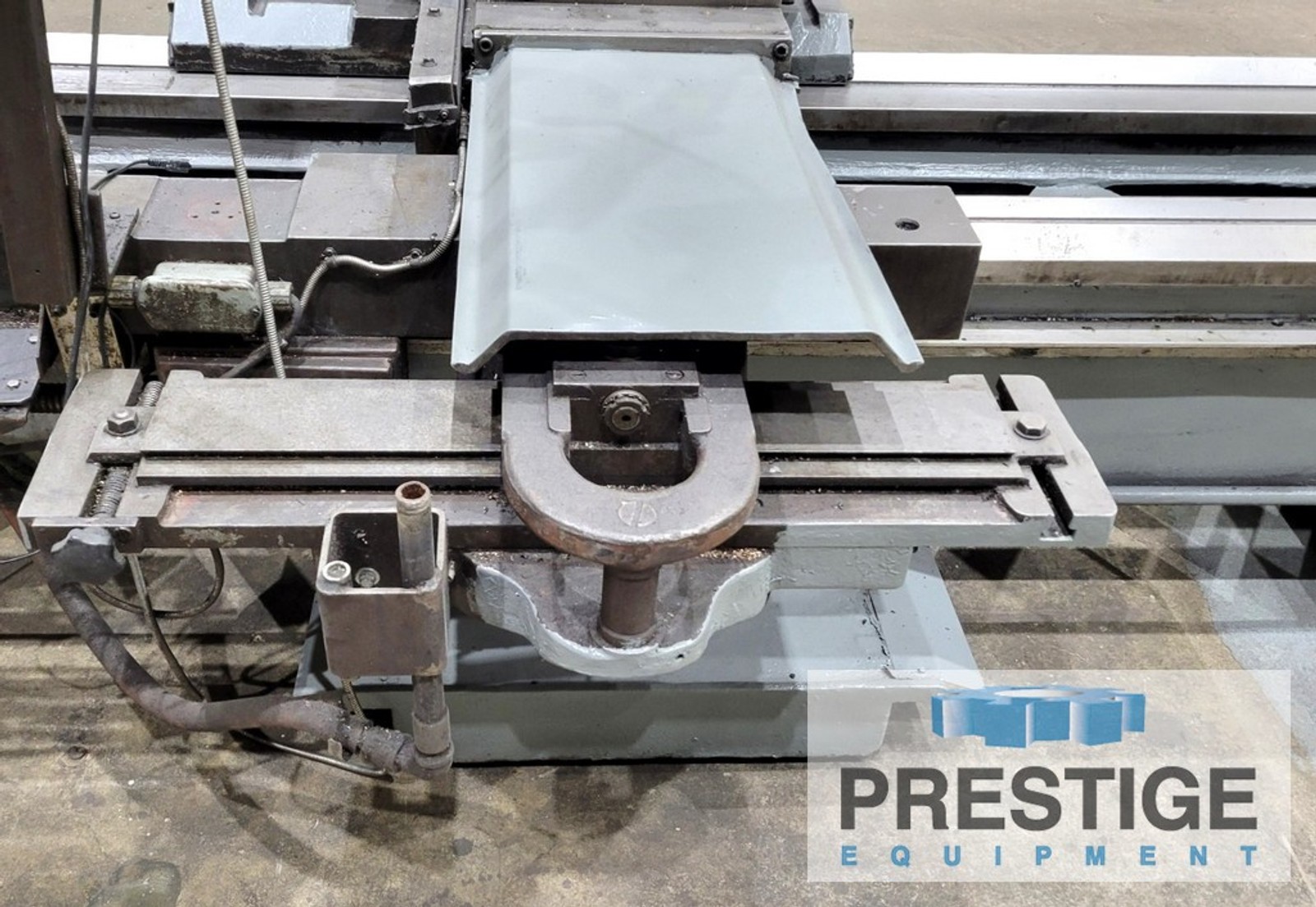

Taper Attachment, Missing Bed Clamp and Pull Rod

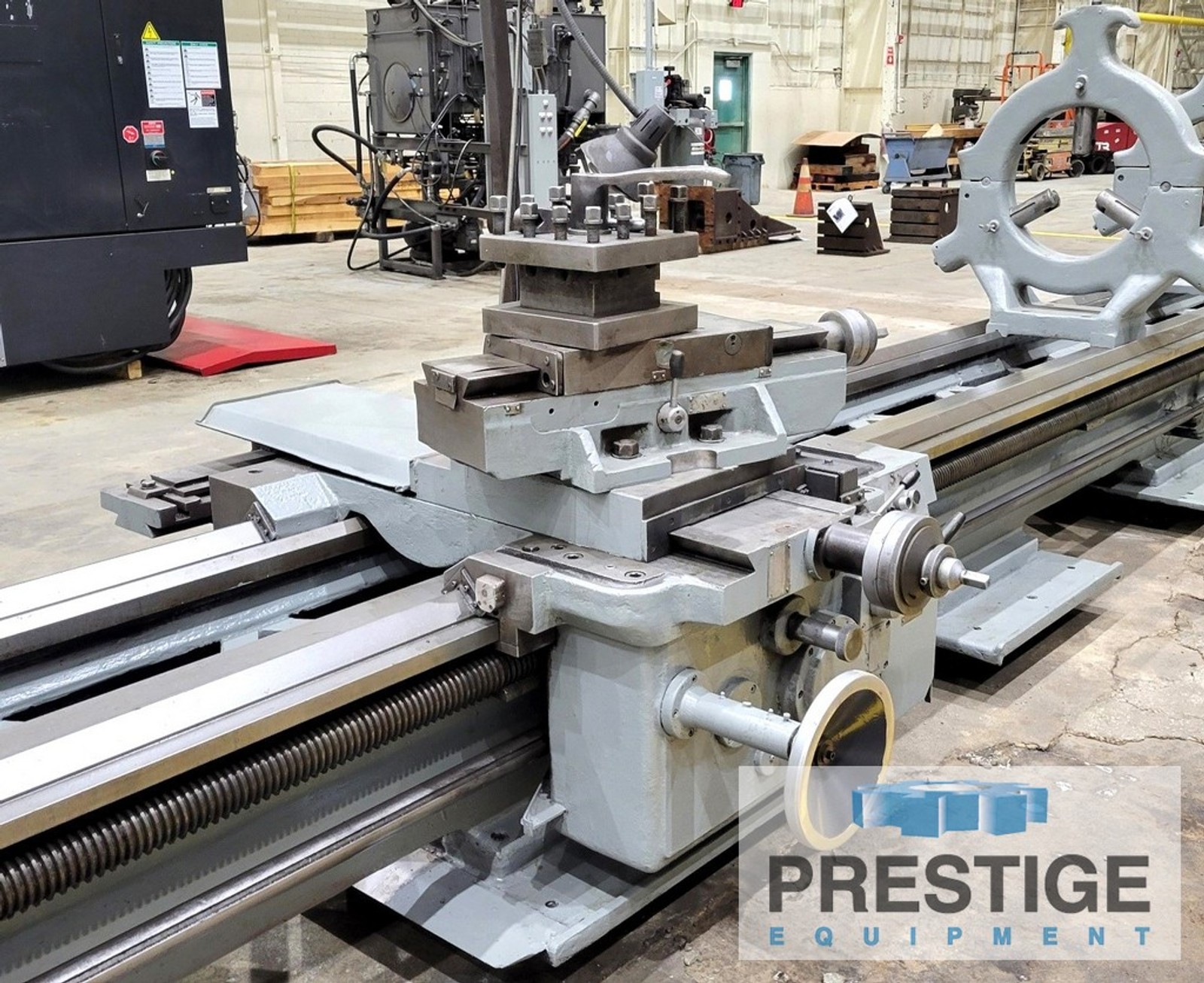

Power Compound for Taper Turning

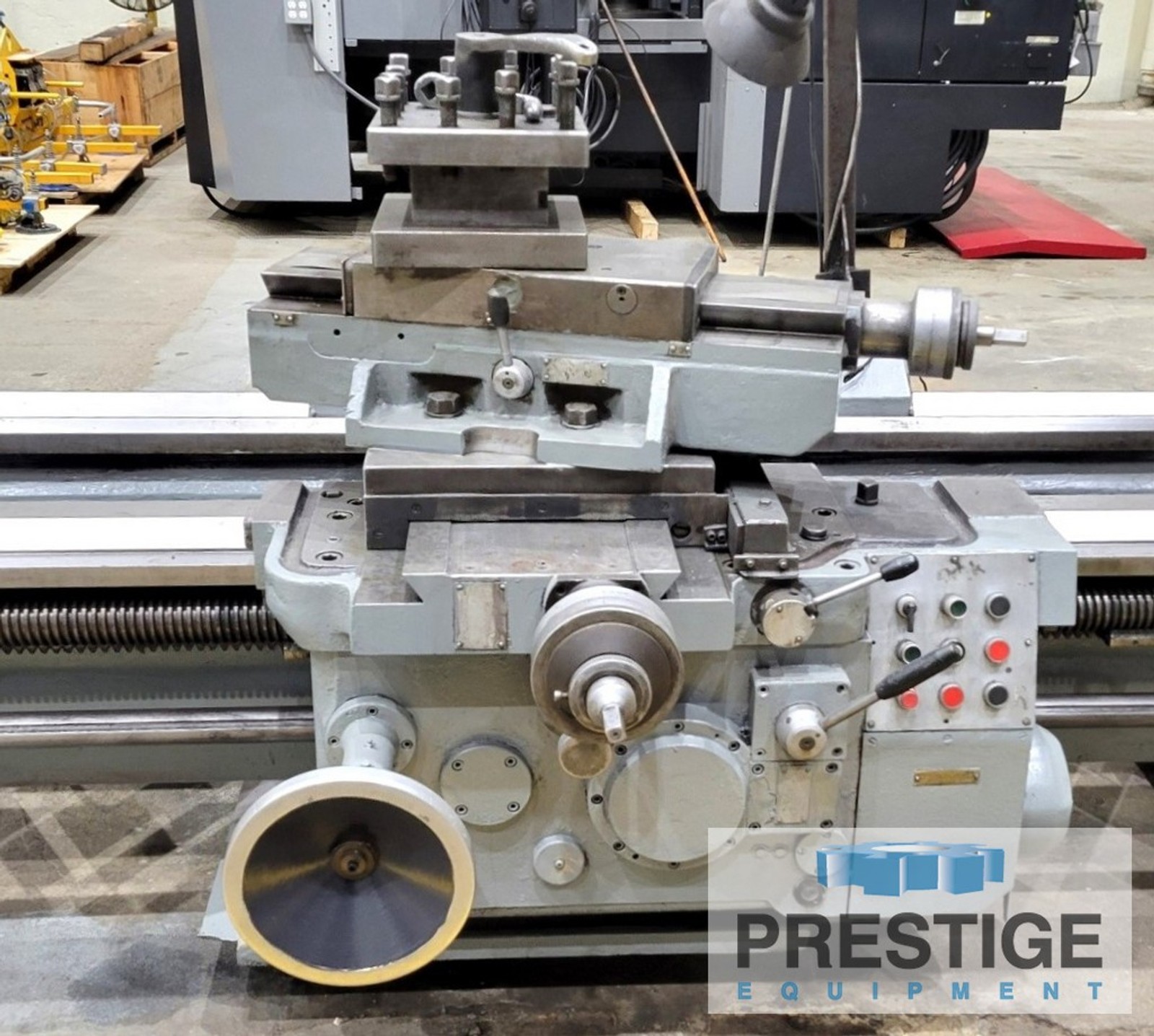

6-Way Power Rapid Traverse

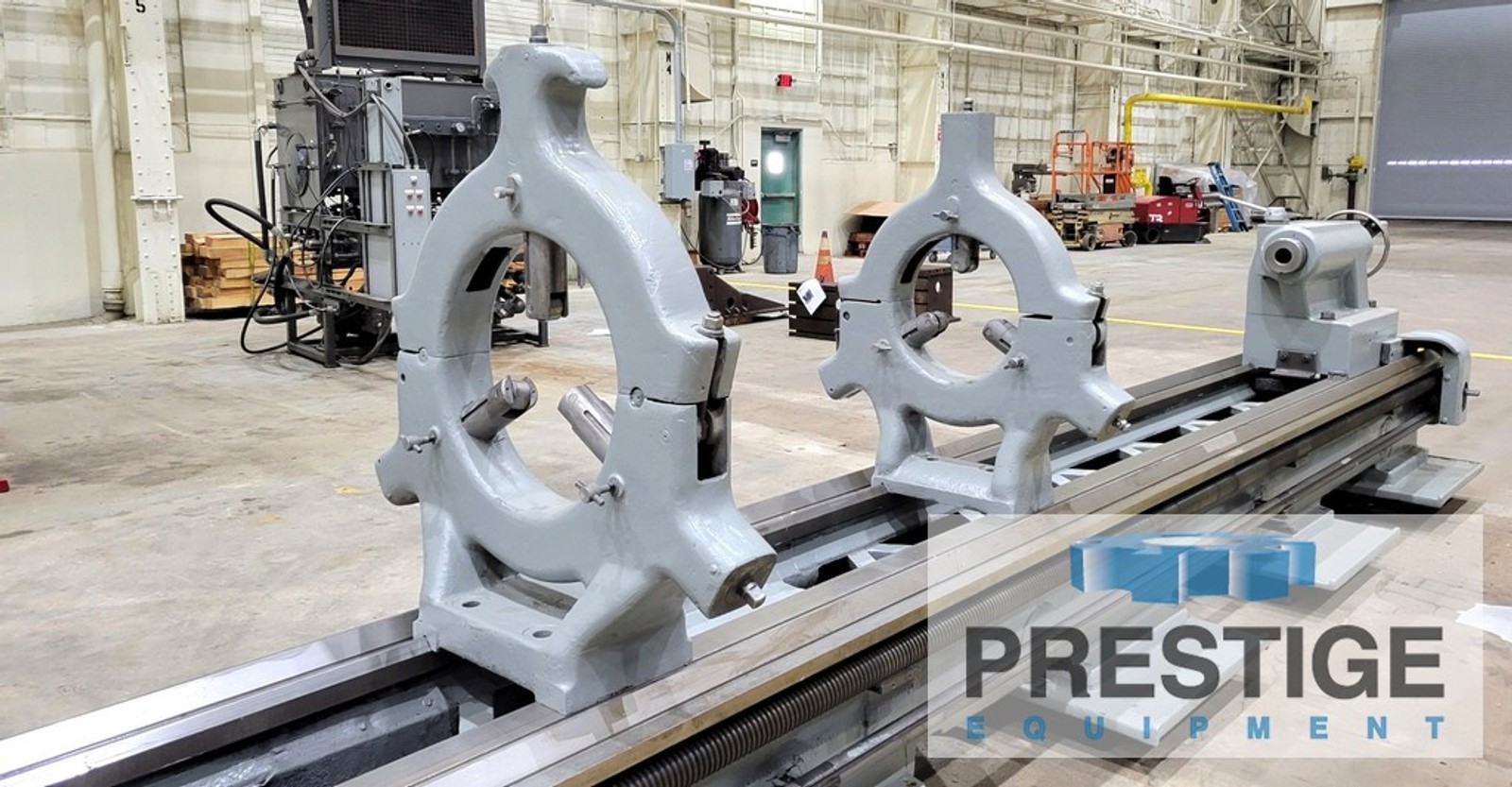

2-Steady Rests, 12" & 17" Diameter

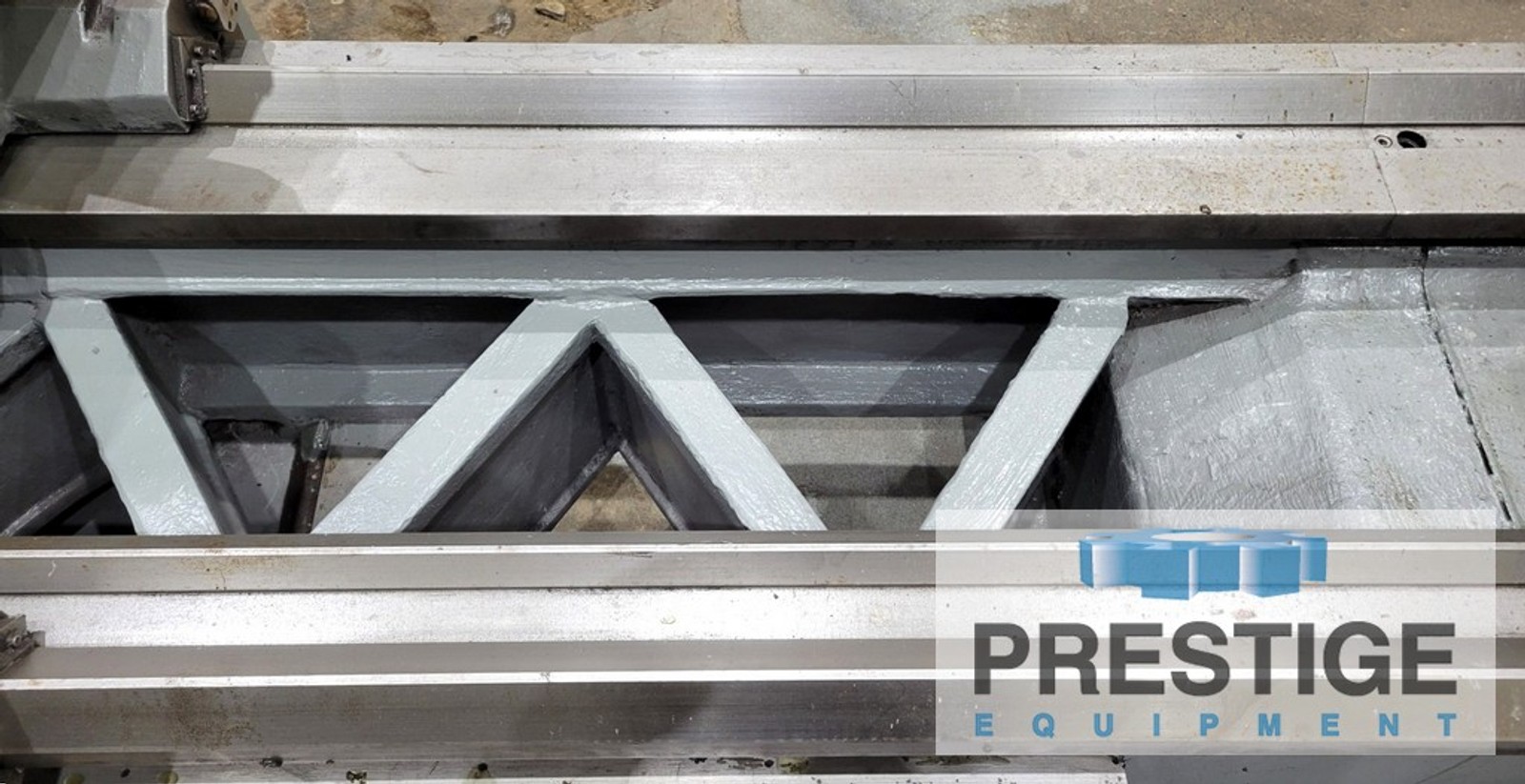

Hardened Ways

AVAILABLE AT ADDITIONAL COST:
Reference #29445 - Poreba TR100B Motorized Boring Attachment
