150-ton Minster P2-150-48 "Piece-Maker" Highspeed Mechanical Metal Stamping Press For Sale, Year

Stock

2876

Model

P2-150-48 "Piece-Maker"

Dealer Location

Michigan

Spec Sheet

Tonnage - 150
Stroke - 5 inches
Shut Height - 21 inches
Adjustment - 4 inches
Bed Size - 48" x 40"
Ram Area - 48" x 23"
SPM - 0-150


Standard Specifications
150-ton Highspeed Minster Press

Model #P2-150-48 "Piece-Maker"
Serial Number 24688
150-ton Capacity
5" Stroke
21" Shut Height
4" Motorized Adjustment
48" LR x 40" FB Bed Area
48" LR x 23" FB Slide Area
0-150 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Monitor Flow Recirculating Lube System
T-Slotted Ram and Bolster

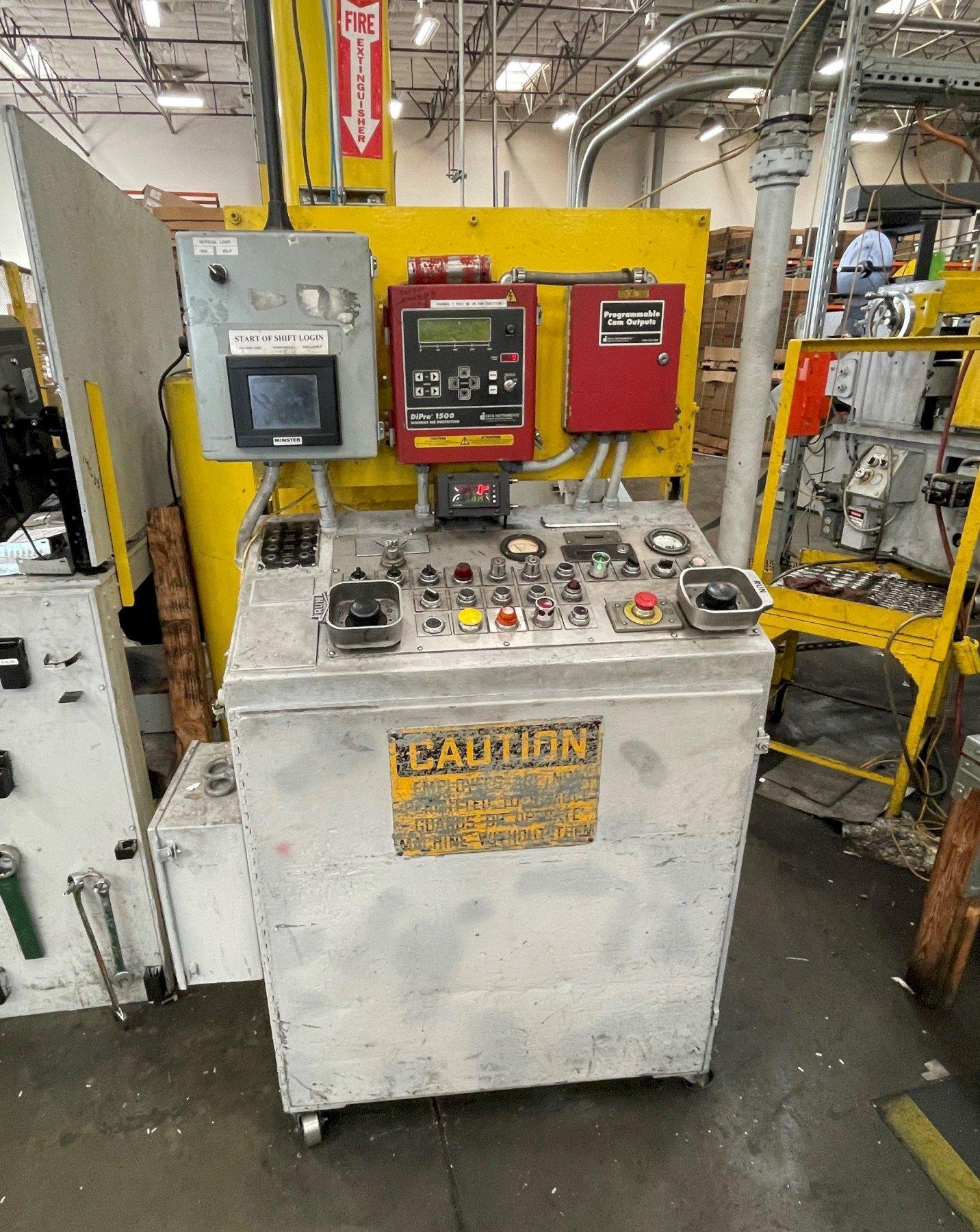

Free Standing Console Control
Wintriss Die Pro 1500 Die Protection
Wintriss Programmable Cam Outputs
Dual Palm Buttons
6" Thick Bolster Plate
50" Distance Between Gibs
42" Distance from Floor to Top of Bed
20" Wide Windows
Vibro Dynamic Floor Mounts
Floor Standing

Overall Height: 13' 2"

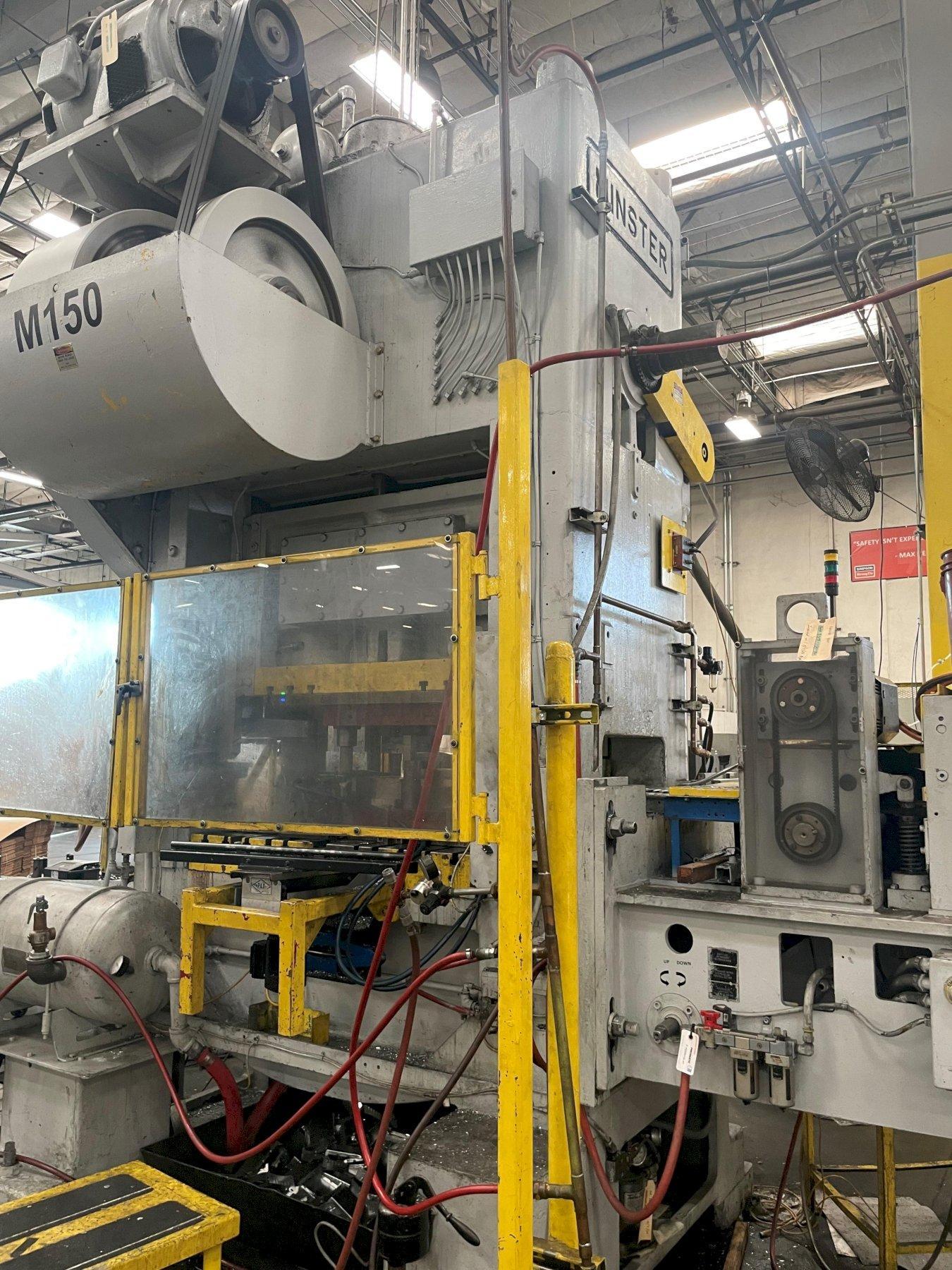

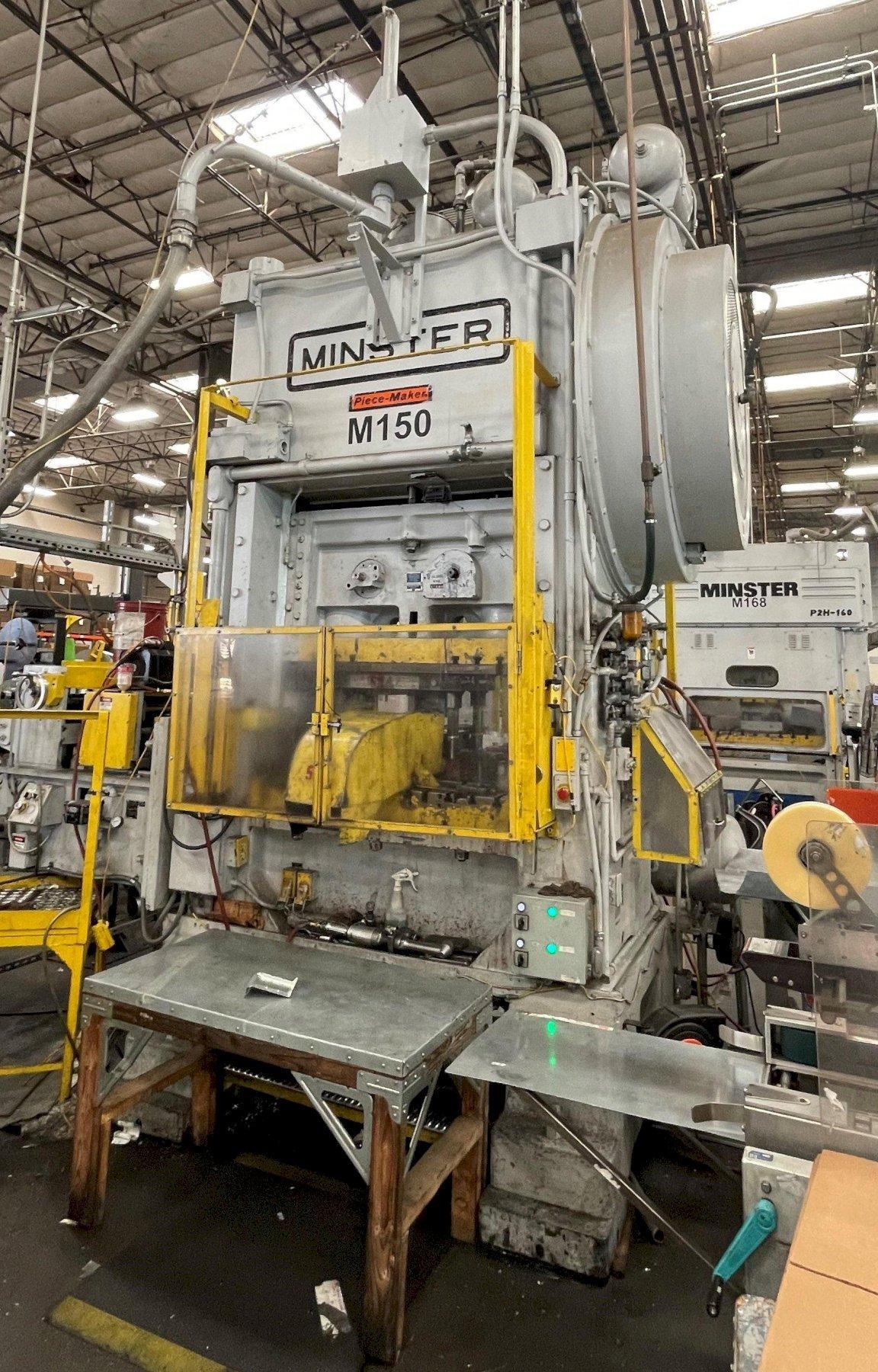

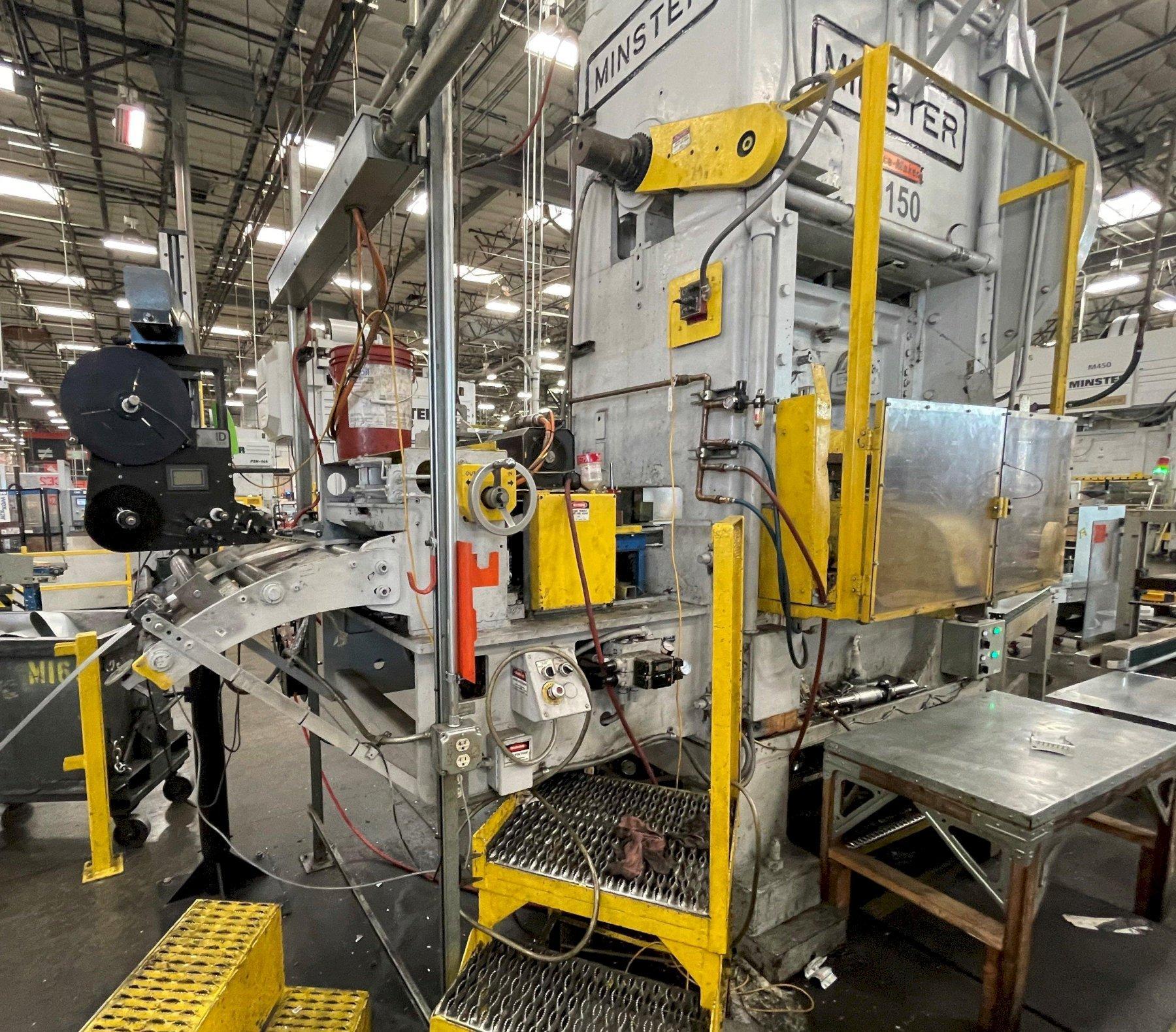

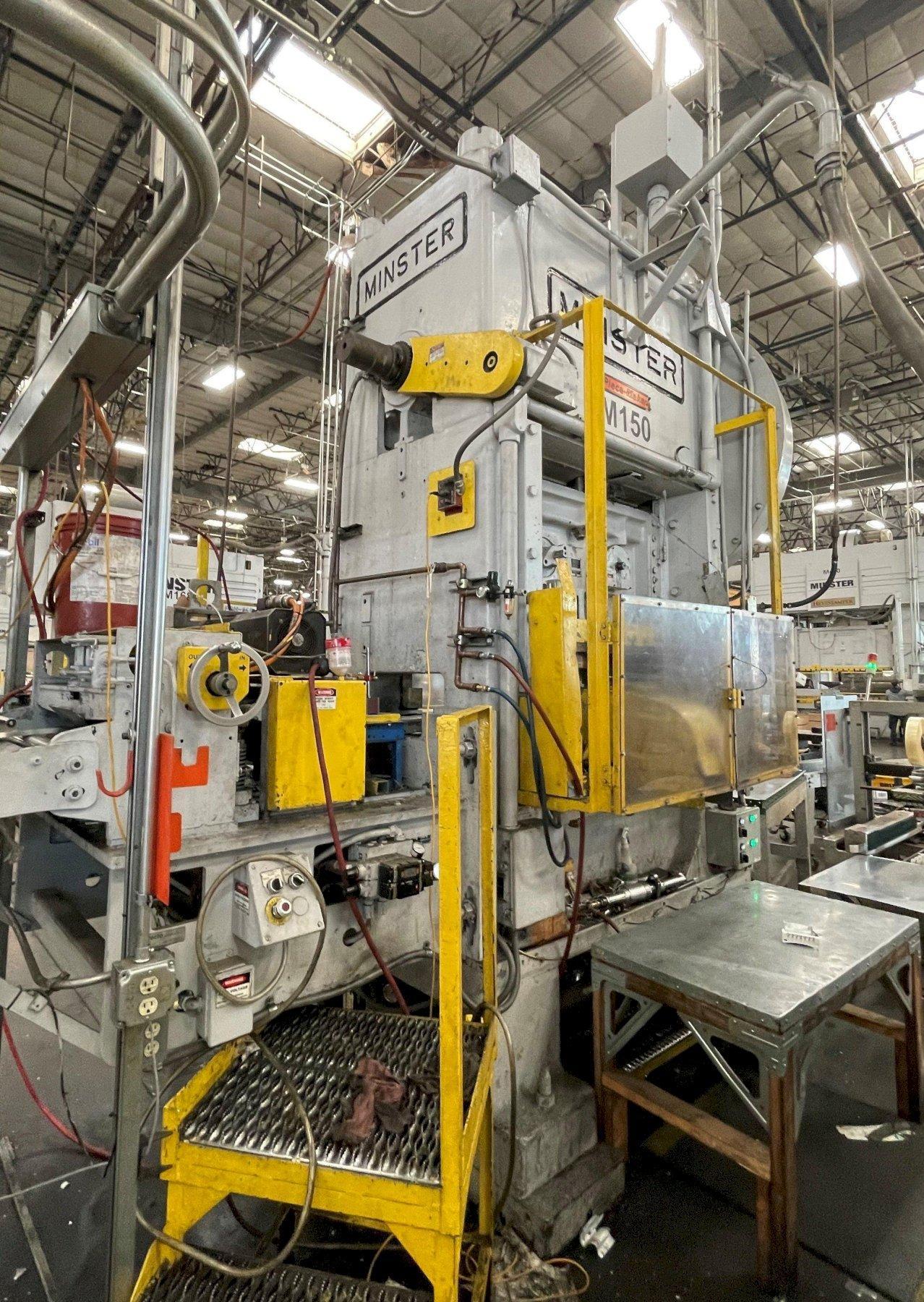

This used 150-ton Minster Press can be seen under power in the S&G Press Livonia Michigan Warehouse.

Used Straight Side Highspeed Minster Mechanical Press For Sale
