Okuma LB3000EX-II-MYW, OSP-P300LA CNC, 22" Swing, 42" Between Spindles, Big Bore, Live Milling, Sub Spindle, New 2021, #32830

Manufacturer

OKUMA

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32830

Model

LB3000EX-II-MYW

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32830

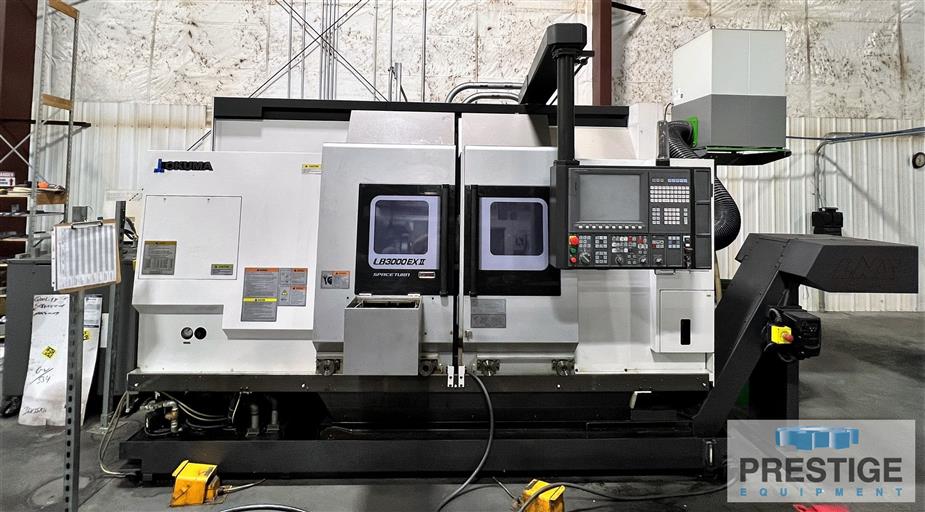

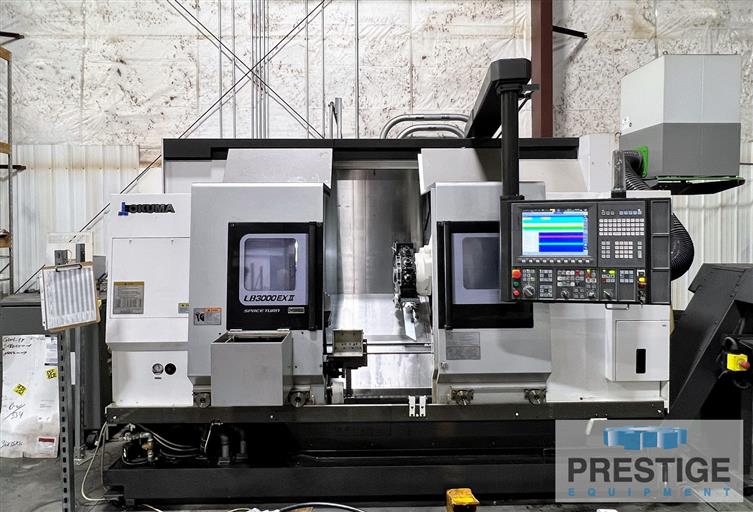

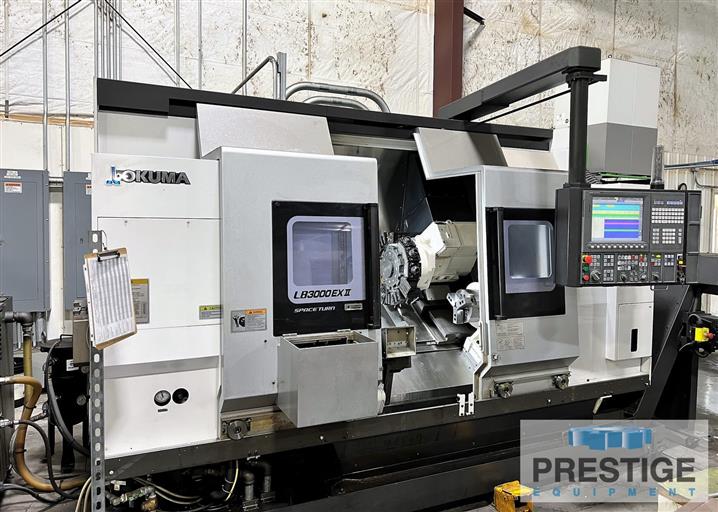

Okuma Space Turn LB-3000EX-II-MYW 800 CNC Turning & Milling Center

FEATURES:
Okuma OSP-P300LA CNC Control
Big Bore Option
Main & Sub Spindle
12-Station Turret
Live Milling
Y-Axis & C-Axis
Less than 1500 Cutting Hours

SPECIFICATIONS:
Swing Over Bed ........................ 22.83"
Swing Over Carriage ................... 18.5"
Max. Turing Diameter .................. 13.39"
Distance Between Spindles ............. 42.72"
Maximum Cutting Length ................ 31.5"
Spindle Bore .......................... 4.33"
Spindle Nose .......................... JIS A2-11
Main Spindle Speed .................... 28-2800 RPM
Main Spindle Motor .................... 30 HP
Sub Spindle Motor ..................... 20 HP
Sub Spindle Speed ..................... 6000 RPM
Milling Spindle Speed ................. 6000 RPM
Milling Spindle Motor ................. 15 HP

EQUIPPED WITH:

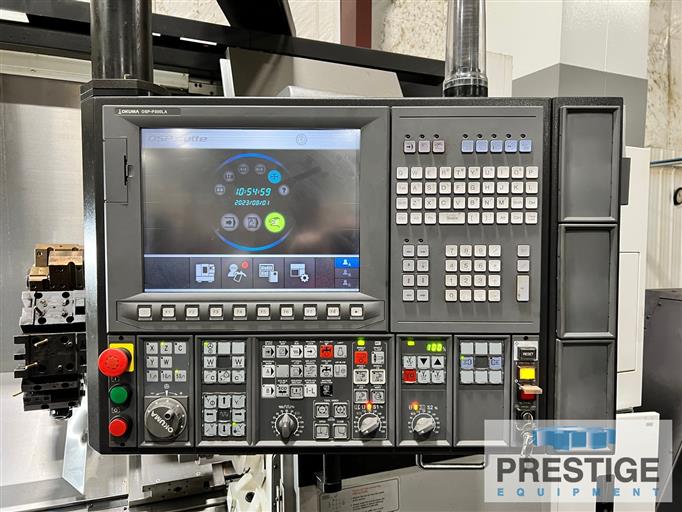

Okuma OSP-P300LA CNC Control

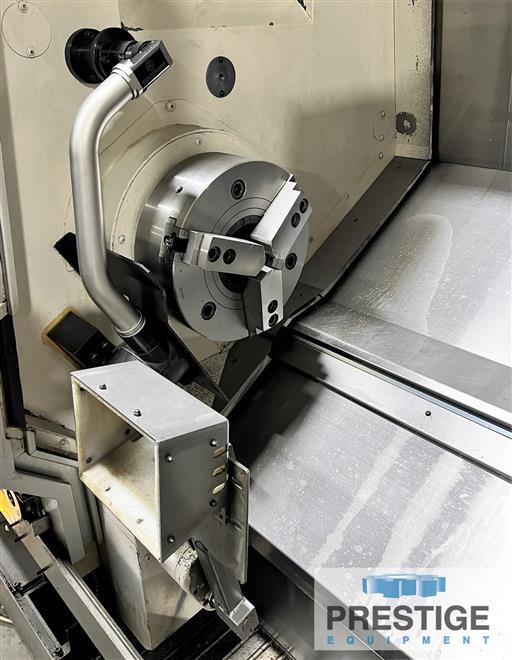

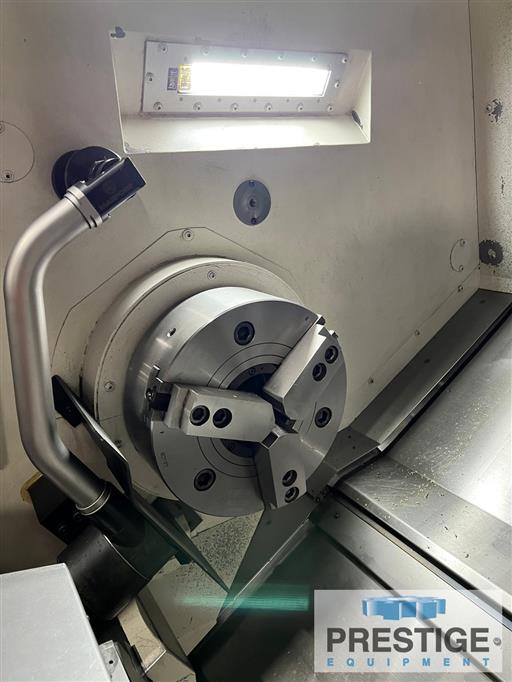

Main Spindle With 12" Kitagawa Chuck
Sub Spindle With 8" Kitagawa Chuck
Big Bore Option
12-Station Turret With Live Milling
Y-Axis & C-Axis
Parts Catcher
Marposs Mida Tool Eye

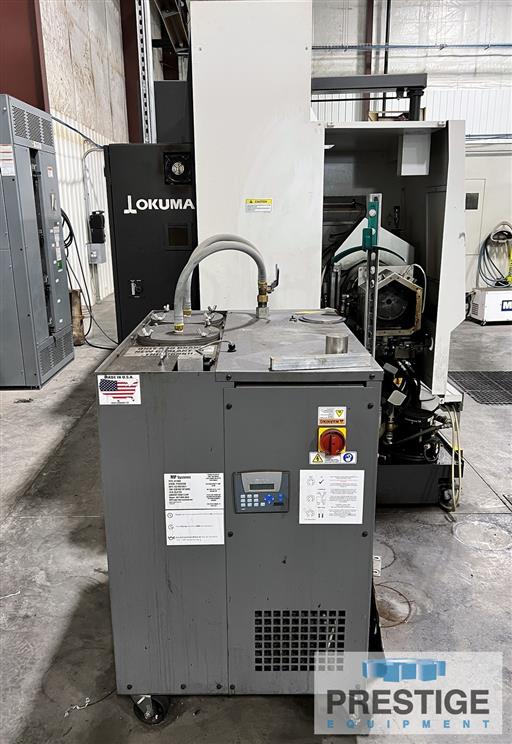

MP Systems High Pressure Coolant System
LNS Turbo Hinge Belt Chip Conveyor
Daikin Oil Cooling Unit

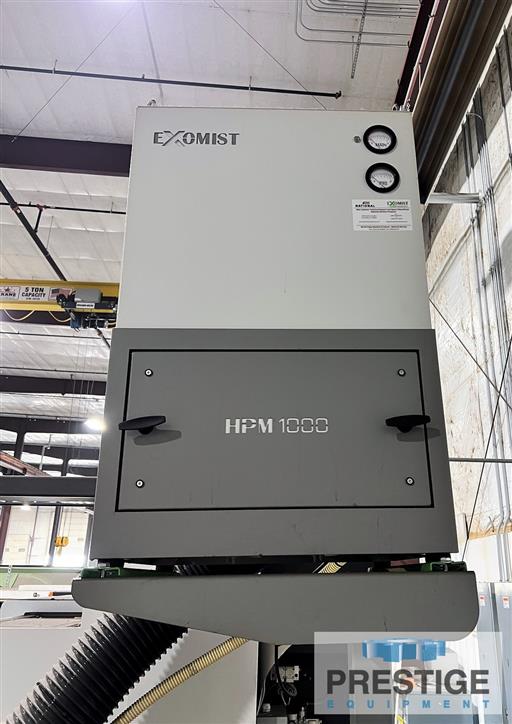

National Exomist HPM 1000 Mist Collector

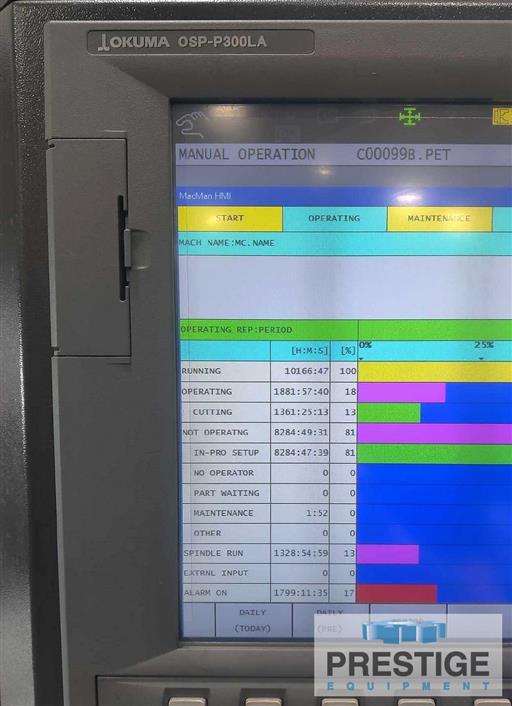

HOUR COUNT:
Less Than 1500 Cutting Hours

LOCATION:
Philadephia, PA
