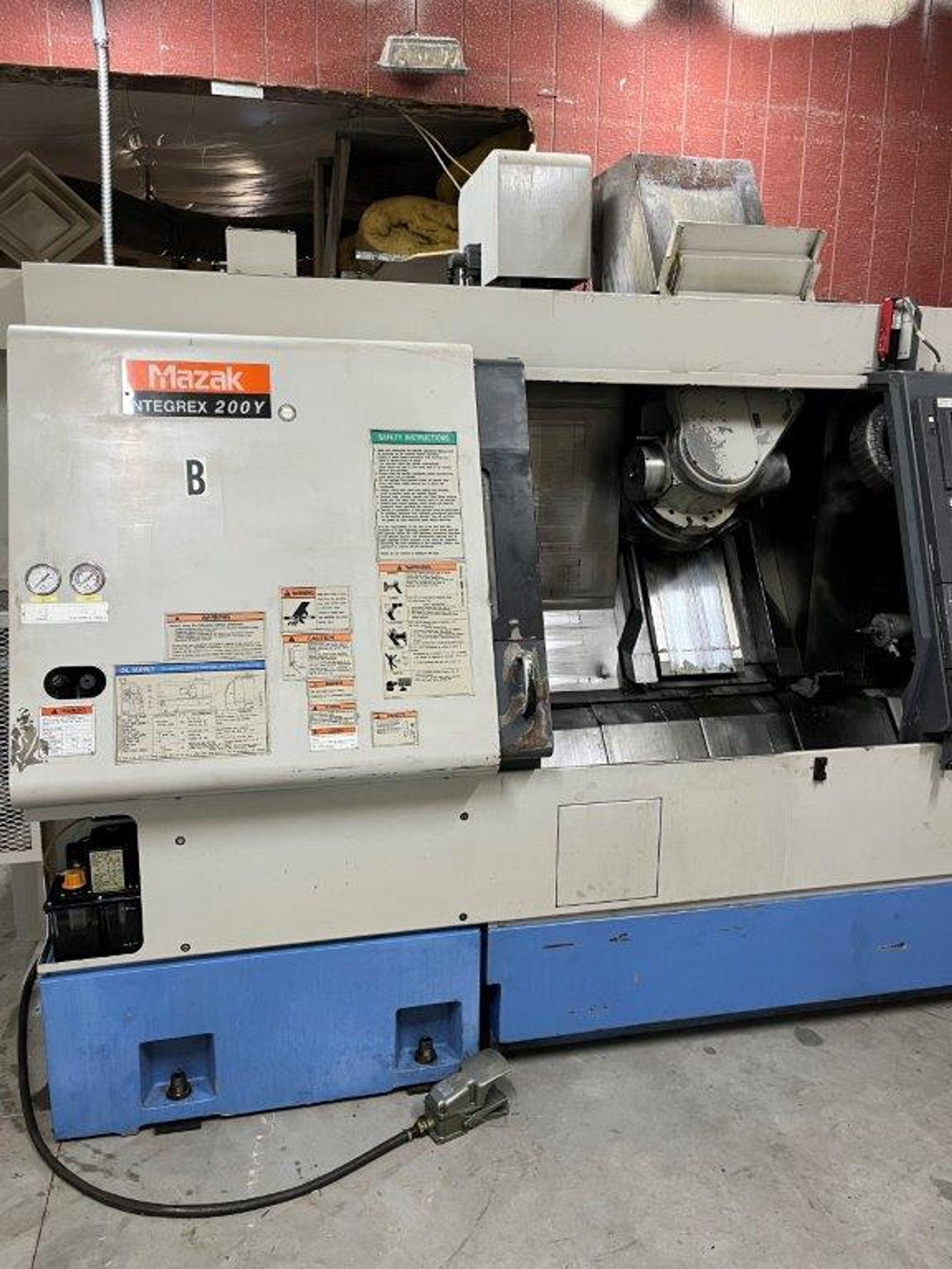

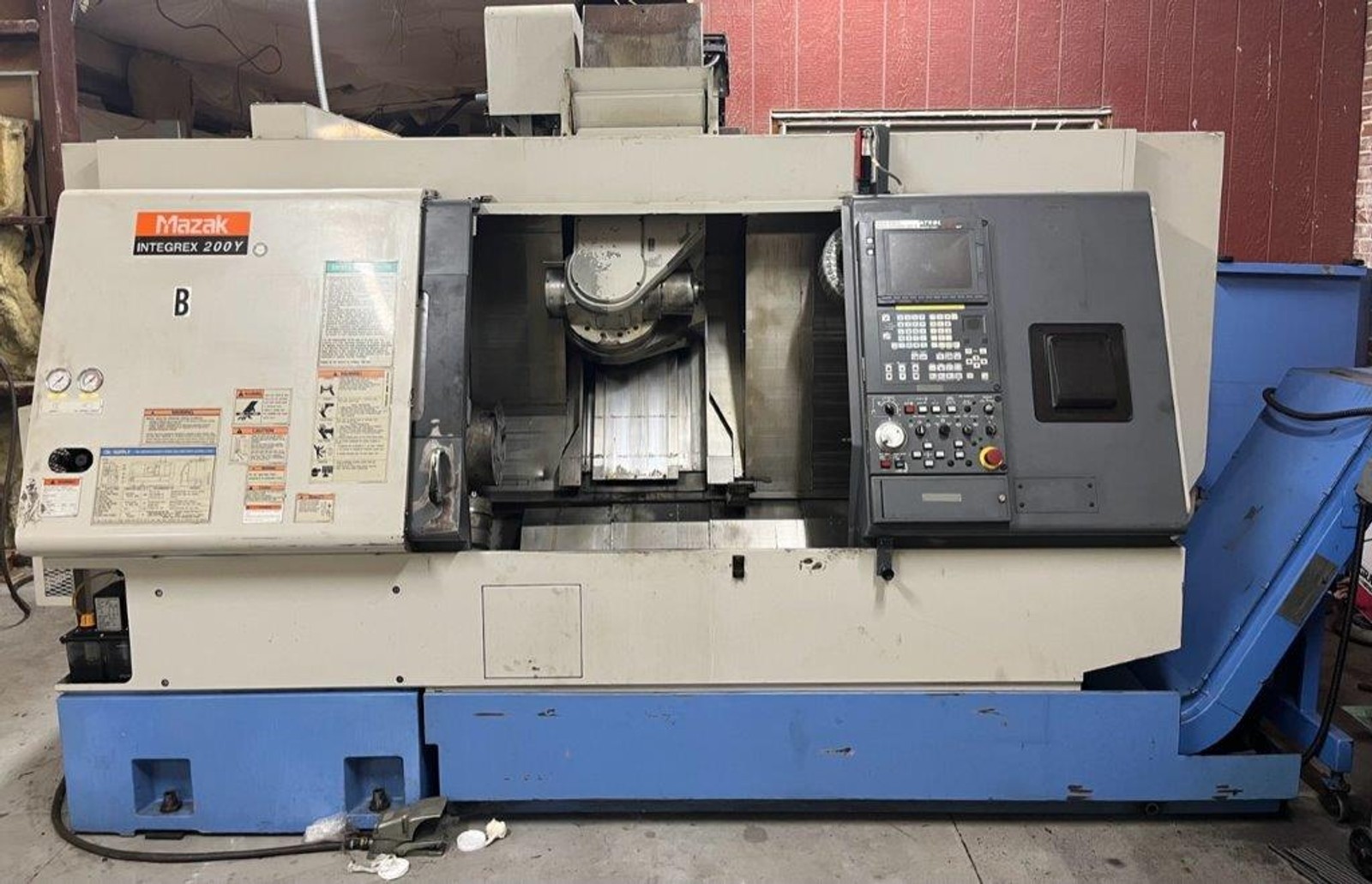

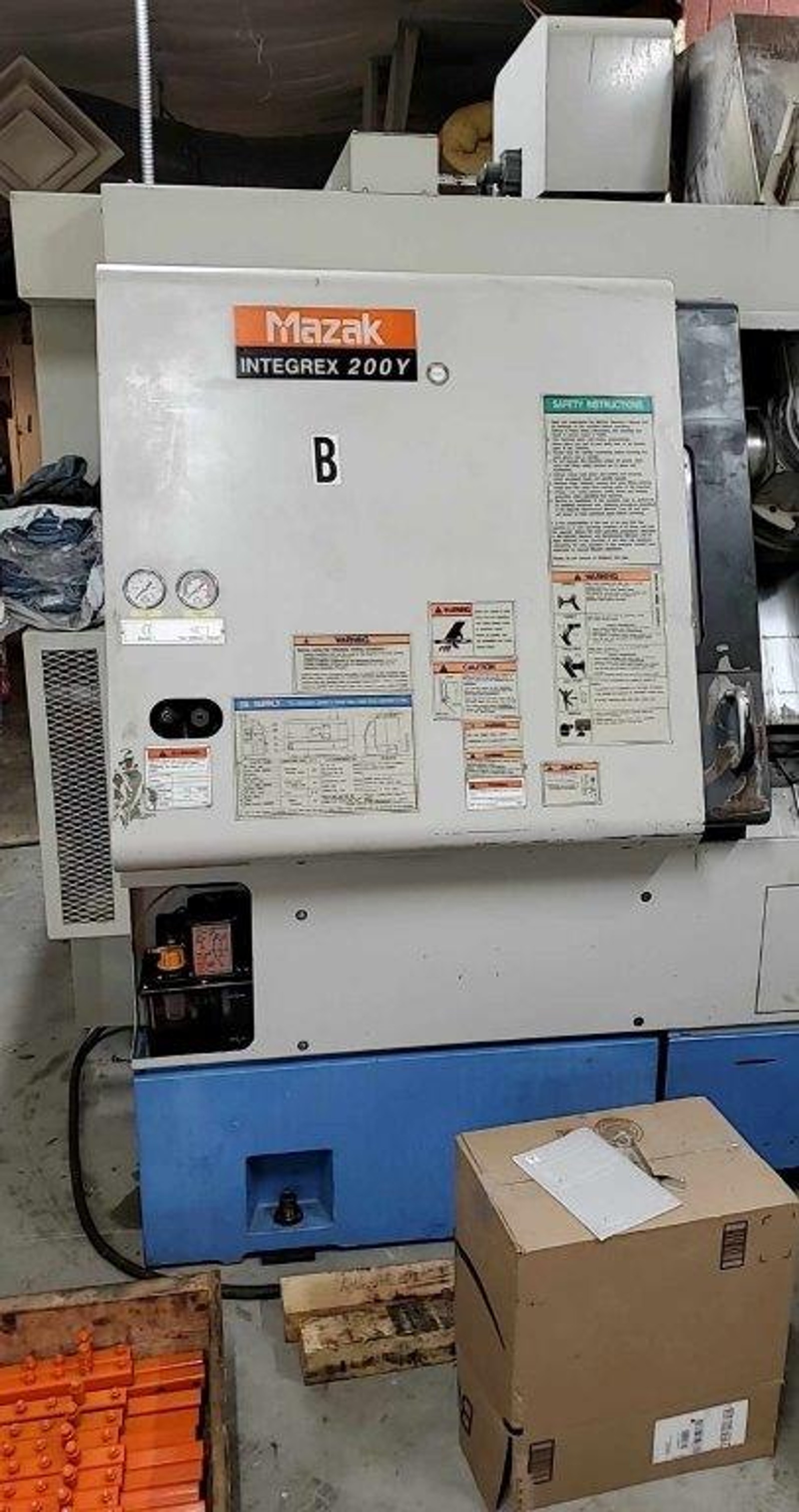

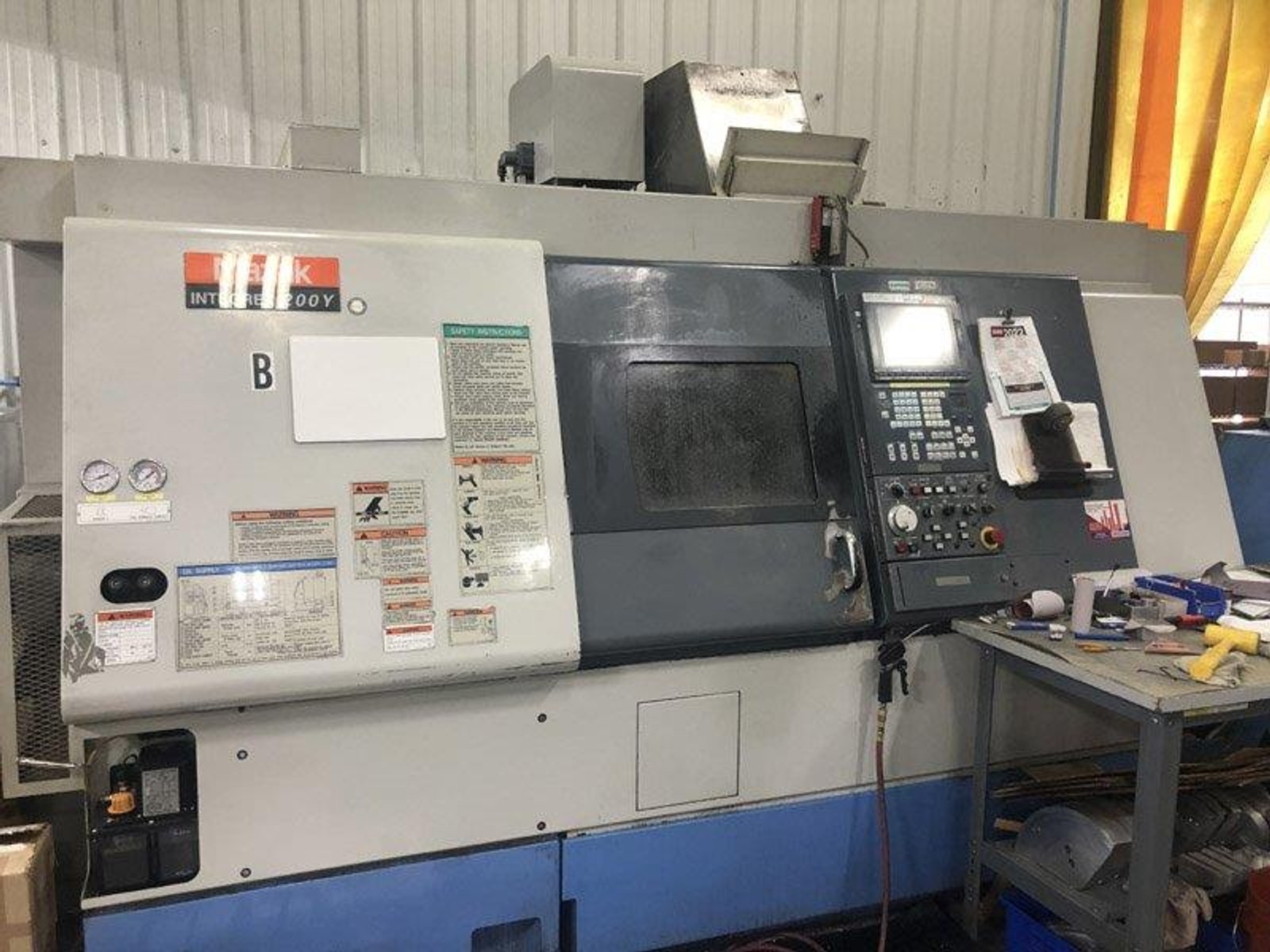

2000 MAZAK INTEGREX 200Y

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

498510

Model

INTEGREX 200Y

Dealer Location

Maryland

Request a Quote
View Contact Information

Spec Sheet

SWING OVER BED............ 21.26"
MAX CUTTING LENGTH........ 39.5"
DISTANCE BETWEEN CENTERS.. 40"
X-AXIS TRAVEL............. 15.87"
Y-AXIS TRAVEL............. +/-3.15"
Z-AXIS TRAVEL............. 42"
C-AXIS INDEXING........... 0.001 DEGREES
CHUCK SIZE................ 8"
BAR CAPACITY.............. 2"
SPINDLE BORE.............. 2.4"
SPINDLE NOSE.............. A2-6
SPINDLE MOTOR............. 30 HP
SPINDLE SPEED............. 5,000 RPM
B-AXIS MILLING SPEED...... 6,000 RPM
B-AXIS SPINDLE TAPER...... KM63
B-AXIS TOOL POSITIONS..... 40
LIVE MILLING SPEED........ 6,000 RPM
APPROX MACHINE DIMS....... 142" X 87" X 98"

EQUIPPED WITH:

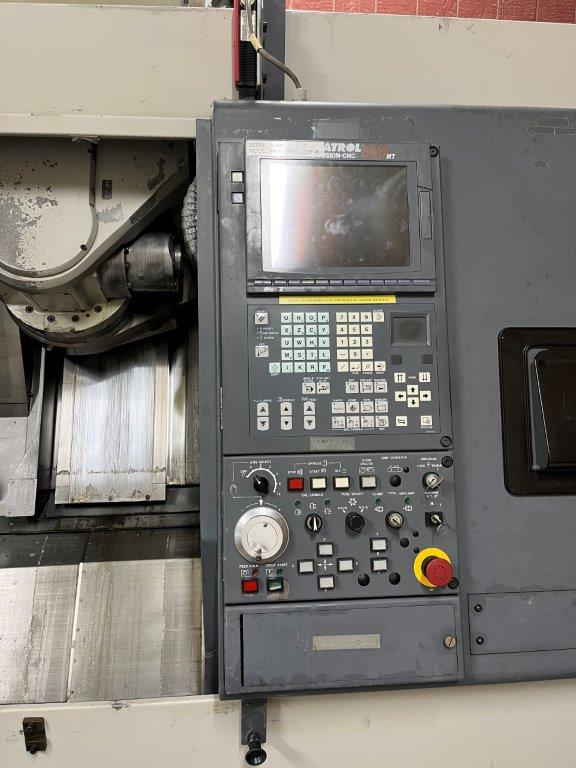

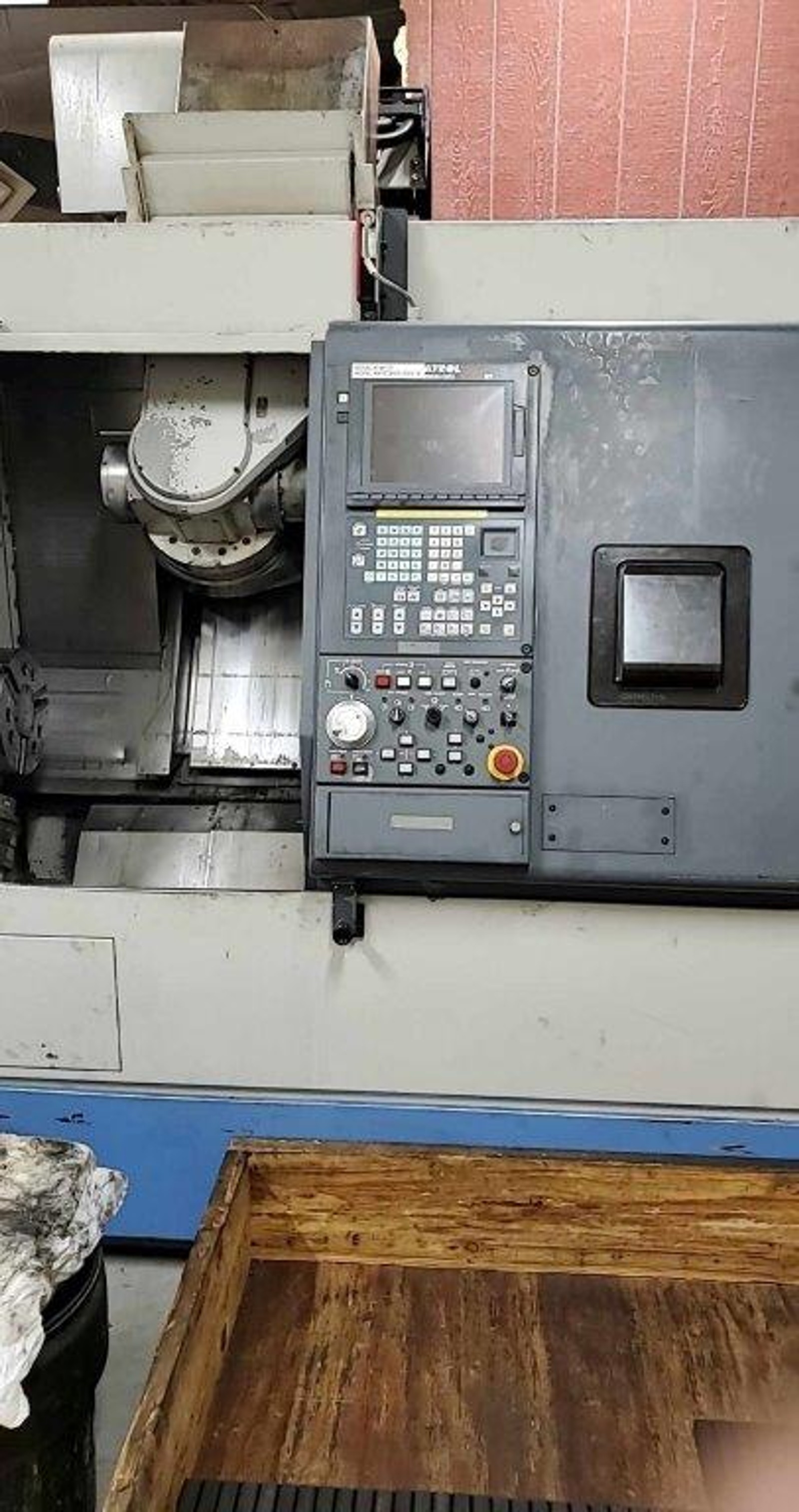

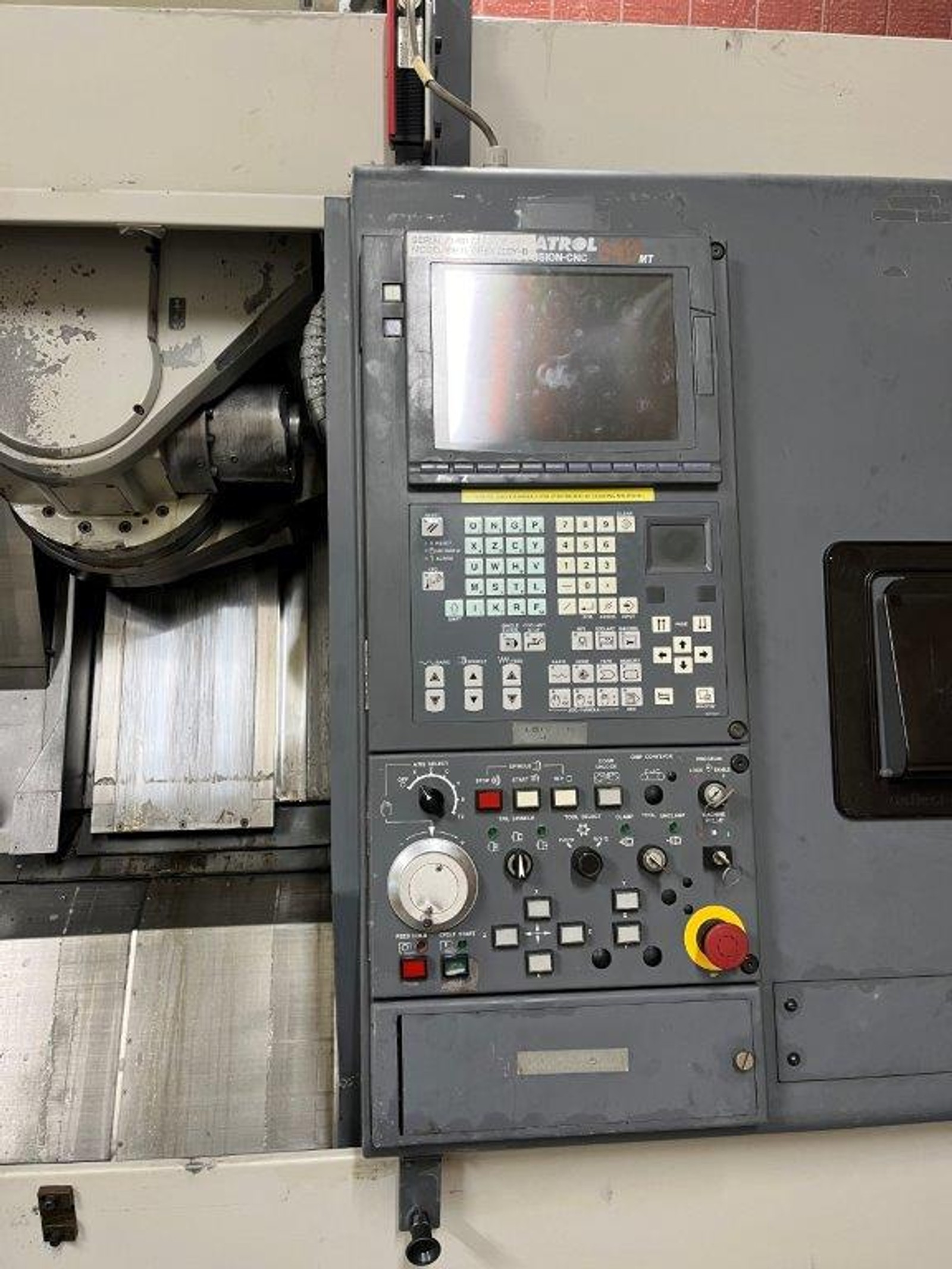

MAZATROL 640MT CNC CONTROL

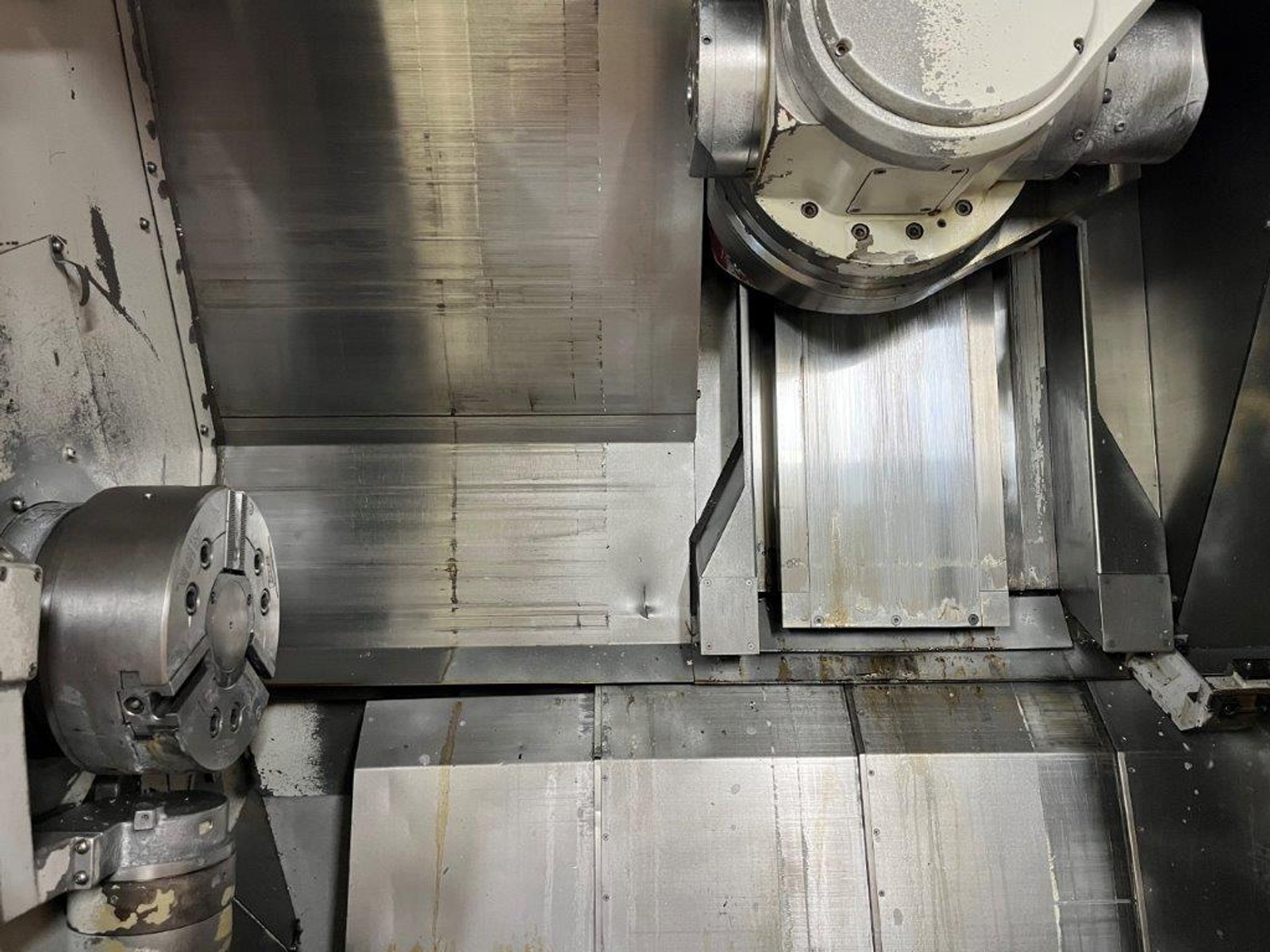

8" 3-JAW CHUCK
COOLANT THRU MILL SPINDLE
CHIP CONVEYOR

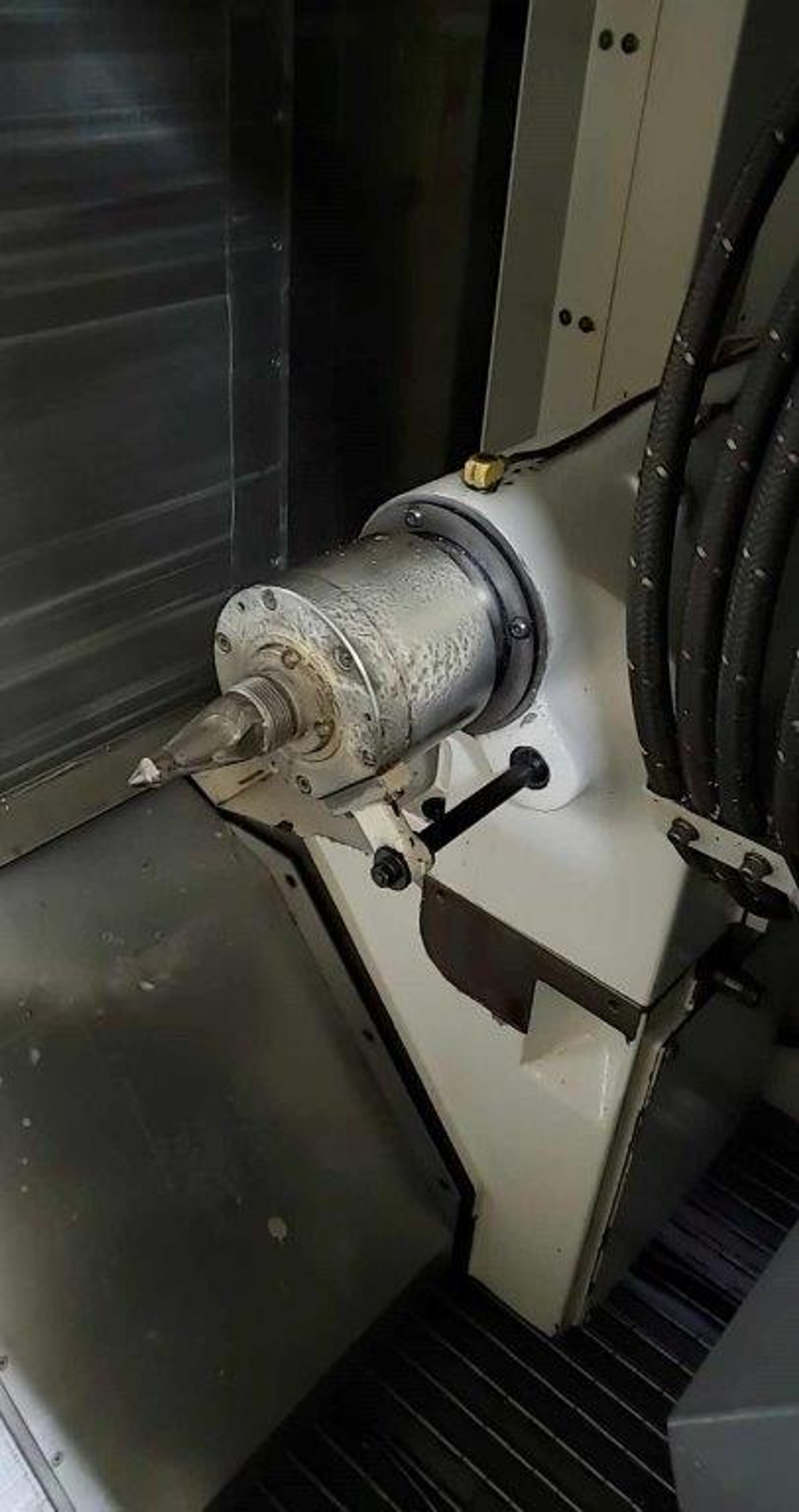

TAILSTOCK
TOOL EYE

HOURS AS OF 11/21/2023:
* POWER ON: 8,367 HOURS
* AUTO OPERATION: 7,965 HOURS
* AUTO CUTTING: 5,316 HOURS
* TOTAL CUTTING: 4,615 HOURS

MACHINE IS IN PLANT, UNDER POWER. AVAILABLE FOR IMMEDIATE INSPECTION AND PURCHASE.
