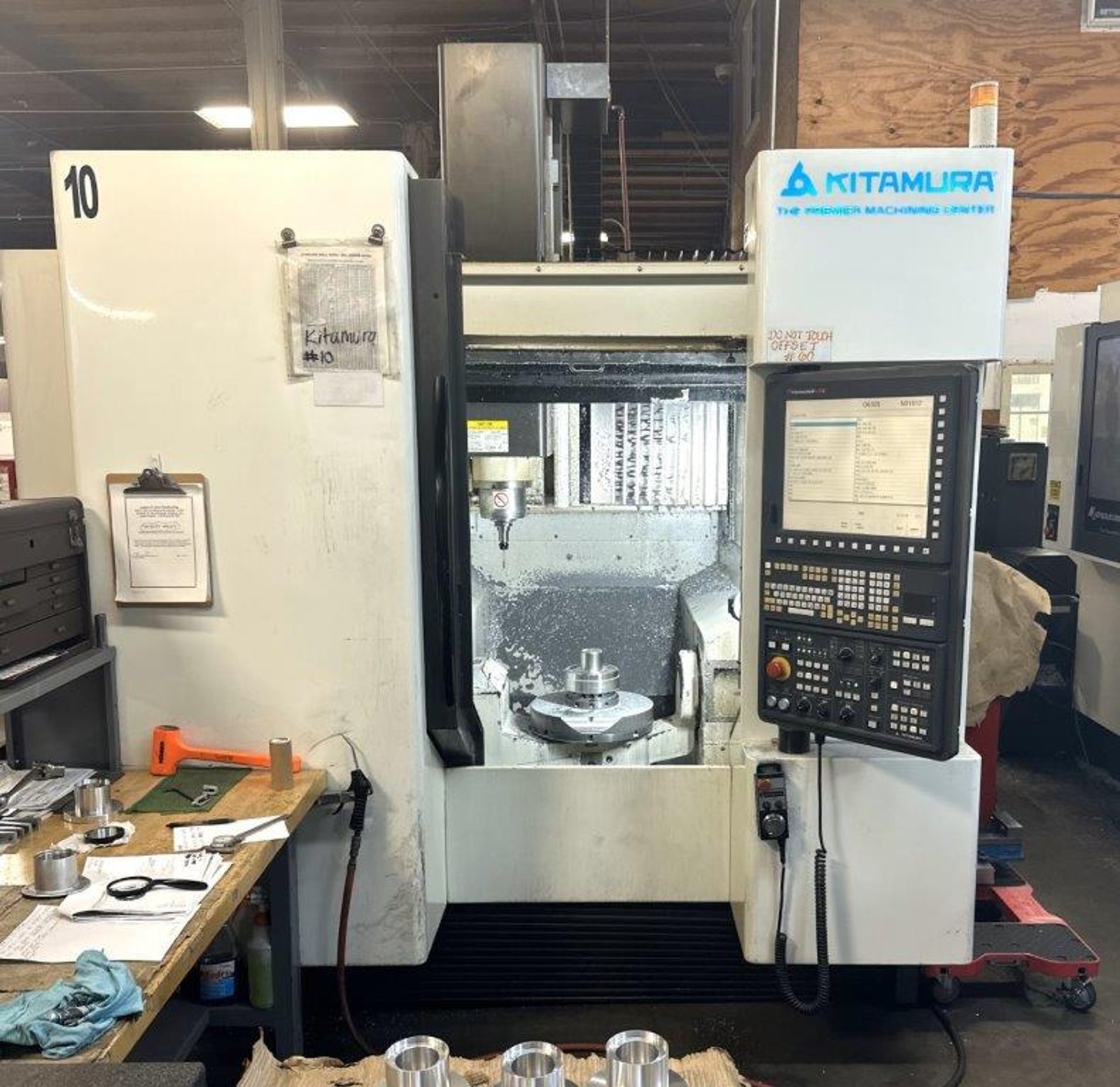

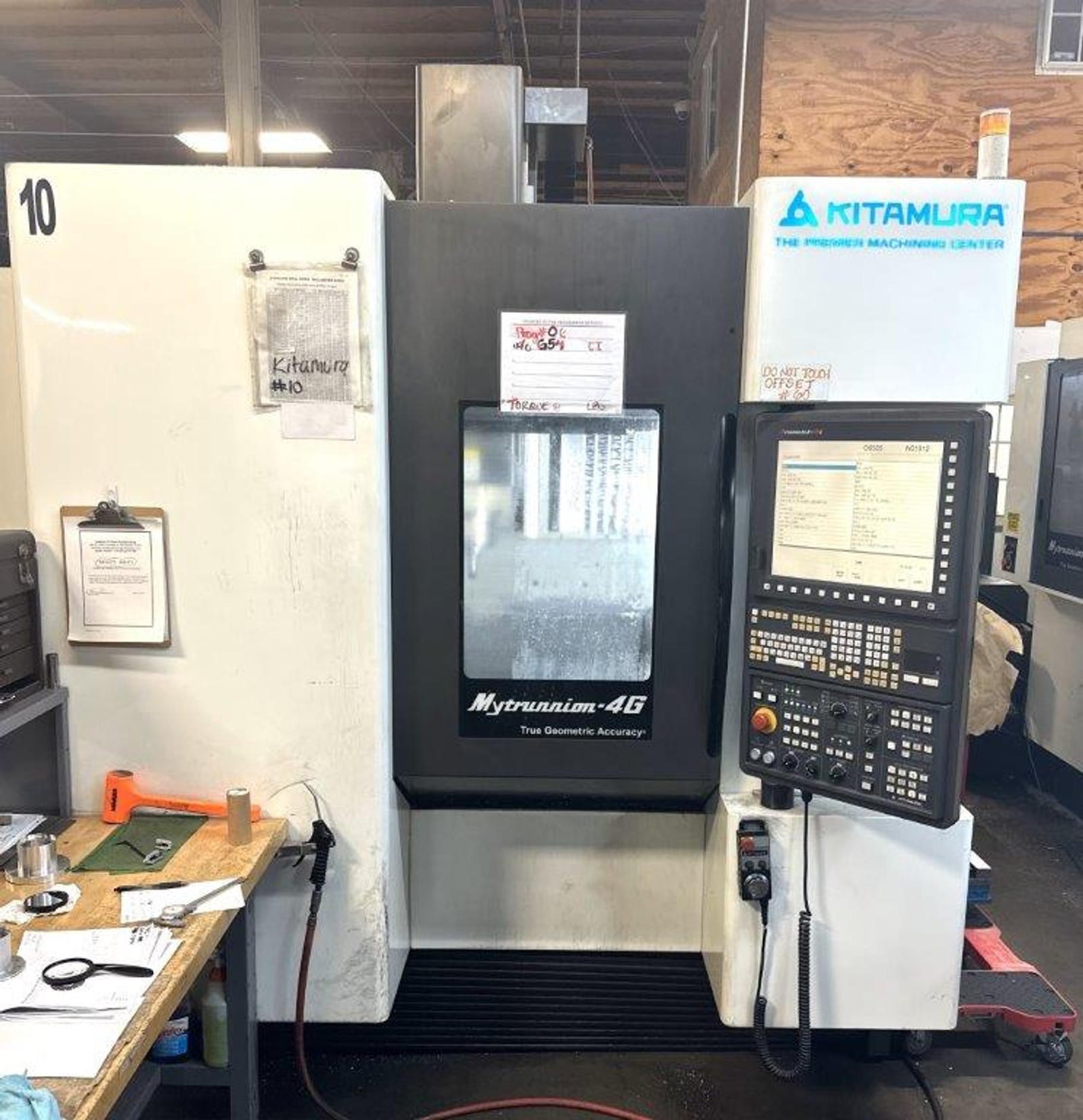

2016 KITAMURA MYTRUNNION-4G

Manufacturer

KITAMURA

Category

Machining Centers

Type

MACHINING CENTERS, UNIVERSAL, CNC

Stock

498526

Model

MYTRUNNION-4G

Dealer Location

Maryland

Request a Quote
View Contact Information

Spec Sheet

PLATTER DIAMETER........... 15.7"
TABLE LOAD CAPACITY........ 440 lb
X-AXIS TRAVEL.............. 24"
Y-AXIS TRAVEL.............. 24"
Z-AXIS TRAVEL.............. 19.7"
A-AXIS (TILT) TRAVEL....... -120° to +30°
C-AXIS (ROTATION) TRAVEL... 0° to 360° FULL 5TH AXIS
SPINDLE SPEED.............. 15,000 RPM
SPINDLE MOTOR.............. 15 hp
SPINDLE TAPER.............. HSK 63
TOOL CAPACITY (ATC)........ 60
RAPID TRAVERSE RATE........ 1969 ipm
CUTTING FEED RATE.......... 945 ipm

EQUIPPED WITH:

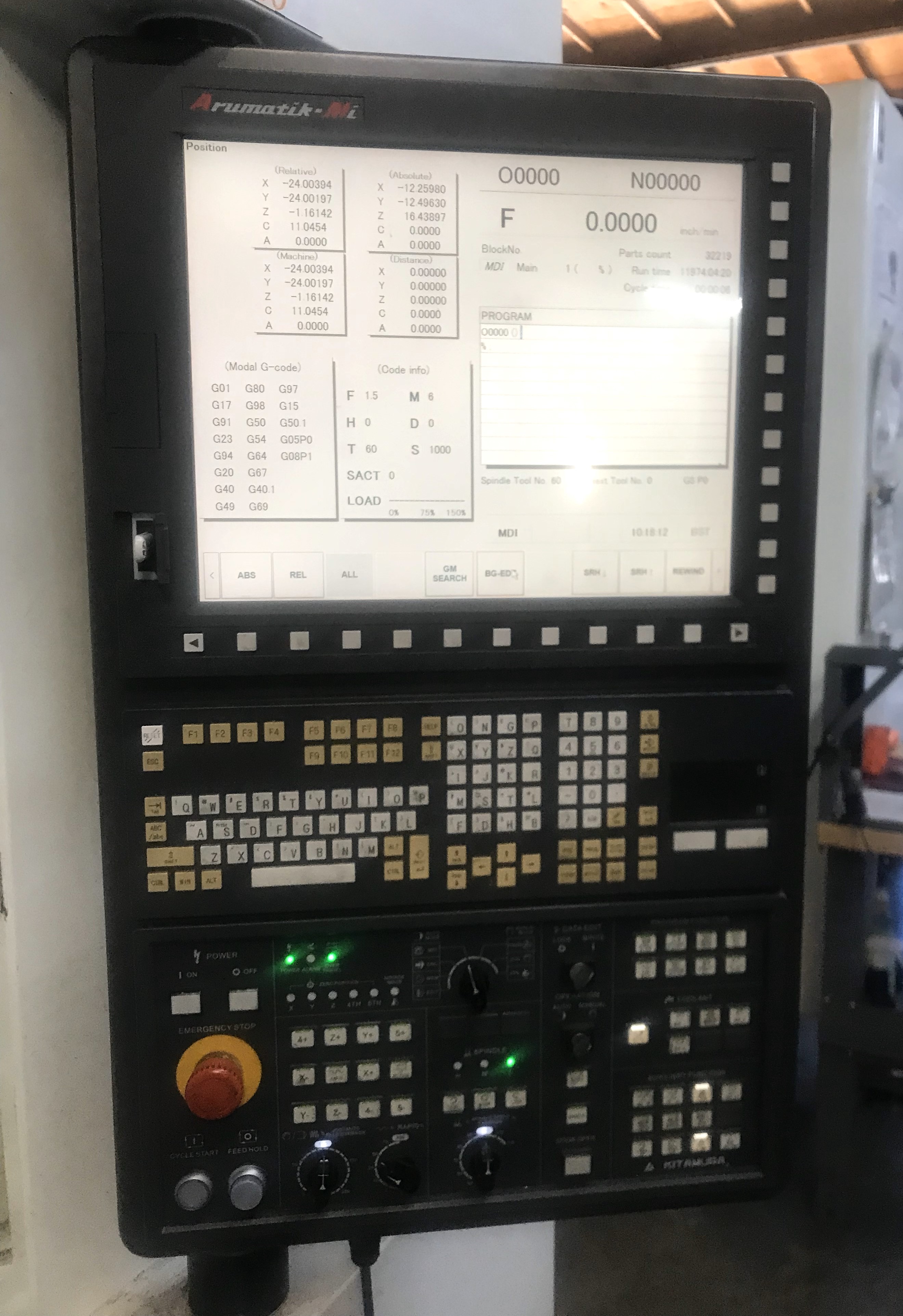

ARUMATIK-MI CNC CONTROL–FANUC USER FRIENDLY
4TH AXIS DRIVE & WIRING
5TH AXIS DRIVE & WIRING
C-AXIS TABLE ROTATION

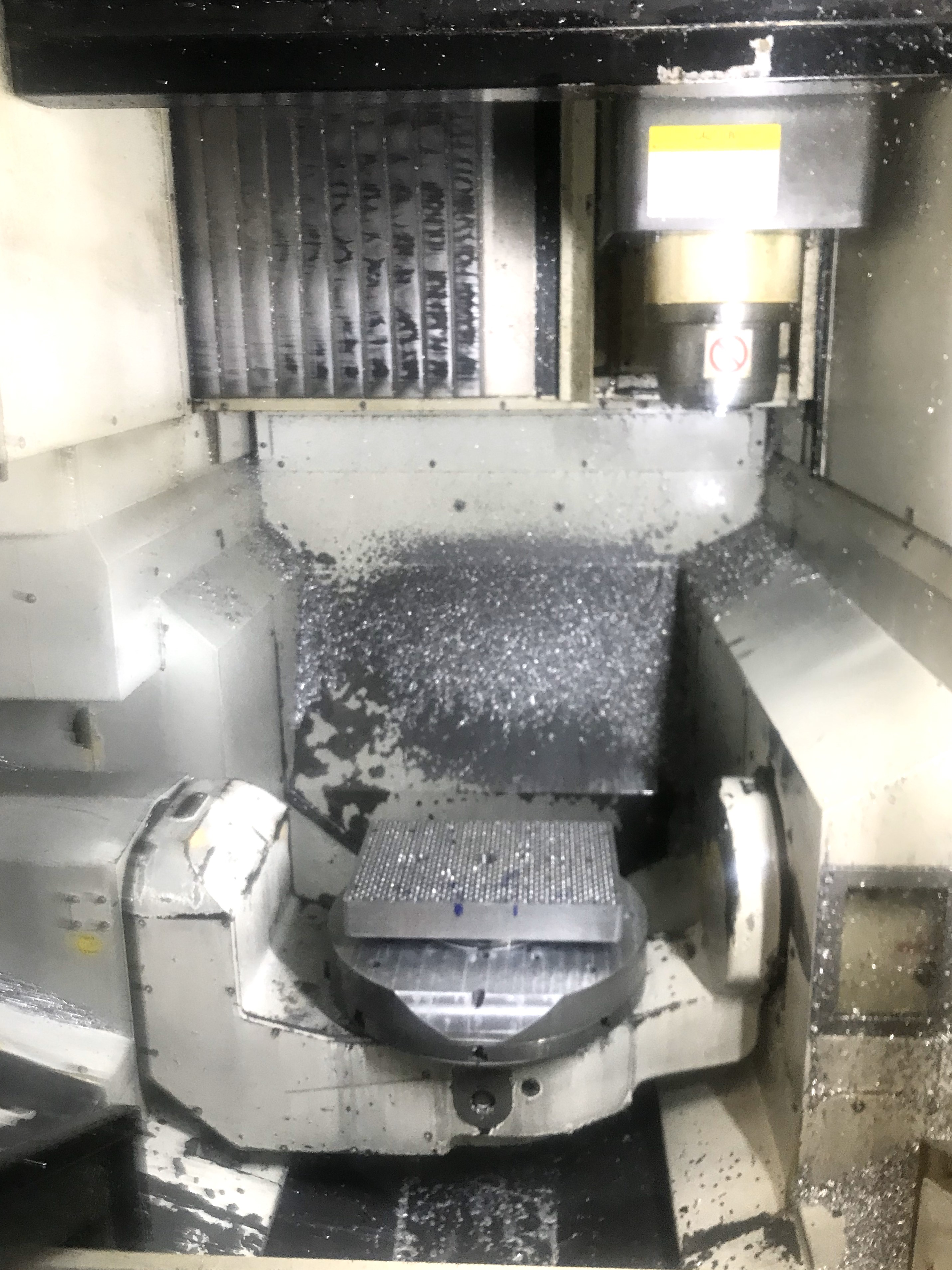

A-AXIS TILTING TRUNNION TABLE
SIMULTANEOUS 5-AXIS CONTOURING
BUILT-IN TRUNNION TABLE (ZERO BACKLASH)
THROUGH SPINDLE COOLANT (1,000 PSI)
RENISHAW PROBING
100 TOOL CAPACITY AUTOMATIC TOOL CHANGER (UPGRADE)
DOUBLE COLUMN BRIDGE TYPE CONTRUCTION

** ORIGINAL OWNER
** MACHINE CUTTING 90% ALUMINUM, SOME STEEL & STAINLESS

** MACHINE MANUFACTURED DATE: MAY, 2016
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
