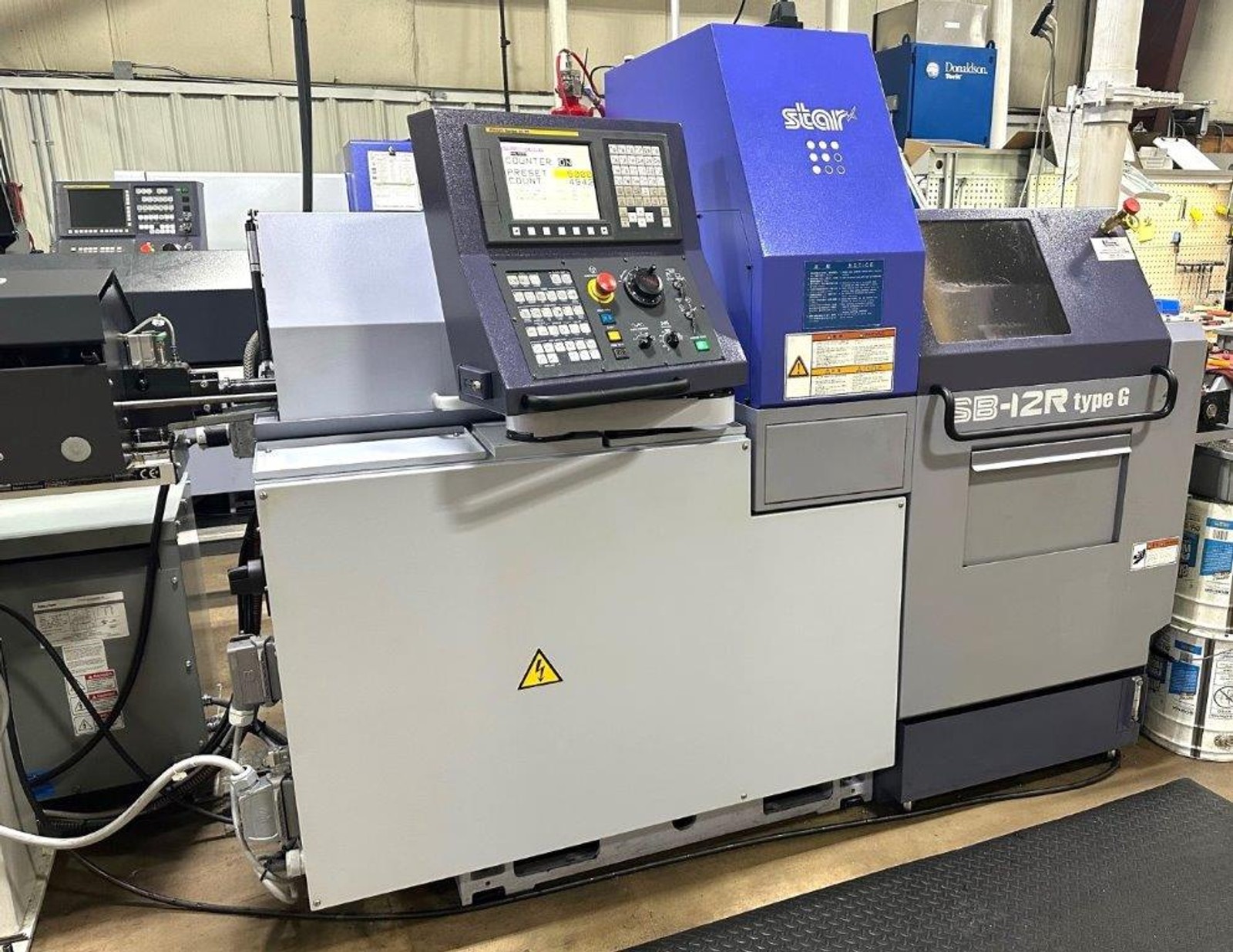

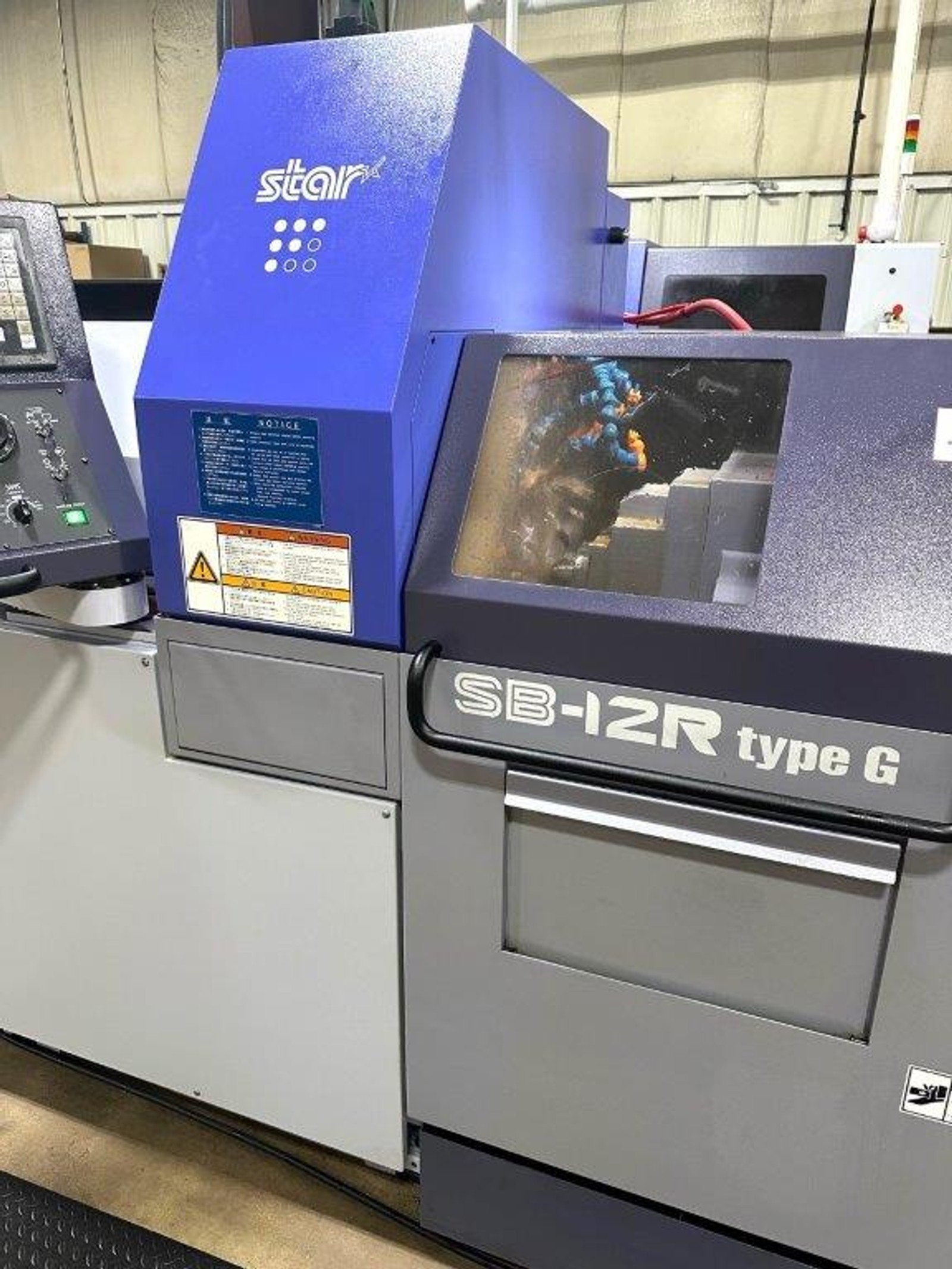

2020 STAR SB-12R TYPE G

Manufacturer

STAR

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

498548

Model

SB-12R TYPE G

Dealer Location

Maryland

Request a Quote
View Contact Information

Spec Sheet

BAR CAPACITY............. 0.5"
MAX HEADSTOCK STROKE..... 8"
MAIN SPINDLE MOTOR....... 5 hp
MAIN SPINDLE INDEXING.... FULL C-AXIS
MAIN SPINDLE SPEED....... 15,000 RPM
BACK SPINDLE INDEXING.... FULL C-AXIS
BACK SPINDLE SPEED....... 12,000 RPM

EQUIPPED WITH:

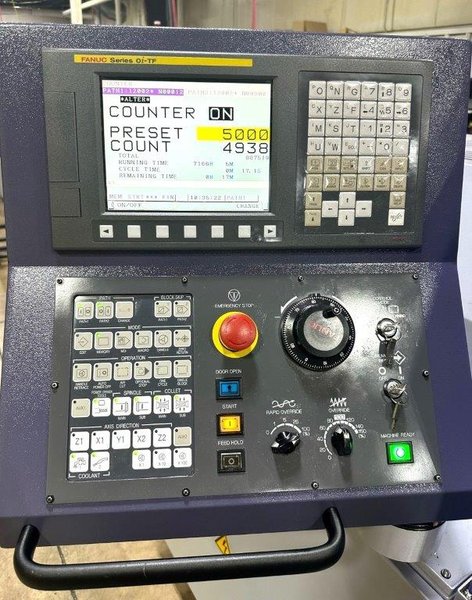

FANUC 0i-TF CONTROL

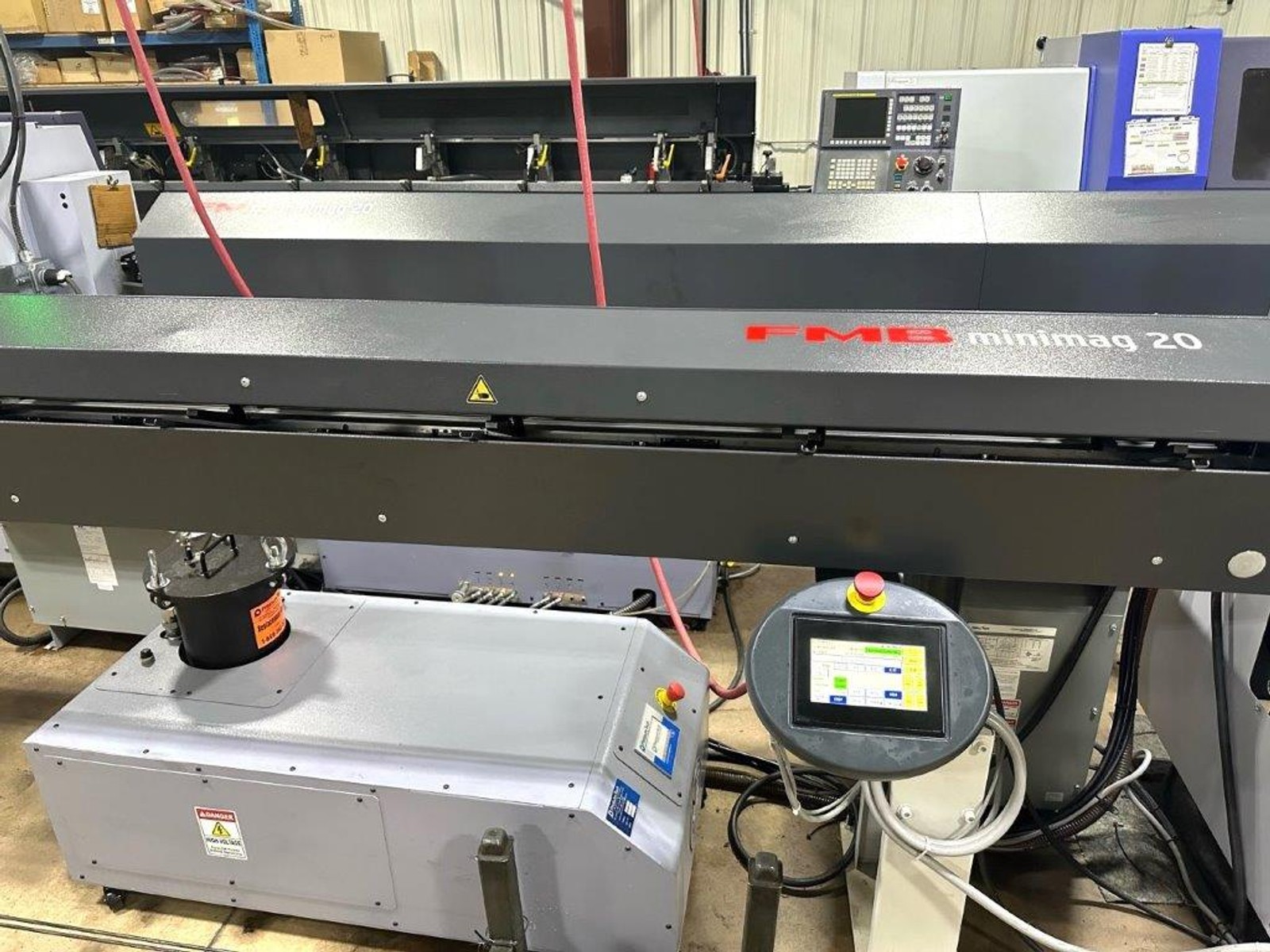

12' EDGE FMB MINIMAG 20 BARFEEDER
MAGIC GUIDE BUSHING
C-AXIS CONTROL (MAIN & SUB)
HIGH-PRESSURE COOLANT (4-LINES)
PARTS CONVEYOR
HIGH-SPEED MILLING
HIGH-SPEED MILLING HEADS
REVOLVING GUIDE BUSH UNIT

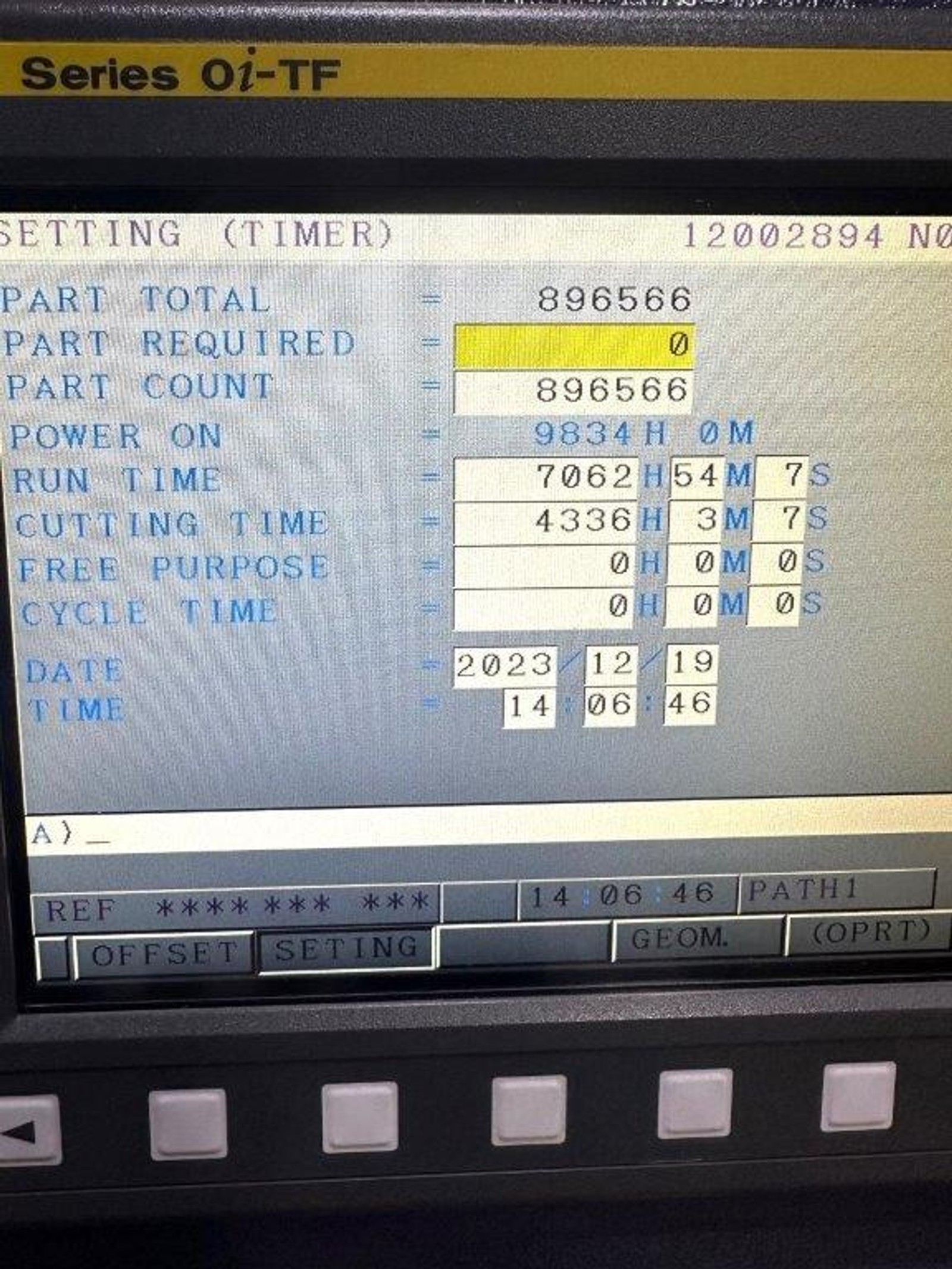

** AS OF DECEMBER, 2023 - CUTTING TIME: 4,336 HOURS

** ORIGINAL OWNER
** CUTTING WITH OIL ONLY
** MACHINE CUTTING PRIMARILY CARBON STEEL

** MACHINE PURCHASED & INSTALLED: 2021
** MACHINE MANUFACTURED DATE: NOVEMBER, 2020

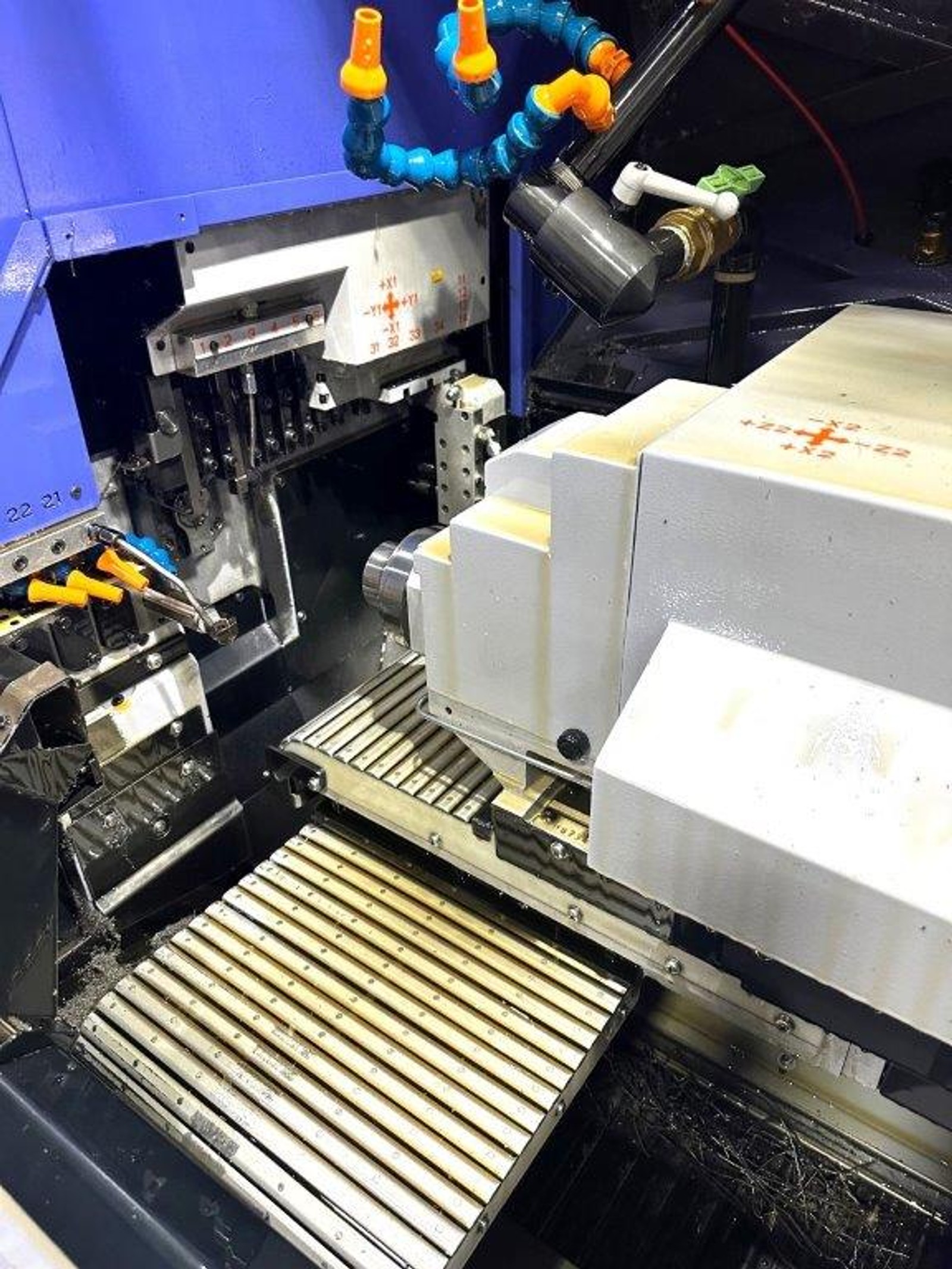

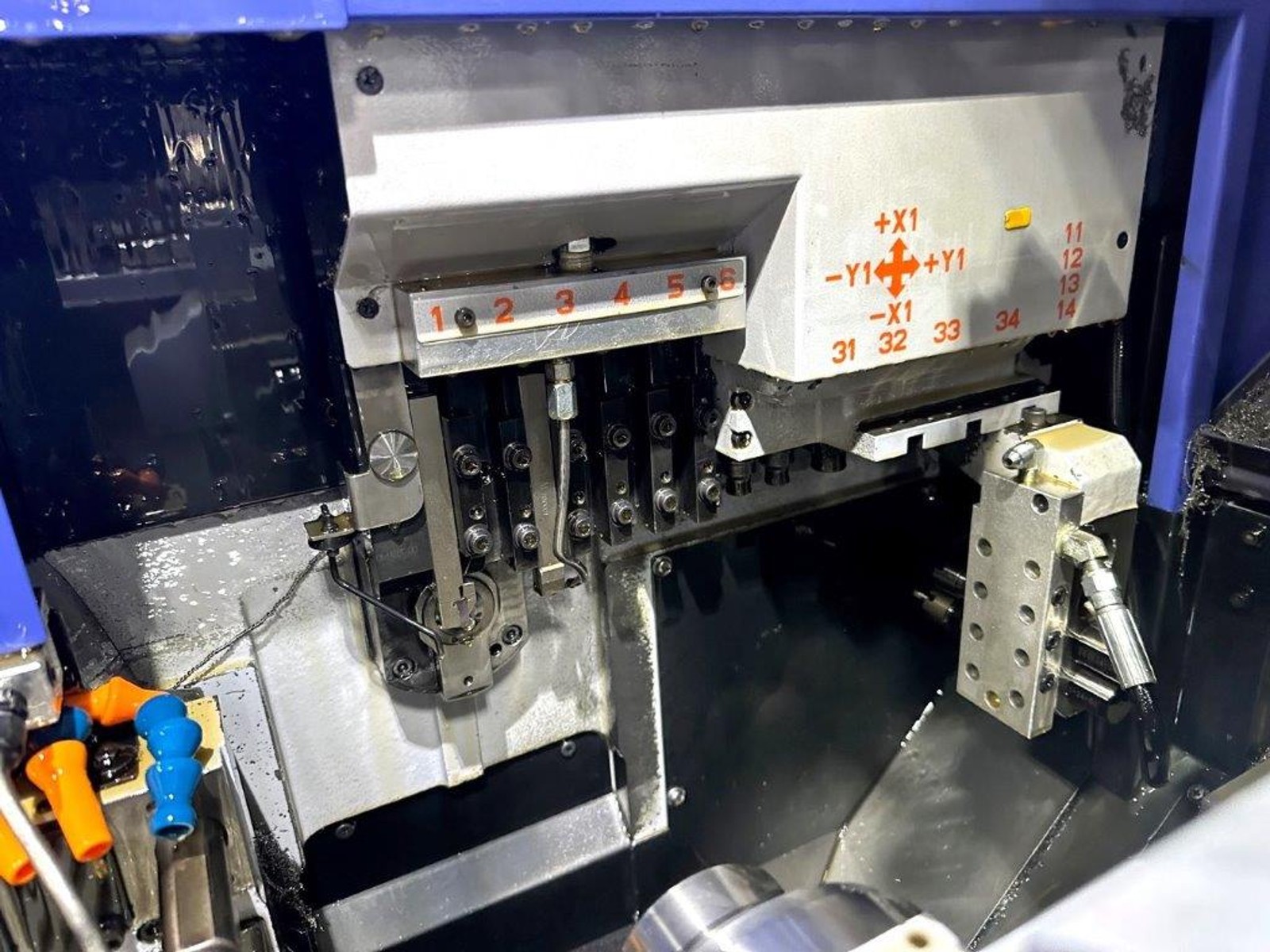

** SEE PHOTOS FOR WORKZONE/TOOLING CONFIGURATION
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
