Tsugami B0326-III 6-Axis, FMB Bar Feed, F1.25" Bar Capacity, 34 Stations, Fanuc 32i-B, Mist Collector, Brand New #43077

Manufacturer

TSUGAMI

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

43077

Model

B0326-III

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43077

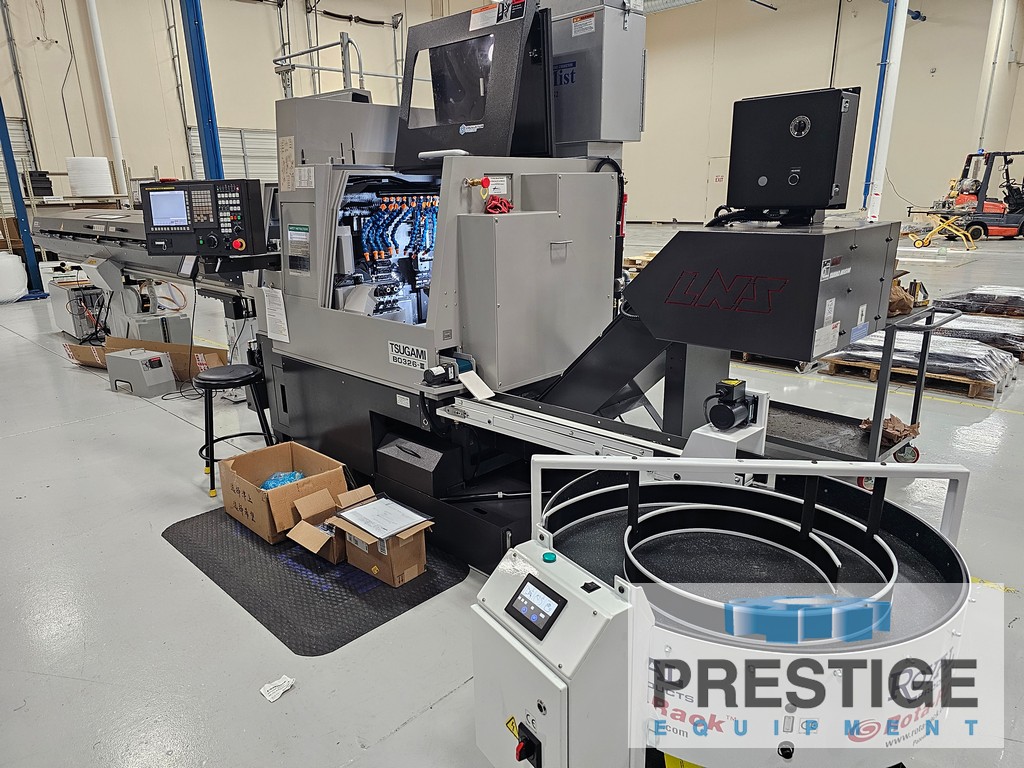

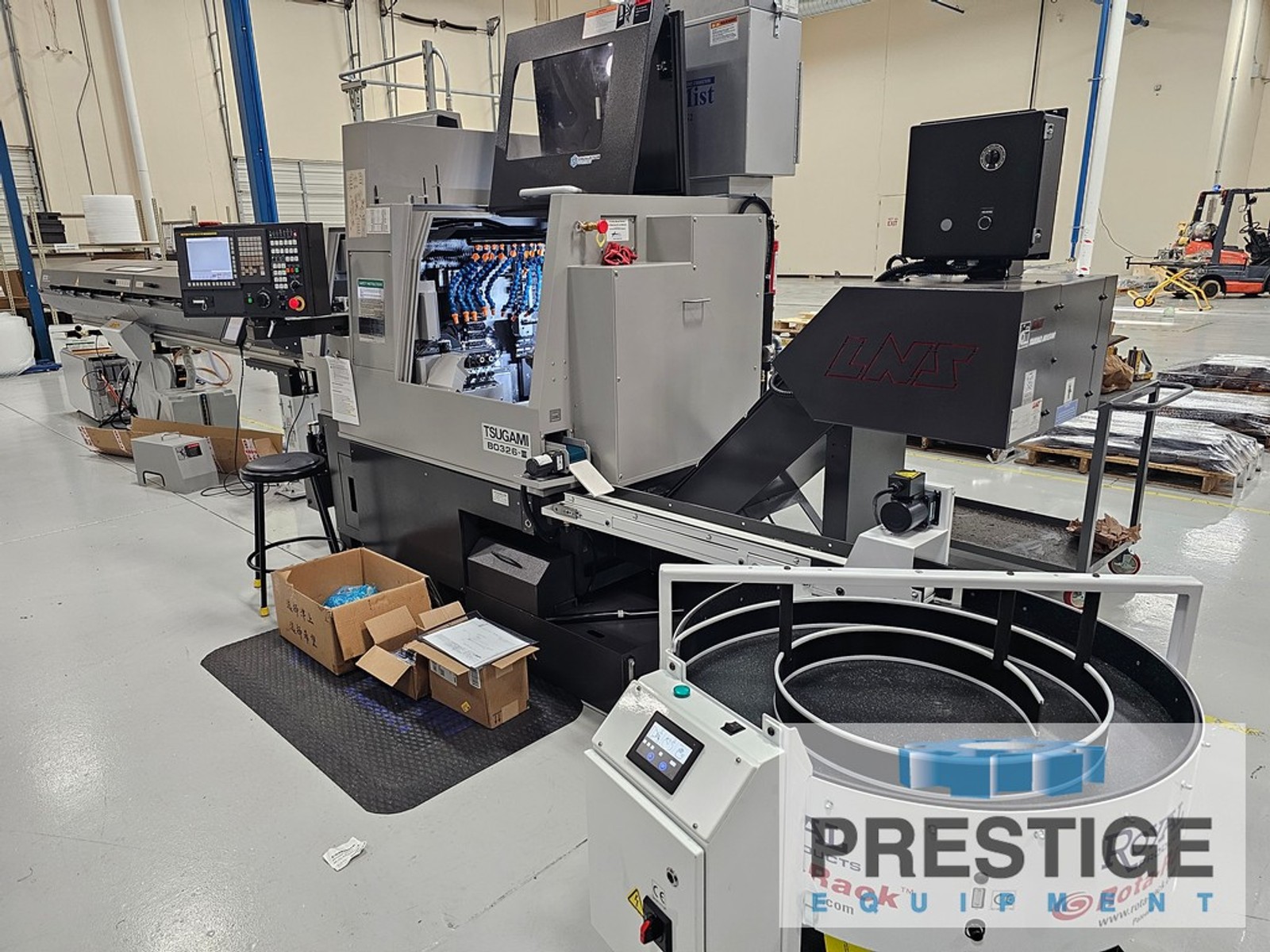

Tsugami B0326-III 6-Axis Swiss Turning Center

FEATURES:

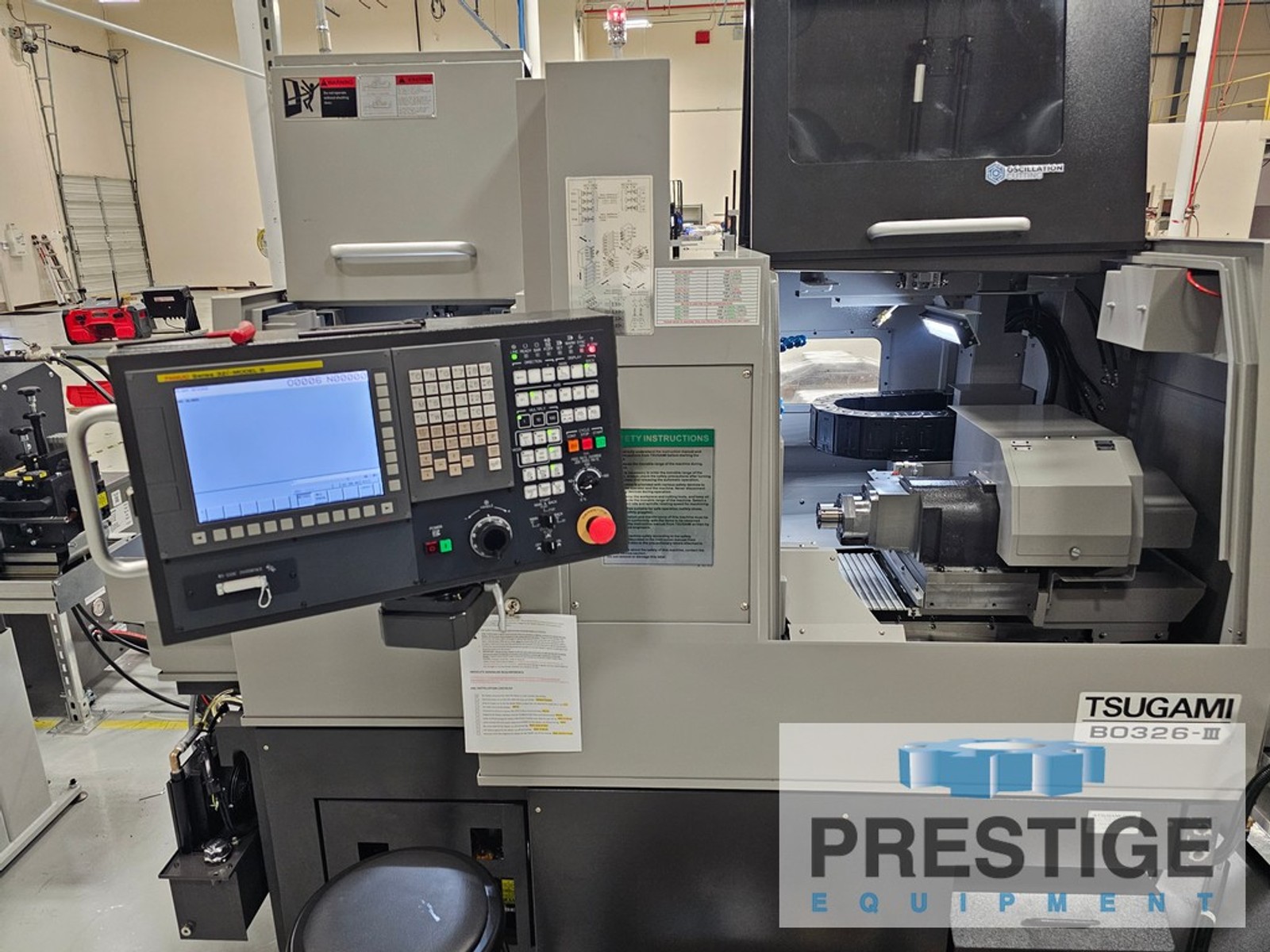

Fanuc 32i-B CNC Control

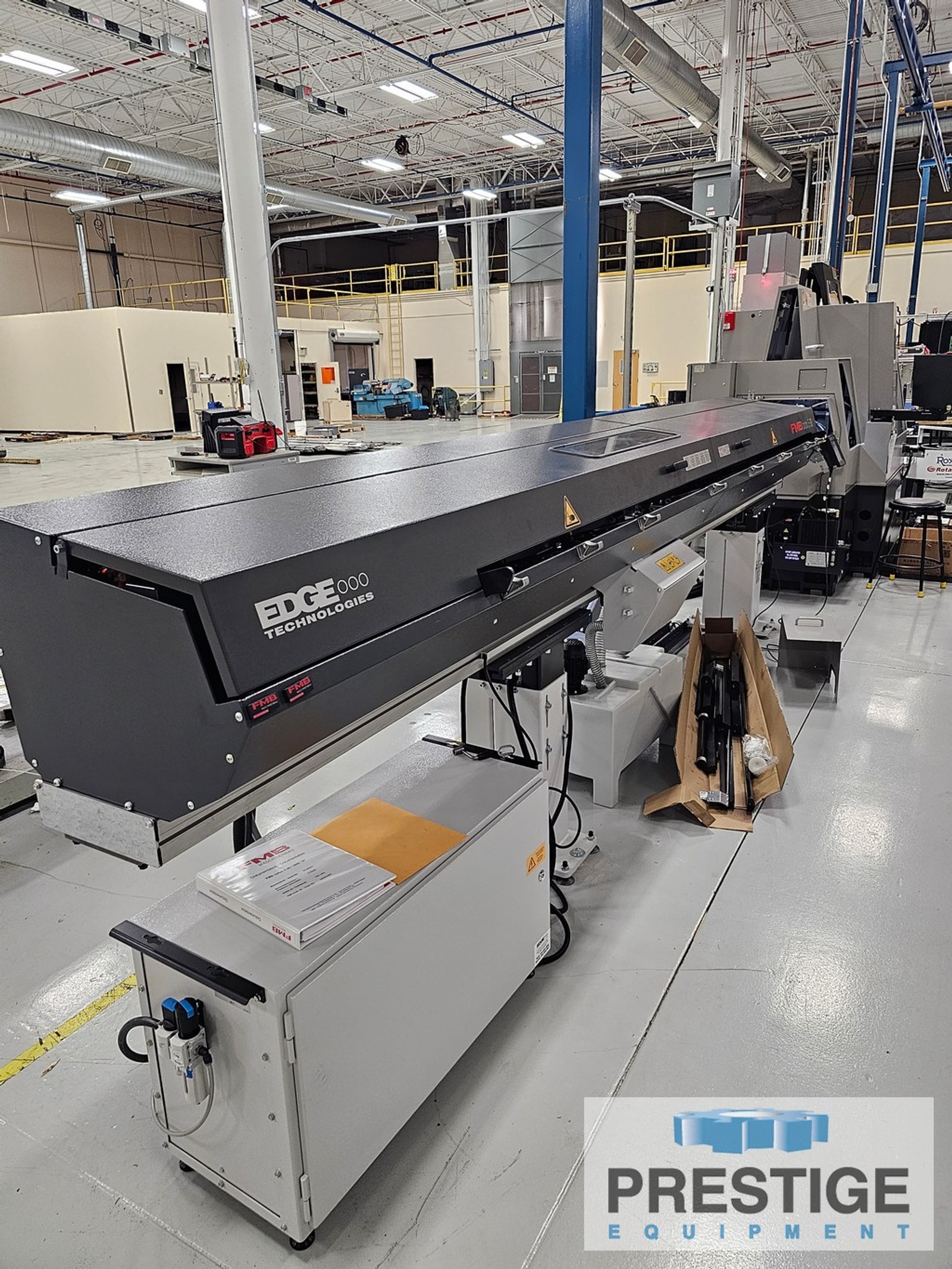

FMB 3-38 Barfeeder
Tri-Mist 850 G2 Mist Collector
34 Tool Stations
MP 2000PSI for Coolant System with 8 Outs For Oil
Hepa Filter
Firetrace
Oscillation Cutting Function (X1/Z1 Axes)
LNS Turbo Chip Conveyor
Royal Roto Rack & Conveyor

SPECIFICATION:
Maximum Bar Diameter .................. 1.25"
Maximum Machining Length .............. 12.99"
Max. Back Spindle Chucking Dia. ....... 1.25"
Main Spindle Speeds ................... 200 - 8,000 RPM
Back Spindle Speeds ................... 200 - 8,000 RPM
Tool Spindle Speeds ................... 200 - 6,000 RPM
Total Tool Number ..................... 34
Controllable Axes ..................... 6
Main Spindle Motor .................... 7.5 HP
Back Spindle Motor .................... 7.5 HP

EQUIPPED WITH:
Fanuc 32i-B CNC Control
FMB 3-38 Barfeeder
Tri-Mist 850 G2 Mist Collector
34 Tool Stations
MP 2000PSI for Coolant System with 8 Outs For Oil
Hepa Filter
Firetrace
Oscillation Cutting Function (X1/Z1 Axes)
LNS Turbo Chip Conveyor
Royal Roto Rack & Conveyor
Parts Catcher with Exit Conveyor and Basket
Cutting Oil Tank with Coolant Tank Level Detector
Main/Sub Spindle with C-Axis Brake
Spindle Cooling for Main,Sub, and Guide Bushing Motors
Y-Axis Positioning For Sub Side Tools


NOTE:
BRAND NEW, NEVER USED
