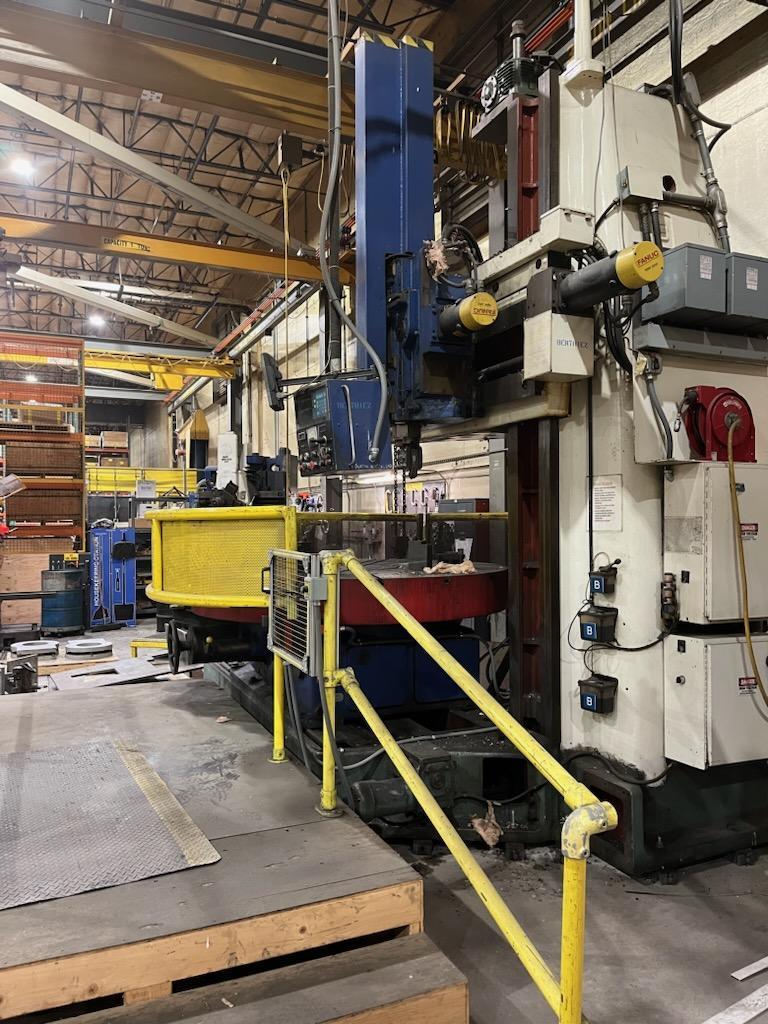

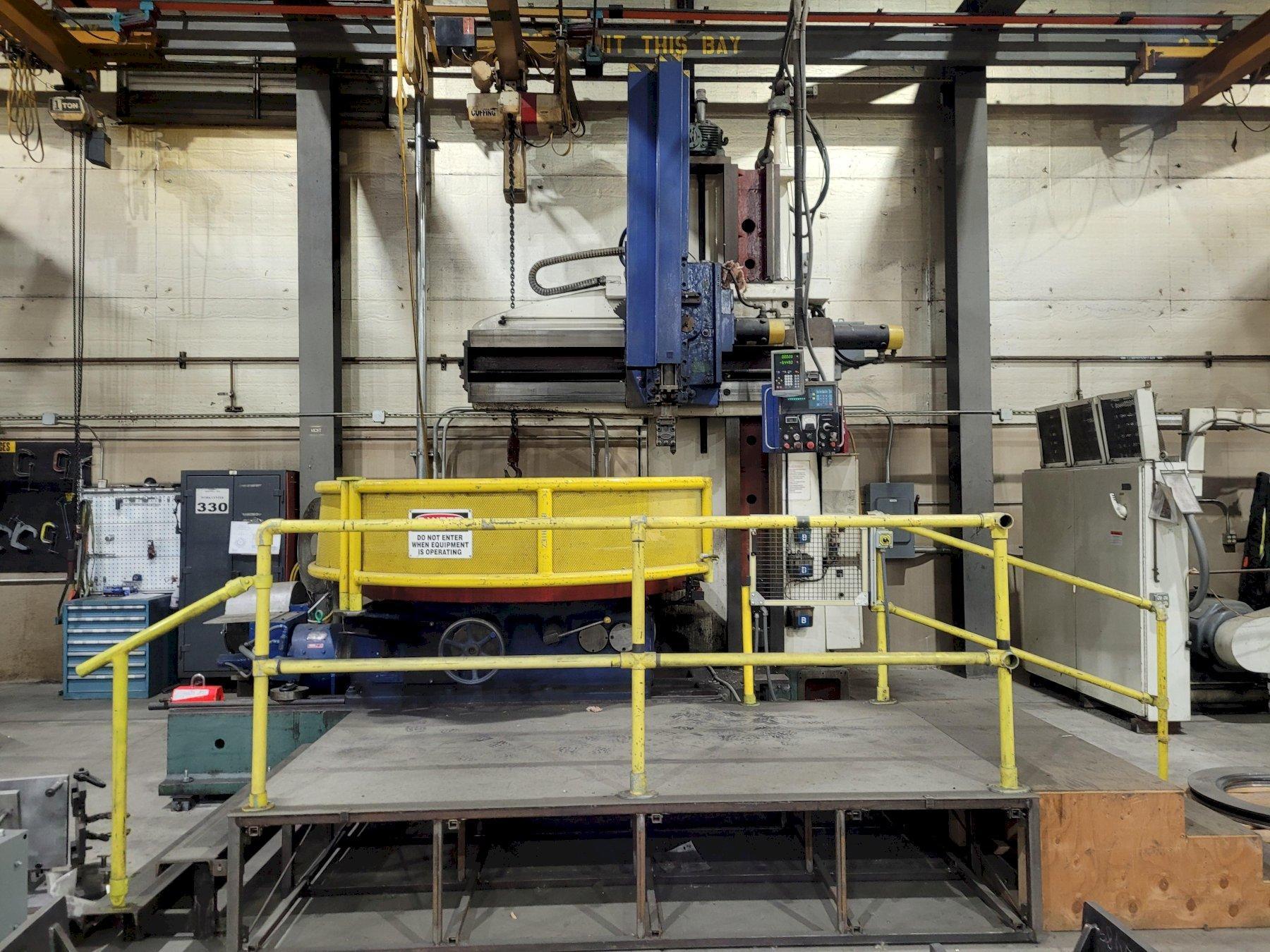

86" BERTHIEZ MODEL #TFM220 VERTICAL TURRET LATHE / VTL: STOCK #18124

Manufacturer

BERTHIEZ

Category

Lathes

Stock

18124

Model

86"

Dealer Location

Ohio

Spec Sheet



MODEL ....................... TFM220
TABLE DIAMETER .............. 80" (2000 mm)
MAXIMUM SWING ............... 86" (2200 mm)
TABLE LOAD CAPACITY ......... 20 TONS
TABLE ROTATION SPEED ........ 1.6 TO 200 RPM
TURNING HEIGHT .............. 98" (2500 mm)
CROSS RAIL VERT TRAVEL ...... 86" (2200 mm)
RAM VERTICAL TRAVEL ......... 63" (1600 mm)
SIZE OF RAM ................. 8.8" X 8.8" (224 mm)
CARRIAGE HORIZONTAL TRAVEL .. 51" (1305 mm)
CARRIAGE & RAM MOTORS ....... FANUC SERVO
RAPID TRAVERSE .............. YES
TOOL HOLDER IN RAM .......... YES

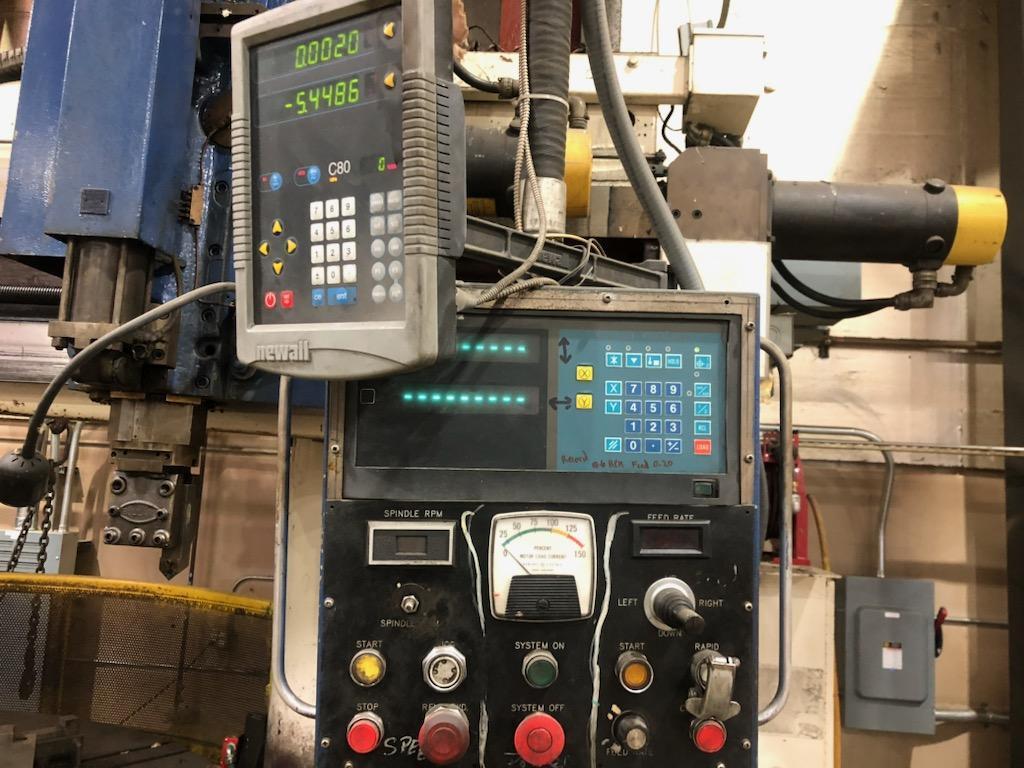

DIGITAL READOUTS ............ YES, NEWALL
MAIN MOTOR .................. 60 HP

No Video Available
