Haas CL-1, 11" Swing, 1.25" Bore, 8" Stroke, 8-Pos. Turret, 5C Collet Nose, 6000 RPM, Haas CNC, 2019, #43025

Manufacturer

HAAS

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

43025

Model

CL-1

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43025

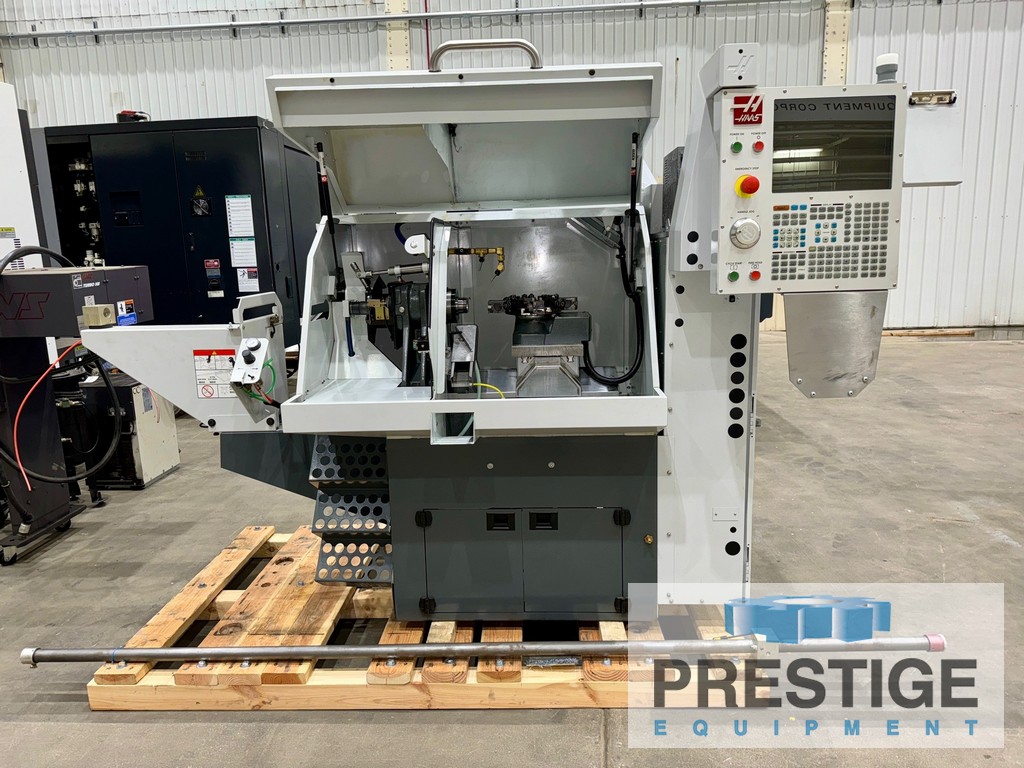

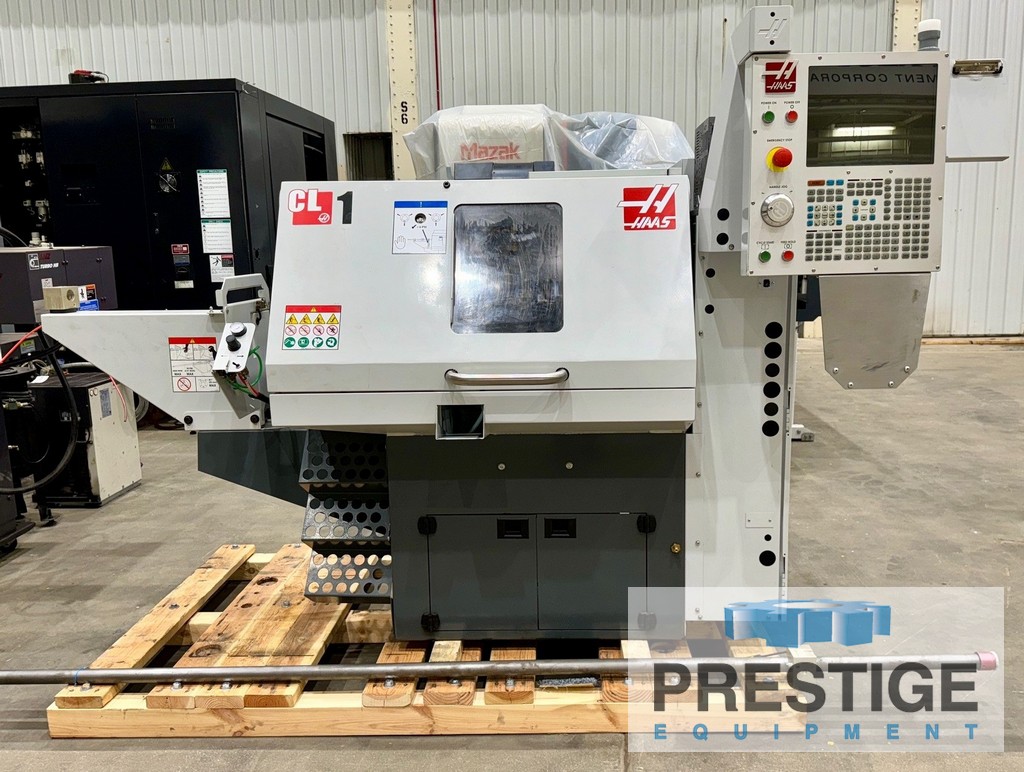

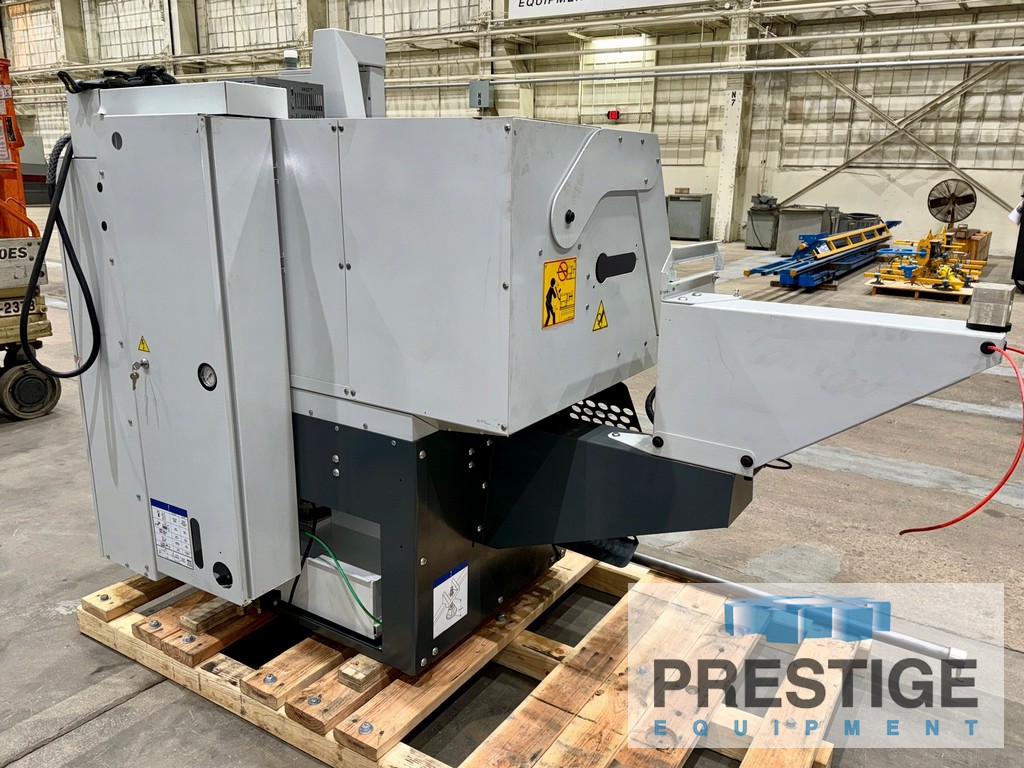

Haas CL-1 CNC Ultra Compact CNC Chucker

FEATURES:

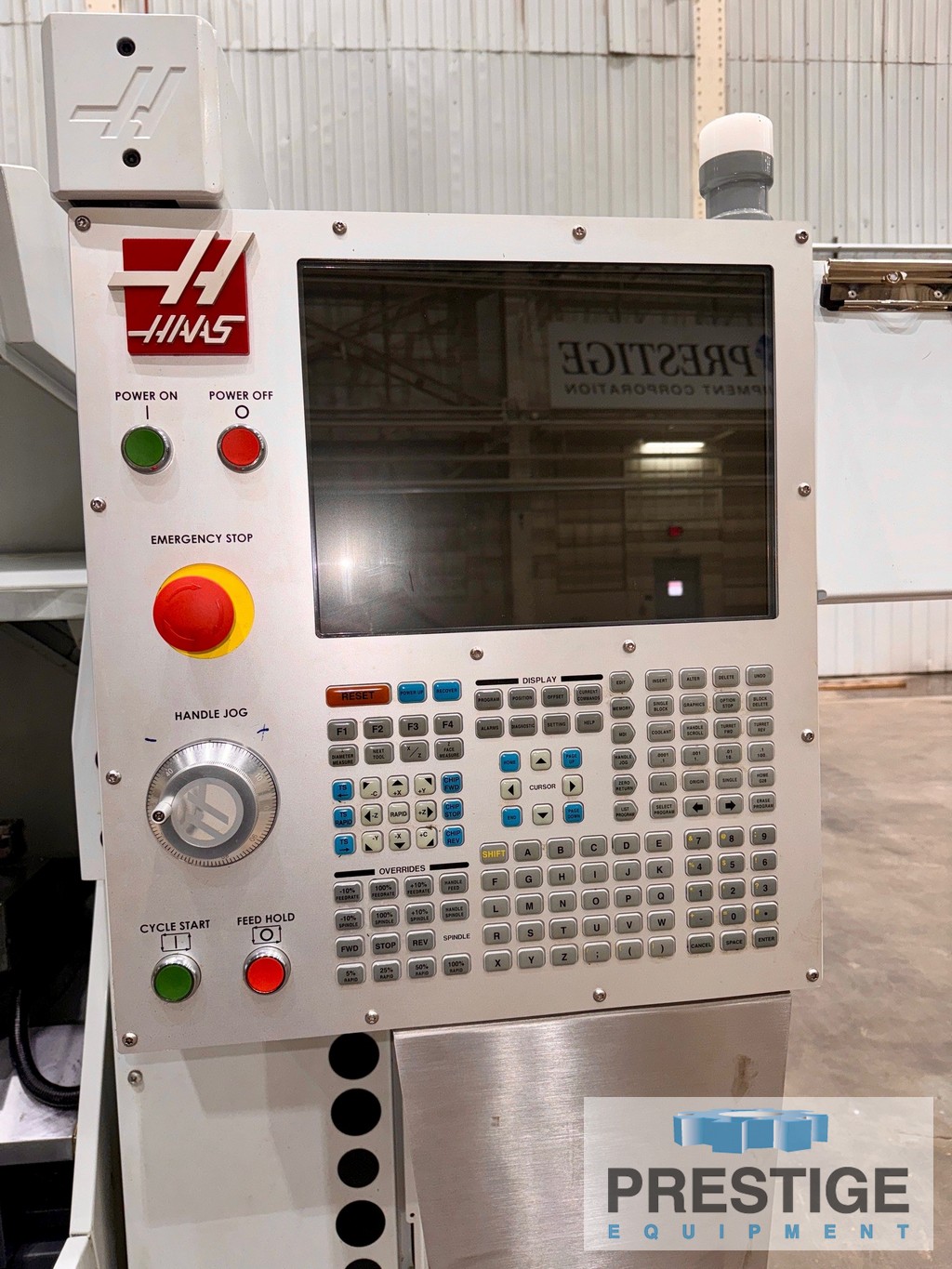

Haas CNC Control

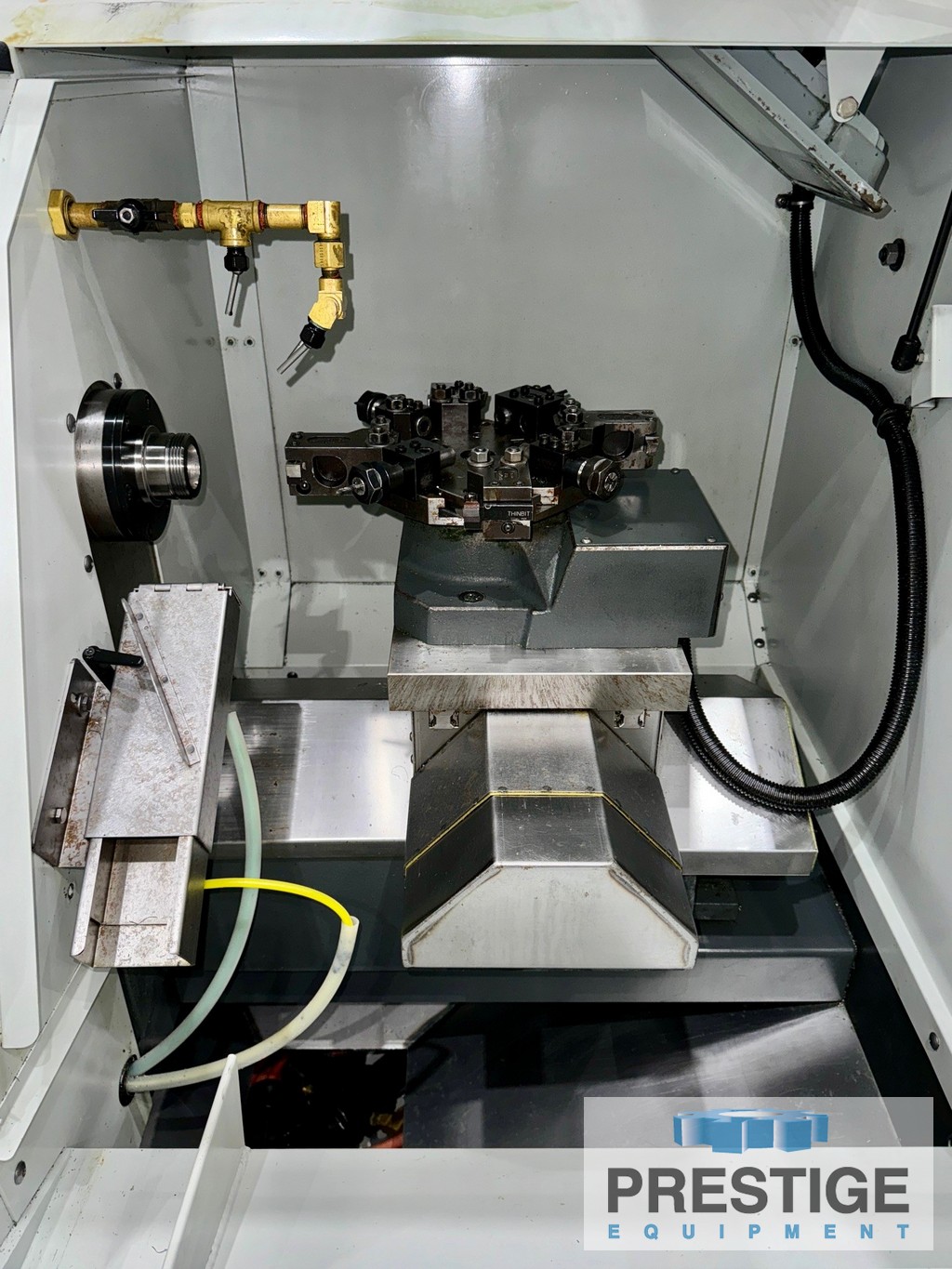

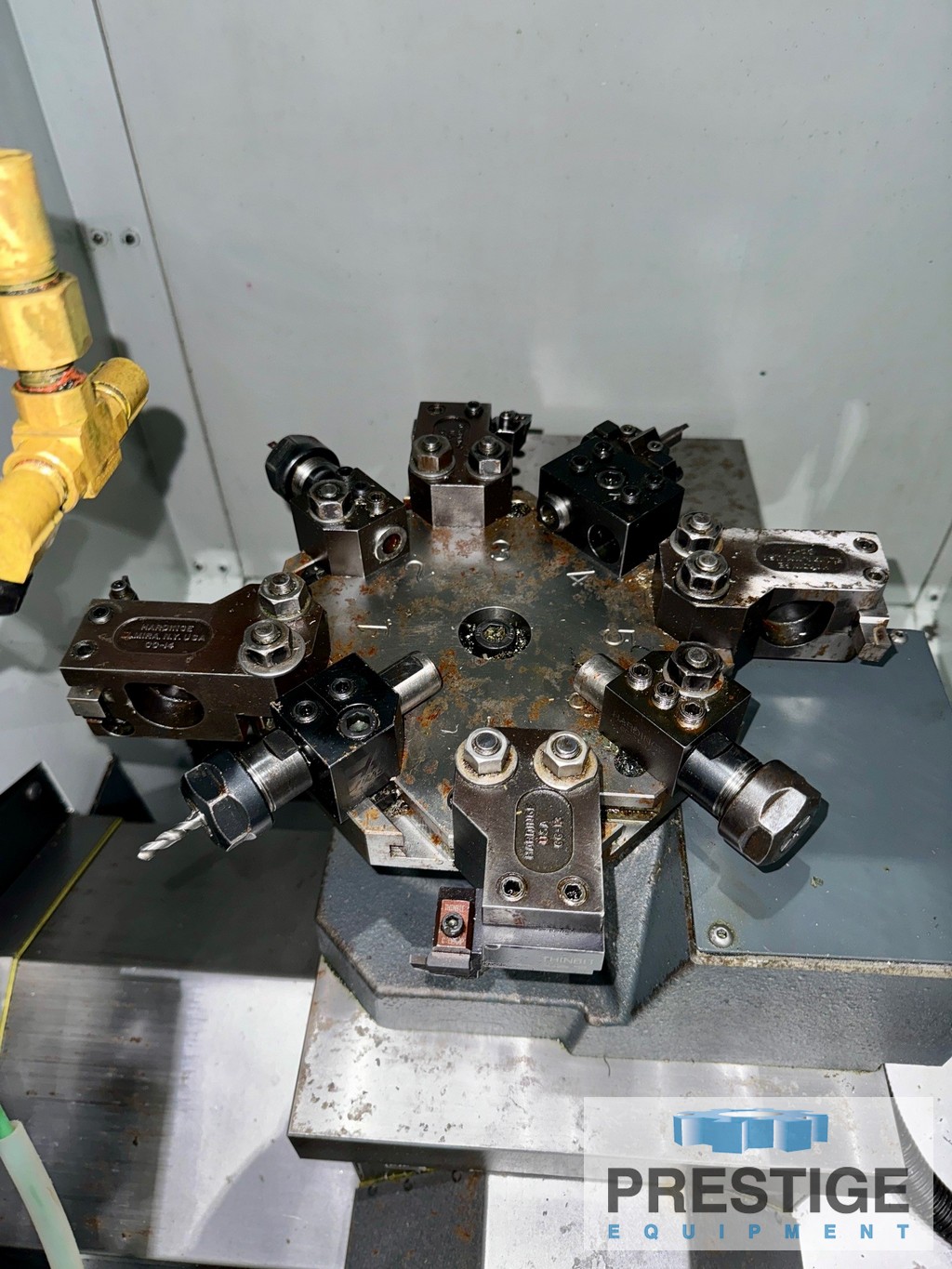

8-Position Turret

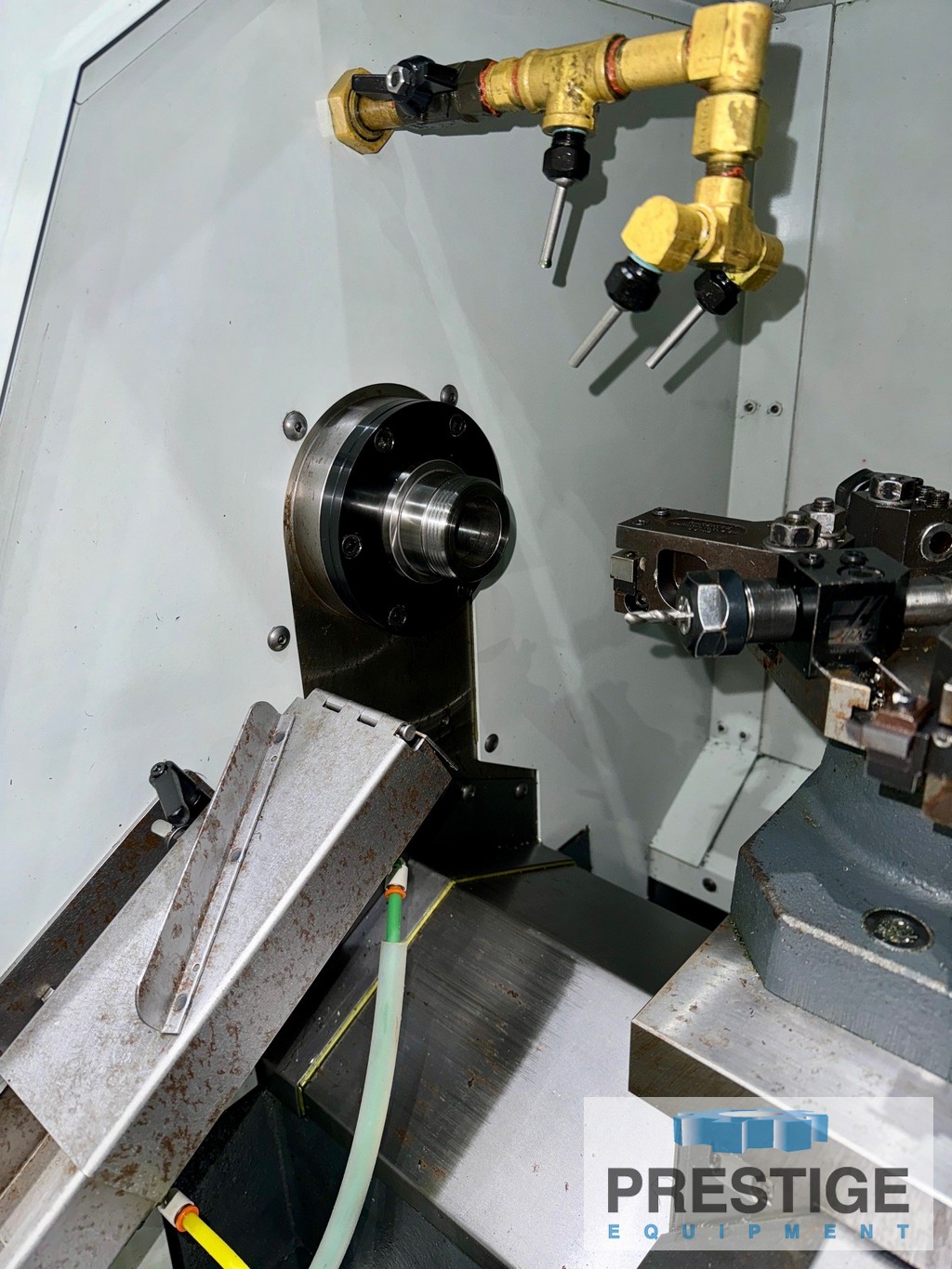

5C Collet Nose
6000 RPM

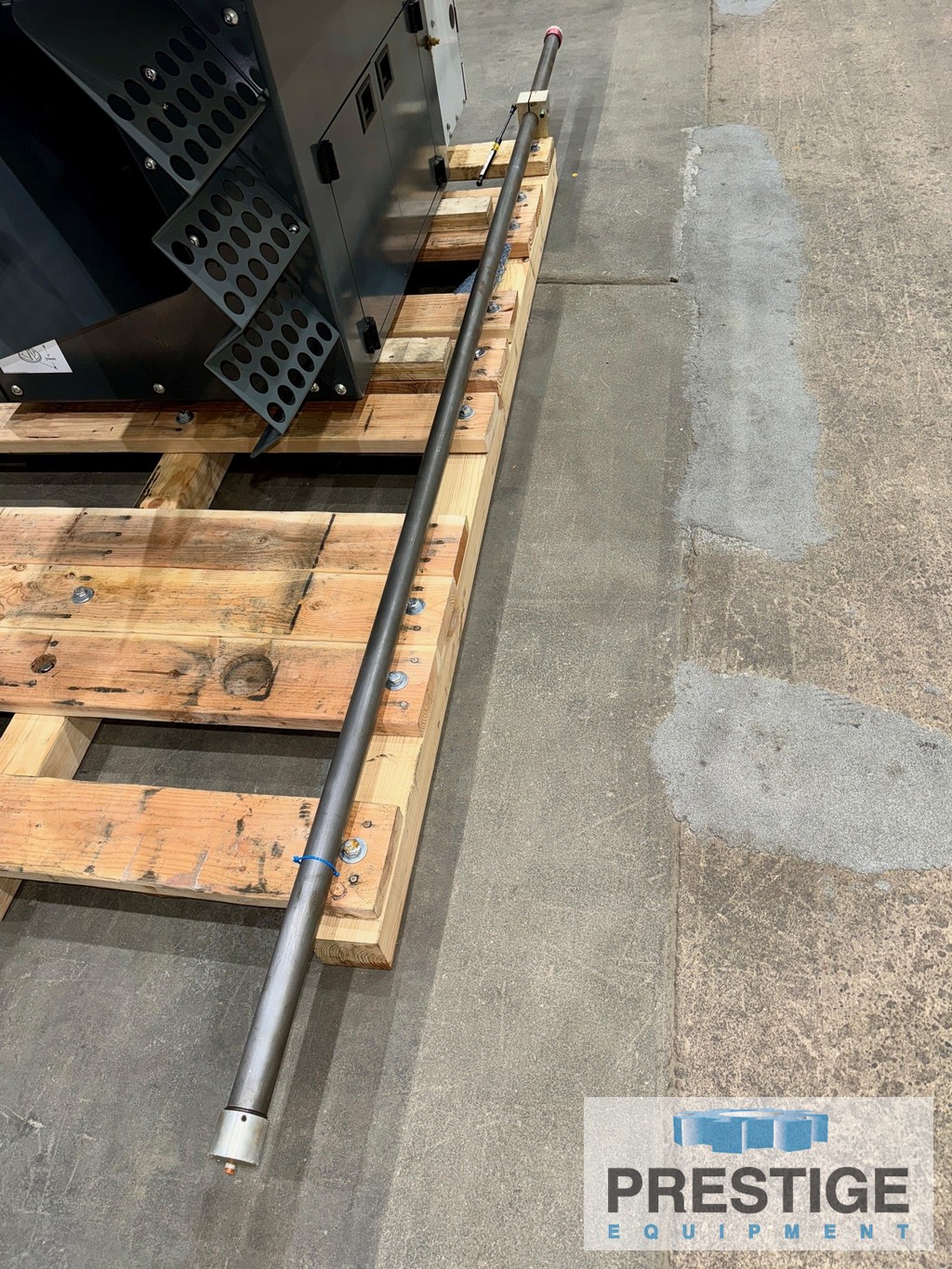

Bar Feed

CAPACITIES:
Swing Over Cross Slide ................ 11"
Swing Over Table ...................... 4.95
Max. Cutting Diameter ................. 5"
Bar Capacity .......................... 1"
X-Axis Travel ......................... 12"
Z-Axis Travel ......................... 8"
Spindle Speed ......................... 6000 RPM
Spindle Bore .......................... 1.25"
Spindle Collet Nose ................... 5C
Spindle Nose Thread ................... 2 3/16"-10
Spindle Drive Motor ................... 5 HP
Drive System .......................... Direct Speed, Belt Drive
Maximum Cutting Feed .................. 500 IPM
Rapids, X/Z Axes ...................... 757 IPM
Max. Chuck Size ....................... 4"
Approximate Weight .................... 1940 Lbs.
Shipping Pallet Dimensions ............ 99" x 54" x 82"

EQUIPPED WITH:
Haas CNC Control
8-Position Horizontal Turret
5C Collet Nose
6000 RPM
Bar Feed

NOTE:
Bank Repo Due to Owner Retiring - Fabulous Condition with Little Use!
