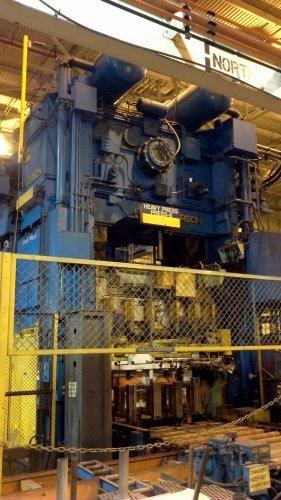

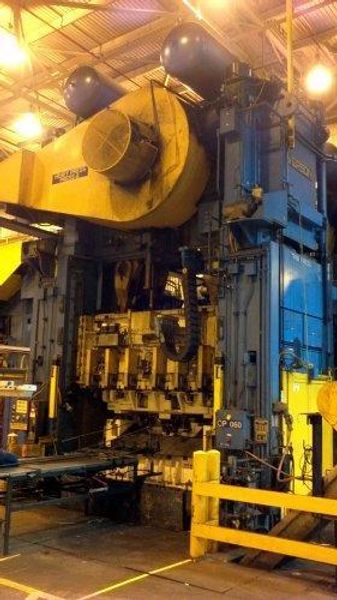

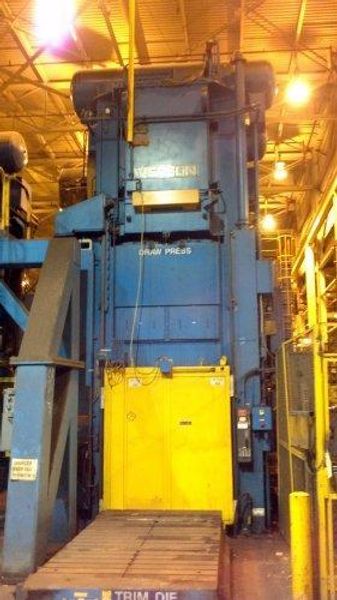

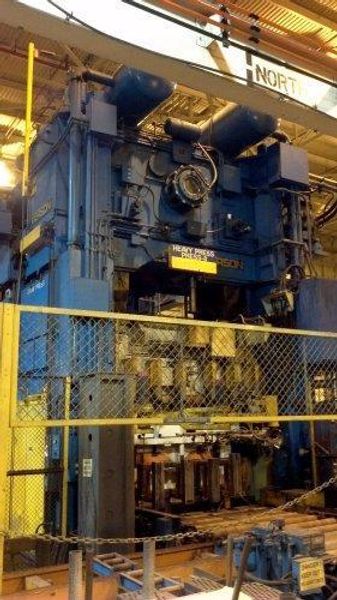

800 Ton Verson LE4-800-120-60t, Link Drive Straight Side Mechanical Metal Stamping Press, Year 1

Stock

2272

Model

LE4-800-120-60t Link Drive Press

Dealer Location

Michigan

Spec Sheet

Tonnage - 800
Stroke - 30 inches
Shut Height - 79 inches
Adjustment - 4 inches
Bed Size - 120" LR x 60" FB
Ram Area - 120" LR x 60" FB
SPM - 7-18 SPM


Standard Specifications
Link Drive Mechanical Metal Stamping Press
Verson Press Model #LE4-800-120-60t
800 ton Capacity
30" Stroke
79" Shut Height (on Bed)
62" Die Height to Rolling Bolster
4" Adjustment
120" LR x 60" FB Bed Area
120" LR x 60" FB Slide Area
7-18 SPM

Equipment and Features
Link Drive Motion
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
Motorized Adjustment
T-Slotted Ram and Bolster
10" Thick Bolster Plate
66" Wide Windows
Hydraulic Tie Rod Nuts
Hydraulic Overloads
Helm Loadguard Trend Series 4 Load Monitor

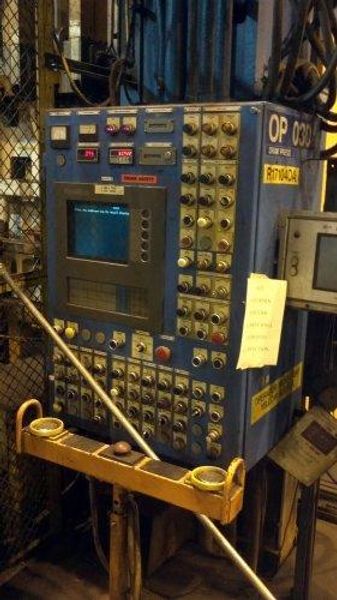

Panel Mate Operators Controls
17" from Floor to Top of Rolling Bolster
Dual Rolling Bolster Thru The Windows
Motors and Controls

This Used 800-ton Verson Link Drive Mechanical Metal Stamping press can be inspected at the S &G Press Livonia Michigan Warehouse

Click for more 800-ton press stamping options

Used Straight Side Double Crank Mechanical Metal Stamping Press For Sale800-ton Presses For SaleVerson Stamping PressReconditioned PressesUsed Stamping Presses.  Link Drive Stamping Press
