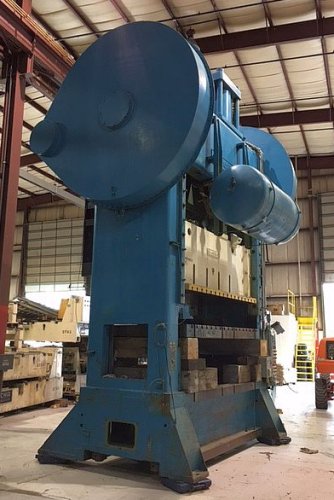

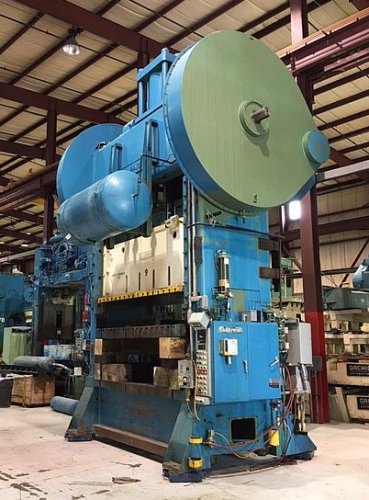

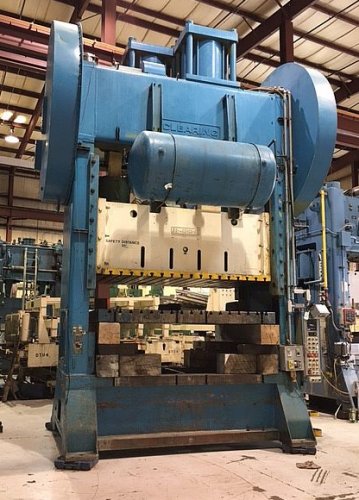

400 Ton Clearing S2-400-108-60 Straight Side Mechanical Metal Stamping Press: Die Try-out Press

Manufacturer

CLEARING

Stock

2102

Model

S2-400-108-60

Dealer Location

Michigan

Spec Sheet

Tonnage - 400
Stroke - 20 inches
Shut Height - 60 inches
Adjustment - 12 inches
Bed Size - 108" LR x 60" FB
Ram Area - 108" LR x 60" FB
SPM - 20 SPM



Standard Specifications
Clearing Mechanical Metal Stamping / Die Tryout Press
Model S2-400-108-60
400 ton Capacity
20" Stroke
60" Shut Height On Bed
12" Adjustment
108" LR x 60" FB Bed Area
108" LR x 60" FB Slide Area
20 SPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Air Cushions
9" Thick Bolster Plate
31" Windows
Floor Standing

This Used 400-ton Niagara Mechanical Metal Stamping / Die Tryout Press can be seen under power!
