5" x 5" x 1/2" Imcar CPHV-120, 15.375" Dia. Rolls, 0 - 22 FPM, 15 HP, 6-Way Lateral Guides, Variable Speed, #43161

Manufacturer

IMCAR

Category

Rolls

Type

ROLLS, ANGLE BENDING

Stock

43161

Model

CPHV-120

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43161

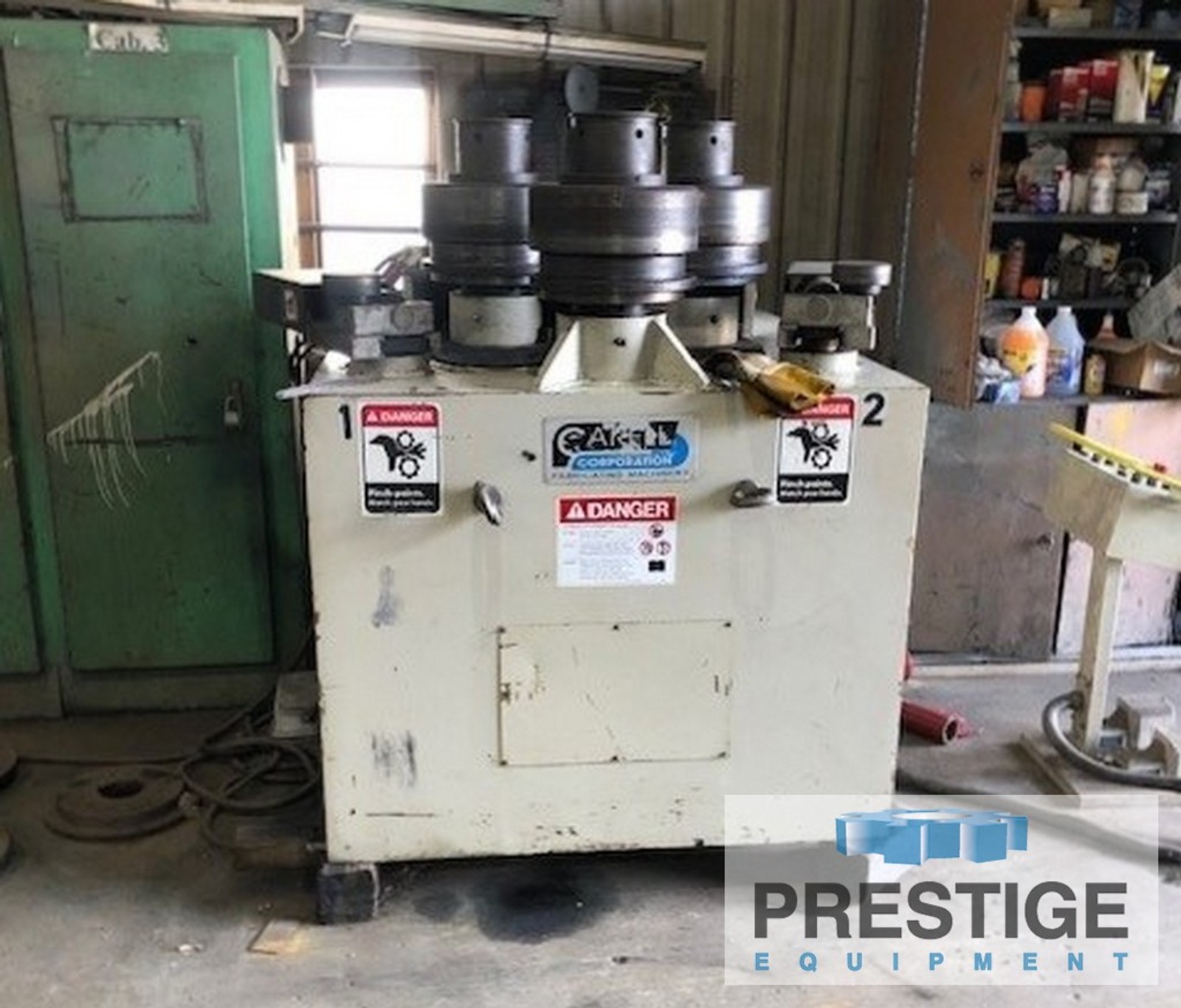

Imcar CPHV-120 5" x 5" x 1/2" Angle Bending Roll

FEATURES:
Universal Bending Rolls with Modular Components

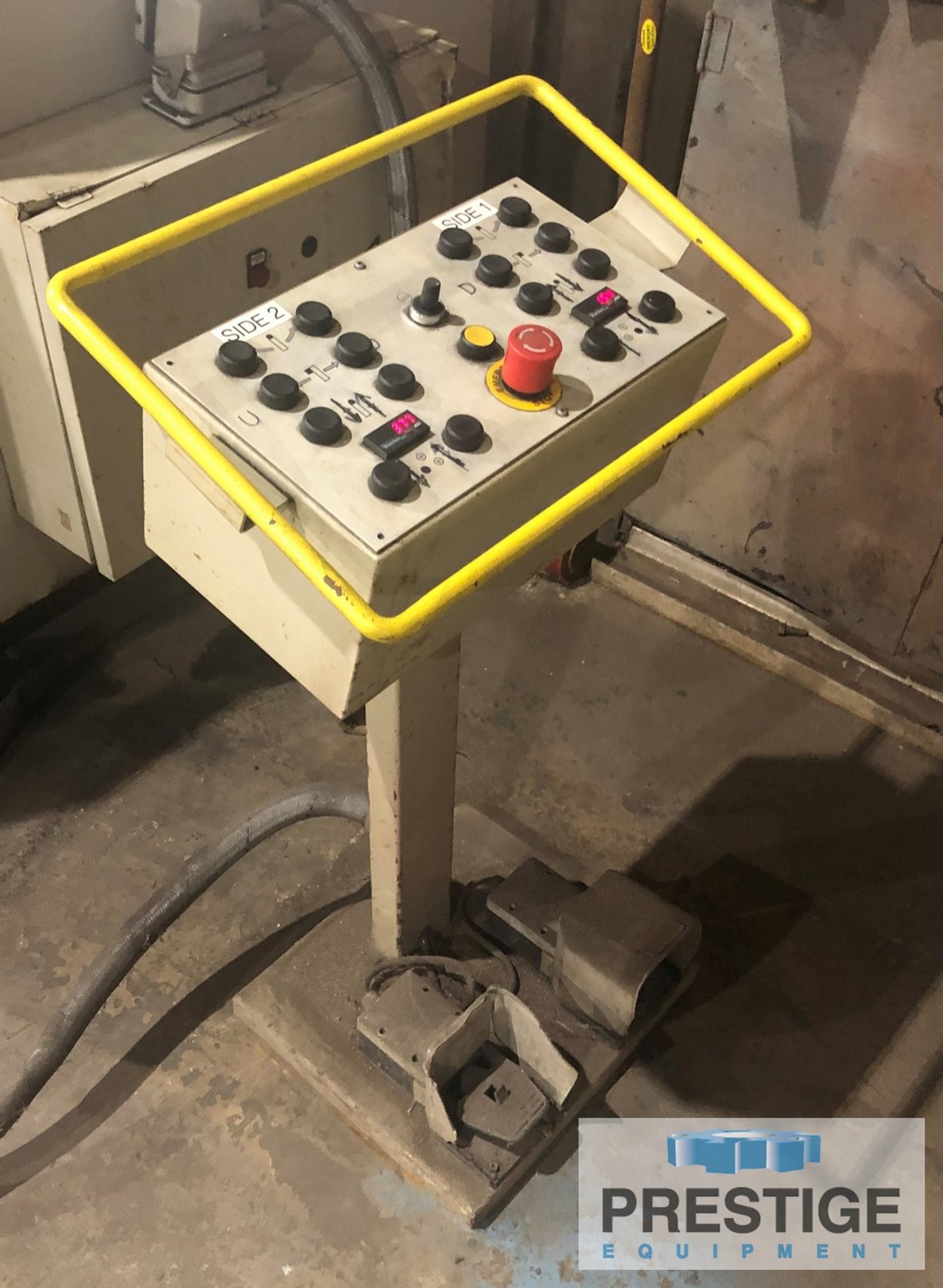

Floor Mounted Operator Console
Operates Both Horizontal & Vertical

SPECIFICATION:
Angle Bending Capacity ................ 5" x 5" x 1/2"
Flat Iron, Hard ....................... 5" x 7/8"
Flat Iron, Easy ....................... 8" x 2"
Round Bar Capacity .................... 3-1/8"
Square Bar Capacity ................... 3"
Pipe Capacity ......................... 4"
Square Tube ........................... 3-1/2" x 5/16"
Rectangle Tube ........................ 5" x 2" x 1/4"

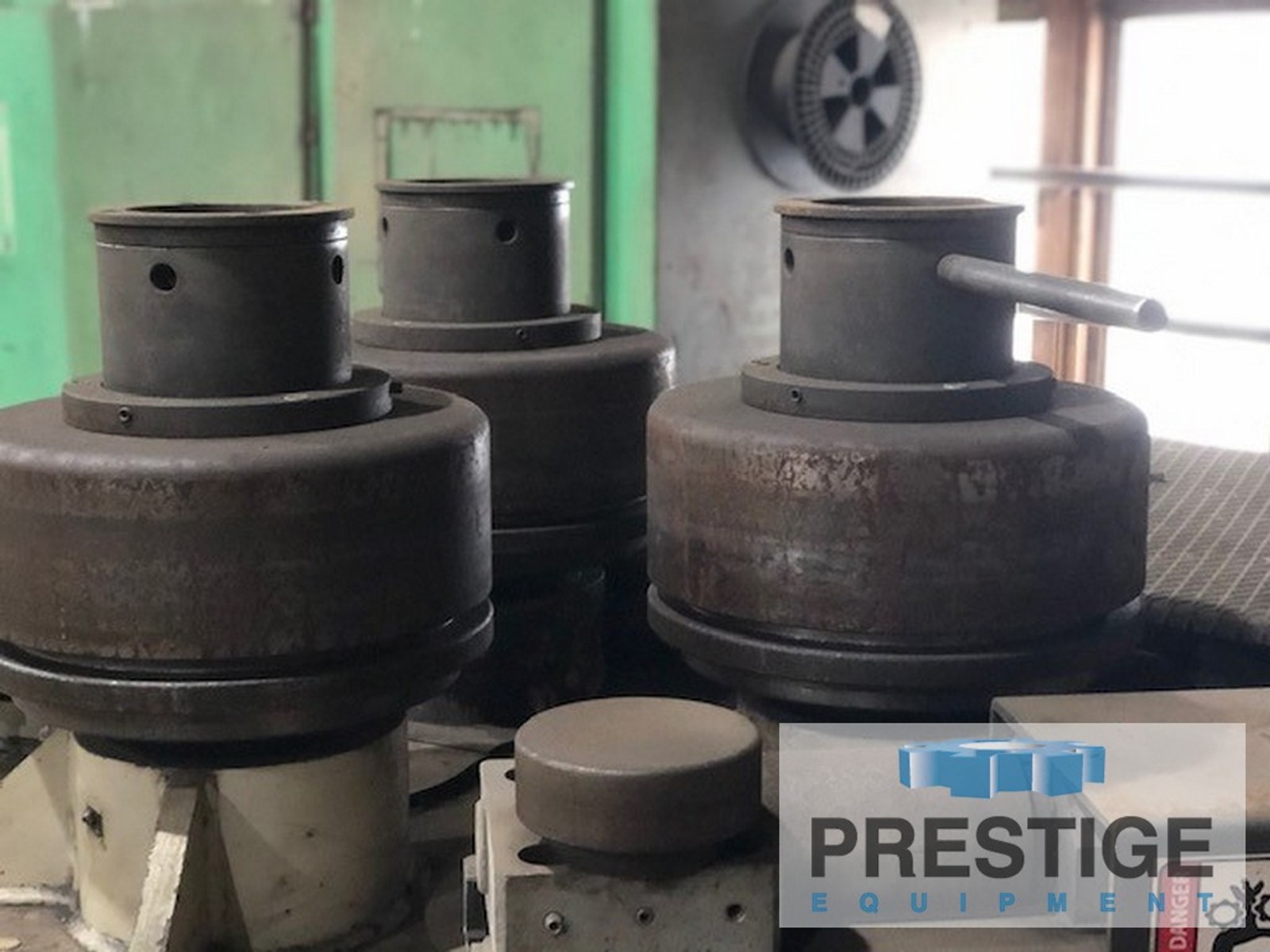

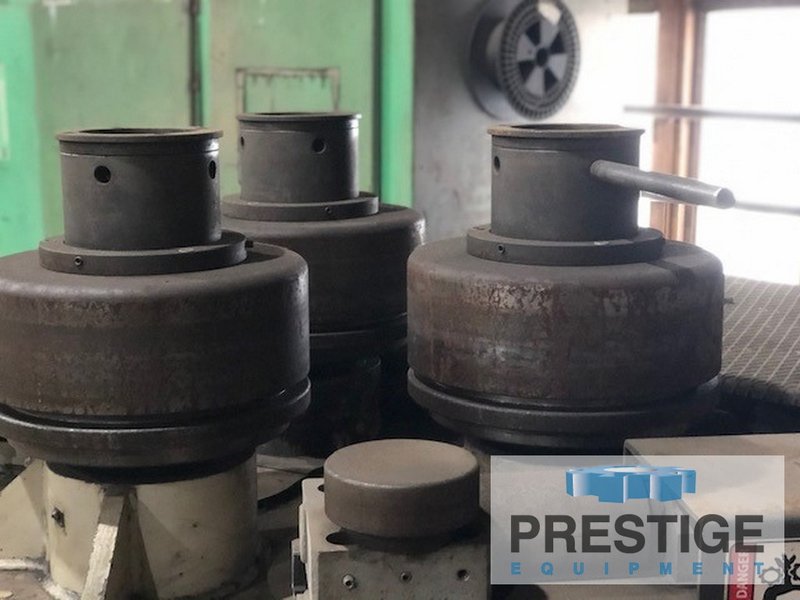

Diameter of Bending Rolls ............. 15.375"
Rolling Speed ......................... 0 - 22 FPM
Main Motor ............................ 15 HP
Approximate Overall Weight ............ 10,000 LBS

EQUIPPED WITH:
Universal Bending Rolls with Modular Components
Floor Mounted Operator Console

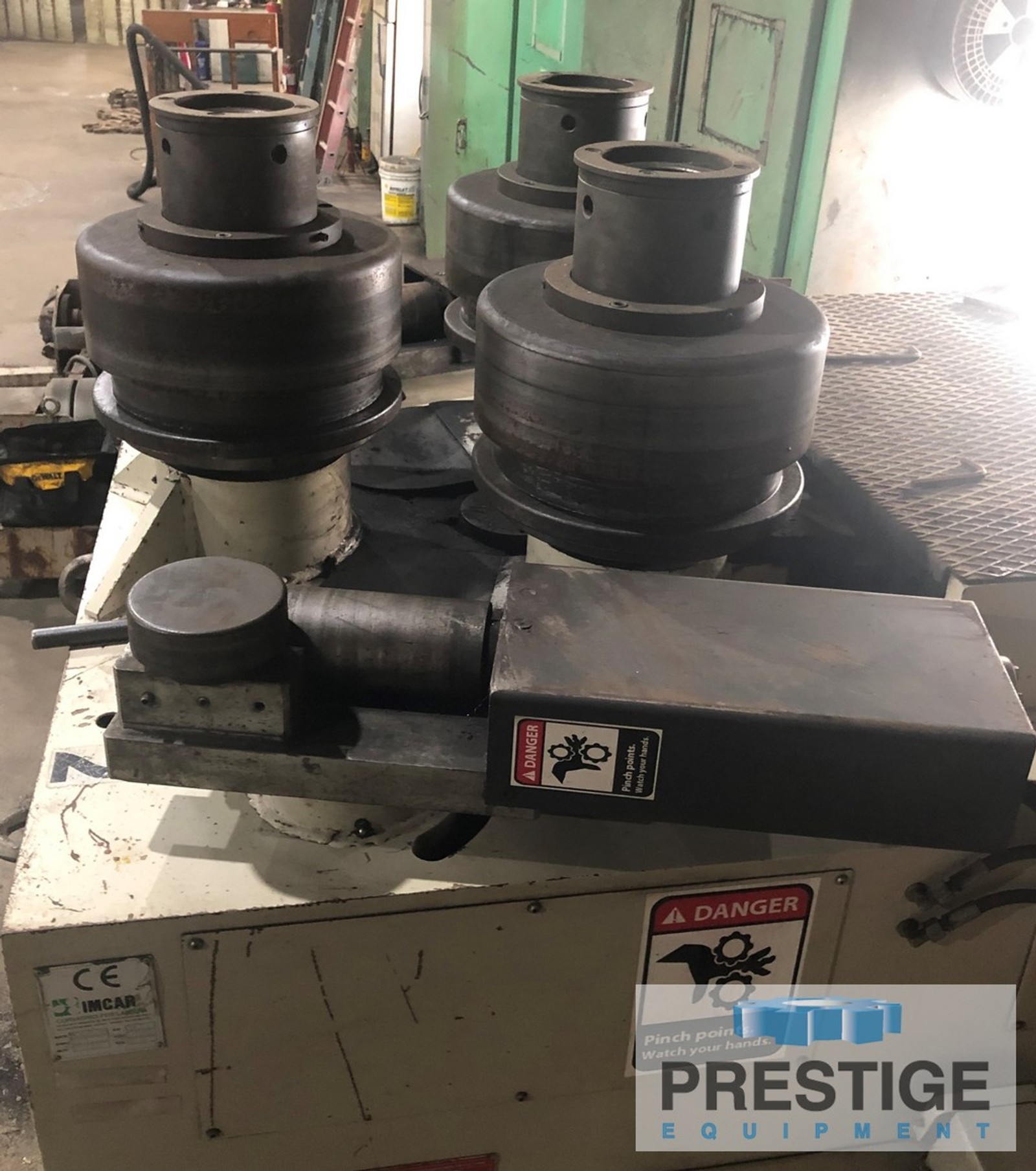

6-Way Lateral Guides
Variable Speed Rotation

NOTE:
Inspect in Plant Under Power
