Peddinghaus 510 DGA 2300 Horizontal Automatic Dual Column, Double Miter, 27.6" W x 20" H Capacity, 2017 #32690

Manufacturer

PEDDINGHAUS

Category

Saws

Type

SAWS, BAND, HORIZONTAL

Stock

32690

Model

510 DGA 2300

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32690

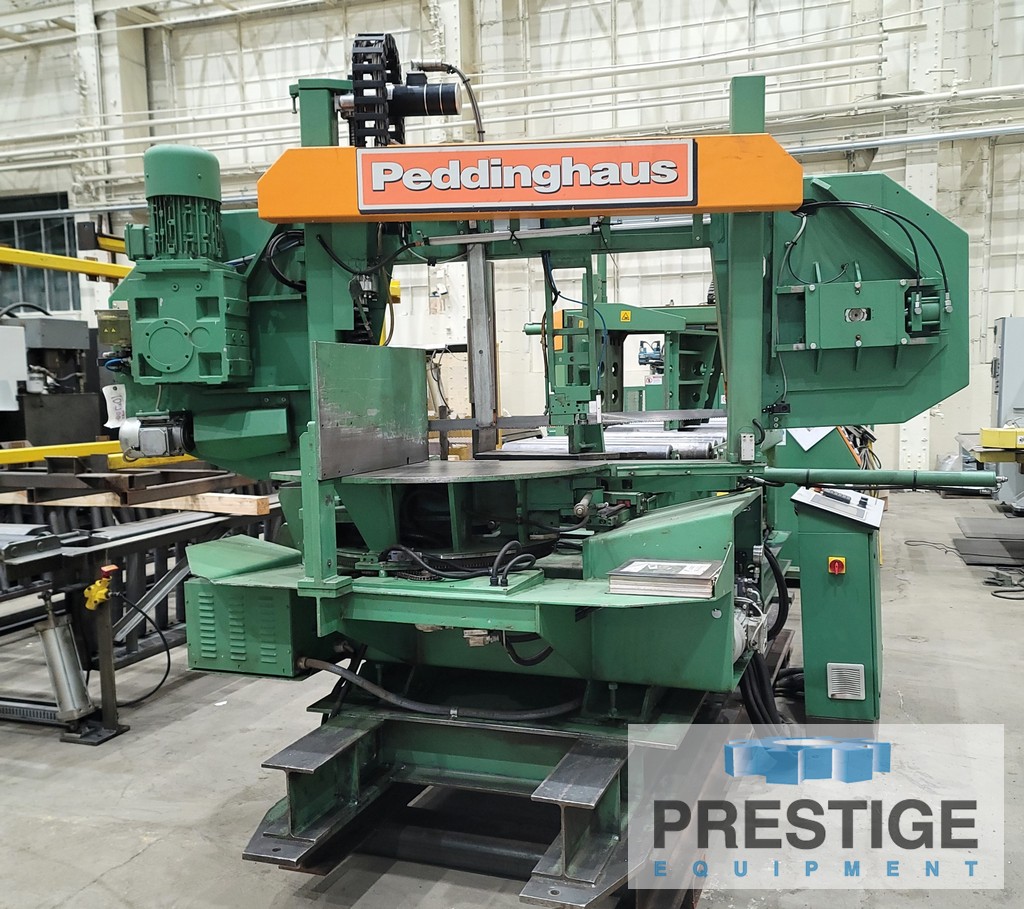

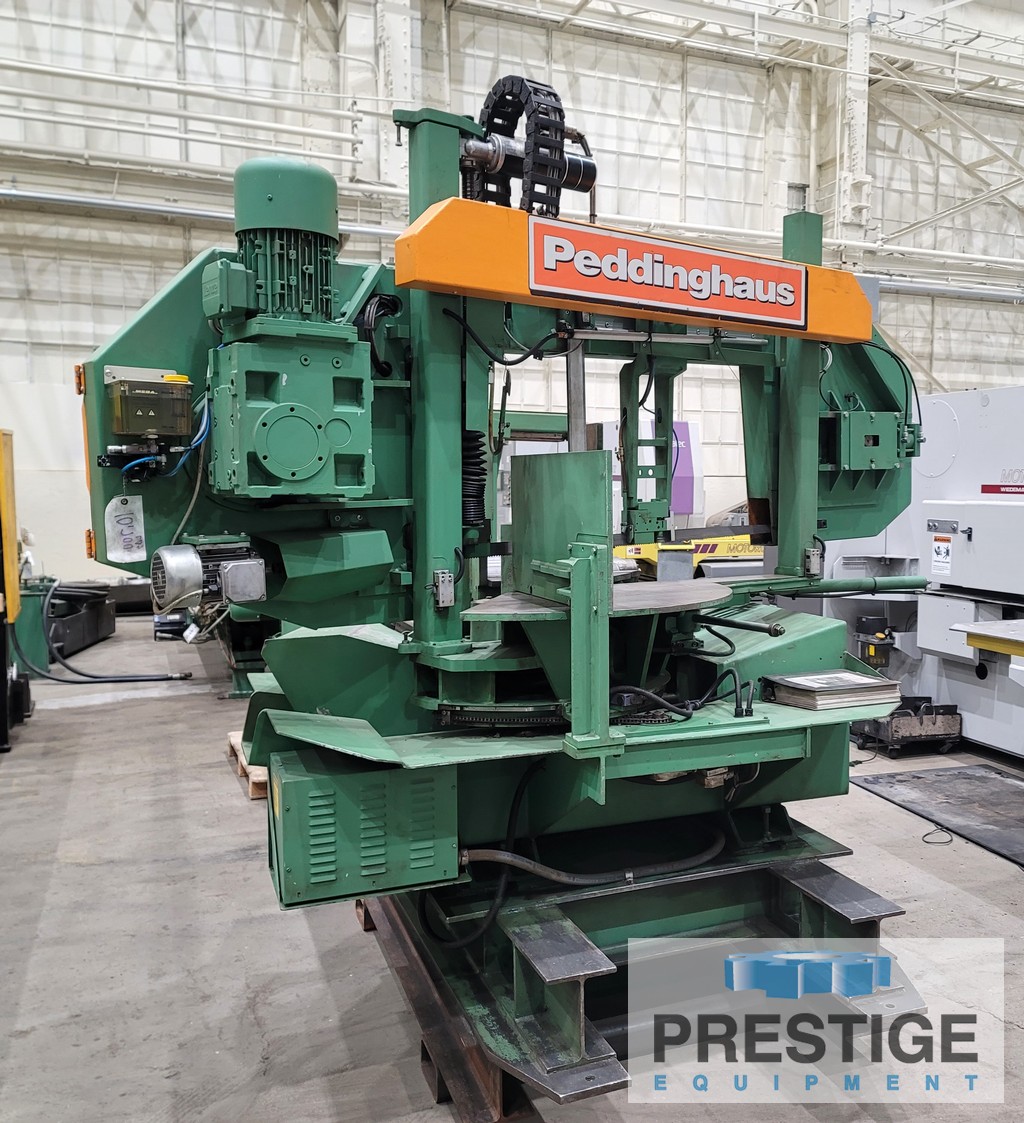

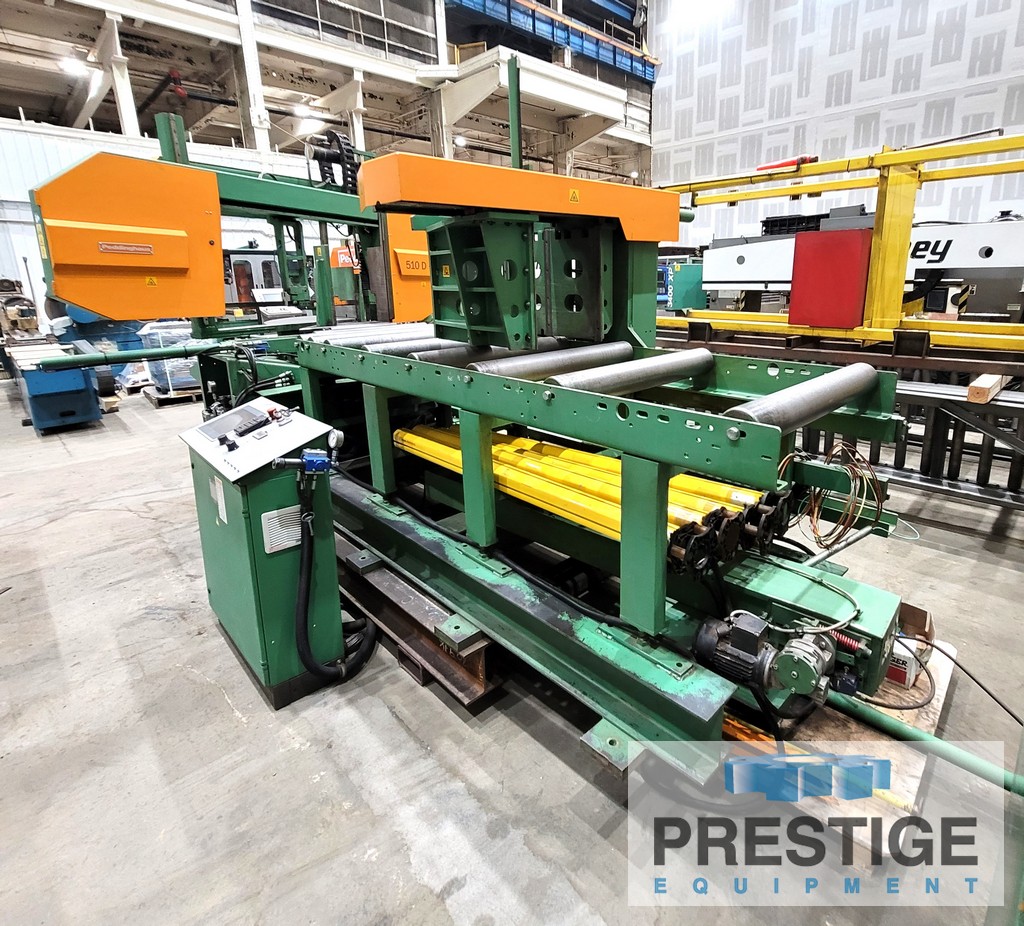

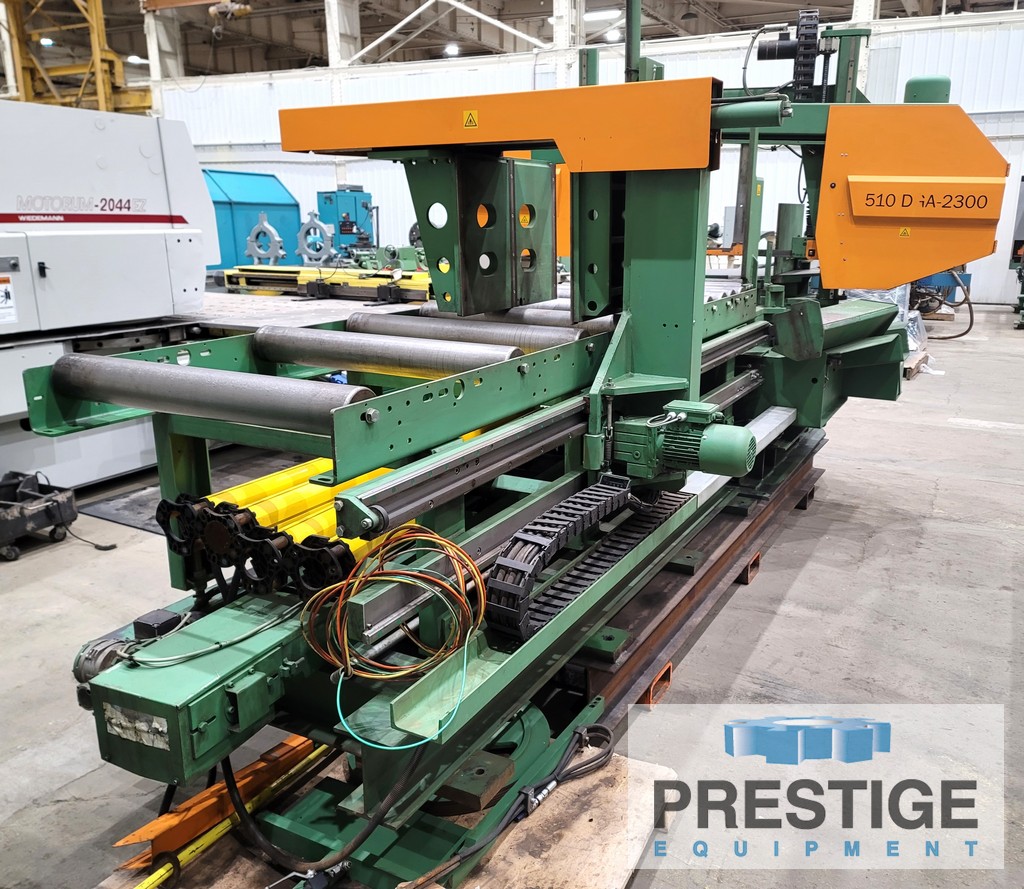

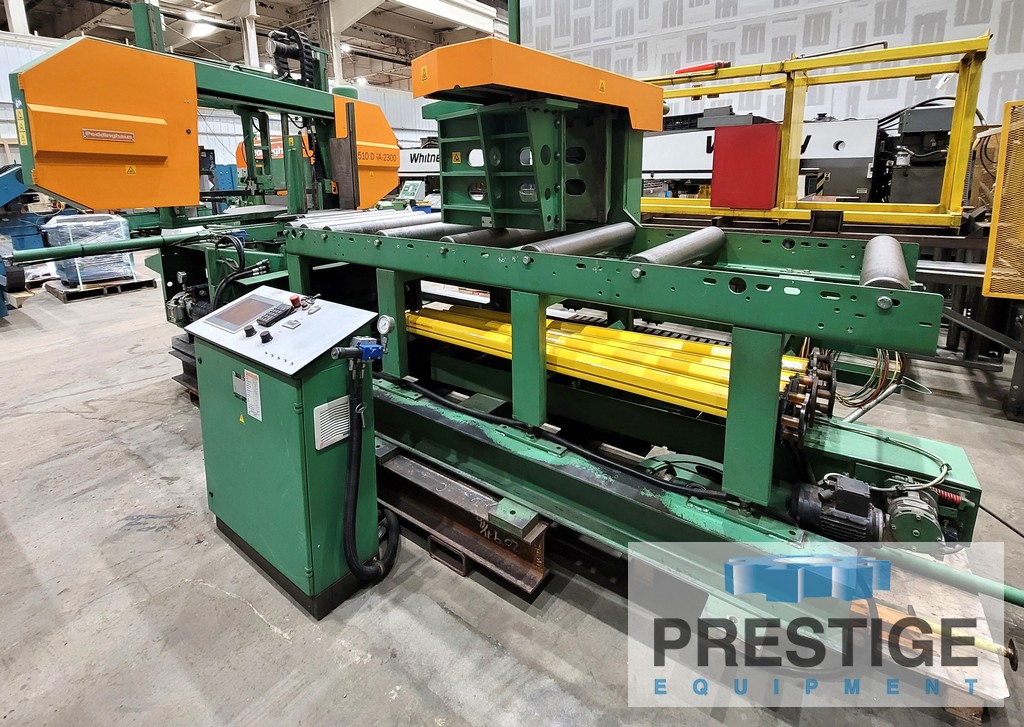

Peddinghaus 510 DGA 2300 Dual Column Double Miter Automatic Horizontal Band Saw

FEATURES:

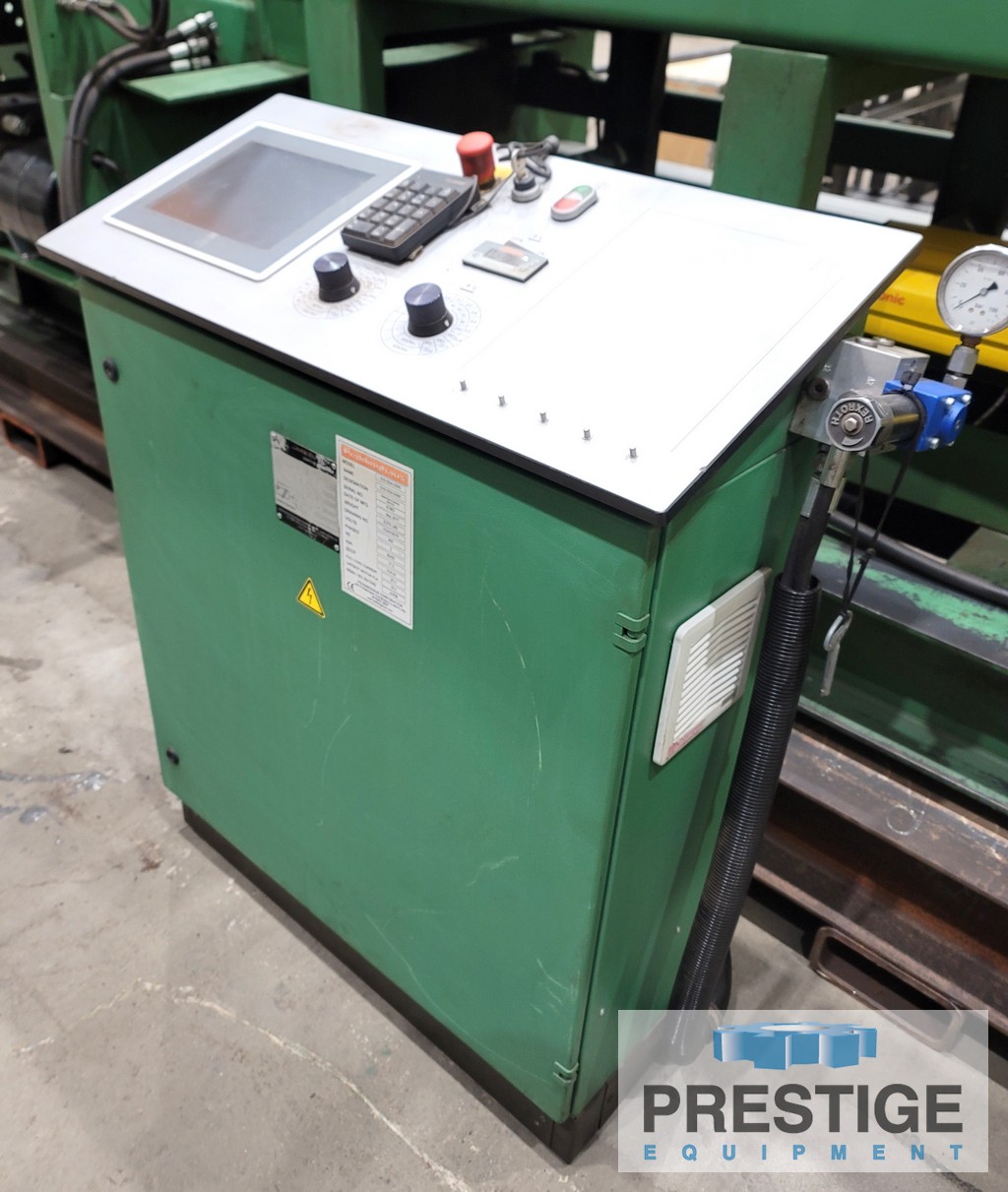

Touch Screen CNC Control
Swivel Head for Miter Cutting
Automated Infeed Gripper
Auto-Feed Blade Feeding System
Material Clamps
Material Bundle Clamp
Chip Conveyor
Micro-Coolant System

CAPACITY:
Cutting Capacity Maximum .............. 27.6" W x 20" H
Cutting Capacity Tube & Pipe .......... 27.6" W
Cutting Capacity @ 45 Degrees (L&R).... 17" W x 20" H
Cutting Capacity @ 60 Degree (R) ...... 13" W x 20" H
Max. Weight of Section ................ 9,000 Lbs.
Blade Speeds .......................... 49-492 FPM
Blade Feed Rate ....................... 0-20 IPM
Blade Feed Rate, Rapid Advance ........ 0-23.6 IPM
Blade Dimensions ...................... 240.15" x 1.6" x .051"
Bar Feed Stroke, Max. ................. 7'6"
Passline .............................. 29.5"
Blade Wheel Diameter .................. 22"
Blade Drive Motor ..................... 10 HP
Approximate Shipping Weight ........... 11,000 Lbs.

EQUIPPED WITH:
Touch Screen CNC Control
Swivel Head for Miter Cutting
Automated Infeed Gripper
Auto-Feed Blade Feeding System
Material Clamps
Material Bundle Clamp
Chip Conveyor
Micro-Coolant System

NOTE:
Inspect In Our Philadelphia PA Warehouse
