Nakamura Tome NTY3-100, NT Smart X CNC Control, 2-Spindles, 3-Turrets, Milling, Chip Blaster, LNS Bar Feed, 2018, #32888

Manufacturer

NAKAMURA TOME

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

32888

Model

NTY3-100

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32888

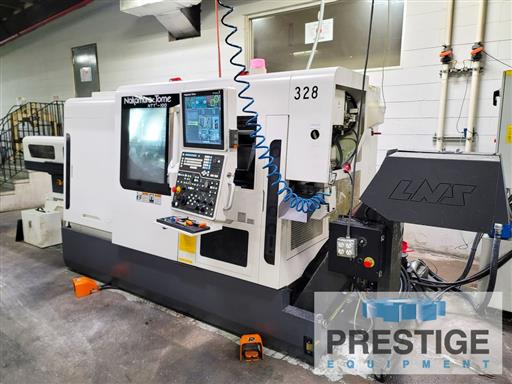

Nakamura Tome NTY3-100 Triple Turret CNC Turning and Milling Center

FEATURES:
NT Smart X CNC Control
2 Opposed Spindles
2 Upper Turrets
1 Lower Turret
Live Milling
Y-Axis All Turrets
Chip Blaster
LNS Bar Feed
Chip Conveyor

SPECIFICATIONS:
Max. Turning Diameter ................. 6.9"
Max. Turning Length ................... 22.44"
Distance Between Spindles ............. 7.87"-25.4"
Left Spindle Hole ..................... 2"
Right Spindle Hole .................... 1.7"
Slide Travel, X1/X2/X3 ................ 5.9"/5.9"/5.5"
Slide Travel, Z1/X2/Z3 ................ 8.9"/8.9"/22"
Slide Travel, B-Axis .................. 24.4"
Slide Travel, Y1 & Y2 ................. +/-1.65"
Slide Travel, Y3 ...................... +/-1.28"
Left Spindle Speed .................... 5000 RPM
Right Spindle Speed ................... 6000 RPM
Both Spindle Drive Motors ............. 15 HP / 10 HP
Spindle Noses ......................... A2-5
Turret Indexing Positions ............. 24 x 3
Turret Driven Tools ................... 12 x 3
Driven Tool Speeds .................... 6000 RPM

EQUIPPED WITH:
NT Smart X CNC Control
Main Spindle
Sub Spindle

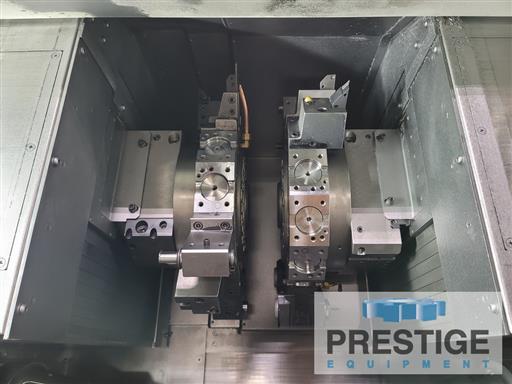

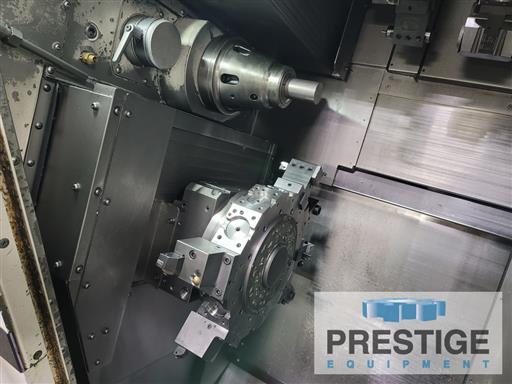

(3) 24-Station Turrets With Y-Axis
36 Total Milling Stations
(3) Live Tool Holders

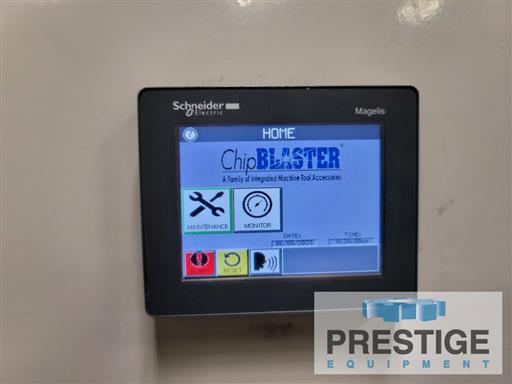

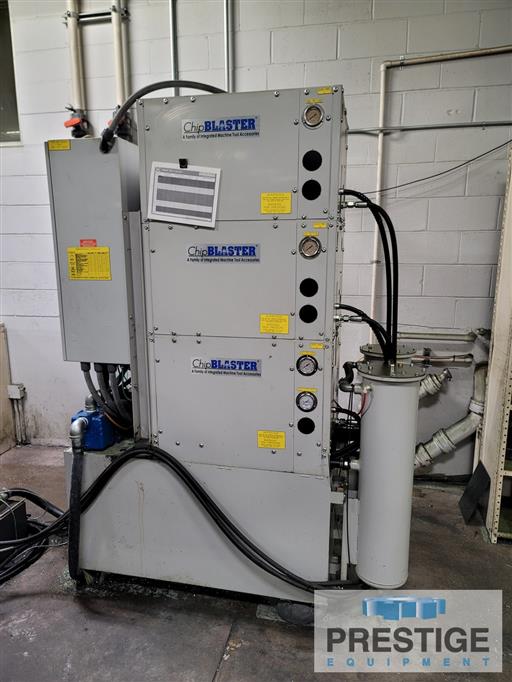

Chip Blaster High Pressure Coolant Unit

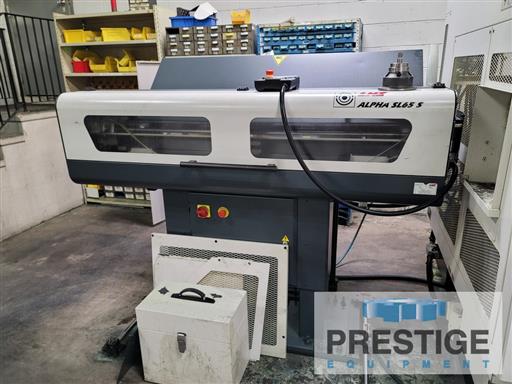

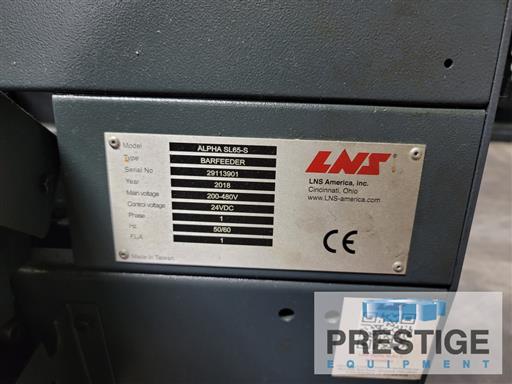

LNS Alpha SL 65S Automatic Bar Feed,
LNS Chip Conveyor

RUN TIME:
4,425 Hours

LOCATION:
Lester, PA
