Mazak QT Universal 200MSY, 27.4" Swing, Sub Spindle, Live Milling, Chip Conveyor, HP Coolant, Smooth-C CNC, 2017, #43060

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

43060

Model

QT Universal 200MSY

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43060

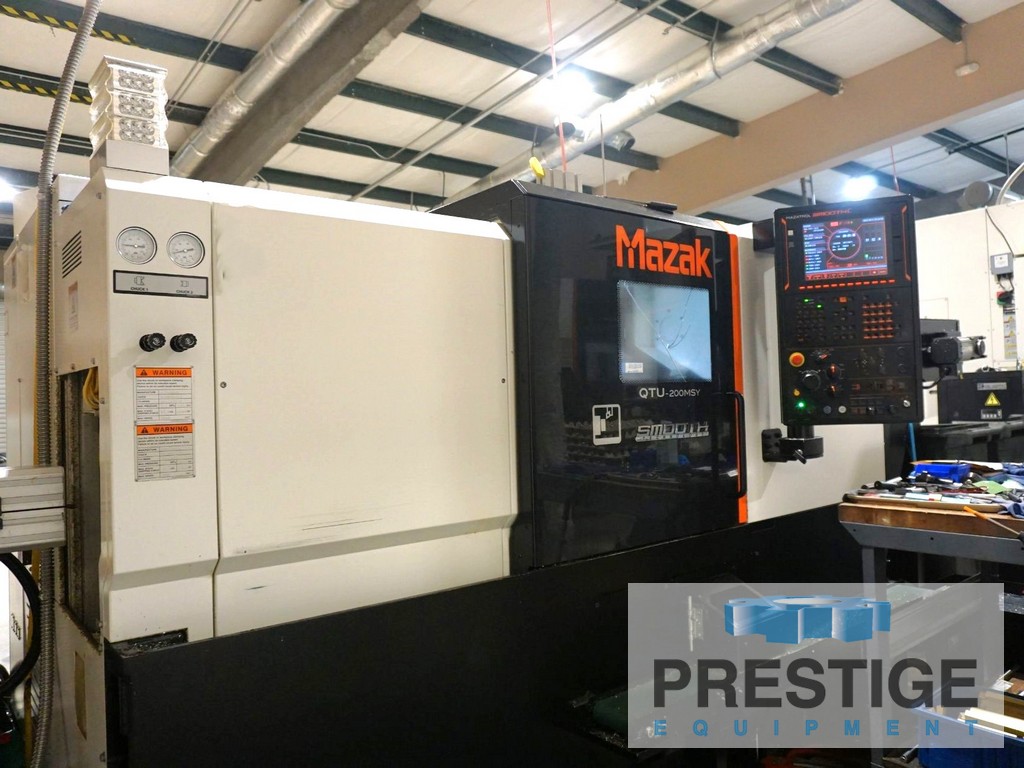

Mazak Quick Turn Universal 200MSY CNC Turning Center

FEATURES:

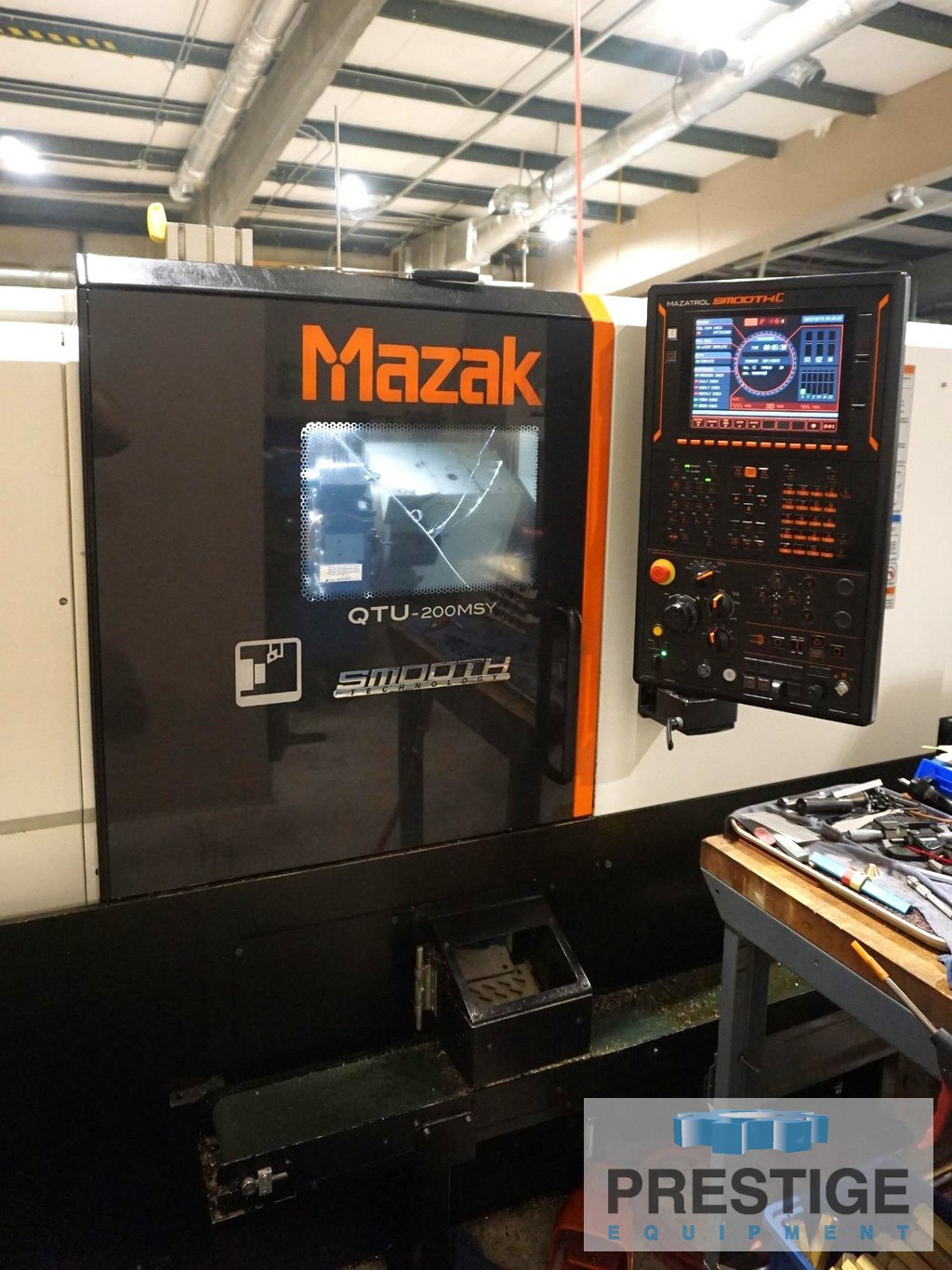

Mazatrol Smooth-C CNC Control

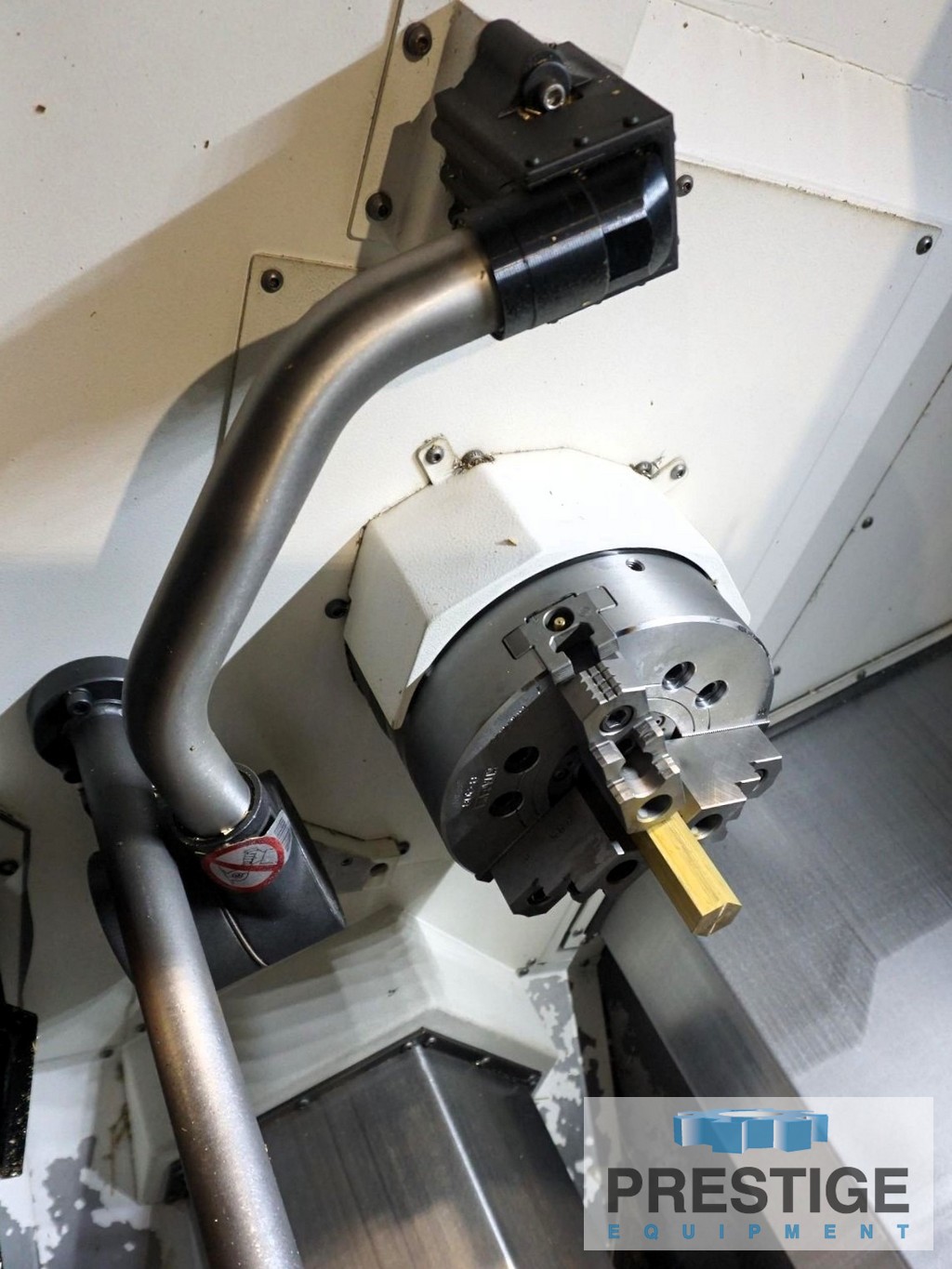

8" Chuck Main Spindle

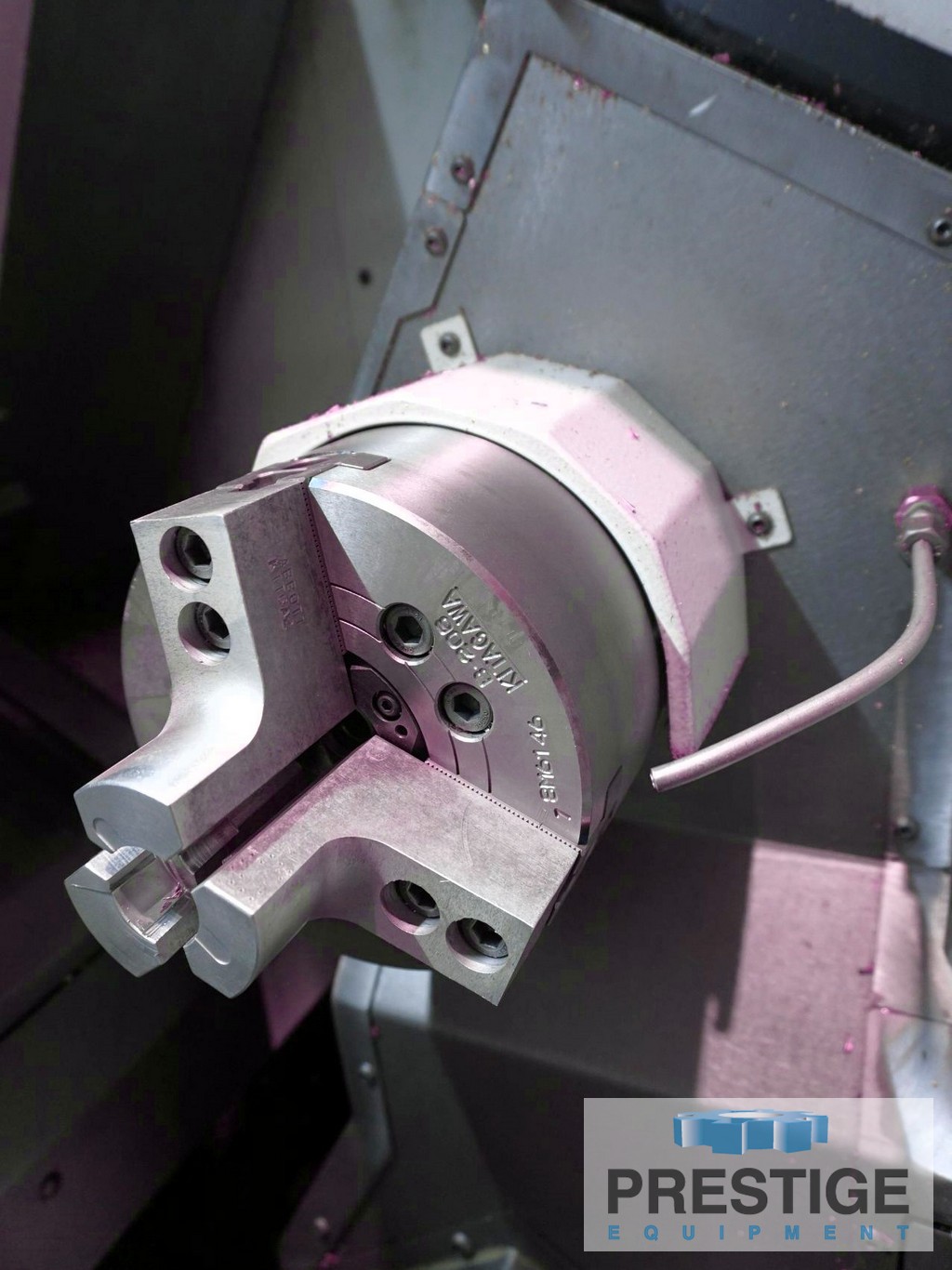

6" Chuck Sub-Spindle
Live Milling
C & Y Axis
High Pressure Coolant
Chip Conveyor

CAPACITIES:
Maximum Swing ......................... 27.4”
Maximum Machining Diameter ............ 13.5"
Maximum Bar Work ...................... 1.65"
Maximum Machining Length .............. 22.40"
Recommended Turning Diameter .......... 8.35”
Main Spindle Chuck Diameter ........... 8"
Main Spindle Indexing (C-Axis) ........ 0.0001 Degrees
Main Spindle Speed .................... 6000 RPM
Main Spindle Motor Drive .............. 20 HP
Sub Spindle Chuck Diameter ............ 6"
Sub Spindle Indexing (C-Axis) ......... 0.0001 Degrees
Sub Spindle Speed ..................... 6000 RPM
Sub Spindle Motor Drive ............... 10 HP
Turret Positions ...................... 12
Driven Tool Speeds .................... 4500 RPM
Driven Tool Motor ..................... 7.3 HP
X-Axis Travel ......................... 8.5”
Y-Axis Travel ......................... 4”
Z-Axis Travel ......................... 23.75”
W-Axis Travel ......................... 22.12"
Rapid Traverse Rate, X-Axis ........... 1181 IPM
Rapid Traverse Rate, Y-Axis ........... 394 IPM
Rapid traverse rate, Z-Axis ........... 1417 IPM
Machine Dimensions .................... 102" x 66.5"
Machine Height ........................ 67.9”
Machine Weight ........................ 12,125 Lbs.

EQUIPPED WITH:
Mazatrol Smooth-C CNC Control

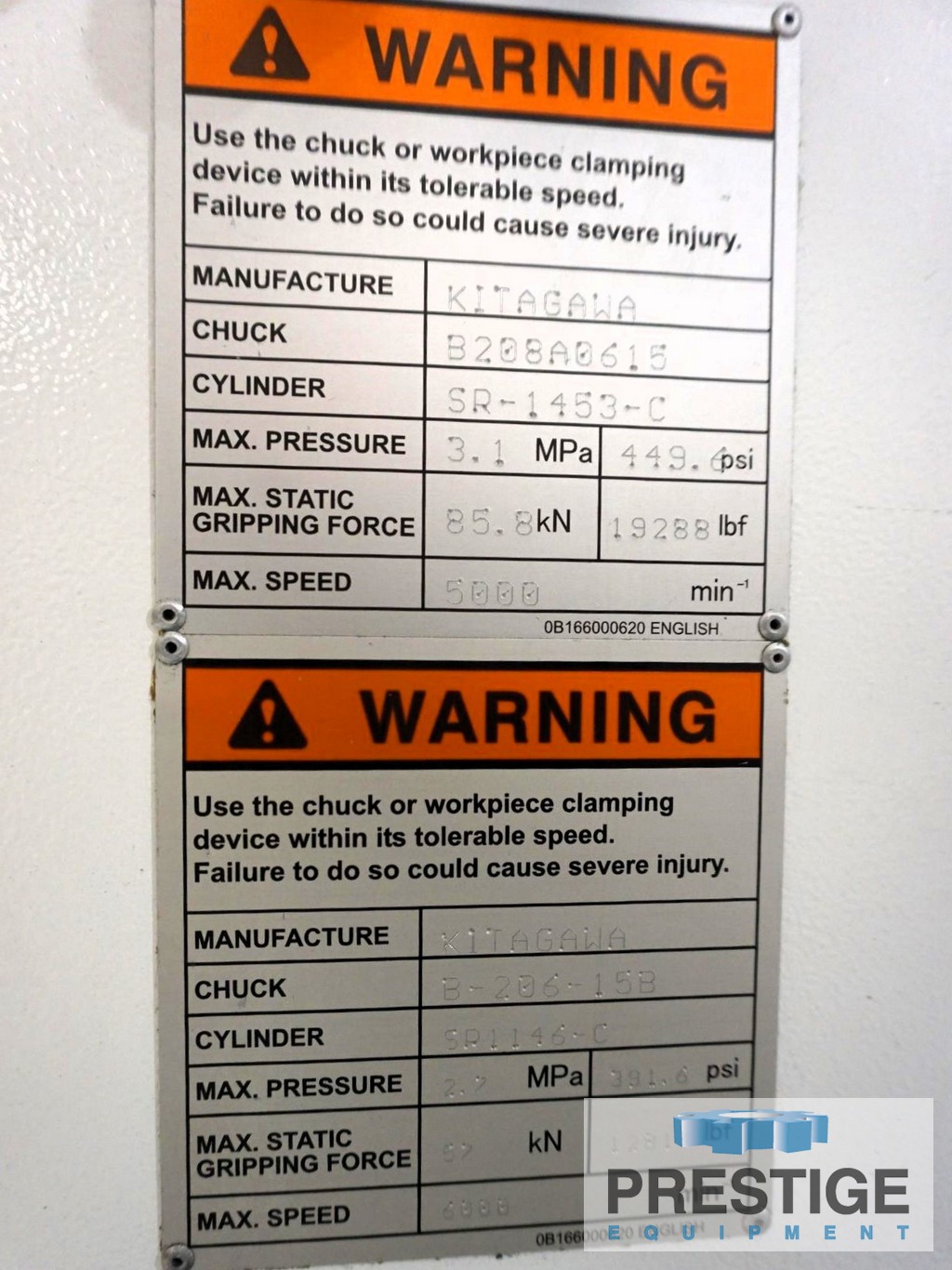

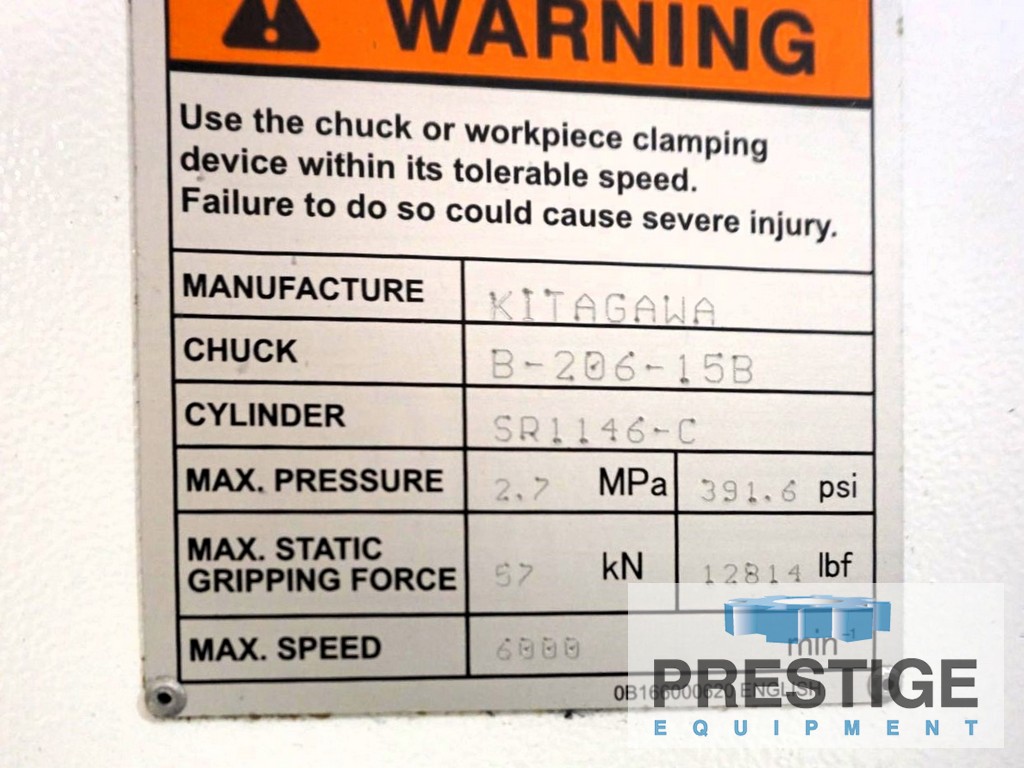

8" Kitagawa 3-Jaw Chuck (Main Spindle)
6" Kitagawa 3-Jaw Chuck (Sub Spindle)

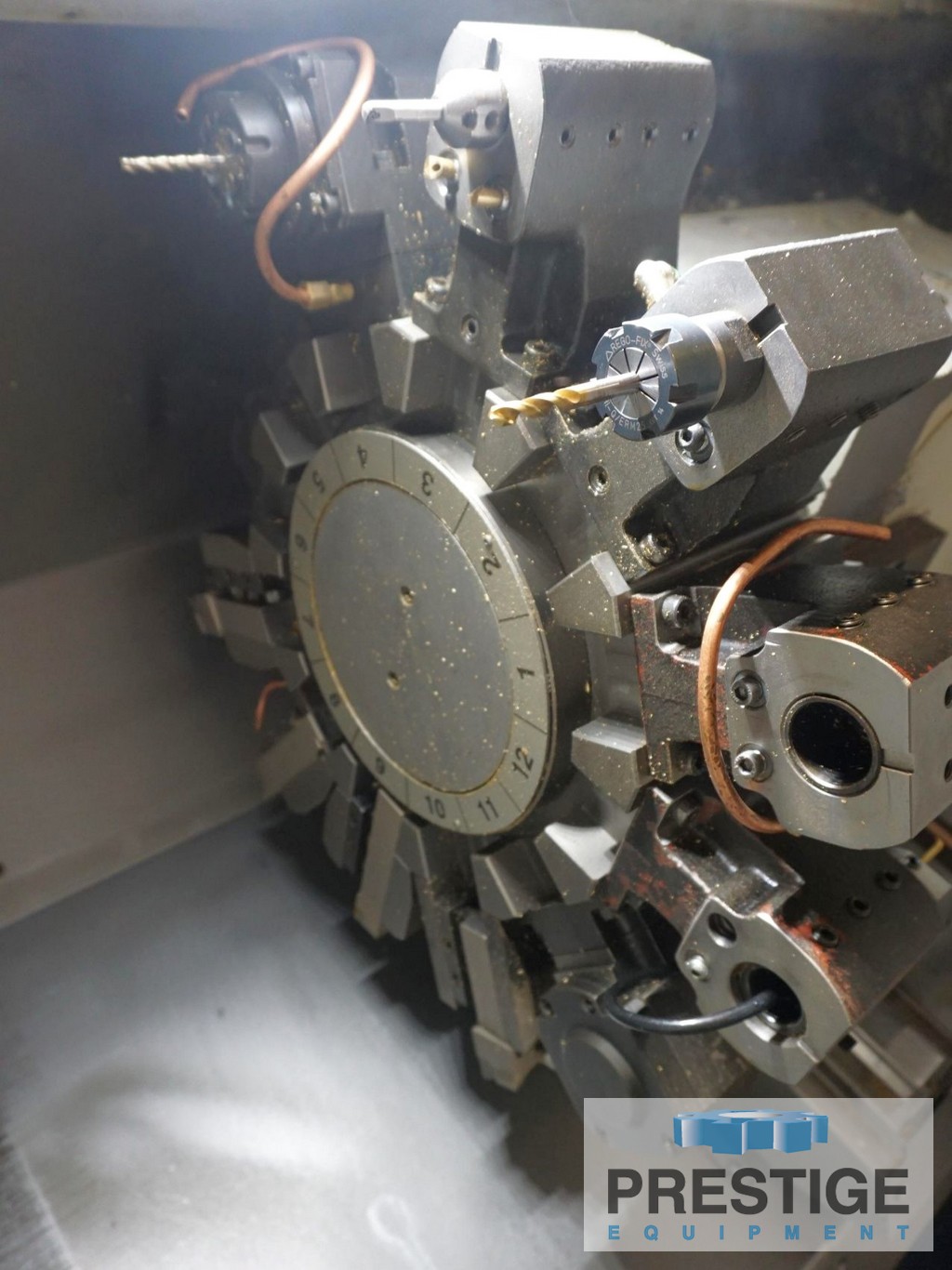

12-Position Turret
C-Axis Main & Sub Spindles
Live Milling
Tool Setter

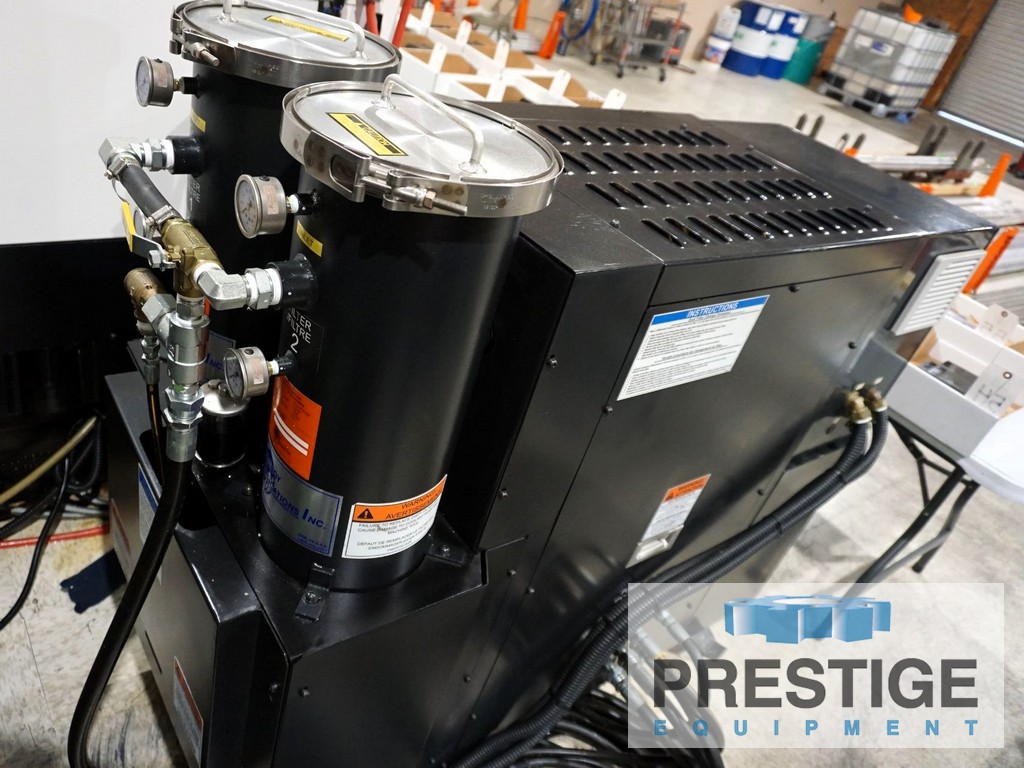

Mazak Superflow S8/1000 High Pressure Coolant

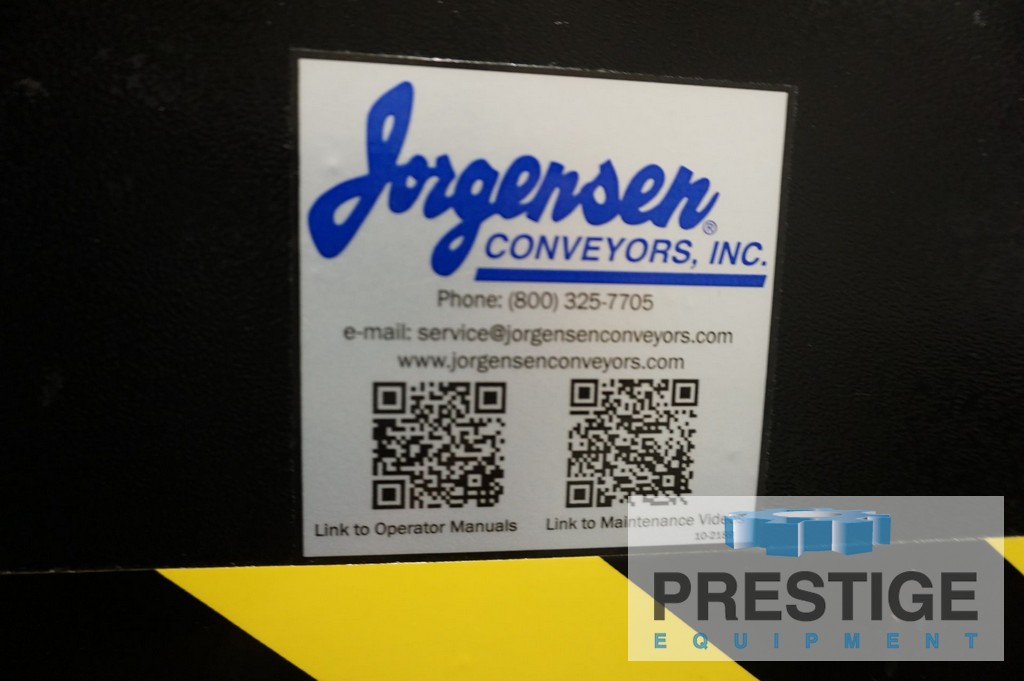

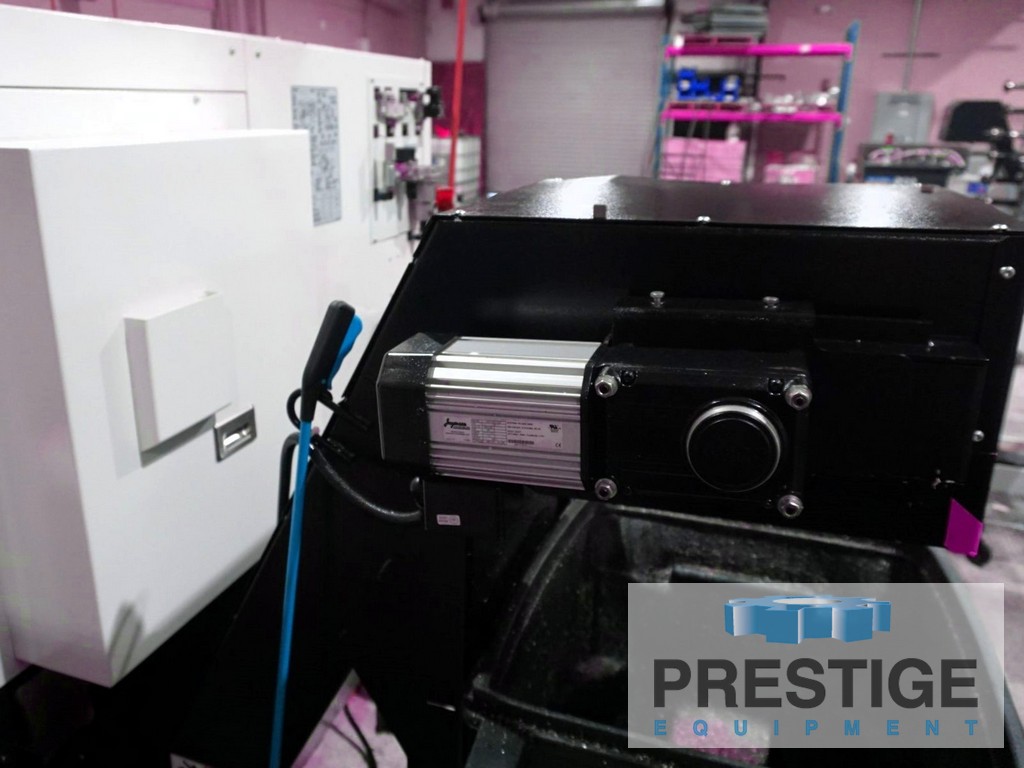

Jorgenson Chip Conveyor
Manuals
Tooling

NOTE:
Only 6300 Cut Hours
