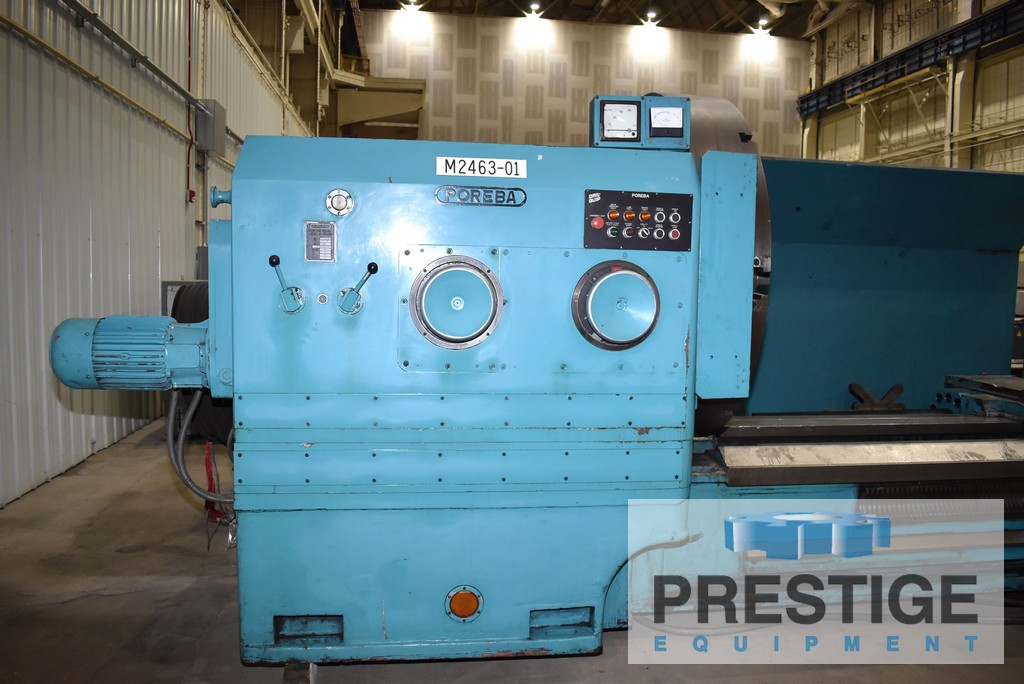

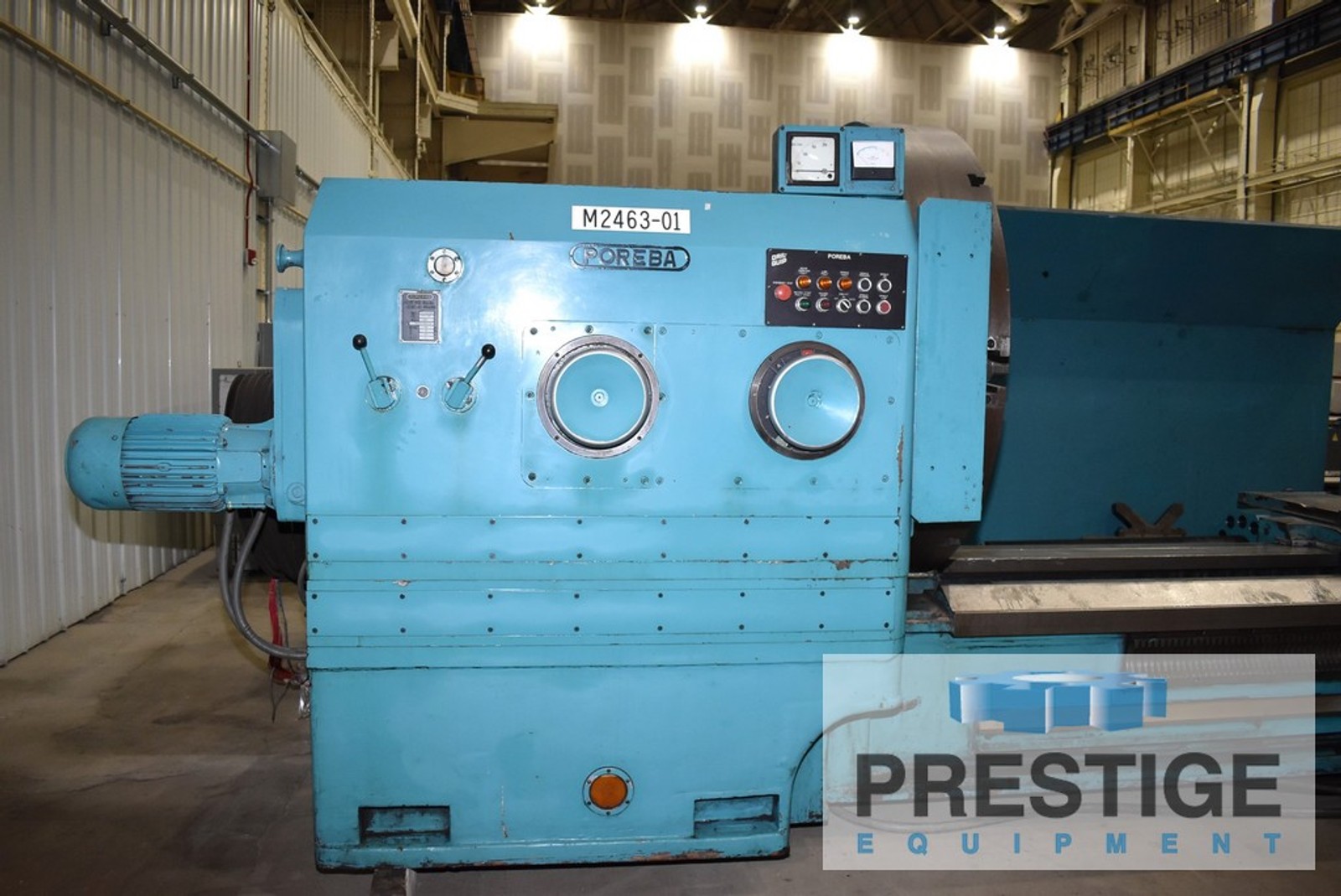

63" X 196" Poreba TCG160, 40 Ton Capacity, Inch/Metric Threading, Boring Bar Attach., 100 HP #32138

Manufacturer

POREBA

Category

Lathes

Type

LATHES, ENGINE

Stock

32138

Model

TCG160

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32138

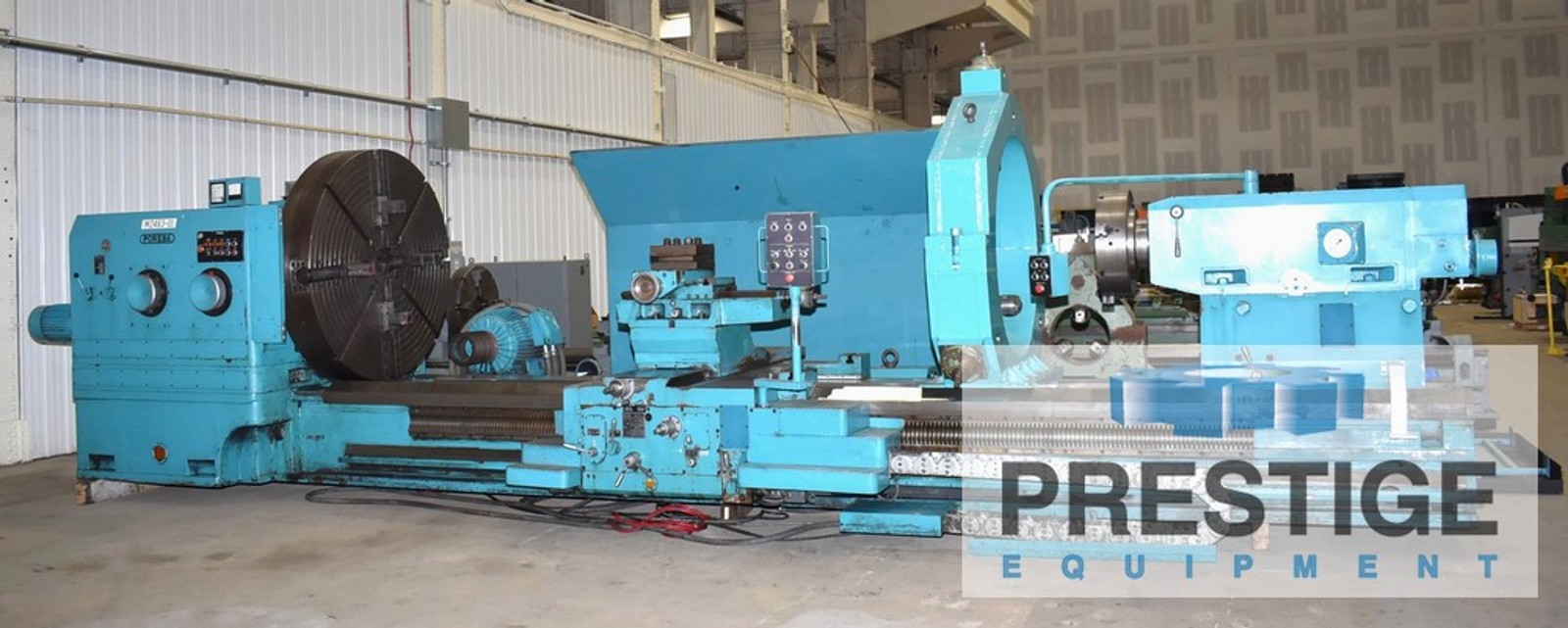

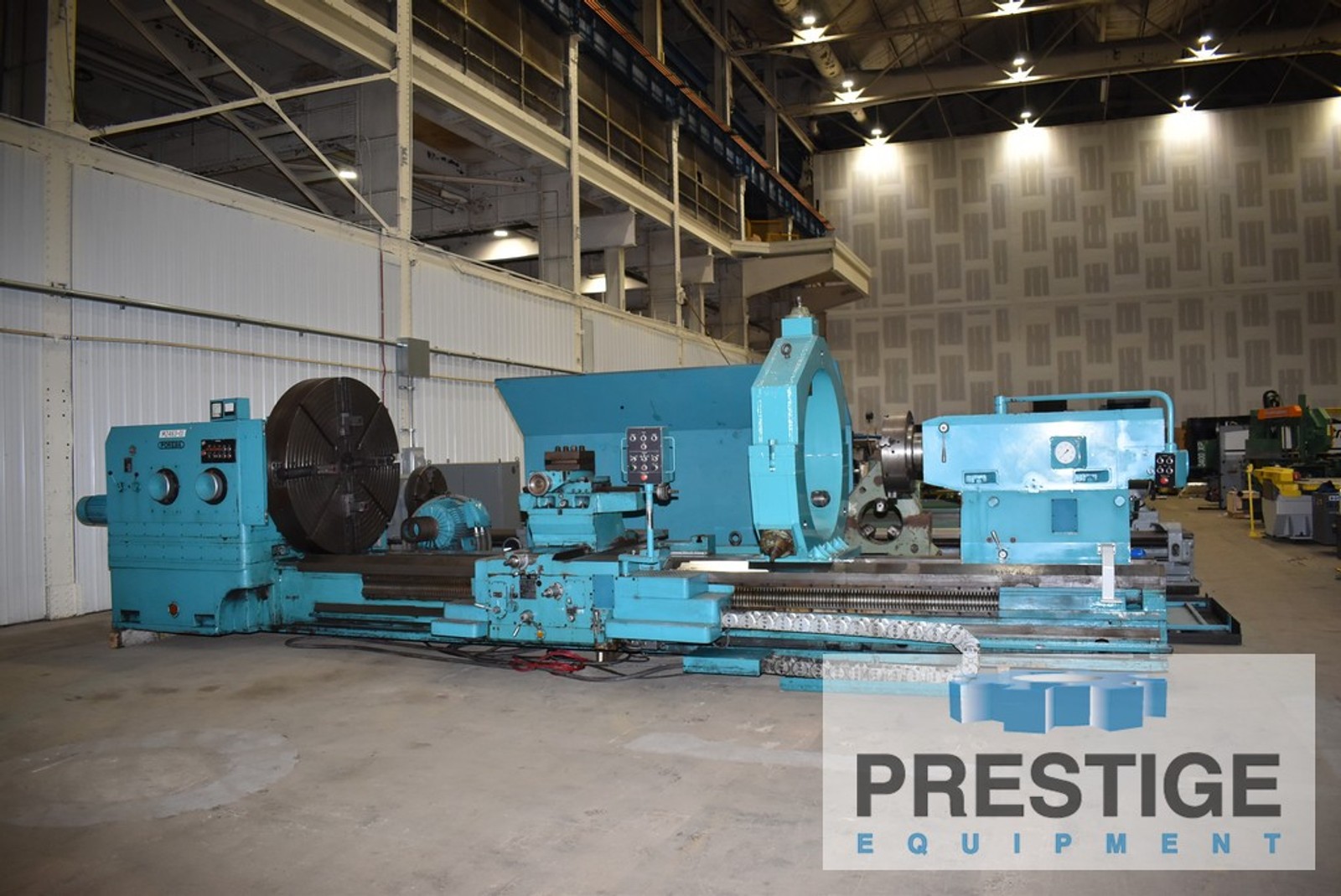

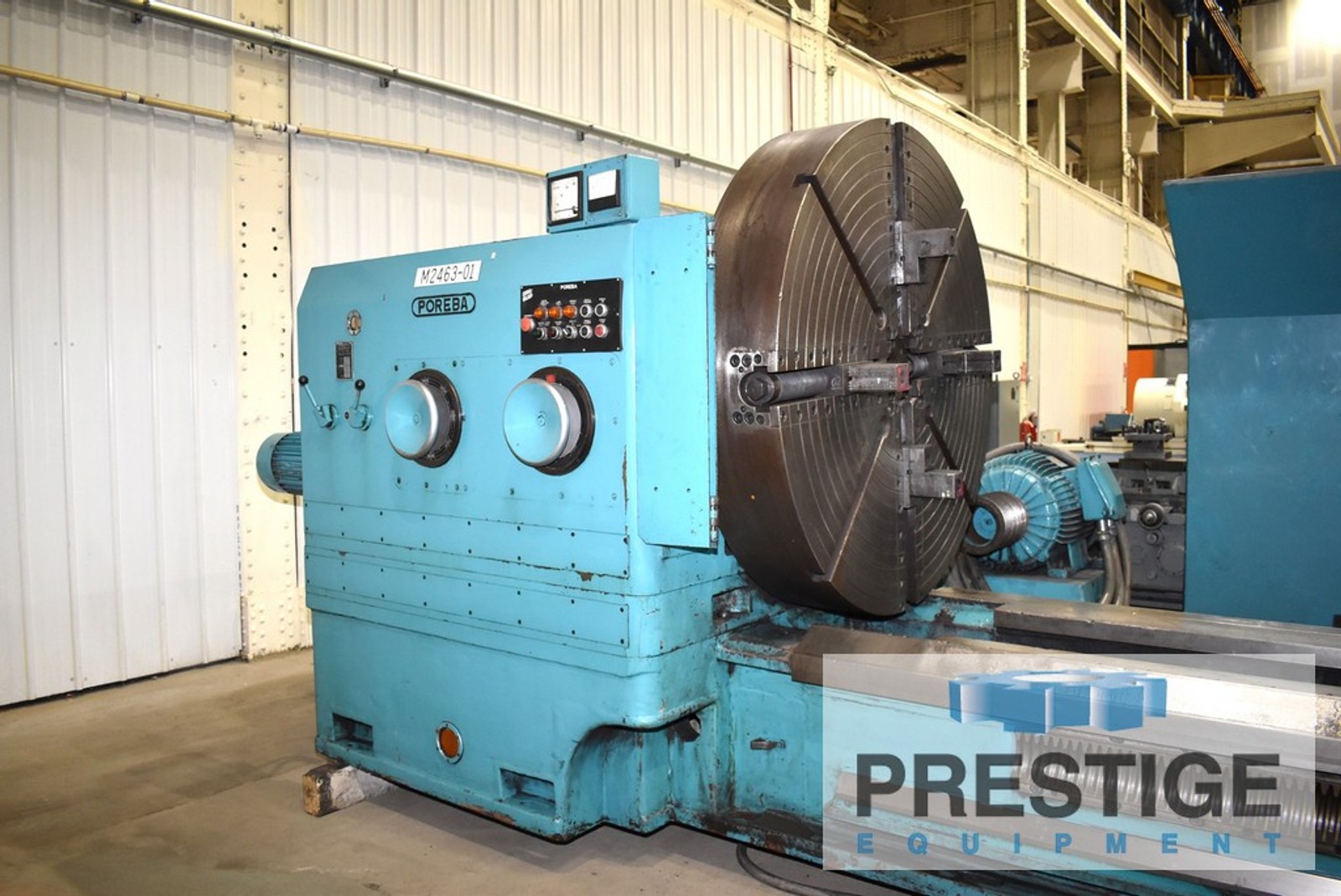

63" x 200" Poreba TCG160 Heavy Duty Manual Lathe w/Boring Attachment

FEATURES:
100 HP Spindle Motor
40 Ton Weight Capacity
Inch/Metric Threading
Boring Bar Attachment
10" x 145" Boring Bar
(2) Steady Rest: 16" & 50"

SPECIFICATIONS:
Maximum Swing Over Bedways ............ 62.99"
Maximum Swing Over Cross Slide ........ 51.18"
Distance Between Centers .............. 196.8"
Width Of Bed .......................... 63"
Spindle Bore .......................... 4.13"
Spindle Speeds (24) ................... 1.6-200 RPM
Diameter of Spindle Front Journal ..... 10.25"
Longitudinal Feeds (20) ............... 0.007-0.2 IPR
Cross Feeds (20) ...................... 0.0035-0.1 IPR
Rapid Traverse ........................ 158 IPM
Metric Threading ...................... 1 to 129
Inch Threading ........................ 30 to 1/8
Tailstock Quill Diameter .............. 11.02"
Tailstock Quill Travel ................ 23.62"
Weight Capacity Between Centers ....... 66,000 lbs
Weight Capacity With One Steady Rest .. 77,000 lbs
Weight Capacity With Two Steady Rest .. 88,000 lbs

EQUIPPED WITH:

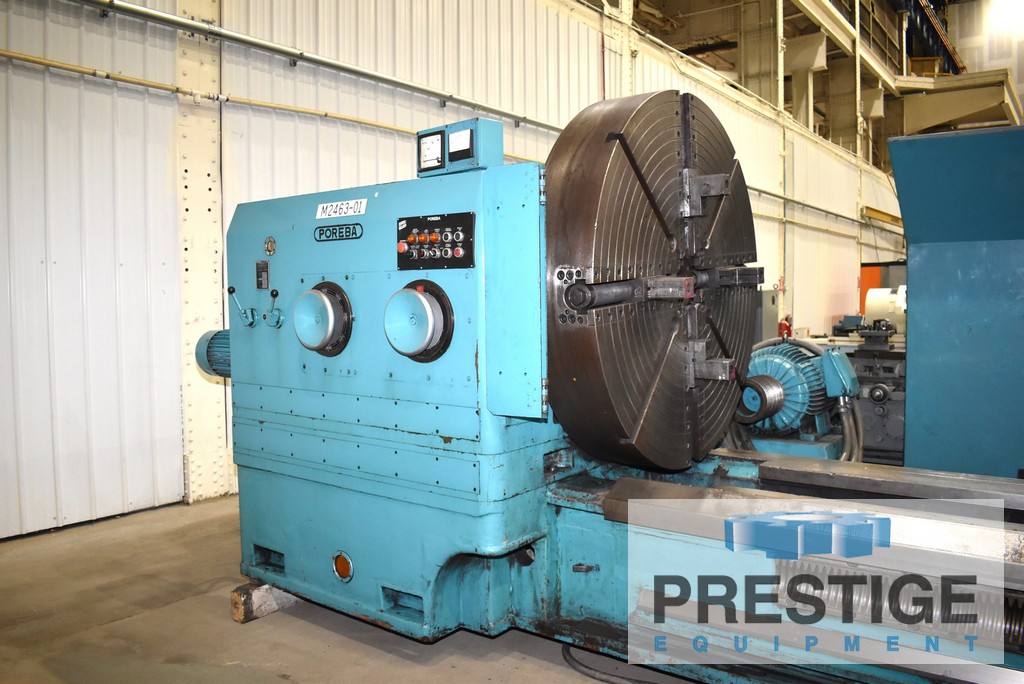

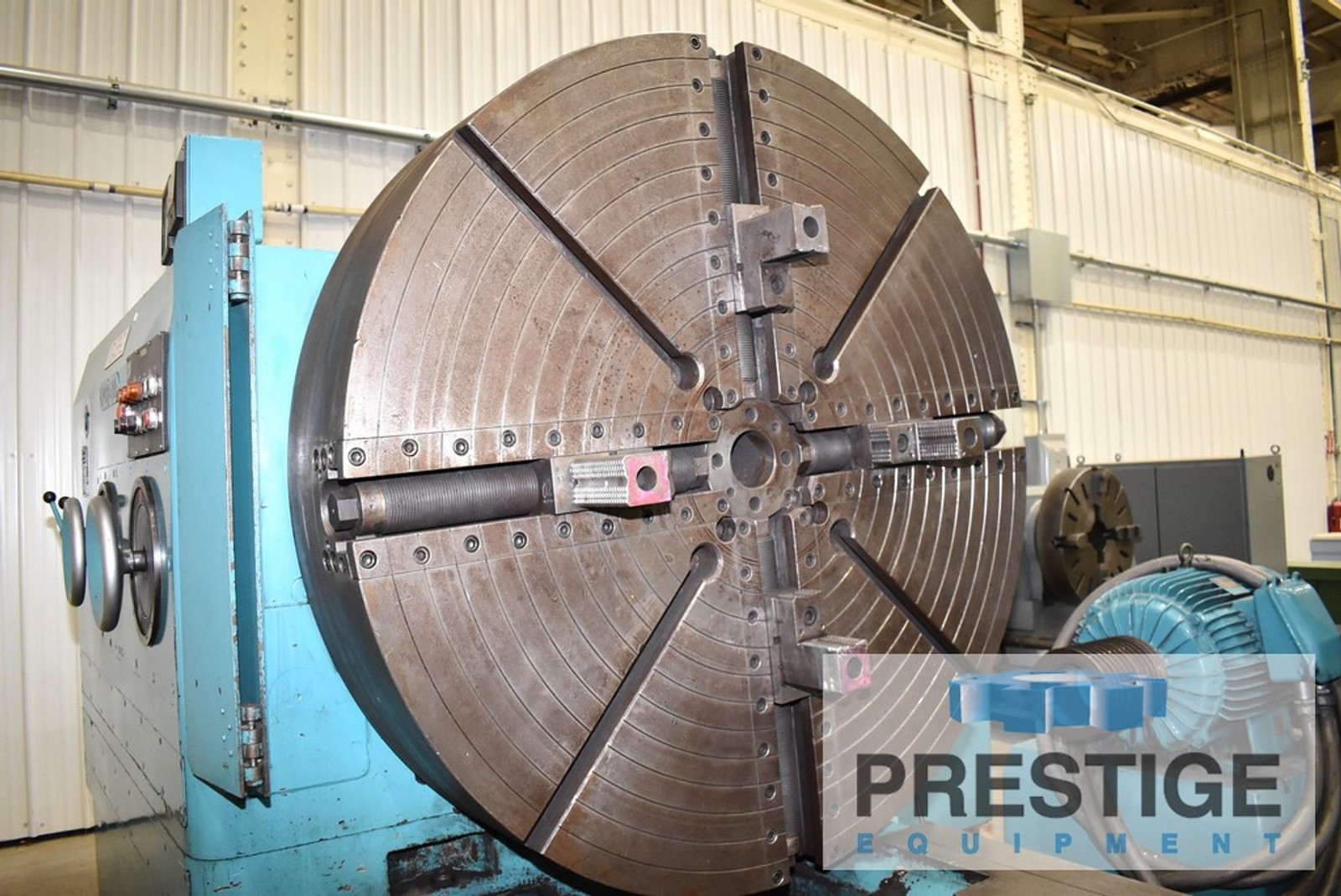

63" 4-Jaw Chuck
Inch/Metric Threading
Power Compound for Taper Turning
Pendant Station on Carriage
Boring Bar Attachment

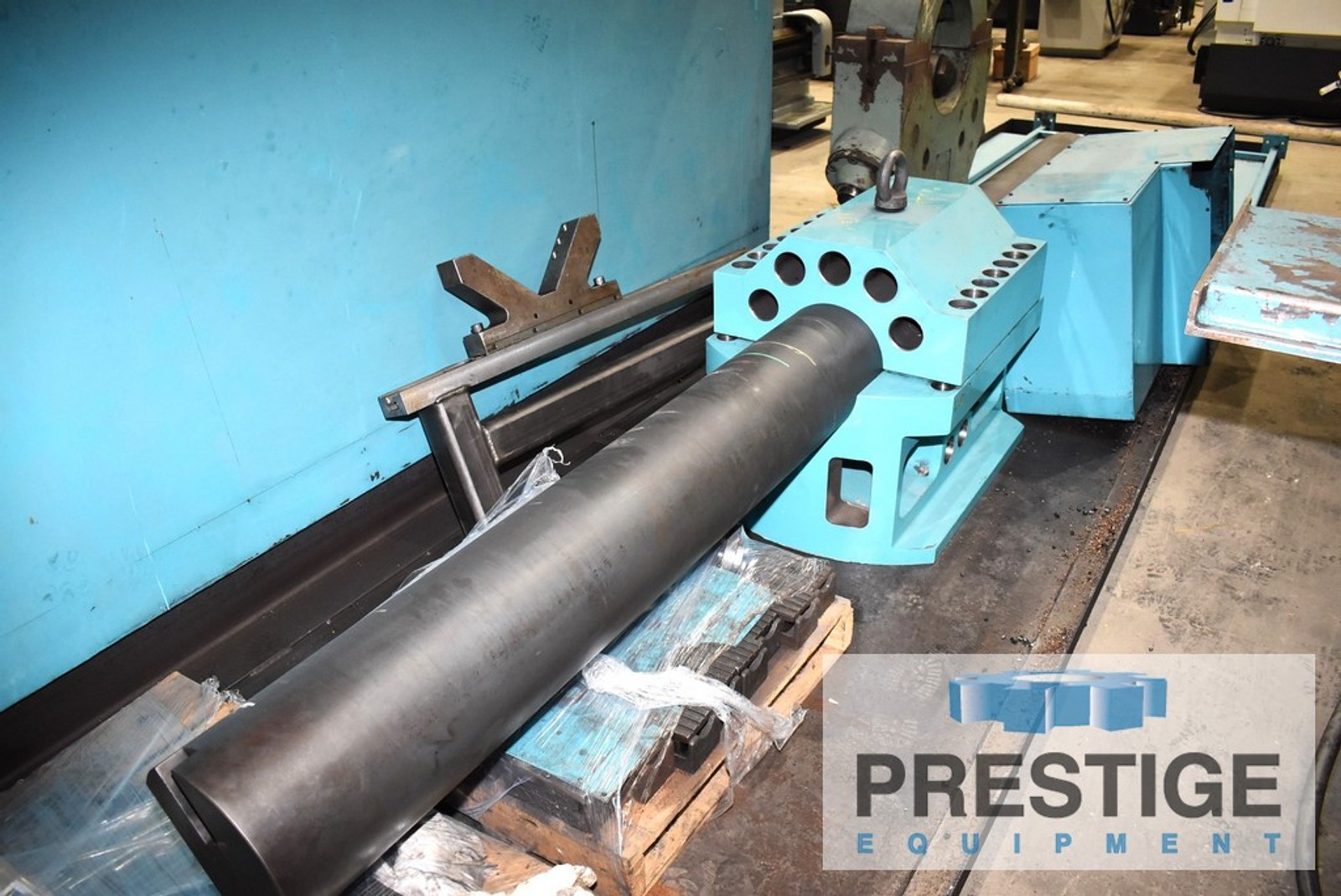

10" x 145" Boring Bar
4-Way Tool Post
Hardened Ways

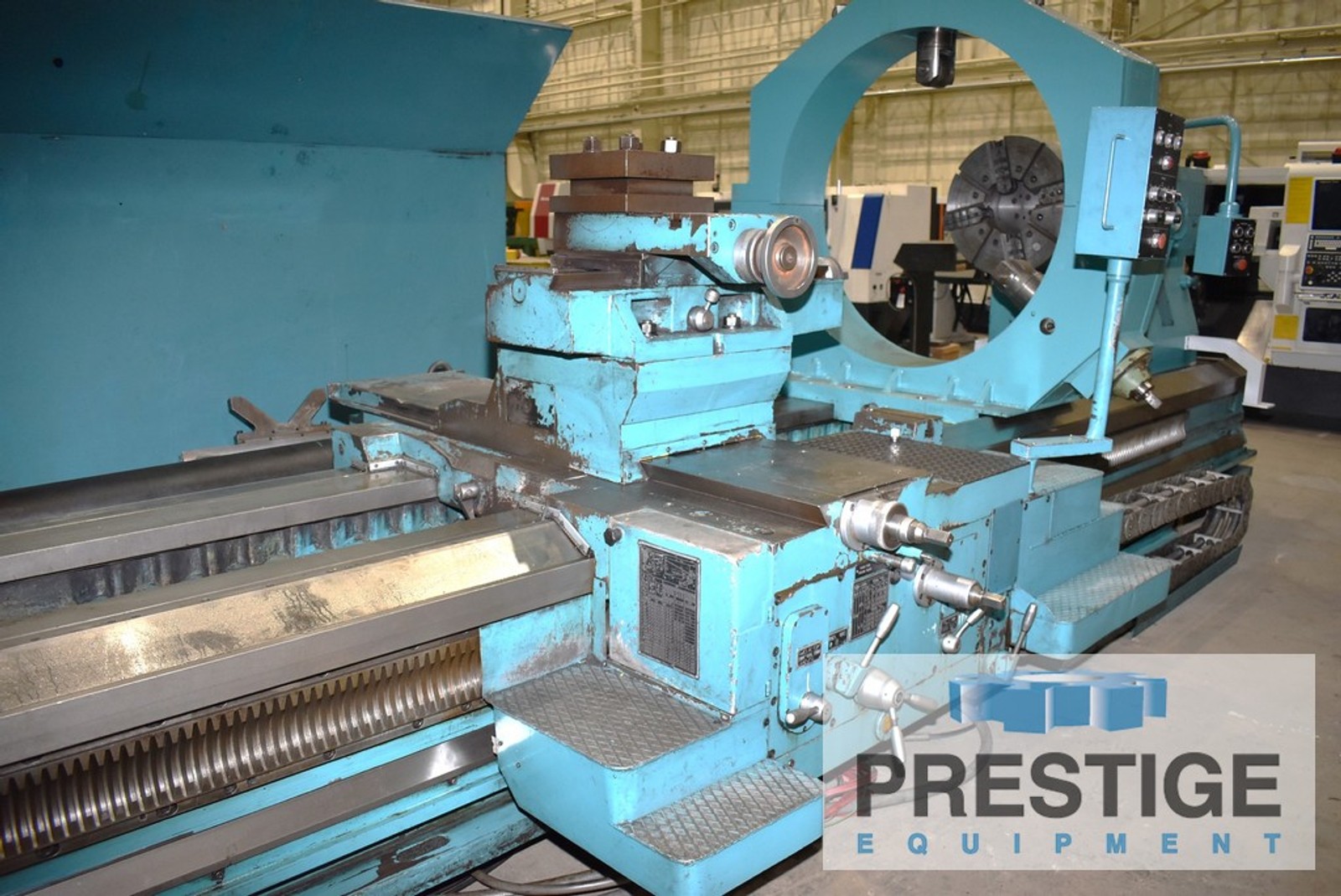

(2) Steady Rest: 16" & 50"
24" 4-Jaw Chuck in Tailstock
Built In Live Center Tailstock w/ Locking Capability
Power Tailstock Quill
Power Tailstock
100 HP Main Spindle Motor
