Mazak Optiplex 3015 Fiber III 6 KW Laser, 60" x 120" Dual Pallet, MCT-2.0 Cutting Head, 2016 #43003

Manufacturer

MAZAK

Category

Laser Cutting

Type

LASERS

Stock

43003

Model

Optiplex 3015 Fiber III

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43003

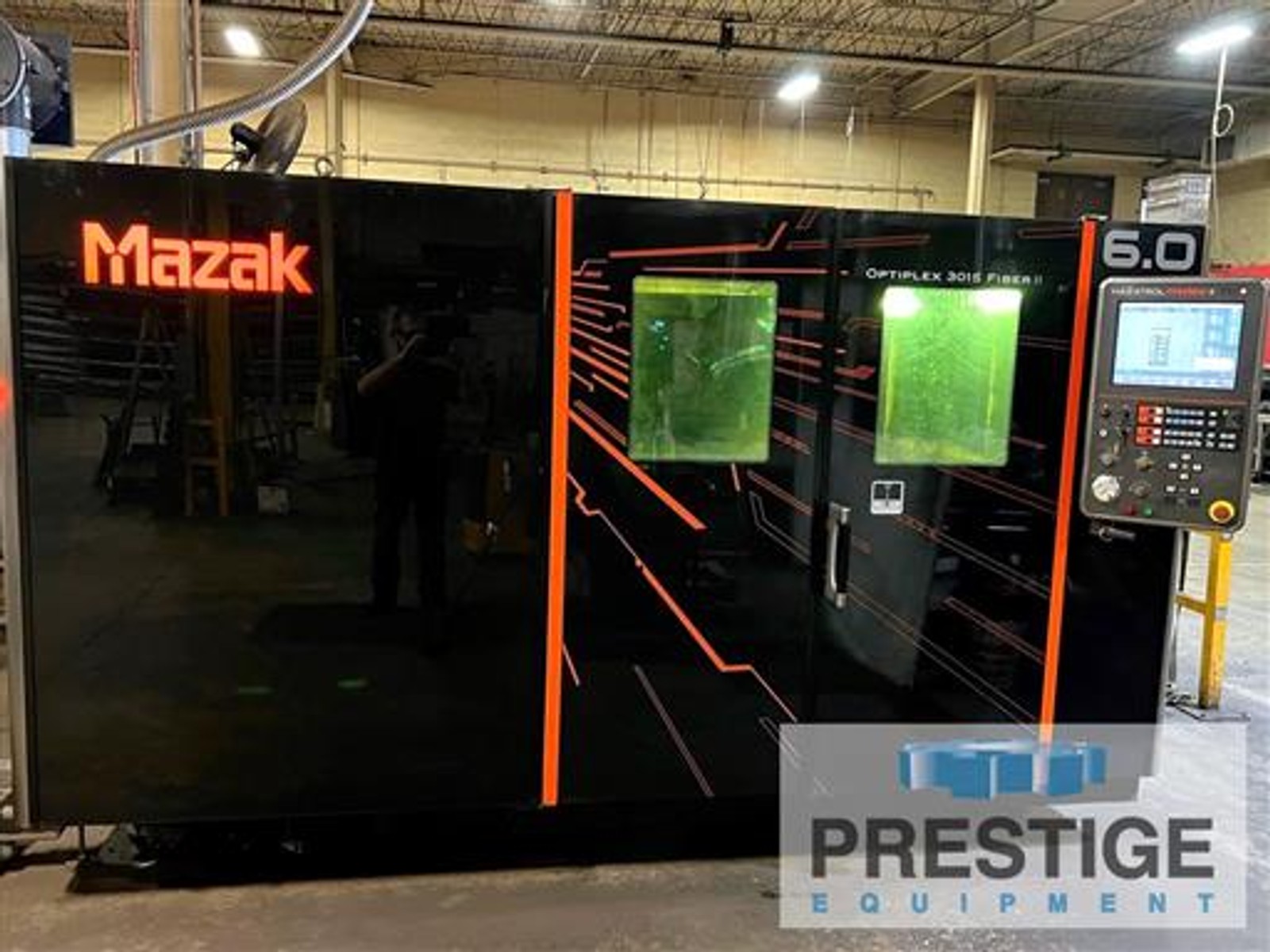

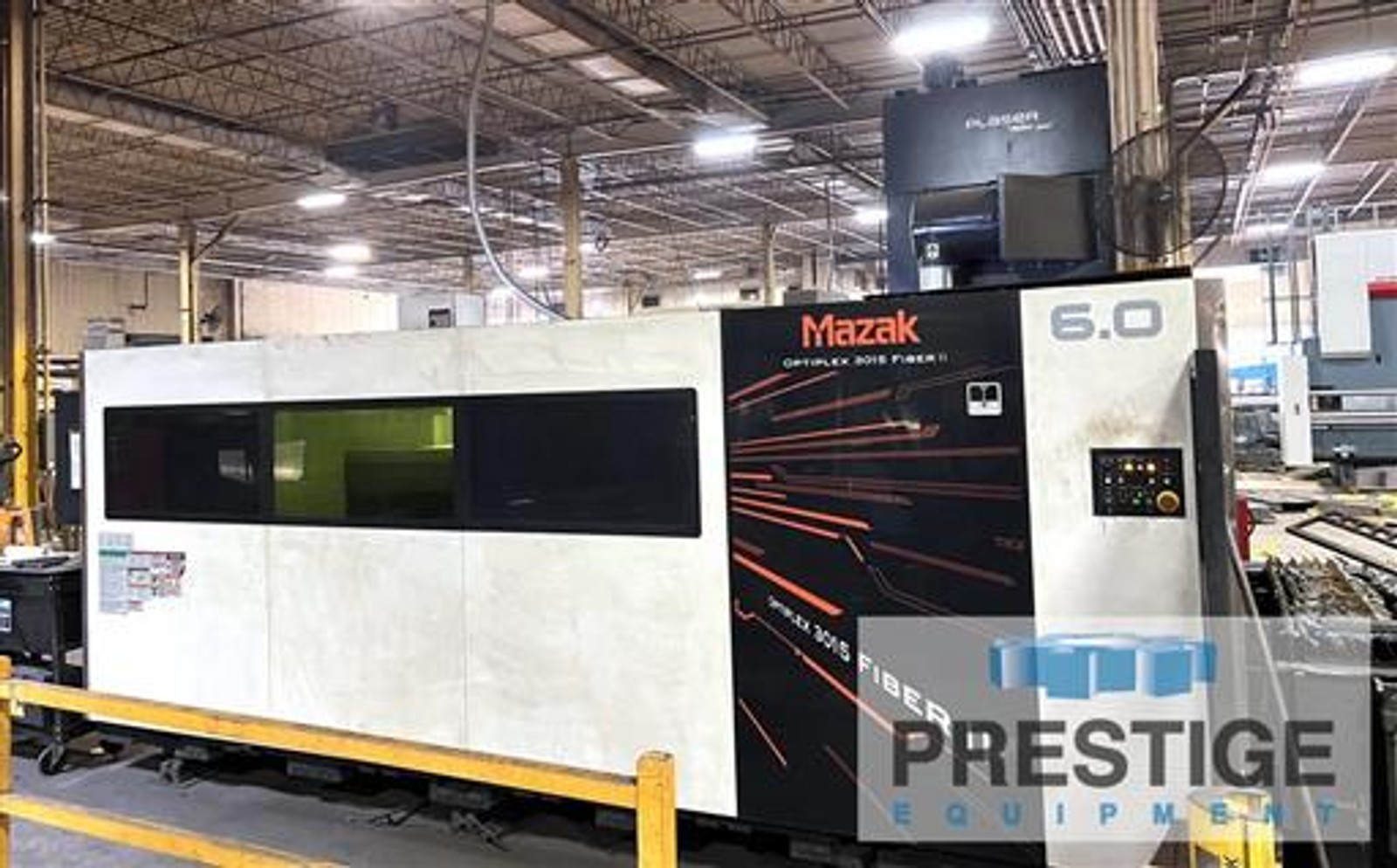

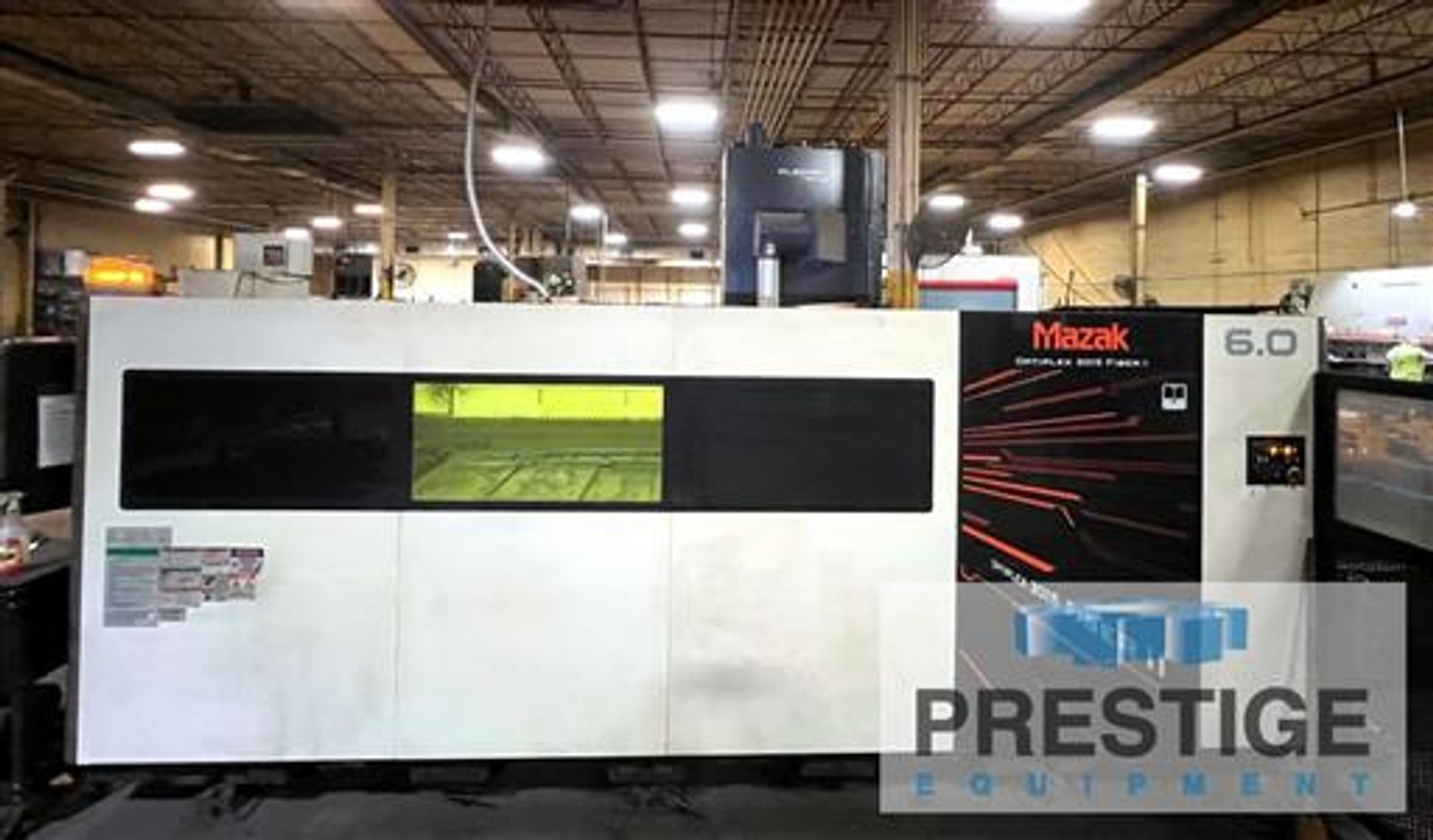

Mazak Optiplex 3015 Fiber III 6 KW CNC Laser Cutting System

FEATURES:
MAZATROL PREview 3 64 CNC Control with 19" LCD Touch Monitor
MCT-2.0 Upgraded Cutting Head
6 KW IPG Photonics YLS-6000 Resonator
Helical Rack and Pinion Drives on X and Y Axes

CAPACITY:
Maximum Power.......................... 6000 Watts
Maximum Sheet Size .................... 60.04" x 120.08"
X-Axis Travel ......................... 122.05"
Y-Axis Travel ......................... 62.80"
Z-Axis Travel ......................... 4.33"
Work Table Height ..................... 35.43"
Max. Cutting Thickness (Mild Steel) ... 1.00"
Max. Cutting Thickness (Stainless) .... 1.00"
Max. Cutting Thickness (Aluminum) ..... .750"
Maximum Load Capacity ................. 2,050 Lbs.
Rapid Travels (X/Y Axis) .............. 4,724 IPM
Installation Dimensions ............... 394" x 240"
Machine Unit Dimensions ............... 334" x 137" x 79"
Machine Weight ........................ 33,069 Lbs.

EQUIPPED WITH:
MAZATROL PREview 3 CNC Control with 19" Color LCD Touch Monitor
6 KW IPG Photonics YLS-6000 Resonator
Helical Rack and Pinion Drives on X and Y Axes
MCT-2.0 Upgraded Cutting Head
Auto Nozzle Changer and Cleaner

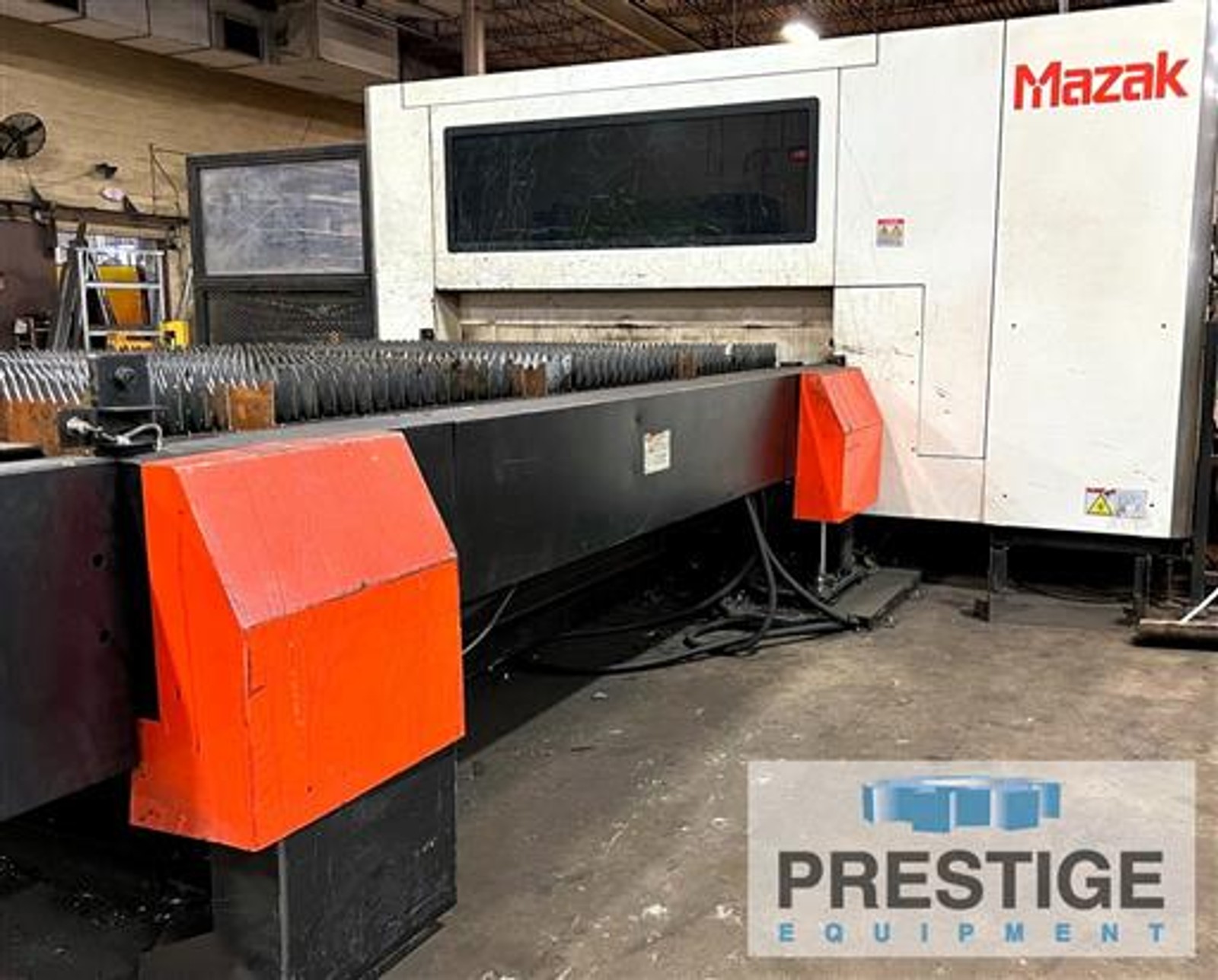

Automatic Dual Pallet Changer
Chiller
Robovent Plaser Dust Collector

NOTE:
Inspect in Plant Under Power
