Minster E2-1000 144" x 60" HeviStamper Two Point Eccentric Shaft Straight Side Press, 8" Stroke, 0-50 SPM, 2000 #32427

Manufacturer

MINSTER

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

32427

Model

E2-1000-144

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32427

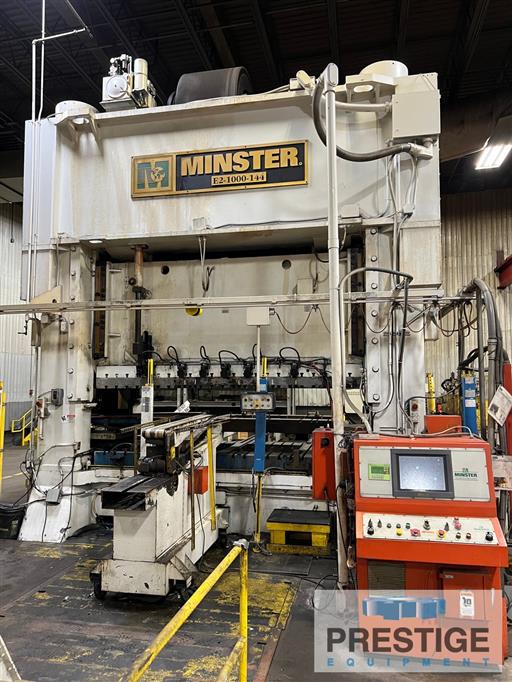

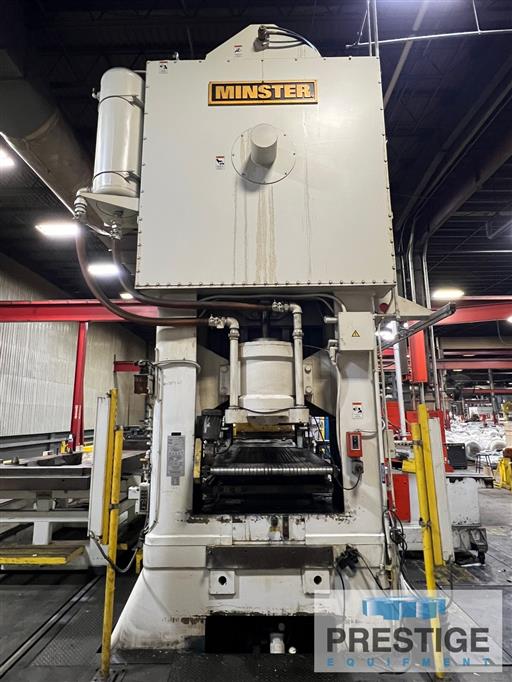

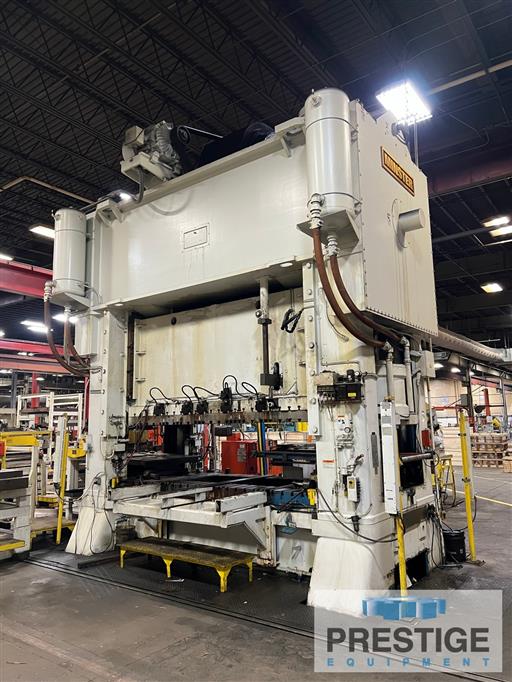

Minster E2-1000 HeviStamper Two Point Eccentric Shaft Straight Side Press

FEATURES:
Twin Drive Gears On Main Shaft
High Tensile Iron Main Drive Gears and Steel Pinions
Minster Hydraulic Clutch and Brake
Four Piece Tie Rod Construction
Hydraulic Tie Rod Nuts
Eight Adjustable Bronze Lined Gibs

SPECIFICATIONS:
Tonnage Capacity ..................... 1,000 Ton
Stroke Of Slide ...................... 8"
Adjustment Of Slide .................. 6"
Shut Height on Bolster ............... 33"
Shut Height on Bed ................... 42"
Thickness Of Bolster ................. 9"
Bed Area ............................. 144" x 60"
Slide Area ........................... 144" x 60"
Distance Between Gib Surfaces ........ 146"
Main Motor ........................... 150 H.P.
Strokes Per Minute ................... 0 - 50 SPM
Approximate Overall Press Height ..... 257" (Floor to Top)
Approximate Weight ................... 380,000 Lbs.

Equipped With:
Twin Drive Gears On Main Shaft
High Tensile Iron Main Drive Gears and Steel Pinions
Minster Hydraulic Clutch and Brake
Four Piece Tie Rod Construction
Hydraulic Tie Rod Nuts
Eight Adjustable Bronze Lined Gibs
Pneumatic Counter Balance System
9" Thick T-Slotted Bolster
Motorized Slide Adjustment
Minster Recirculating Lubrication System

Minster Bolster Transfer System:
Minster Model MDT40-144DM 2-Station Bolster Transfer Cart: 40,000 Lb. Cap.,
Track Mounted Hydraulic Die Cart, (2) 110" x 60" x 10" Bolster Plates,
(5) 84" x 48" x 5" Die Mount Plates, & 5-Tier Die Mount Plate Rack

NOTE:
Inspect Under Power in Plant
