Mori Seiki NHX-4000, X-22",Y-22",Z-26", 15k RPM, (2) 15" x 15", #40, MG Mori ERGOline Touch CNC, 4-Avail. 2019, #43050

Manufacturer

DMG MORI

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

43050

Model

NHX-4000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43050

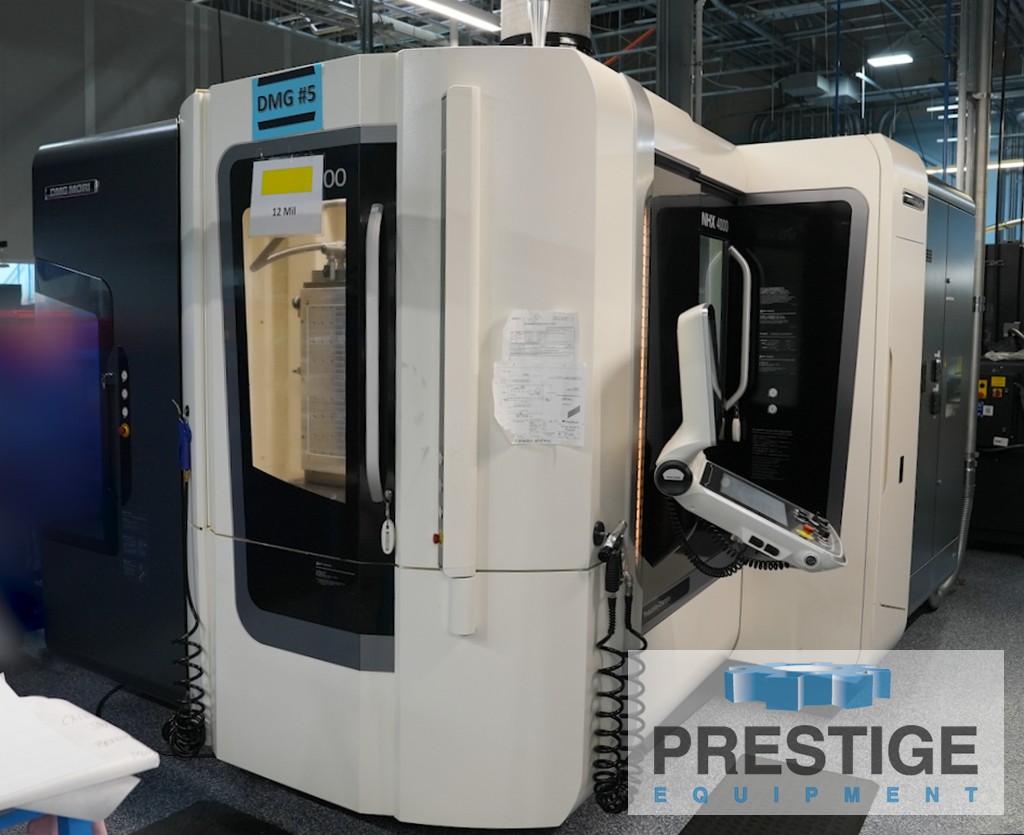

DMG Mori NHX-4000 Horizontal Machining Center

FEATURES:

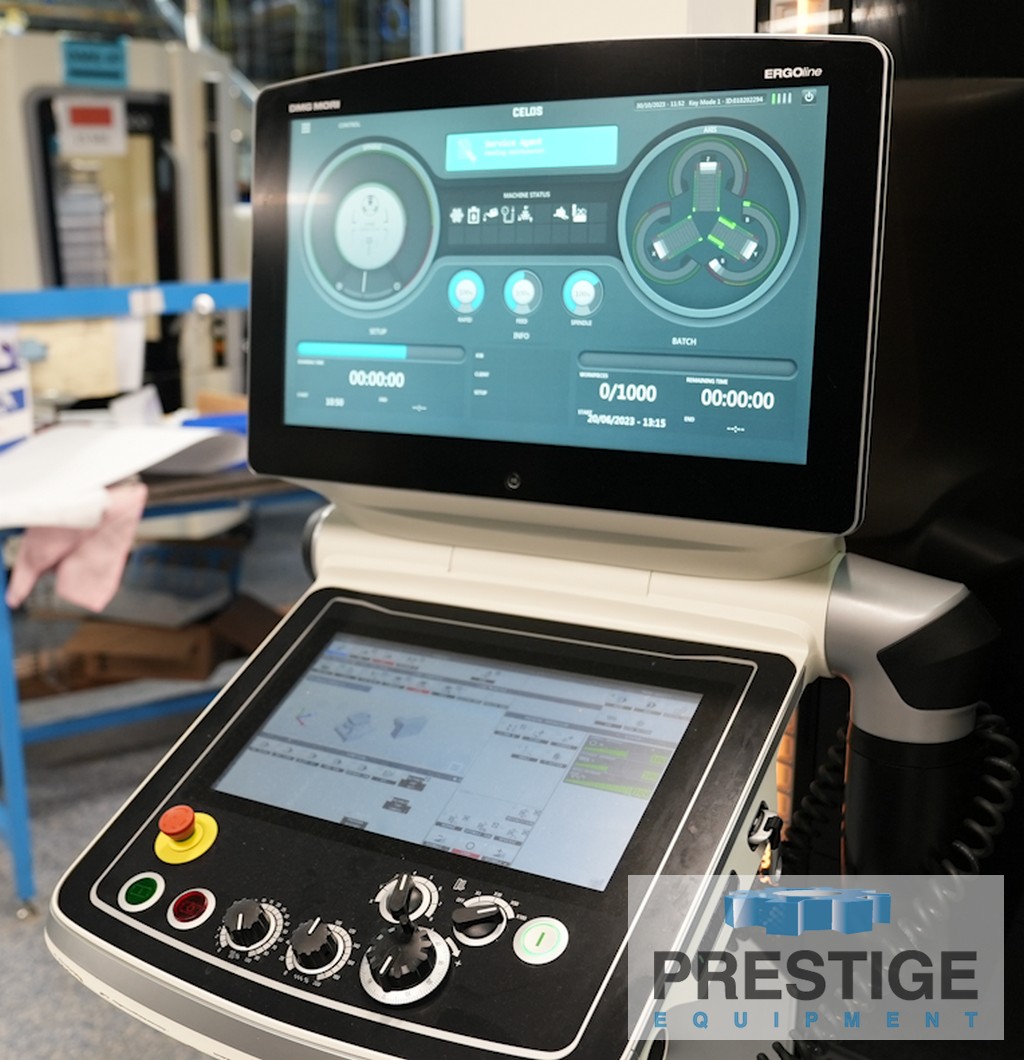

MG Mori ERGOline Touch with Celos CNC Control
Full B-Axis Rotary Table
Prepped For Coolant Through Spindle
60-Station Automatic Tool Changer

CAPACITIES:
X-Axis Travels ....................... 22.047"
Y-Axis Travels ....................... 22.047"
Z-Axis Travels ....................... 26"
Number of Pallets .................... 2
Pallet Size .......................... 15.7" x 15.7"
Pallet Indexing ...................... .001 Degree
Pallet Load Capacity ................. 880 Lbs.
Spindle Speeds ....................... 15,000 RPM
Spindle Taper ........................ CAT 40
Spindle Drive Motor .................. 40 HP
Rapid Traverse ....................... 2362 IPM
Max Tool Diameter x Length ........... 2.76" x 17.72"
Max Tool Weight ...................... 17.6 Lbs.

EQUIPPED WITH:
DMG Mori ERGOline Touch with Celos CNC Control
Prepped For Coolant Through Spindle
(2) 15.7" x 15.7" Pallets with Auto Pallet Changer
Full B-Axis Rotary Table
60 Position Automatic Tool Changer
Flood Coolant
Rigid Tap
Spindle Orientation
Chip Conveyor
