Mazak Integrex i-150, Mazatrol Matrix CNC, 16.76" Swing, C-Axis, Mill Spindle, TSC, 36-ATC, LNS Barfeeder, 2011, #43015

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

43015

Model

Integrex i-150

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43015

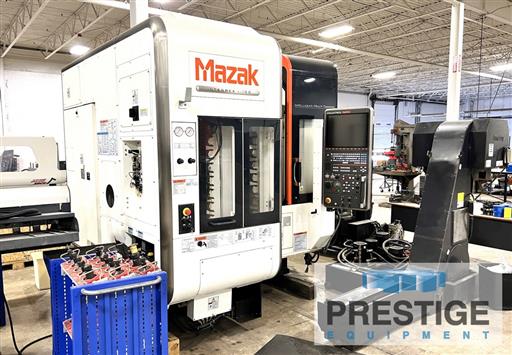

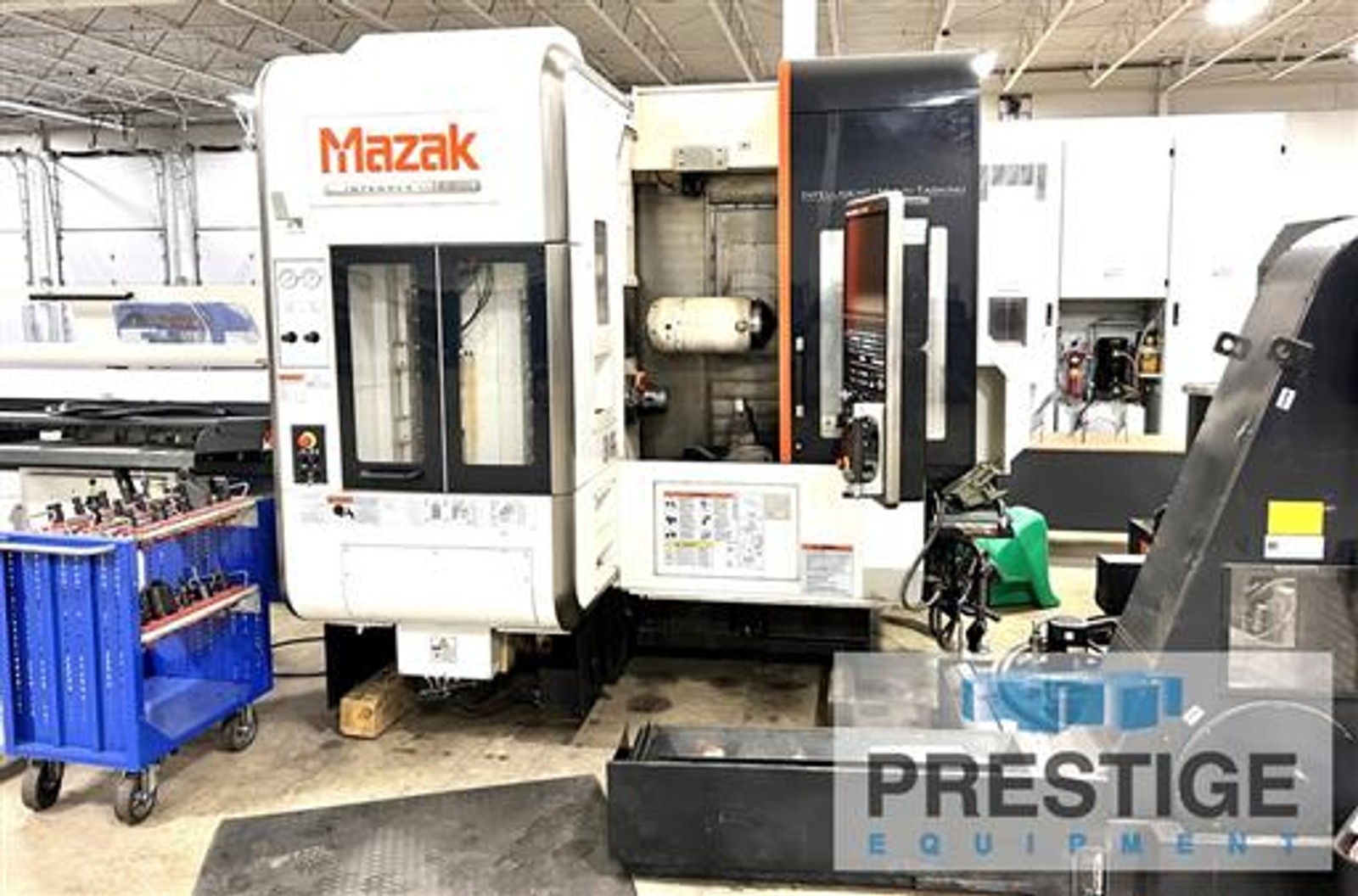

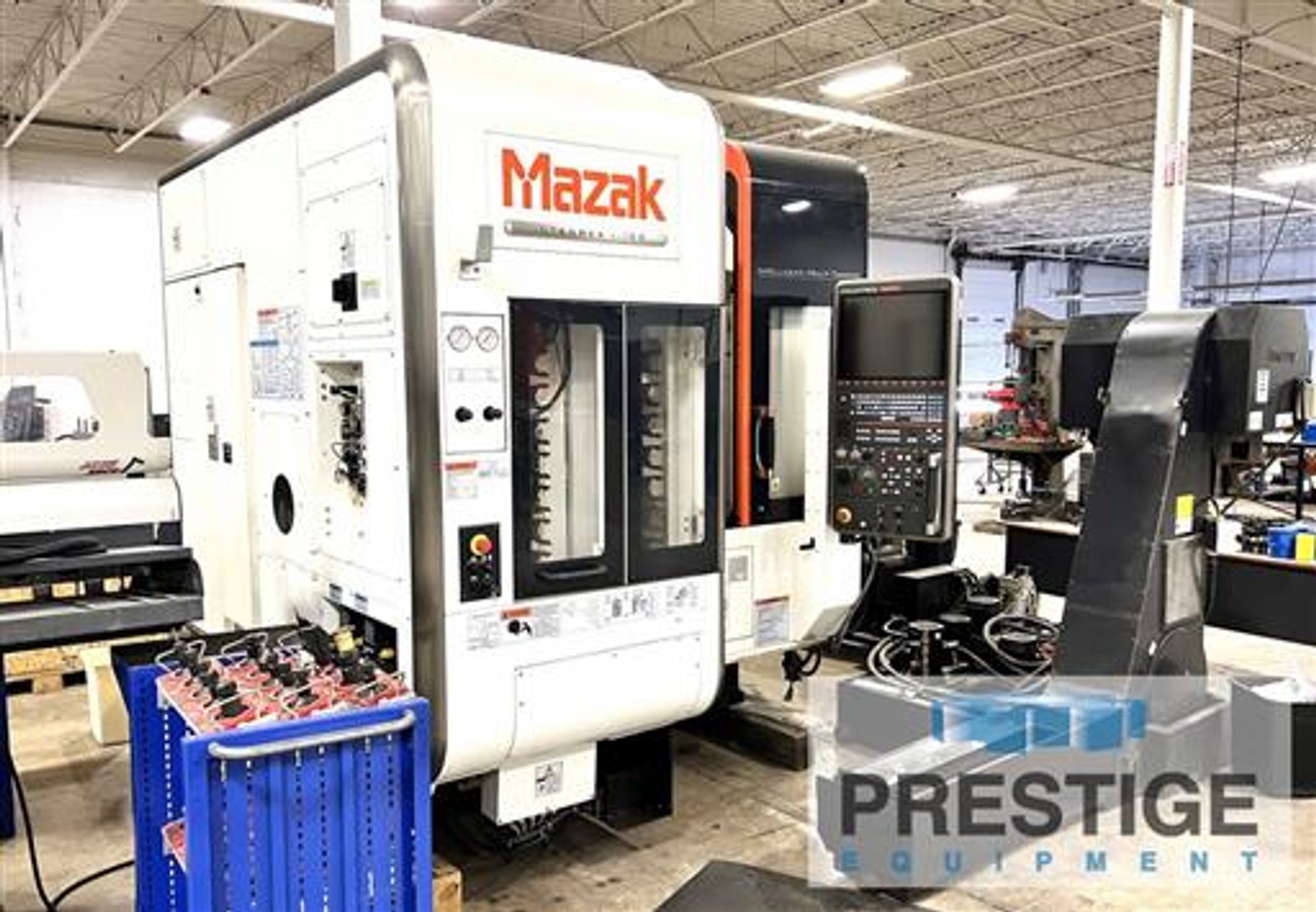

Mazak Integrex i-150 Multi Axis Turning Center

FEATURES:

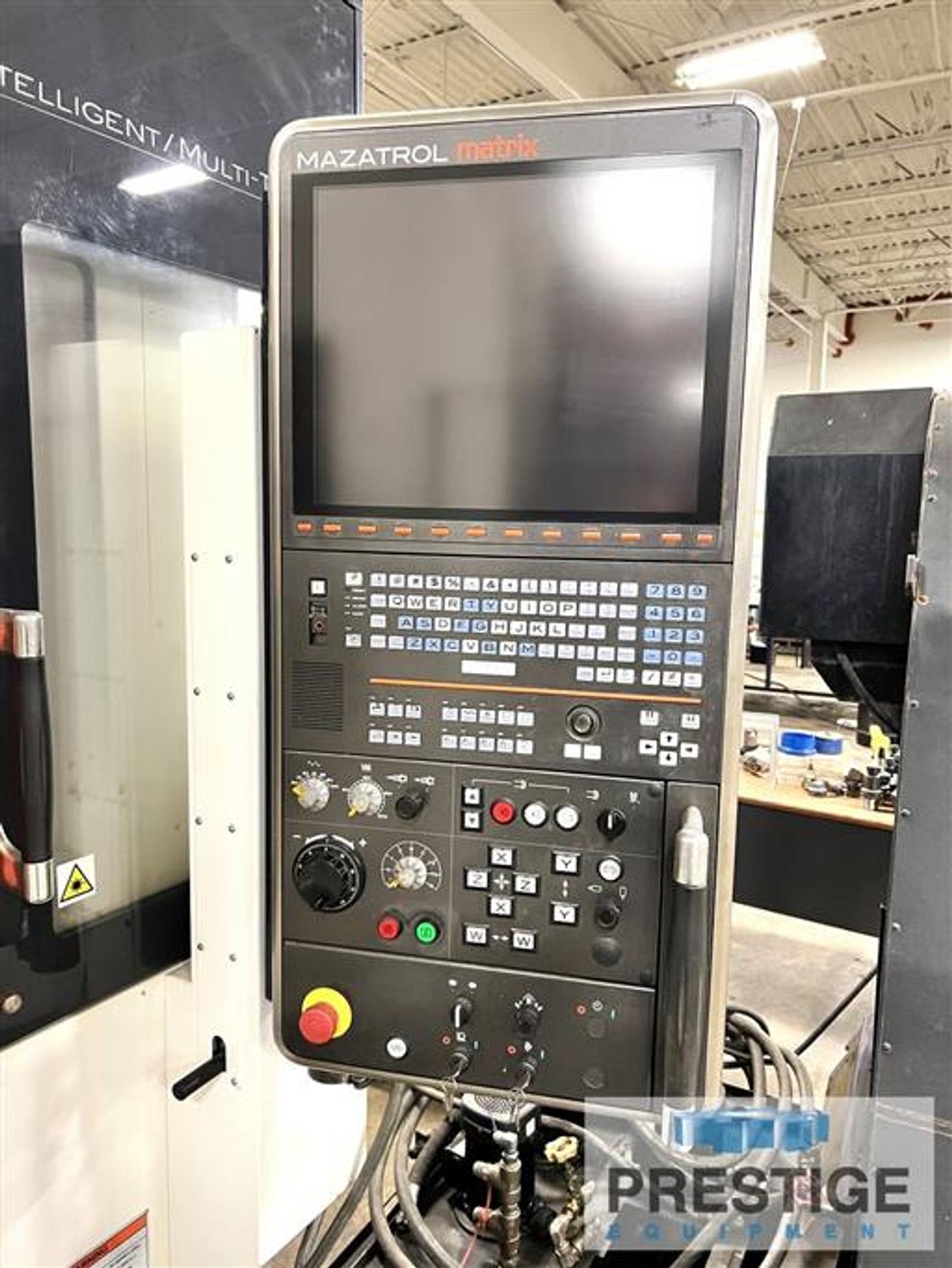

Mazatrol Matrix CNC Controls

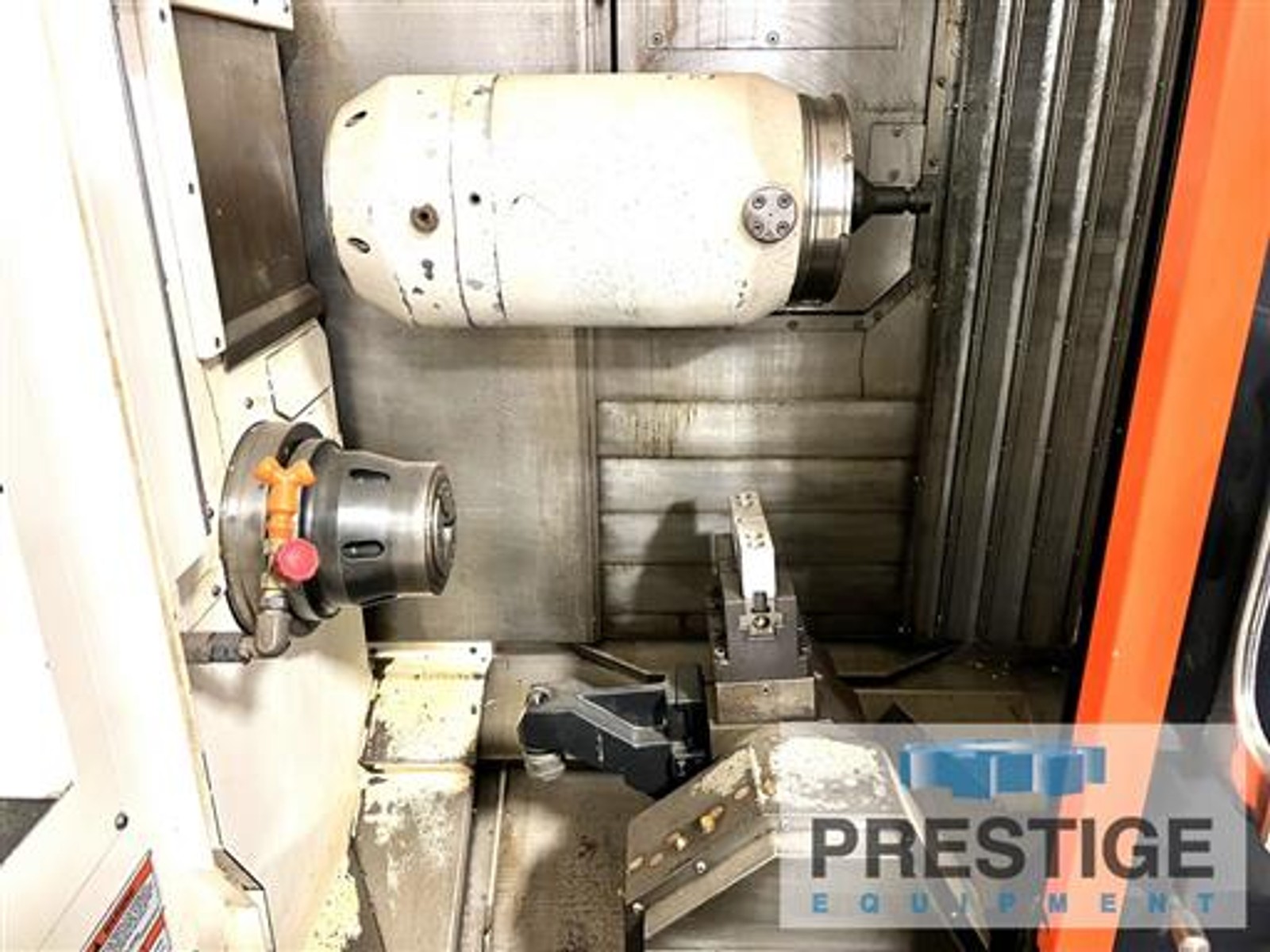

Collet Chuck
Automatic Tool Changer

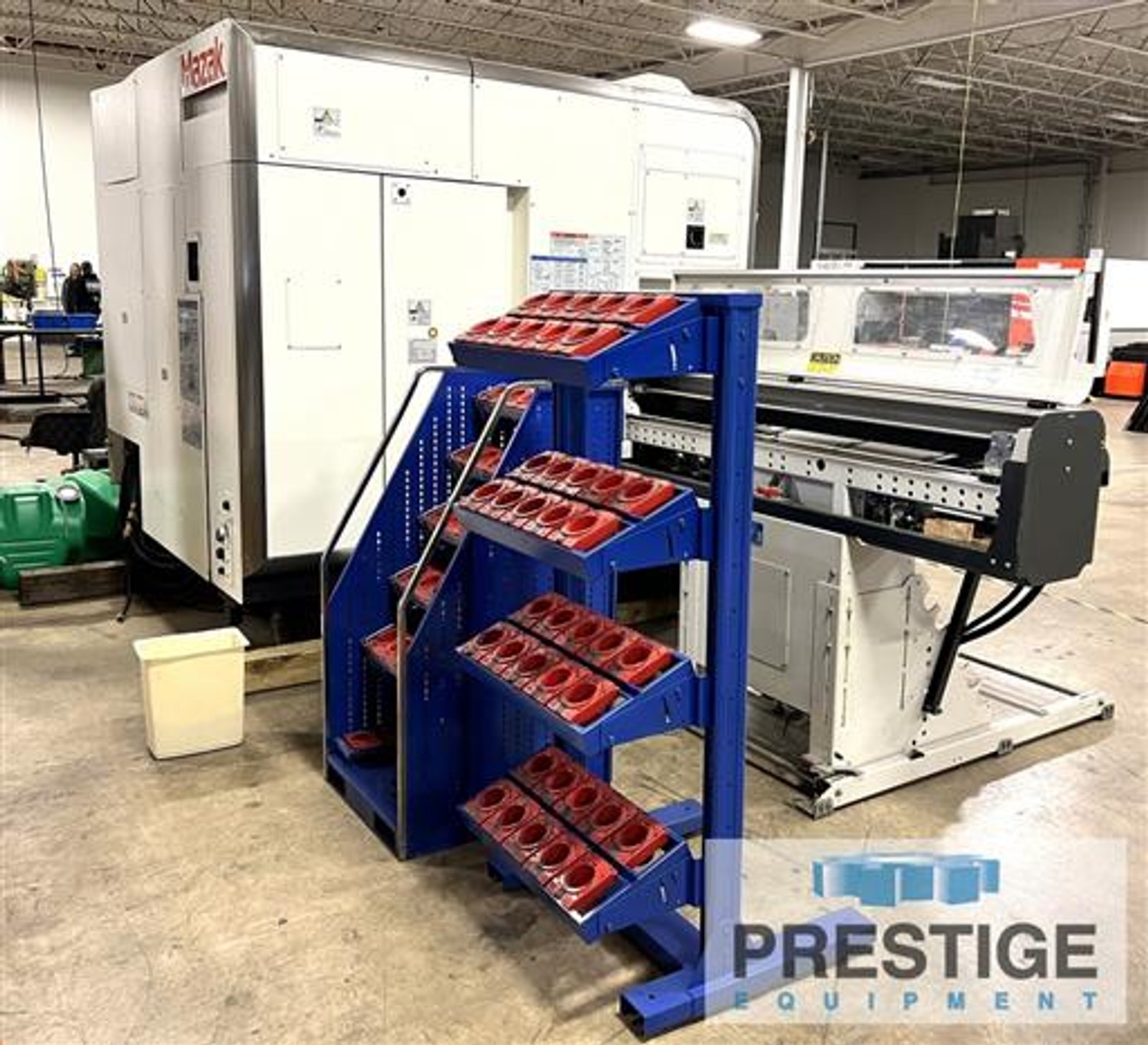

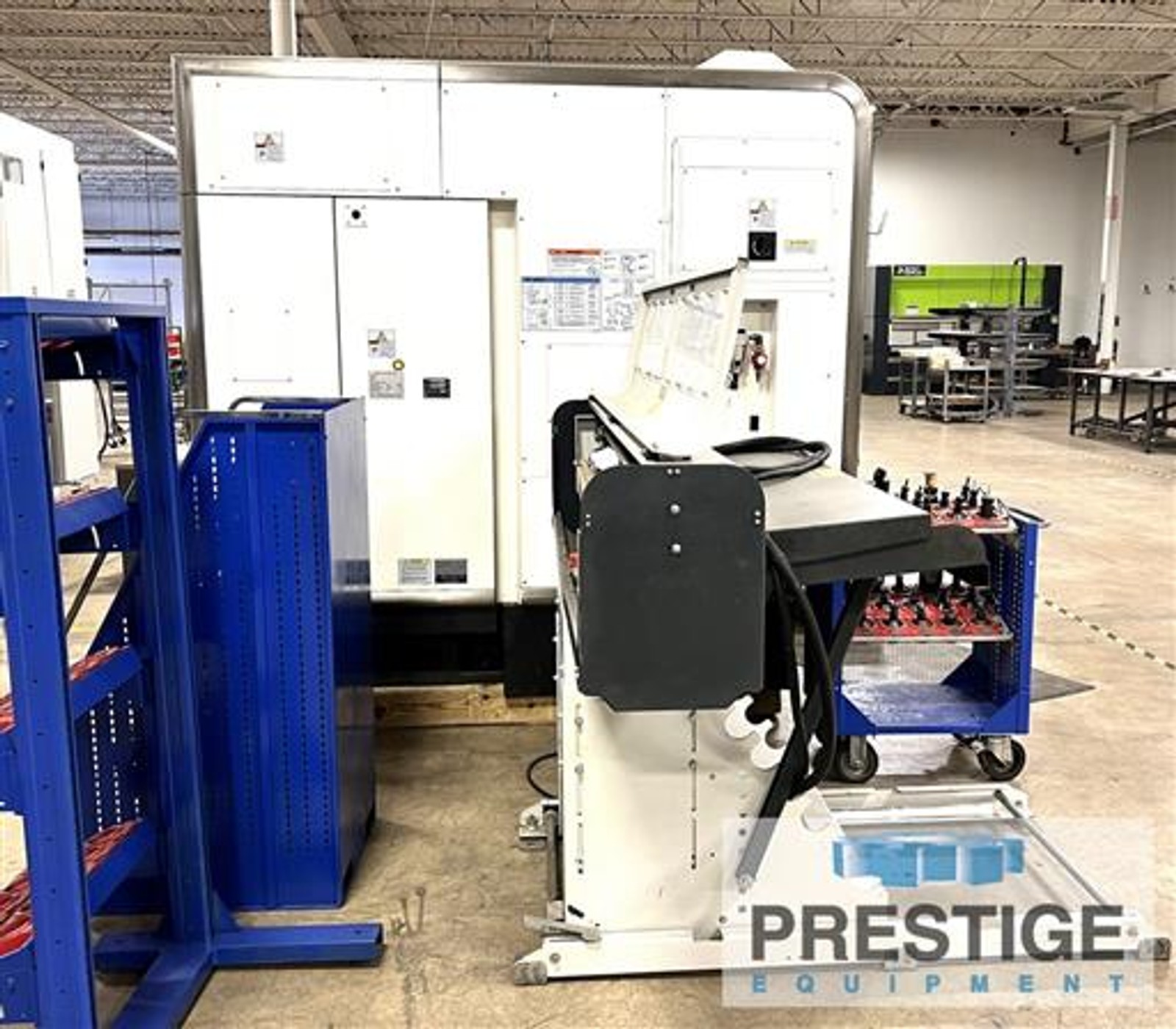

LNS Quick Load Servo Barfeeder

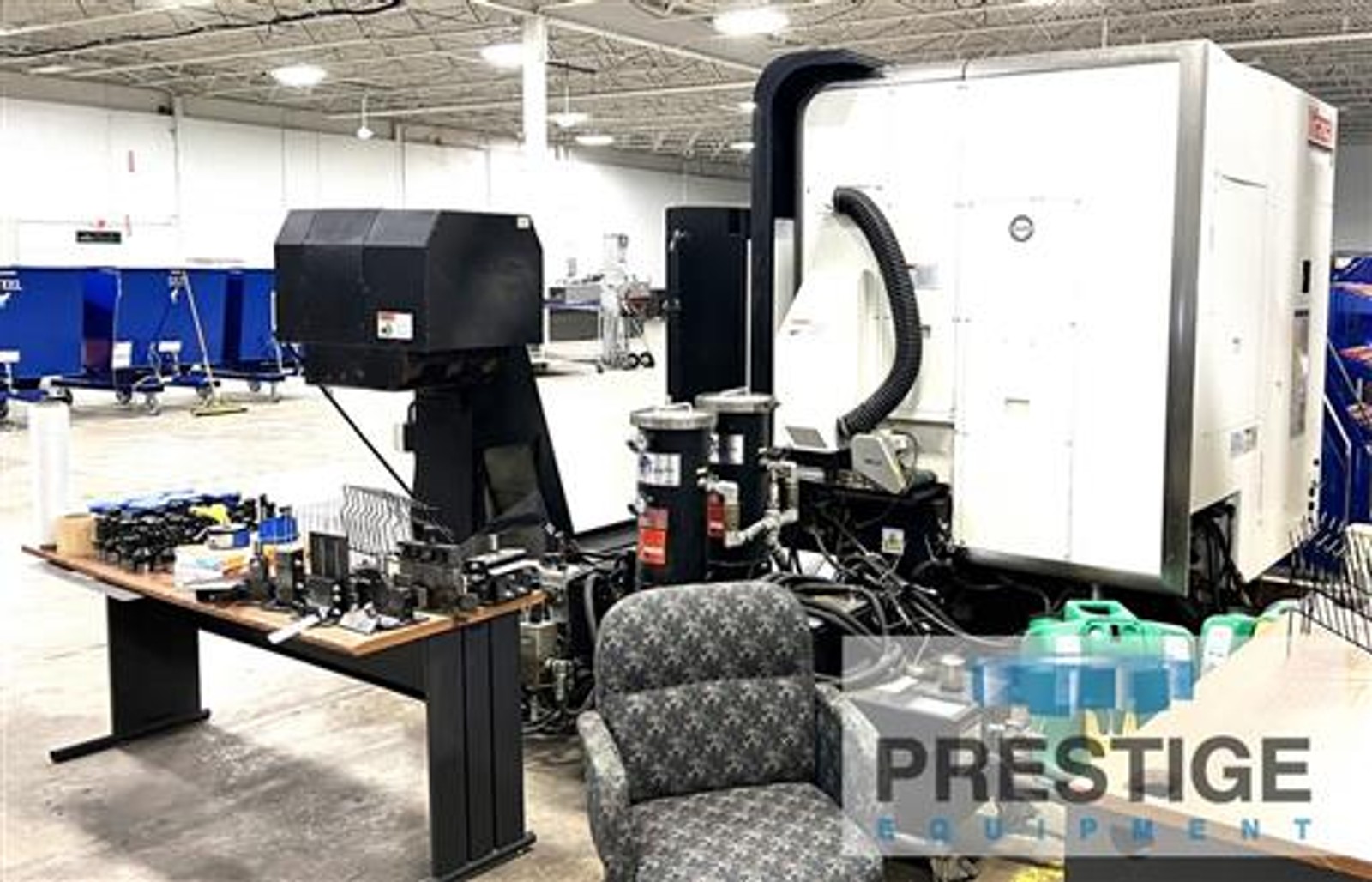

Mazak Superflow Coolant System
Chip Conveyor

CAPACITY:
Maximum Swing ......................... 16.76"
Max Machining Diameter ................ 13.39"
Maximum Bar Work Capacity ............. 2.6"
Maximum Machining Length .............. 15.16"
Main Spindle Chuck Size ............... 6"
Main Spindle Maximum Speed ............ 5,000 RPM
Main Spindle Motor Output ............. 15 HP / 11kW
Milling Spindle B - Axis Travel ....... 200°
Milling Spindle Magazine Capacity ..... 36
Milling Spindle Max. Speed ............ 12,000 RPM
Milling Spindle Motor Output .......... 10 HP / 8kW
Feed x - Axis Travel .................. 14.67"
Feed Y - Axis Travel .................. 7.87"
Feed Z - Axis Travel .................. 17.13"
Feed W - Axis Travel .................. 11.81"

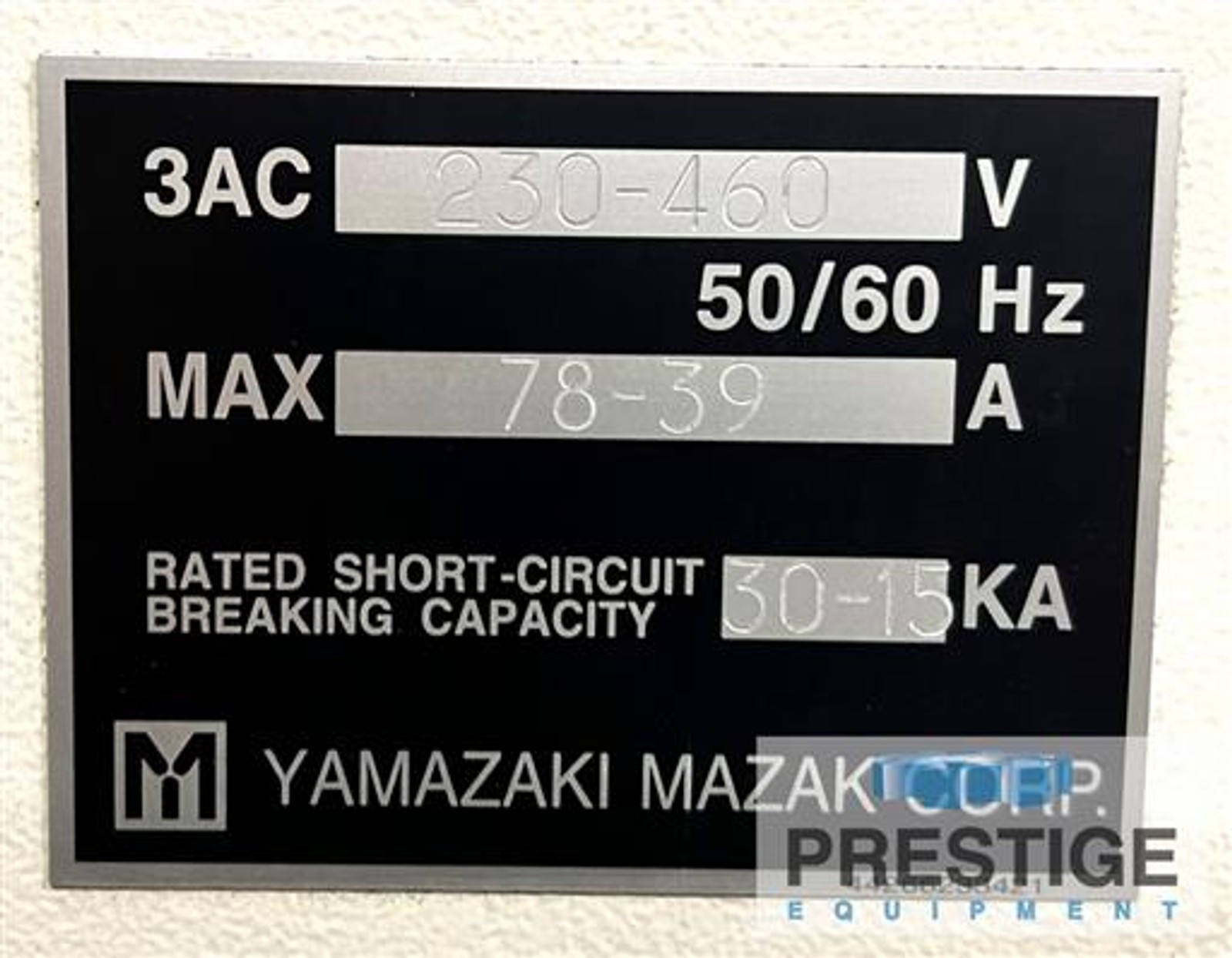

Machine Electrics ..................... 230/460/3/60

EQUIPPED WITH:
Mazatrol Matrix CNC Controls
Collet Chuck
Automatic Tool Changer
LNS Quick Load Servo Barfeeder
Mazak Superflow Coolant System
Chip Conveyor
