Doosan DCM-2740F, X-167", Y-125", 106" B/C, 161" x 86" Tbl, Fanuc 31iB, 90 Station ATC, Rt Angle Head, 2017, #43022

Manufacturer

DOOSAN

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43022

Model

DCM-2740F

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43022

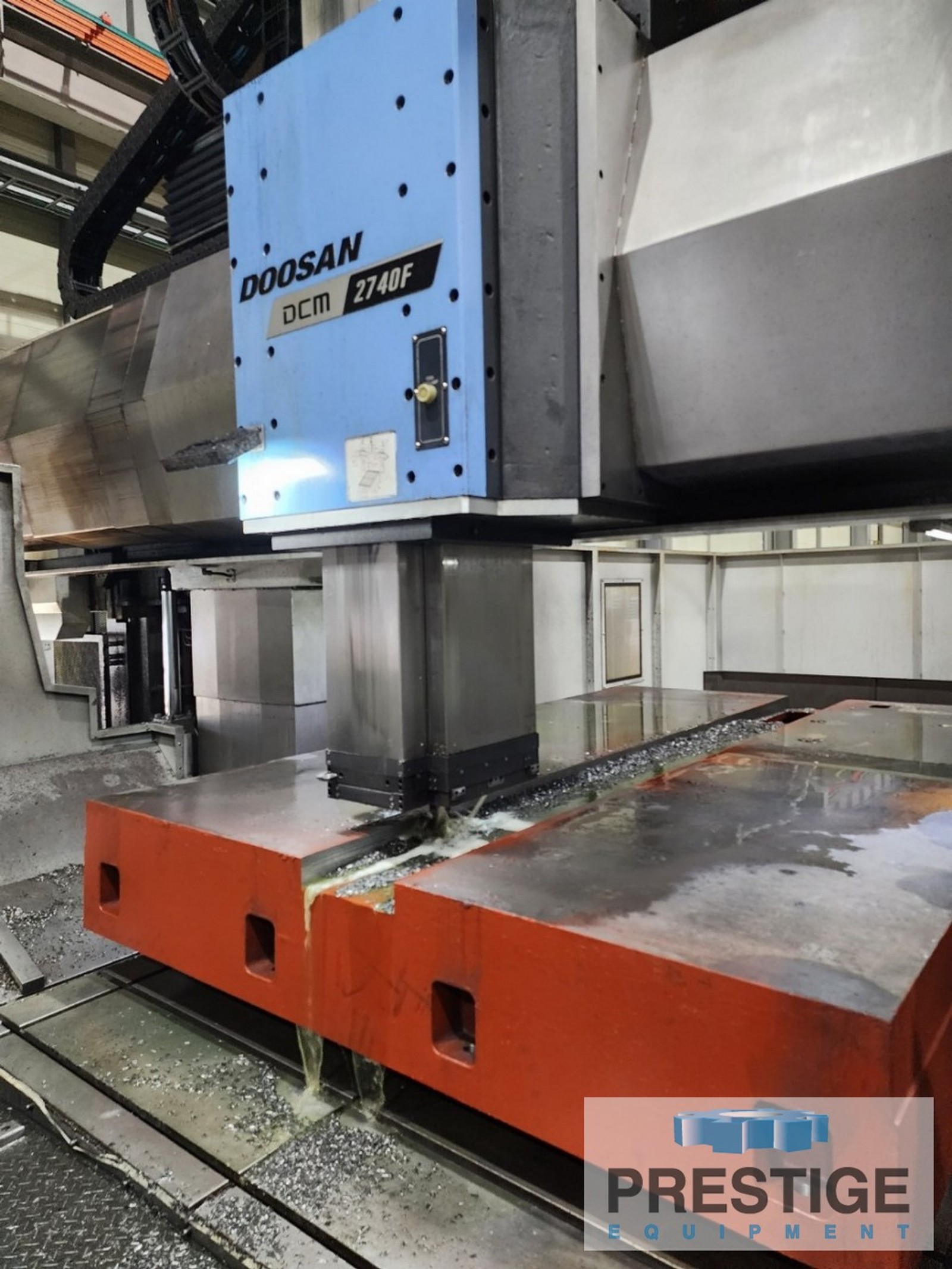

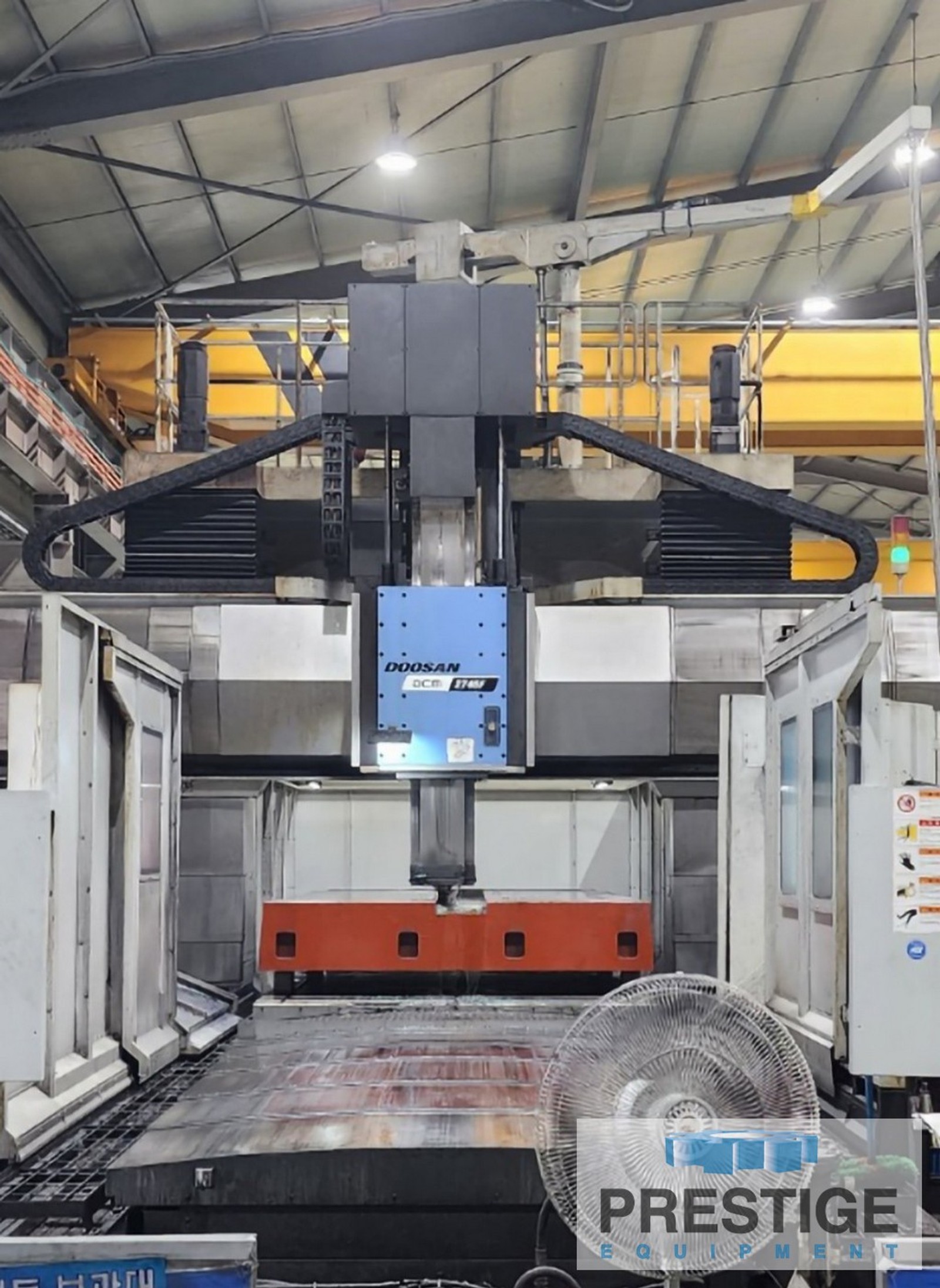

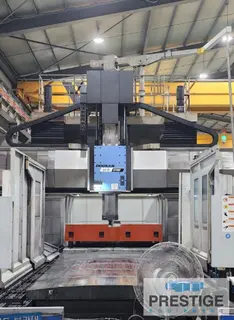

Doosan DCM-2740F CNC Double Column Machining Center

FEATURES:

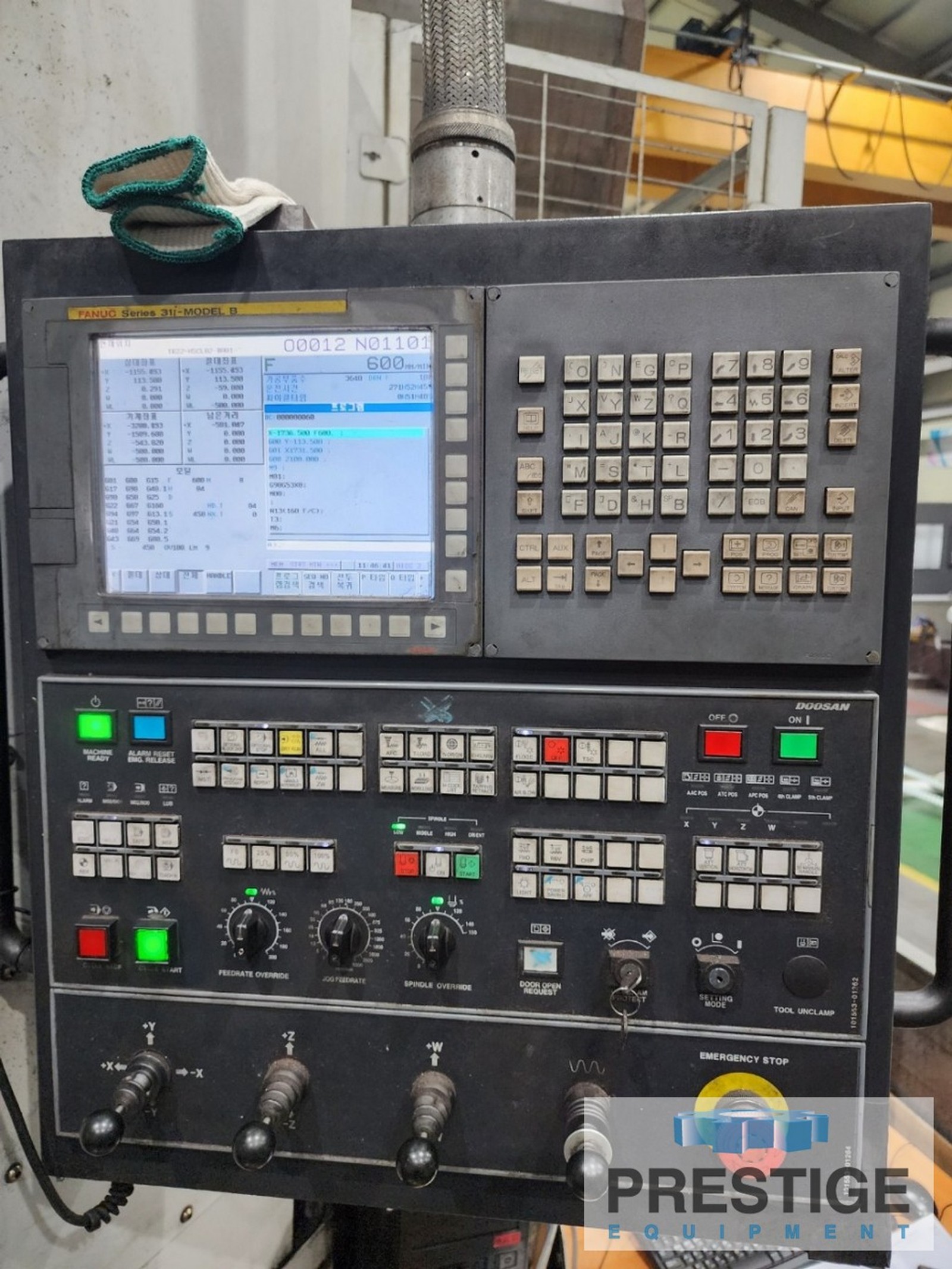

Fanuc 31iB CNC Control

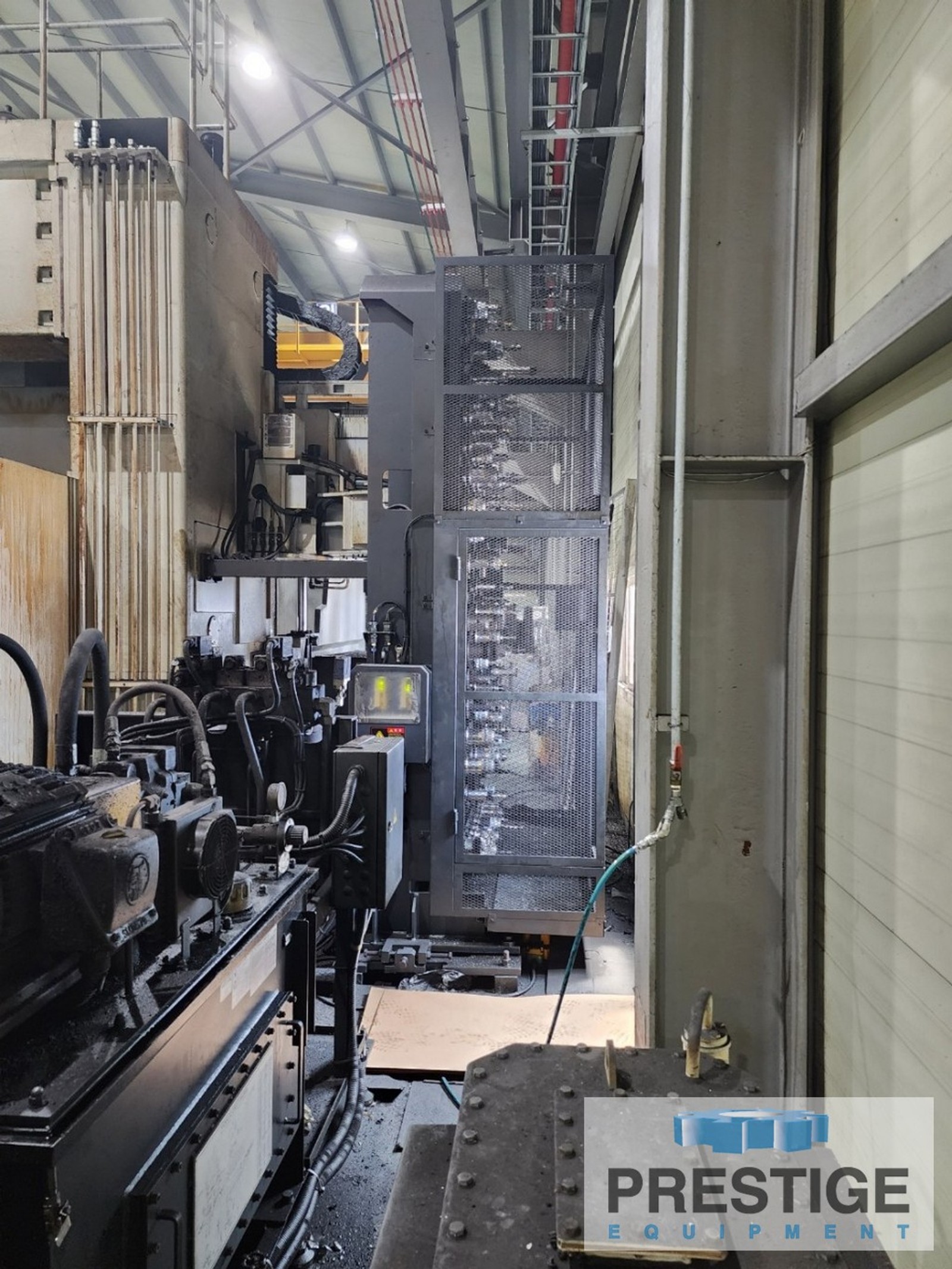

90-Station Automatic Tool Changer
Right Angle Head with 1 Deg. Indexing
Coolant Thru Spindle (20 Bar)

SPECIFICATIONS:
X-Axis Travel ......................... 167.32"
Y-Axis Travel ......................... 125.98"
Z-Axis Travel ......................... 27.55"
W-Axis Travel ......................... 43.30"
Ram Size .............................. 14.96" x 14.96"
Distance Between Columns .............. 106.29"
Distance Spindle Nose to Table ........ 64.96"
Table Size ............................ 161.41" x 86.61"
Table Capacity ........................ 44,000 lbs
Spindle Speeds (Geared Head)........... 4,000 RPM
Spindle Drive Motor ................... 33 HP
Spindle Taper ......................... BT #50

EQUIPPED WITH:
Fanuc 31iB CNC Control
90-Station Automatic Tool Changer
Right Angle Head with 1 Deg. Indexing
Coolant Thru Spindle (20 Bar)
Linear scales X,Y,Z,W Axes
Chip Conveyor

NOTE:
Inspect in Plant Under Power

No Video Available
