SNK RB 5VM CS, 40 ATC, AAC, X-207", Y-114" , 98.42" X 196.8" Table, 6000 RPM, 30 HP, Fanuc 31, 2016, #43035

Manufacturer

SNK

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

43035

Model

RB 5VM CS

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43035

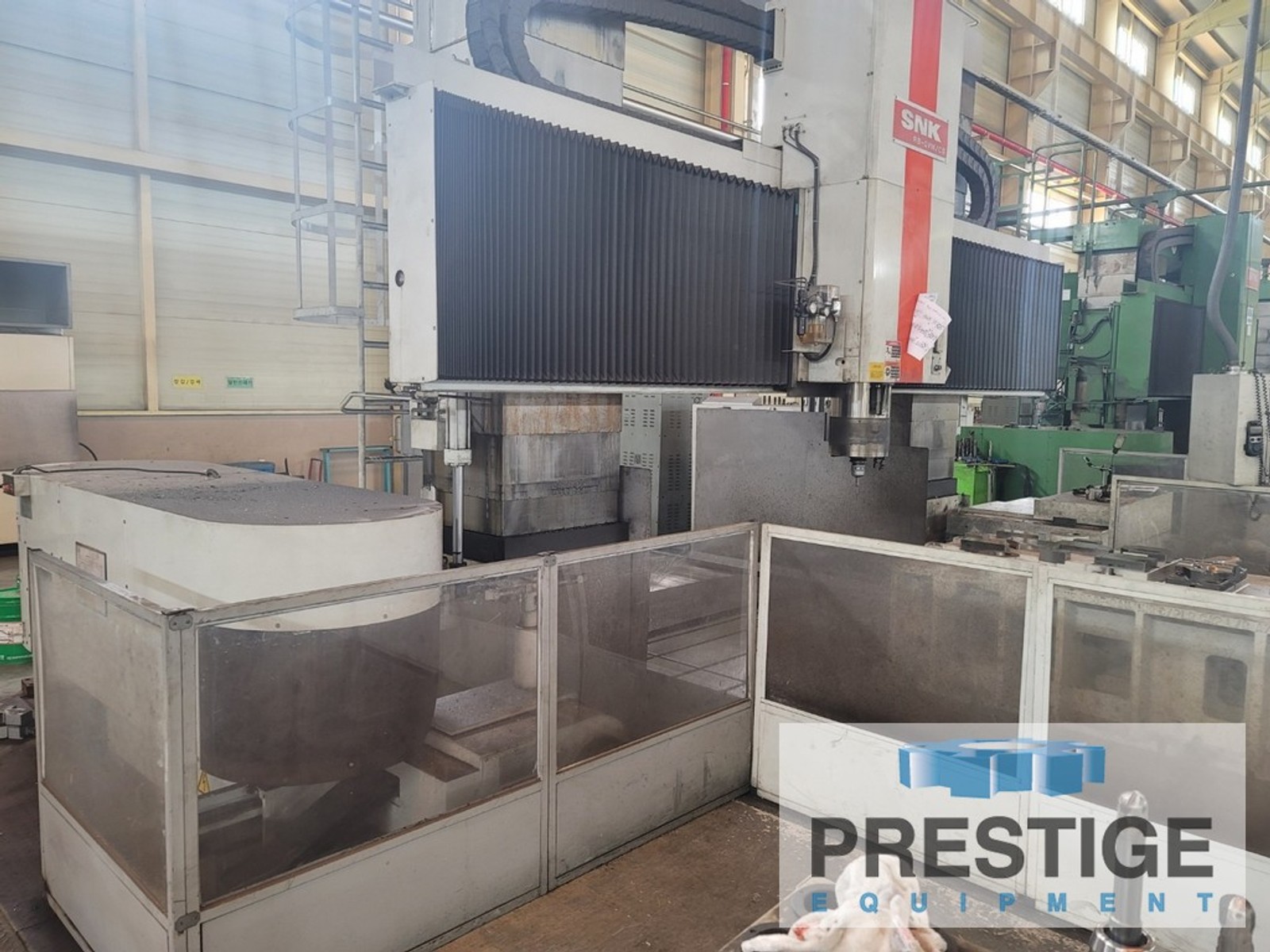

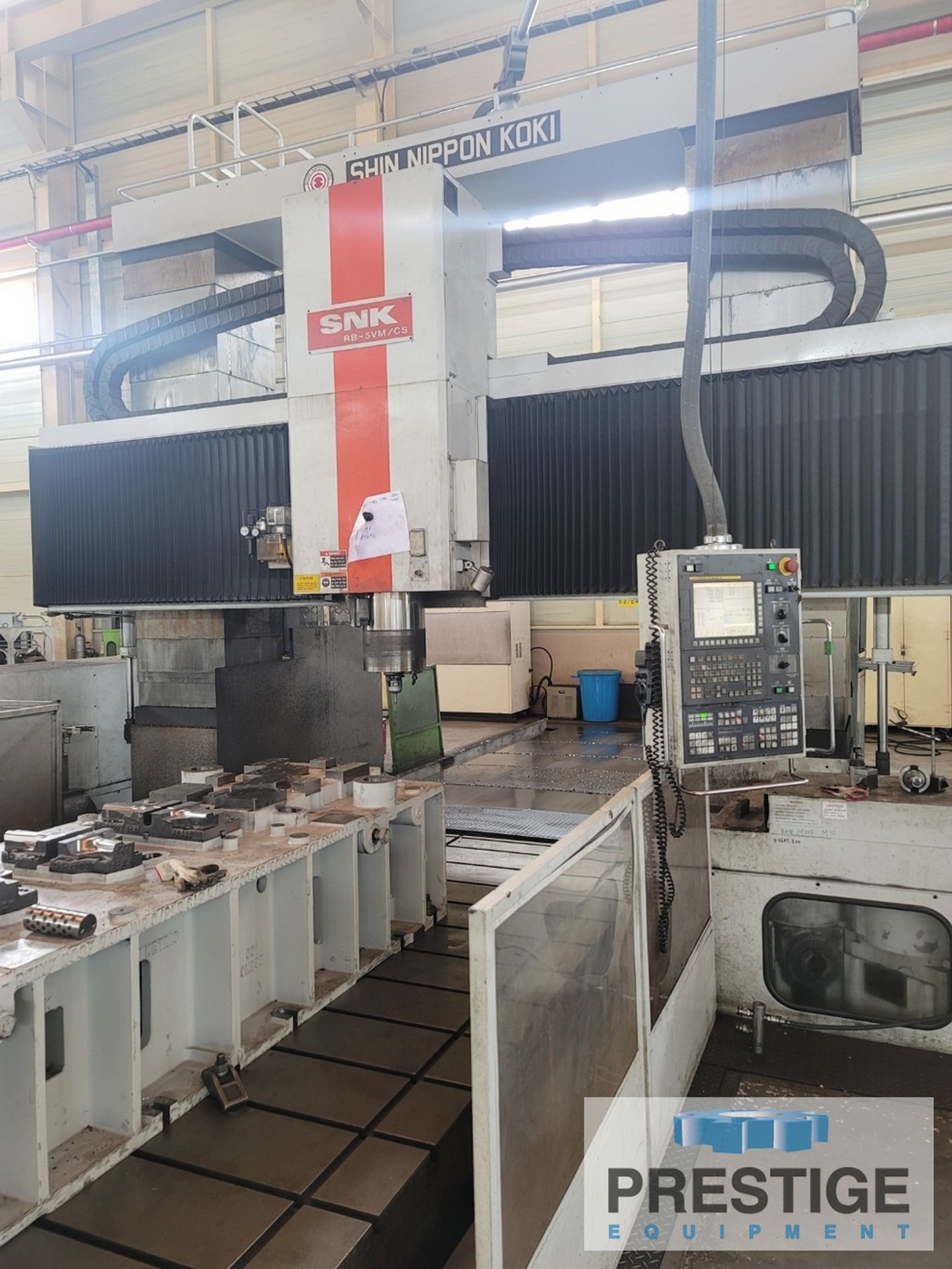

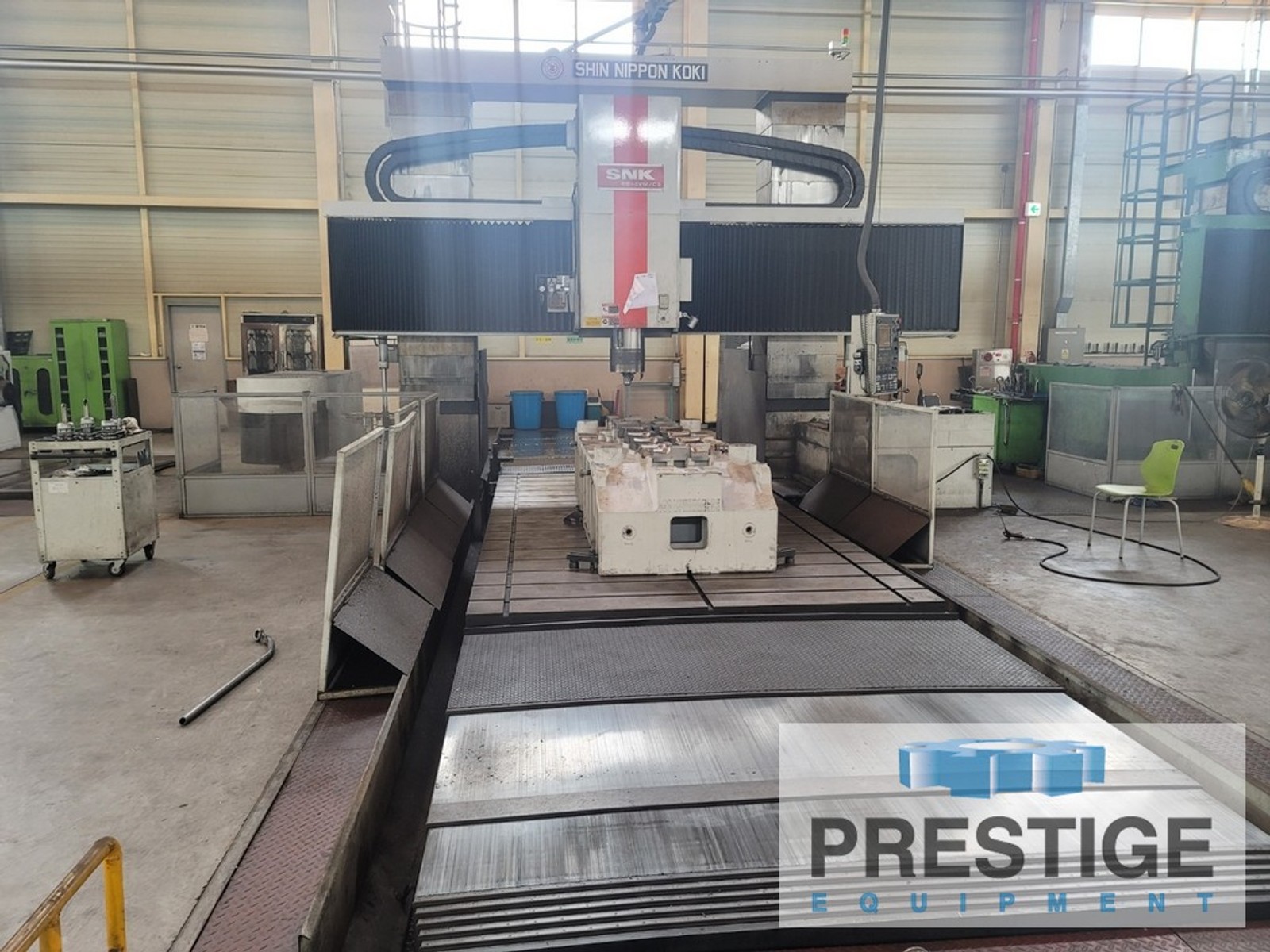

SNK RB 5VM Double Column Vertical Machining Center

FEATURES:

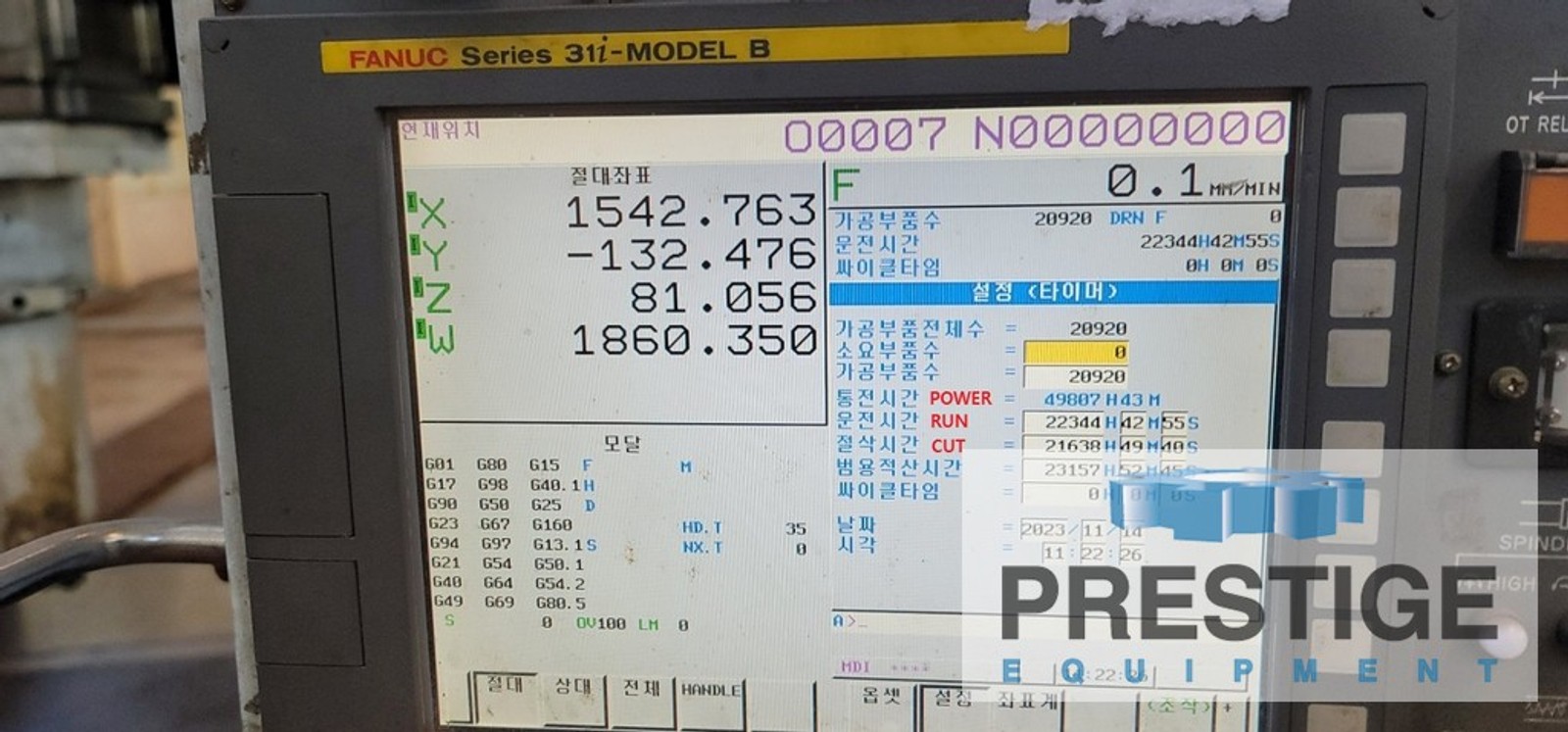

FANUC 31-MB CNC Control
40-Station Automatic Tool Changer
3-Station Automatic Attachment Changer

SPECIFICATIONS:
X-Axis Table Travel ................... 206.69"
Y-Axis Head Travel .................... 114.17"
Z-Axis Quill Travel ................... 23.62"
W-Axis Vertical Rail Travel ........... 55.11"
Width Between Columns ................. 114.17"
Distance Table To Cross Rail ......... 11.81" to 90.55"
Table Size ............................ 196.85" x 98.42"
Table Load Capacity ................... 33,046 Lbs.
Quill Diameter ........................ 11.81"
Spindle Diameter ...................... 3.54"
Spindle Speeds ........................ 40-6000 RPM
Spindle Taper ......................... ISO 50 Taper
Spindle Drive Motor ................... 33 HP / 25 HP

FEED RATES:
Rapid Feed X & Y Axes ................. 787.40 IPM
Rapid Feed Z-Axis ..................... 314.96 IPM
Rapid Feed W-Axis ..................... 236.22 IPM
Feed Rates X & Y Axes ................. 0.0393 To 393.70 IPM
Feed Rates Z-Axis ..................... 0.0393 To 314.96 IPM
Feed Rates W-Axis ..................... 0.0393 To 236.22 IPM

EQUIPPED WITH:
Fanuc 31-MB CNC Control
40-Position Automatic Tool Changer
3-Station Automatic Attachment Changer
Universal Head, Extension
Random Tool Selection
Full 5-Face Machining with Software (N5S-C5-001)
Automatic Tool Length Measuring
Broken Tool Detection (Touch Type)
Scale Feedback on X,Y & Z Axis
Telescoping Steel Way Covers on X & W Axis
Dual Chip Conveyors
