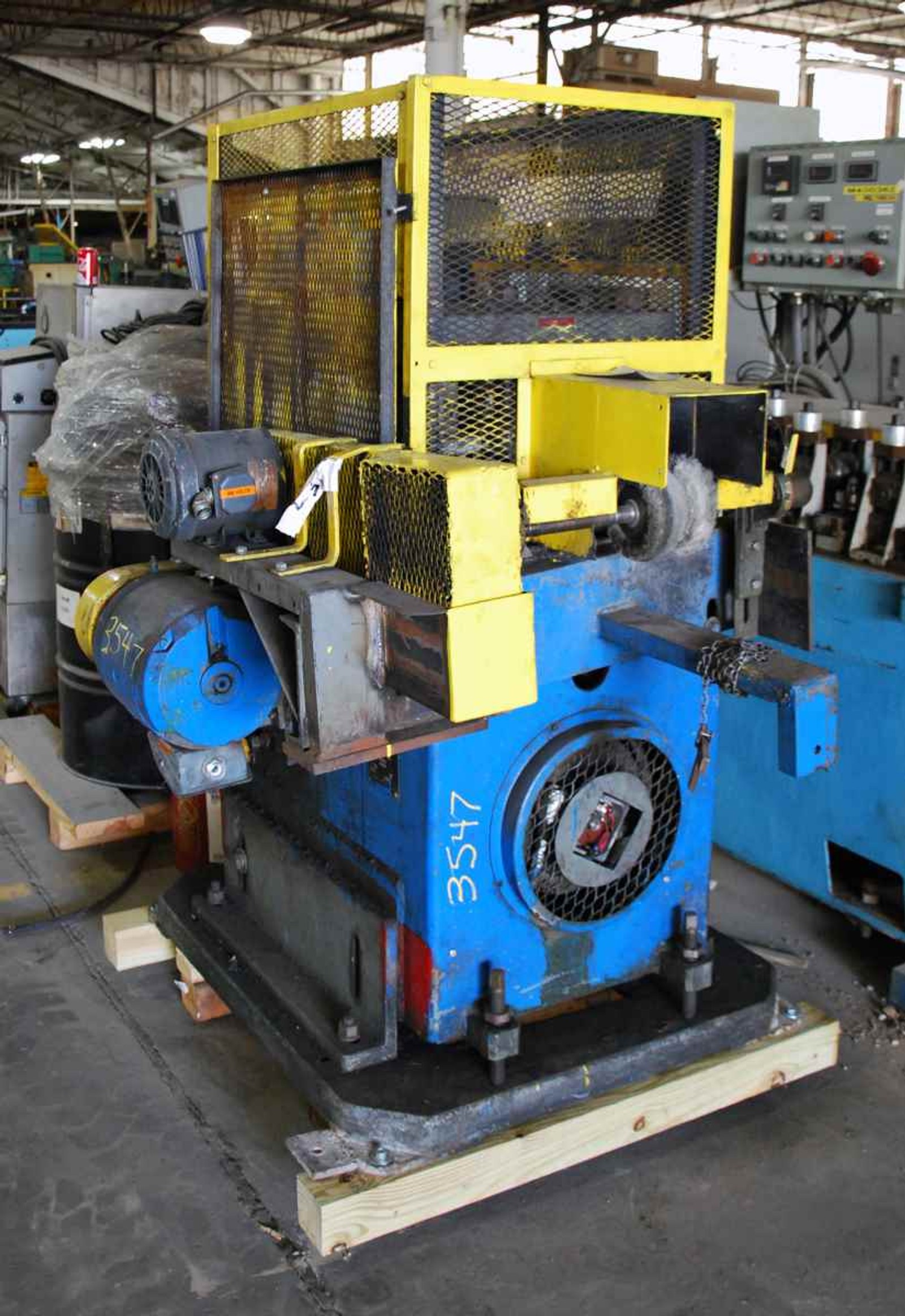

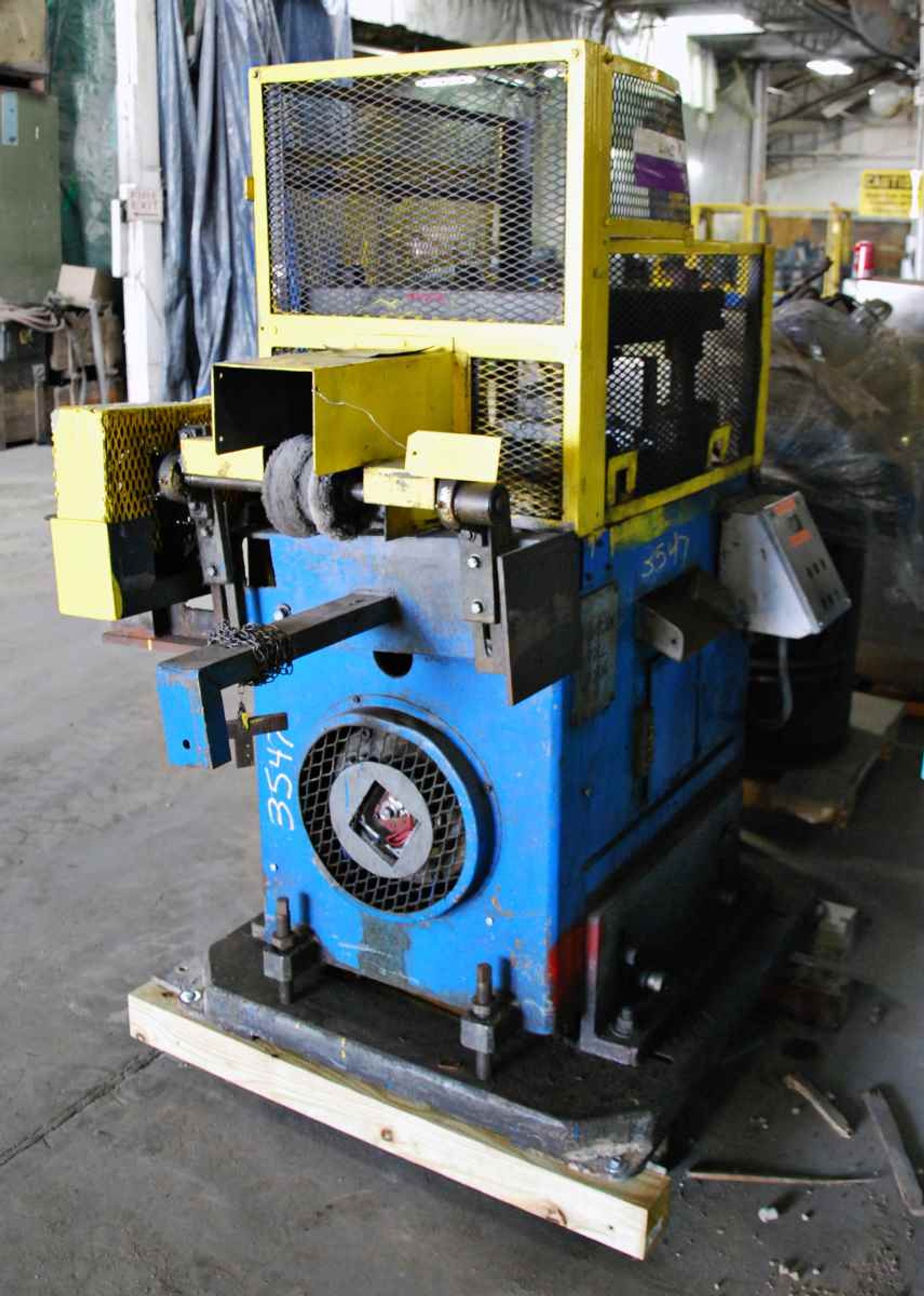

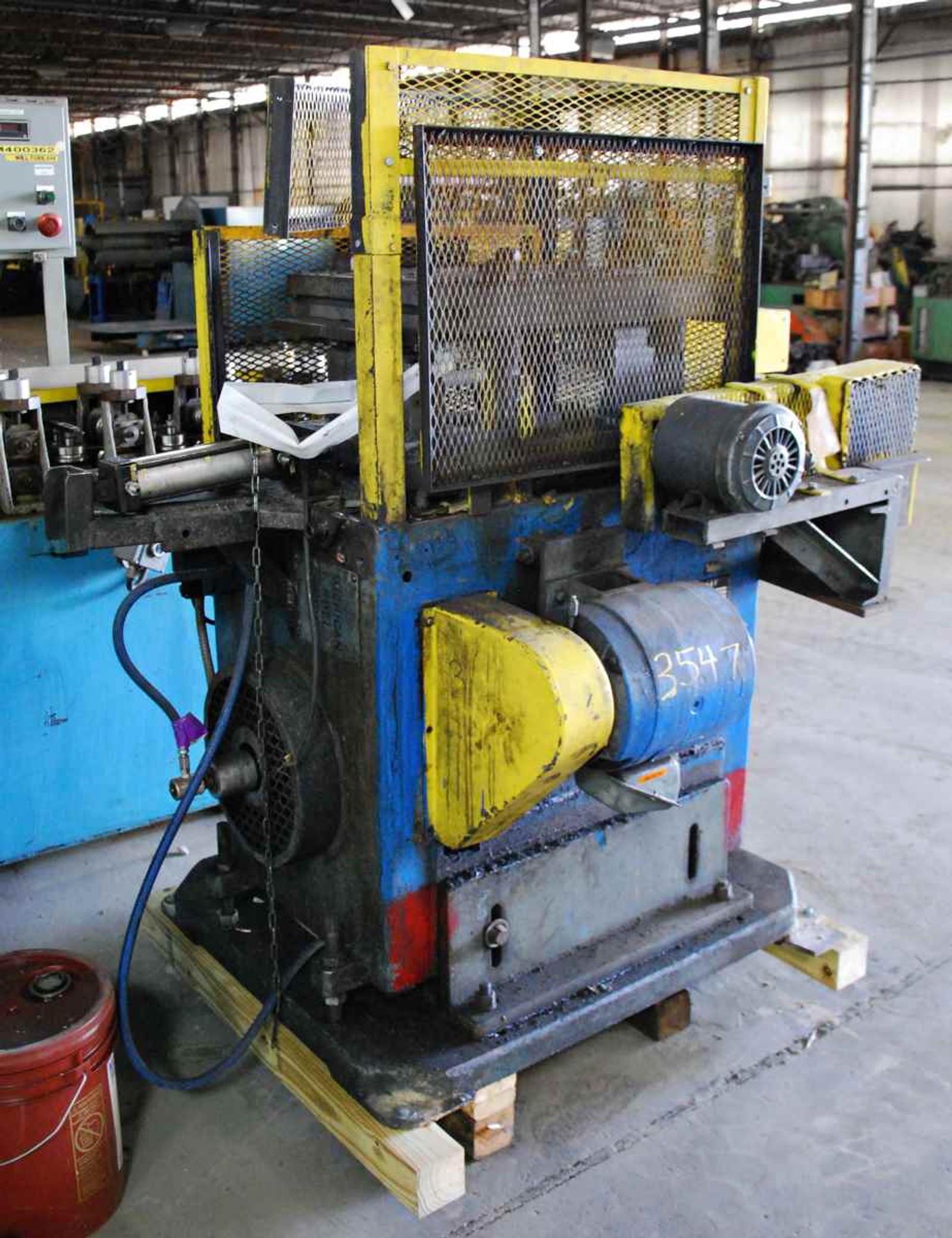

18 Ton x 3" MICHIGAN ROLL FORM 4-Post Cut-Off Press

Manufacturer

MICHIGAN ROLL FORM

Category

Fabricating Machines

Type

CUT-OFFS, PRESS TYPE

Stock

3547

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 3547
MANUFACTURER: MICHIGAN ROLL FORM
MODEL NUMBER: CO-200-4P
SERIAL NUMBER:
YEAR:

SPECIFICATIONS:
Capacity: 18 Ton
Stroke: 3"
Post Diameter: 1-3/4"
Die Area: 24" (Left to Right), 14-1/2" (Front to Back)
Distance Between Posts: 11-1/2" (Left to Right), 14-1/2" (Front to Back)
Shut Height: 6-1/2" – 8-1/4"
Strokes Per Minute: 135

EQUIPPED WITH:
Motor: 3 HP 480/3/60
Pneumatic Accelerator
Central Lube System
Die Set

NOTE: Missing Controls

OVERALL DIMENSIONS: 6′ x 4′ x 6′
APPROXIMATE WEIGHT: 3,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio

No Video Available
