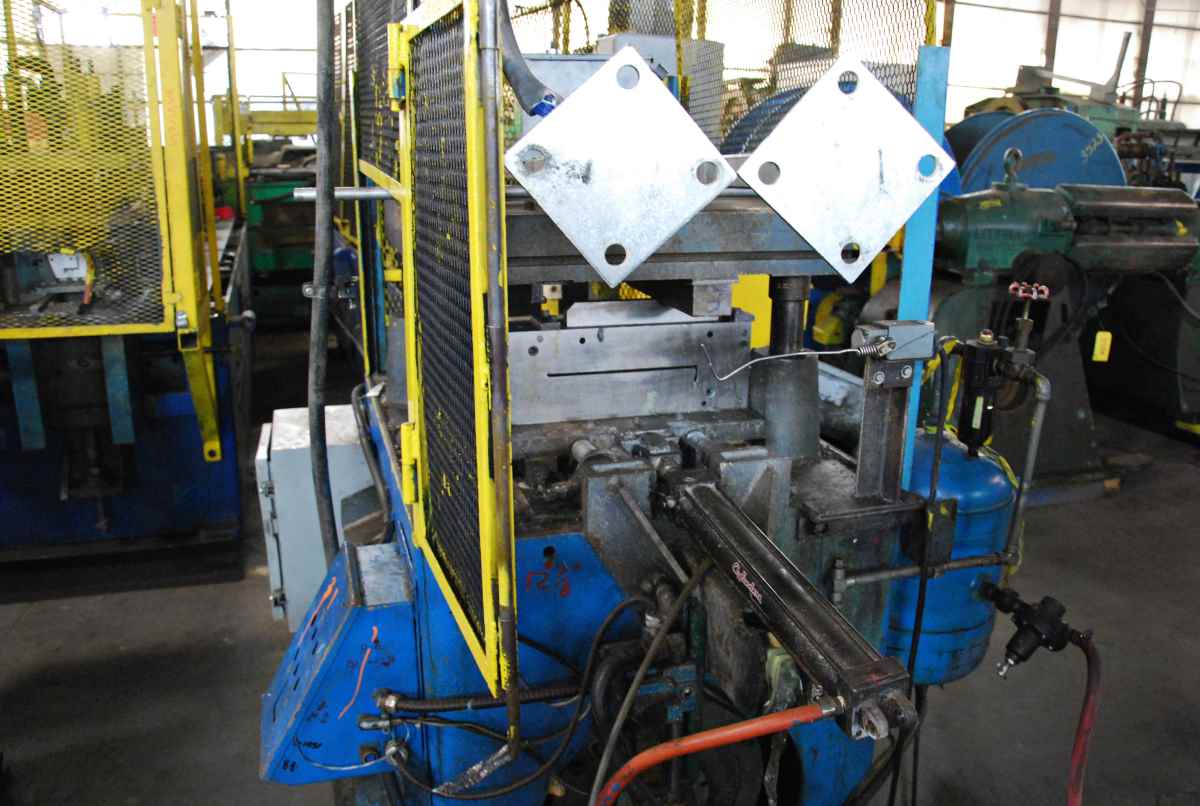

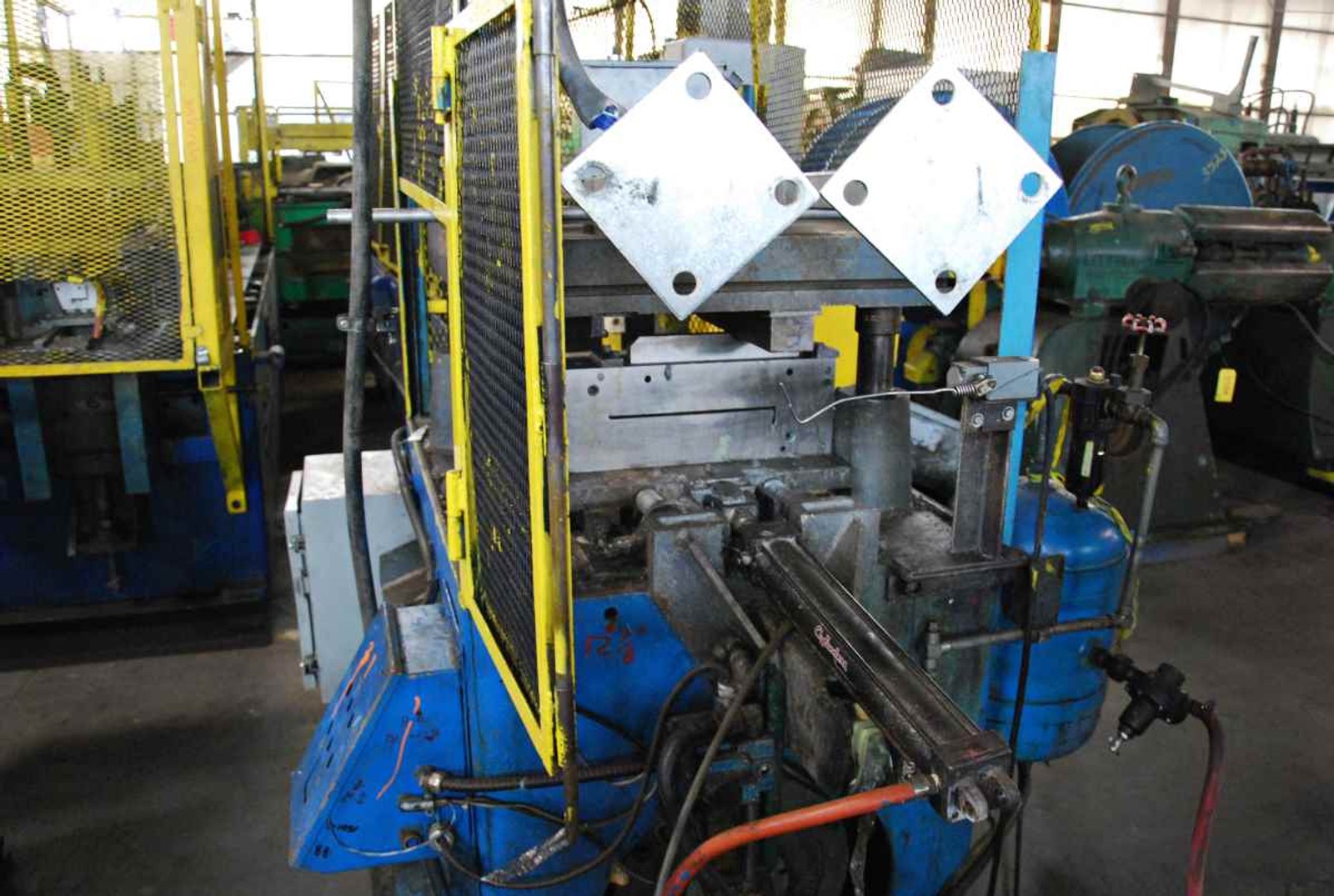

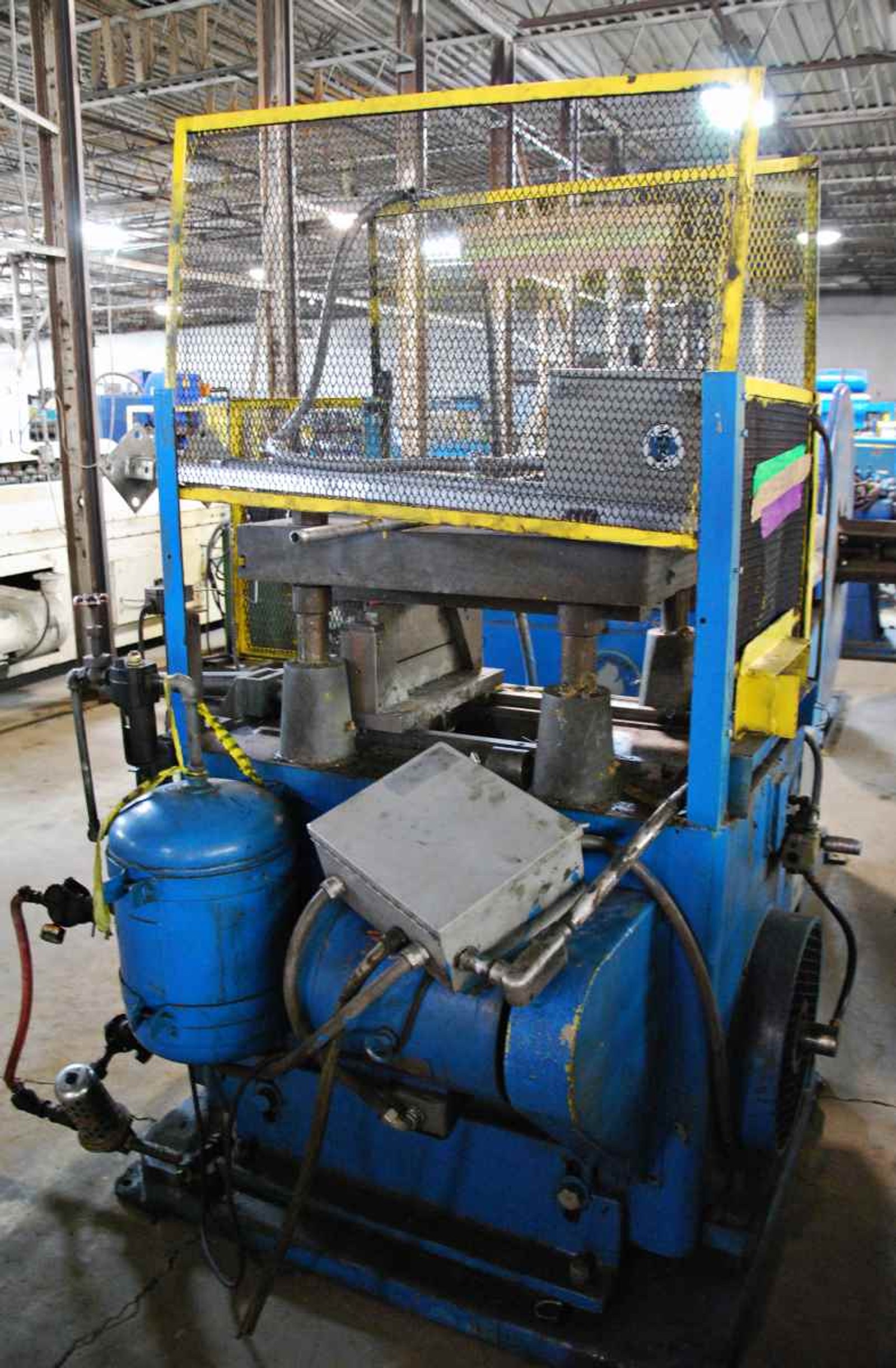

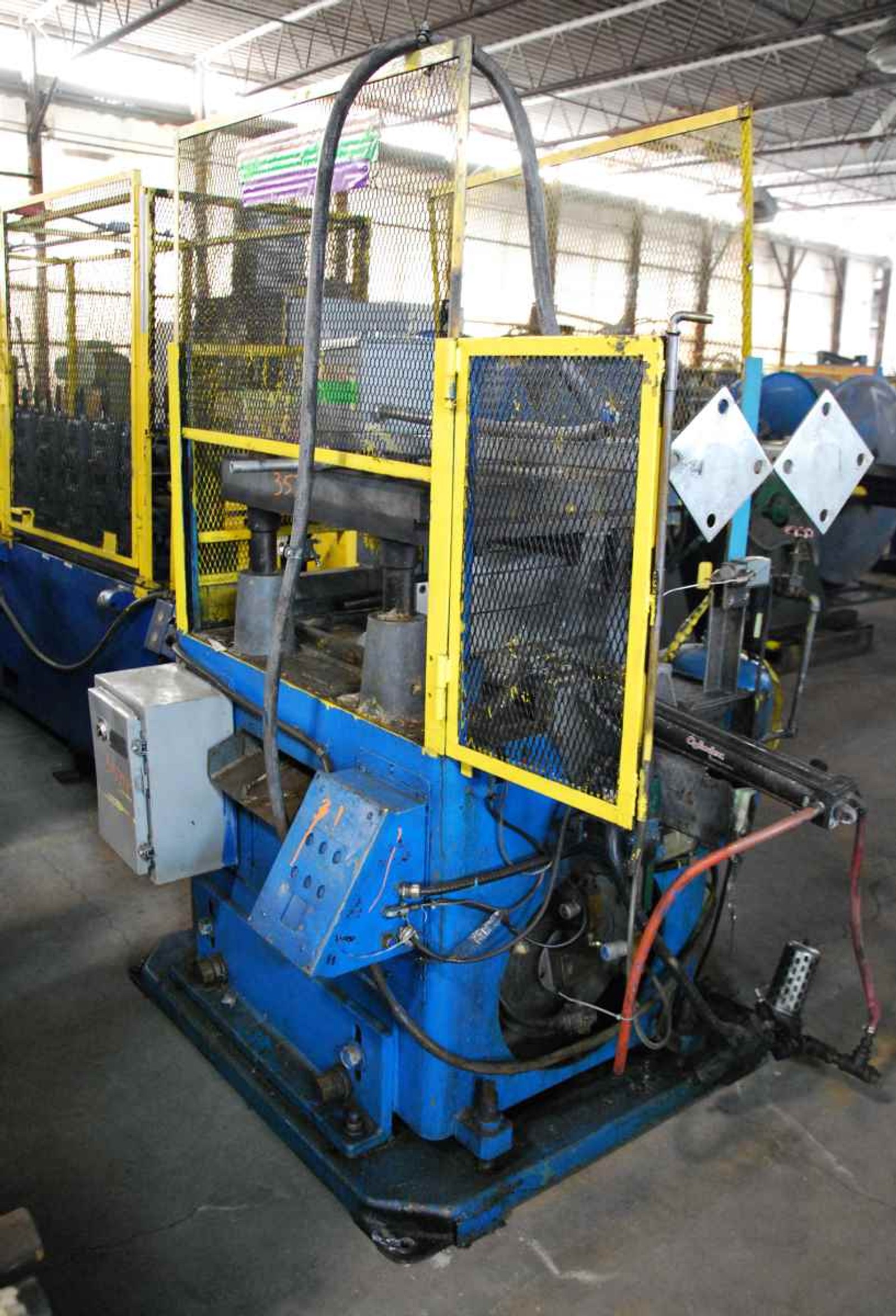

30 Ton x 2-1/2" MICHIGAN ROLL FORM 4-Post Flying Cut-Off

Stock

3574

Model

None listed

Dealer Location

Ohio

Spec Sheet

UTUBE NUMBER: 3574
MANUFACTURER: MICHIGAN ROLL FORM
MODEL NUMBER: CO-300S-4P
SERIAL NUMBER: 75676

SPECIFICATIONS:
Capacity: 30 Ton
Maximum Die Width: 18-1/4″
Distance Between Posts: 14″ (Left to Right), 16″ (Front to Back)
Stroke Length: 2-1/2″
Post Diameter: 2-1/4″
Flywheel RPM: 275
Strokes Per Minute: 110

EQUIPPED WITH:
Die Set
Motor: 5 HP 480/3/60
Air Cylinder

OVERALL DIMENSIONS: 6′ x 5′ x 6′
APPROXIMATE WEIGHT: 4,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio

No Video Available
