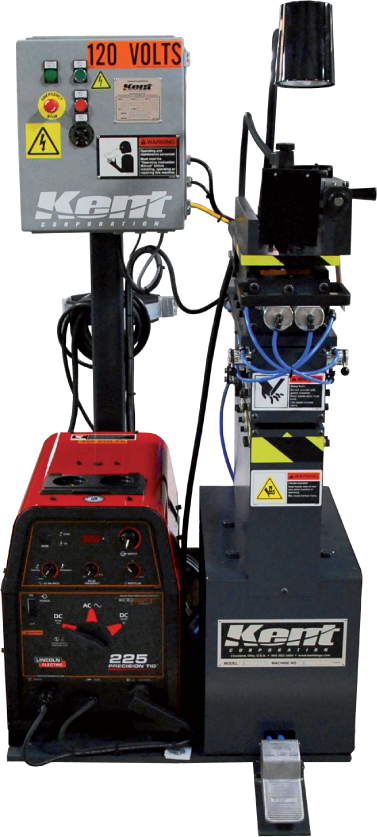

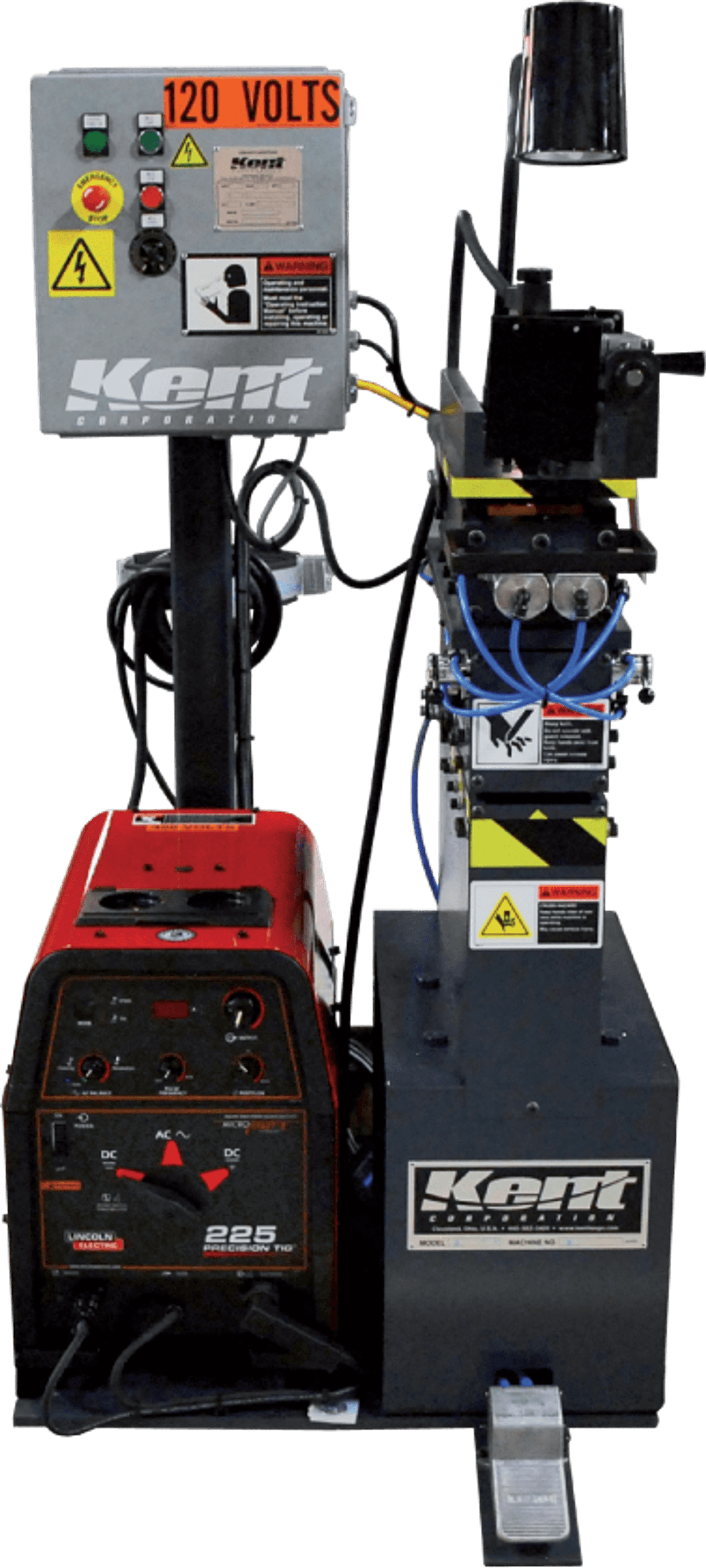

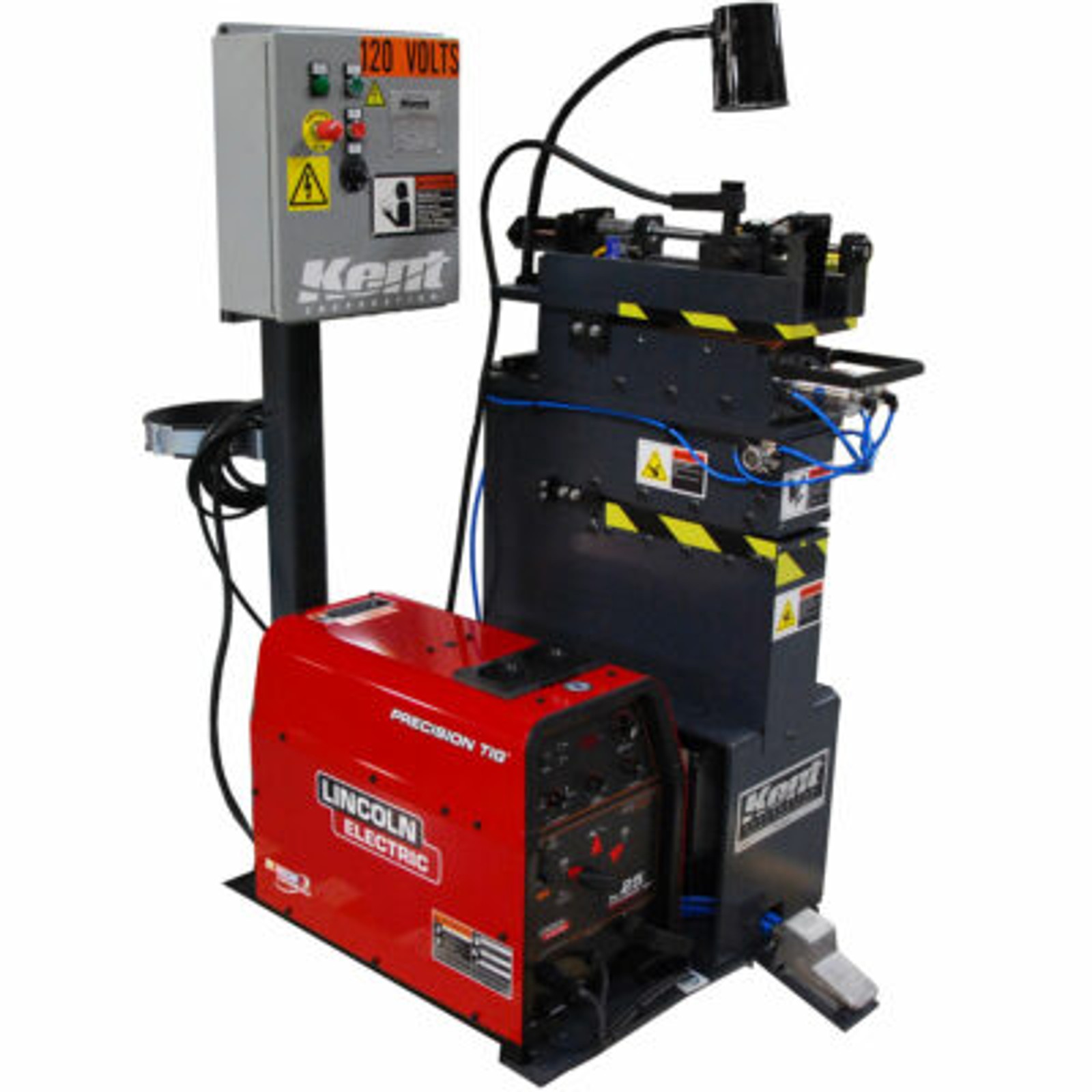

NEW 10" x .100" KENT #10-135 PMA Shear & End Welder

Manufacturer

KENT

Stock

3998

Model

10-135

Dealer Location

Ohio

Spec Sheet

UTUBE NUMBER: 3998
MANUFACTURER: KENT / TESGO
MODEL NUMBER: 10 – 135 PMA

SPECIFICATIONS:
Maximum Strip Width: 10″ (254 mm)
Minimum Strip Width: 1″ (25.4 mm)
Maximum Strip Thickness: .100″ (2.54 mm)
Maximum Strip Thickness Hydraulic Option Over .100″ (2.54 mm): Maximum .125″ (3.17 mm)
Minimum Strip Thickness: .015″ (.381 mm)
Material:
• Mild Steel, HRS, Most Aluminum, Galvanized
• Steel at Max. 50,000 PSI Yield at .100″ (2.54 mm)

EQUIPPED WITH:
3 Blades Air Shear
Air Clamps

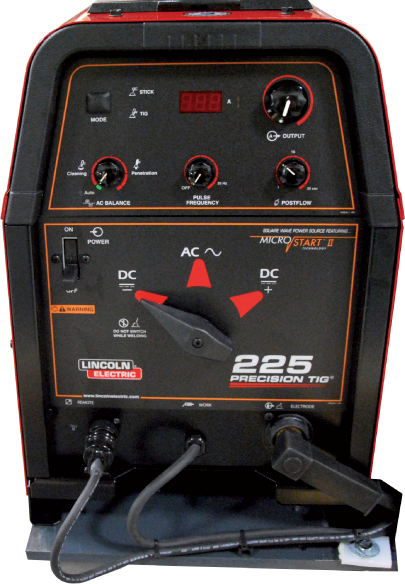

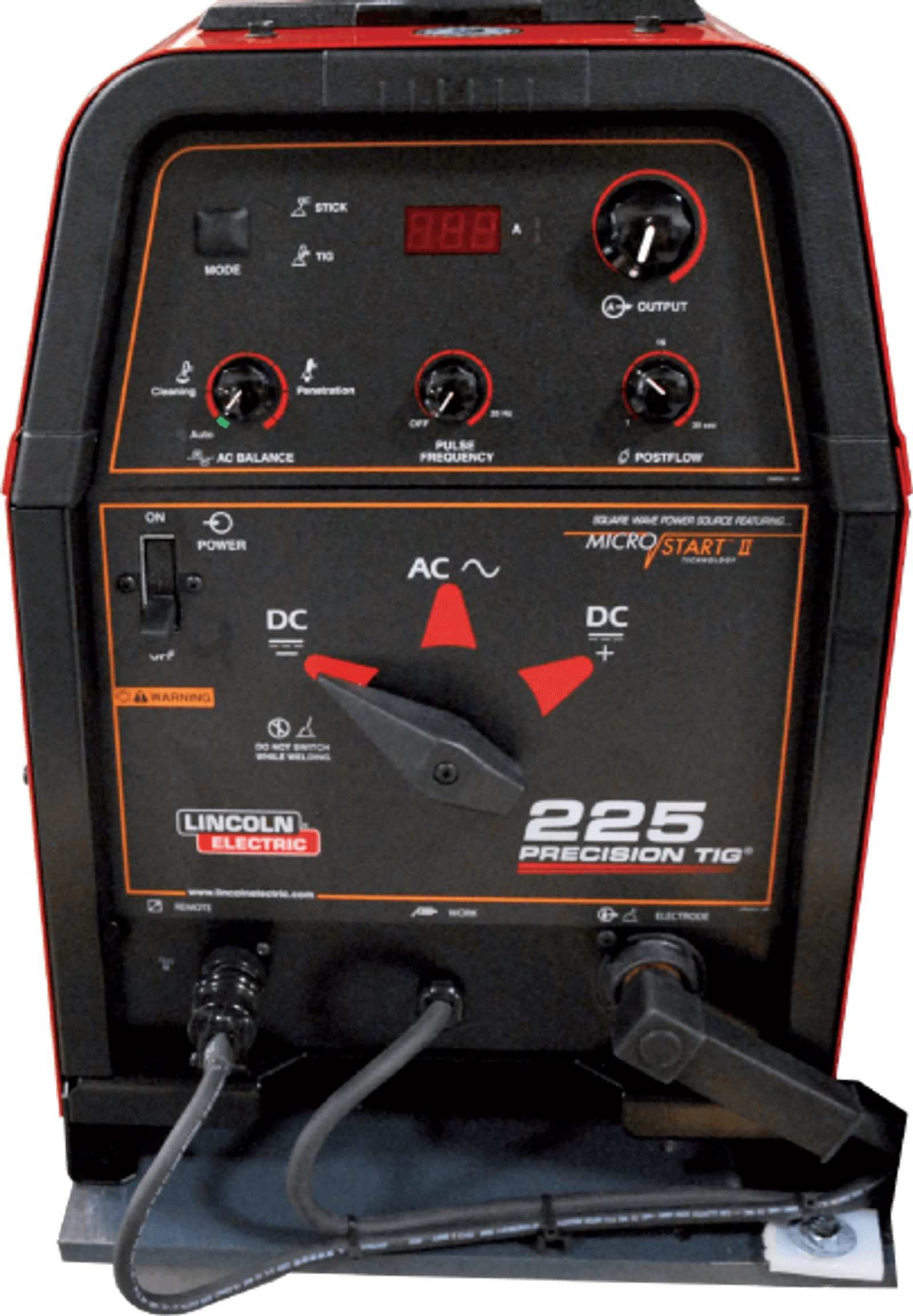

Auto TIG Torch
Threadless Patented “Rolex” Torch Drive Nut for Perfect Smooth Welds

OVERALL DIMENSIONS: 2.5′ x 4′ x 5.5′
APPROXIMATE WEIGHT: 800 Lbs.
