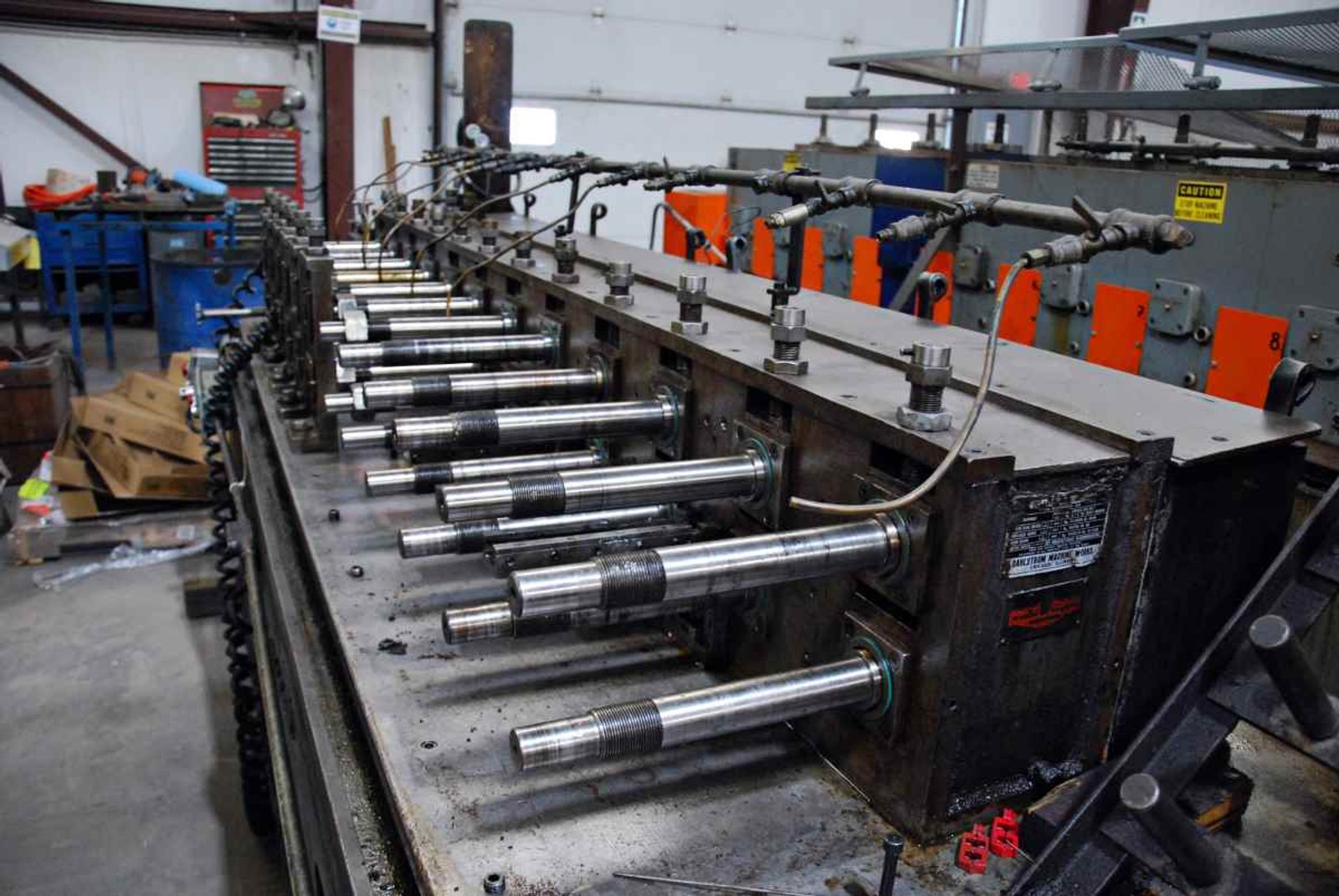

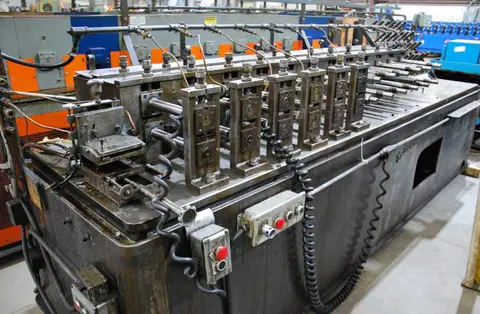

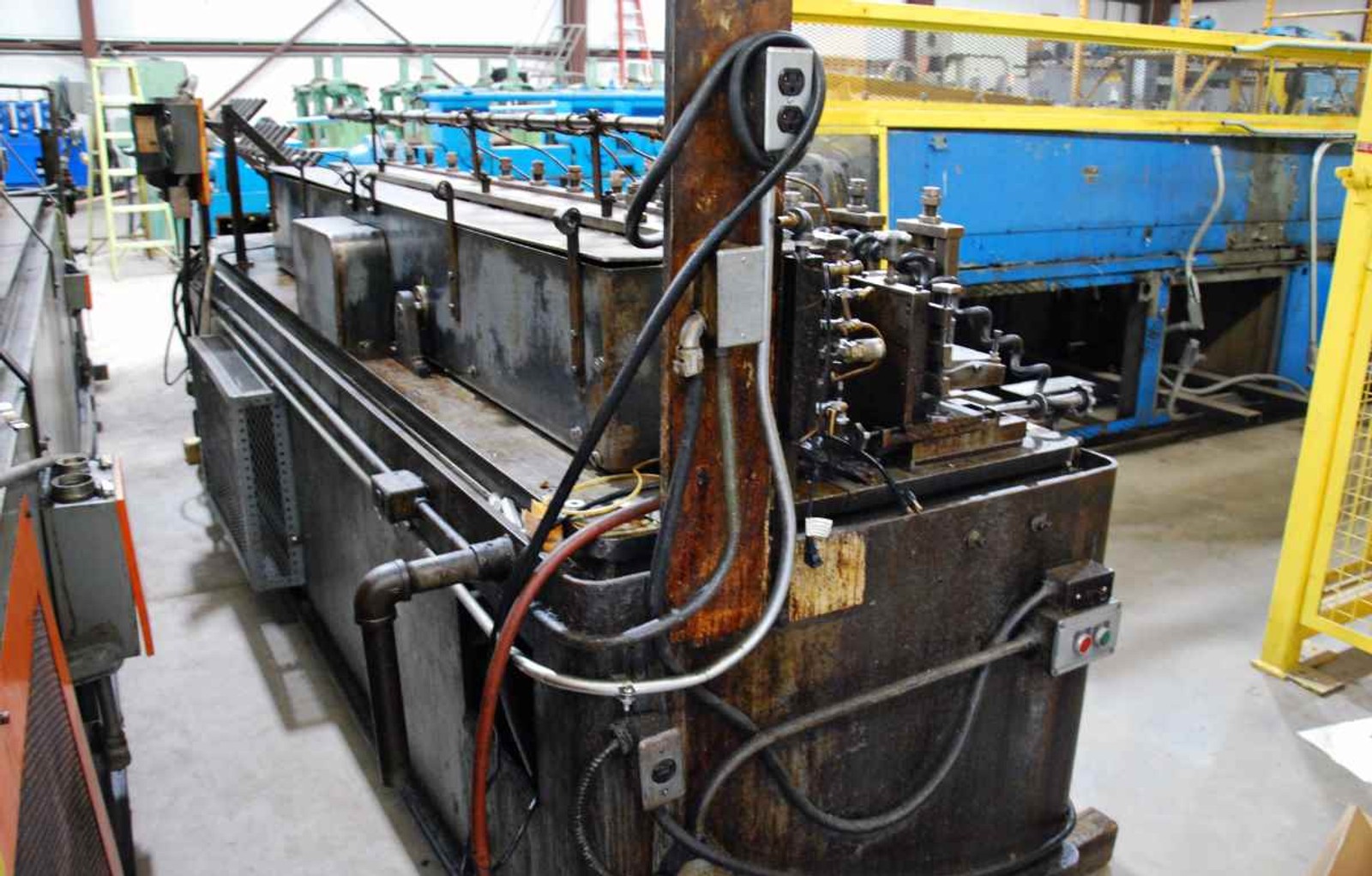

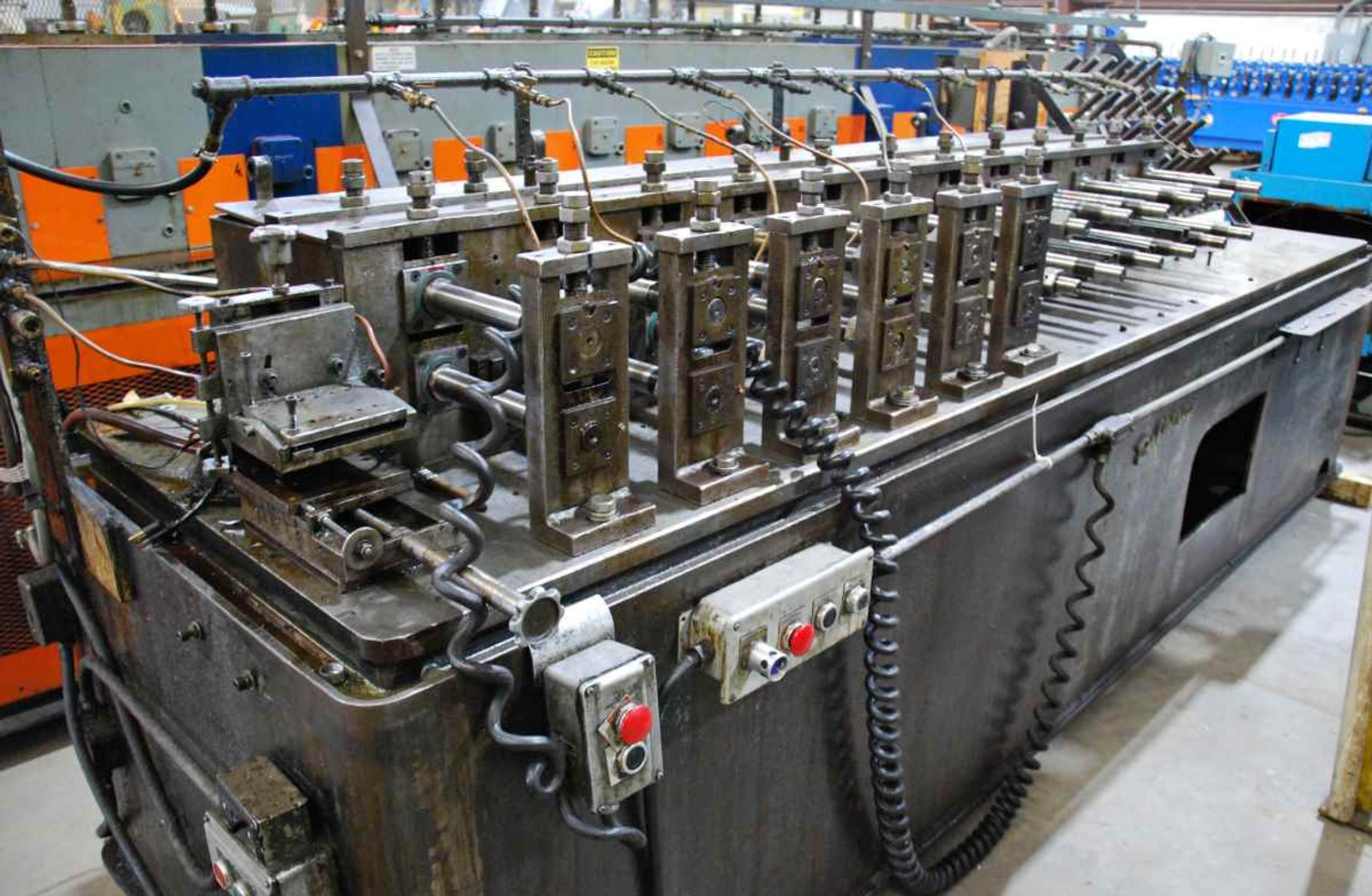

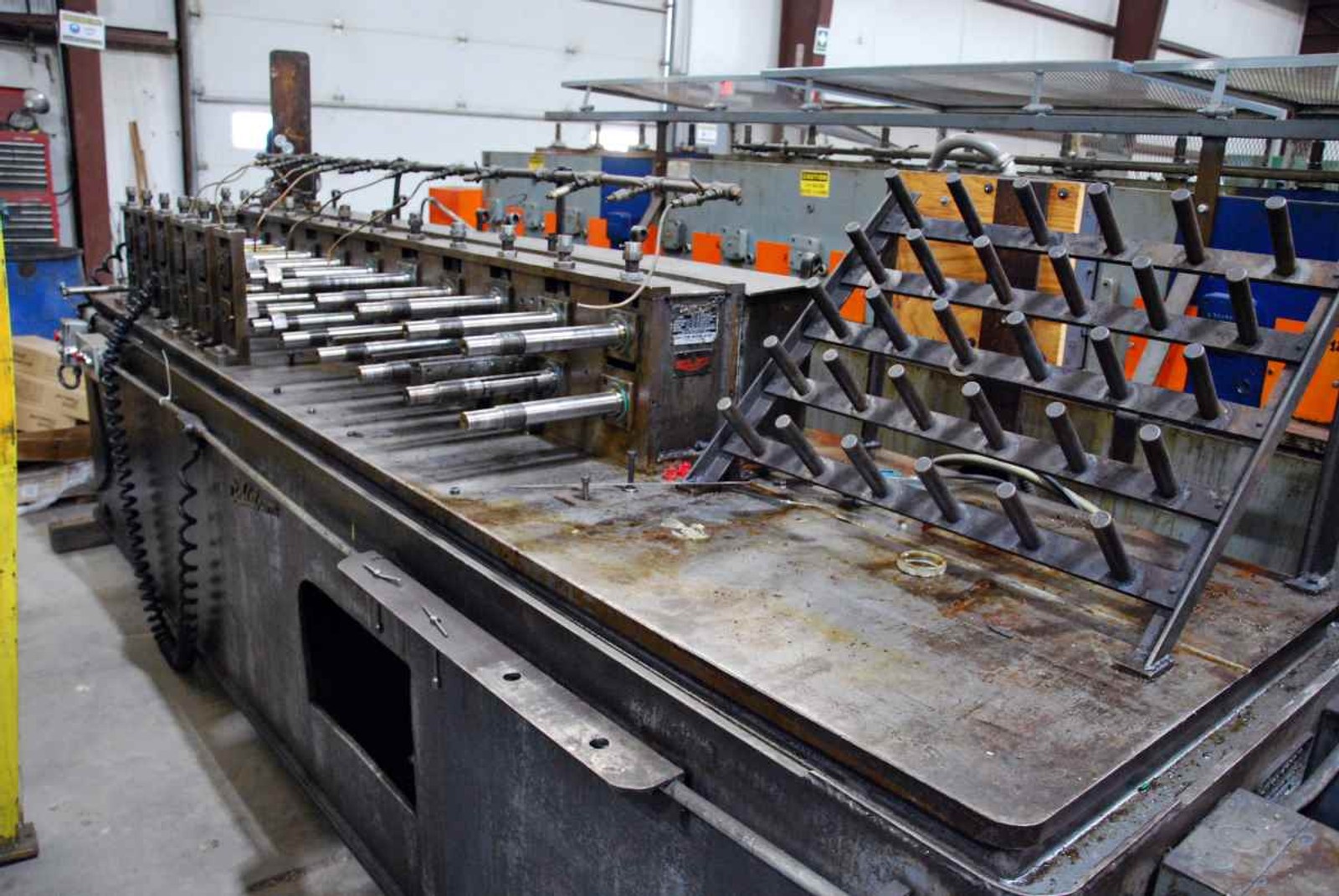

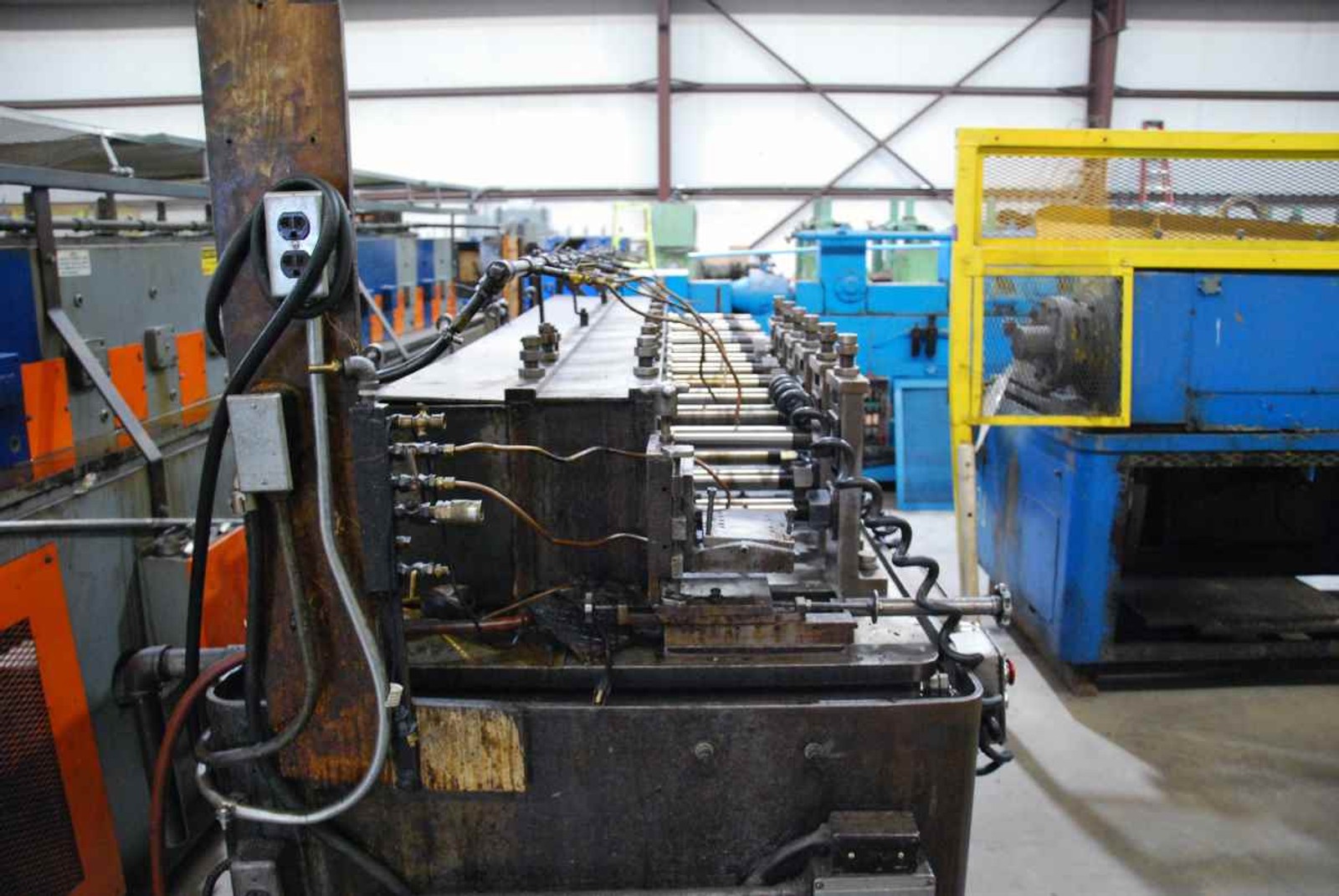

12 Stand x 1-1/2" x 8" DAHLSTROM #360-12 Rollformer

Manufacturer

DAHLSTROM

Category

Roll Formers

Stock

3736

Model

360-12

Dealer Location

Ohio

Spec Sheet

UTUBE NUMBER: 3736
MANUFACTURER: DAHLSTROM
MODEL NUMBER: 360-12
SERIAL NUMBER: 332

SPECIFICATIONS:
Number of Stands: 12
Line Direction: Right to Left
Spindle Diameter: 1-1/2″
Roll Space: 8″
Horizontal Center: 8″
Vertical Adjustment: 4″ – 5-1/4″
Base Top to Center Lower Spindle: 4-1/2″
Spindle Key Size: 1/4″
Gearing: 1:1
Capacity: .050″

EQUIPPED WITH:
Straightener
Motor

OVERALL DIMENSIONS: 12′ x 4′ x 5′
APPROXIMATE WEIGHT: 8,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
