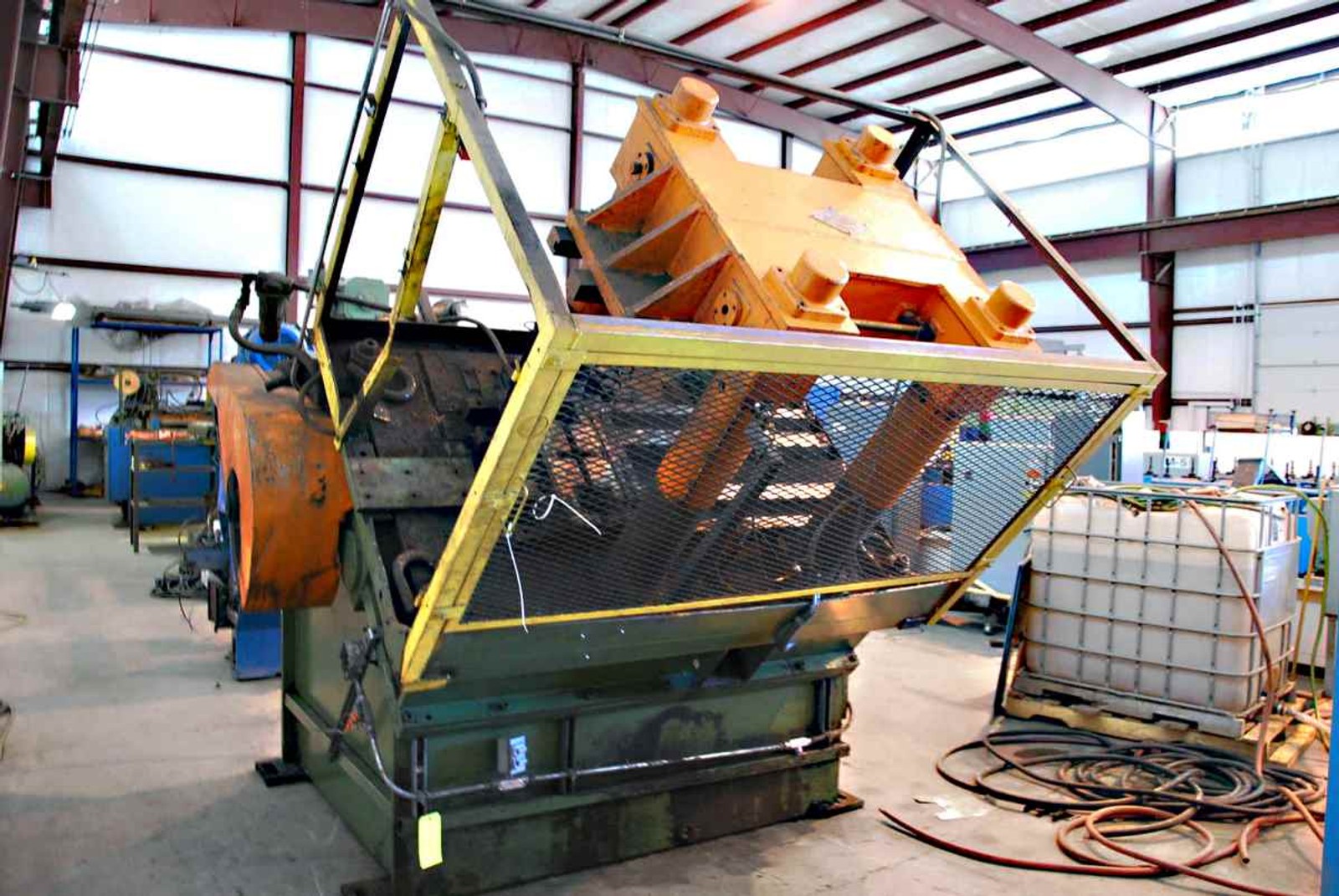

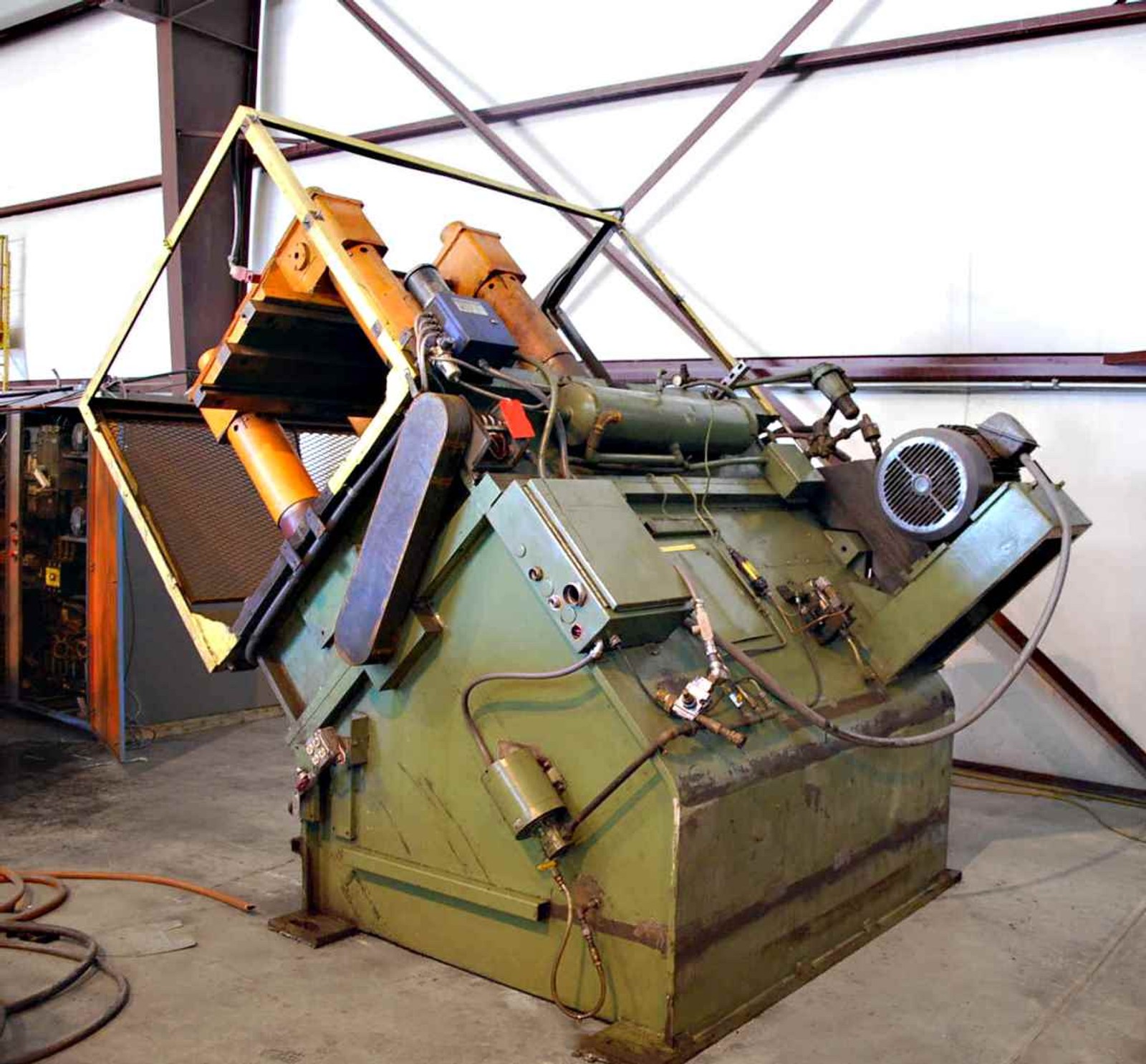

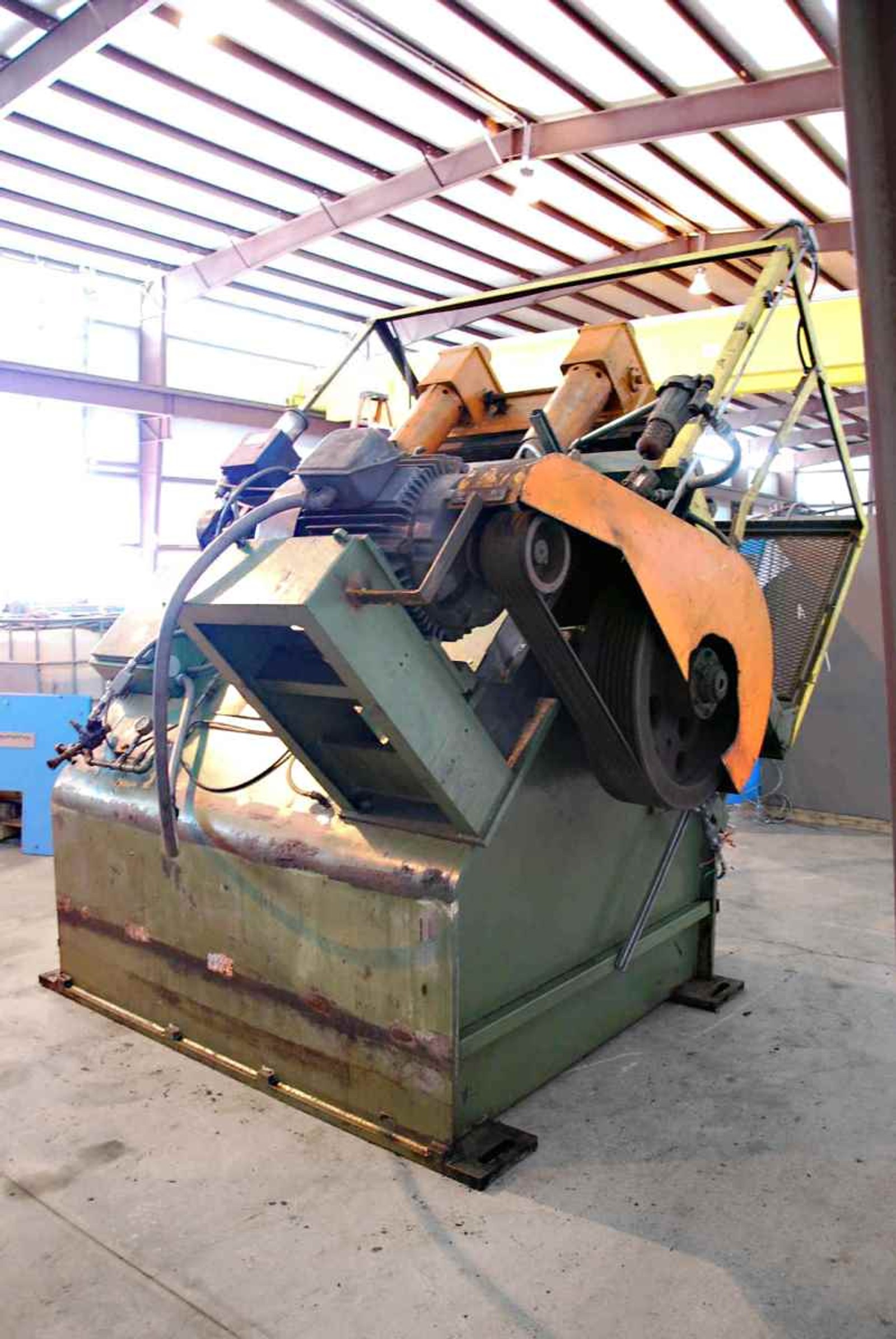

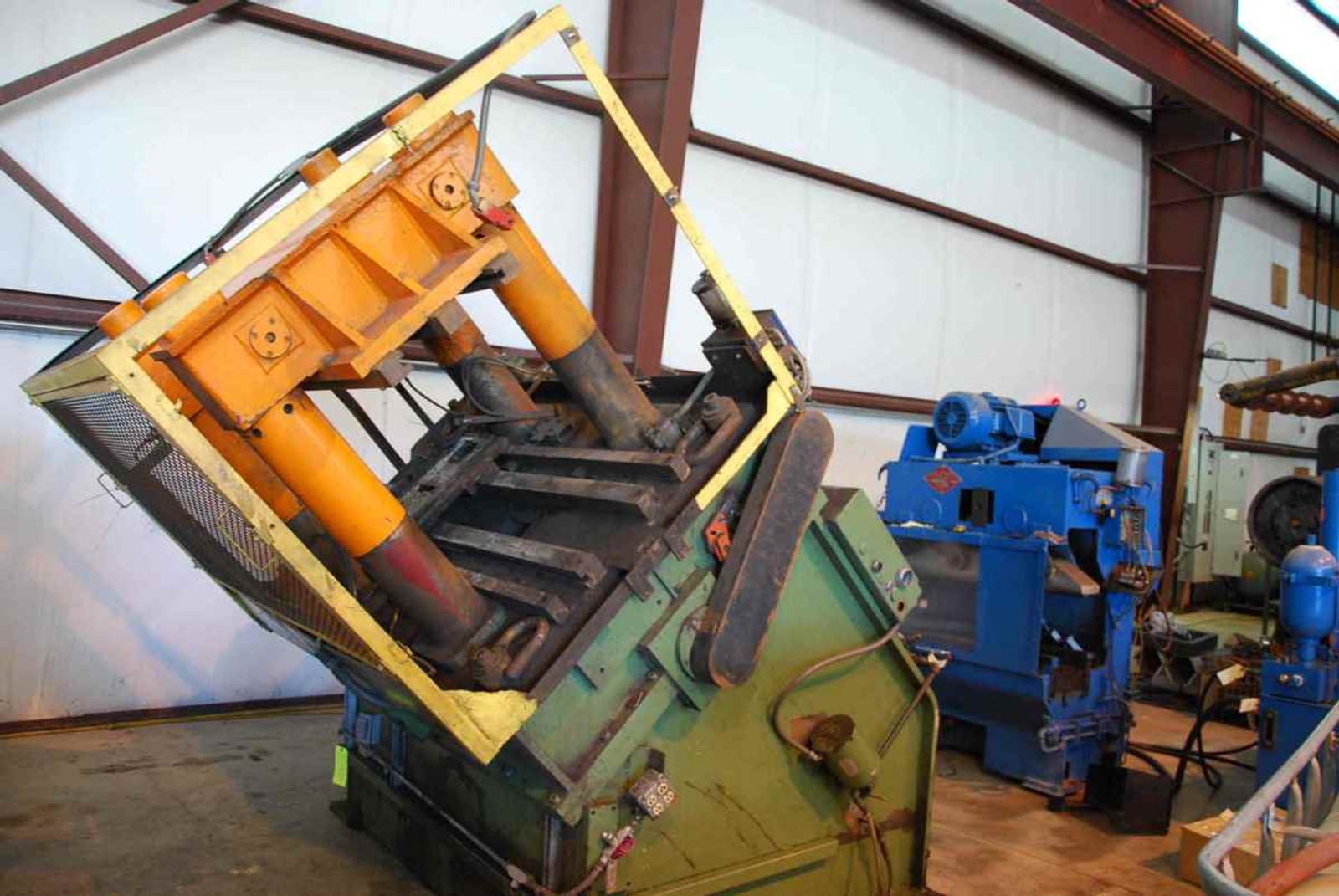

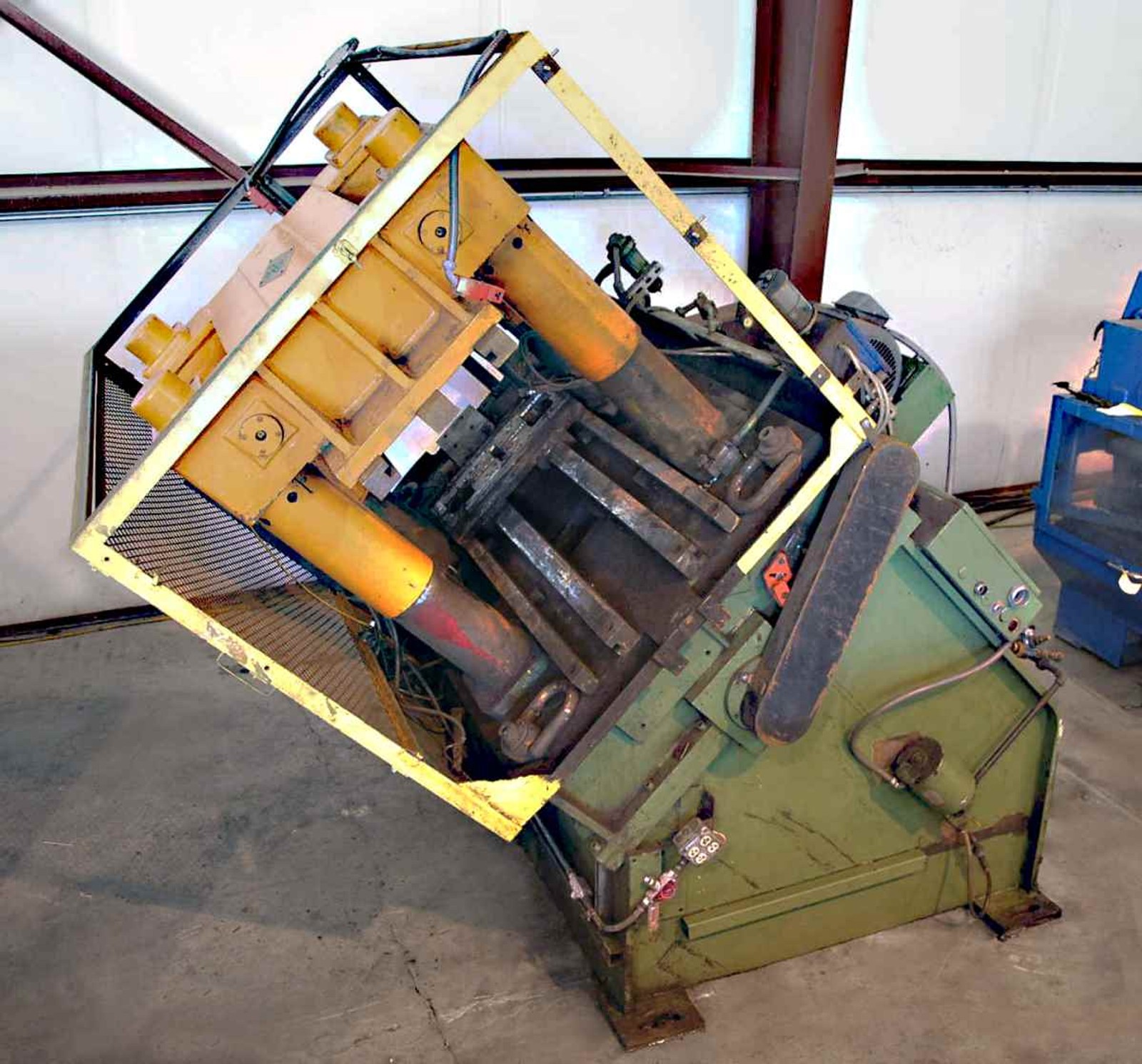

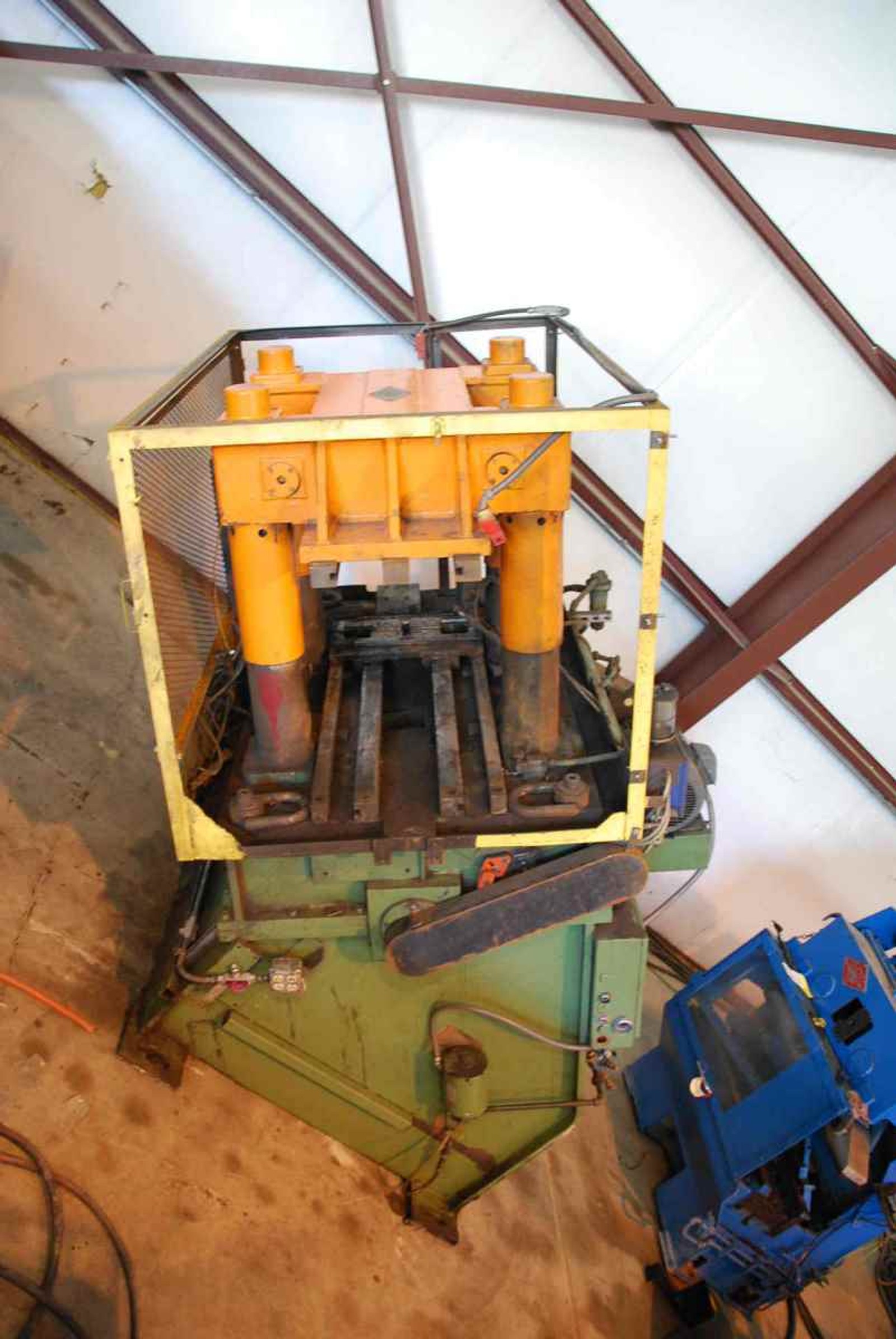

5" (127 mm) x .250" (6.35 mm) ALPHA 4-Post Flying Tube Cut-Off

Manufacturer

ALPHA

Category

Tube Machinery

Type

TUBE MACHINERY, (Cut Off)

Stock

2730

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 2730
MANUFACTURER: ALPHA INDUSTRIES
MODEL NUMBER: 50 – 187 – 120
SERIAL NUMBER: 102
YEAR:

SPECIFICATIONS:
Inclined Type: 45 Degree
Tonnage: 200 Ton
Maximum Tube Diameter: 5″ (127 mm)
Minimum Tube Diameter: 1-1/2″ (38.1 mm)
Maximum Wall Thickness: .250″ (6.35 mm)
Minimum Wall Thickness: .065″ (1.65 mm)
Cuts Per Minute: 15
Distance Between Posts: 24-1/2″
Stroke (estimated): 10″
Distance from floor to the center of die set plate: 57″

EQUIPPED WITH:
Hydraulic Unit
Cylinder for Accelerator
40 HP Motor
ORTLINGHAUS Clutch Brake

NOTE:
Missing Electric Control Panel
No Die Set

OVERALL DIMENSIONS: 8′ x 11′ x 9′ 2″
APPROXIMATE WEIGHT: 30,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
