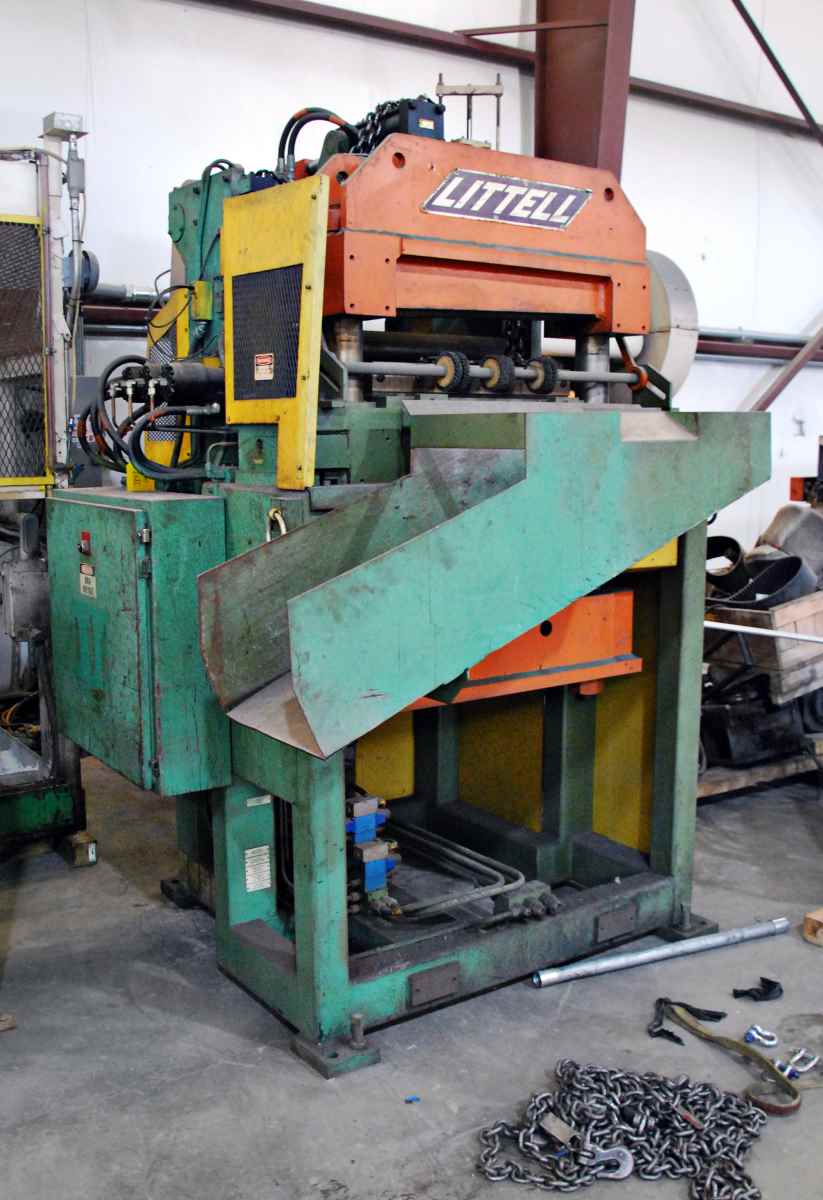

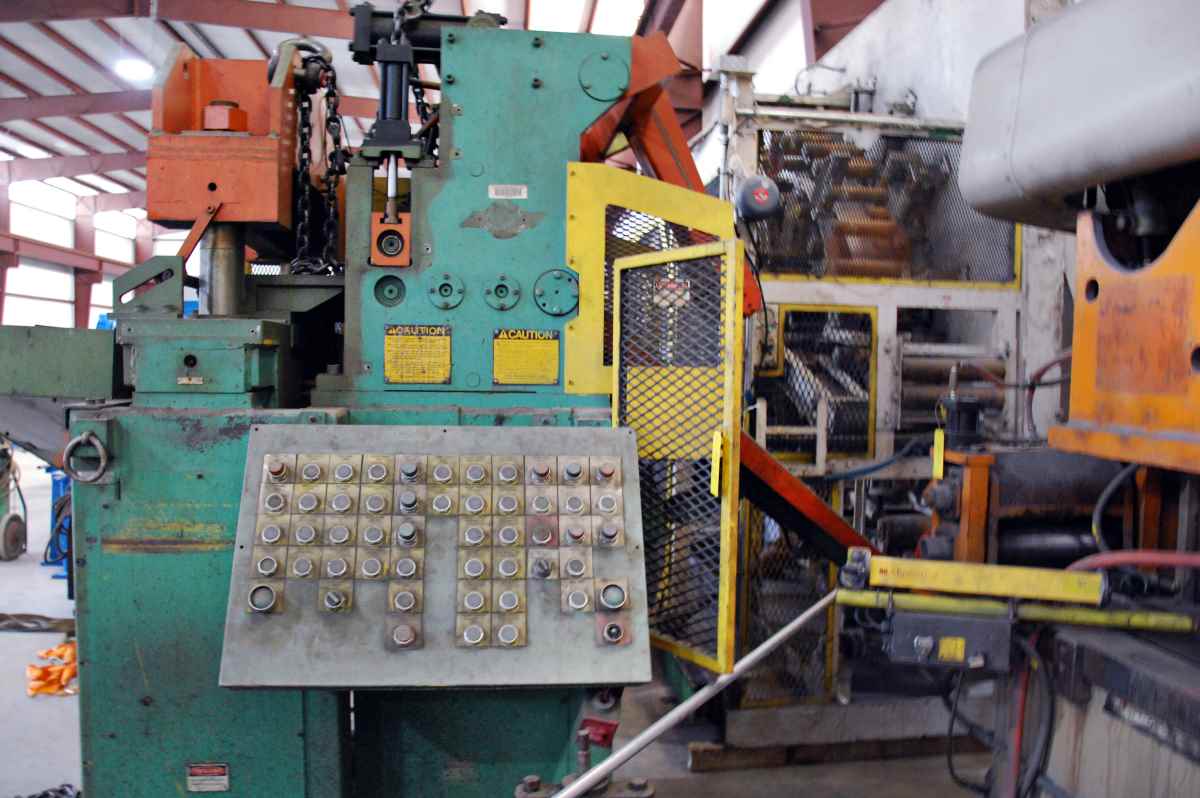

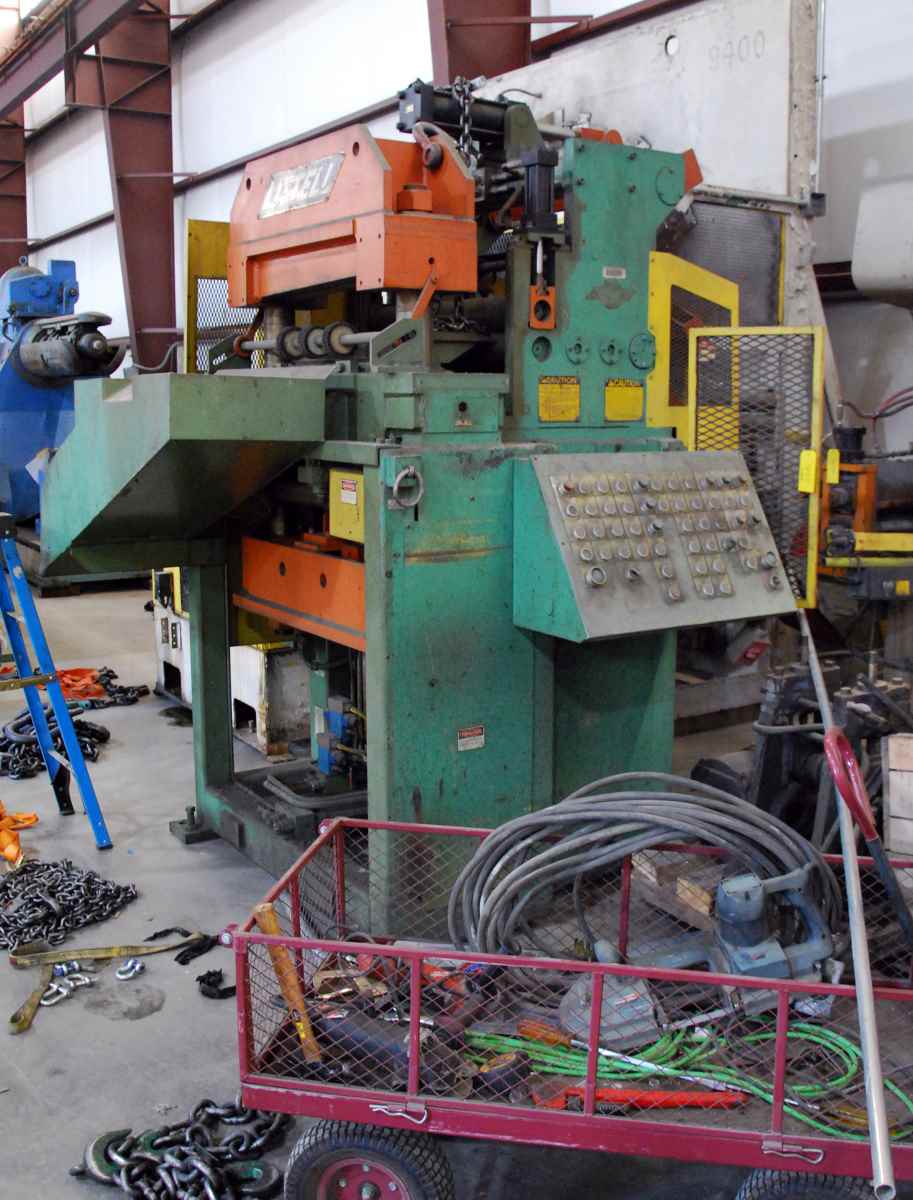

24" x .187" LITTELL Coil Flattener with Peeler, Crop Shear and Feeder

Stock

3847

Model

None listed

Dealer Location

Ohio

Spec Sheet

UTUBE NUMBER: 3847
MANUFACTURER: LITTELL
MODEL NUMBER: G-26
SERIAL NUMBER: 89846

SPECIFICATIONS:
Maximum Strip Width: 24″ (609 mm)
Maximum Strip Thickness: .187″ (4.75 mm)

EQUIPPED WITH:
Peeler Arm w/Hydraulic Extension and Retraction
Coil Peeler Arm w/Hydraulic Hold Down Roll
Entry Guide Plates w/Measurements
Hydraulic Shear Blade Downstroke: 6″
Stationary Lower Blade
Shear Force: 12 Tons
Shear Blades are 26″ Long w/2 Degree Angle
Hydraulic Pinch Rolls: 32″ Wide x 4″ Diameter

NOTE: Missing Hydraulic Unit.

OVERALL DIMENSIONS: 10′ x 6’6″ x 8′
APPROXIMATE WEIGHT: 9,500 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
