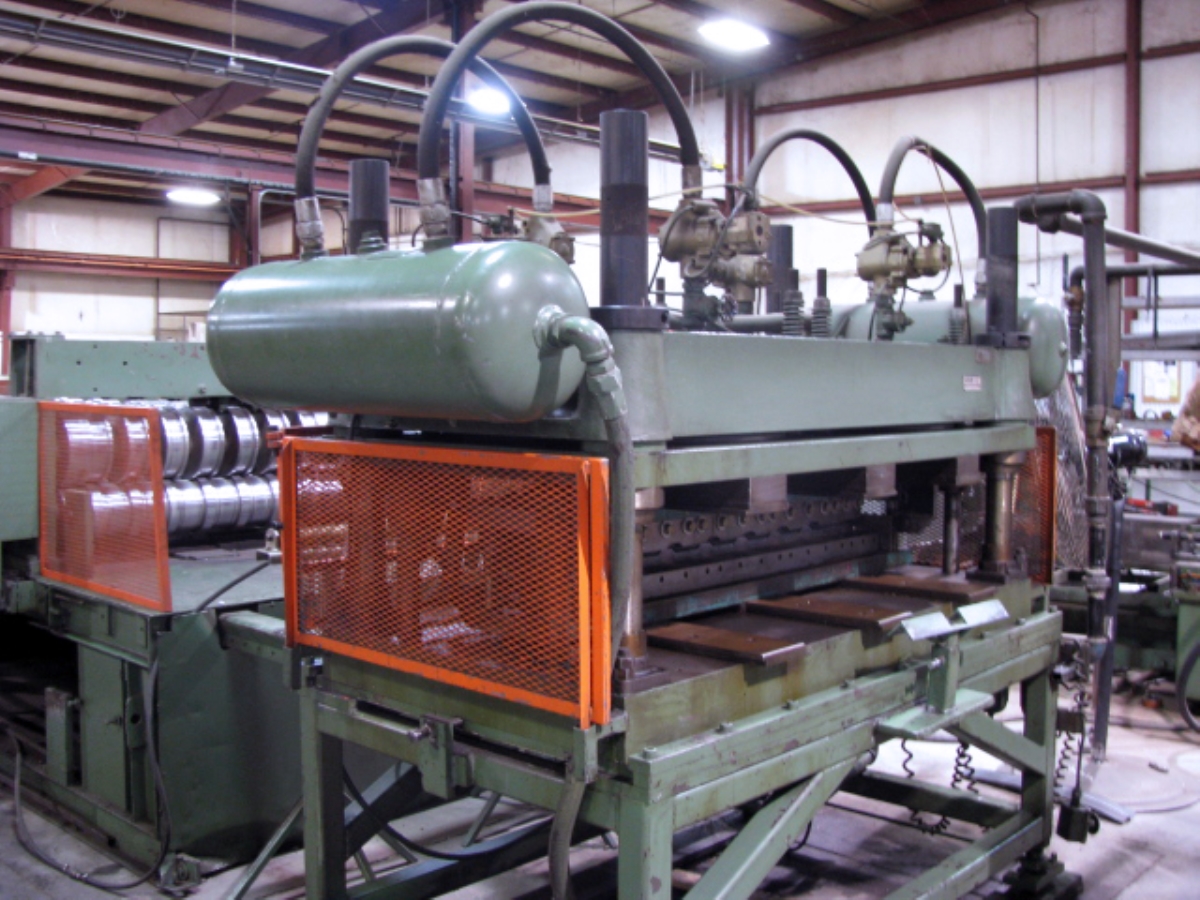

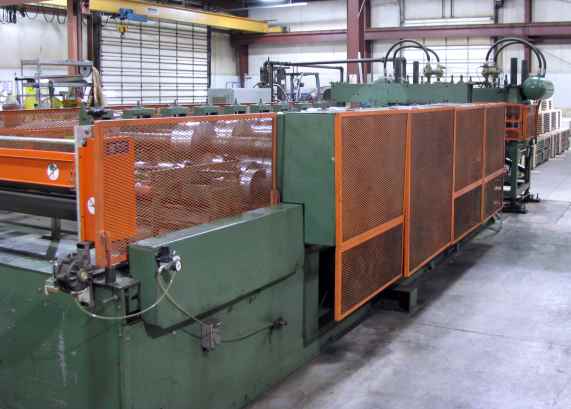

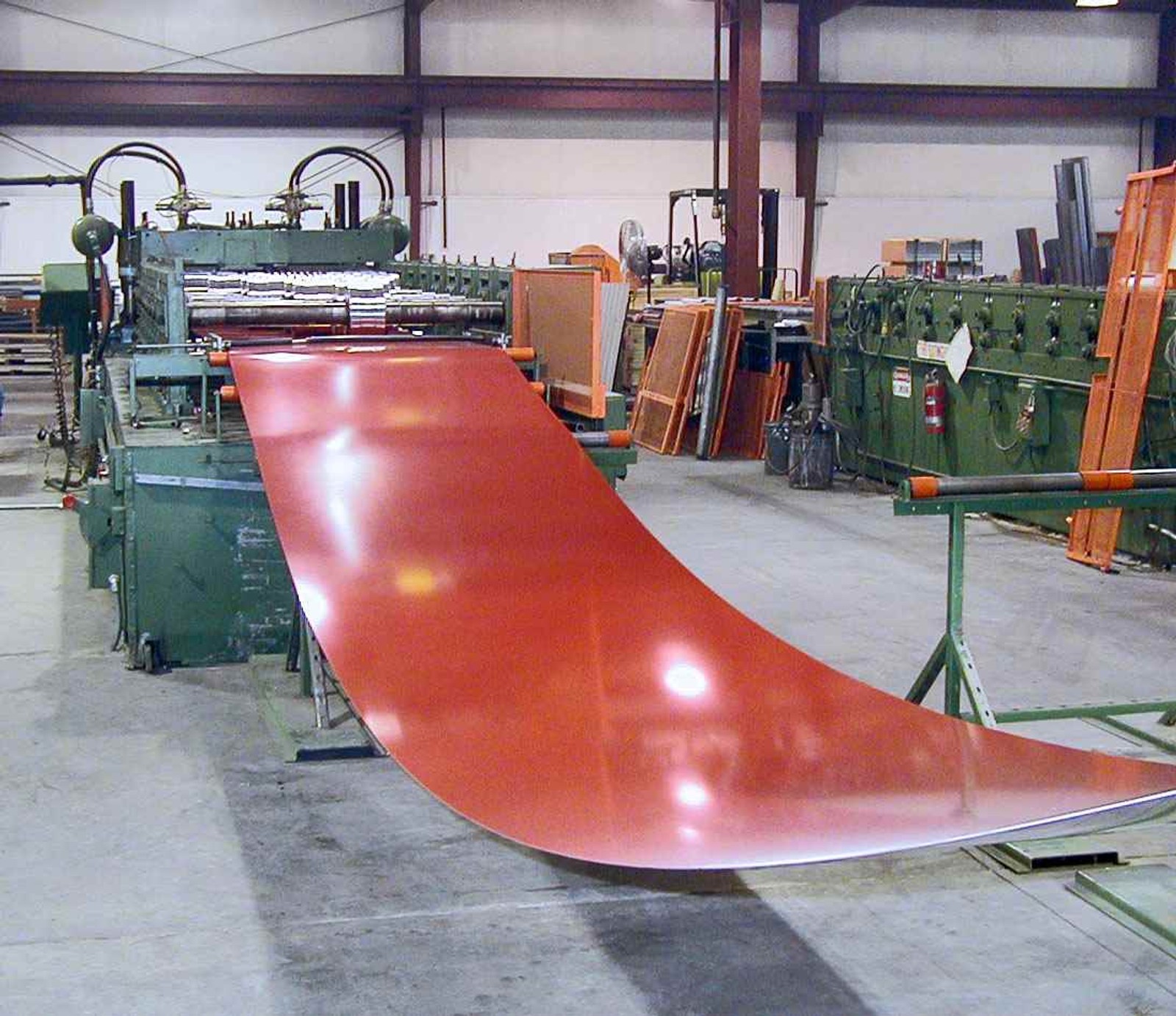

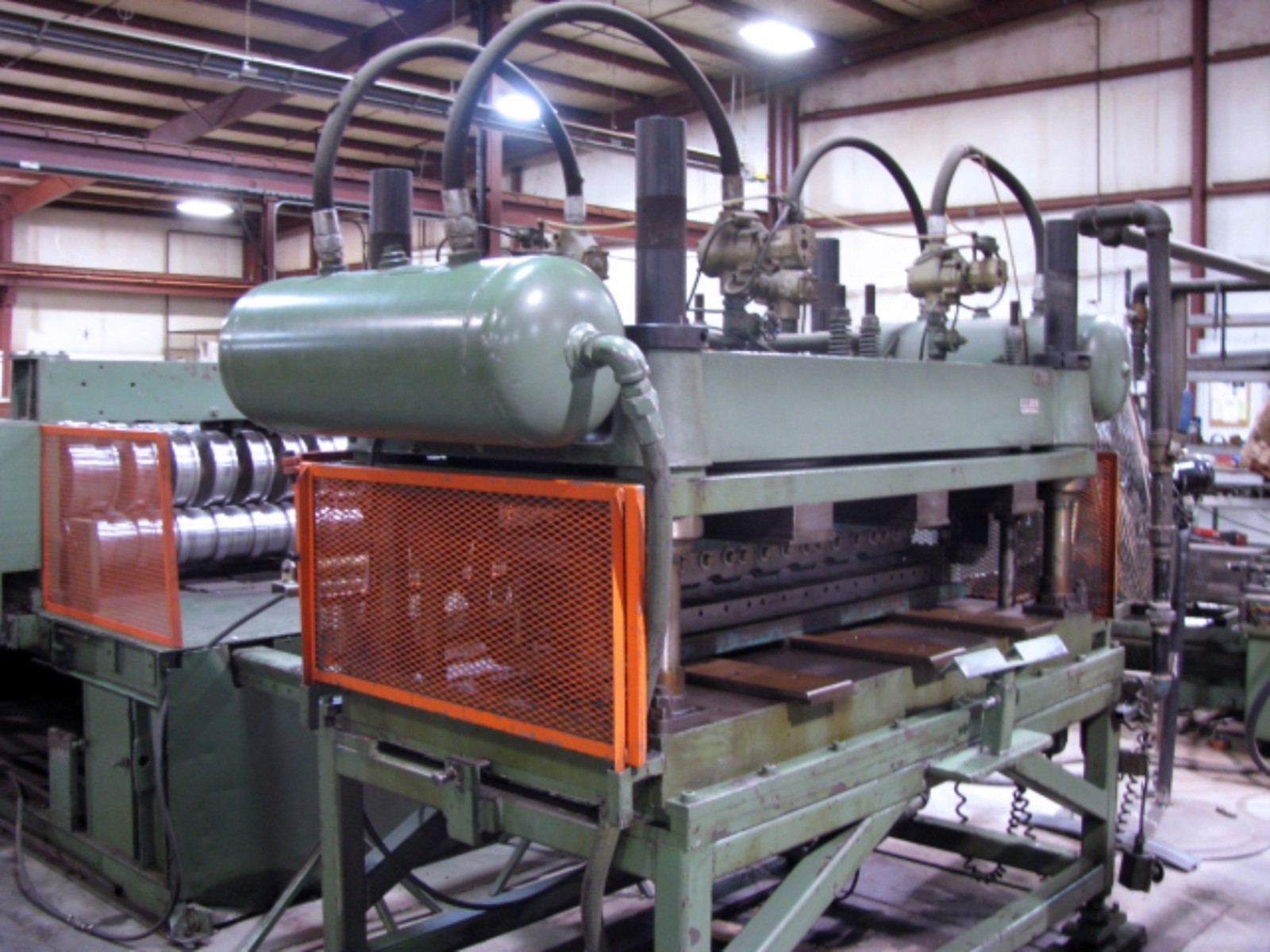

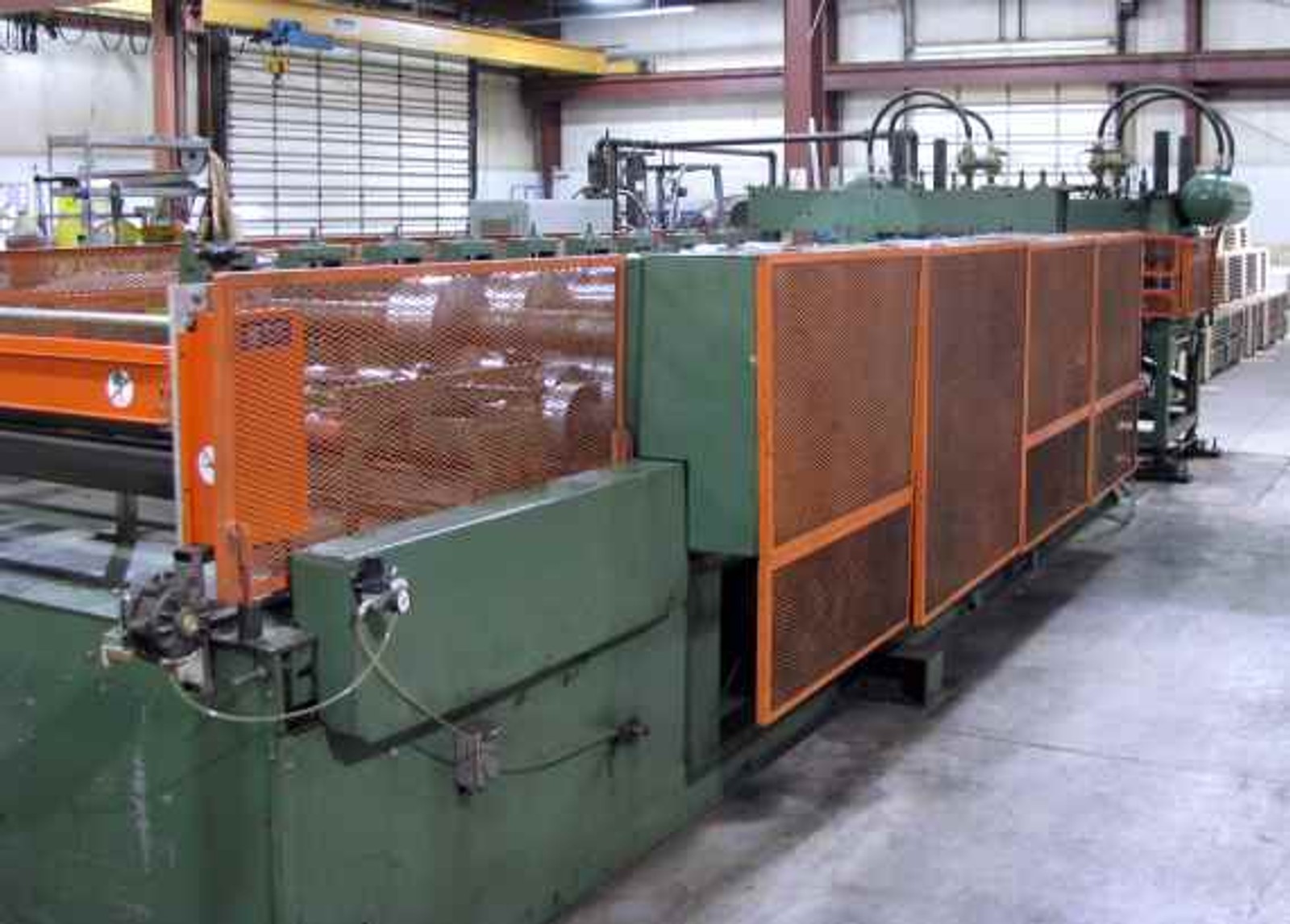

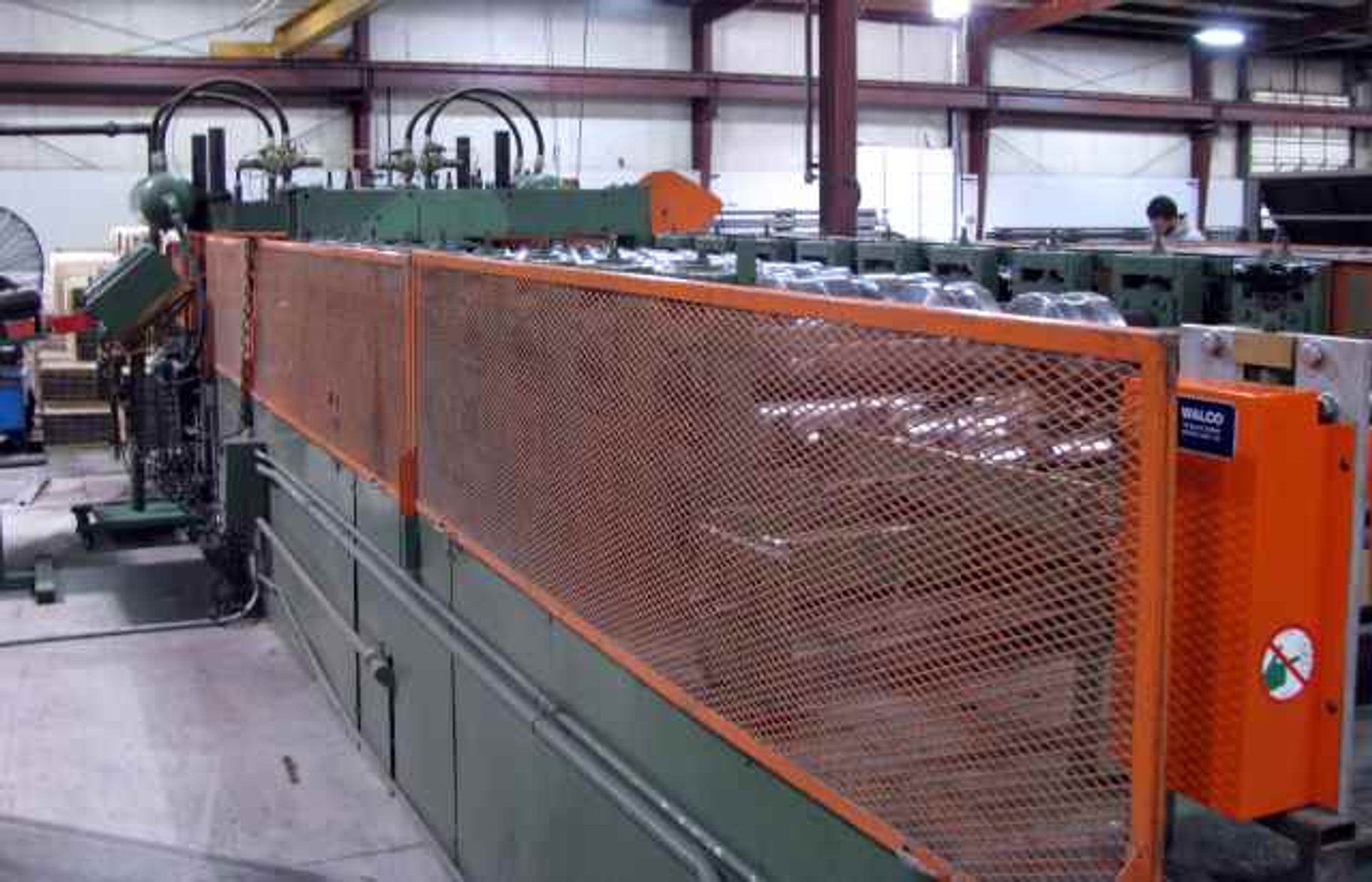

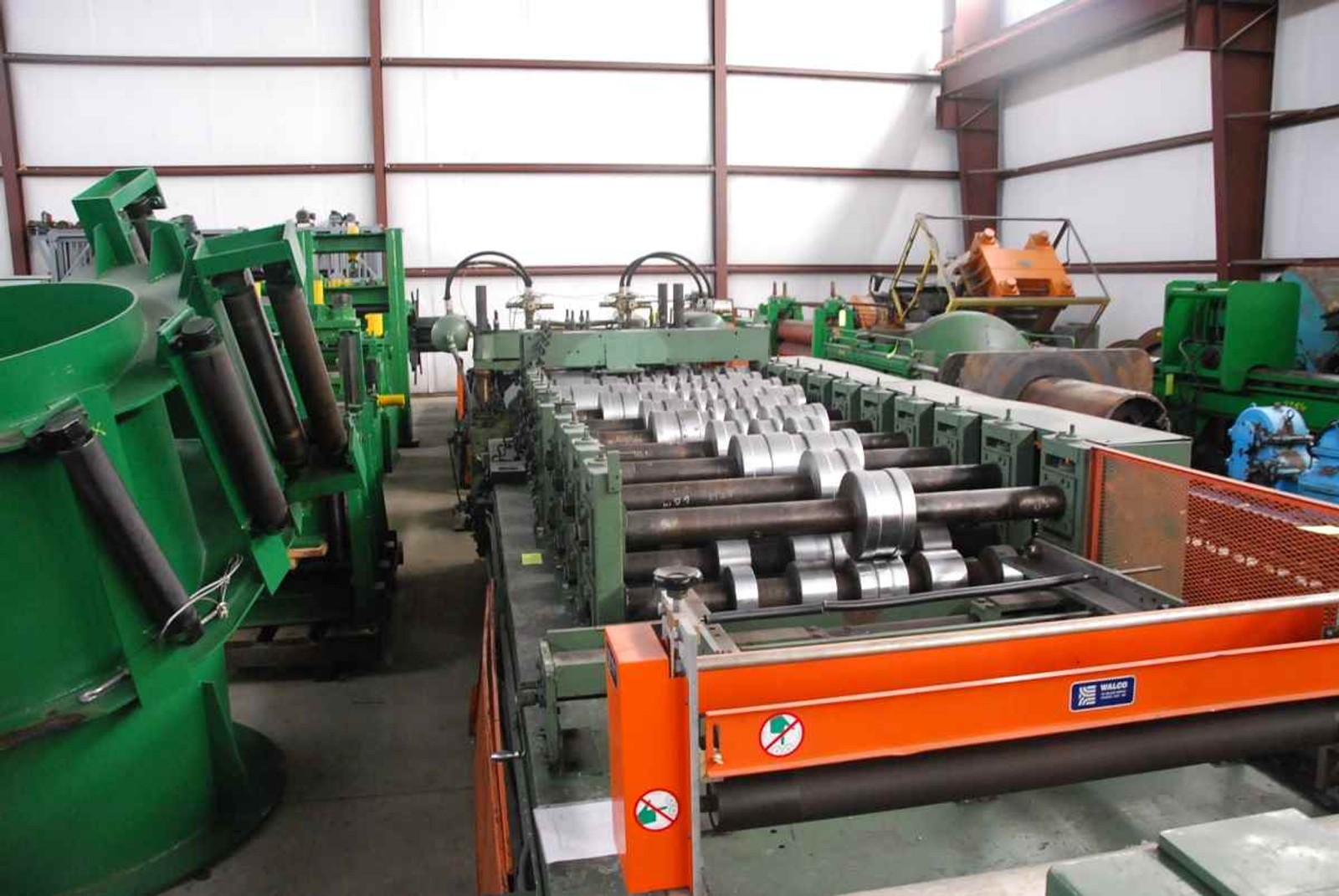

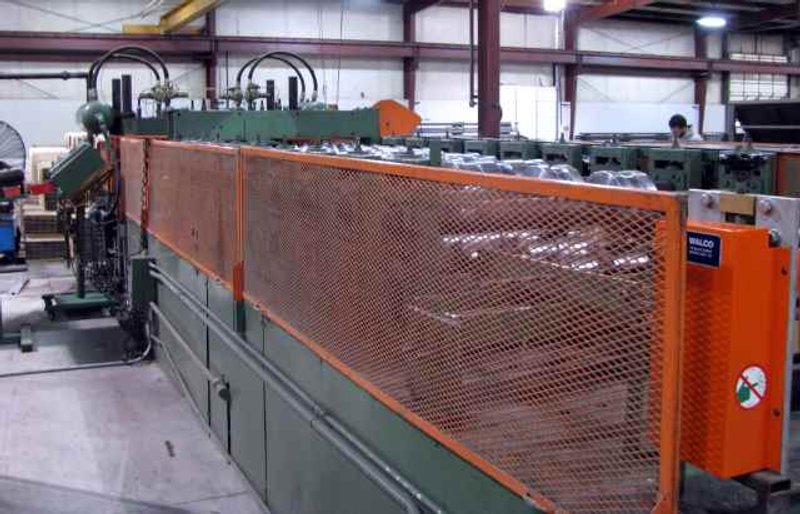

10 Stand x 3" x 54" BRADBURY M3 Ribbed Panel Rollform Line

Manufacturer

BRADBURY

Category

Roll Formers

Stock

2910

Model

M3

Dealer Location

Ohio

Spec Sheet

UTUBE NUMBER: 2910
MANUFACTURER: BRADBURY
MODEL NUMBER: M3
SERIAL NUMBER:
YEAR:

SPECIFICATIONS:

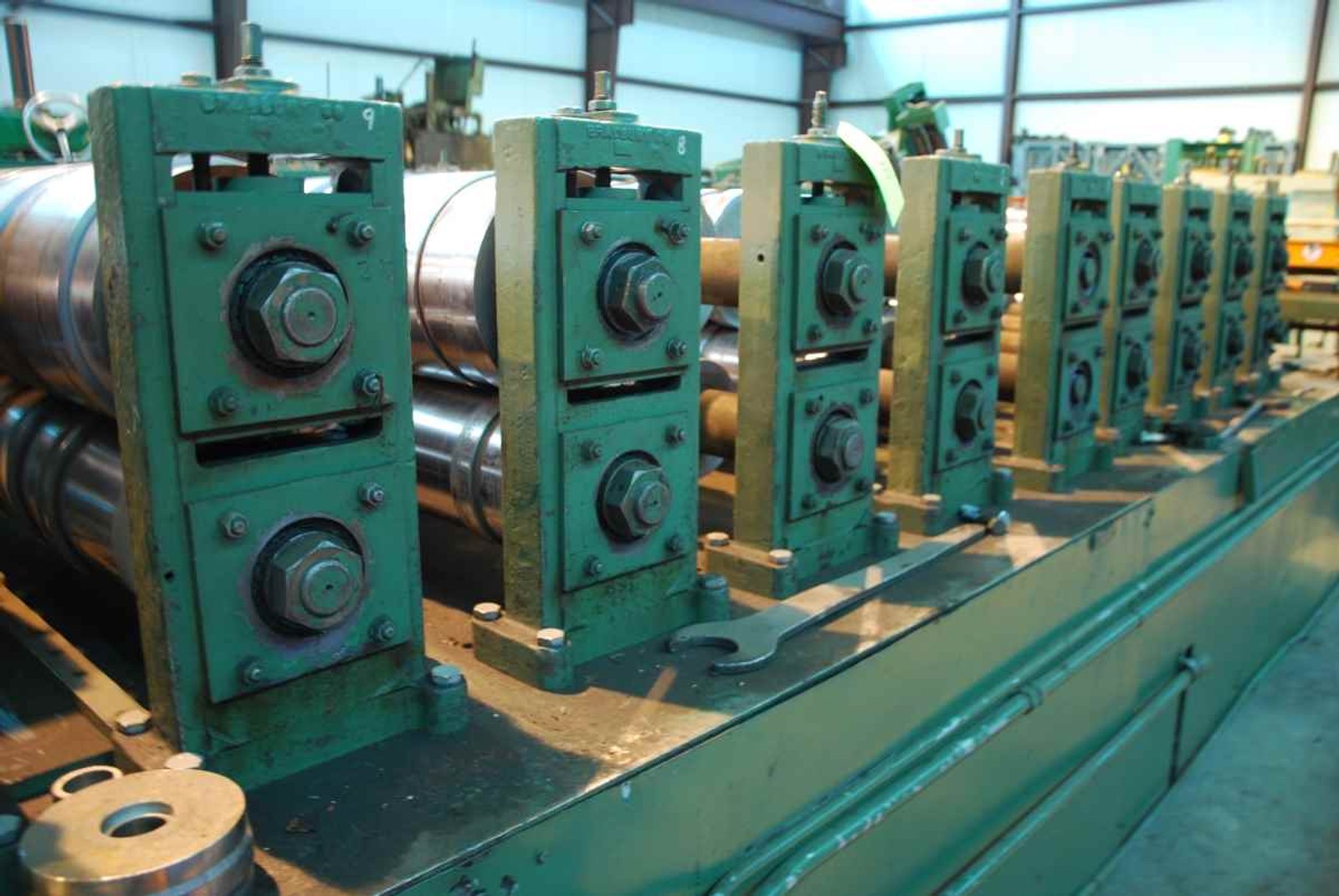

Number of Stands: 10
Line Direction: Right to Left
Spindle Diameter: 3″
Roll Space: 54″
Horizontal Center: 16″
Vertical Adjustment: 9″ – 10″
Base to Center Lower Spindle: 7-3/8″
Spindle Key Size: 1/2″

EQUIPPED WITH:

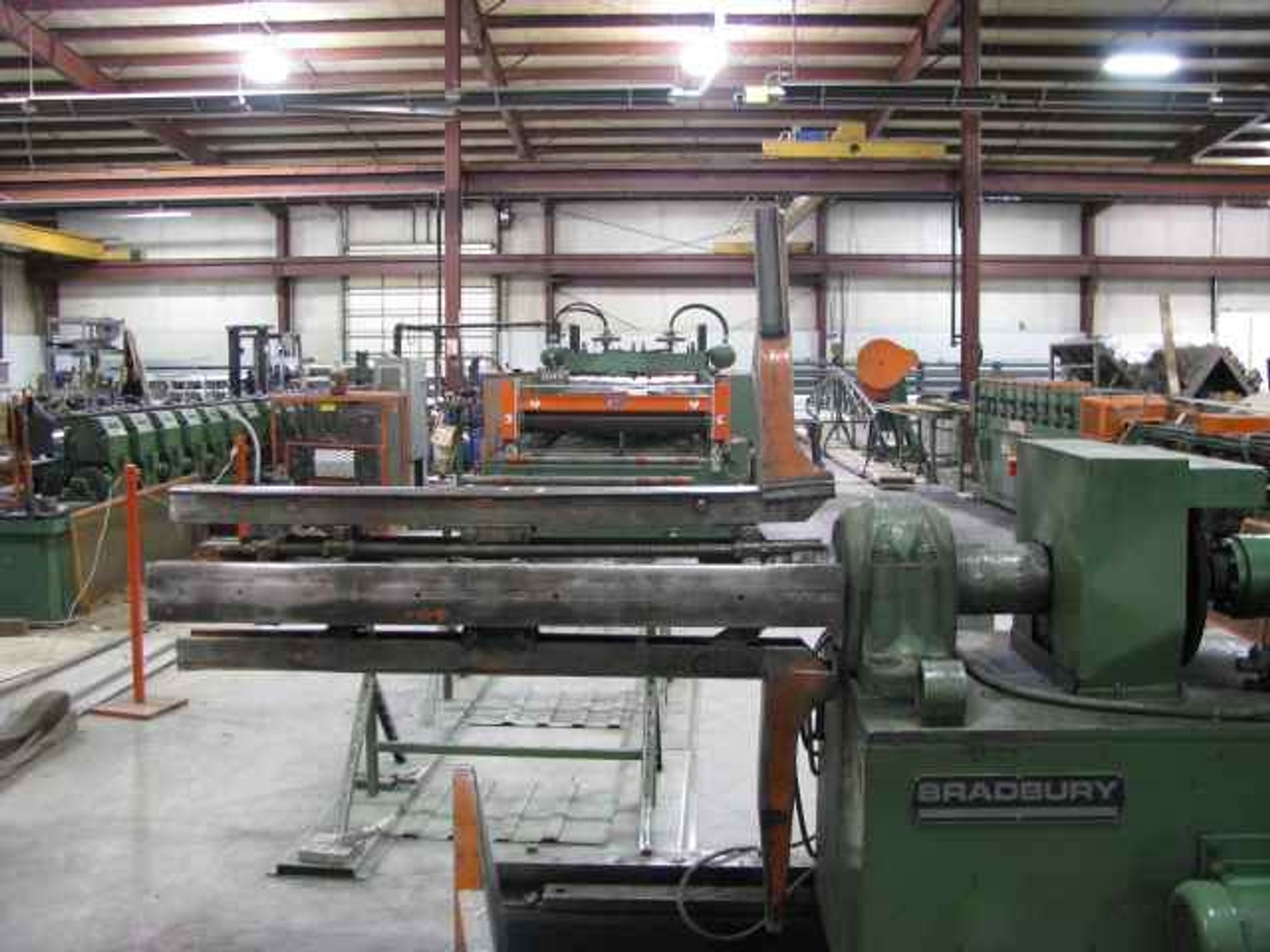

10,000 Lb. BRADBURY Uncoiler with Hydraulic Expansion and Air Brake

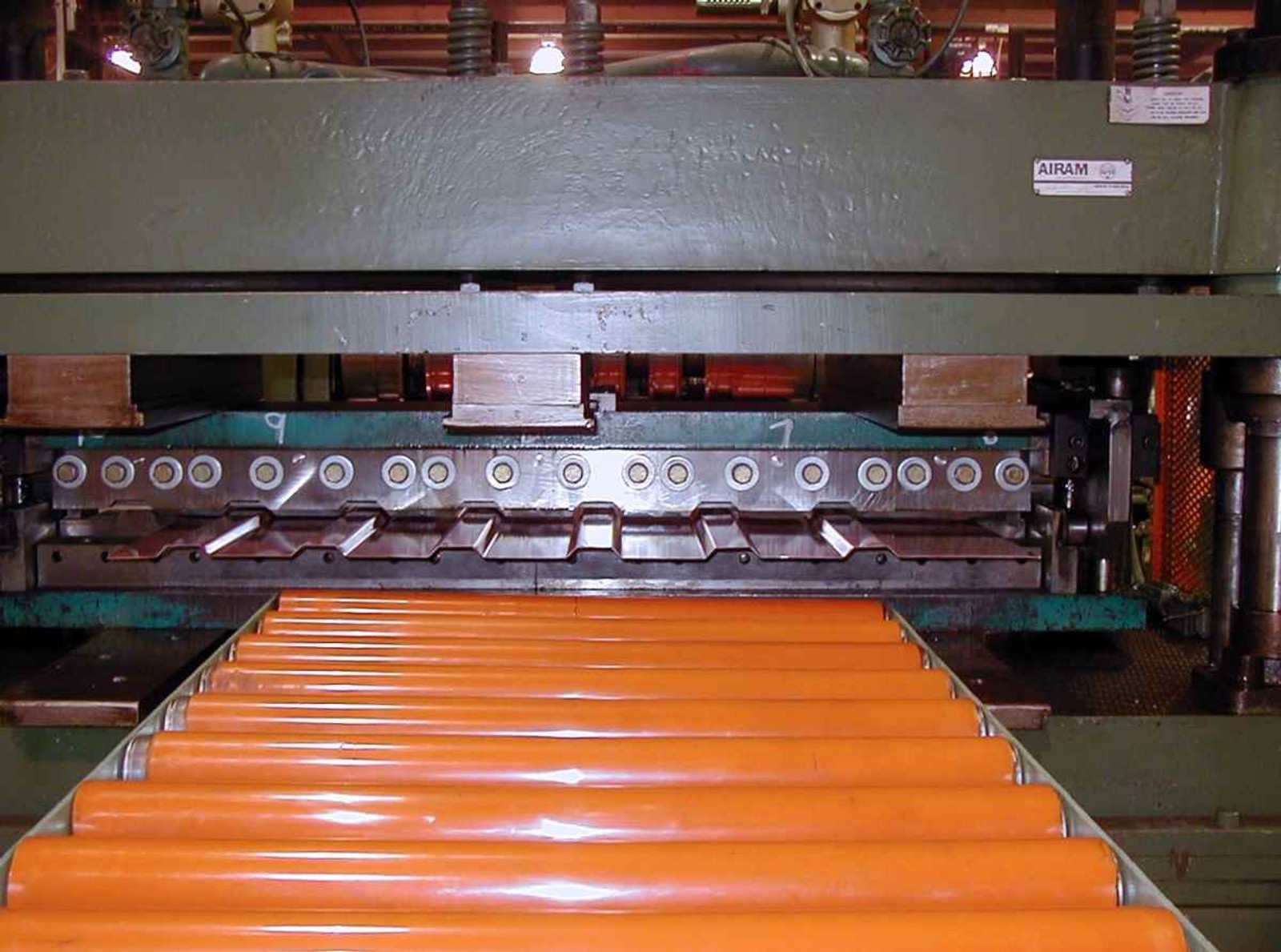

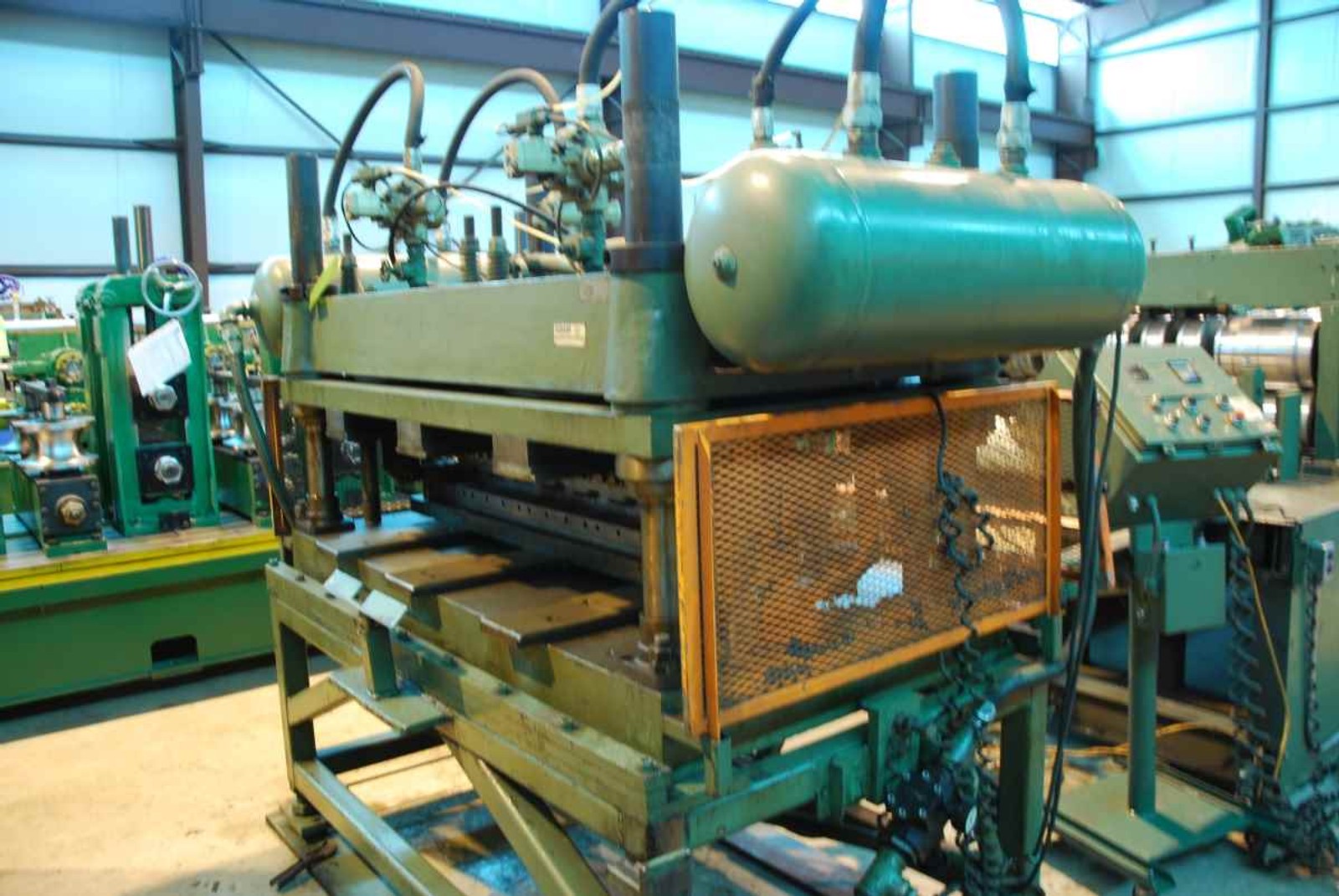

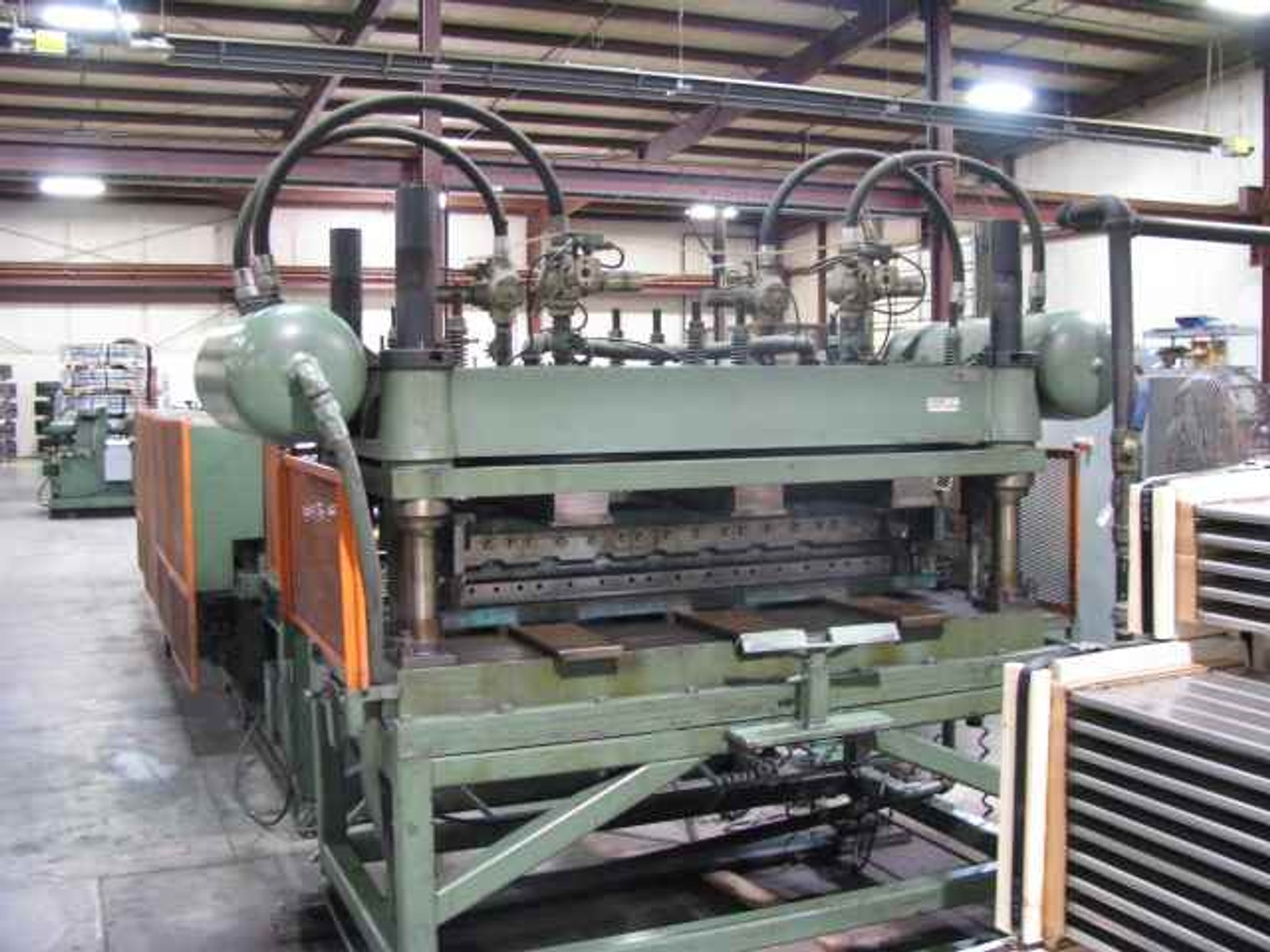

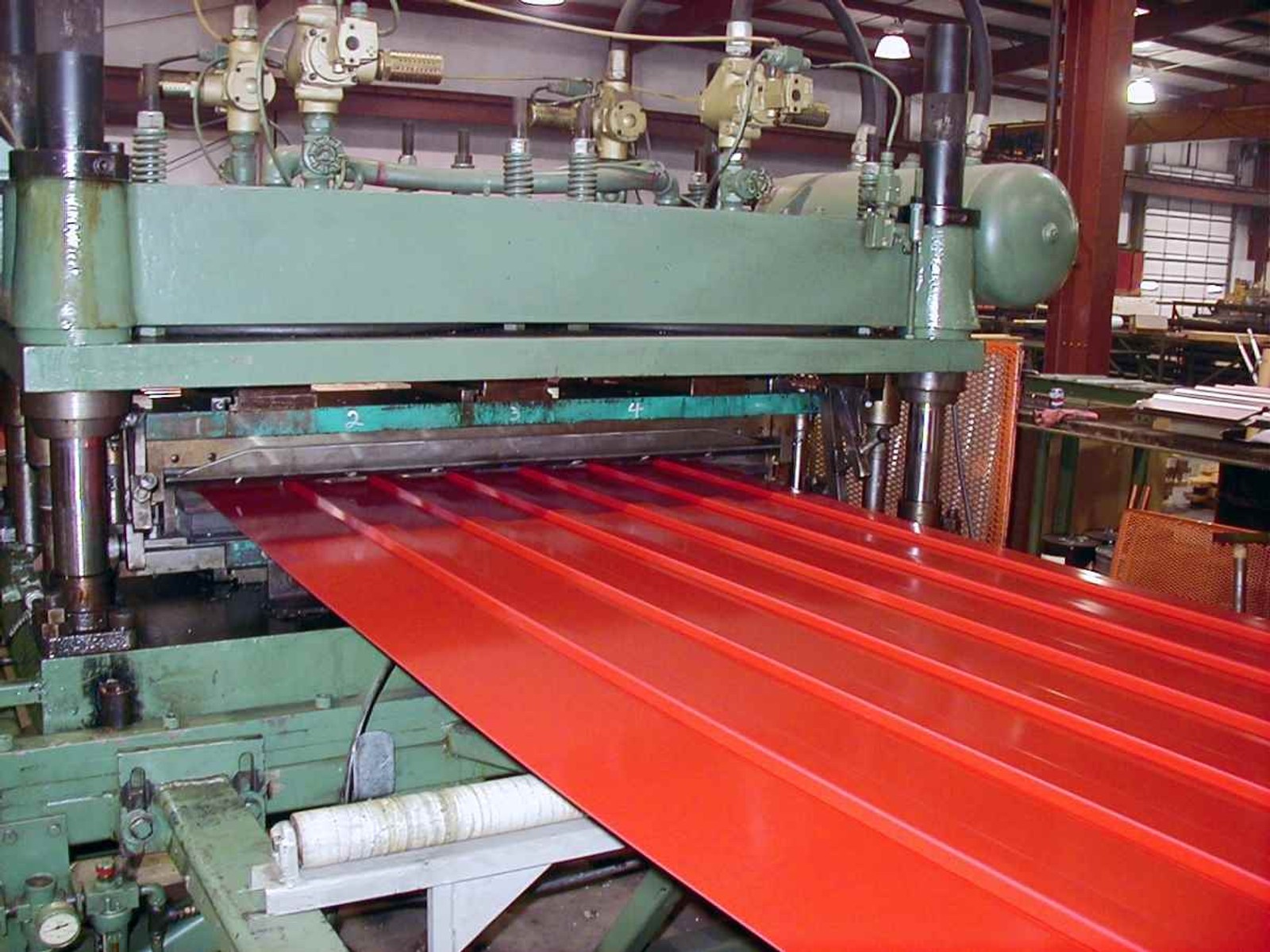

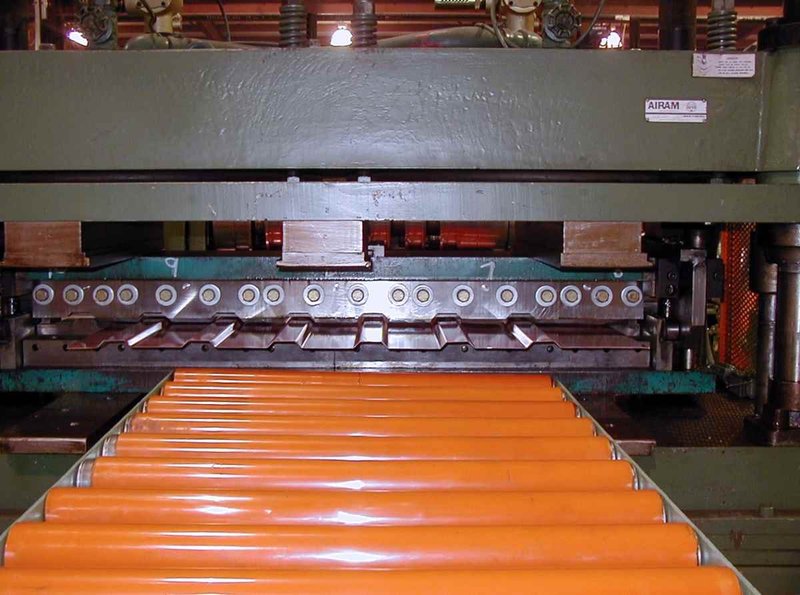

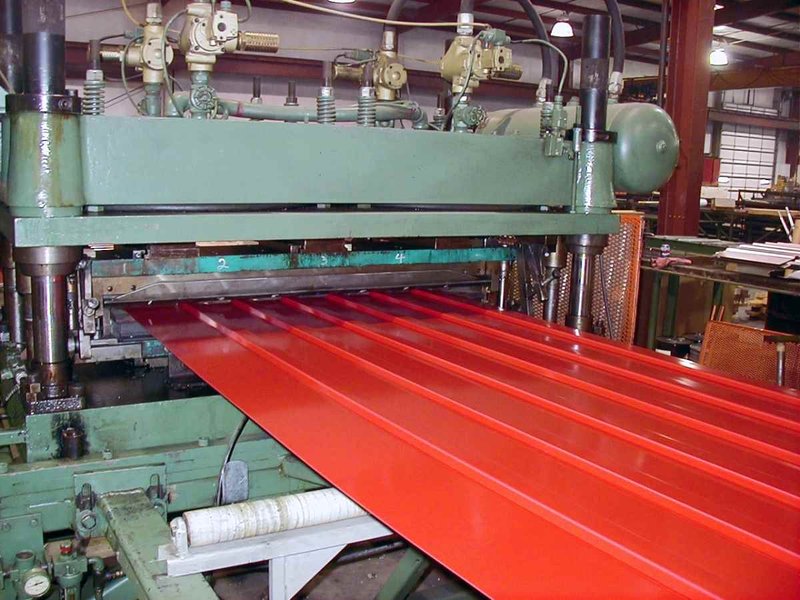

70 Ton AIRAM Cut Off with Die Set
DURANT Counter
Electrical Controls
Motor: 25 HP 460 / 60 / 3

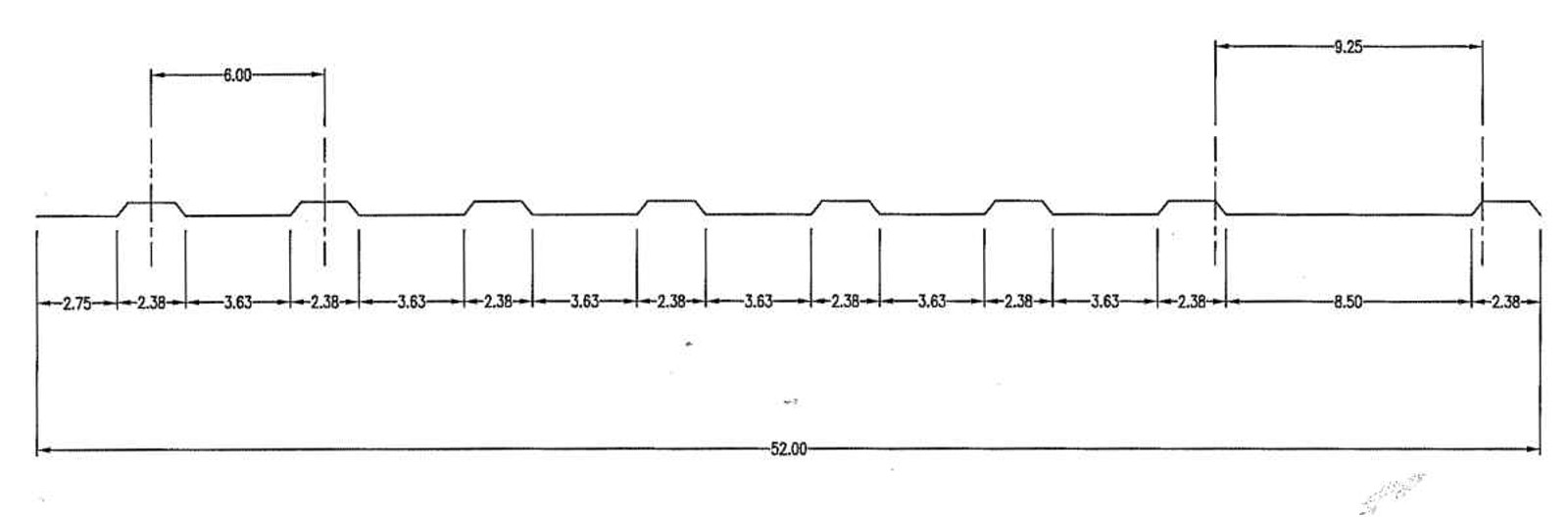

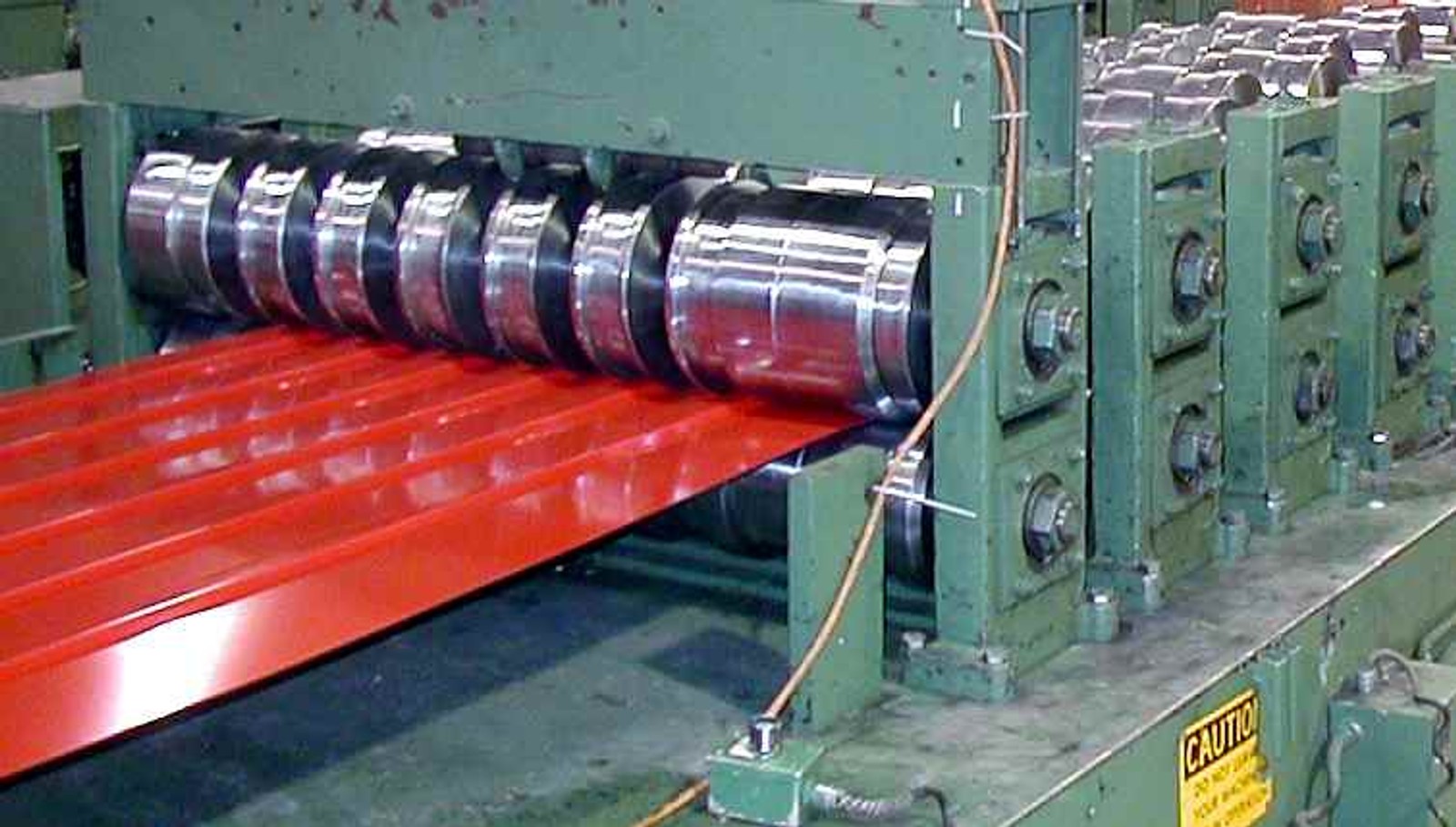

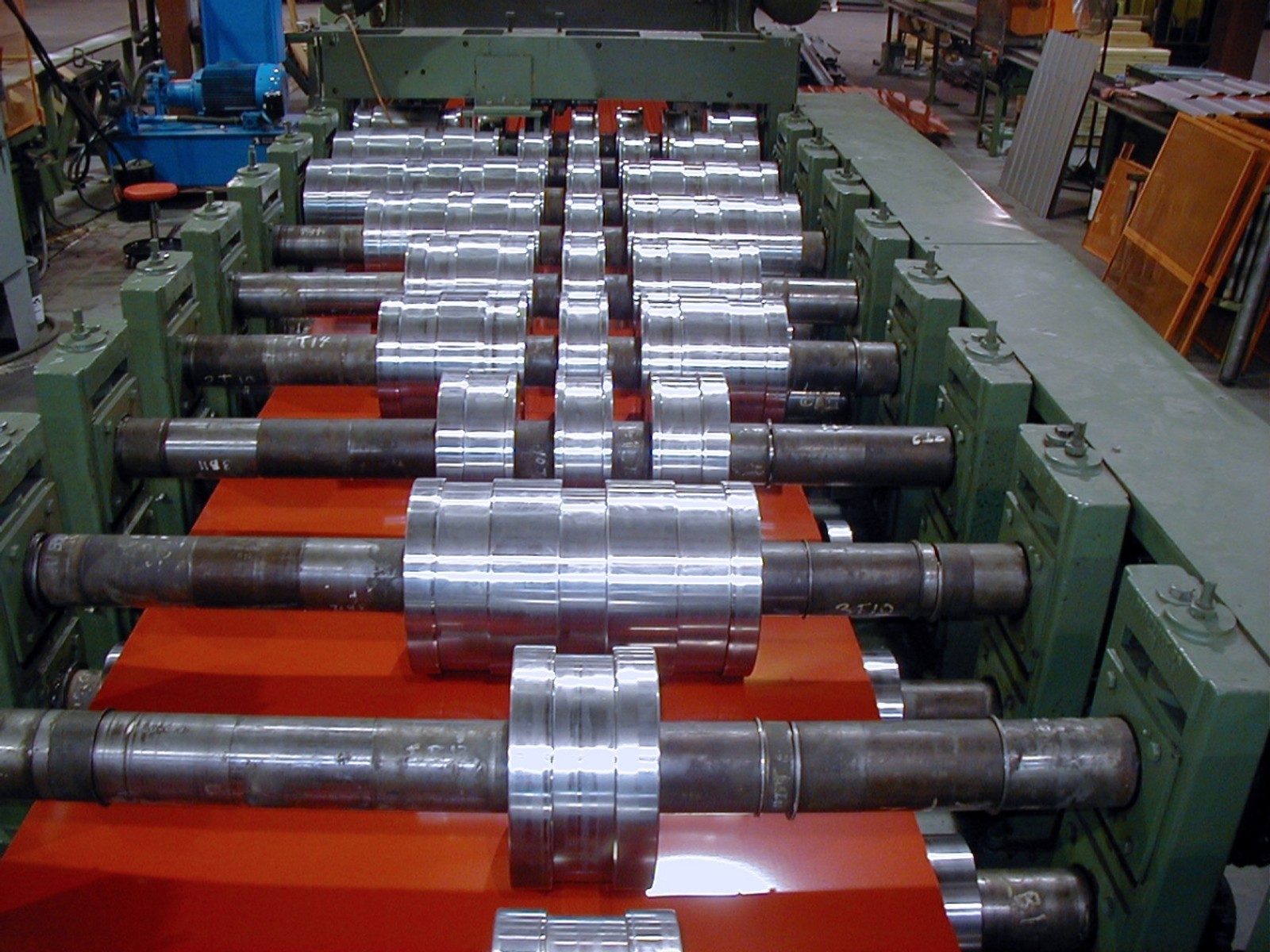

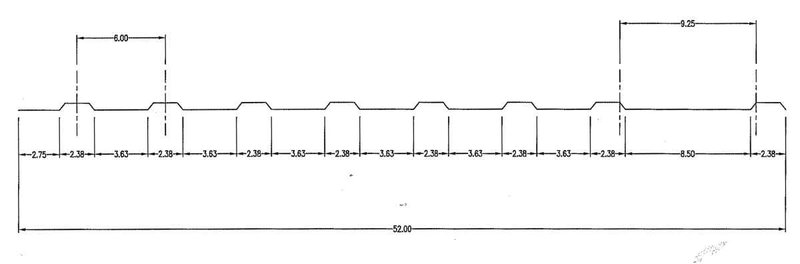

TOOLING: BRADBURY Model Number BCO 019, Roll Tooling for Ribbed Panel, 19 Gauge

OVERALL DIMENSIONS: 40′ x 7.5′ x 7′
APPROXIMATE WEIGHT: 35,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
