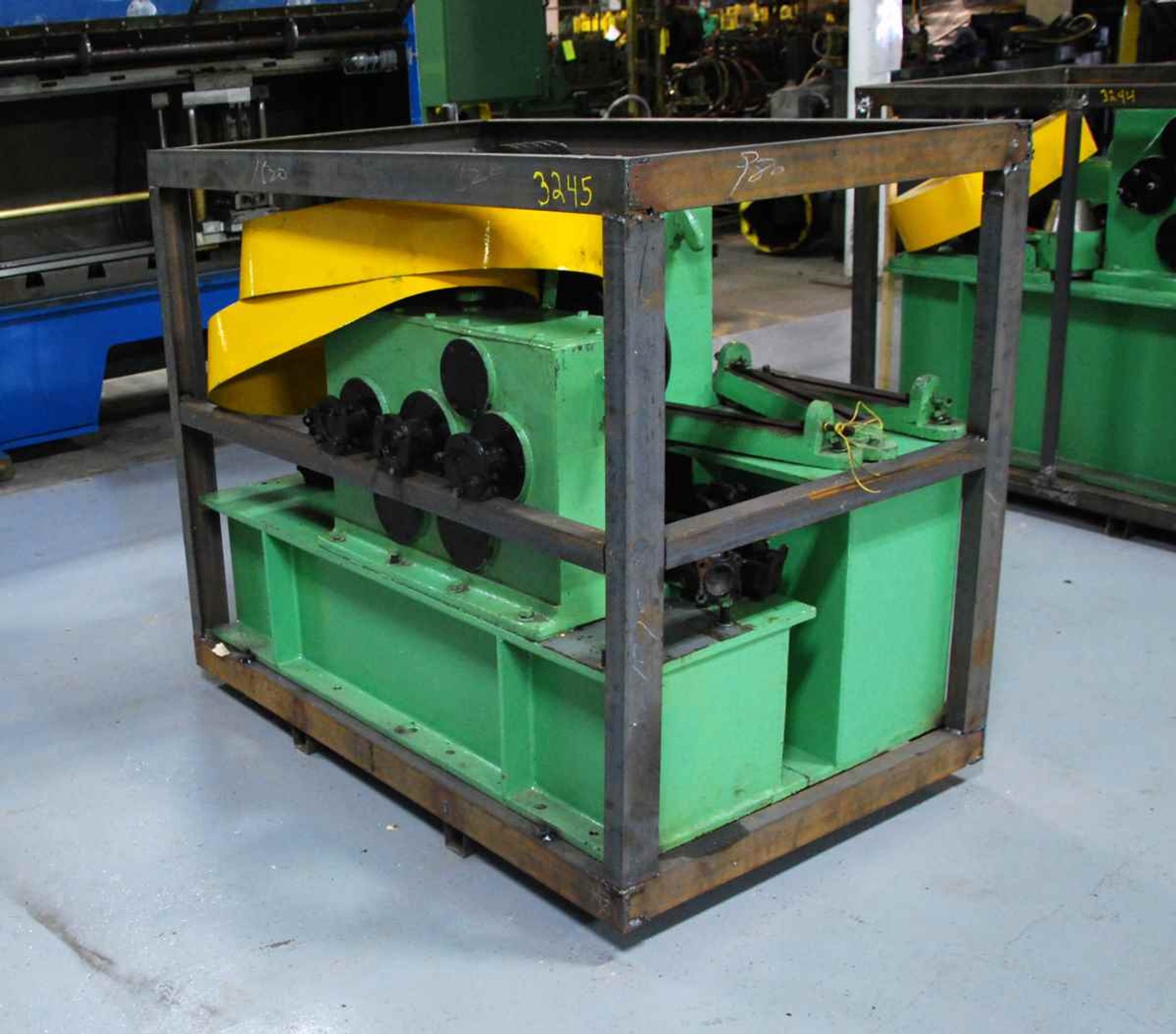

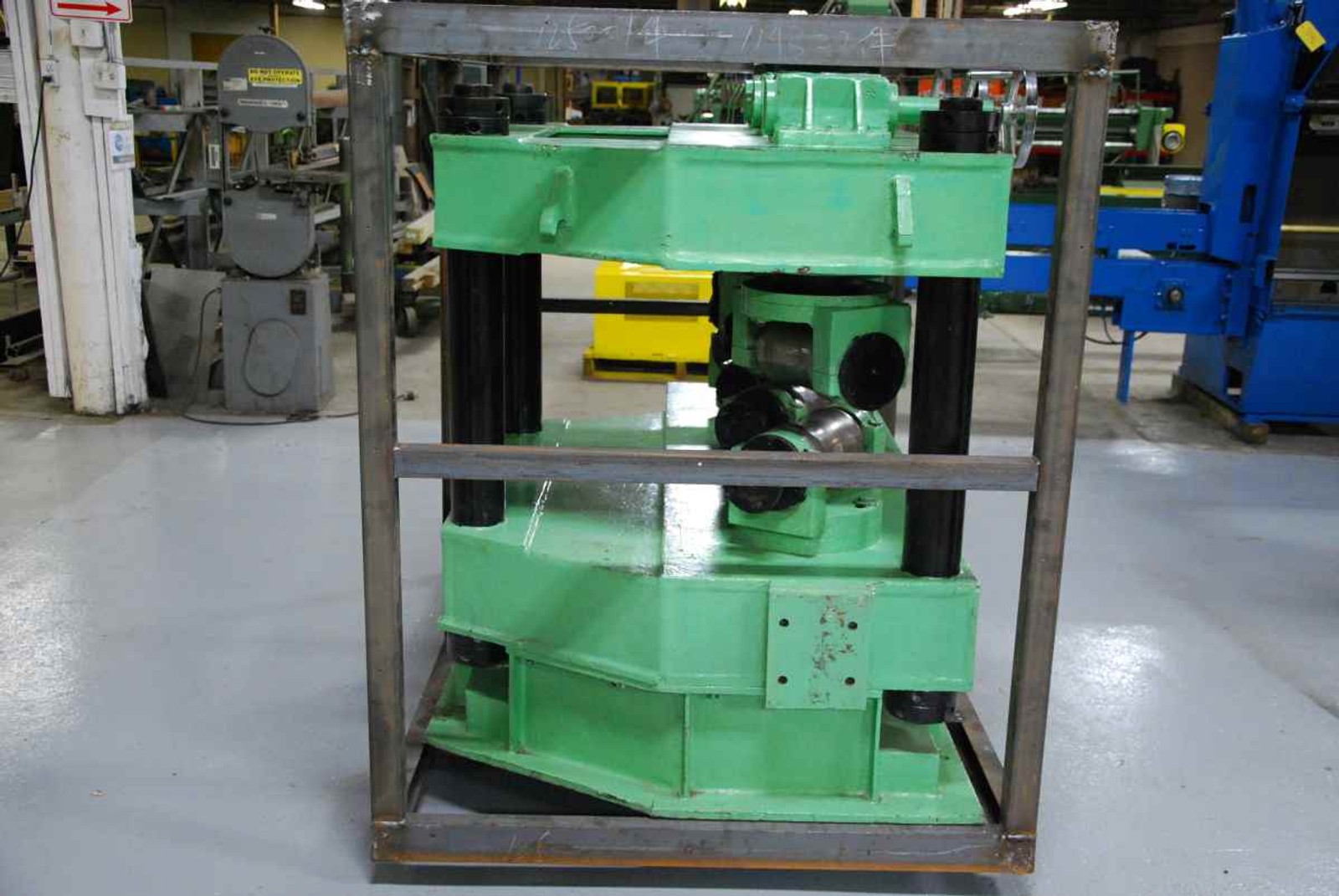

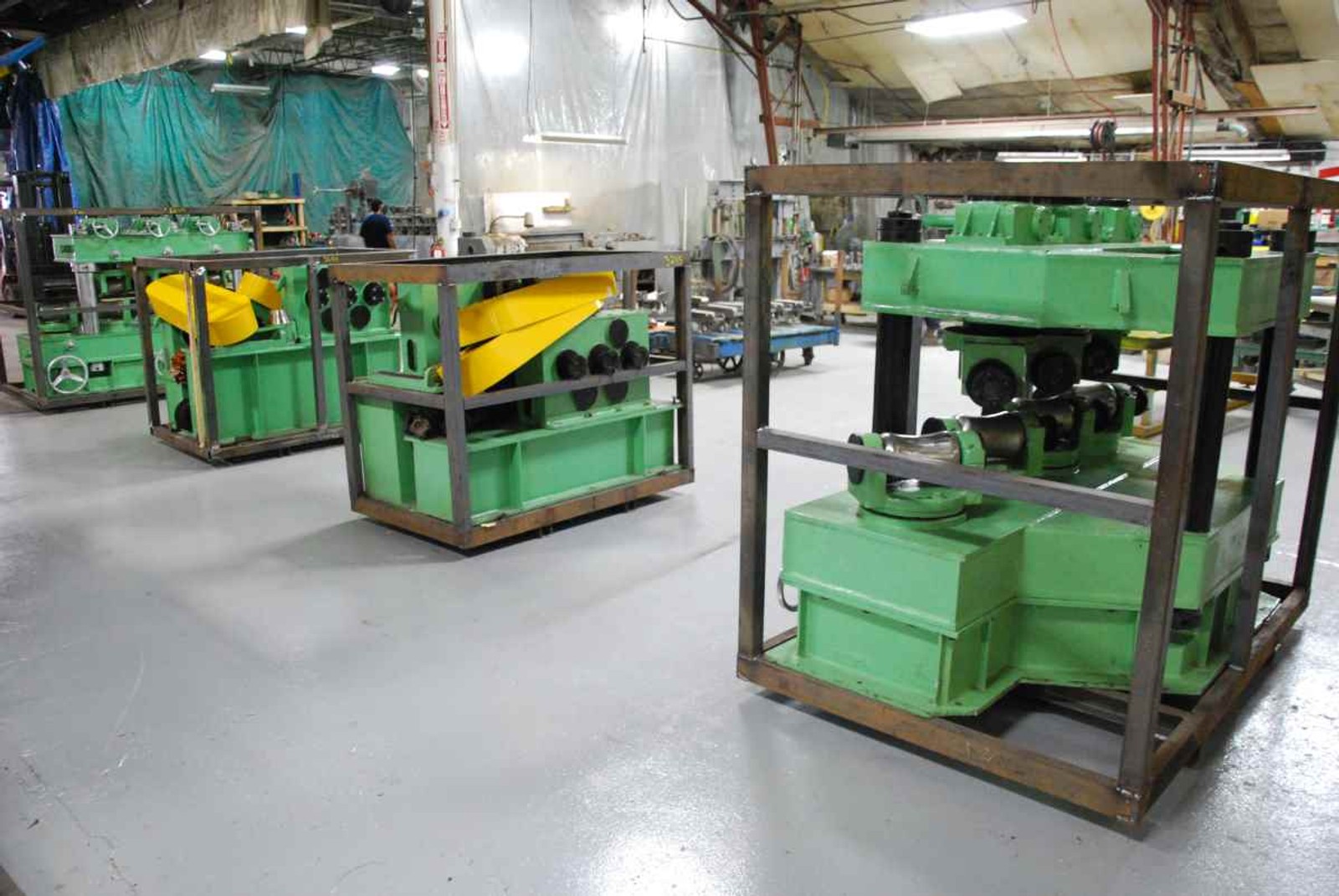

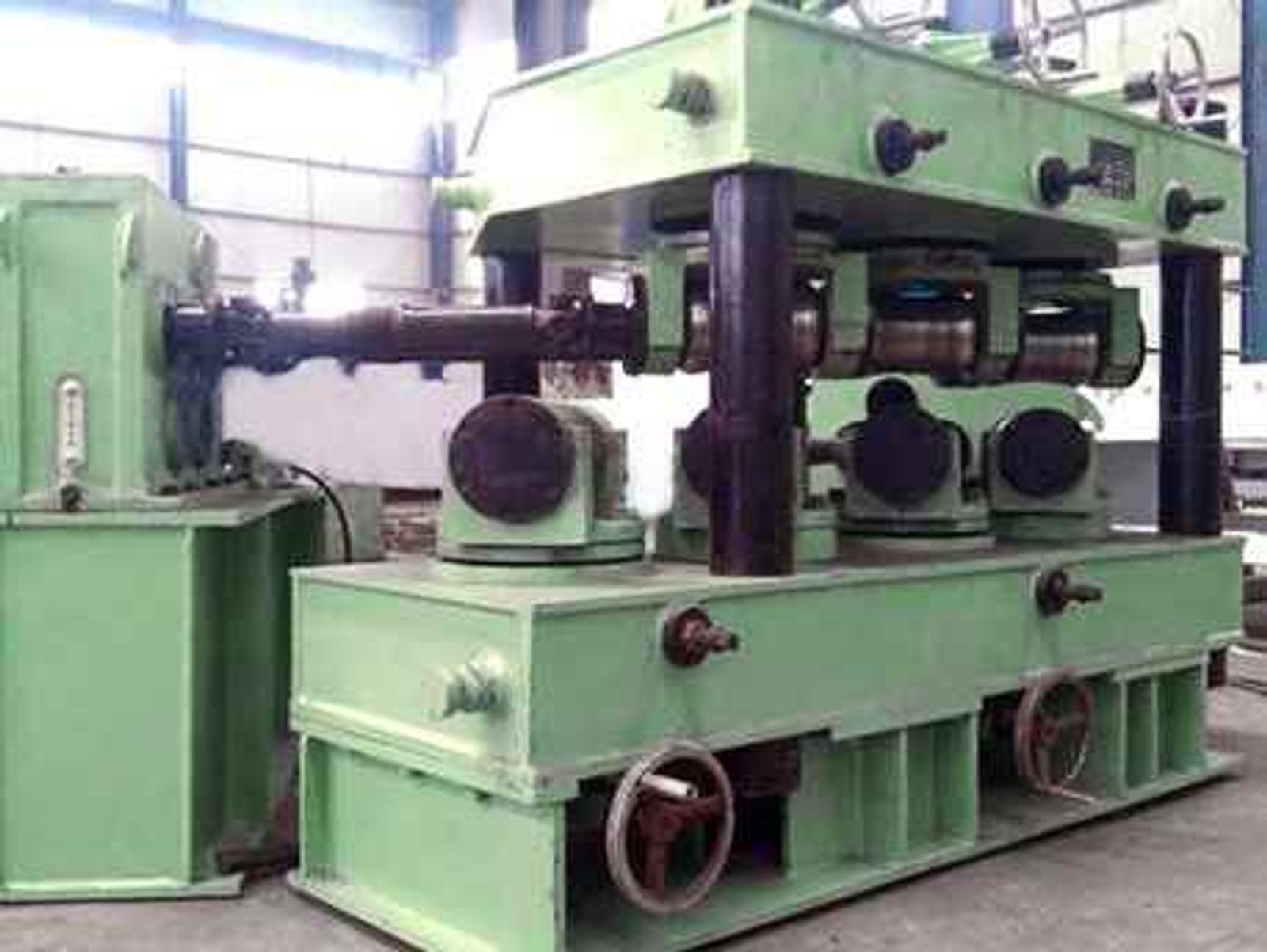

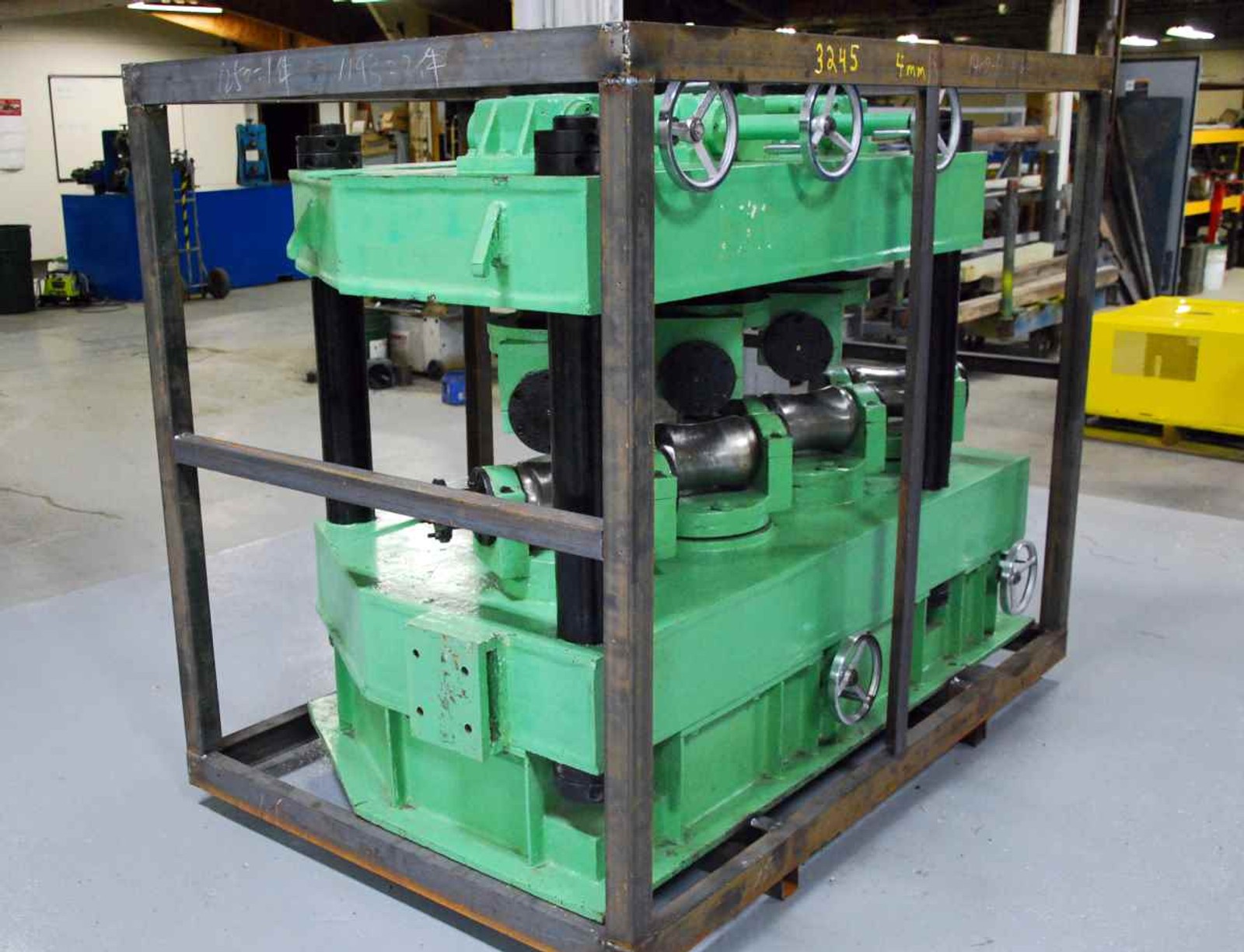

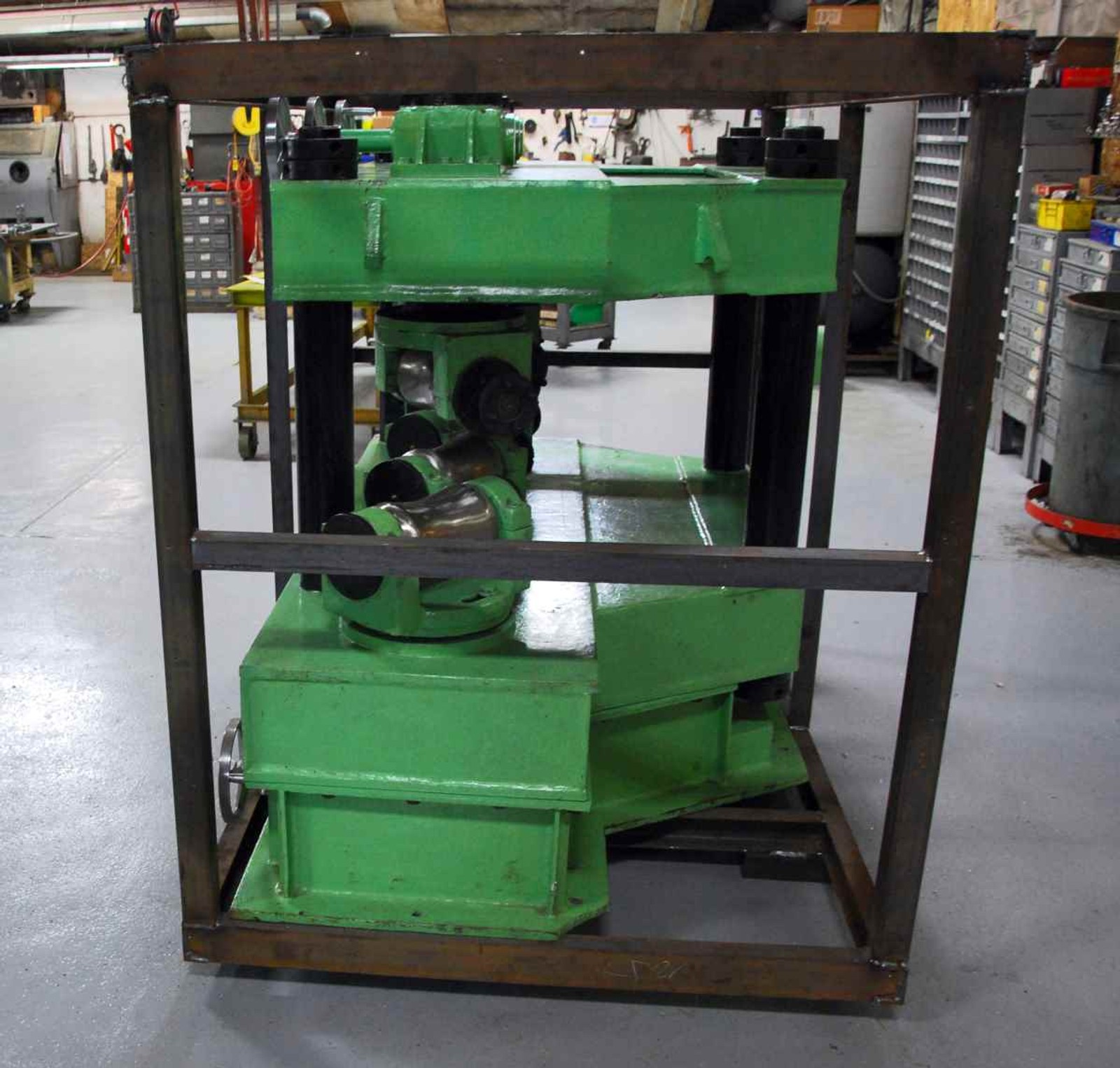

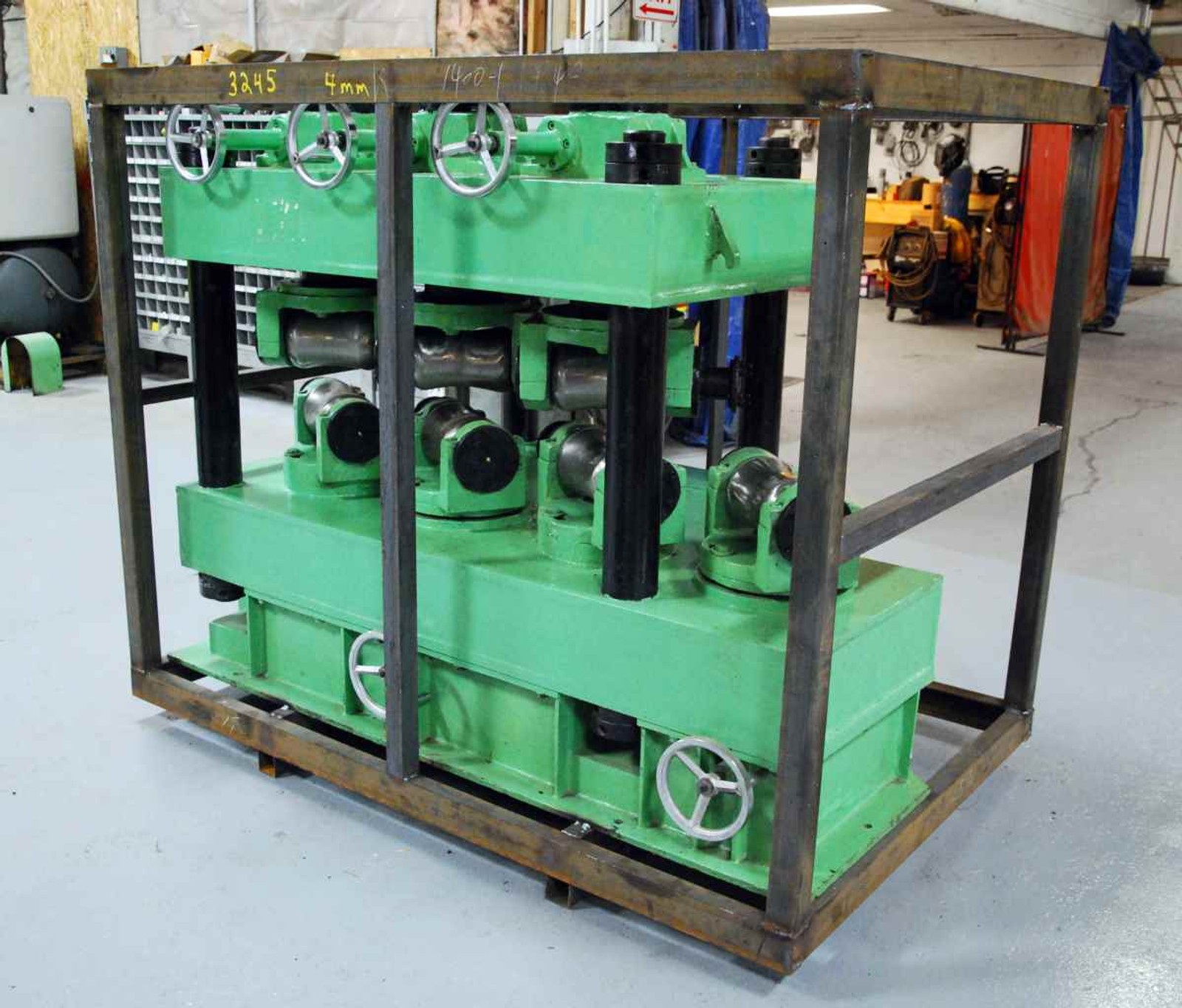

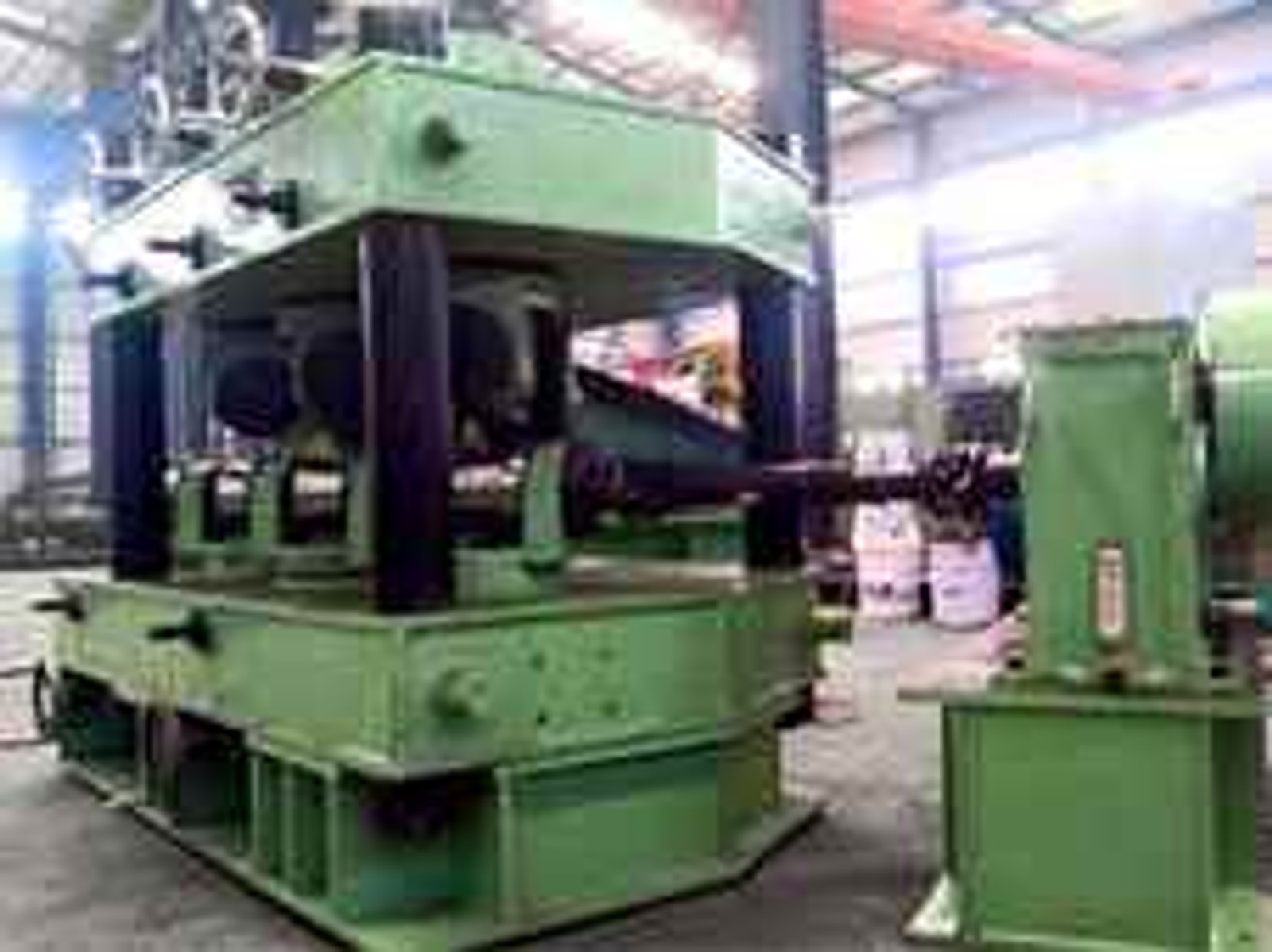

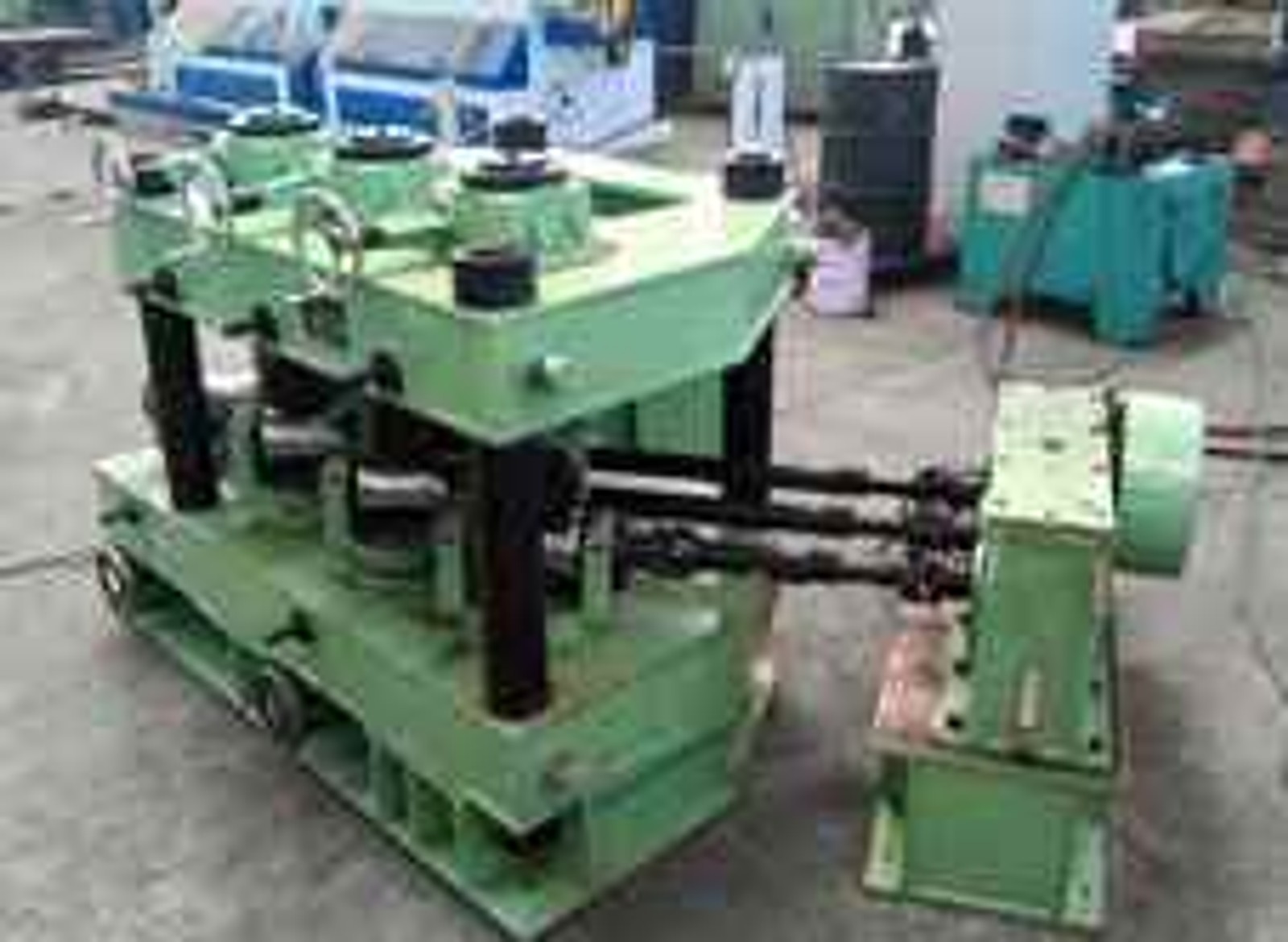

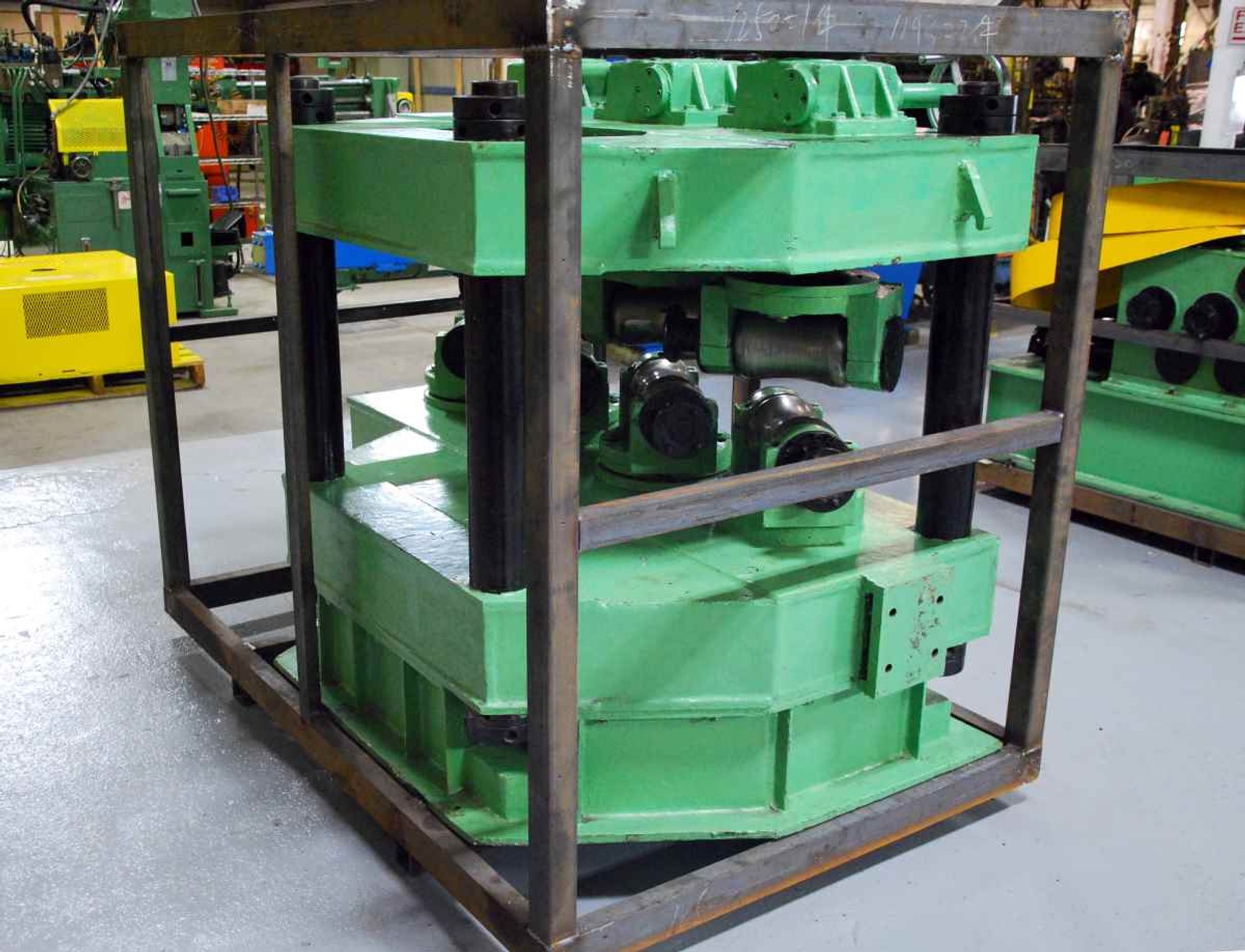

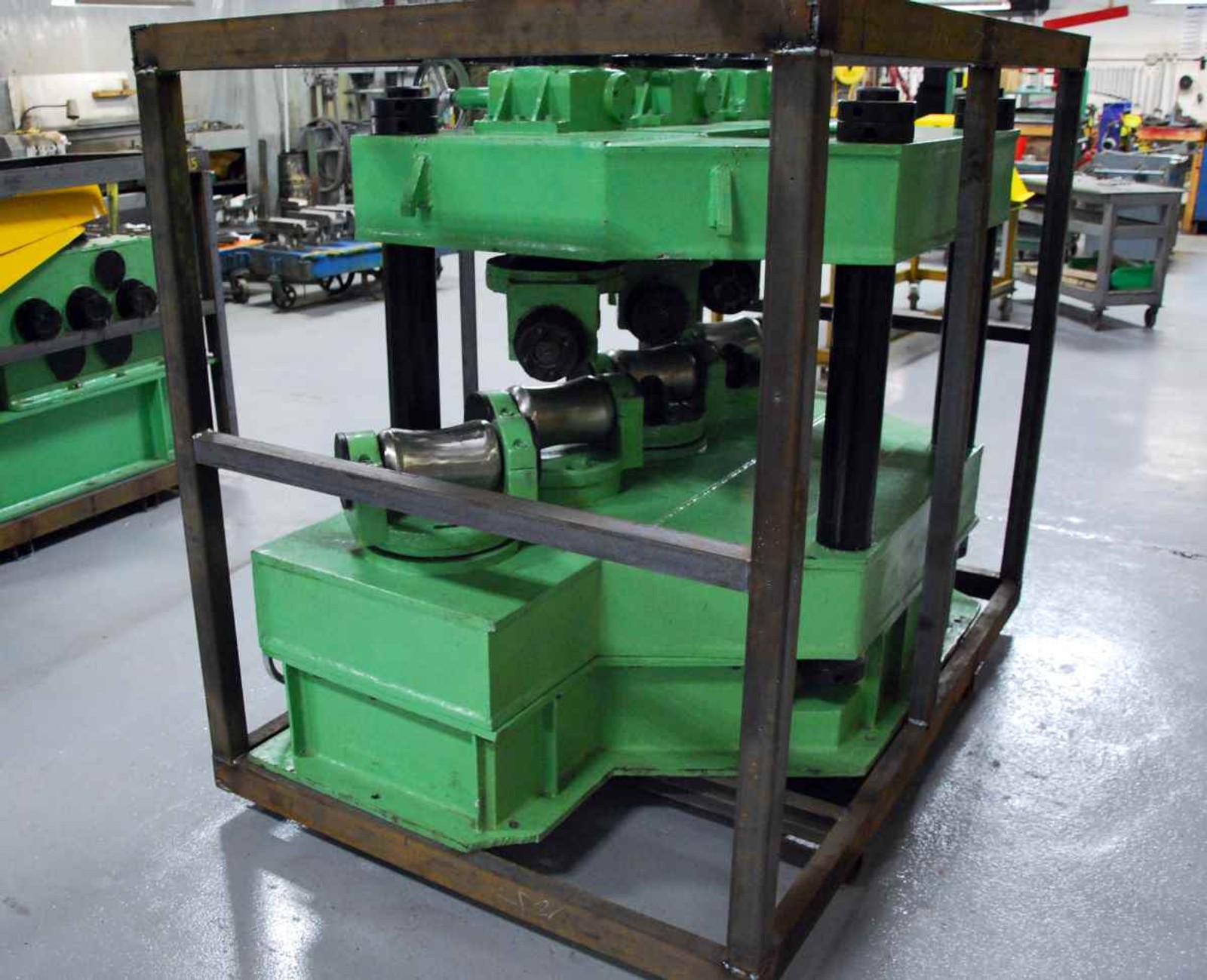

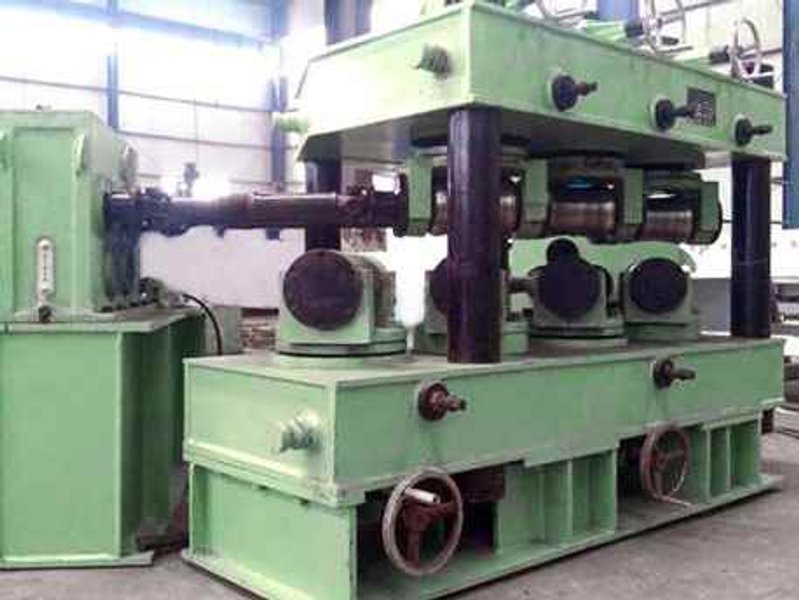

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

3-1/2" (88.9 mm) x .158" (4.01 mm) 6 Roll TAIYUAN Pipe Straightener

Manufacturer

Category

Feeders & Straighteners

Type

STRAIGHTENERS, TUBE & BAR

Stock

3245

Model

None listed

Dealer Location

Ohio

Request a Quote

View Contact Information

Specifications
Files & Videos

Spec Sheet

UTUBE NUMBER: 3245
MANUFACTURER: TAIYUAN HUAYE EQUIPMENT
MODEL NUMBER: JZ 089
SERIAL NUMBER:
YEAR:

SPECIFICATIONS:
Roll Configuration: 3 Over 3
Number of Driven Rolls: 6
Maximum Diameter: 3-1/2" (88.9 mm)
Minimum Diameter: 1/2" (12.7 mm)
Maximum Wall Thickness: .158" (4.01 mm)
Normal Operating Speed: 98 – 230 FPM (30 – 70 MPM)
Throat Diameter of Rolls: 5.3" (136 mm)
Overall Length of Rolls: 9" (230 mm)

EQUIPPED WITH:
Vertical Upper Roll Adjustment
Angular Adjustment

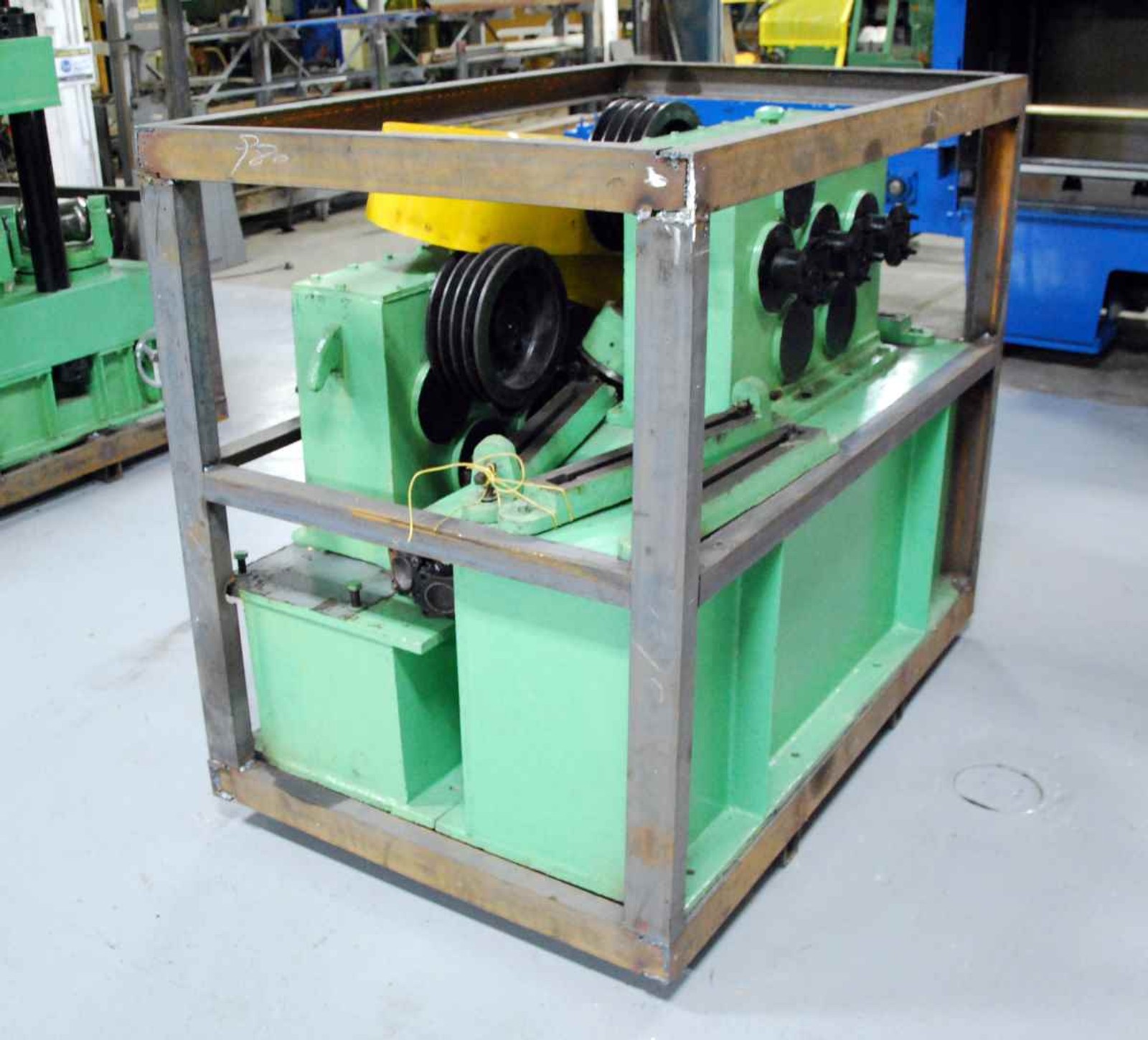

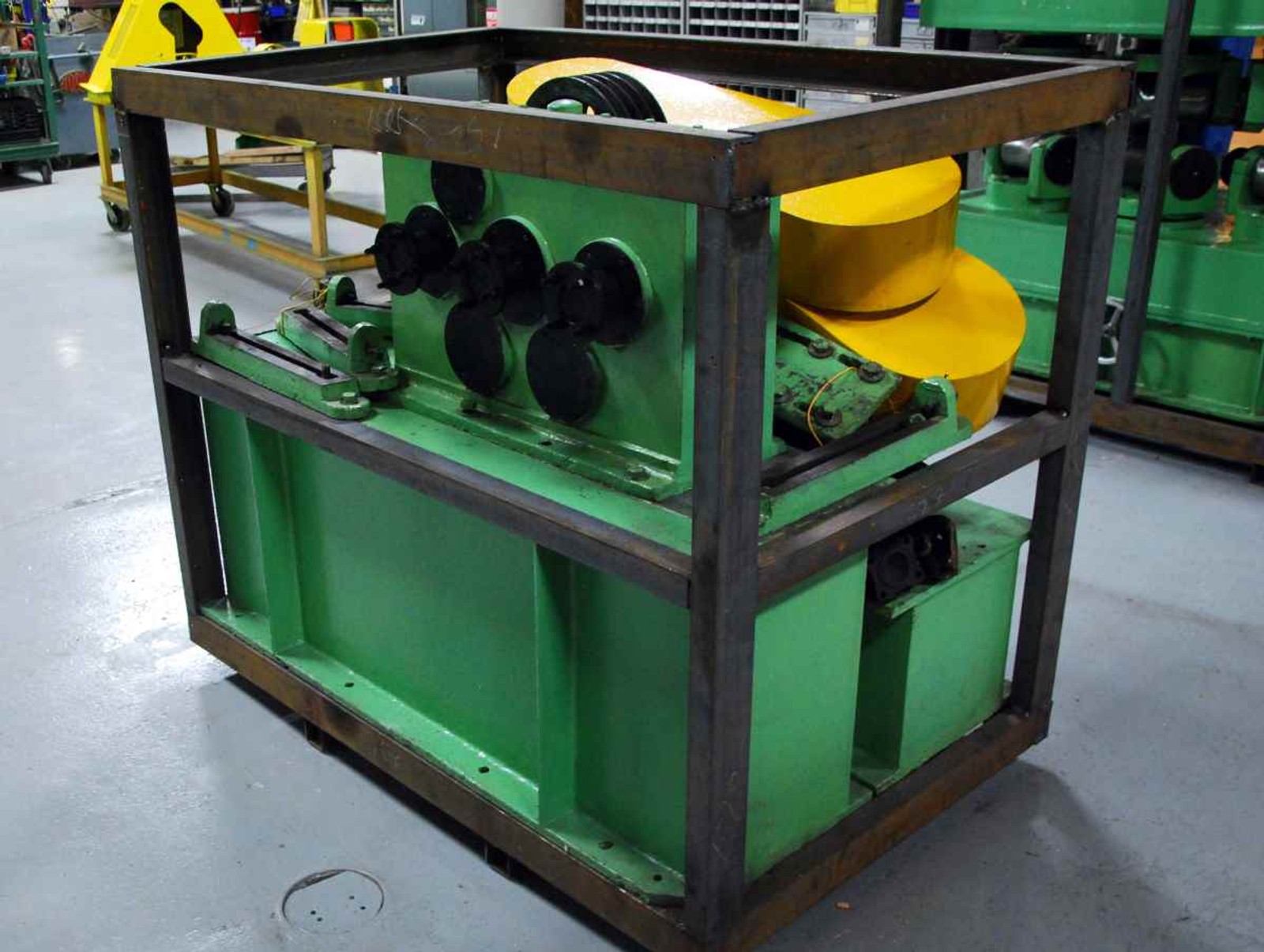

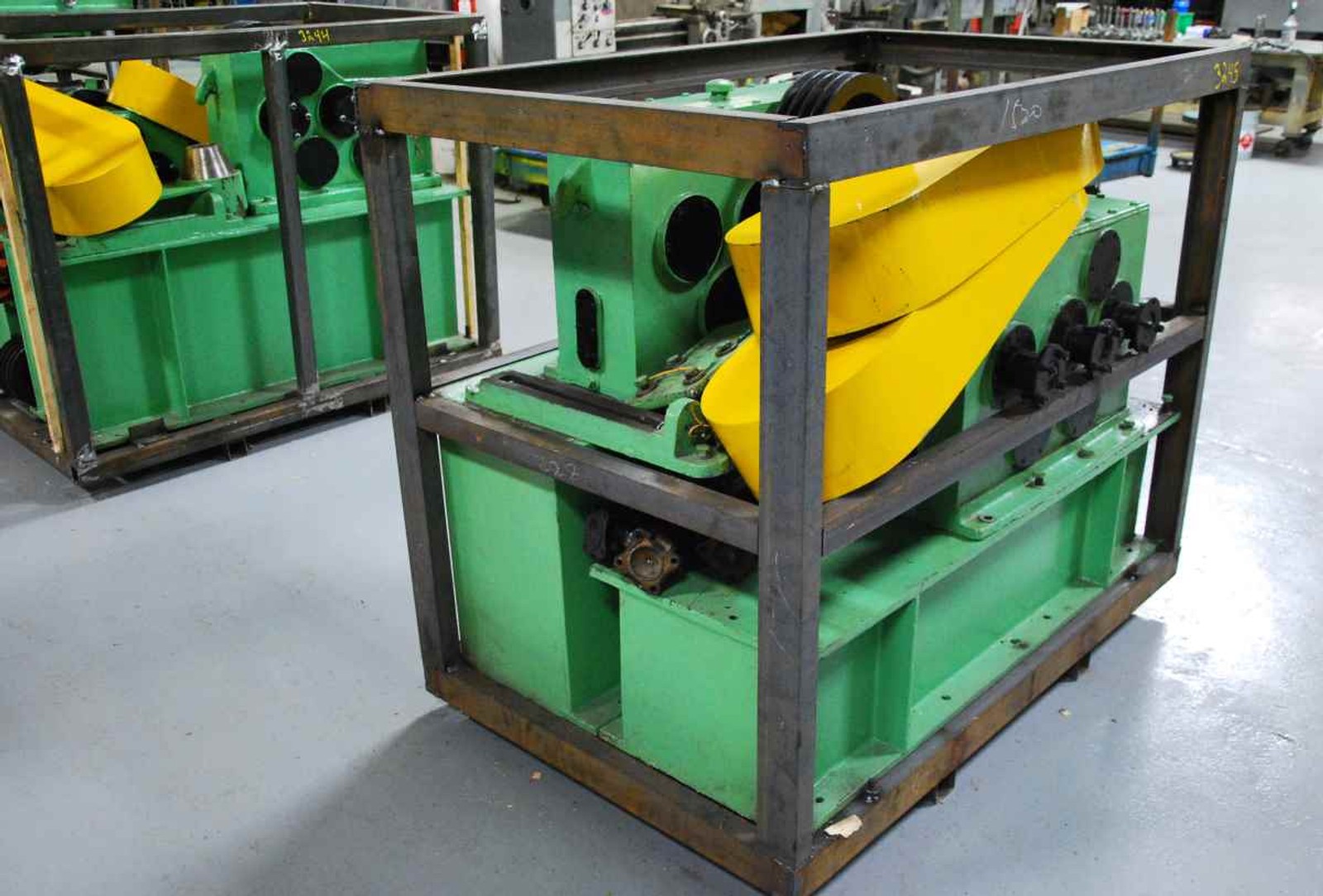

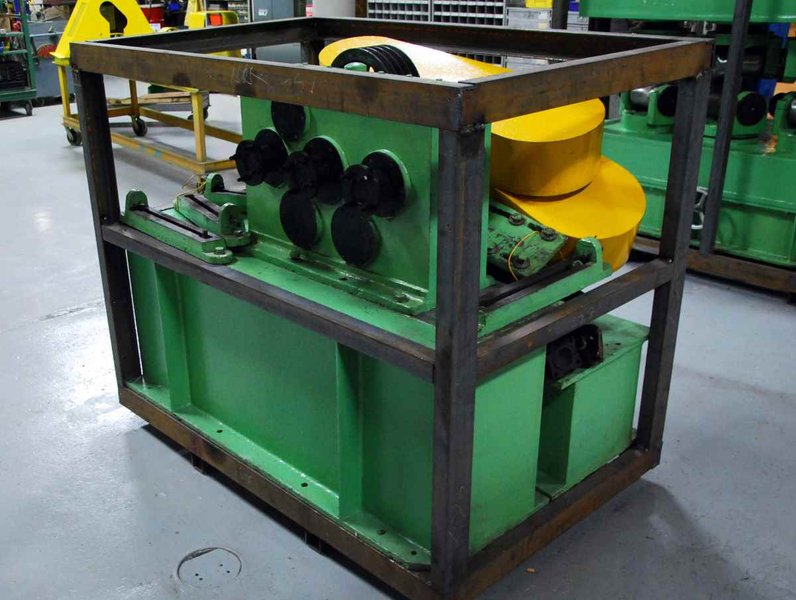

Drive Shafts & Gearboxes

NOTE: No Electrical Control or Motors.

OVERALL DIMENSIONS:
APPROXIMATE WEIGHT:
LOCATION: Universal Warehouse, Perrysburg, Ohio

No Video Available
