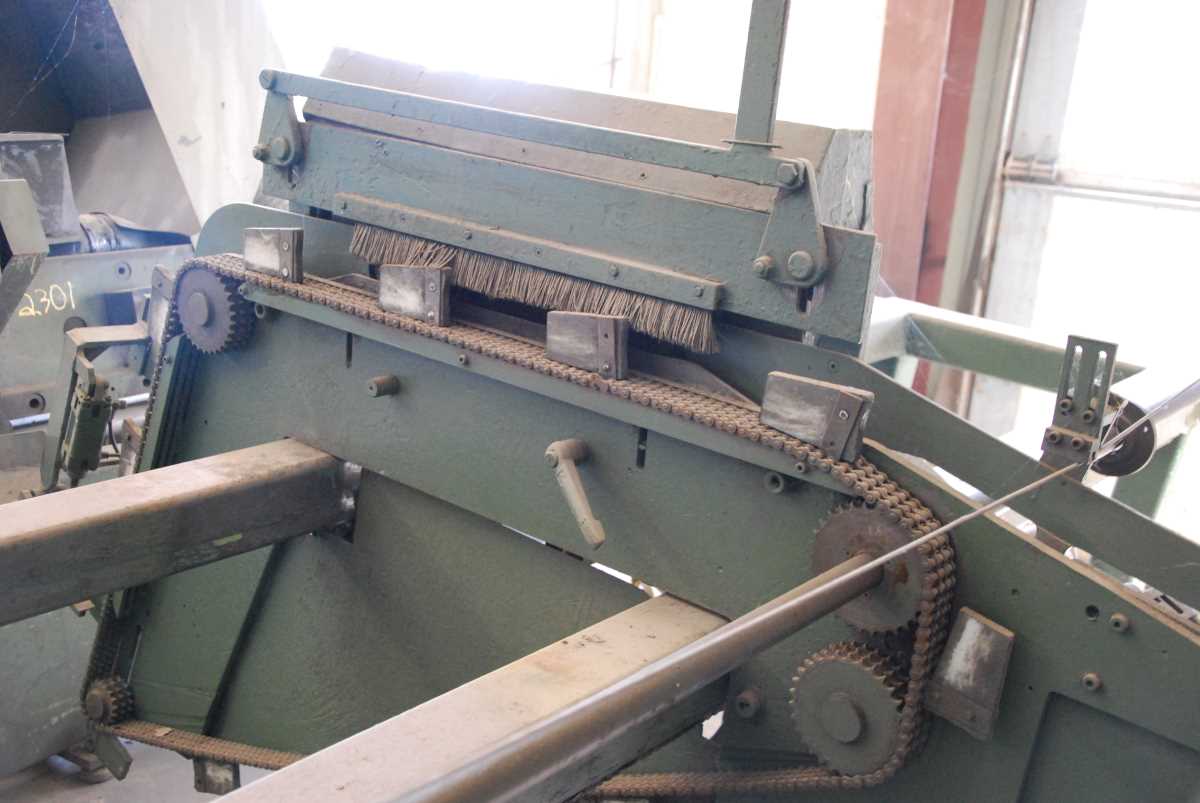

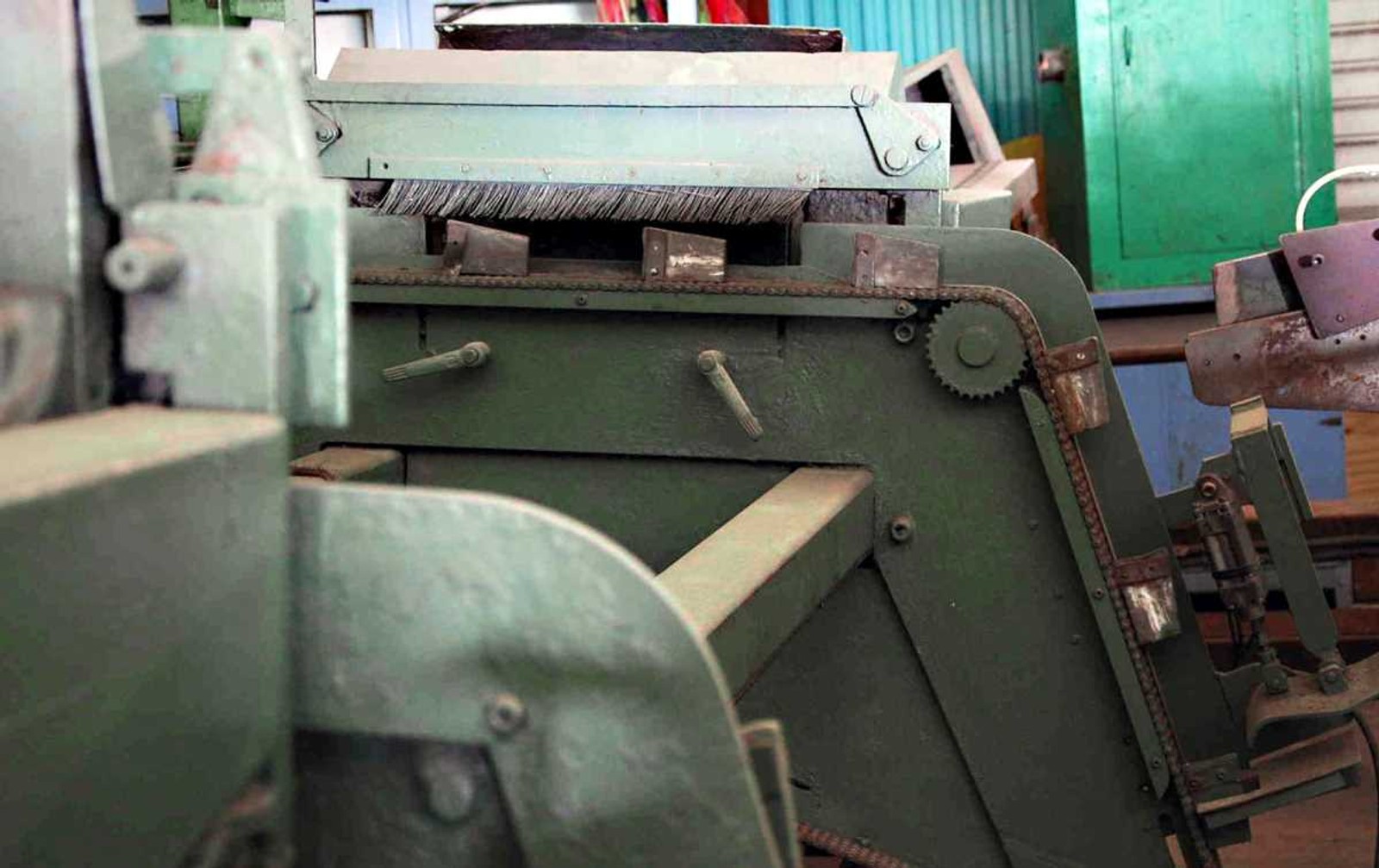

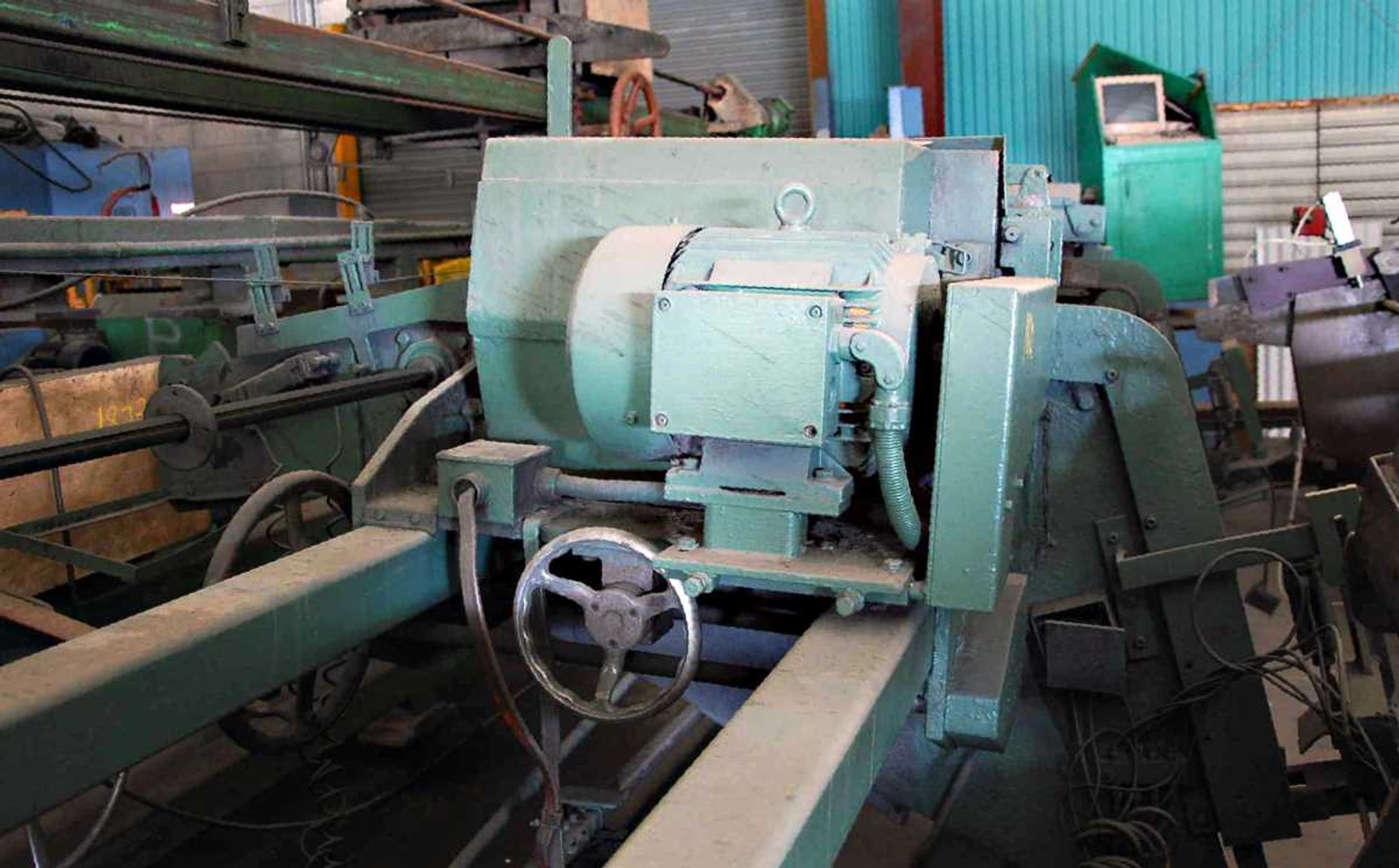

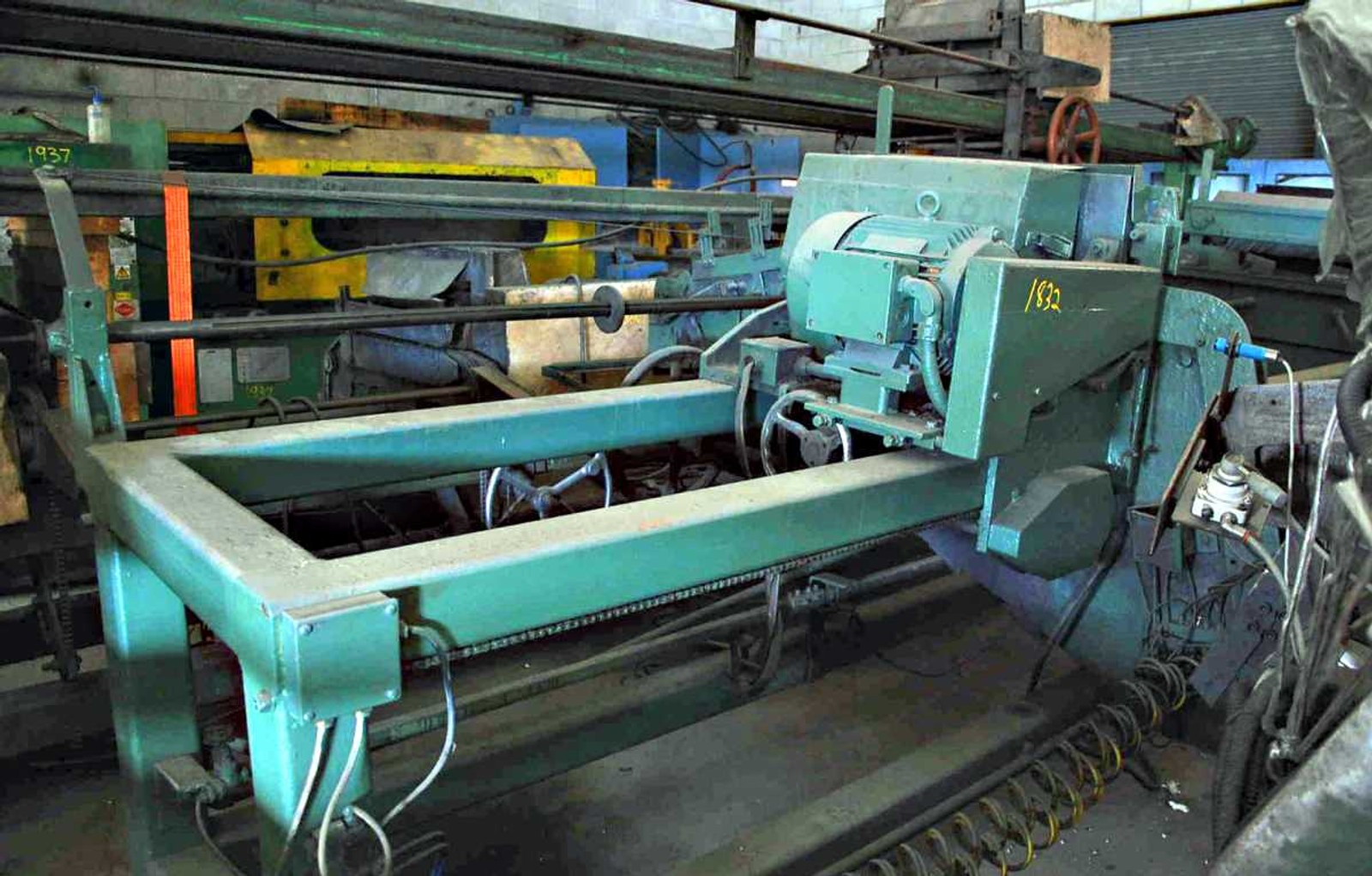

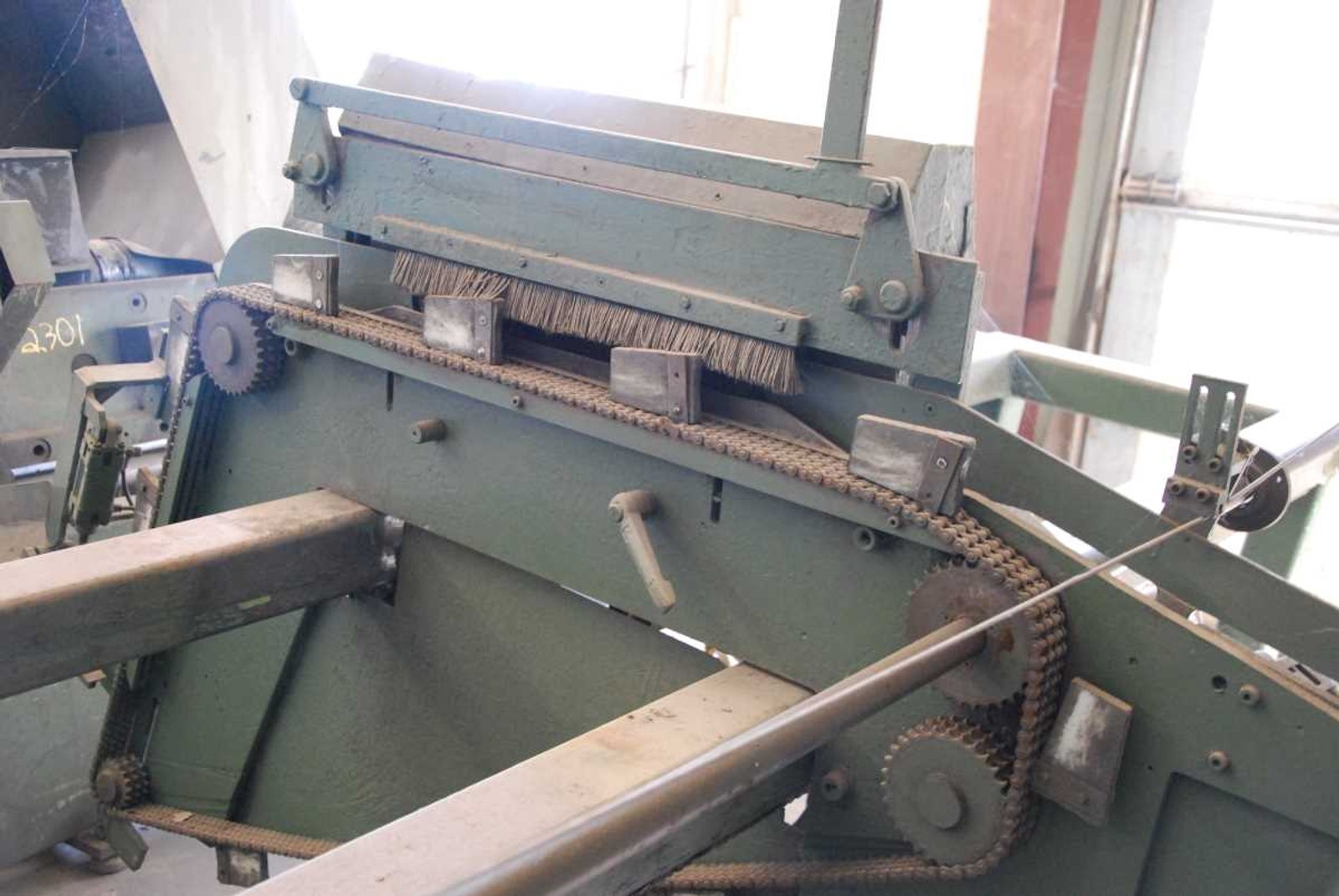

3" OD x 120" Max. BURRMASTER #1 Brush Deburring Machine

Stock

1832

Model

1

Dealer Location

Ohio

Spec Sheet

UTUBE NUMBER: 1832
MANUFACTURER: BURRMASTER, JOHN MARSHALL ENGINEERING
MODEL NUMBER: 1
YEAR: 1976

SPECIFICATIONS:
Maximum Tube Length: 120" (3,048 mm)
Minimum Tube Length: 6" (152 mm)
Maximum Tube Diameter: 3" (76.2 mm)
Minimum Tube Diameter: 3/8" (9.52 mm)
Maximum Bar Diameter: 2.4" (60.9 mm)
Minimum Bar Diameter: 3/8" (9.52 mm)
Profile Section: 3/8" x 3/8" to 2" x 2" (9.52 mm x 9.52 mm to 50.8 mm x 50.8 mm)
Output: 3,500 Maximum Pieces per Hour
Brush Length: 18" (457 mm)
Brush O.D.: 10" or 12" (254 mm or 304 mm)
Motors: (2) 5.5 Kw, 380/440/3/50

EQUIPPED WITH:
Electrical Panel
Push Buttons

OVERALL DIMENSIONS: 16′ x 7′ x 5′
APPROXIMATE WEIGHT: 2,800 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
