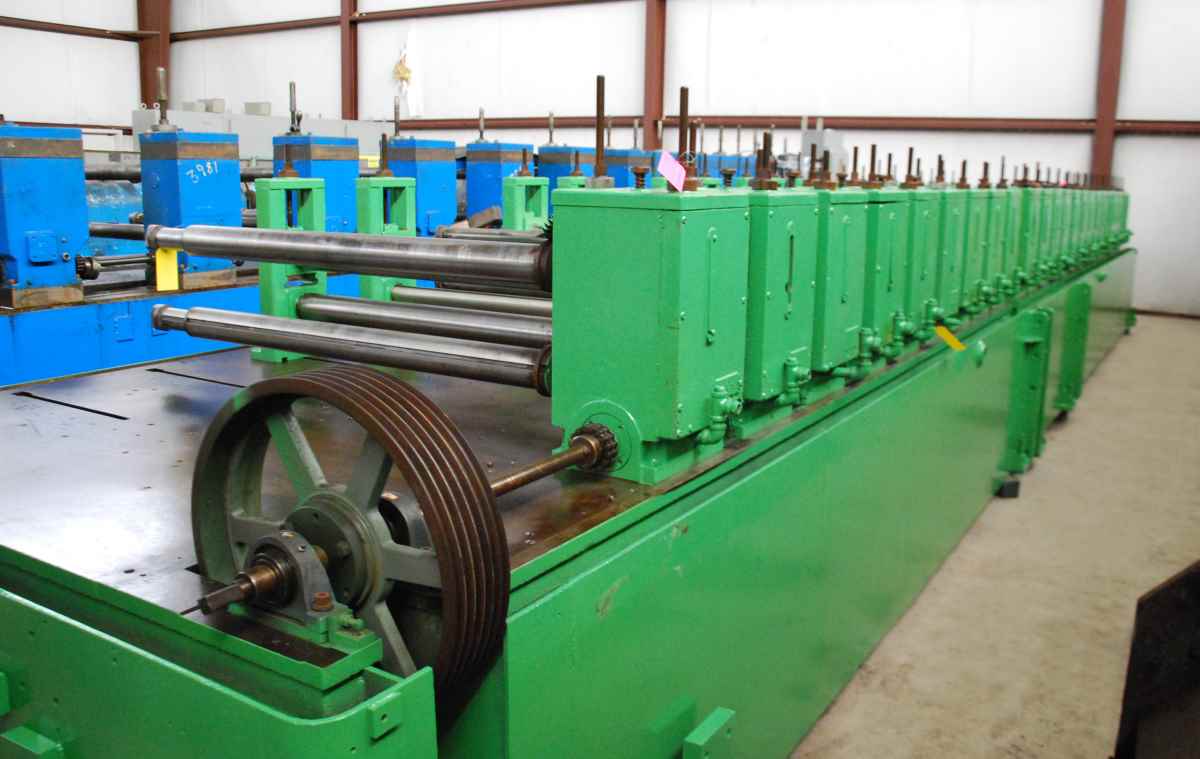

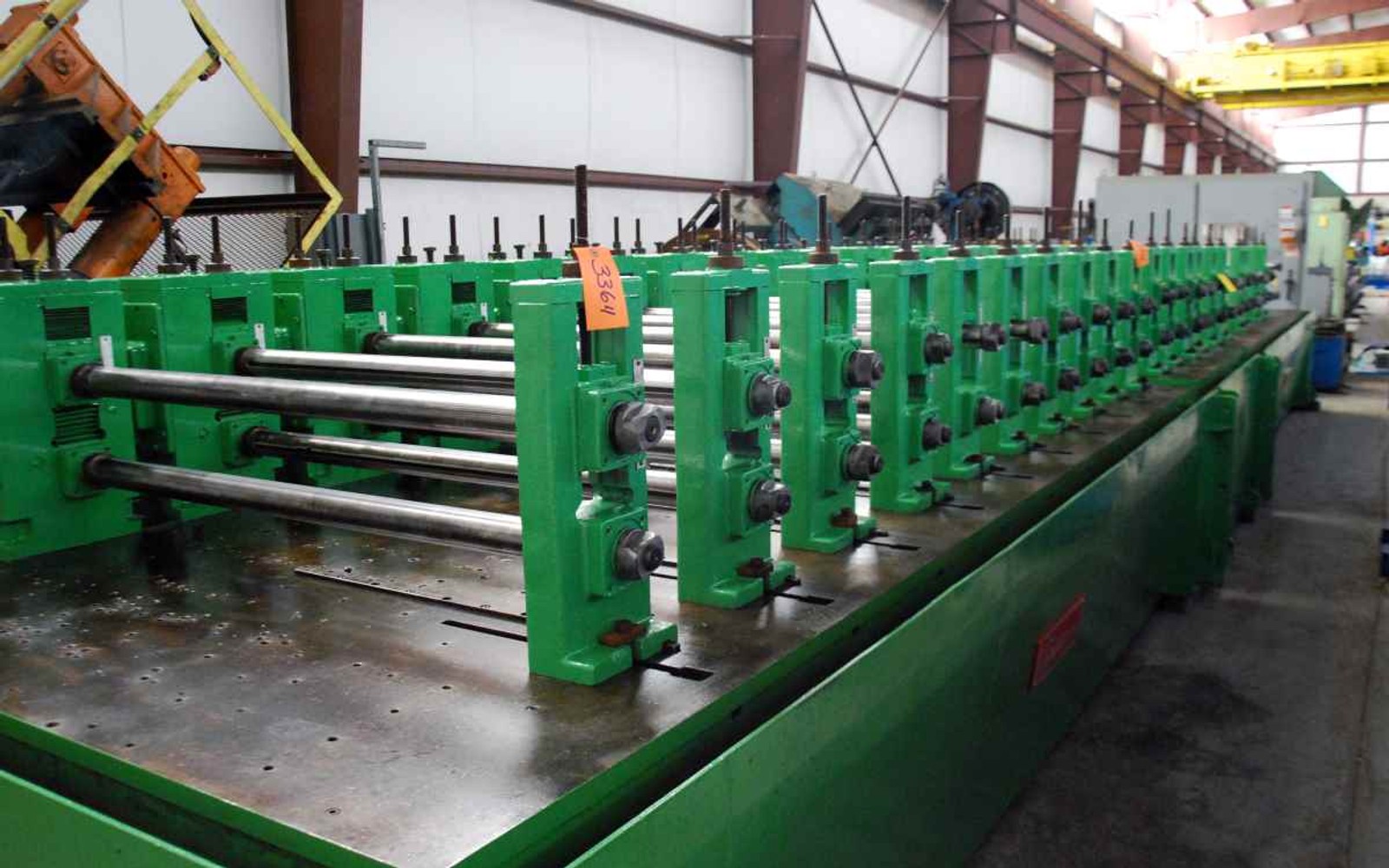

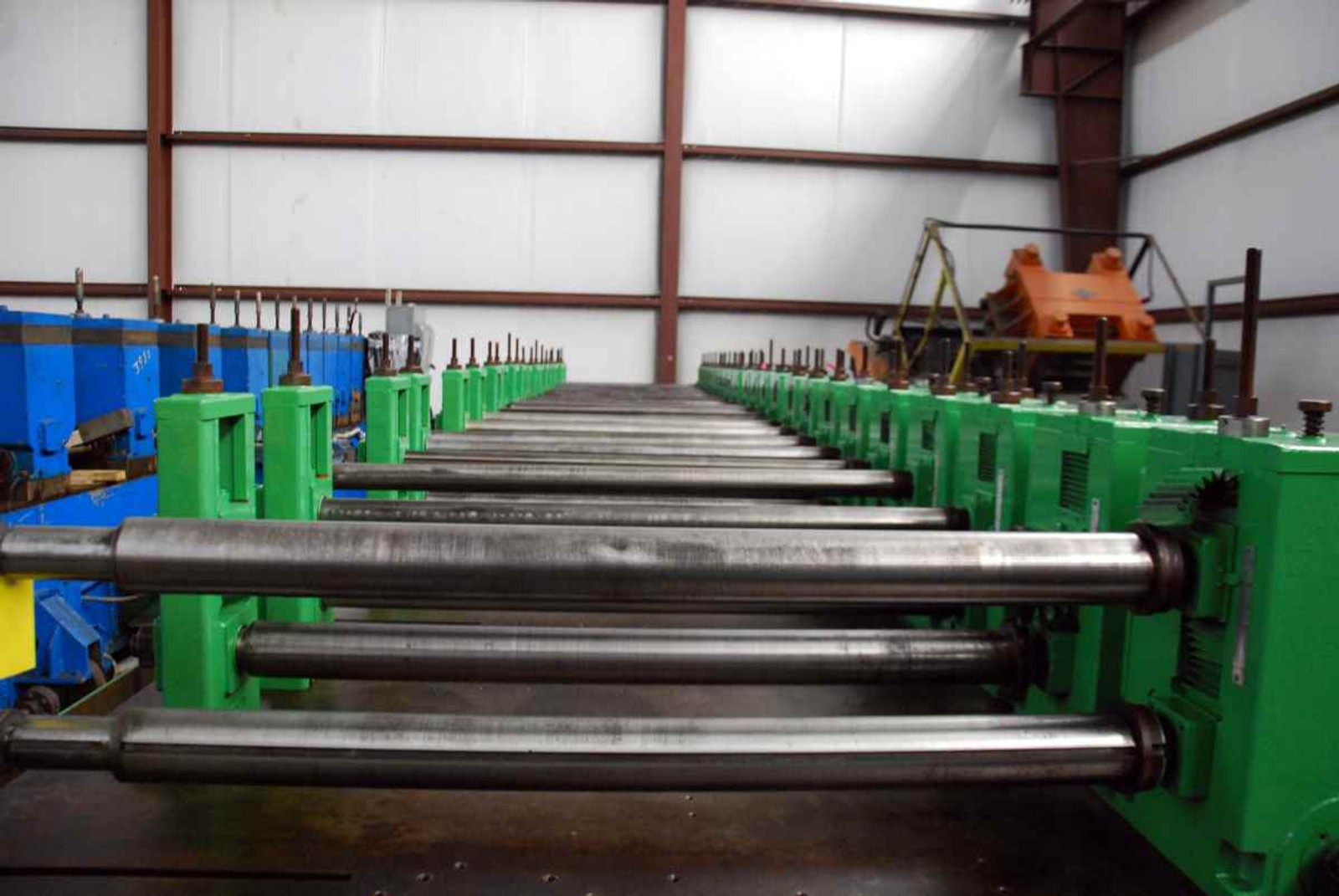

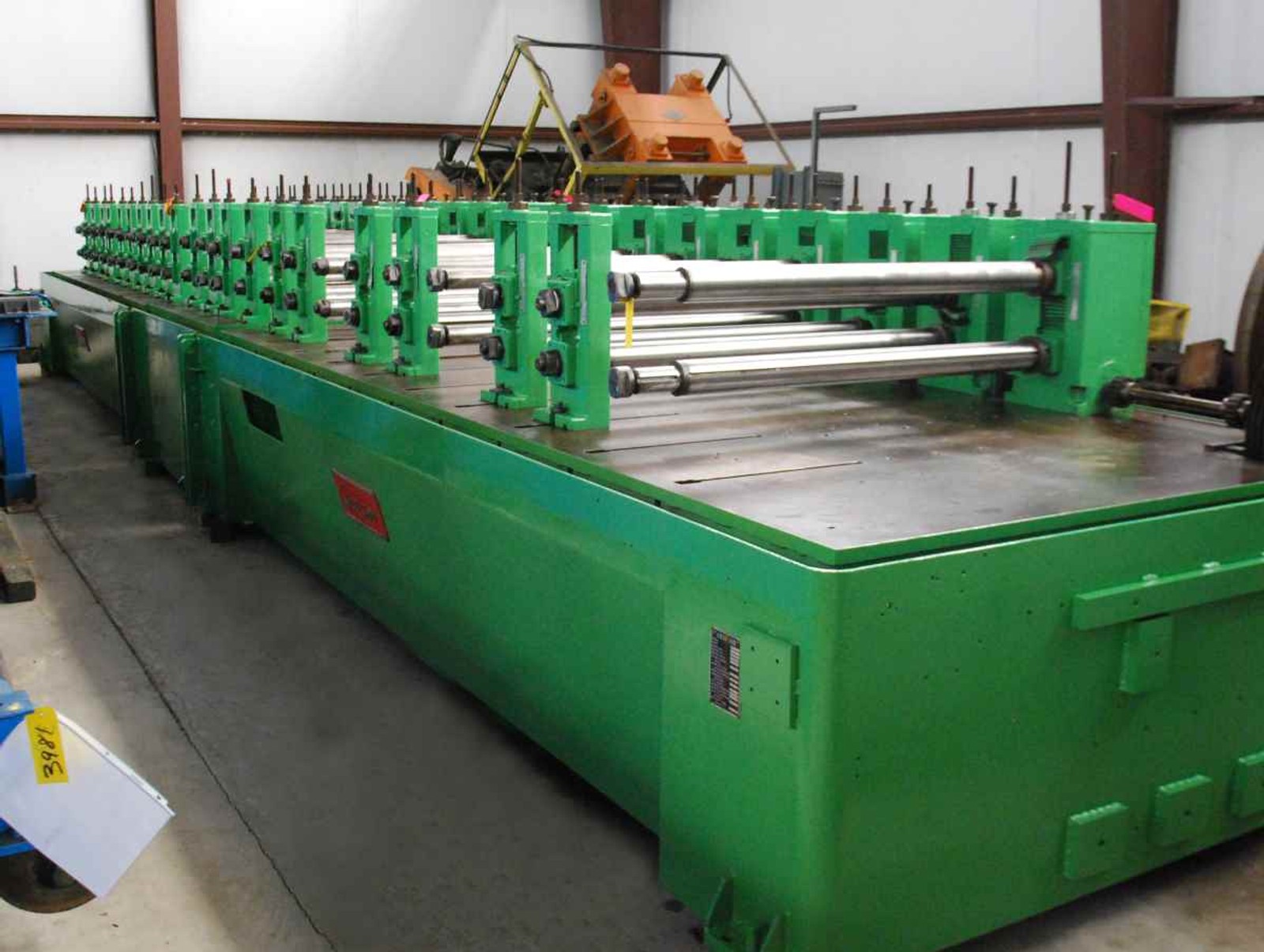

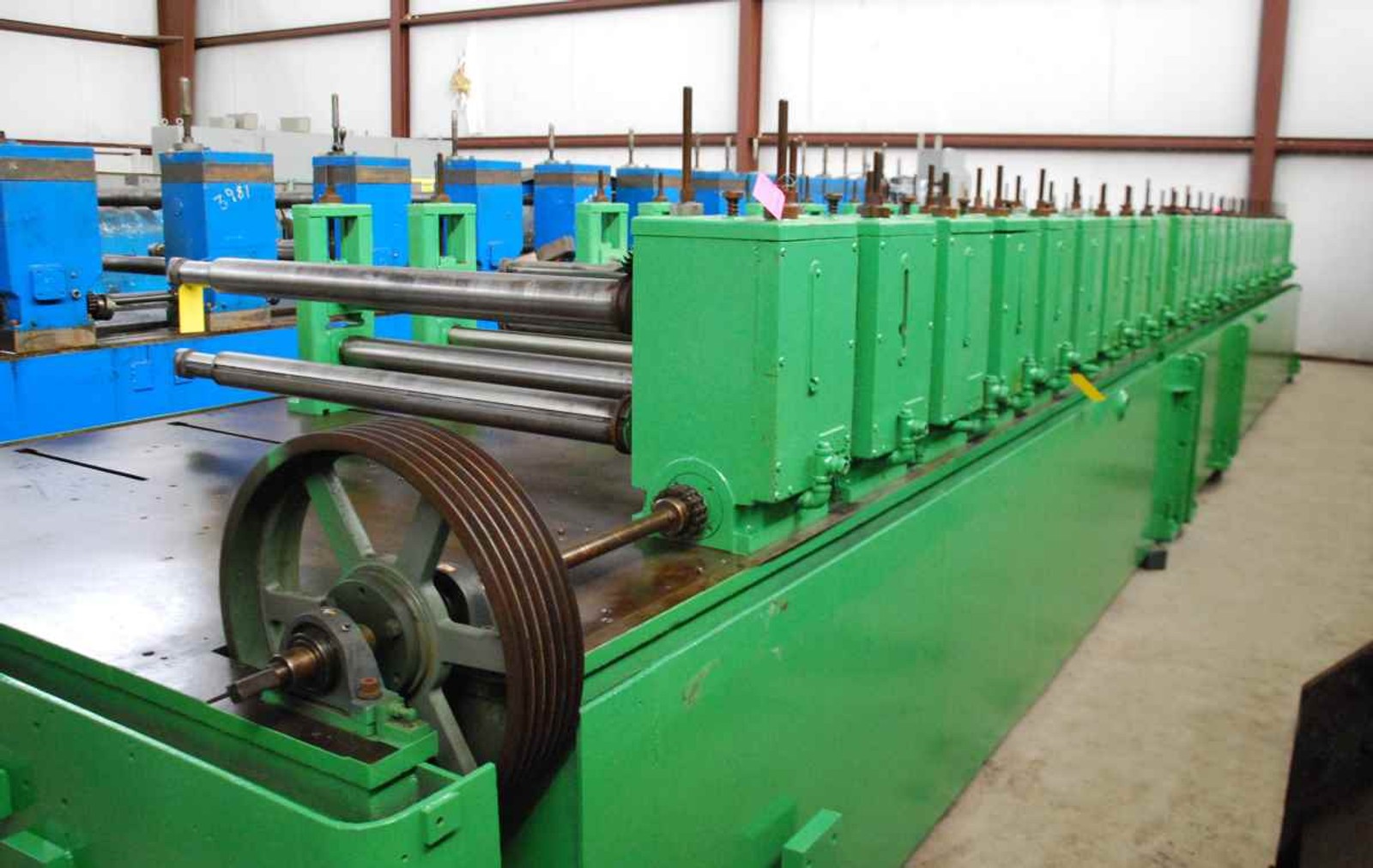

23 Stand x 2-1/2" x 48" ARDCOR Rollformer

Manufacturer

ARDCOR

Category

Roll Formers

Stock

3364

Model

None listed

Dealer Location

Ohio

Spec Sheet

UTUBE NUMBER: 3364
MANUFACTURER: ARDCOR
MODEL NUMBER: F15-2-1/2-48
SERIAL NUMBER: 83-088
YEAR: 1983

SPECIFICATIONS:
Line Direction: Right to Left
Number of Stands: 23 on a 24 Stand Base
Spindle Diameter: 2-1/2"
Roll Space: 48"
Horizontal Center: 16"
Vertical Adjustment: 5" – 9"
Base Top to Center Lower Spindle: 6-1/2"
Spindle Key Size: 3/8"
Gearing: Equal, Bottom Driven
Maximum Thickness: 12 gauge

NOTE: Missing (3) Outboards

OVERALL DIMENSIONS: 35′ x 7′ x 6′
APPROXIMATE WEIGHT: 40,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
