1/2" (12.7 mm) x .040" (1.01 mm) YODER W15 Reducing Tube Mill

Manufacturer

YODER

Category

Tube Machinery

Type

TUBE MILLS, HF/ERW

Stock

1166

Model

W15

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 1166
MANUFACTURER: Yoder Manufacturing Company
MODEL NUMBER: W15 Forming - W15 Reducing
SERIAL NUMBER: Y1352-62

SPECIFICATIONS:
Type: Refrigeration Mill, Carbon Steel
Hand of Operation: Left to Right
This machine was used to manufacture refrigeration tubes that must be reduced to increase length and maintain wall thickness.
The tube is welded at .480" (12.1 mm) and reduced to smaller sizes.
Maximum Wall Thickness .040" (1.01 mm)
Minimum Wall Thickness .028" (.711 mm)
Typical Wall: .030" (.762 mm)
Welding Speed: 125 FPM Max., Gear In Speed, No Load
Reducing Speed: 275 FPM @ 3/16" (4.76 mm)
200 FPM @ 1/4" (6.35 mm)
150 FPM @ 5/16" (7.93 mm)

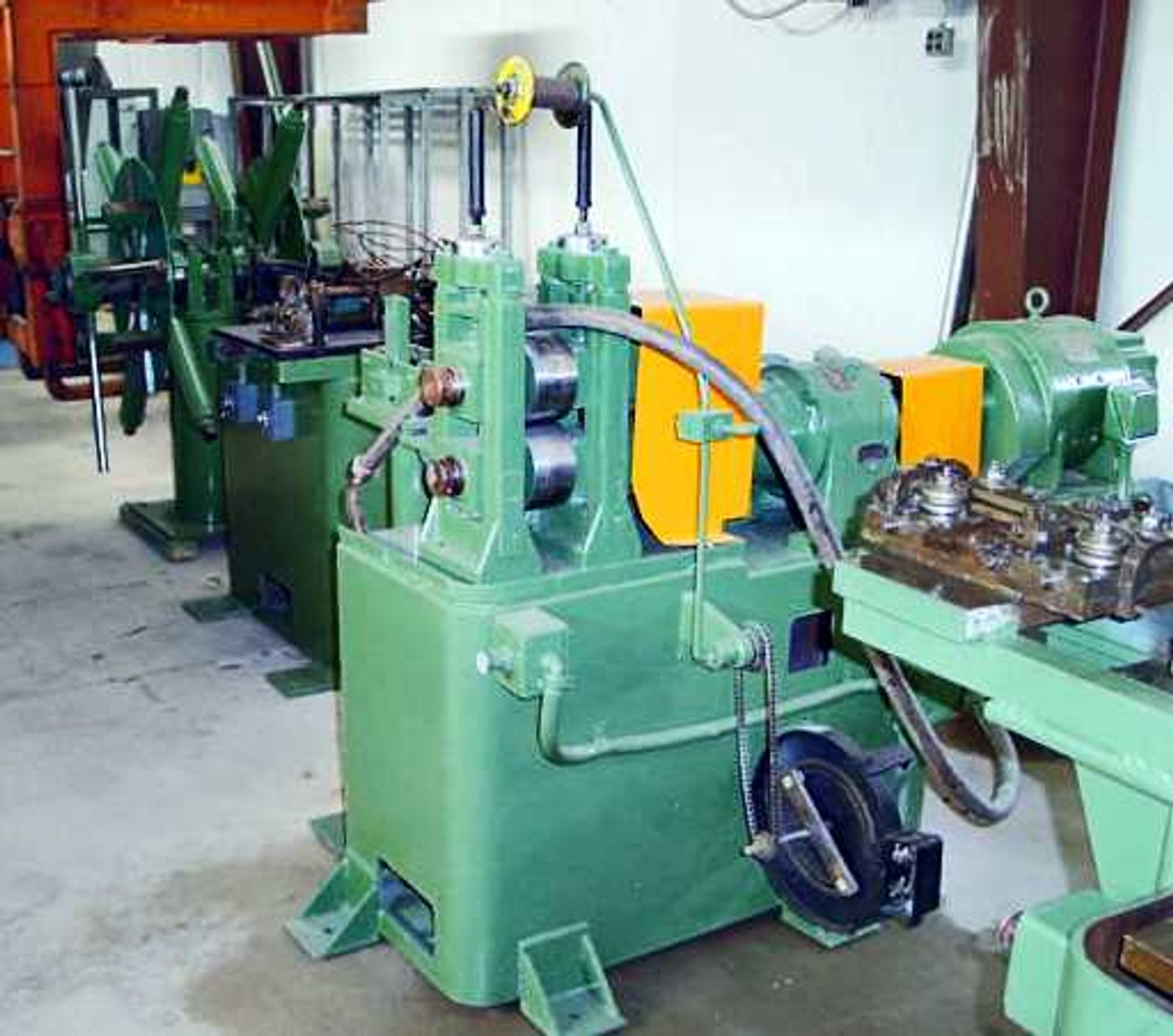

ENTRY EQUIPMENT:
2,000 Lb. (1 Ton) Gantry Crane
2,500 Lb. (1.2 Ton) Double Uncoiler
Overhead Looper 2 Strand, Approximately 300 Feet Storage
Shear & End Welder
Pinch Roll Pull Out Stand, 10 H.P.

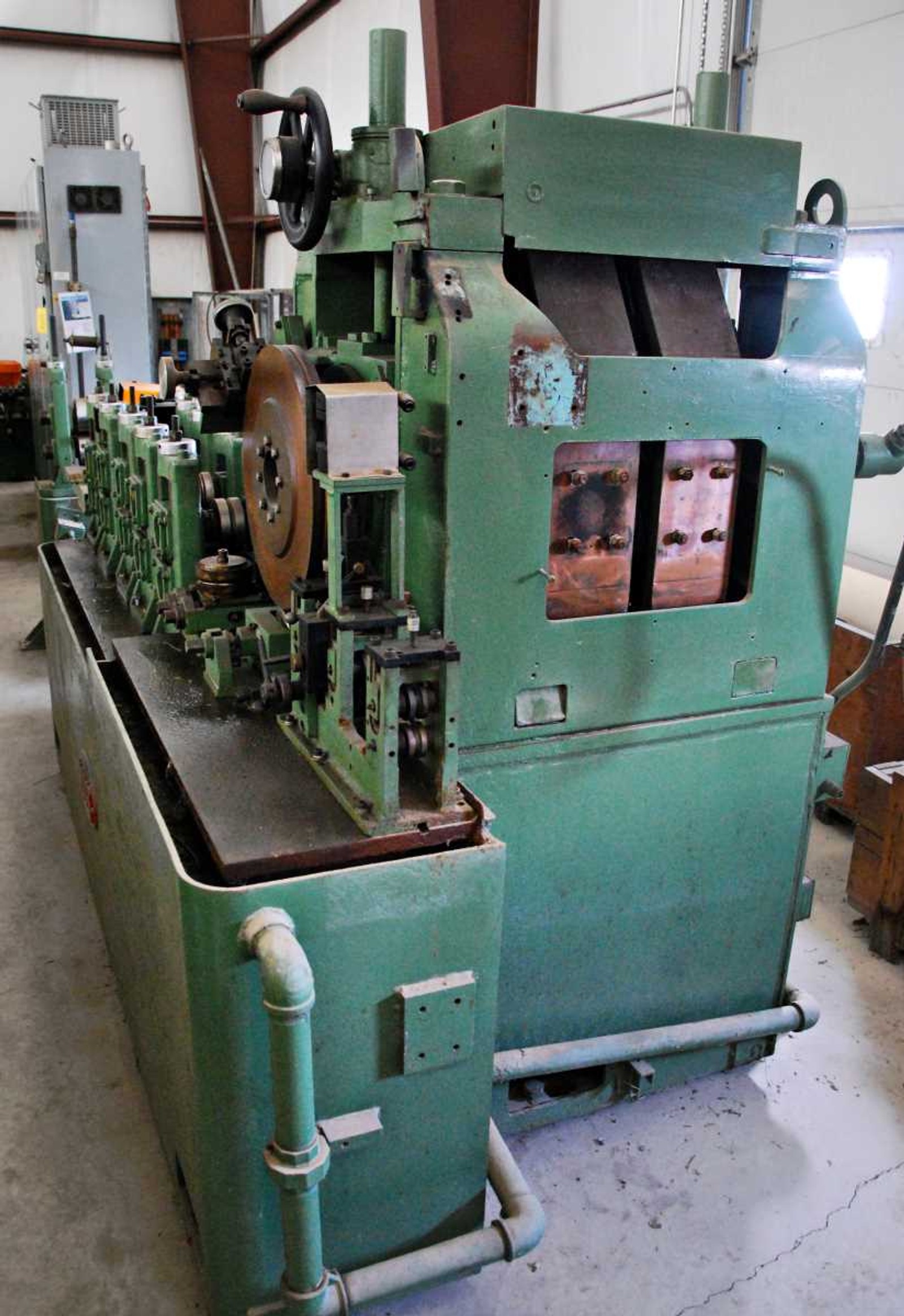

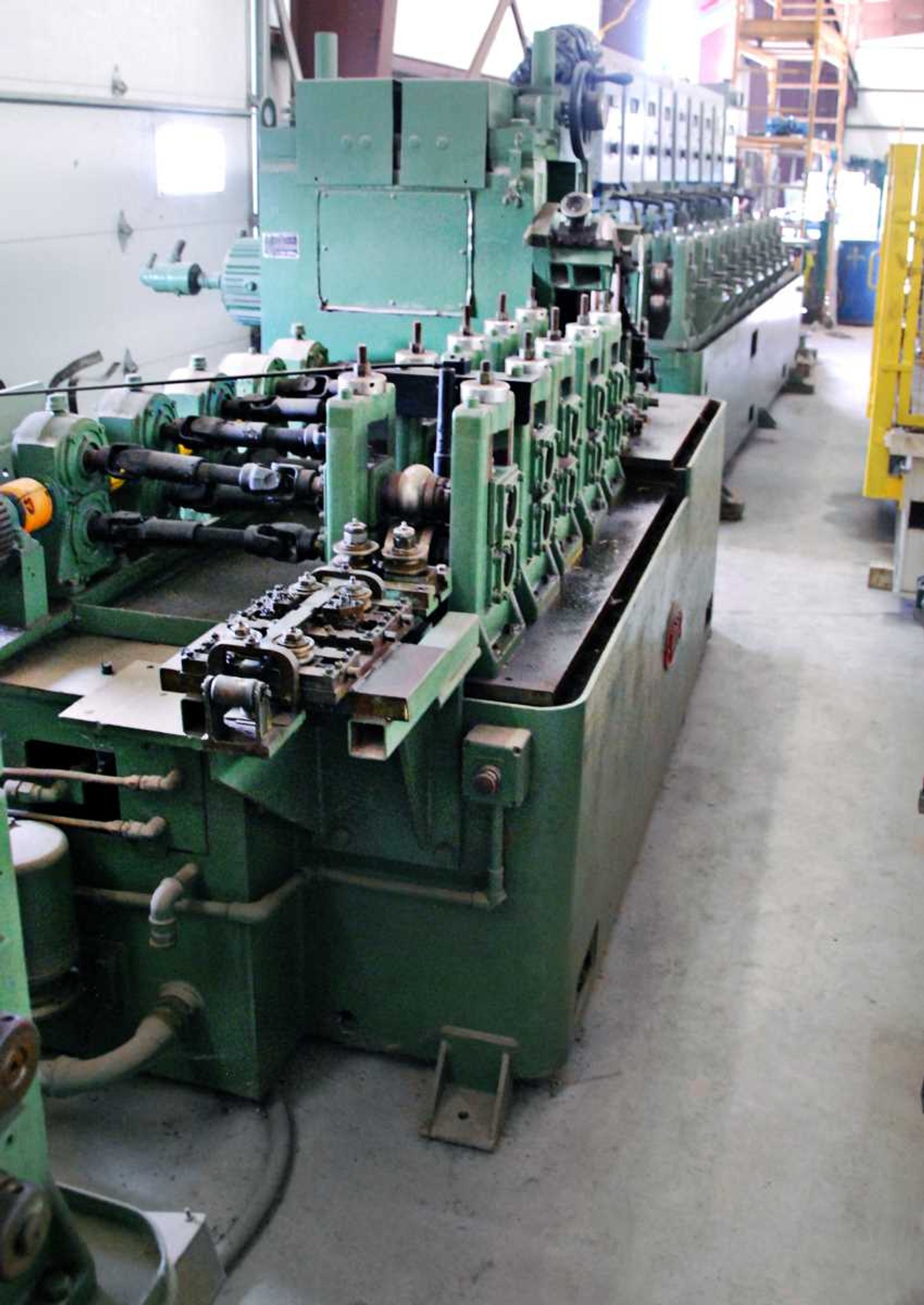

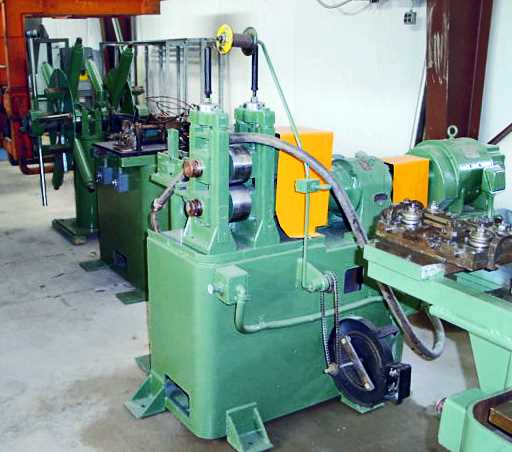

FORMING MILL:
(1) Entry Guide Unit
(3) Driven Breakdown Stands
(2) Driven Fin Passes
Shaft Diameter: 2"
(4) Idle Side Roll Units
(1) Seam Guide Unit

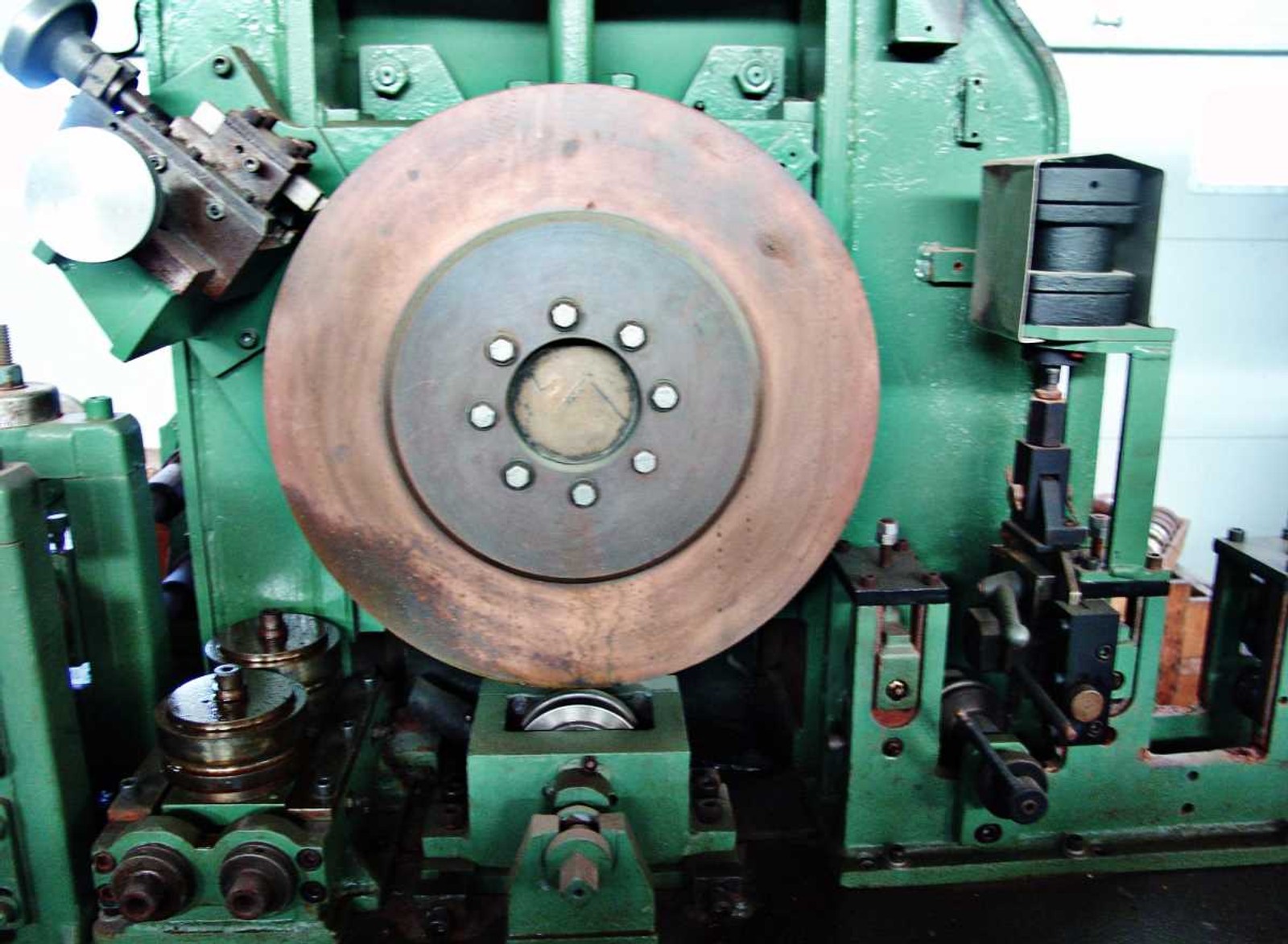

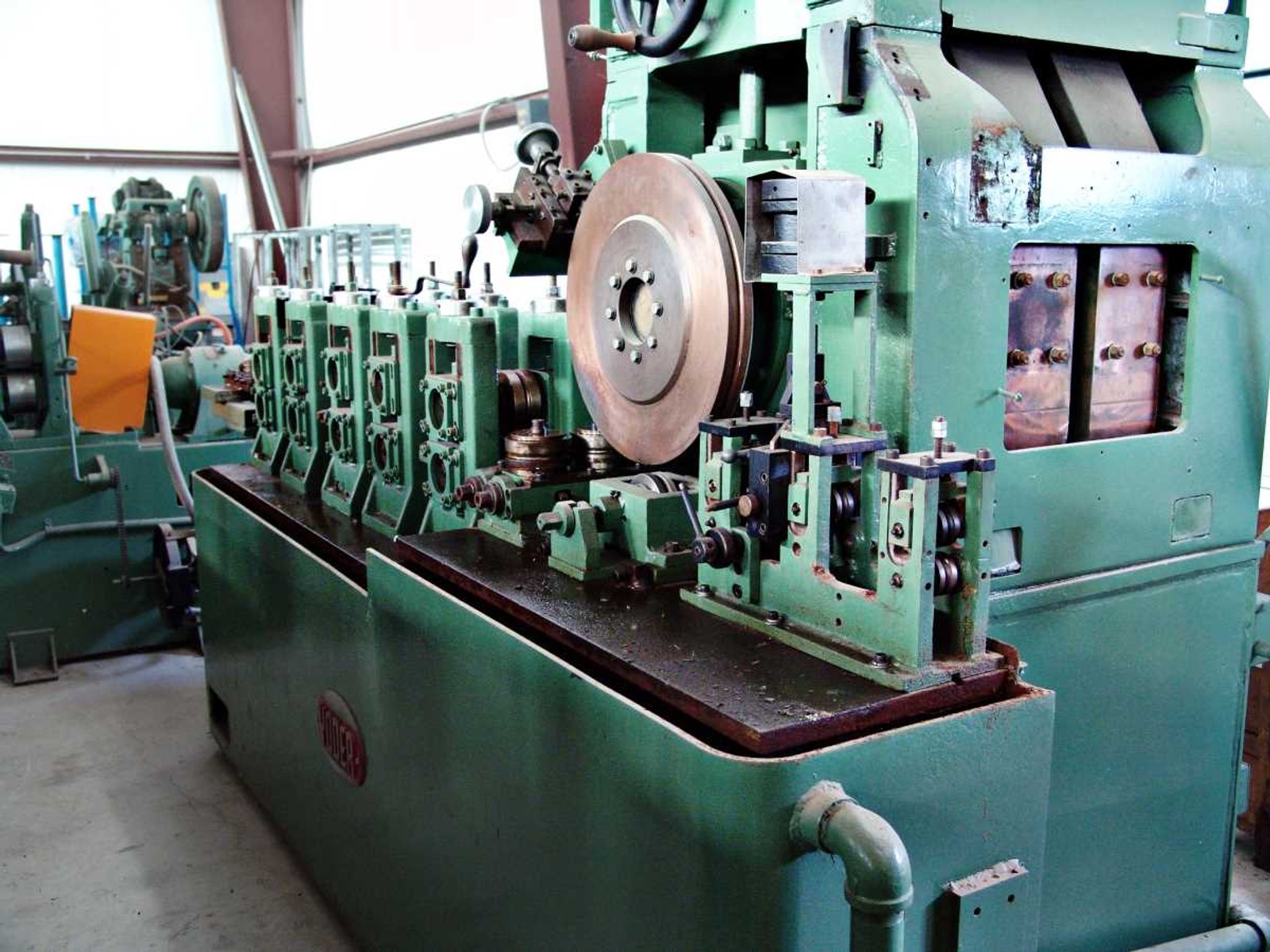

(1) 18,000 Amp. D.C. Welder Rotary Resistance
(1) Scarfing Unit
(1) Coolant Section
(1) 20 H.P. D.C. Motor

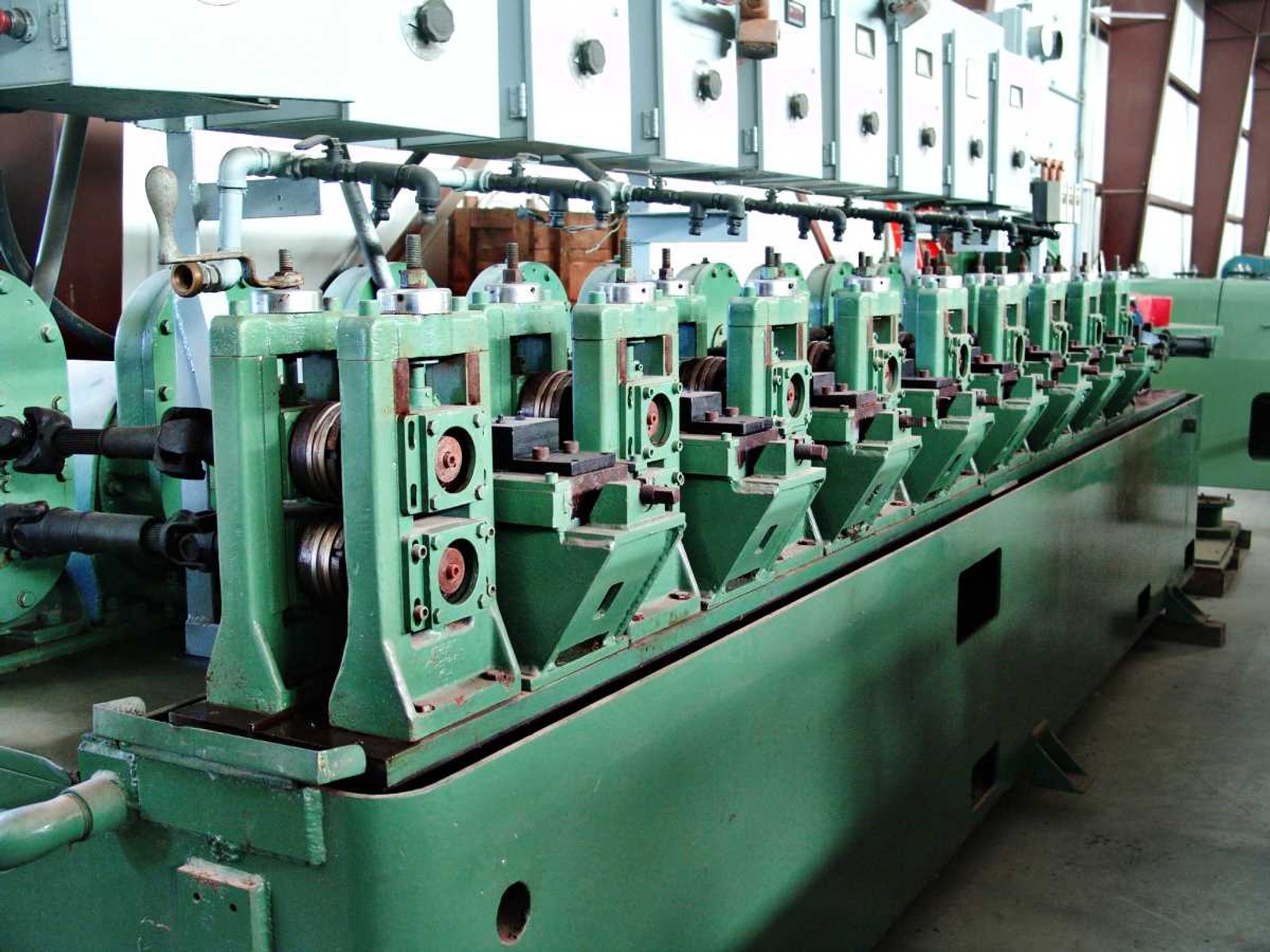

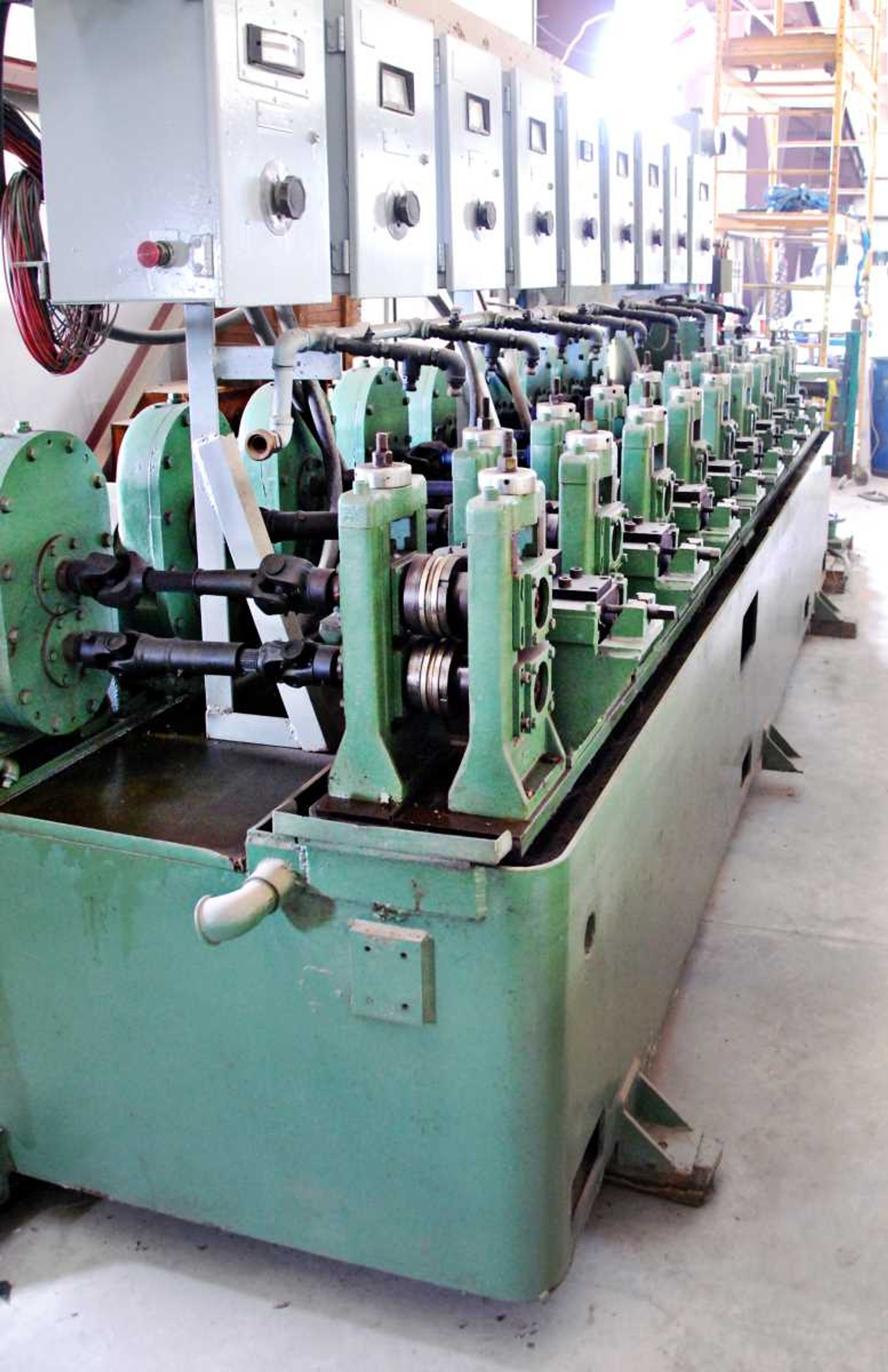

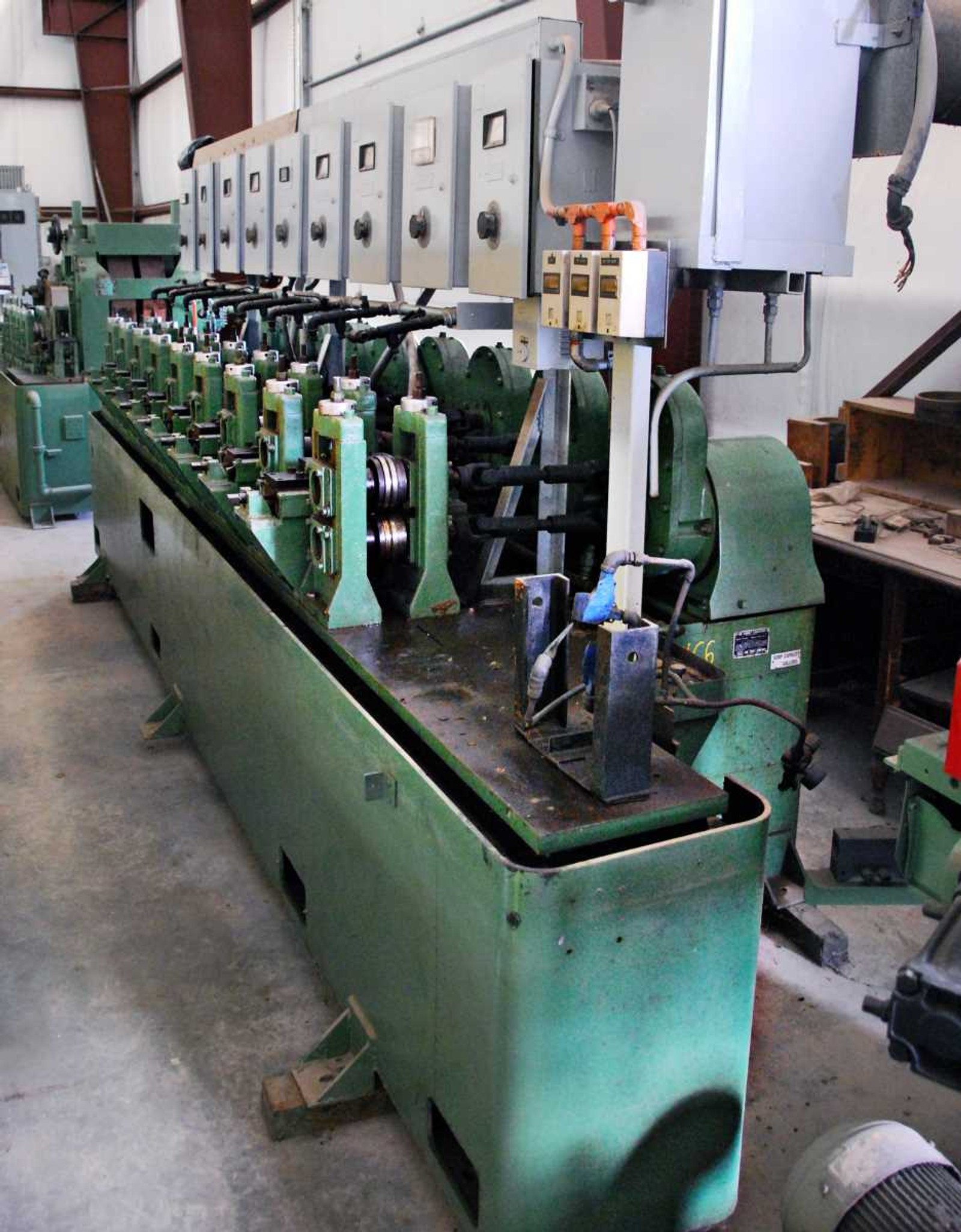

REDUCING (Sizing) MILL:

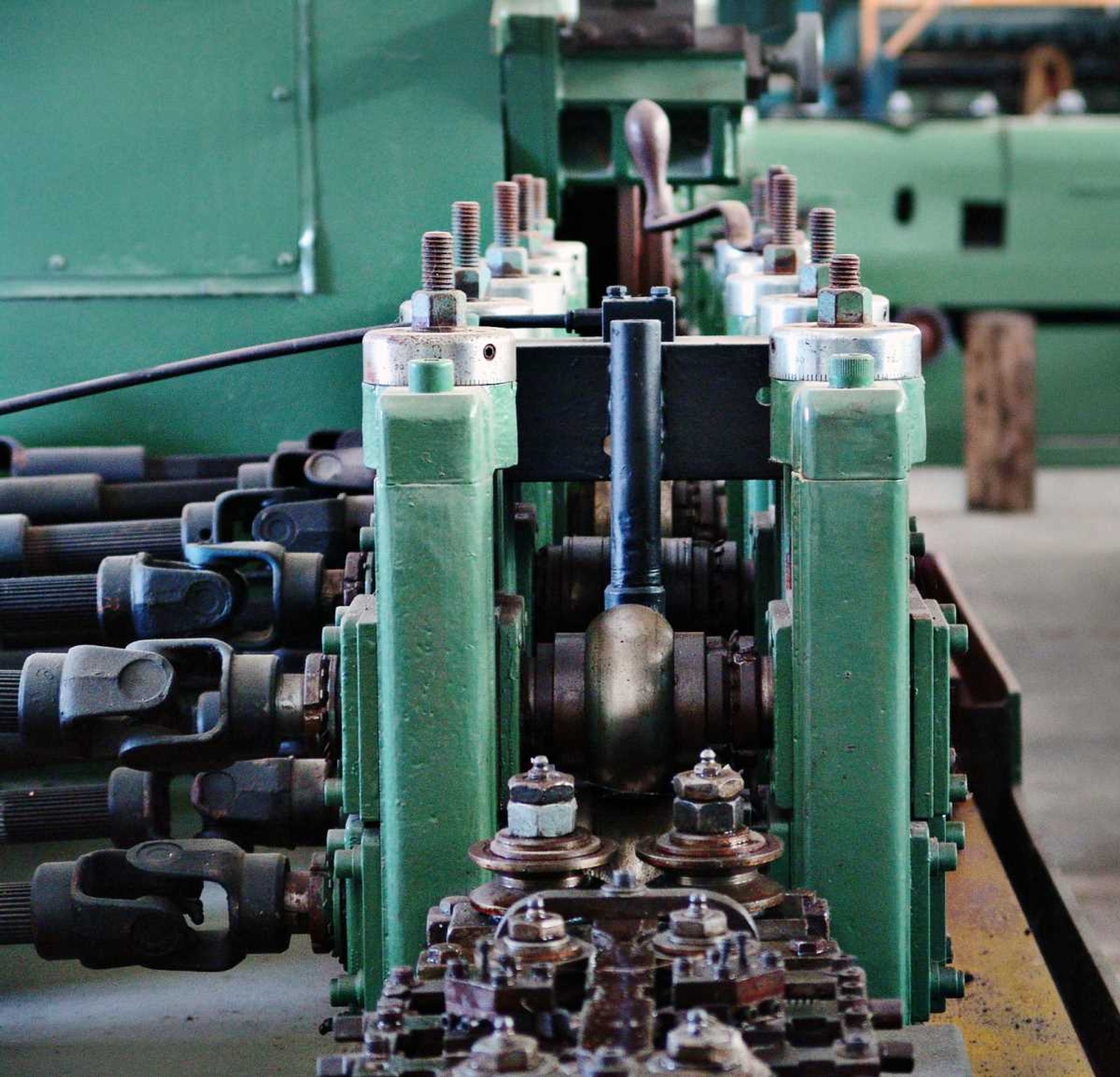

(9) Driven Reducing Stands
Shaft Diameter: 3"
(9) Idle Side Roll Units

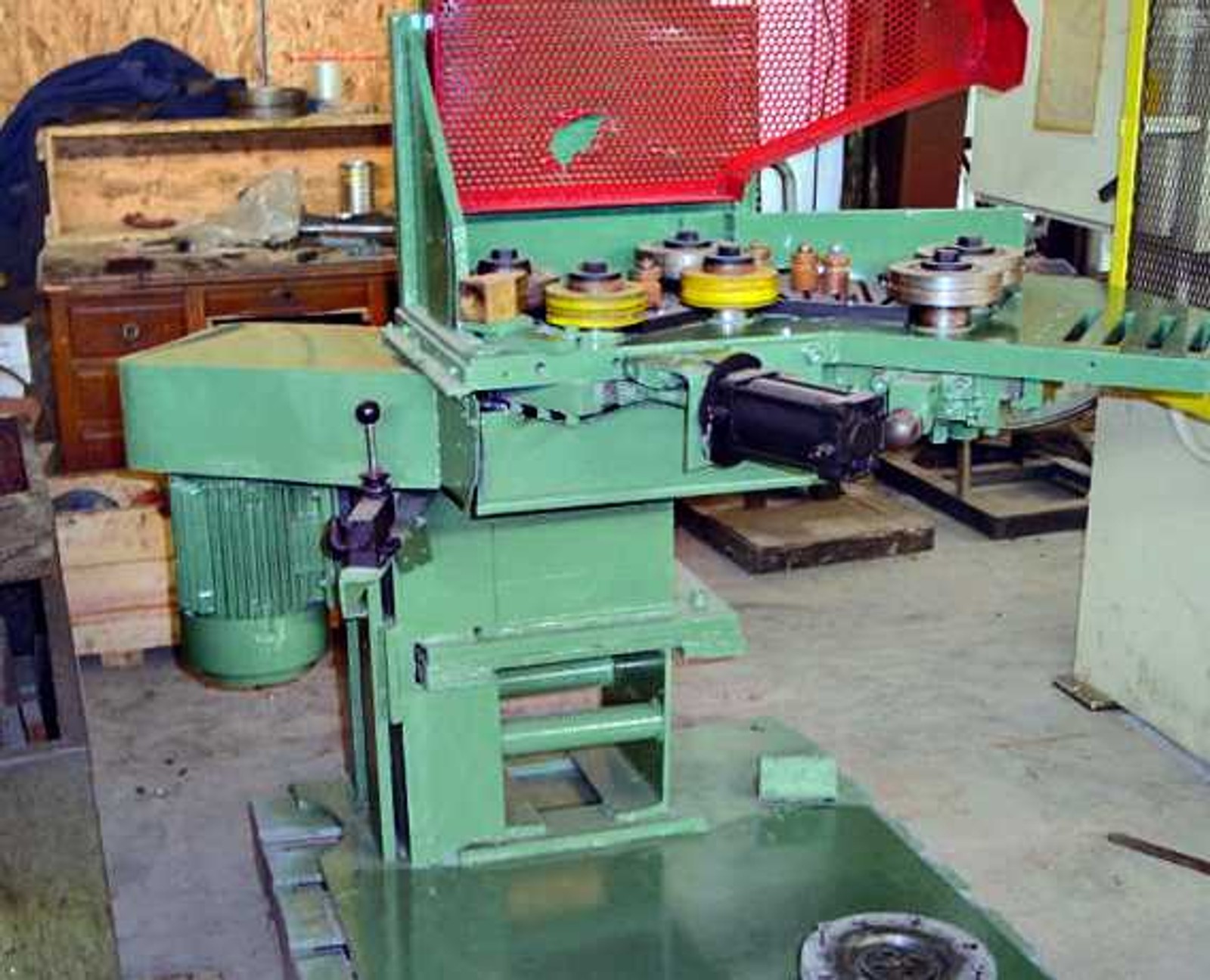

(1) Straightener Stand
(9) 7.5 H.P. D.C. Motors

D.C. DRIVE SYSTEM
(1) WALCO Solid State D.C. Drive System, with CUTLER HAMMER Controls
• Voltage 380/3/50

TOOLING:
3/16" (4.7 mm) - 1/4" (6.35 mm) - 5/16" (7.93 mm)
All Produced From 1/2" (50.8 mm) Welded Tube

NOTE:
Tooling is believed to be complete, but suggest customer inspection to confirm.

OVERALL DIMENSIONS: Multiple Pieces, 3 Truckloads
APPROXIMATE WEIGHT: 65,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
