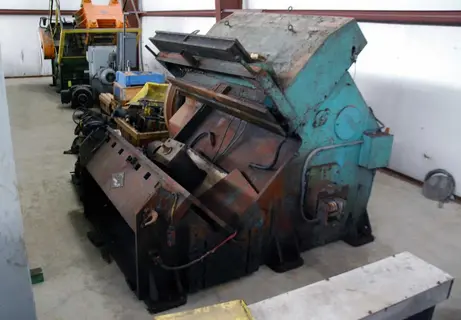

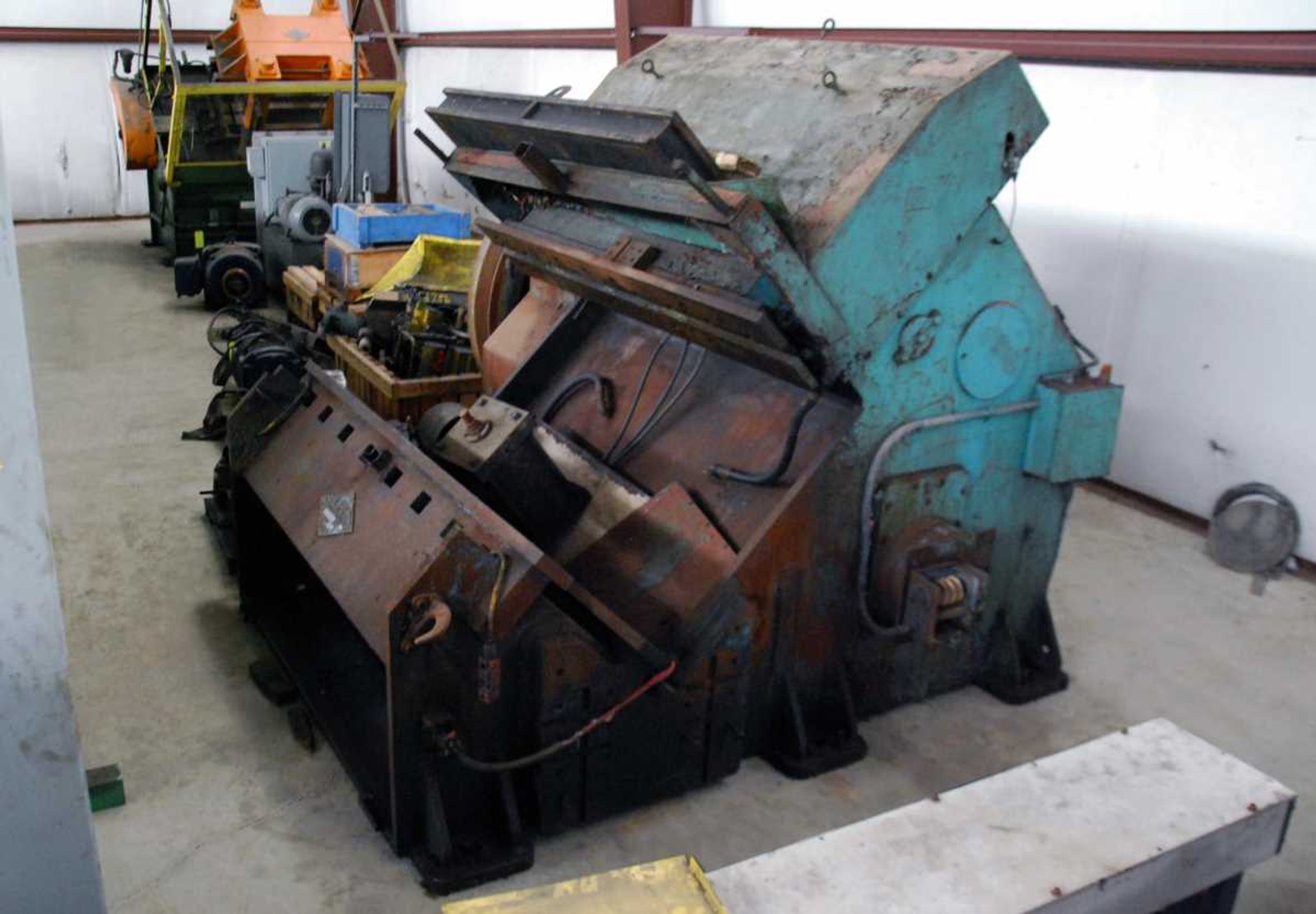

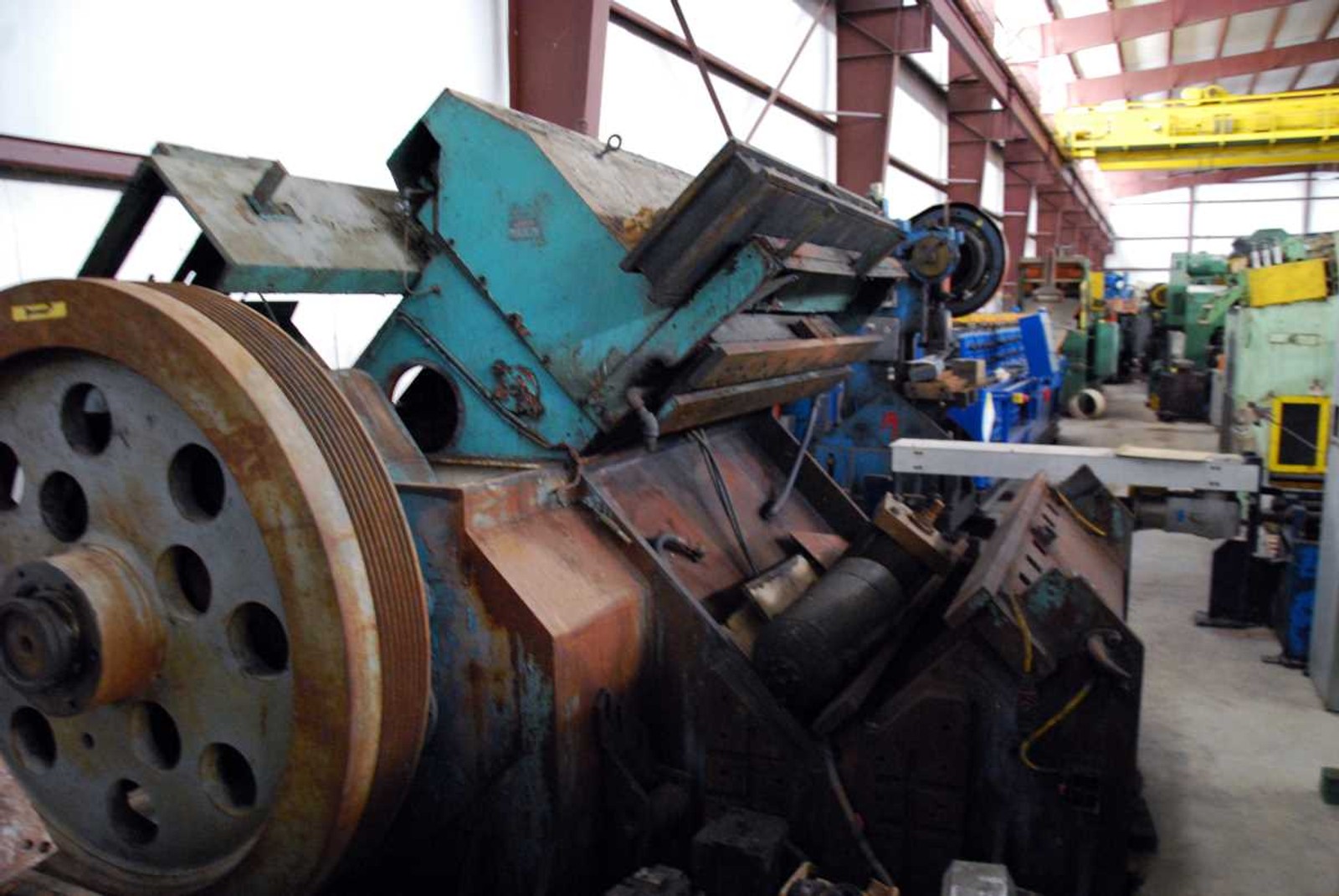

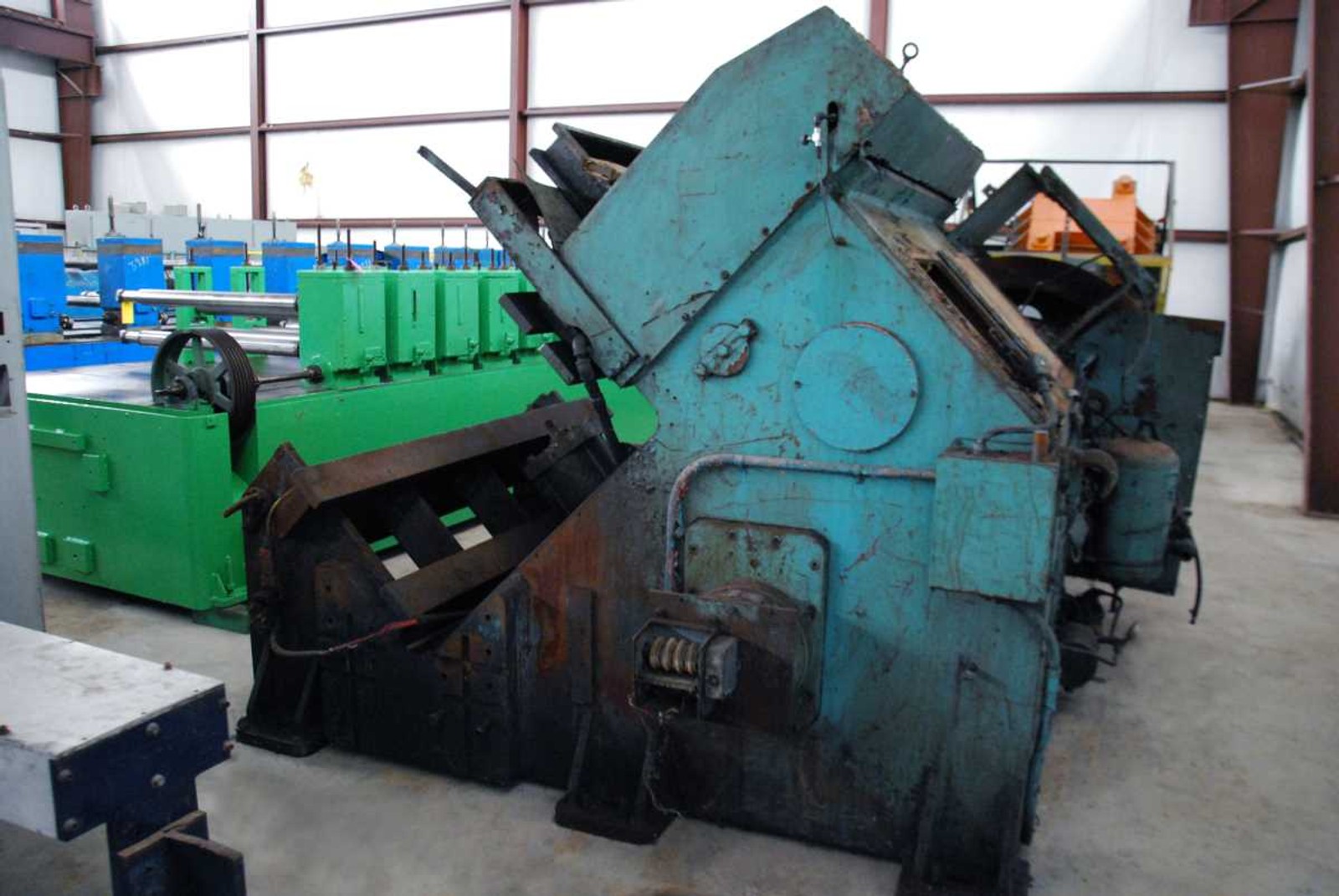

5" (127 mm) x .187" (4.74 mm) ALPHA #IR 20-3-56 Flying Cut-Off

Manufacturer

ALPHA

Category

Tube Machinery

Type

TUBE MACHINERY, (Cut Off)

Stock

1553

Model

IR 20-3-56

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 1553
MANUFACTURER: ALPHA
MODEL NUMBER: IR-20-3-56
SERIAL NUMBER: 3

SPECIFICATIONS:
Inclined Ram Type Cut-Off
Maximum Tube Diameter: 5" (127 mm)
Minimum Tube Diameter: 3/4" (19.0 mm)
Maximum Wall Thickness: .187" (4.74 mm)
Minimum Wall Thickness: .028" (.711 mm)
Tube Speed: 30 - 200 FPM
Cuts Per Minute: 30

EQUIPPED WITH:
(1) Single Cut Die Set
DELCO AC Motor, 50 HP, 1105 RPM
Electrical: 575/3/60
MINSTER 2 Disc Clutch
Tooling: Round Sets: 3", 3.5"
Square Sets: 2", 1.5", 4", 2.173", 2.625"
Rectangle Sets: 2" x 4", 3" x 1.5"

OPTION: New U-TRAK Accelerator with Controls Additional $75,000.00

OVERALL DIMENSIONS: 10' 3" L x 9' 6" W x 7' 4" High
APPROXIMATE WEIGHT: 28,000 Lbs.

Footprint on Base: 101" Length x 95 Front to Back
Pass Line Height to Bottom of Jaws: 35" (Approximate)

LOCATION: Universal Warehouse, Perrysburg, Ohio
