60" x .250" x 10" PAXSON Slitting Line

Stock

3866

Model

None listed

Dealer Location

Ohio

Spec Sheet

UTUBE NUMBER: 3866
MANUFACTURER: PAXSON
YEAR: 1982

SPECIFICATIONS:
Material: HRS, CRS, HRPO, Galvanized / Maximum Strength: 50,000 PSI Shear, 40,000 PSI Yield
Thickness: .015" - .250"
Coil Weight Capacity: 40,000 lbs.
Coil Width (Maximum): 60" Trimmed, 62" Untrimmed
Coil I.D.: Entry: 20" - 24" / Exit 20"
Coil O.D.: Entry: 42" - 72" / Exit: 42" - 72"
Line Speed: Two-Speed, 130 and 390 FPM @ bare drum
Line Direction: Right to Left
Mode of Operation: Pull-Thru & Drive Assist

EQUIPPED WITH:

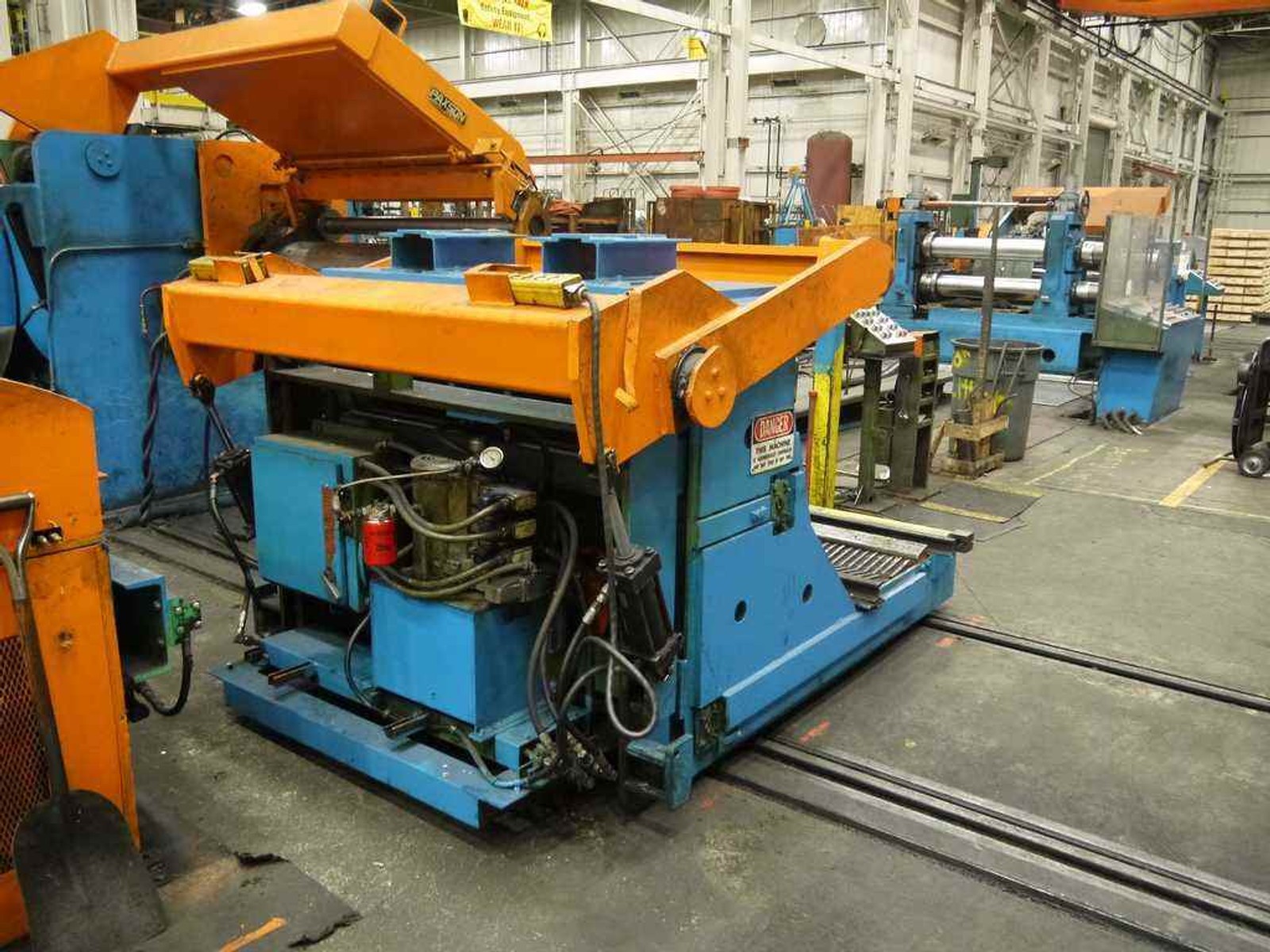

Entry Coil Car:
• S/N 11700-1
• L-Type
• Self-Contained Hydraulic Power Unit
• Hydraulic Lift & Travel

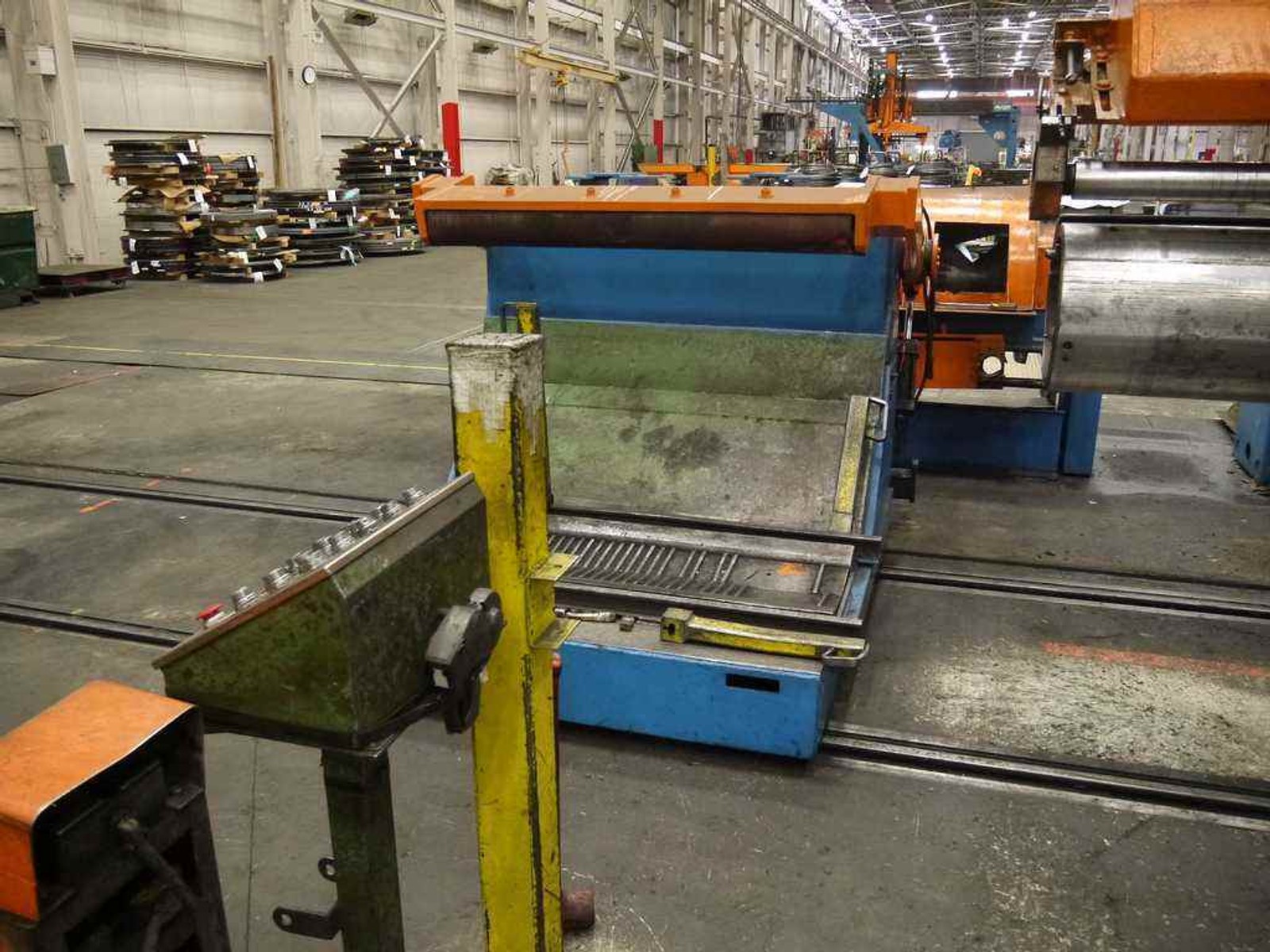

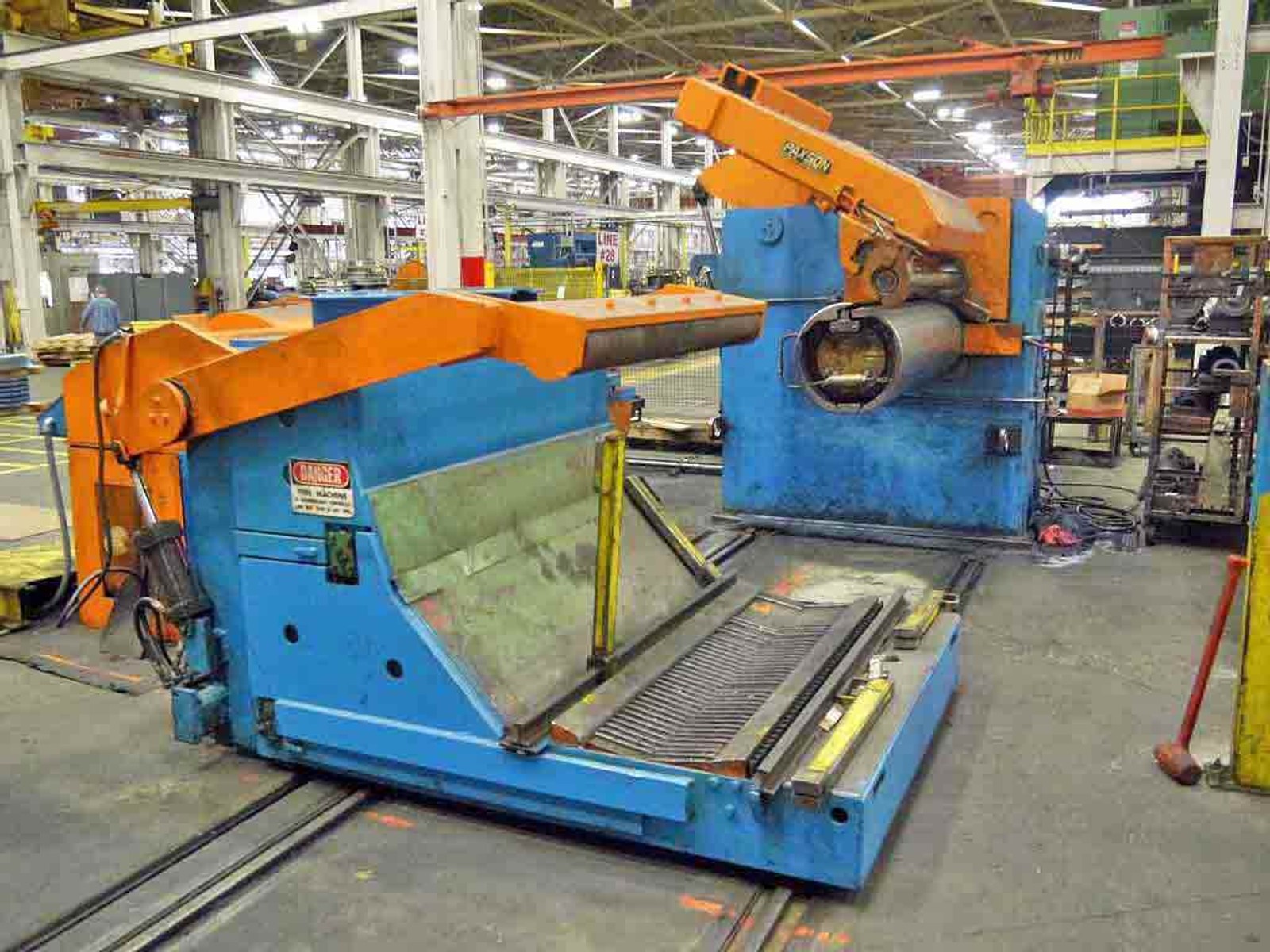

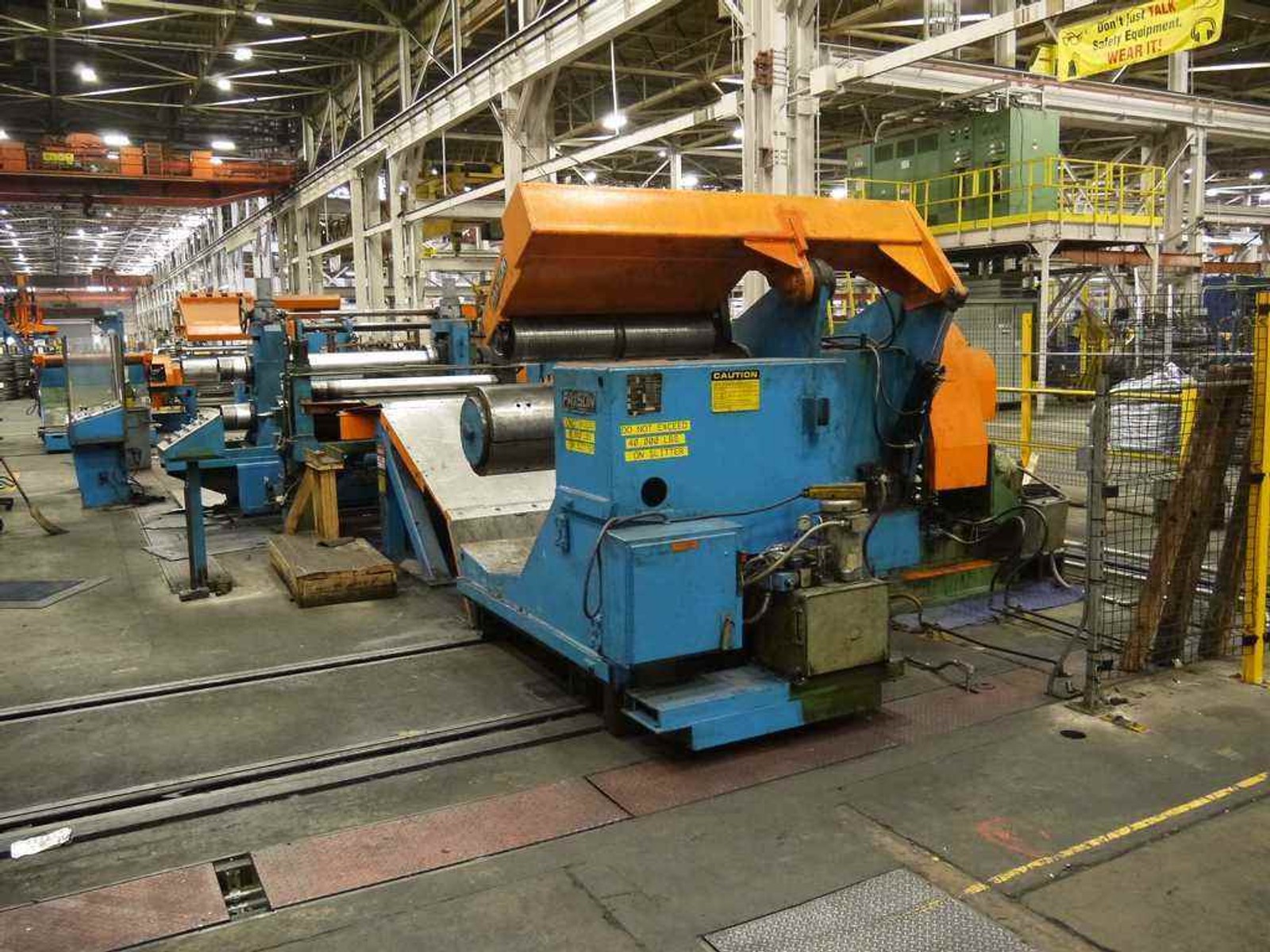

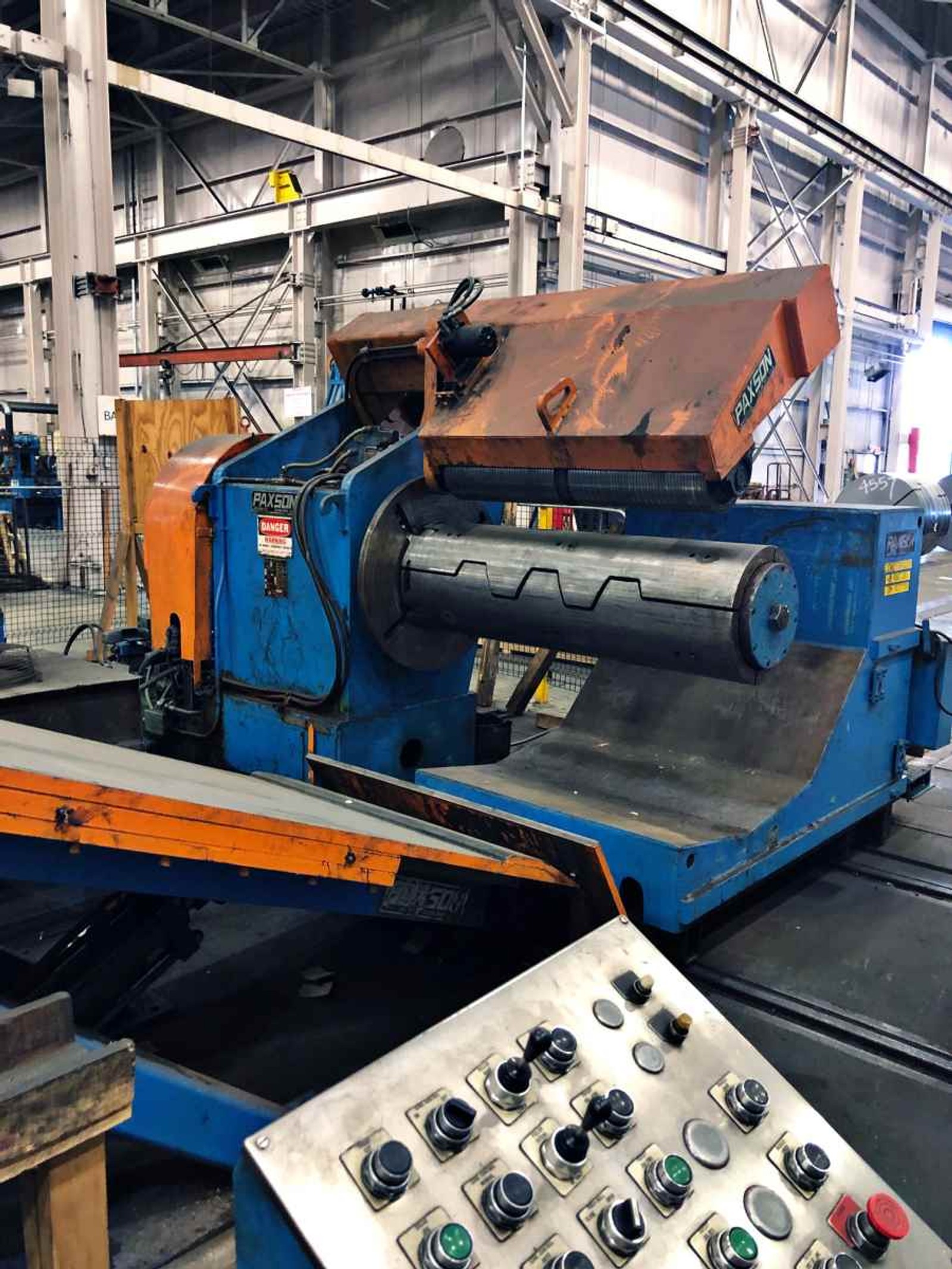

Uncoiler:
• S/N 11700-3-4-82
• Hydraulic Expansion: 20" - 24"
• 4-Segment Pumpkin Tooth Mandrel
• Powered Overarm Hold-Down
• Slide Base
• Hydraulic Motor Feed-up
• Water Cooled Brake

Hydraulic Peeler Table
• S/N 11700-2-3-82

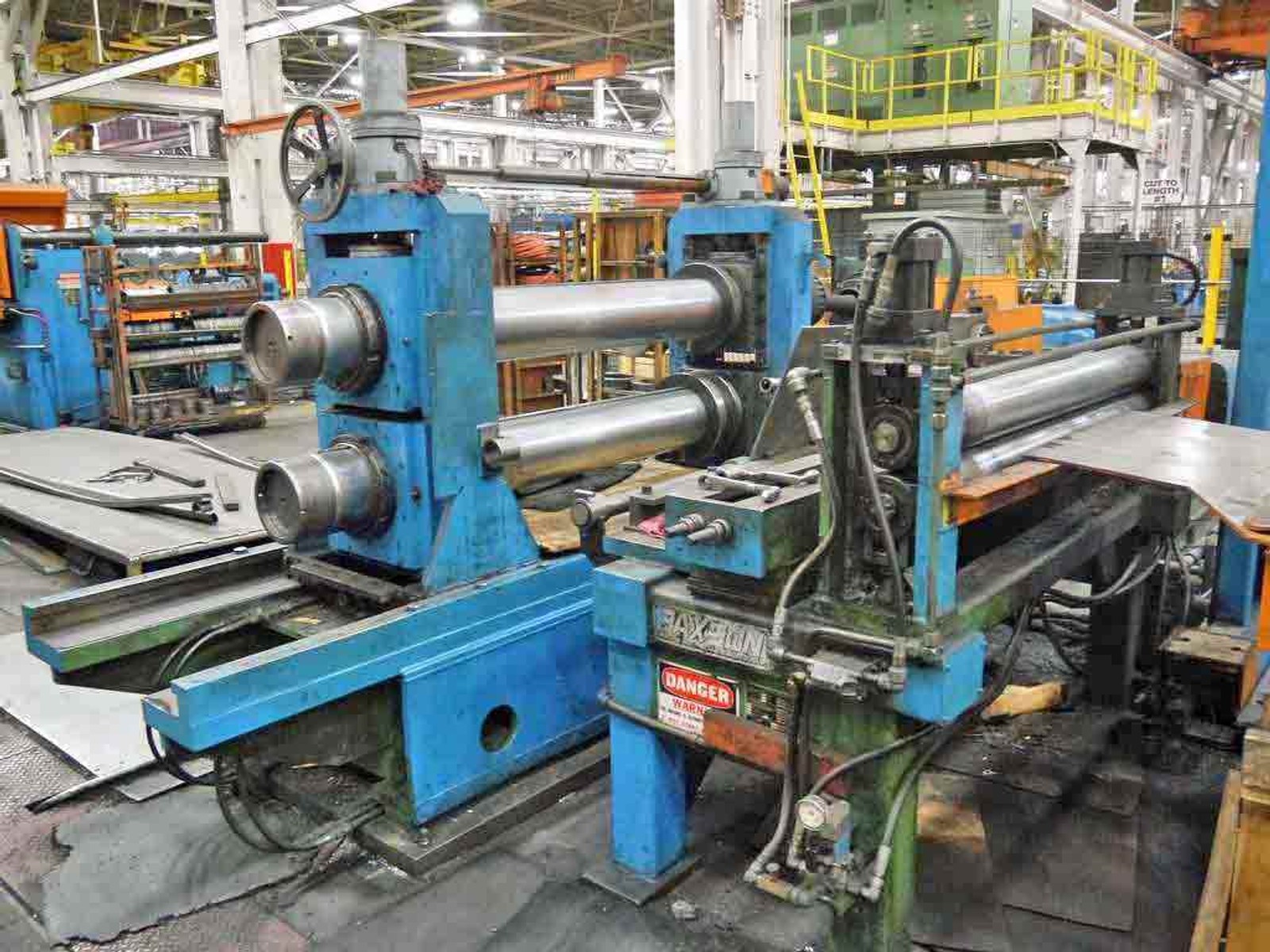

Slitter Entry Unit:
• S/N 11700-4-3-82
• Driven Pinch Rolls
• Independent Manual Adj. Roller Side Guides
• Roller Crop Shear

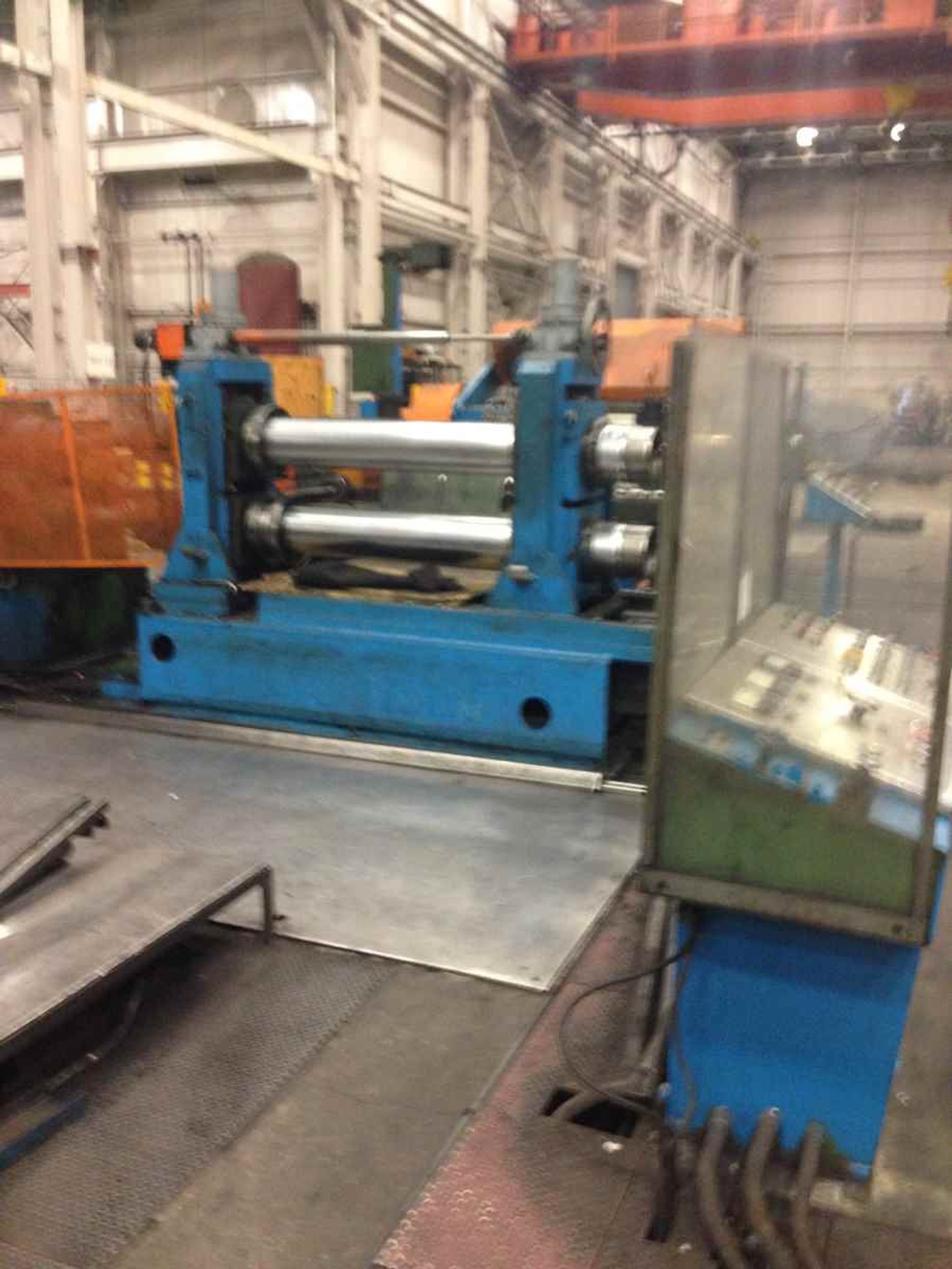

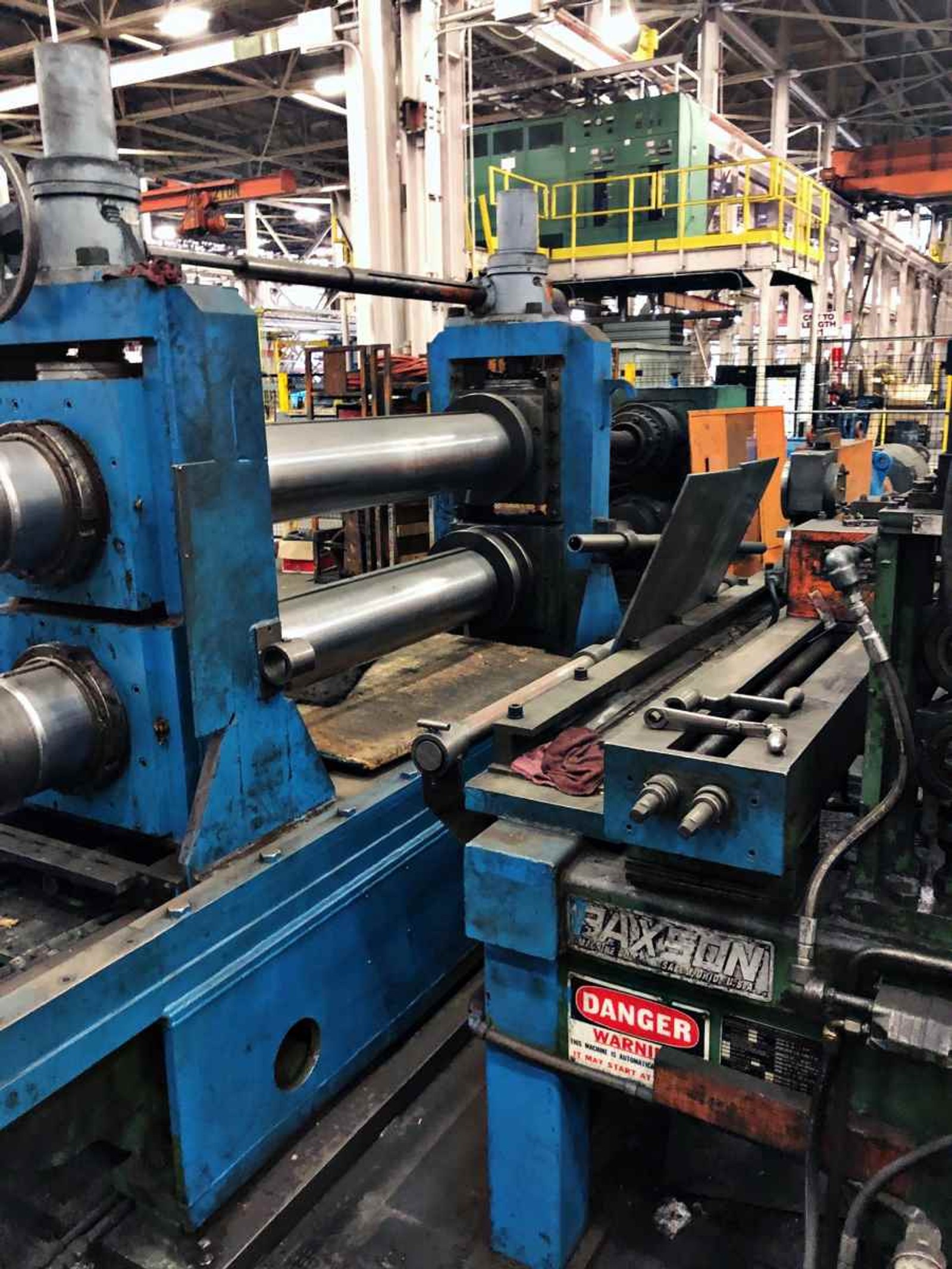

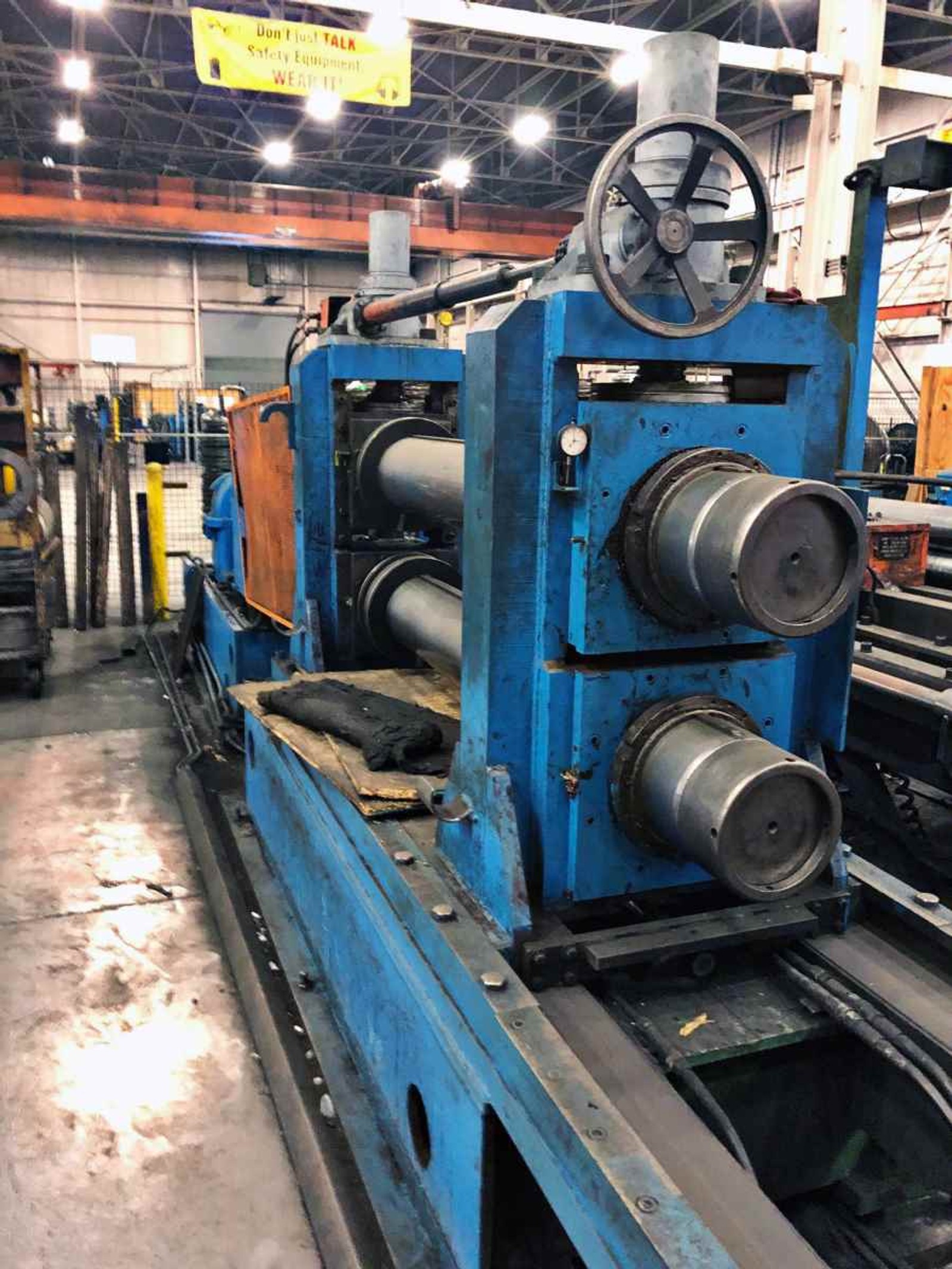

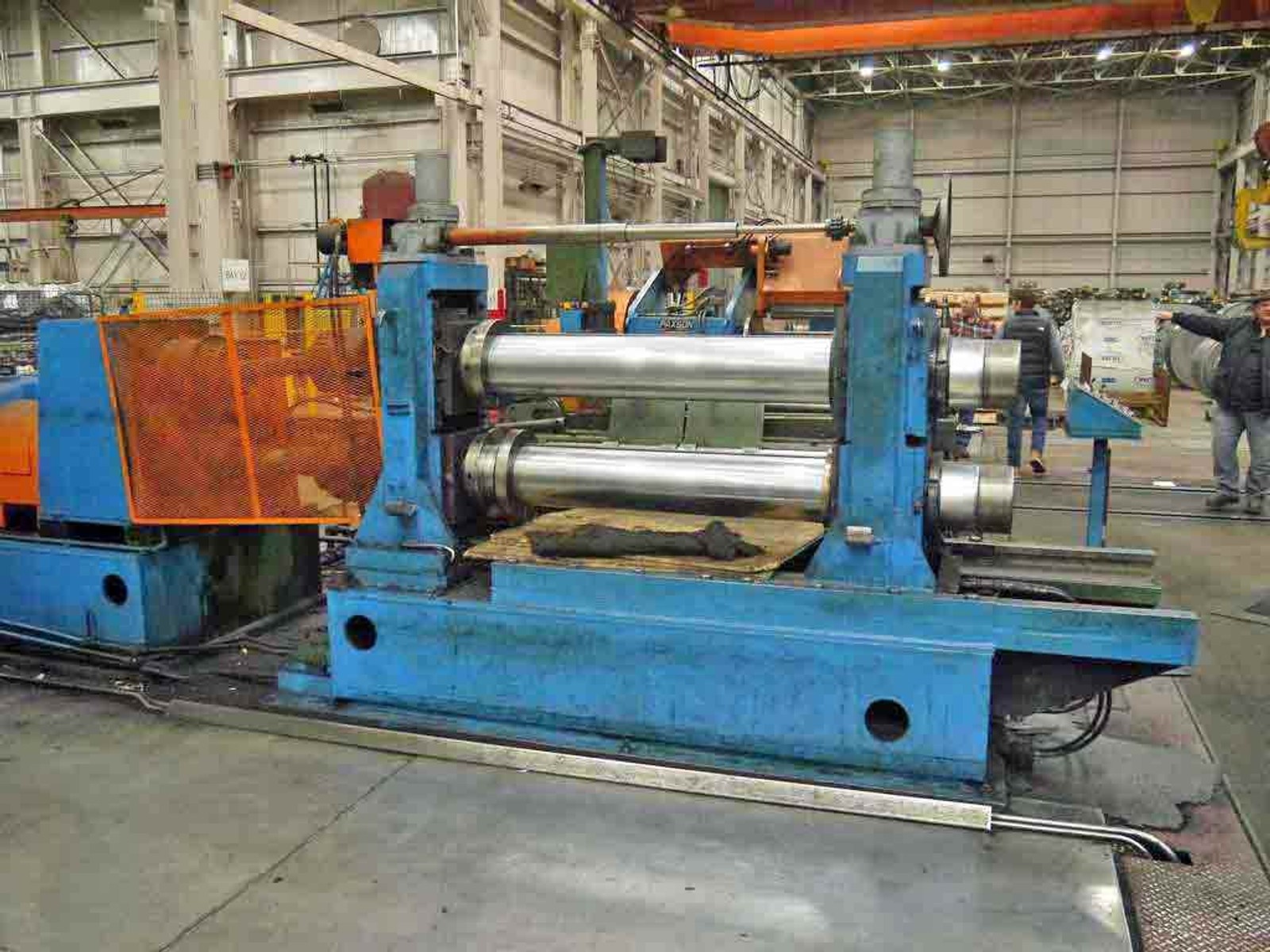

Slitter Head:
• Removable Type, (1) Head
• Over Arbor Outboard - Can Travel up to 36" Wide
• 150 HP DC Motor, 1750/2000 RPM, 500 V
• Reducer w/60.7:1 ratio
• Pinion Stand
• Arbors: 10" Diameter

Hydraulic Lift Table for Threading

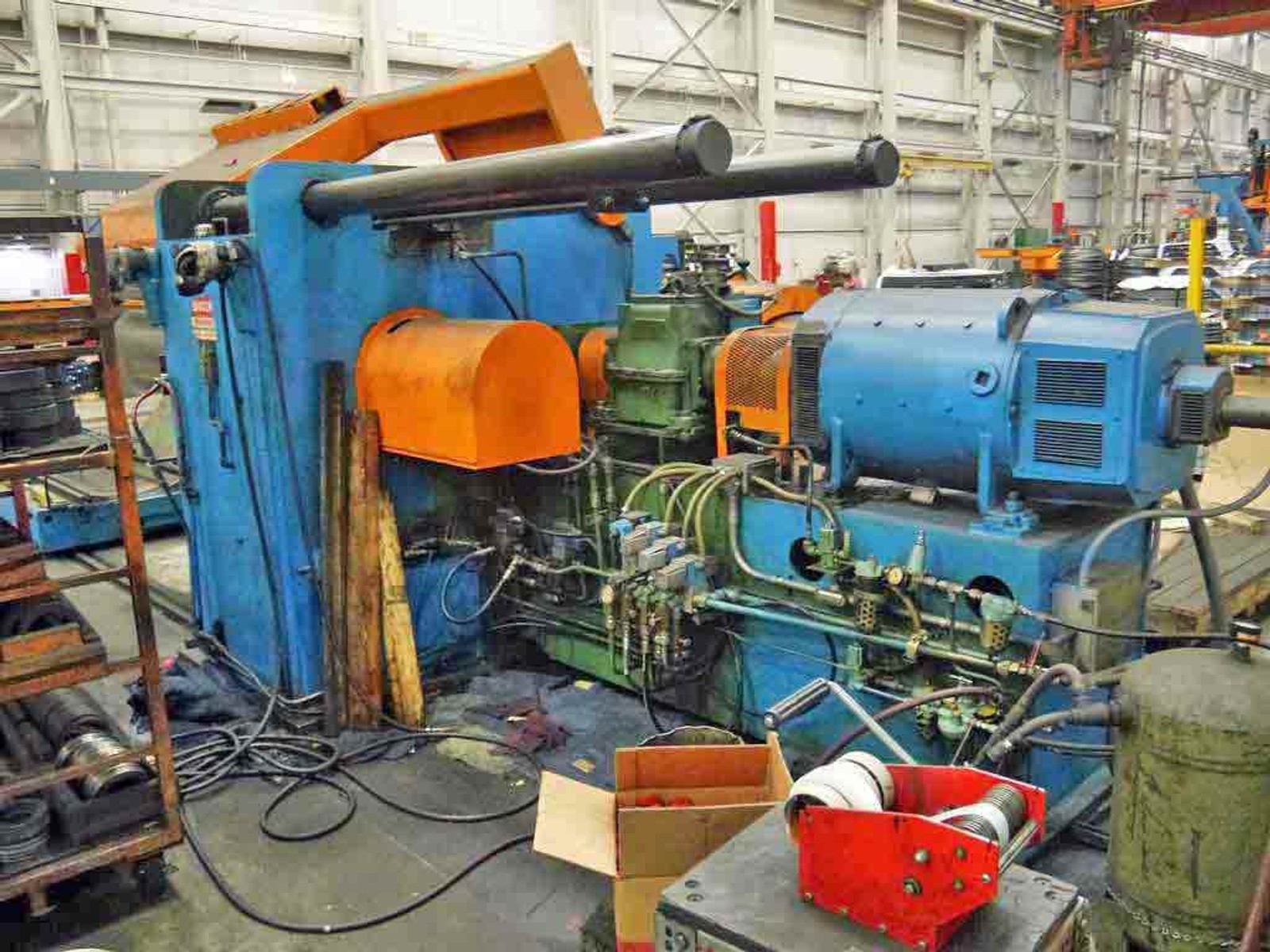

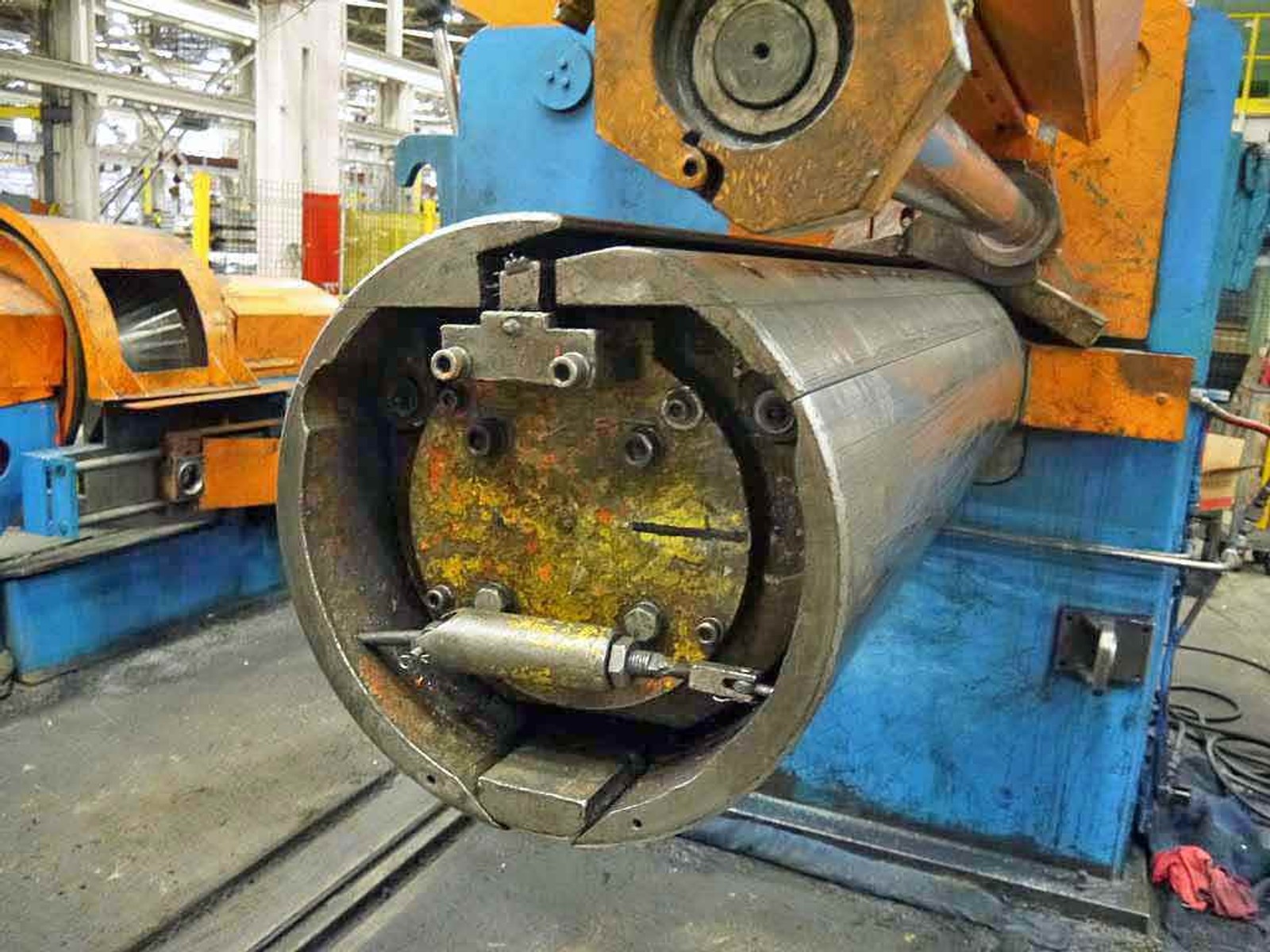

Recoiler:
• S/N 11700-7
• Face Drum: 20" Dia. x 65"
• Hydraulic Grip & Expand
• Overarm Separator
• 100 HP DC Motor 650/1950 RPM, 500 V
• Integral Reducer w/24:1 ratio
• 2 Speed Drive-All Transmission w/1:1 and 3:1 ratios

Exit Coil Car:
• L-Type
• Hold-down Arm
• Keeper Arms
• Strapping Slots in Base
• Self-Contained Hydraulic Power Unit
• Hydraulic Lift and Travel

2-Arm Turnstile:
• S/N 11702-50
• Power Rotation

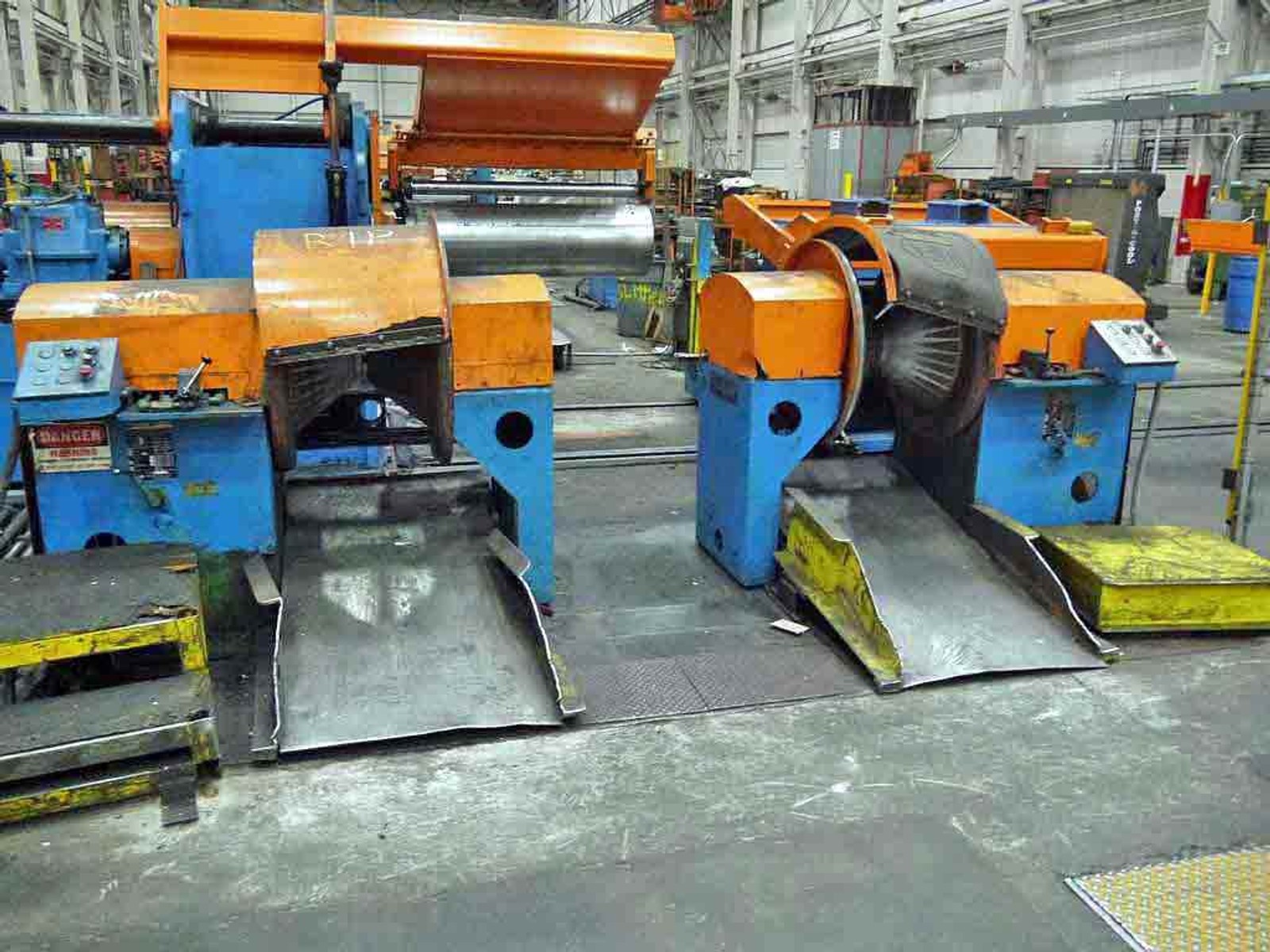

(2) Heavy Duty Scrap Winders:
• S/N 11700-9-3-82
• Opposed Cones
• Level Wind
• Auto Dump
• Hydraulic Motor Drive

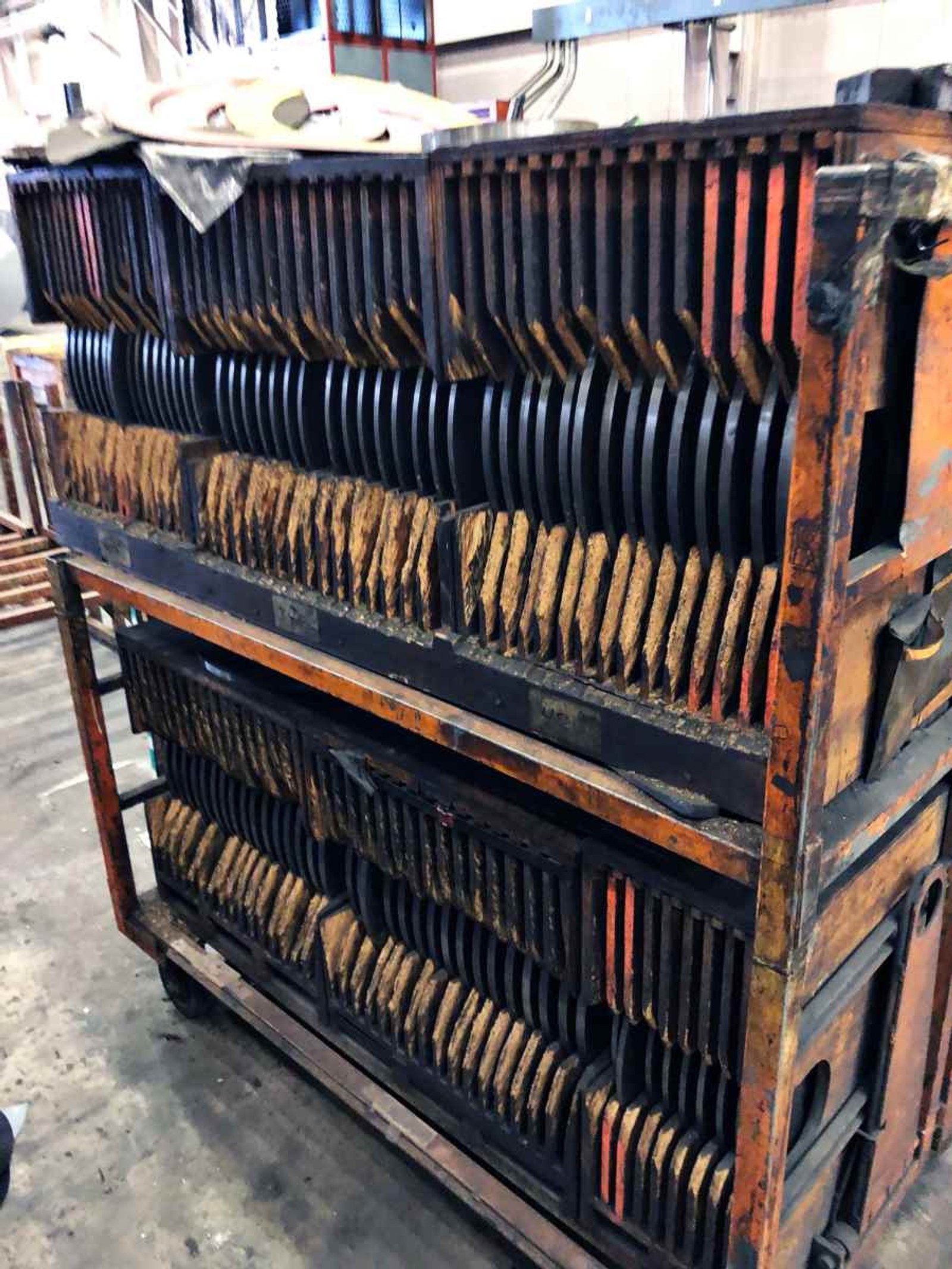

Slitter Tooling:
• Large amount of Knives, Spacers and Rubbers

Operators Panels

Hydraulic Power Units
