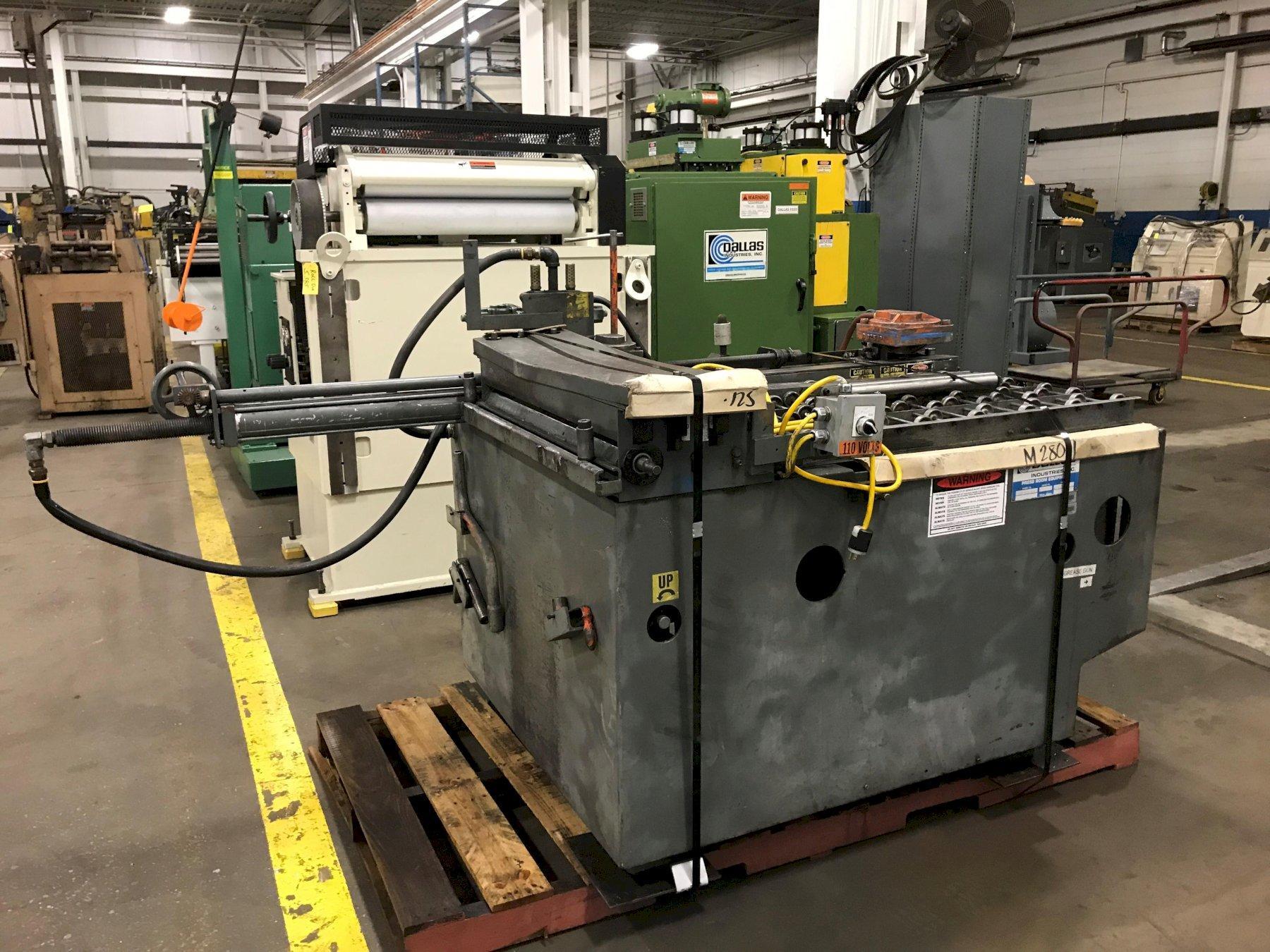

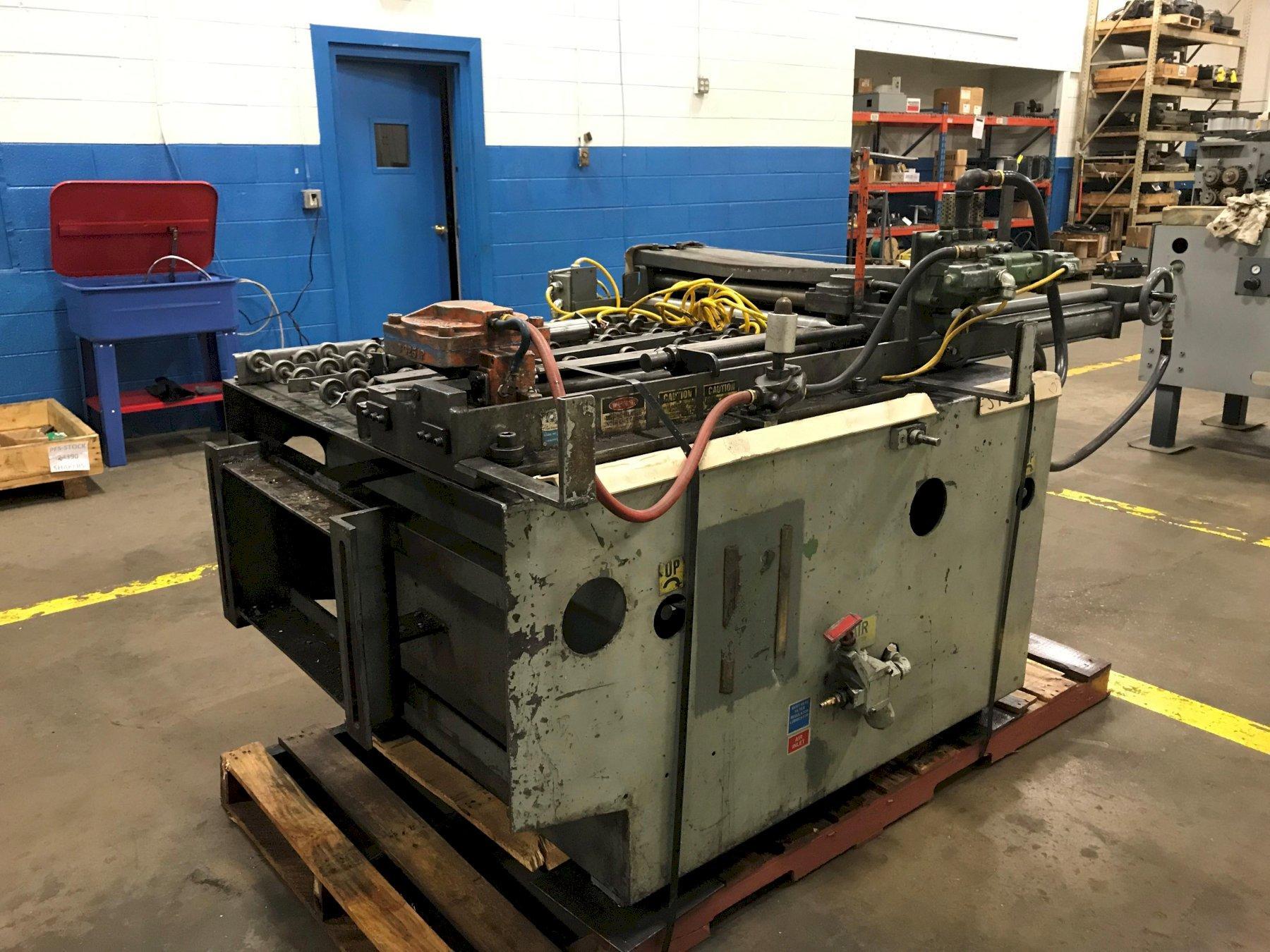

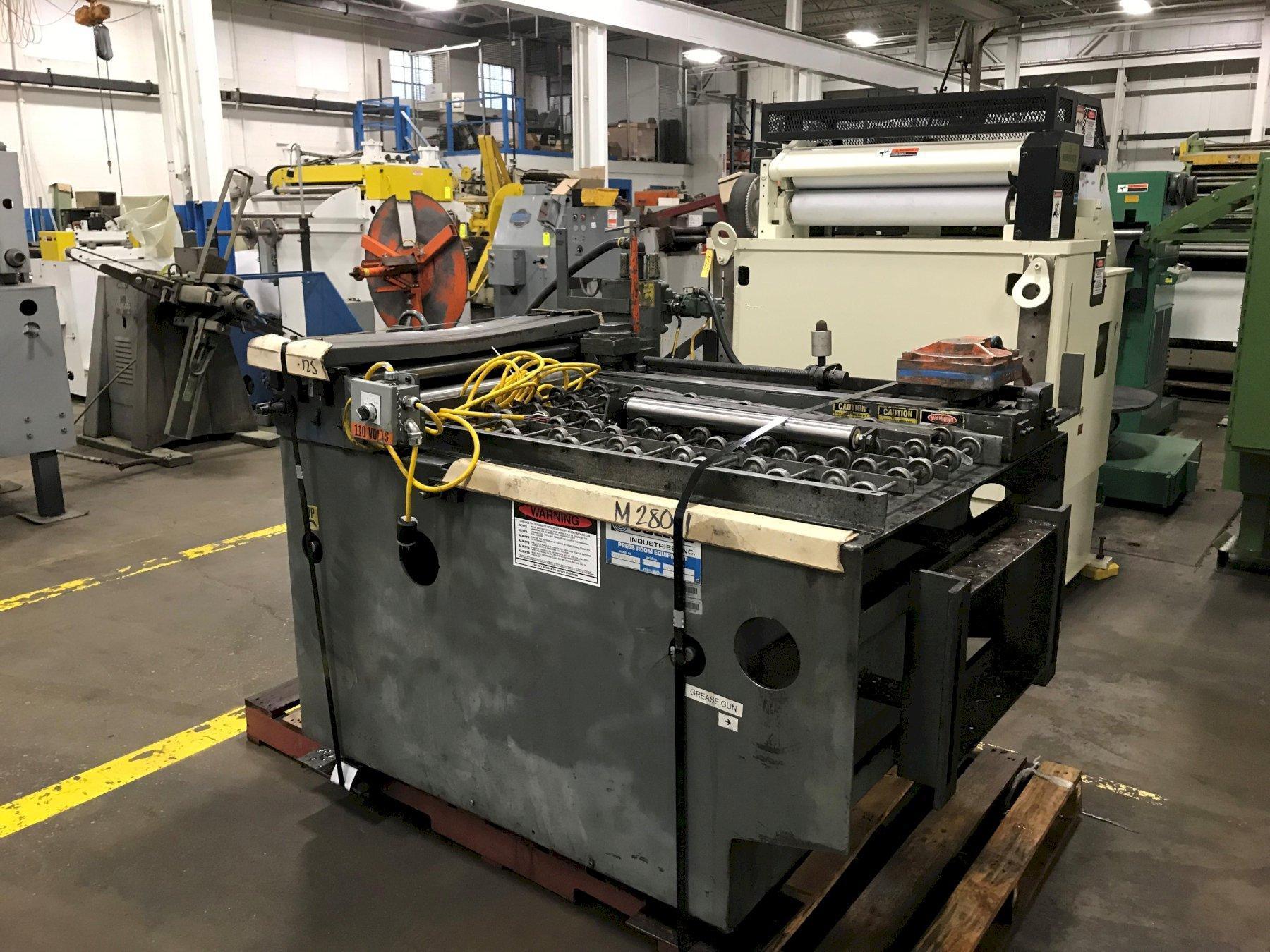

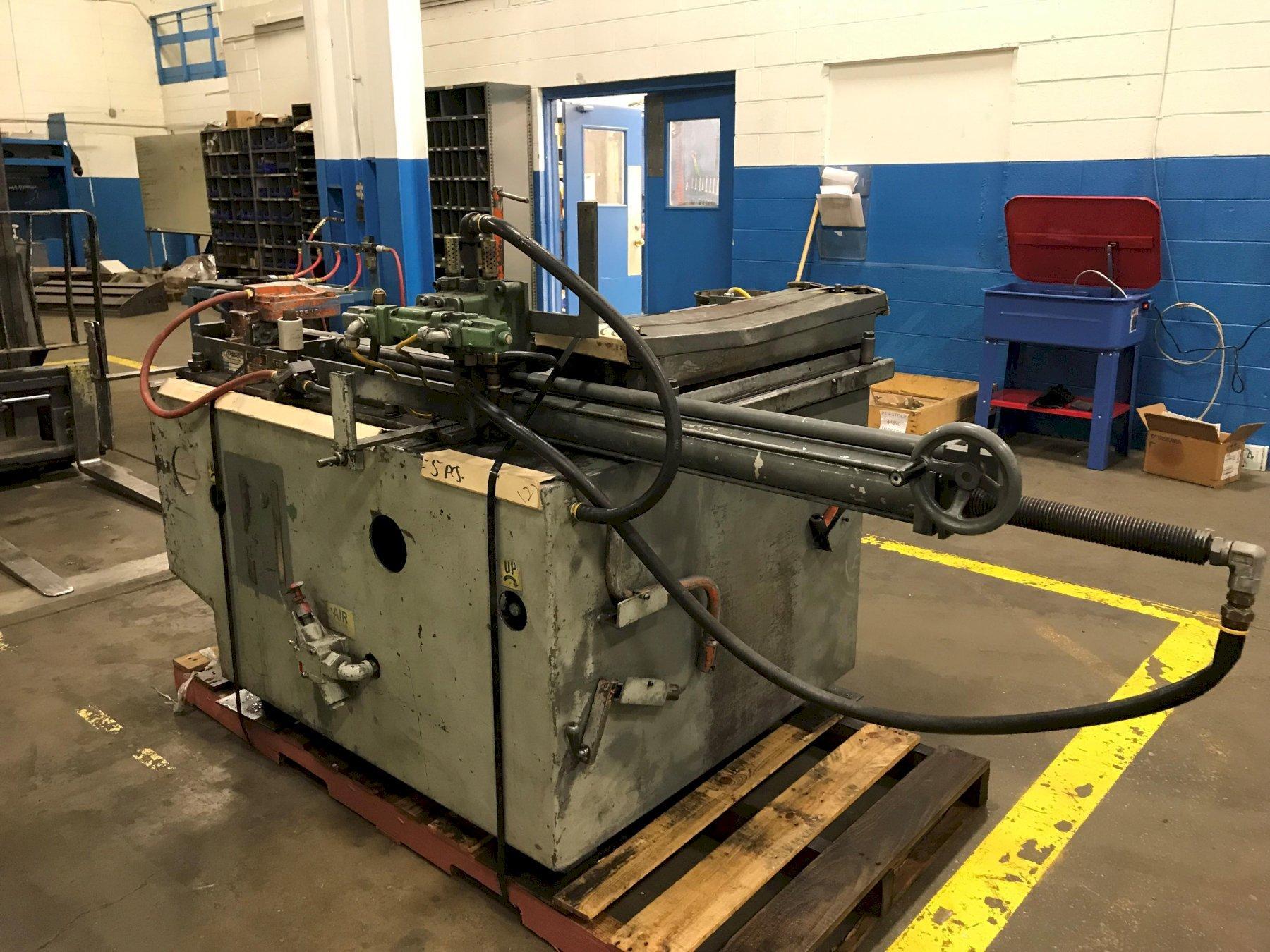

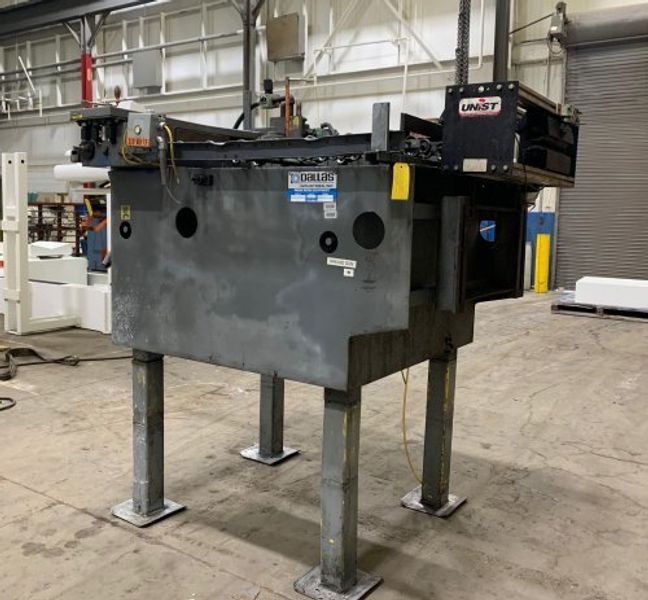

30" W. x 30" Str x .074", DALLAS, No. D325-30-30LH, Air Feed with Straightener

Manufacturer

DALLAS

Category

Feeders & Straighteners

Type

FEEDING & STRAIGHTENING MACHINES

Stock

2545

Model

30" W. x 30" Str x .074" Air Feed Straightener

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Max Stock Width - 30 inches
Max Stock Thickness Capacity At Full Width - .074 inches
Max Stock Thickness - .174 inches


Dallas Ind. Air Feed Straightener Combination Press Feed Specifications:
Stock width capacity: 30"
Stock thickness capacity: .074" x 30" Wide
Stock thickness capacity: .170" x 12" Wide
Stroke (feed) length capacity: 30"

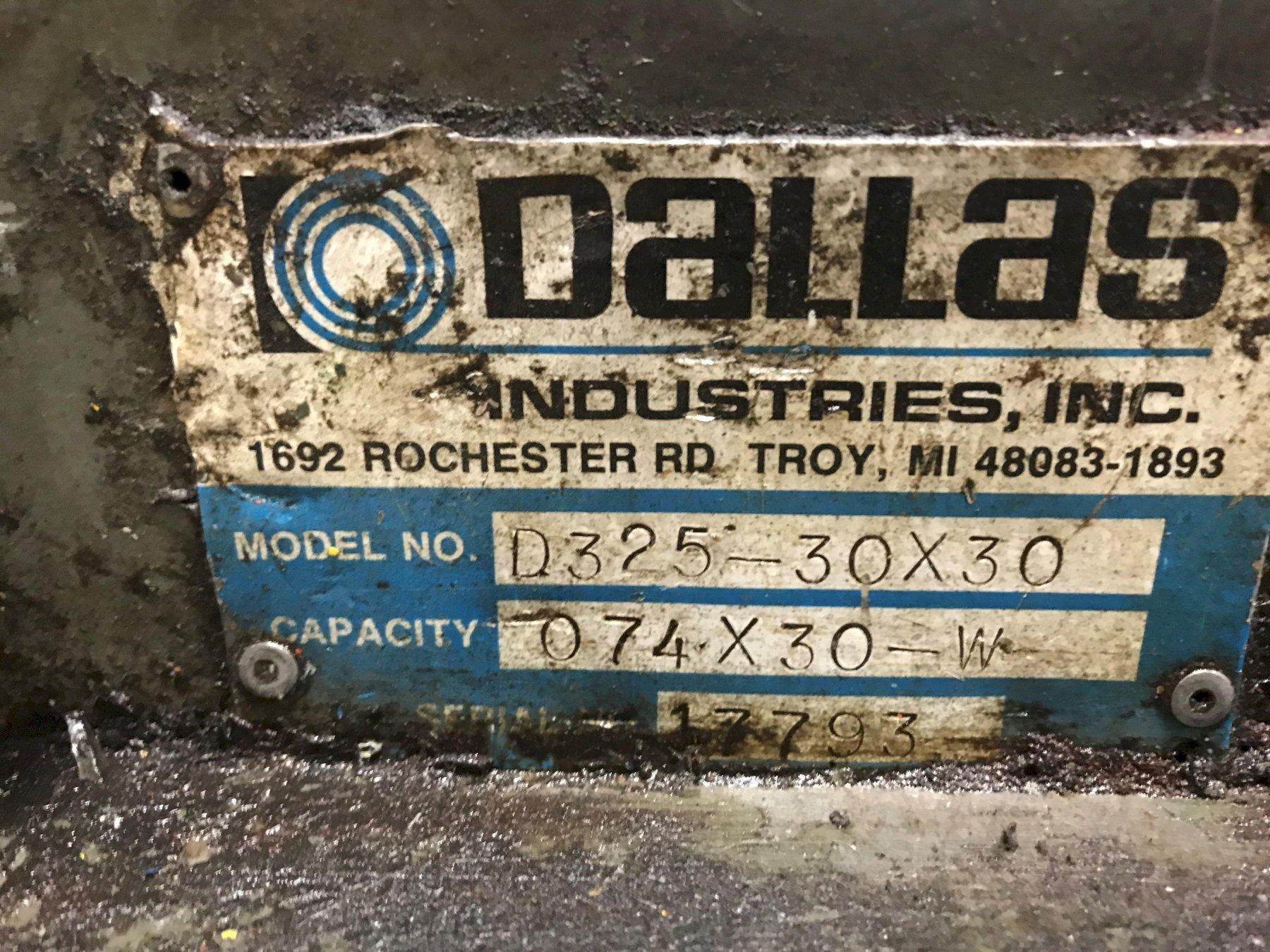

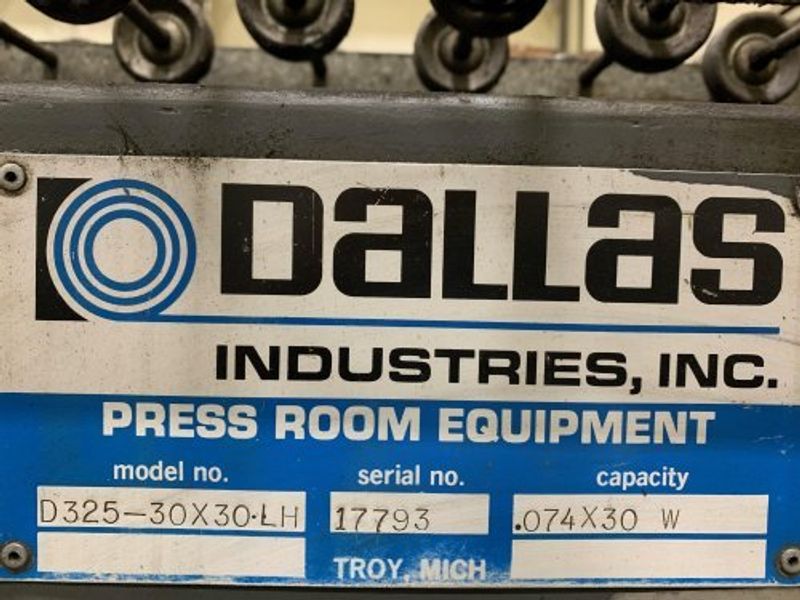

Serial #: 17793

Dallas Ind. Air Feed Straightener Combination Press Feed Equipment and Features:
Five air feed pull thru straightener rolls x 2-1/4 inch diameter
Individual upper air feed pull thru straightener roll adjustments
Manual air feed pinch roll assembly (Stock threading)
Manual upper air feed pinch roll adjustment
Adjustable stock width edge guides
Air saver cylinder (adjustable) air consumption and speed
Right angle handle for stroke length adjustments
Numatics brand pneumatic solenoid control valve
Dual quick exhausts
Pilot pin circuit
Horizontal and vertical cabinet base adjustments
Auto/Run cycle
110 Volt
