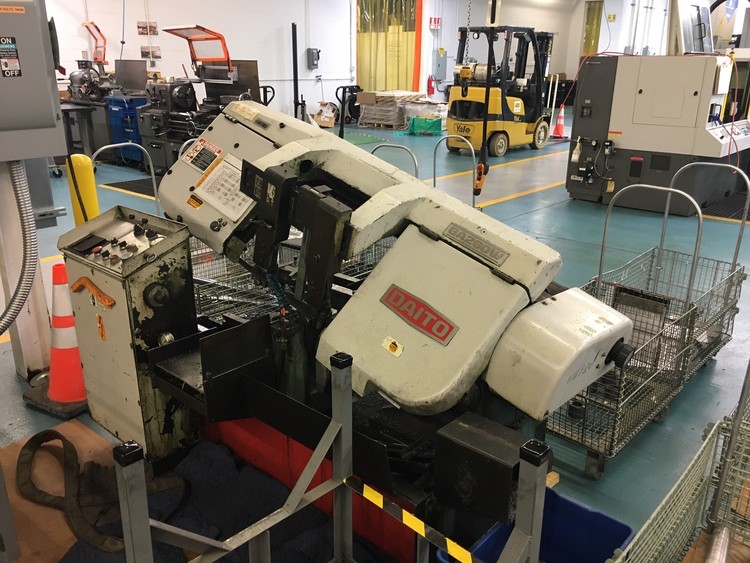

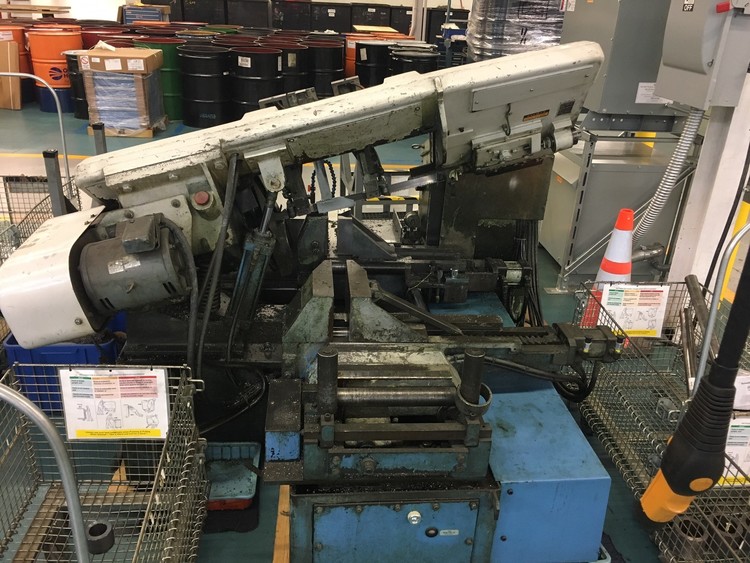

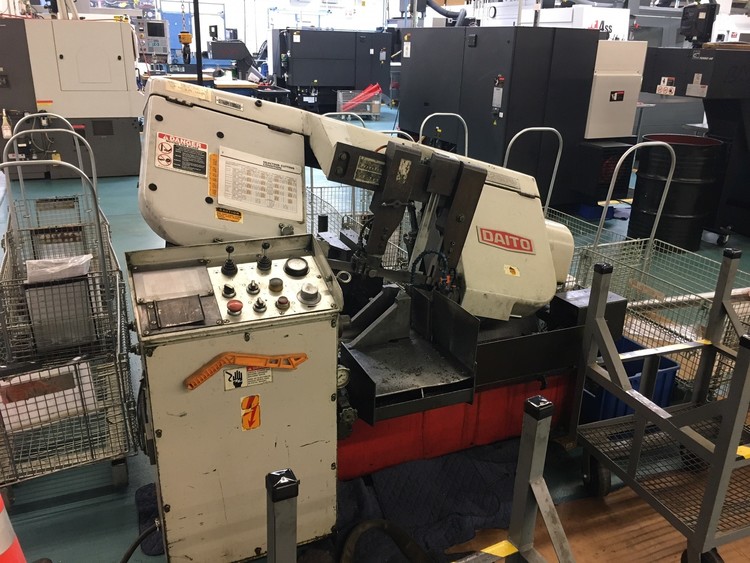

Daito GA 260 Automatic, programmable horizontal Bandsaw

Manufacturer

DAITO

Category

Saws

Stock

8379

Model

GA260W

Dealer Location

Illinois

Spec Sheet

Overview

Type:
Horizontal Band Saws (Automatic)
Category:
Saws
Manufacturer:
DAITO
Model:
GA260W
Condition:
Used - Good
Year:
1998
Stock #:
8379
Status:
For Sale

Daito Model GA 260 fully automatic, NC Programmable horizontal bandsaw with Variable vise Pressure, 1.25" Blade and 6' Dead Roller table

Variable vise pressure, 1.25" Blade, 6' dead roller table, Programmable control, 16" shuttle with automatic multiple strokes up to 393" feed, 2 Piece Front vise for burr free cut off, powered Blade brush, joy stick control, Chip conveyor

Rect-Cap (H)10.25"
Rect-Cap (W)12"
ControlCNC (Daito)
Dimensions7' x 7' x 5'
Weight2,750 lbs.

General Specifications

BLADE SIZE 0.0042” X 1.25” X 11’6”

CUTTING CAPACITIES

ROUNDS 10 ¼”

FLATS 12” X 10 ¼”

BUNDLES 12” X 4”

BLADE SPEEDS (VARIABLE) 66- 525’ PER MINUTE

MAX WORKLOAD 5500 LBS

SAW WHEEL DIAMETER 17”

FEEDING STROKE

SINGLE 16”

MULTIPLE 32’ 9 ¾”

MOTORS

BLADE 5 HP

HYDRAULIC 1 HP

COOLANT 1/12 HP

CHIP CONVEYOR 1/30 HP

HYDRAULIC RESERVOIR CAPACITY 10.6 GALLONS

COOLANT RESERVOIR CAPACITY 21 GALLONS



Equipped With

DIGITAL CONTROL WITH self diagnostics

rake type jam resistant SCRAP CONVEYOR

INFINITELY VARIABLE DOWN FEED PRESSURE

Safety guard covers blade will sawing

vise pressure regulator for thin tube cutting

Adjustable COOLANT SYSTEM

Joy stick for operation of saw

Hydraulic P.S.I gauge



Approximate Overall Dimensions 75 1/4” W X 62 1/4”D X 39 3/4” H

Approximate Overall Weight 2750 LBS
