118"/145" Honor Seiki VL-300C, 16 ATC, 145" Swing, 78" Turn Height, 120 RPM, 100 HP, Fanuc 0i-TD, #43023

Manufacturer

Honor Seiki

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43023

Model

VL-300C

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43023

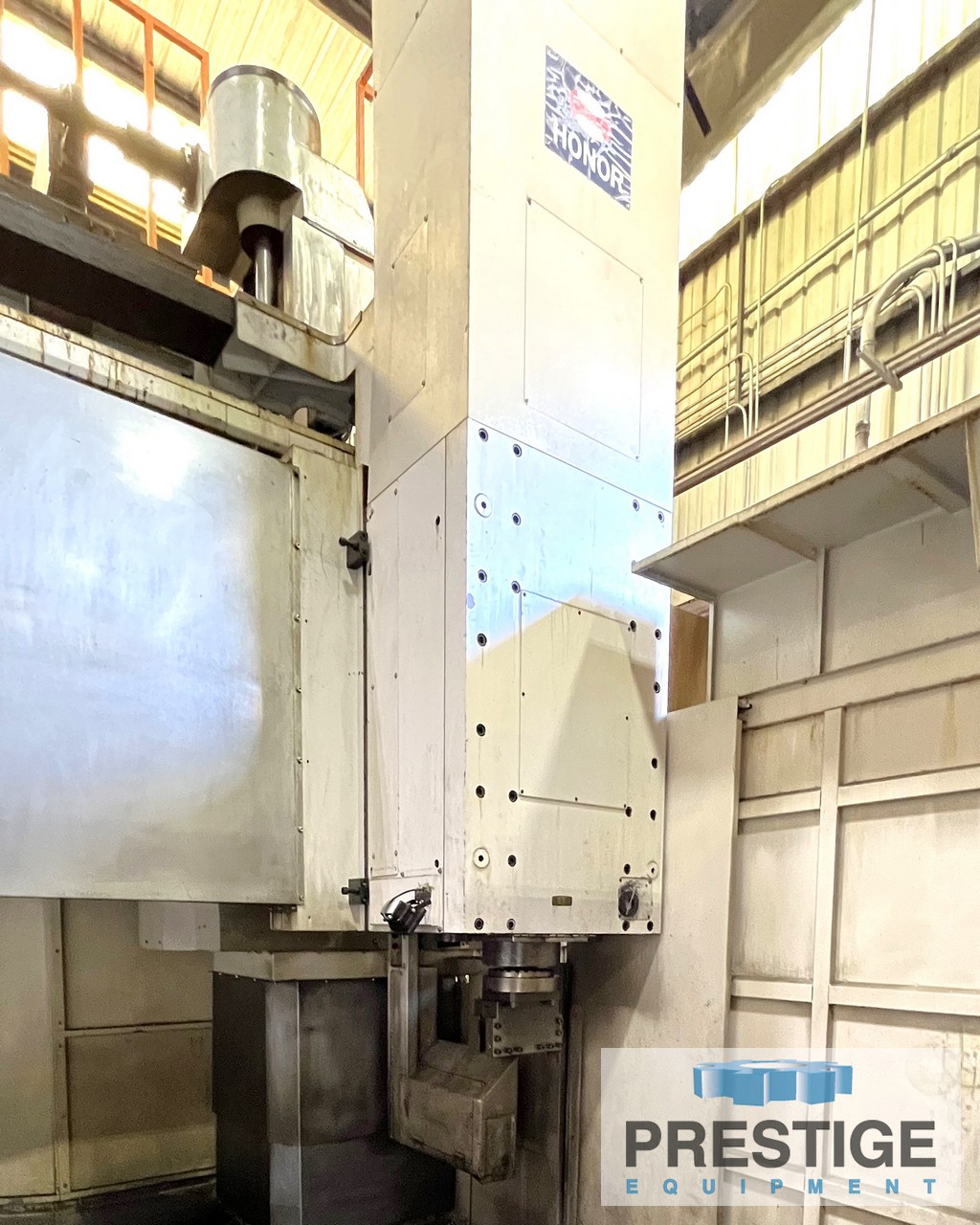

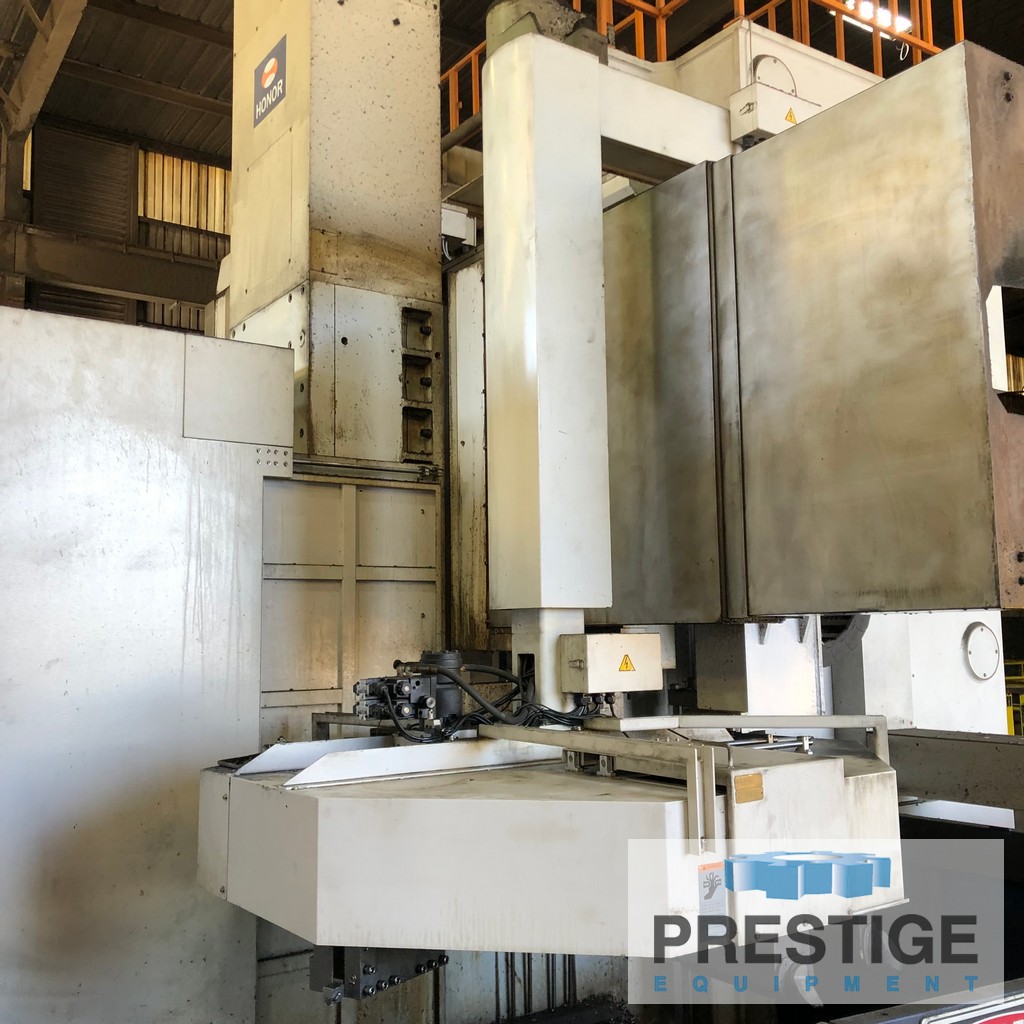

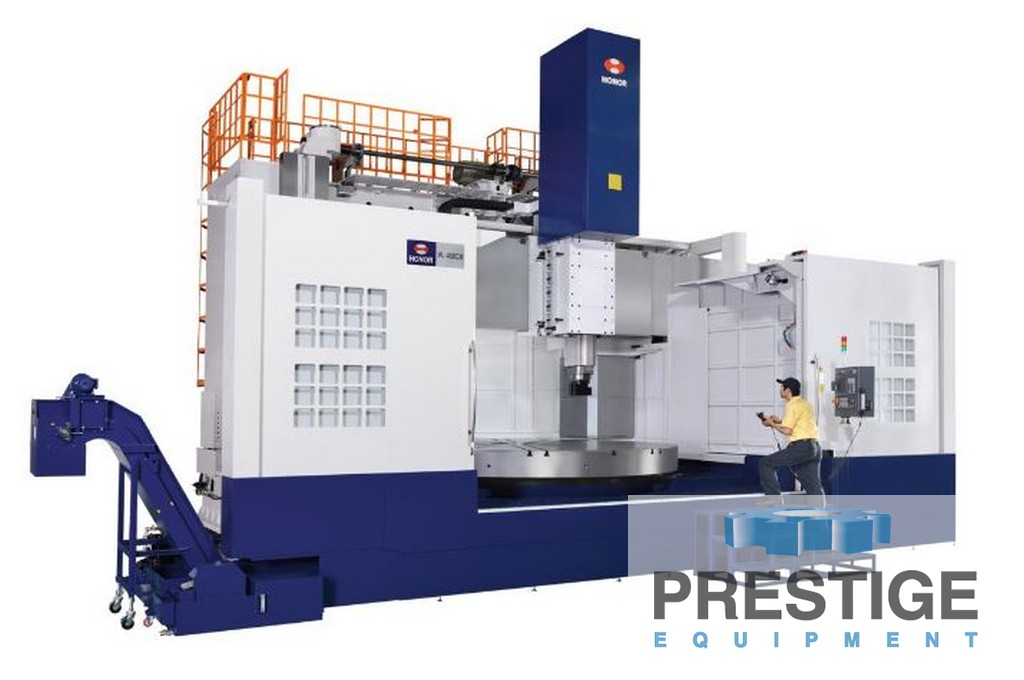

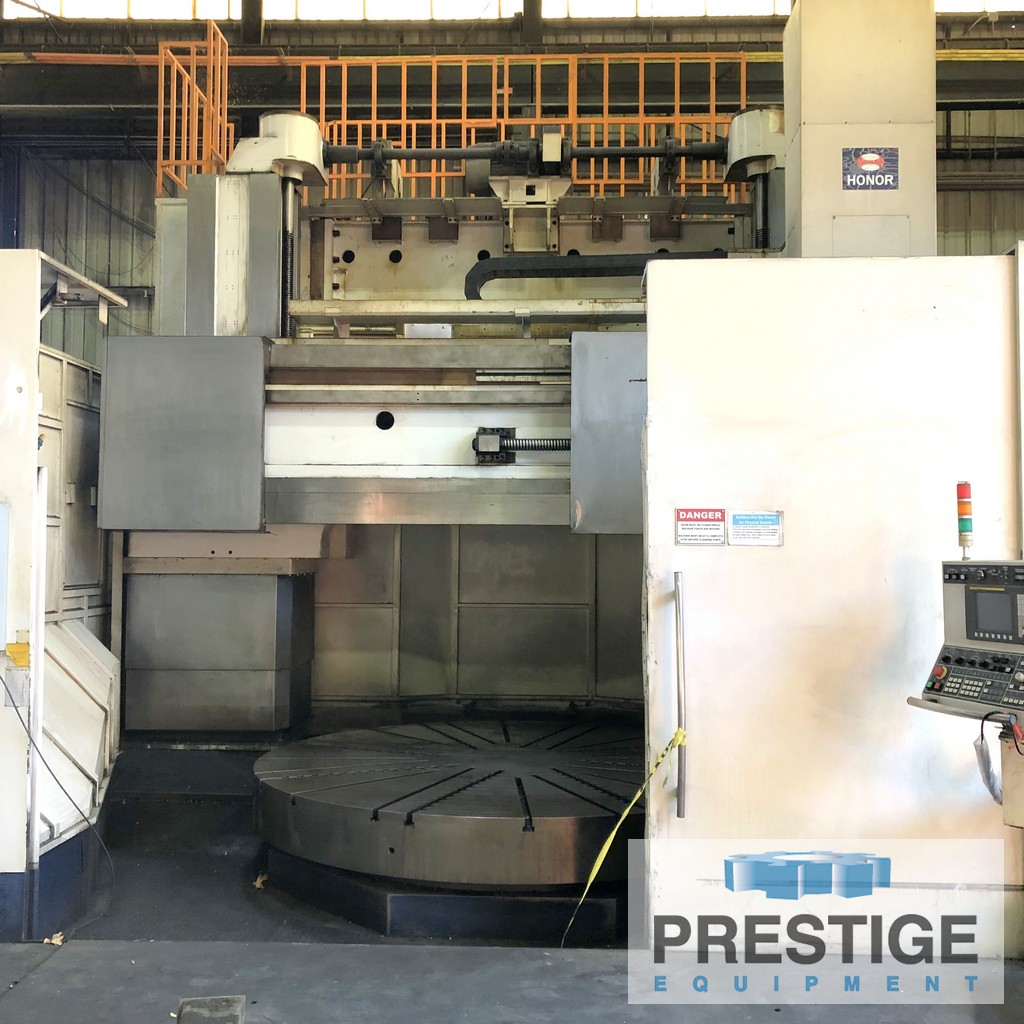

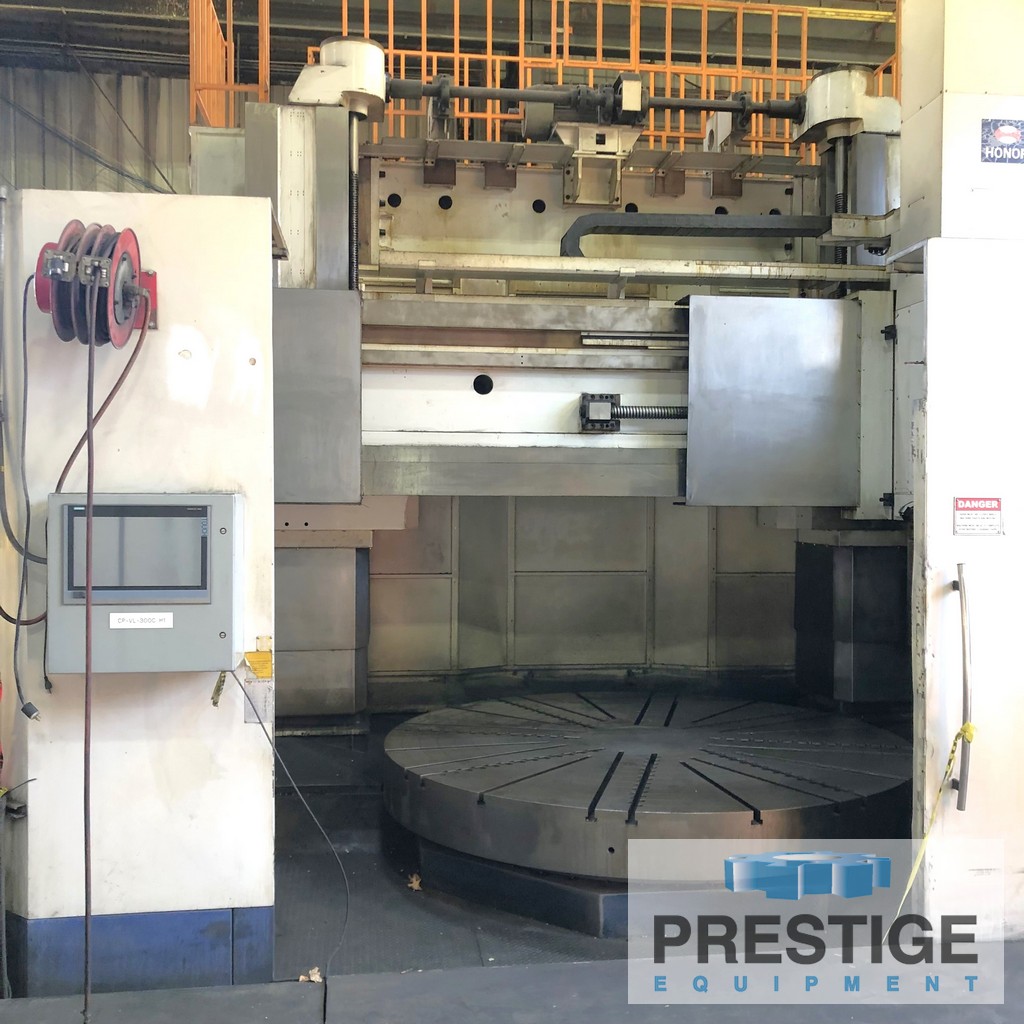

Honor Seiki VL-300C 118"/145" CNC Vertical Boring Mill

FEATURES:

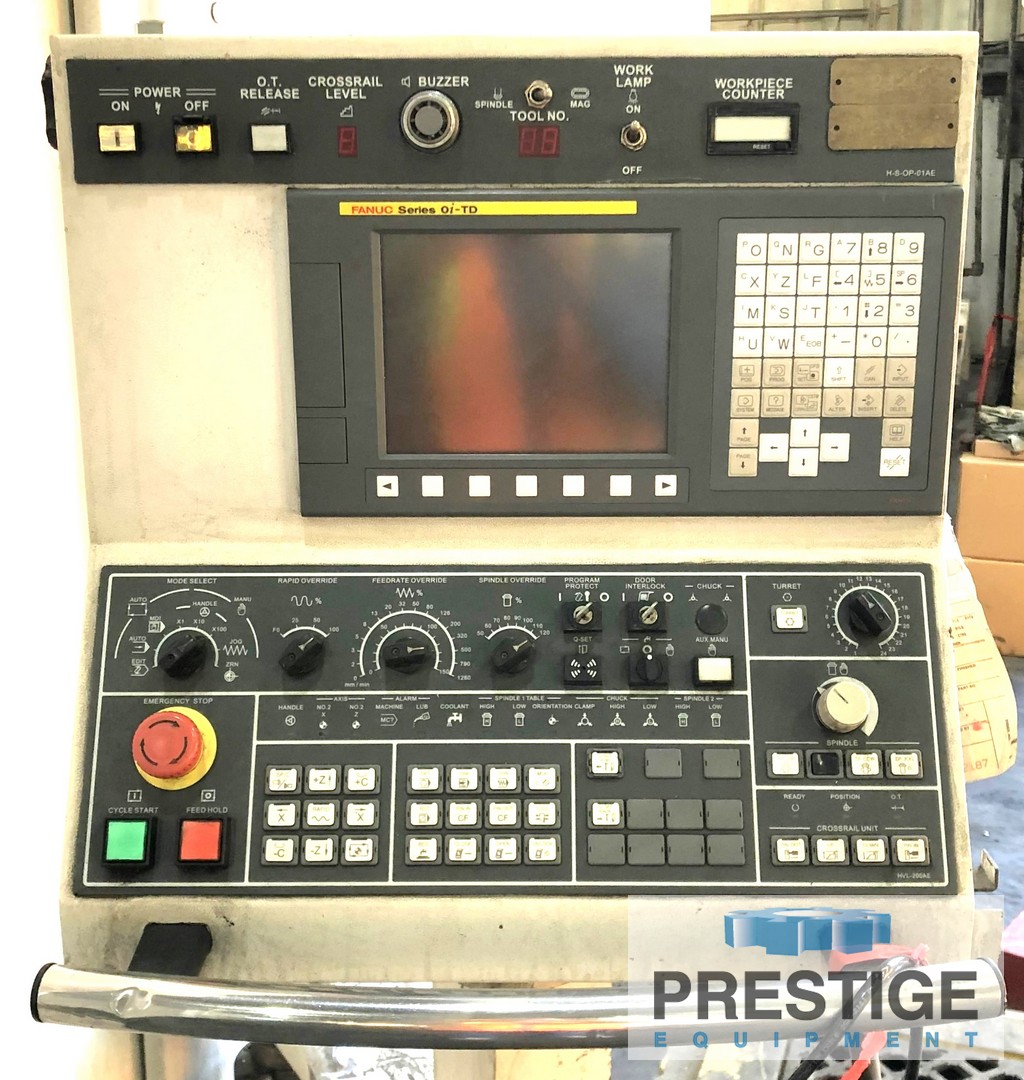

Fanuc 0i-TD CNC Control
16-Station Automatic Tool Changer
Ultra-High Rigidity RG-250 Tool Holder System

SPECIFICATIONS:
Table Diameter ........................ 118.11"
Maximum Turning Diameter .............. 145.0"
Maximum Swing ......................... 145.0"
Maximum Turning Height ................ 78.74"
Table Speeds .......................... 3-120 RPM
Table Speed Ranges .................... 2
Table Weight Capacity ................. 66,000 Lbs
X-Axis Horizontal Ram Travel .......... -29.05",+71.85"
Ram Cross Section ..................... 11.02" x 11.02"
Z-Axis Vertical Ram Travel ............ 58.05"
Cross Rail Elevation, Programable ..... 59.1"
Cross Rail Elevation Increments........ 9.85" x 6-Steps

FEED RATES:
X-Axis Rapid Traverse ................. 236.22" IPM
Z-Axis Rapid Traverse ................. 393.37" IPM
Cutting Feed Rate ..................... 0.0393 IPM
Manual Feed Rate ...................... 0236.22 IPM

MACHINE DIMENSIONS:
Floor Space, F-B X R-L ................ 256" x 345"
Machine Height ........ ............... 291"
Weight ................................ 217,800 Lbs

ELECTRICAL REQUIREMENTS:
Voltage ...............................380/3/60 Cycle

EQUIPPED WITH:
Fanuc 0i-TD CNC Control
16-Station Automatic Tool Changer
Ultra High Rigidity RG Tool Holder System

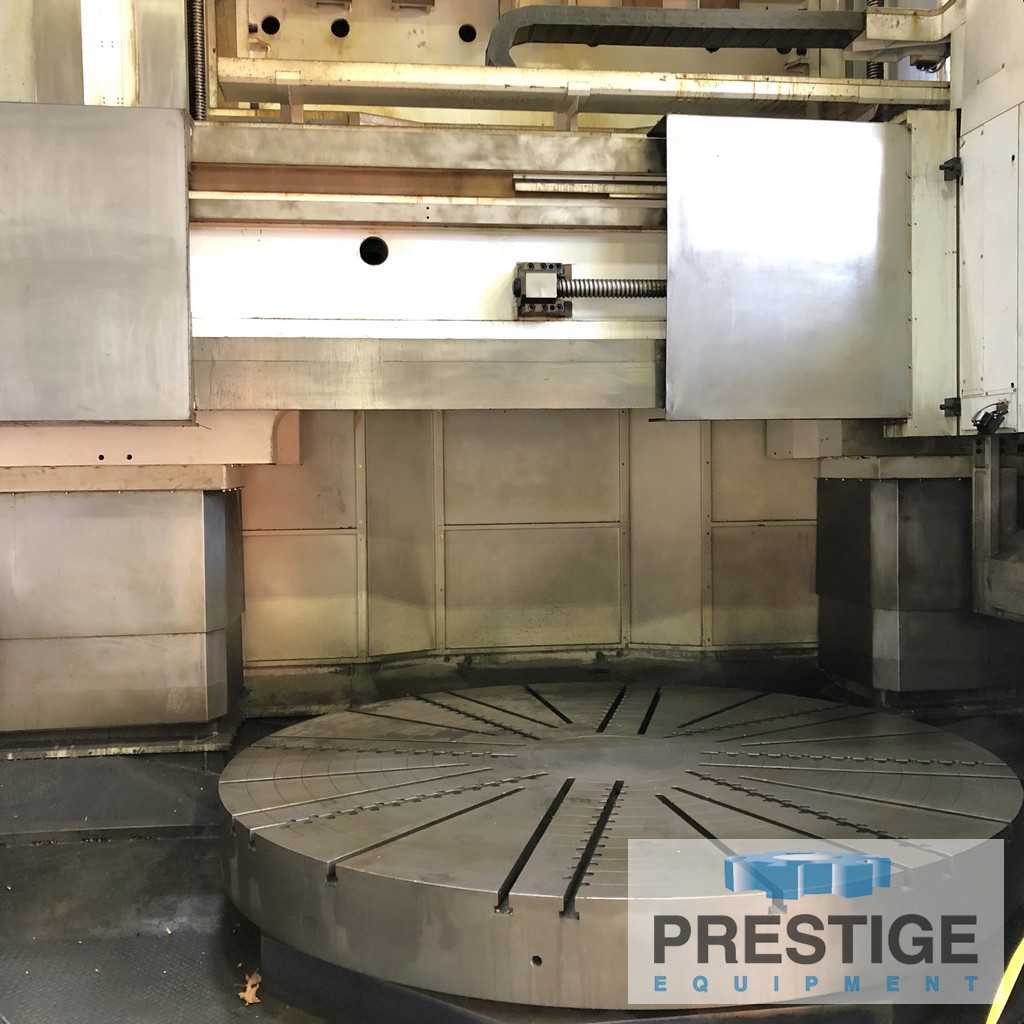

118.11" T-Slotted Table w/4-Top Jaws
Heavy Duty Column with Box Ways
Precision Crossed Table Roller Bearing
Telescoping Steel Way Covers on Cross Rail
Preparation For Coolant Through Ram
Coolant System with Tank
Lift Up Chip Conveyor,
Fully Enclosed Splash Guard
100 HP Table Motor
