Okuma Multus B-400-W 1500 Mill Turn, 5-Axis, B-Axis Milling Spindle, Sub Spindle, 60 ATC, 10,000 RPM, 2008, #43002

Manufacturer

OKUMA

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

43002

Model

B-400-W 1500

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43002

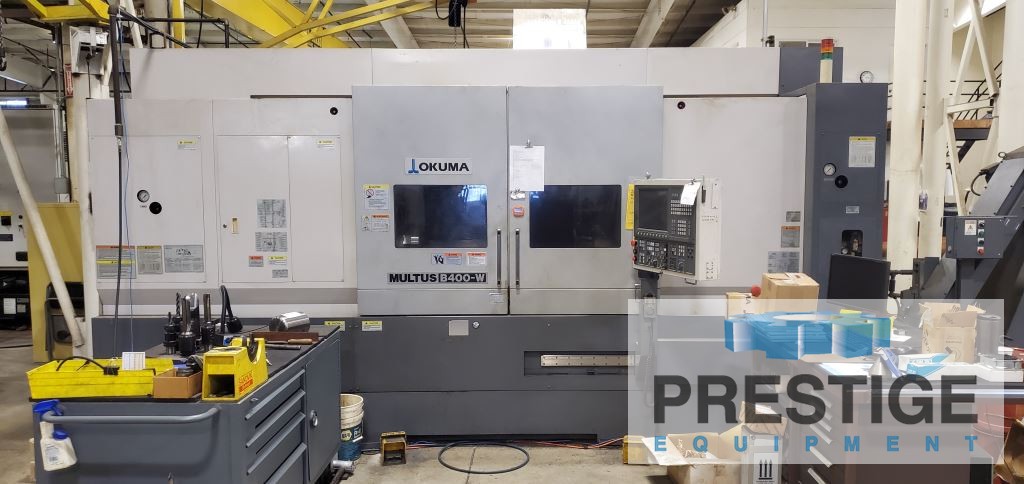

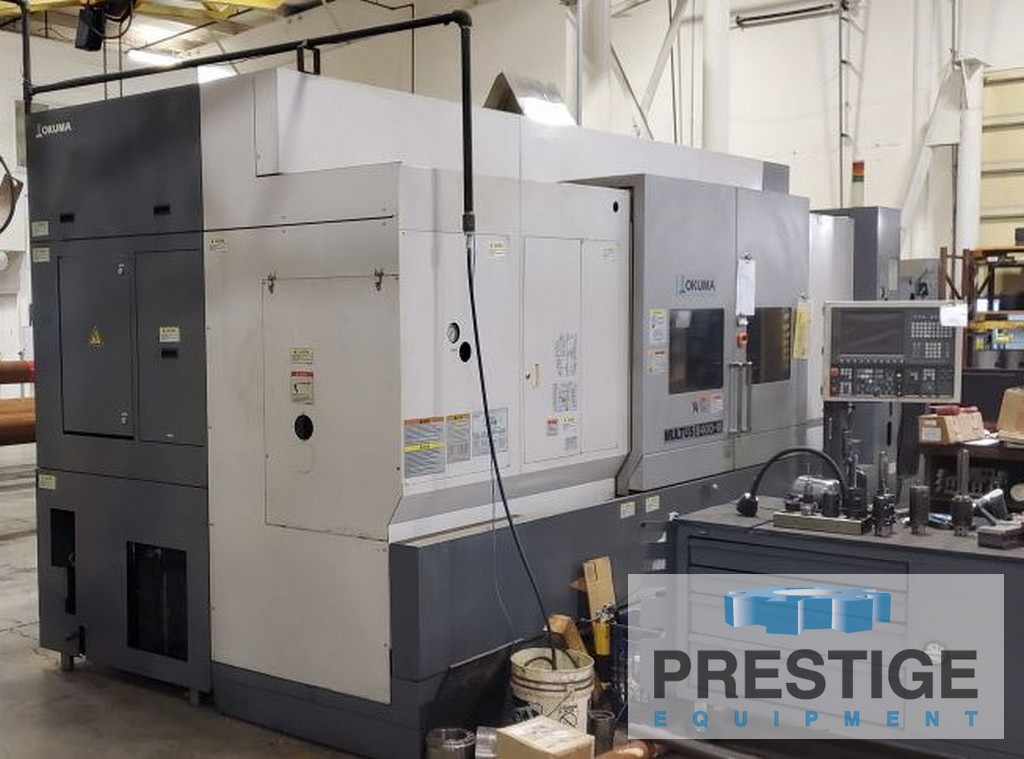

Okuma Multus B-400-W 1500 Mill Turn CNC Lathe

FEATURES:

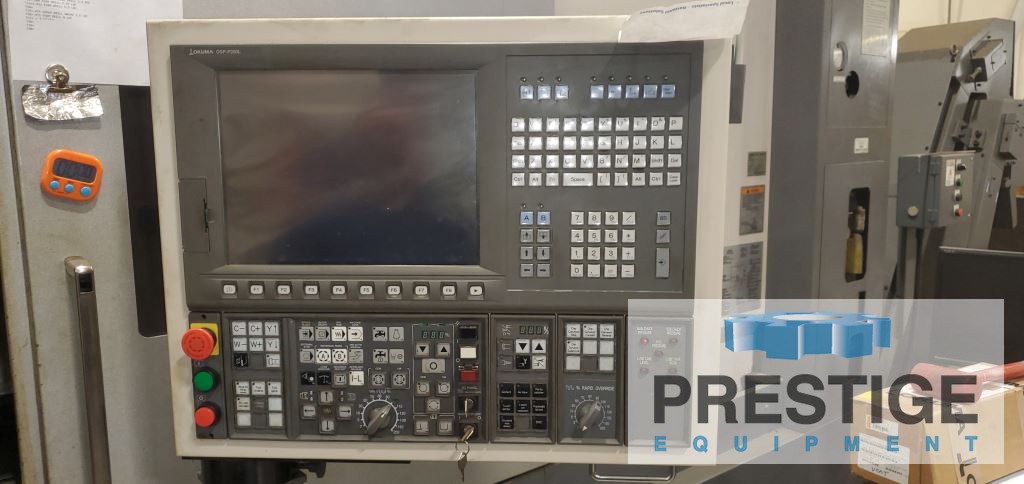

OSP P200L Control

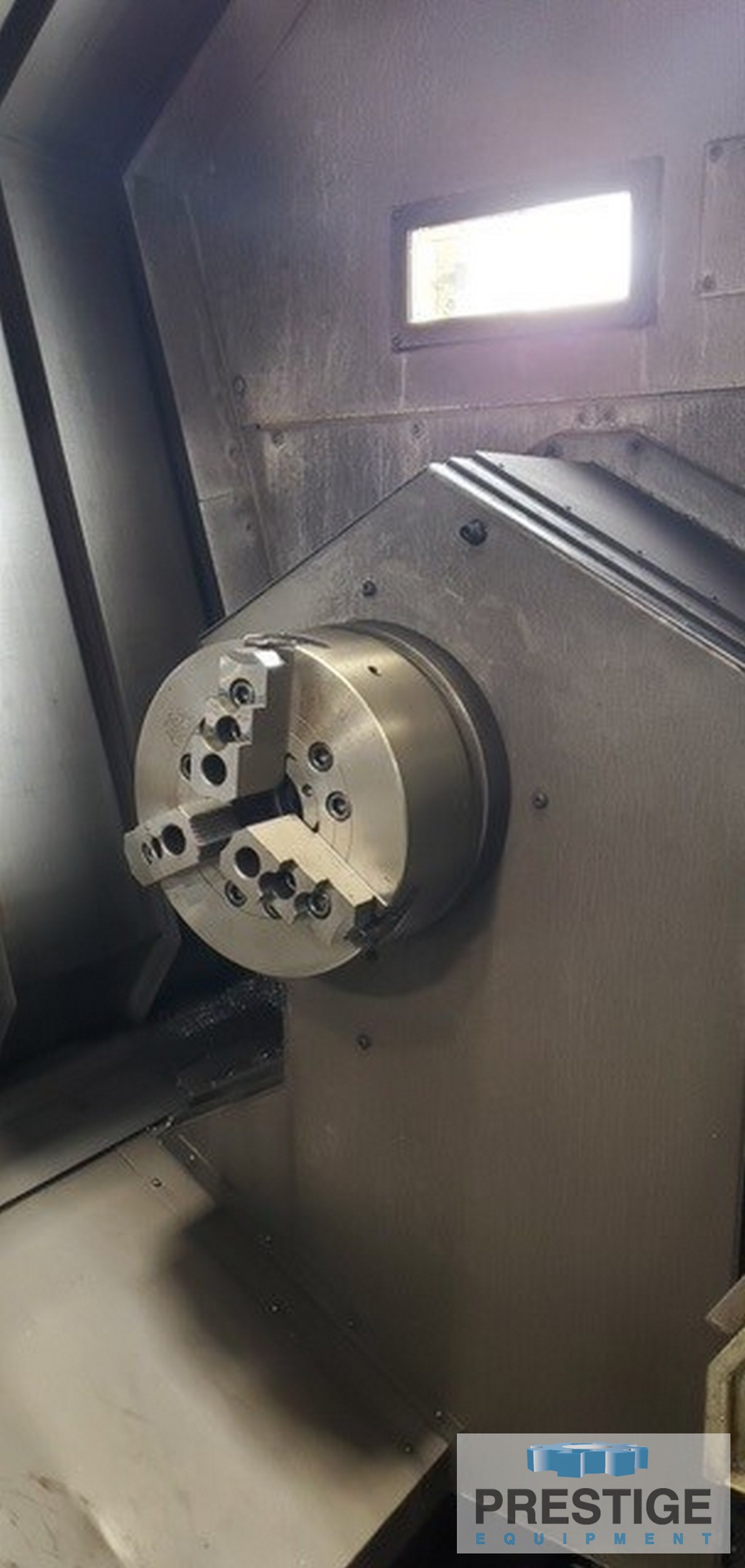

15" Main Spindle Chuck
10" Opposing Spindle Chuck
60-Position Automatic Tool Changer
Tool Presetter
Prepped for Coolant Through the Tool

SPECIFICATIONS:
Number of Axes ........................ 5
Number of Spindles .................... 2
Max. Swing over Bed ................... 27.95"
Swing over Saddle ..................... 27.95"
Max. Turning Length ................... 60"
X-Axis Travel ......................... 27.17"
Z-Axis Travel ......................... 60.83"
Y-Axis Travel ......................... 9.06"
C-Axis Control ........................ 360 Deg. at 0.001
B Axis Indexing Angle ................. 225 Deg. at 0.001"

MAIN SPINDLE:

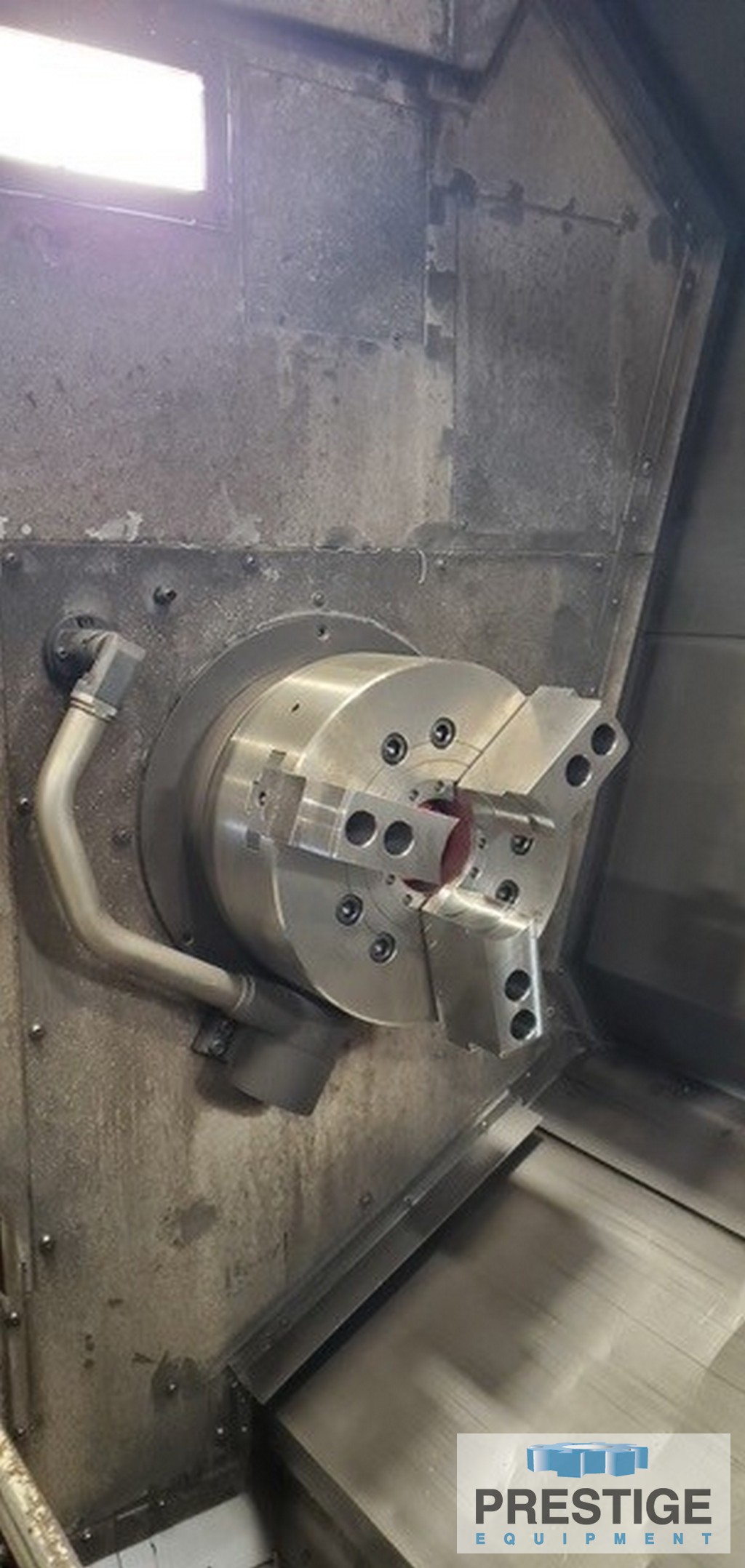

Main Spindle Chuck Size ............... 15"
Main Spindle Speed Range .............. 38-3800 RPM
Main Spindle Nose ..................... A2-11
Main Spindle Bore ..................... 4.33
Main Spindle Motor .................... 40 HP/30 HP

SUB-SPINDLE:
Sub-Spindle Chuck Size ................ 10"
Sub-Spindle Speed Range ............... Auto 2-Speed
Sub-Spindle Motor ..................... 30 HP/20 HP

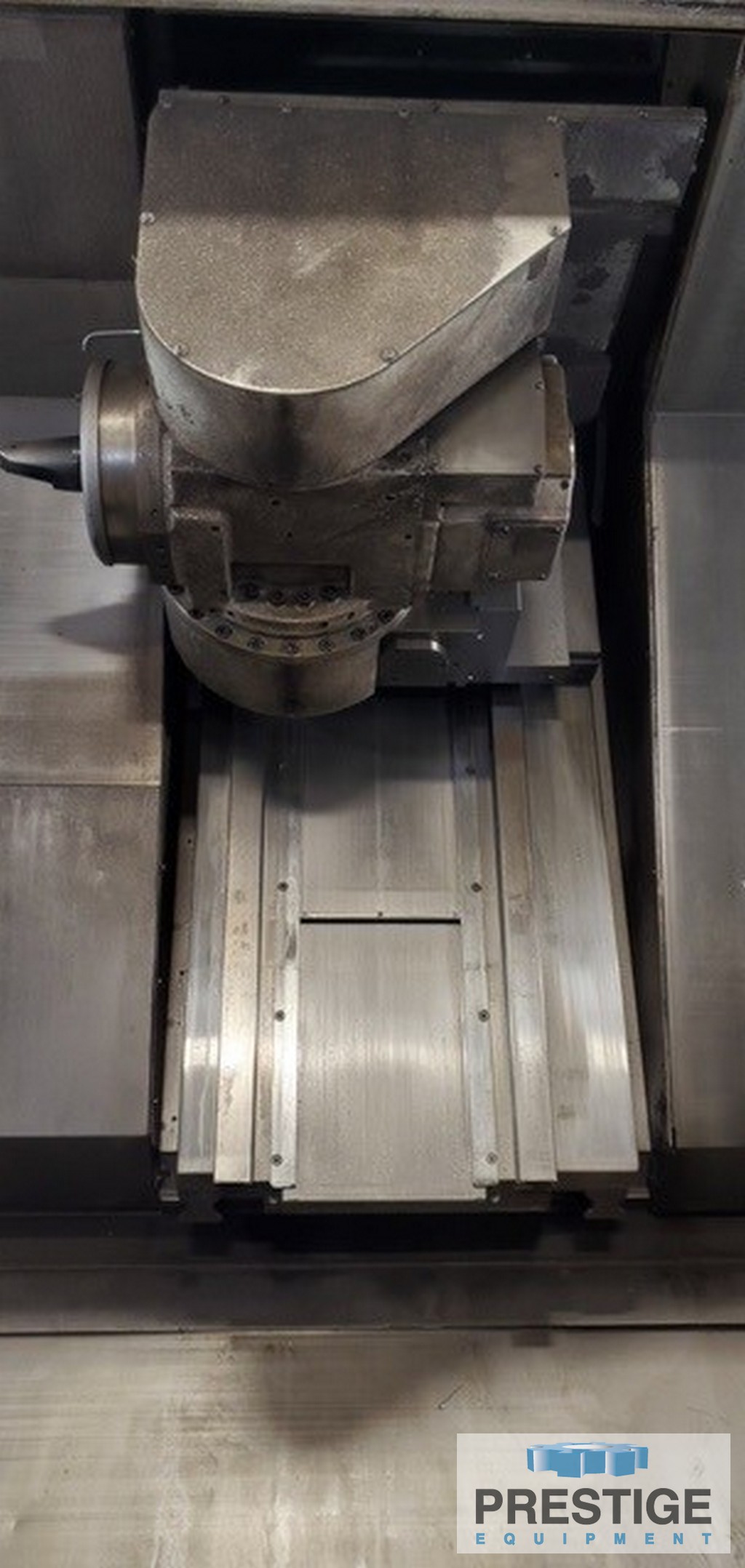

B-AXIS MILLING SPINDLE:
Tool Taper in the M-Spindle ........... CAPTO C6
Milling Spindle Speed Range ........... 10,000 RPM
Milling Tool Spindle Dia. ............. 2.76"
Milling Spindle Motor ................. 19 HP/13 HP
FEEDS:
Cutting Feedrate ...................... 0.001-39.37 IPR
Rapid Traverse, X & Z: ................ 1575 IPM
Rapid Traverse, Y ..................... 1024 IPM

DIMENSIONS & WEIGHT:
Dimensions, LxWxH ..................... 226.38" x 104.73" x 118"
Machine Weight ........................ 37,500 Lbs.

EQUIPPED WITH:
OSP P200L Control
15" Main Spindle Chuck
10" Opposing Spindle Chuck
60-Position Automatic Tool Changer
Tool Presetter
Prepped for Coolant Through the Tool
Coolant System

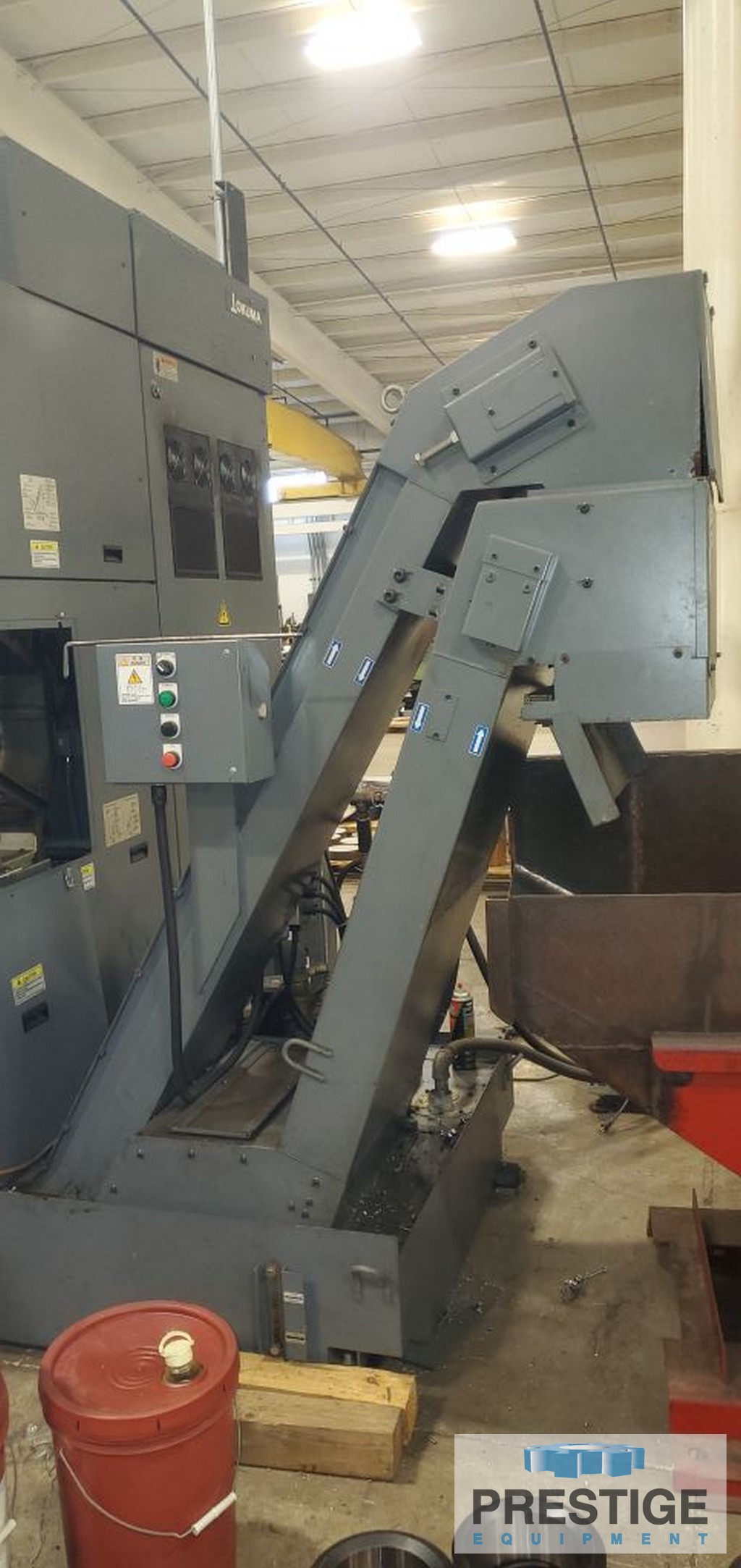

Chip Conveyor
Foot Switches

NOTE:

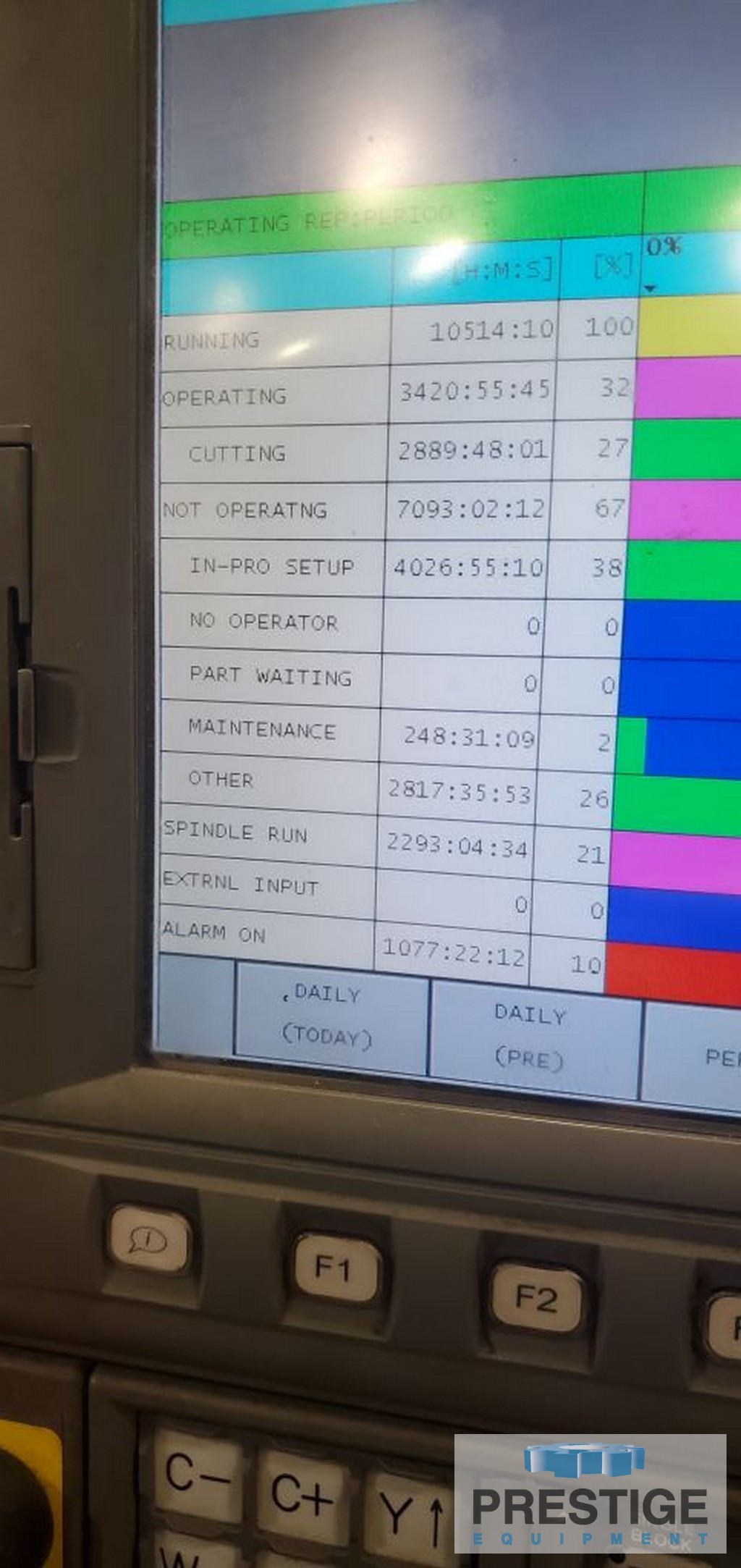

Only 2900 Cutting Hours, Inspect Under Power In Mid-West Plant
