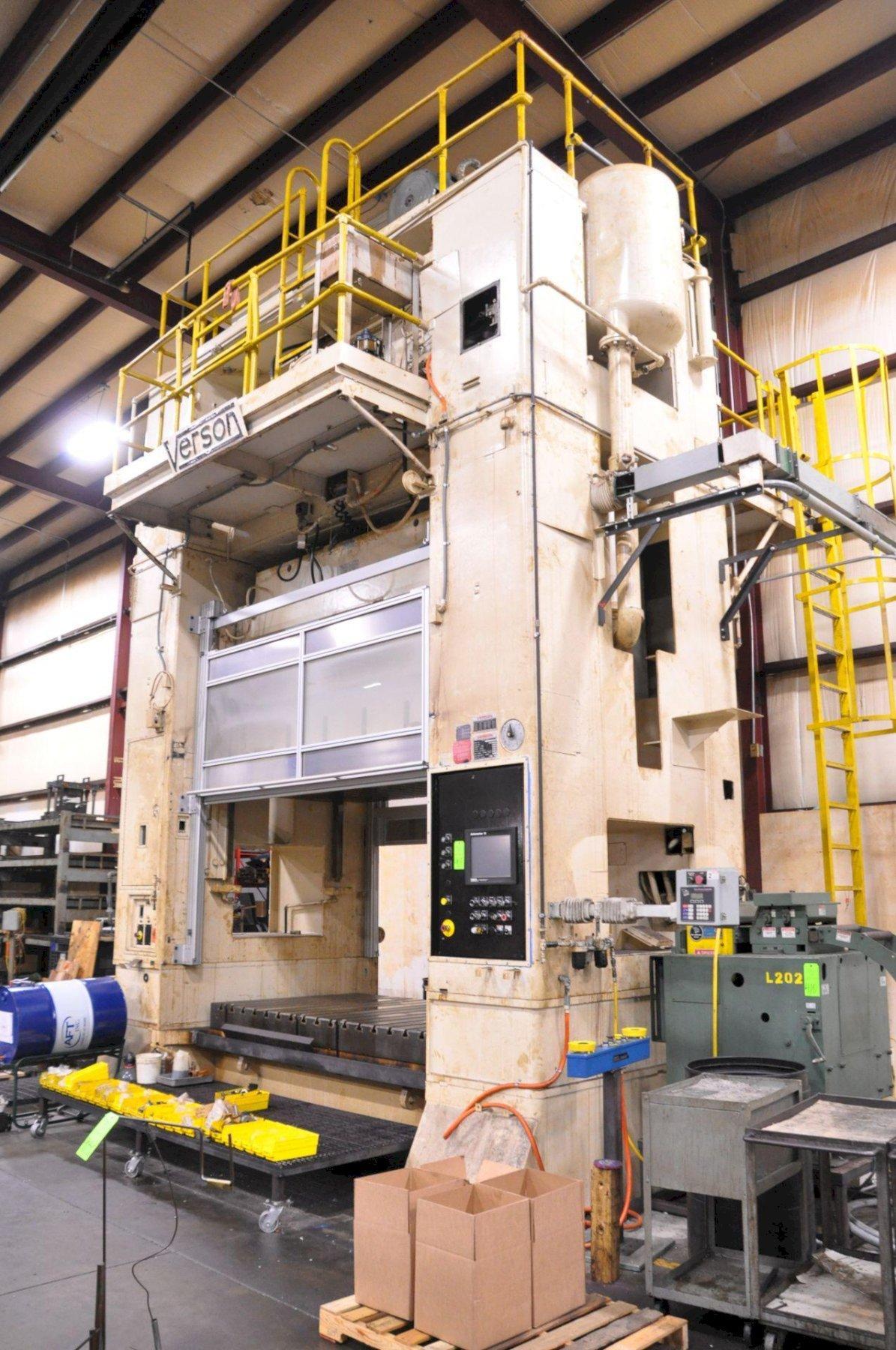

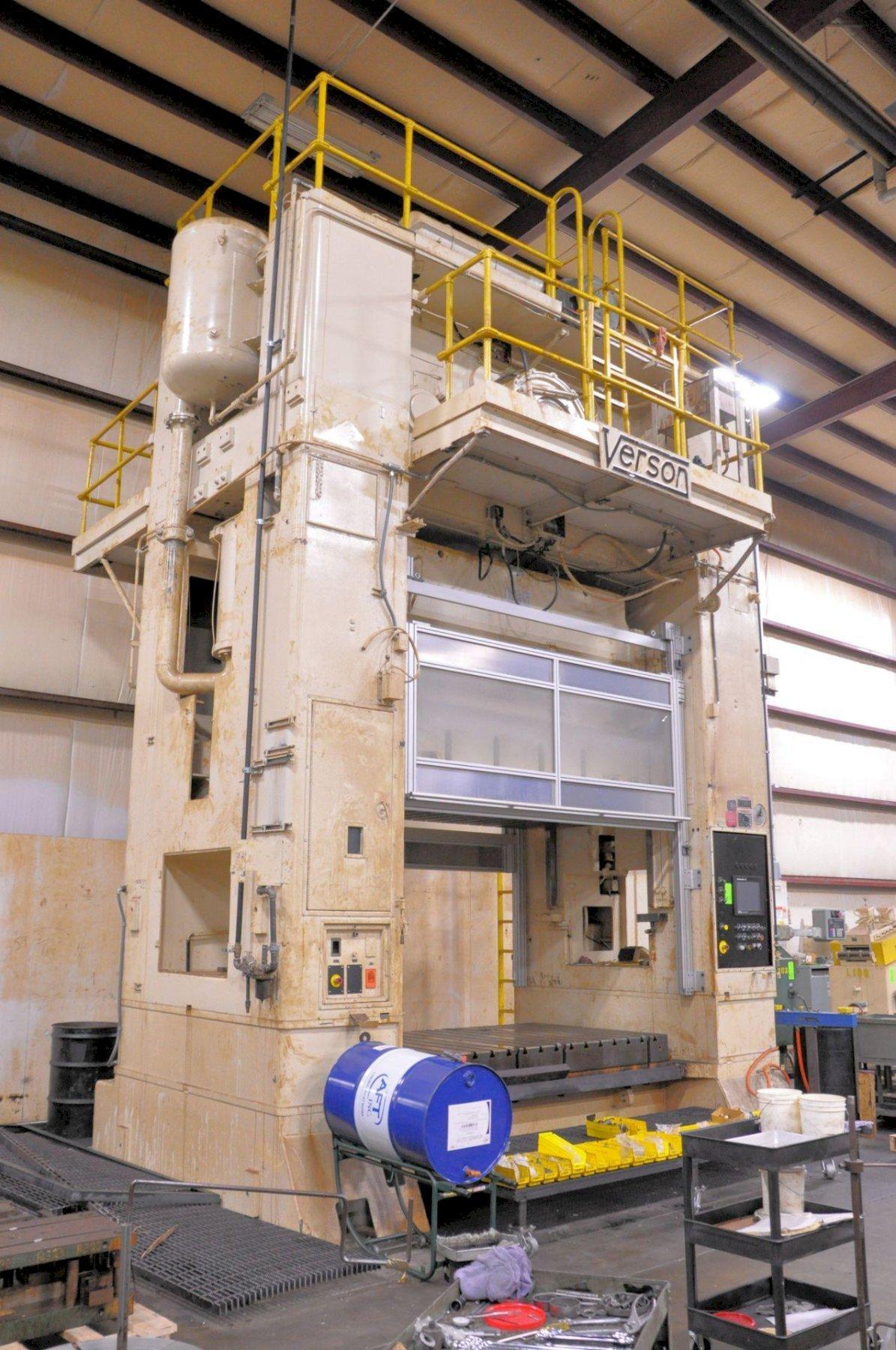

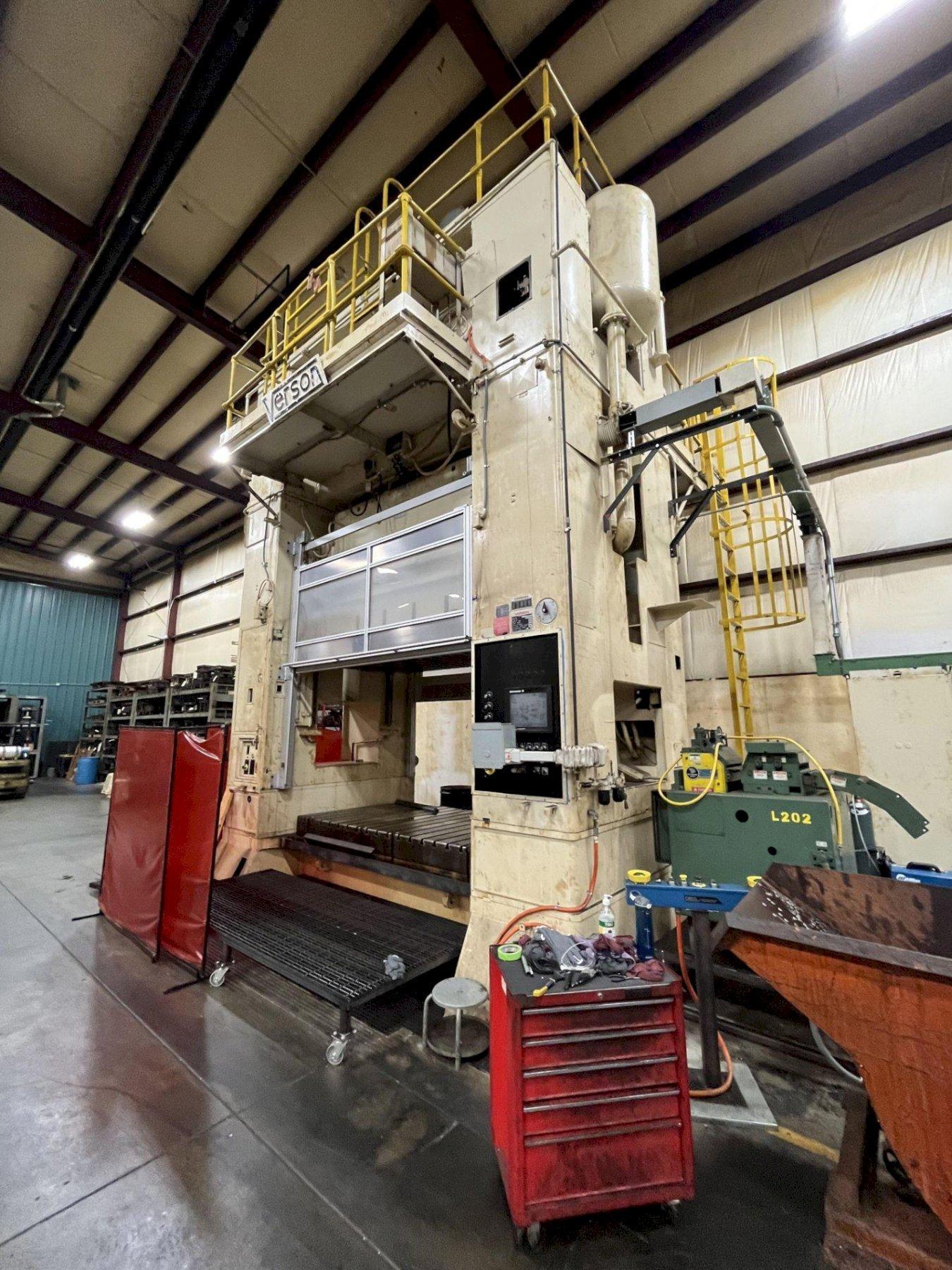

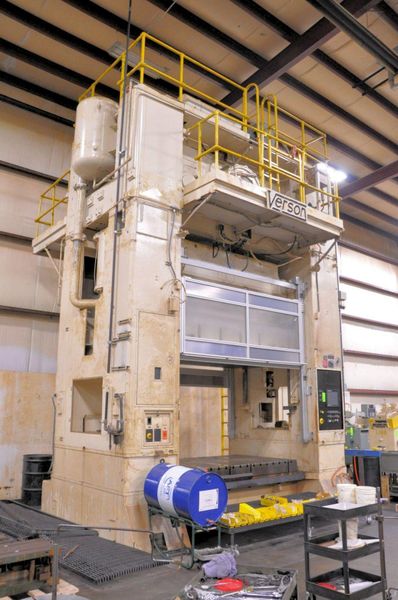

800 TON VERSON SE2-800-108-60T STRAIGHT SIDE MECHANICAL METAL STAMPING PRESS FOR SALE, PREVIOUSL

Stock

2870

Model

SE2-800-108-60t

Dealer Location

Michigan

Spec Sheet

Tonnage - 800
Stroke - 16 inches
Shut Height - 39 inches
Adjustment - 12 inches
Bed Size - 108" LR x 60" FB
Ram Area - 108" LR x 60" FB
SPM - 20-40 VSPM


Standard Specifications
Used Verson Mechanical Metal Stamping Press
Straight Side Double Crank

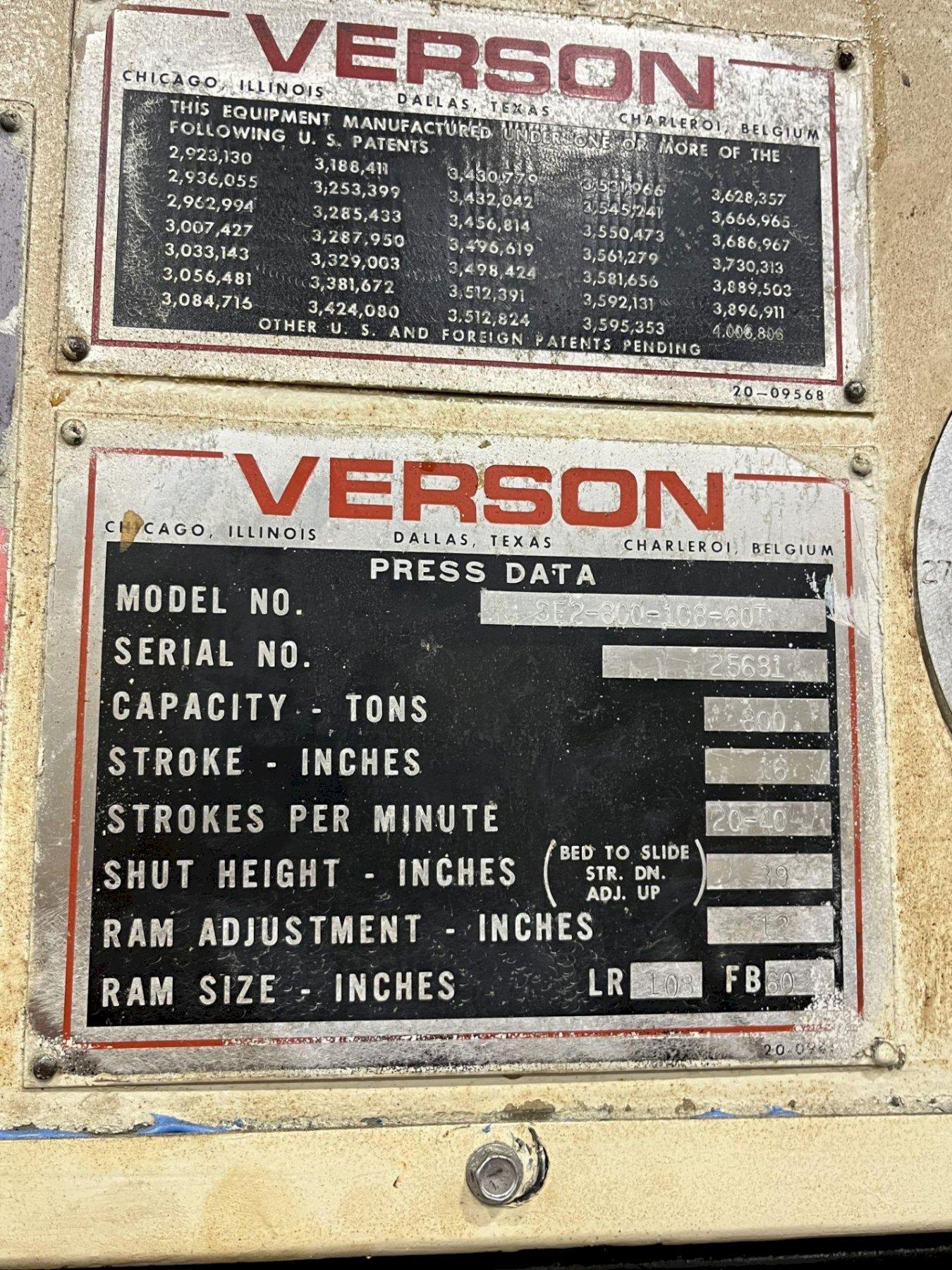

Verson Press Model SE2-800-108-60T sn/ 25681
800-ton Capacity
16" Stroke
39" Shut Height on Bed
31" Die Height on Bolster
12" Motorized Adjustment
108" LR x 60" FB Bed Area
108" LR x 60" FB Slide Area
20-40 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System

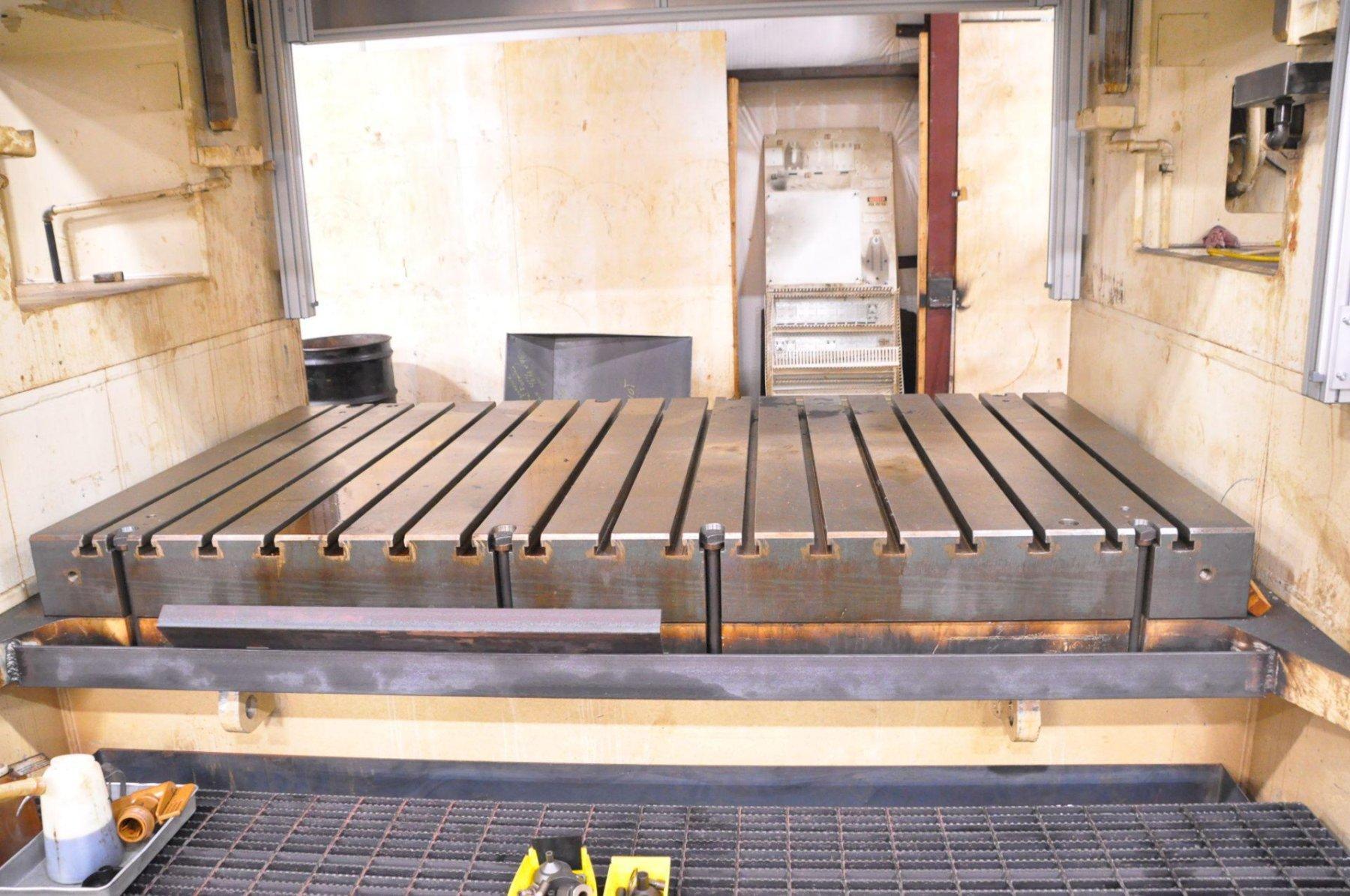

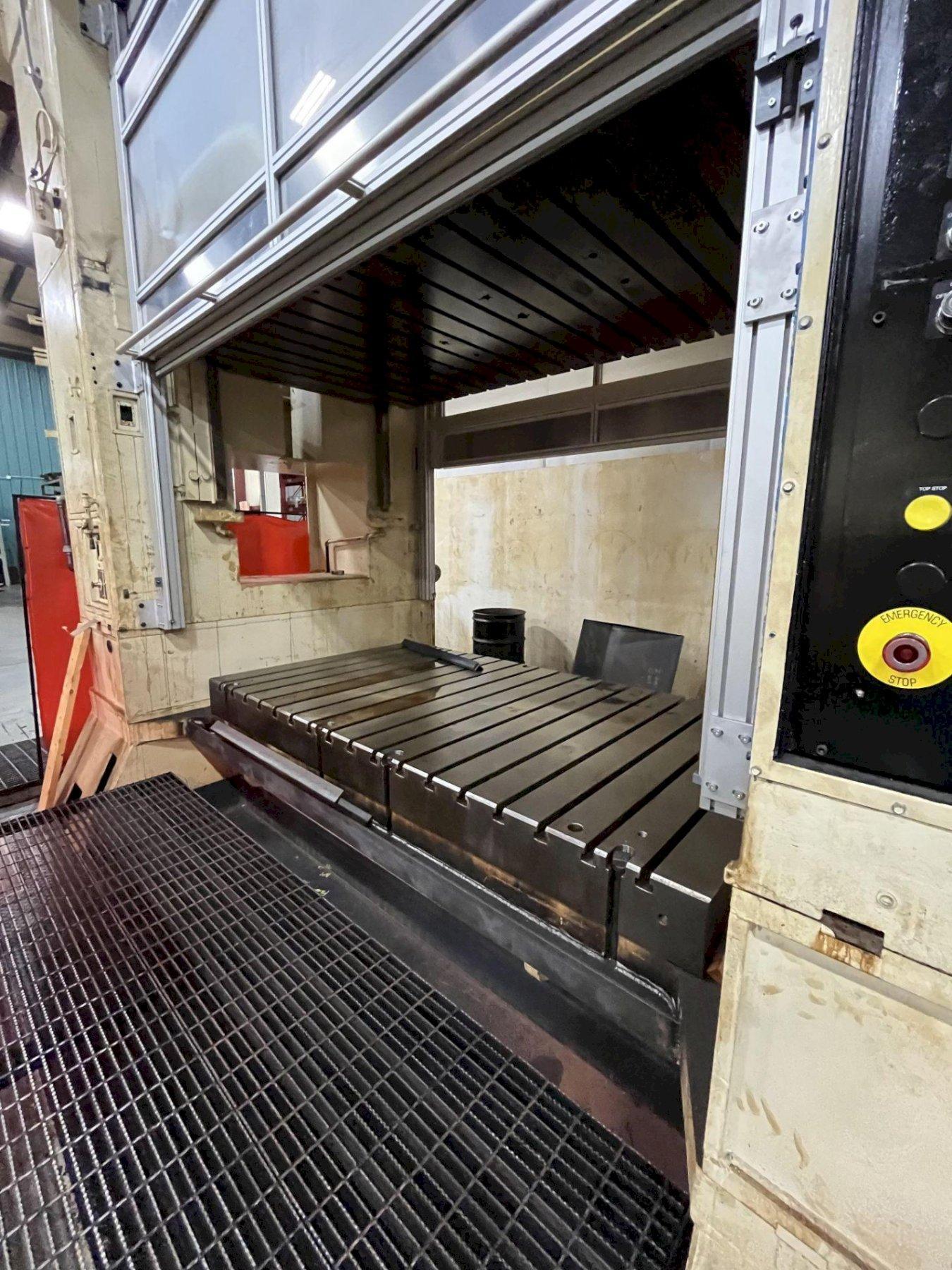

T-Slotted Ram and Bolster
8" Thick Bolster Plate
38" Wide Windows (Can be increased to 42")

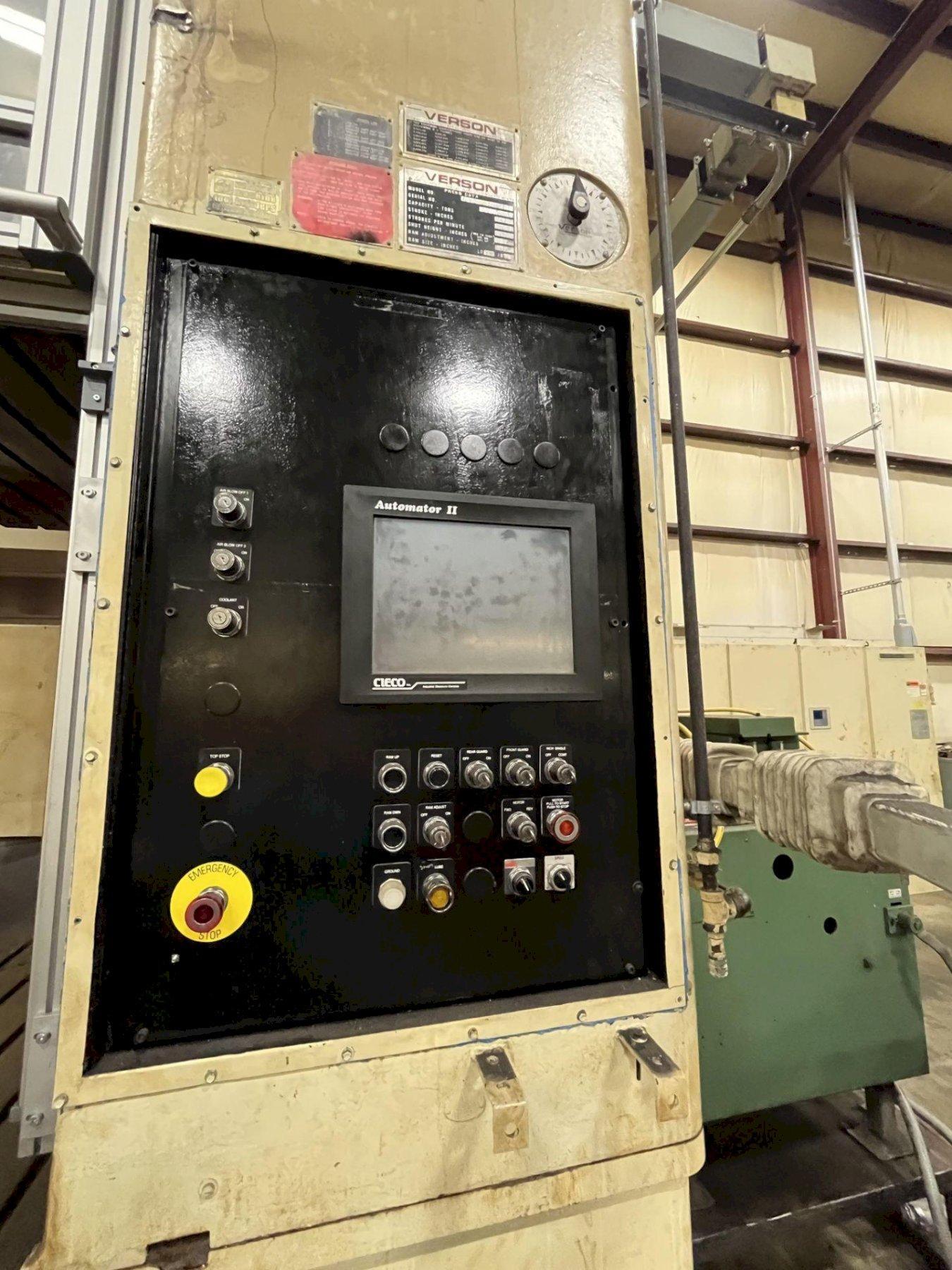

Cieco Automator II Press Controls
Hydraulic Tie Rod Nuts

Press includes 18" Riser for Side Columns for additional Shut Height -
Can be sold with or without Riser to make maximum 49" Die Height.


800-ton Verson SE2-800-108-60t was Reconditioned and Never put back into service.

Can be seen under power upon request.
