200 ton Aida Straight Side Mechanical Metal Stamping Press For Sale Model # NL2-200, Year 1986

Manufacturer

AIDA

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2866

Model

NL2-200

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 200
Stroke - 8 inches
Shut Height - 23.7 inches
Adjustment - 4 inches
Bed Size - 61" x 37.4"
Ram Area - 61" x 37.4"
SPM - 40-100 VSPM


Standard Specifications
Used 200-Ton Aida Metal Stamping Press
Model NL2-200 Straight Side Mechanical
200-ton Capacity (Metric)
220-ton US Capacity
8" Stroke
23.7" Shut Height On Bed
18.7" Die Height On Bolster
4" Motorized Adjustment
61" LR x 37.4" FB Bed Area
61" LR x 27.4" FB Slide Area
40-100 VSPM

Equipment and Features
Aida Combination Wet Clutch and Brake
Recirculating Lube System
Link Drive Mechanical Press
T-Slotted Ram and Bolster
Hydraulic Overloads

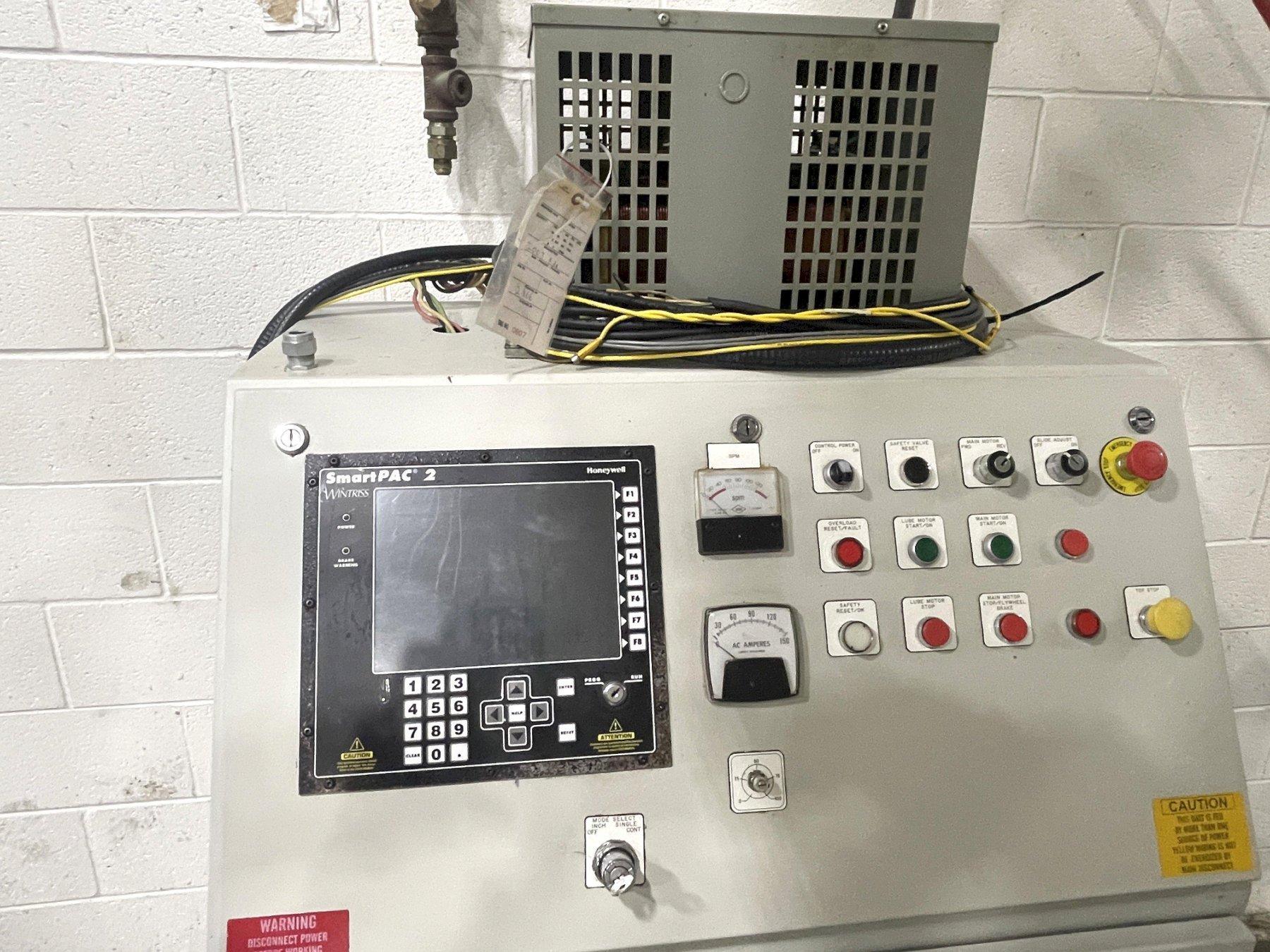

Updated Wintriss Smart Pac 2 Press Controls
Variable Speed Drive
Free Standing Control Console
50 Hp. Main Drive Motor
Link System 1100 Tonnage Monitor
35" Wide Windows
Light Curtains Front and Back
Isolation Pads on Press Feet
Floor Standing

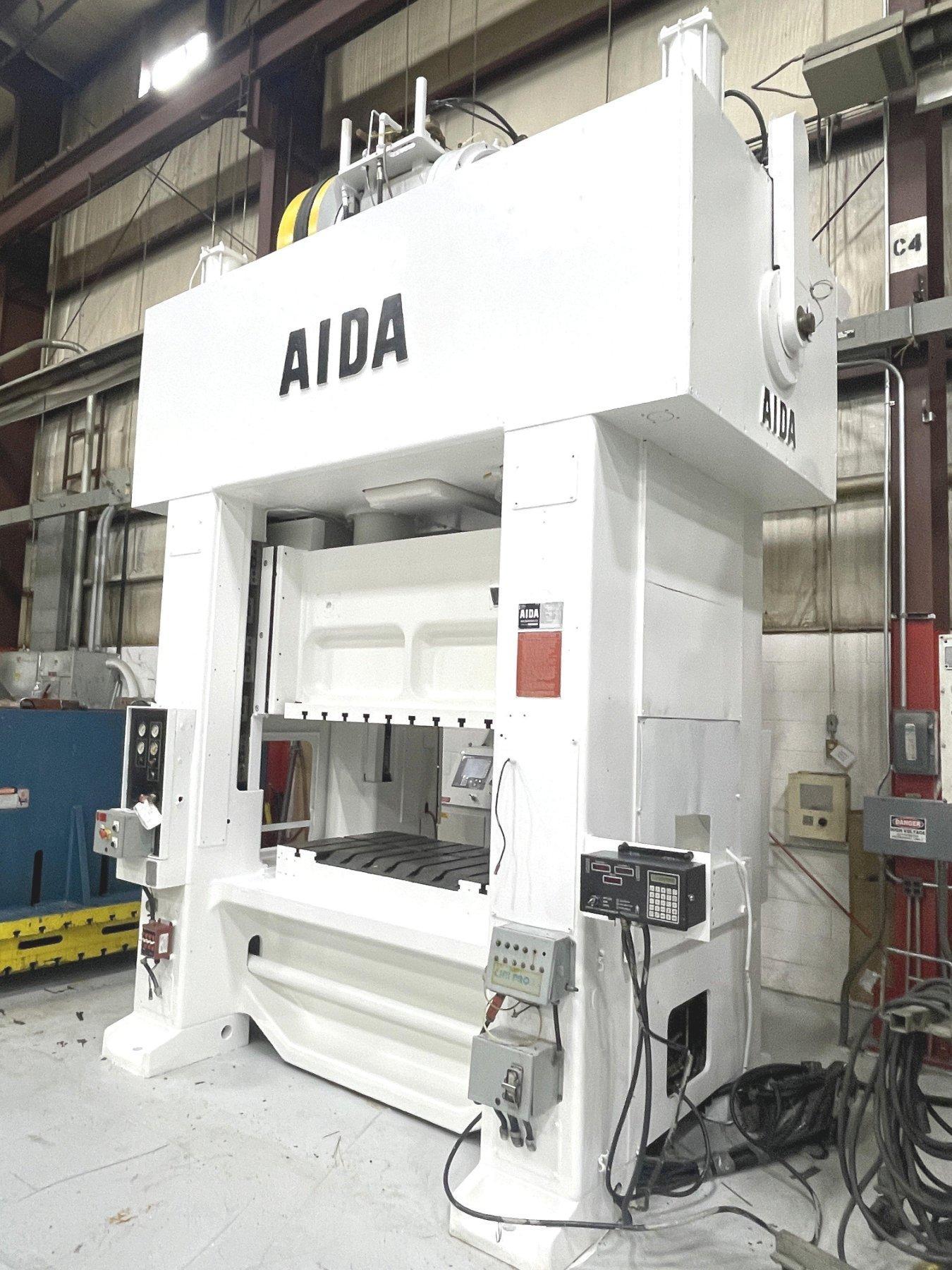

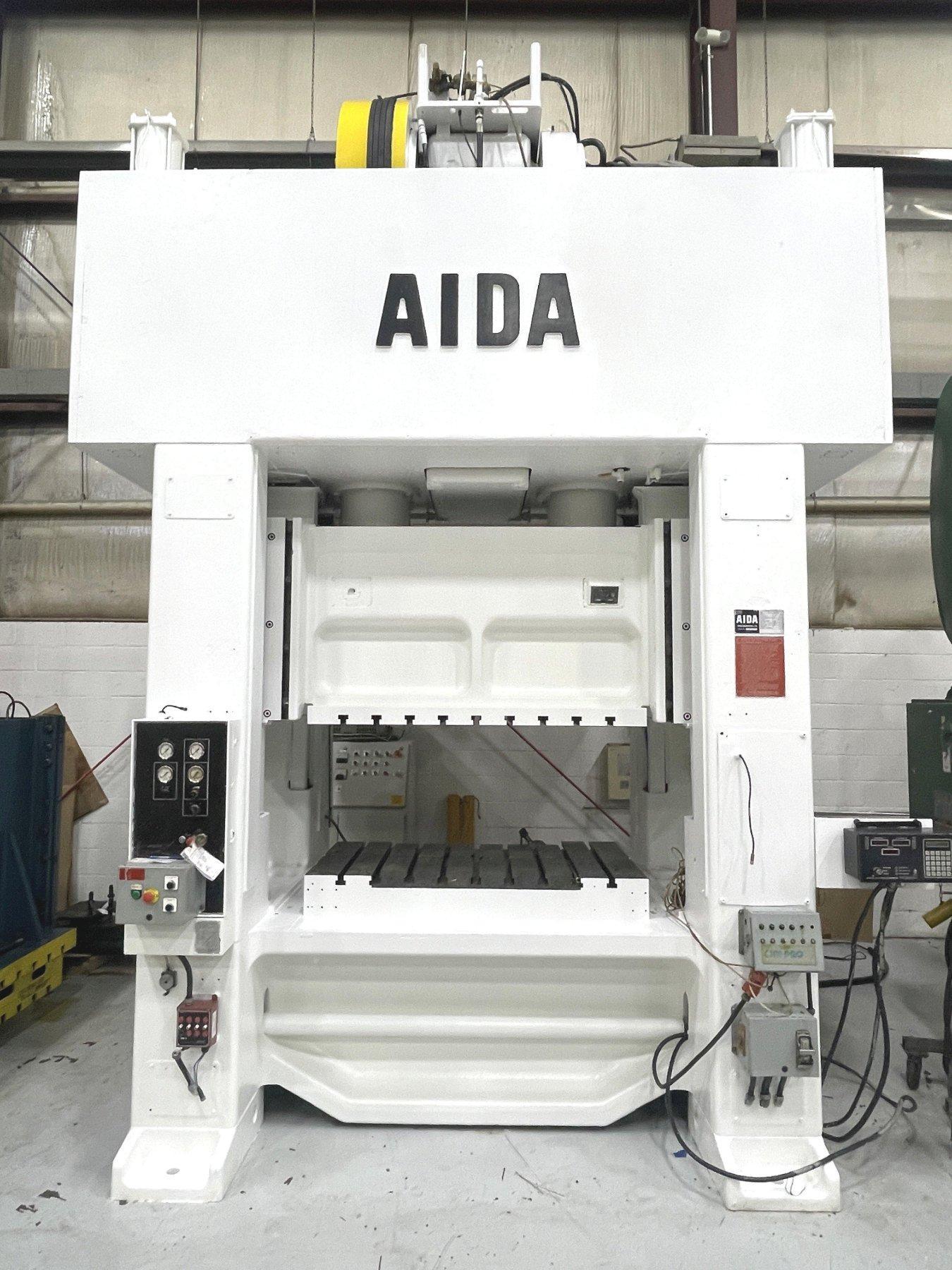

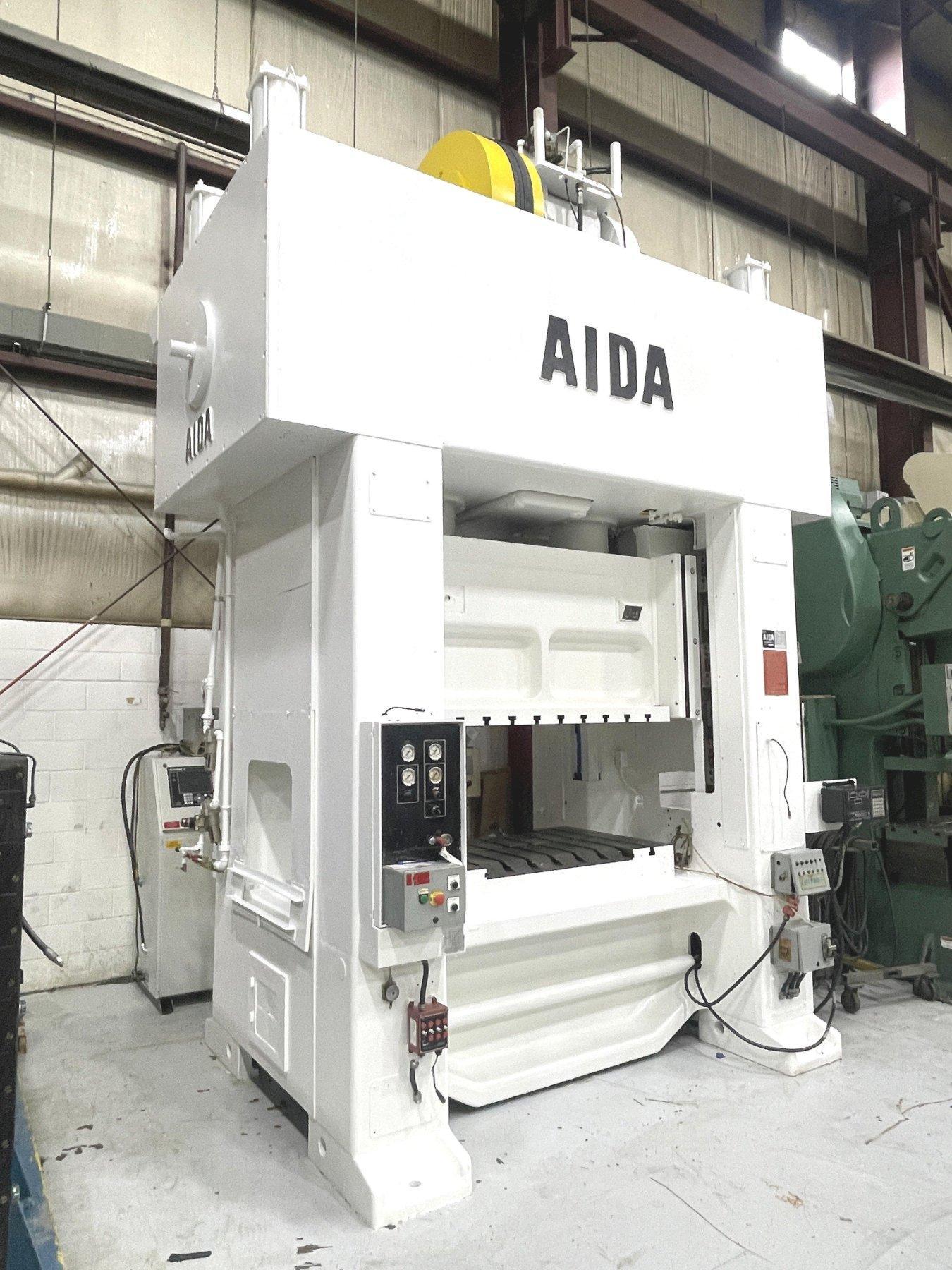

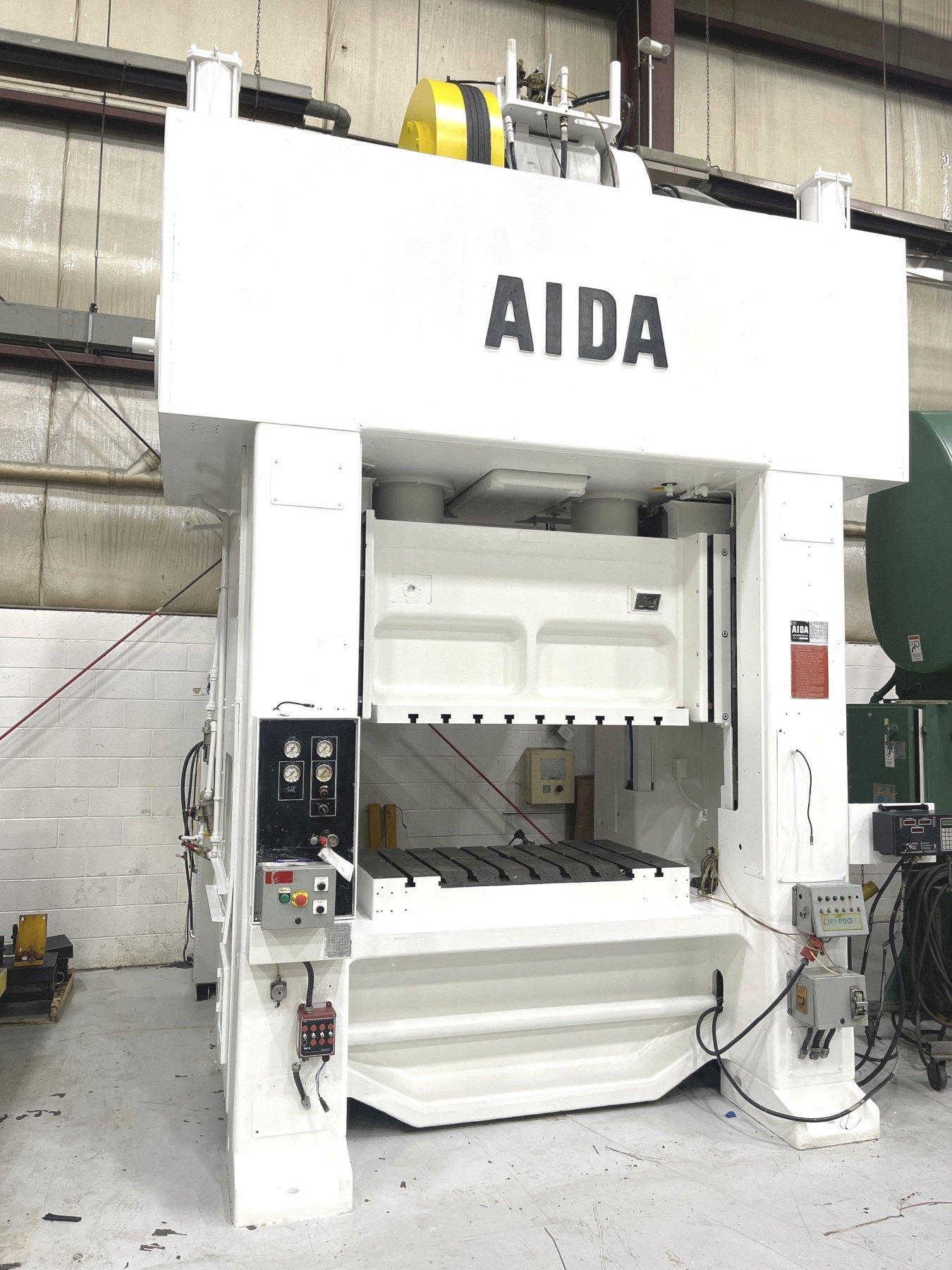

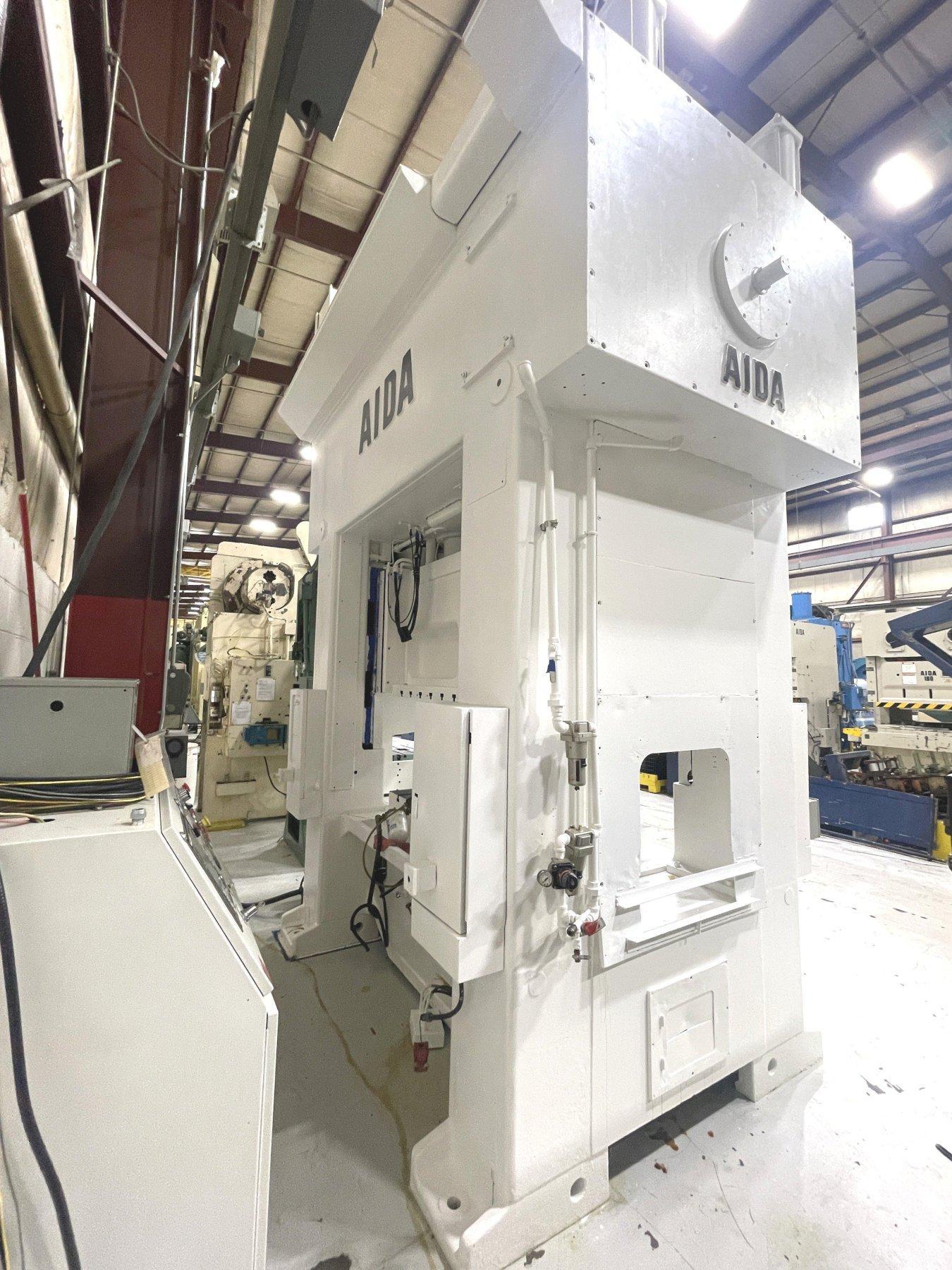

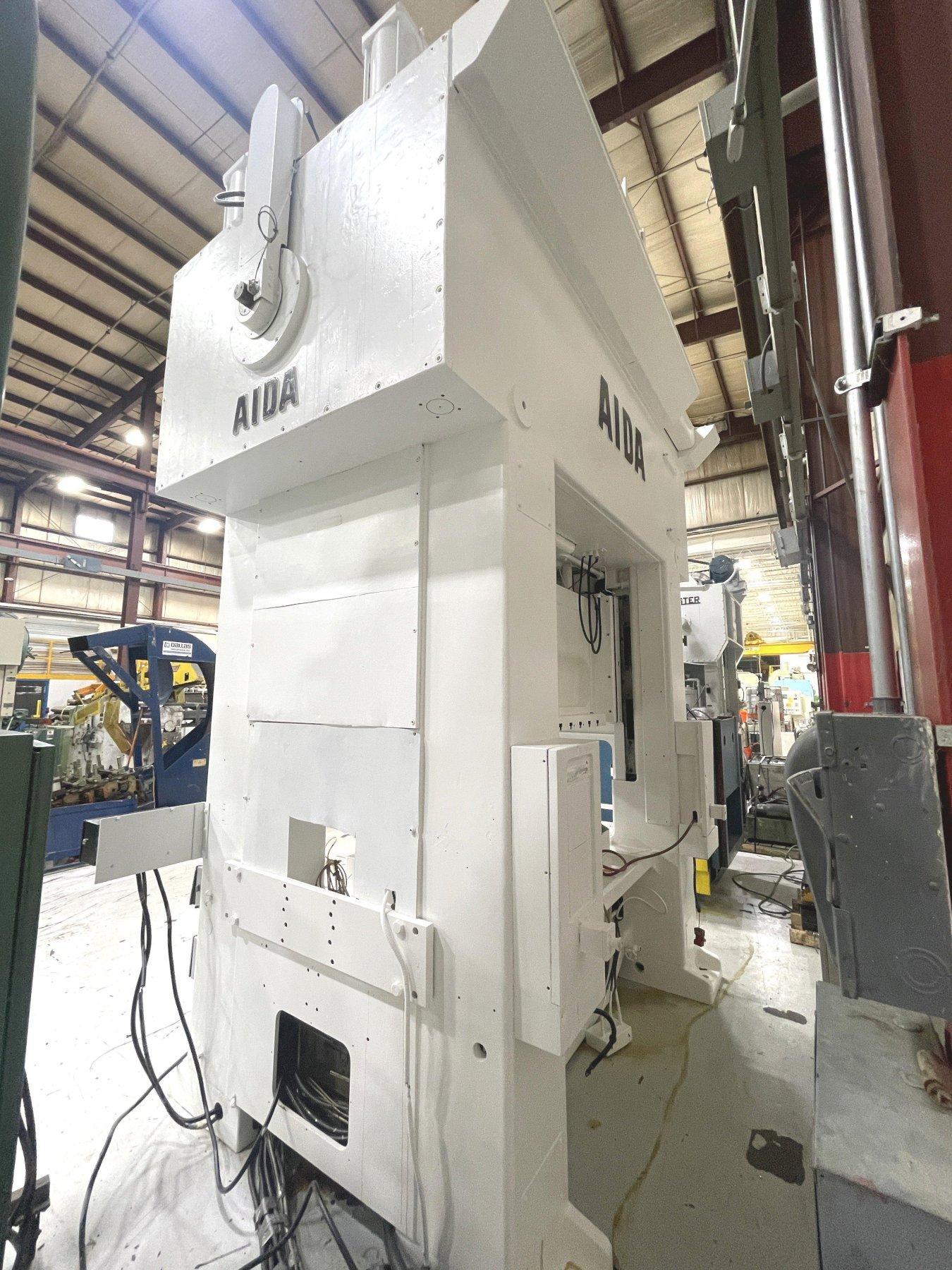

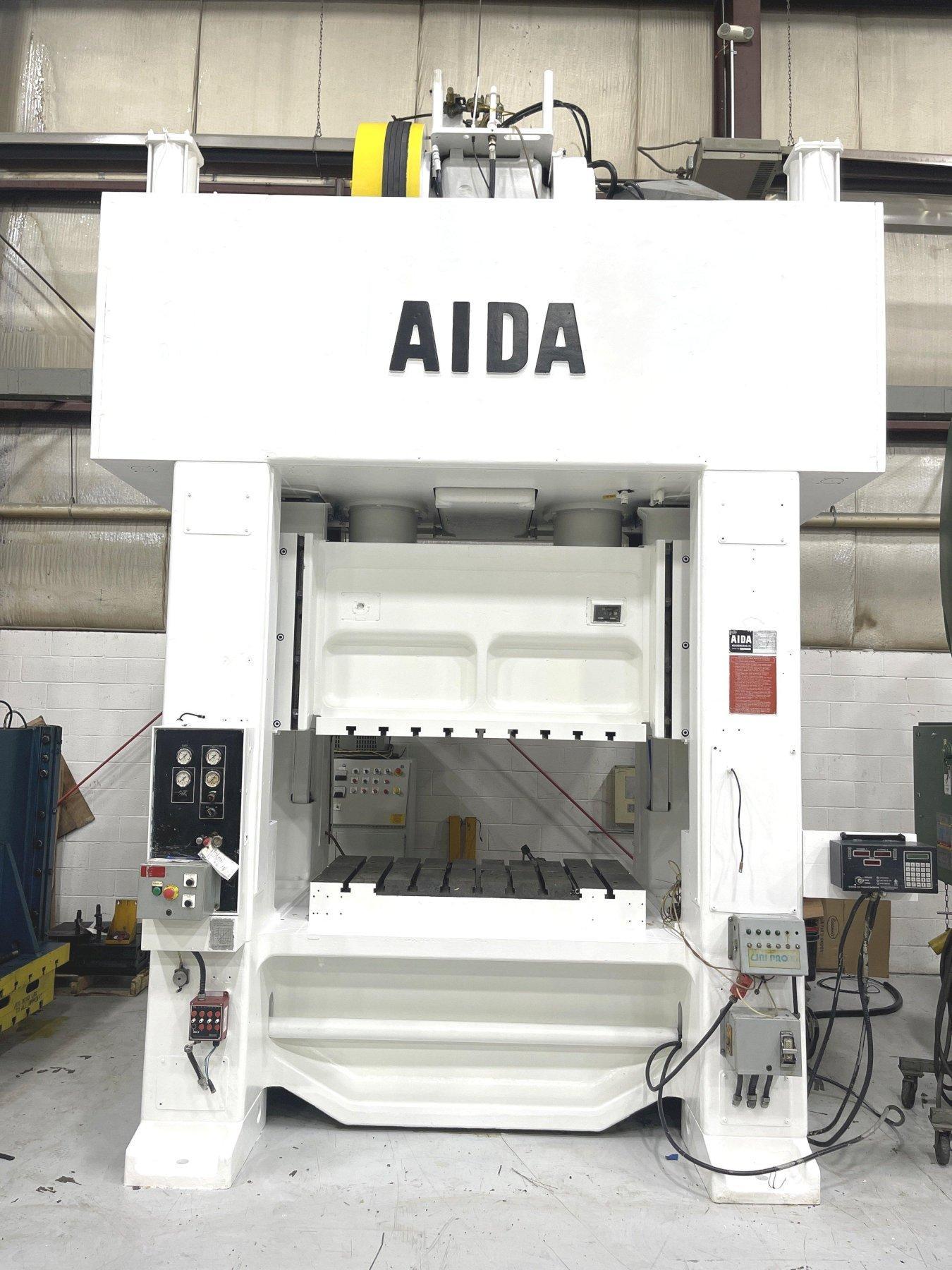

This Used Aida Straight Side Mechanical Press can be seen under power in the S & G Press Livonia Michigan Warehouse.

200 ton Aida Used Link Drive Mechanical Metal Stamping Press For Sale!

The Aida NL2-200 link drive metal stamping press revolutionizes metalworking with its cutting-edge technology. Boasting a tonnage capacity of 200 tons, it excels in precision and speed, ideal for automotive and appliance manufacturing. The link drive mechanism ensures smooth and efficient operation, reducing maintenance and downtime. Equipped with advanced control systems, the NL2-200 delivers unparalleled accuracy and consistency, making it a top choice for industries demanding high-performance stamping solutions.
