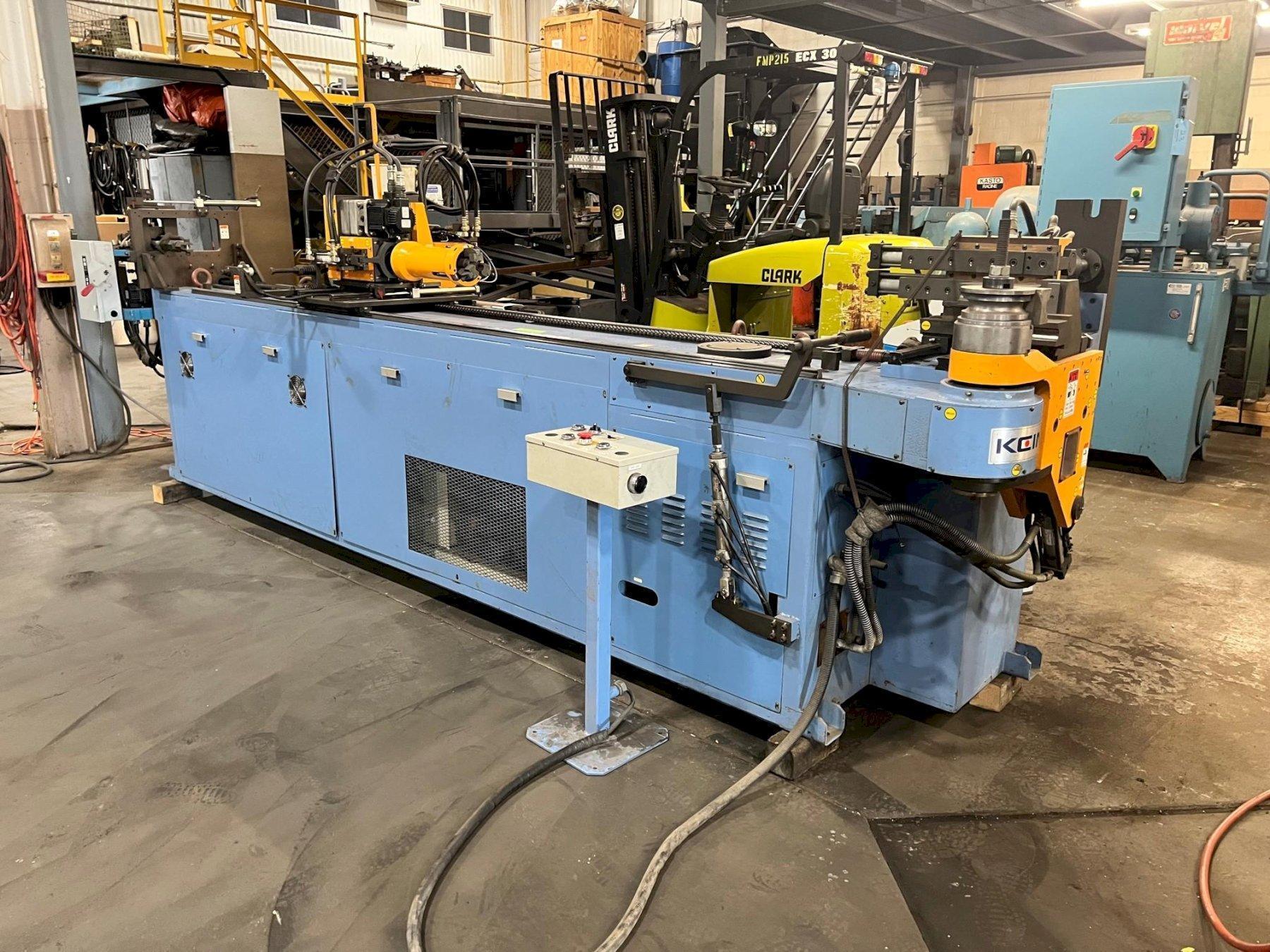

2" KEINS HORIZONTAL HYDRAULIC CNC TUBE BENDER, NEW 2001: STOCK #18818

Manufacturer

KEINS

Category

Tube Machinery

Type

TUBE BENDERS

Stock

18818

Model

KB-45ND

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

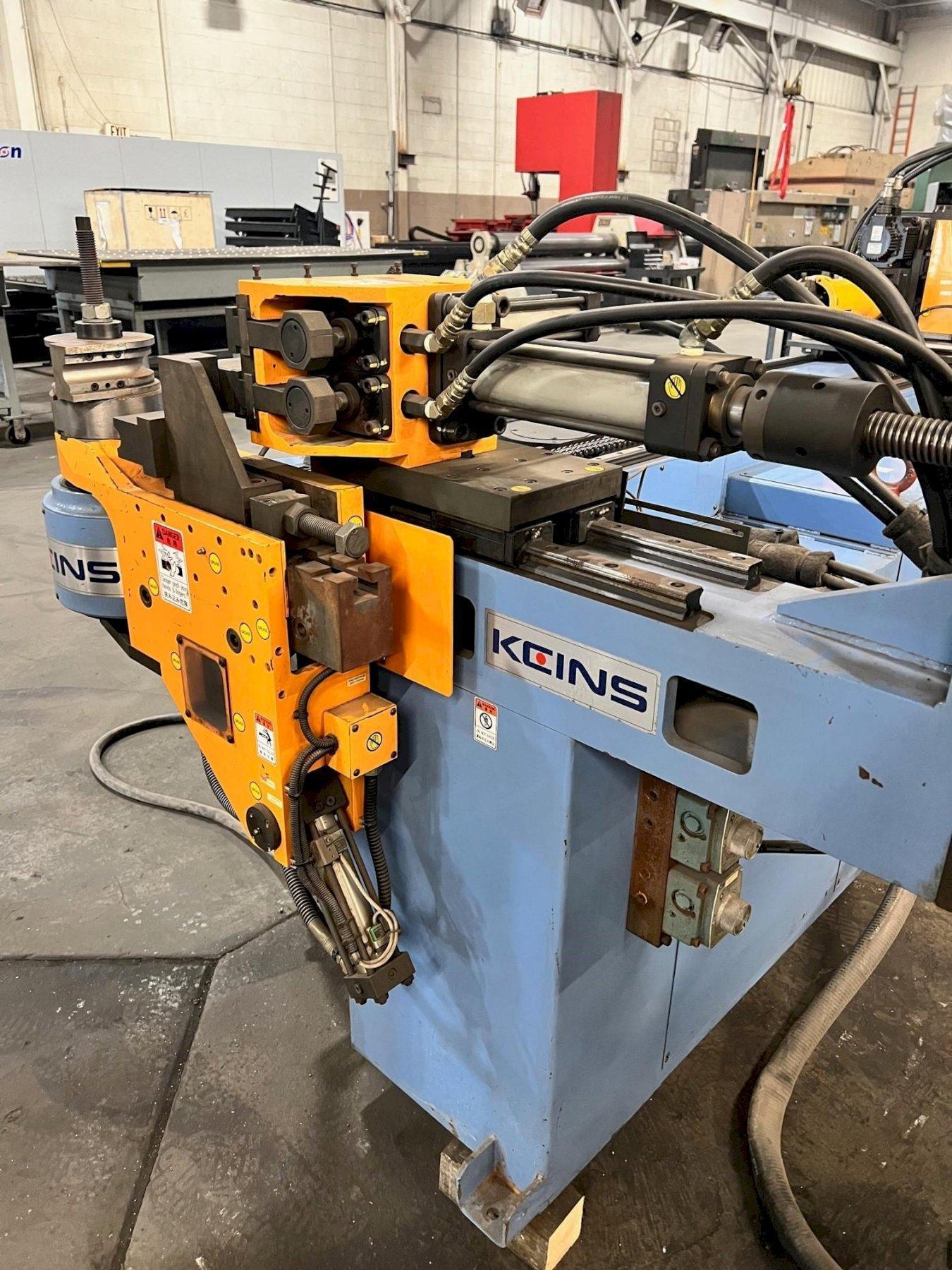

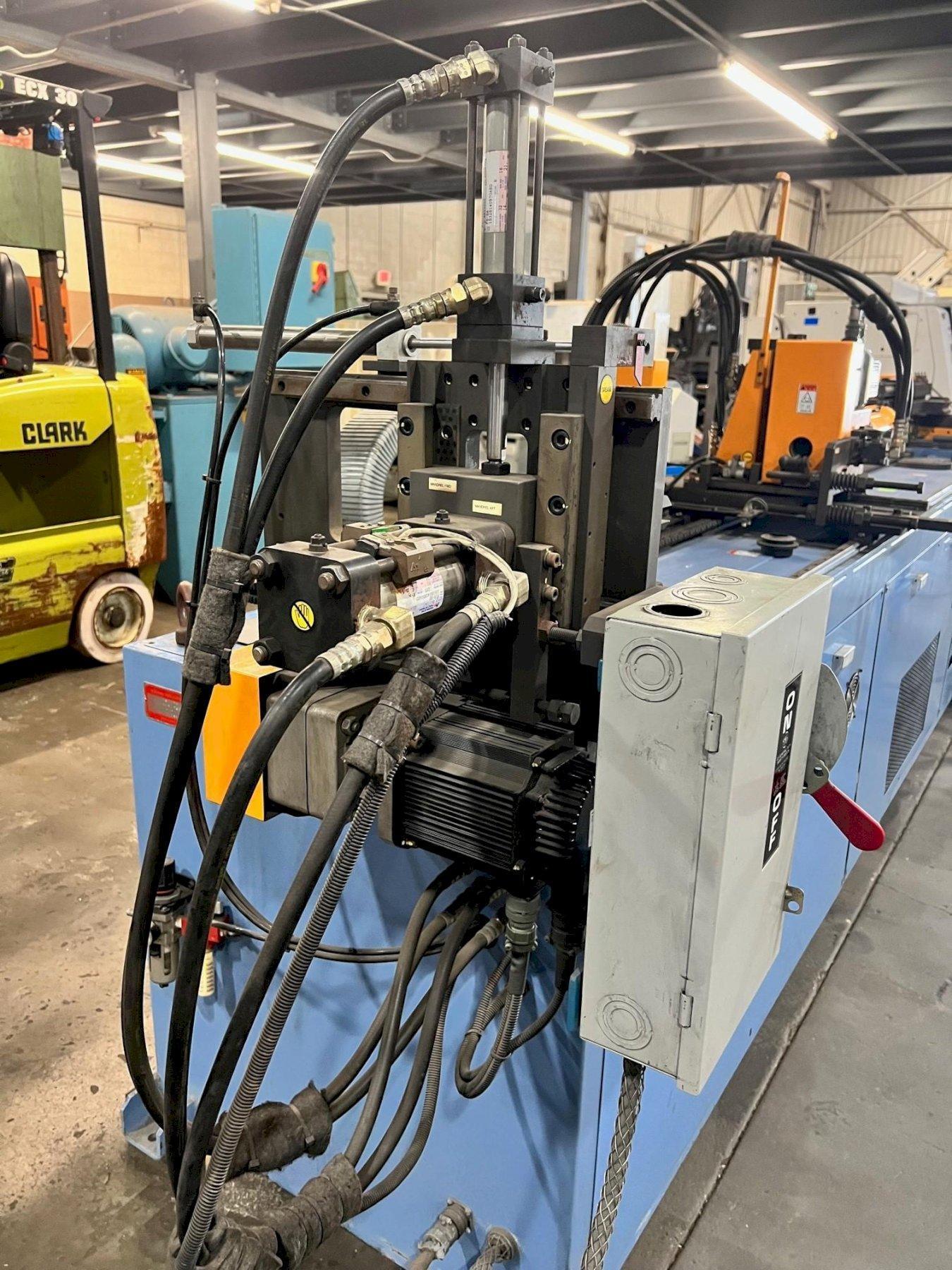

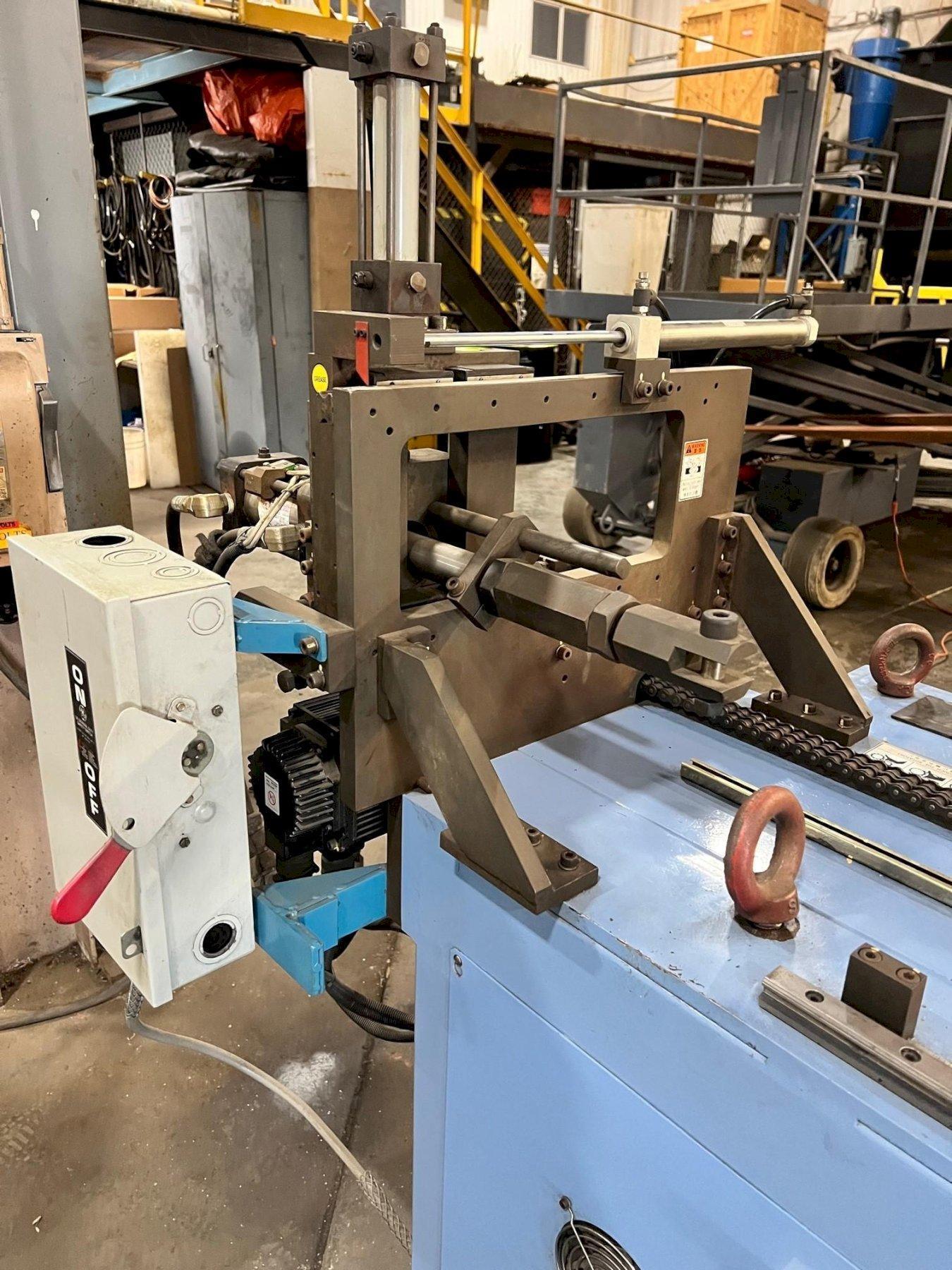

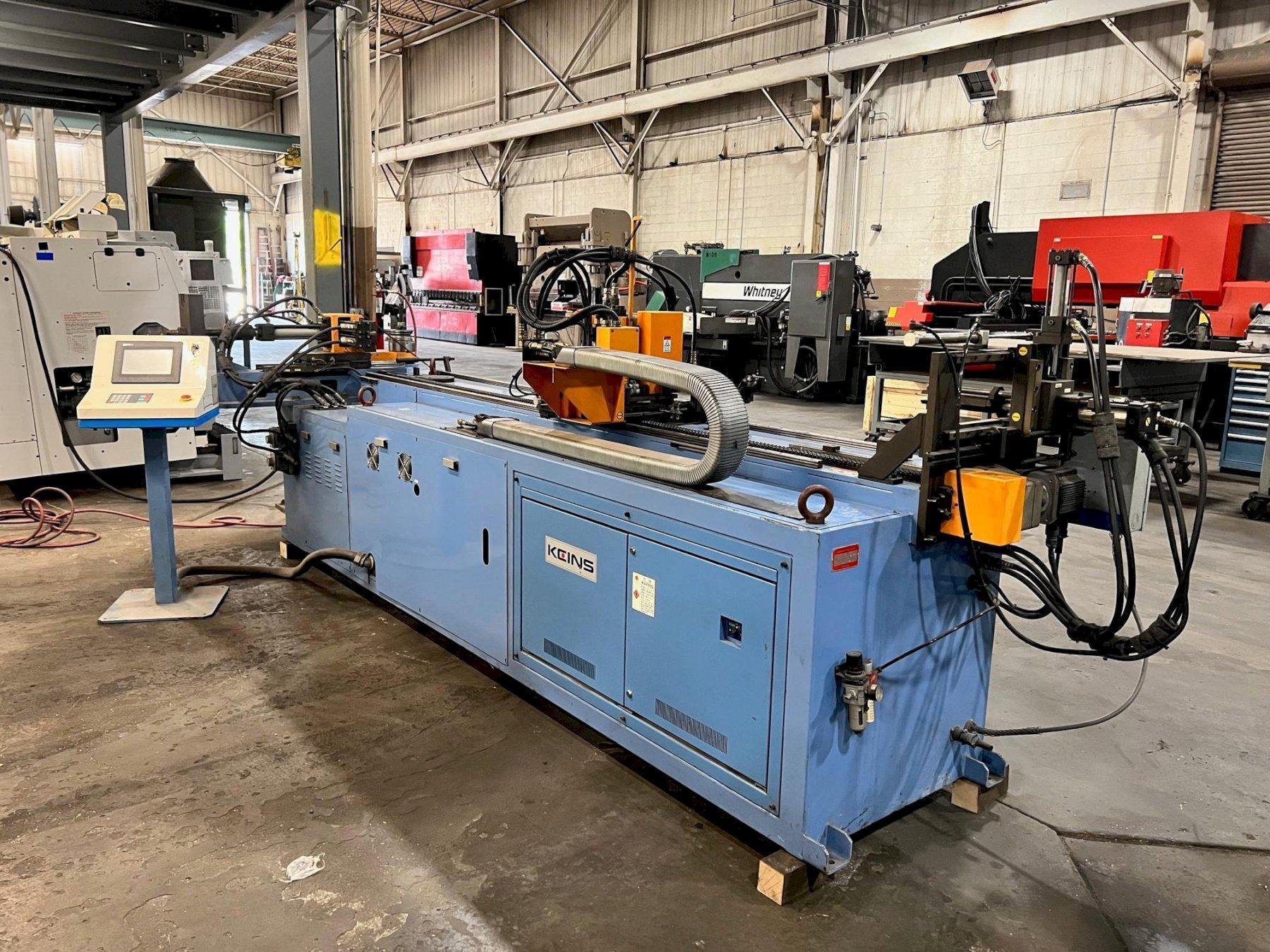

2" KEINS MODEL #KB-45ND HORIZONTAL HYDRAULIC CNC TUBE BENDER, NEW 2001:
YODER BROTHERS MACHINERY STOCK #18818
SERIAL ....................... K-8612
YEAR NEW ..................... JAN 2001
MODEL ........................ KB-45ND

CAPACITY ..................... 2"
Thin wall metal capacity: 1.77" x .07" wall (45mm x 2mm)
Thick wall metal capacity: 1.68" x .1" wall (42.7mm x 2.6mm)
Aluminum capacity: 2" x .07" wall (50.8mm x 2mm)
Stainless capacity: 1.5" x .07" wall (38.1mm x 2mm)
Steel bar capacity: .70" (18mm)
Square pipe capacity: 1.18" x 1.18" x 06" wall (30mm x 30mm x 1.5mm)
Maximum bending radius: 7.87" (200mm)
Maximum bend radius differential: 2" (50mm)
Maximum tube length: 98" (2500mm)
Number of axis: 3
Feed speed: 4.72 - 47.2 IPS (120 - 1200 mm/sec)
Plane speed: 36 - 360 degrees per second
Bending speed: 25 - 125 degrees per second

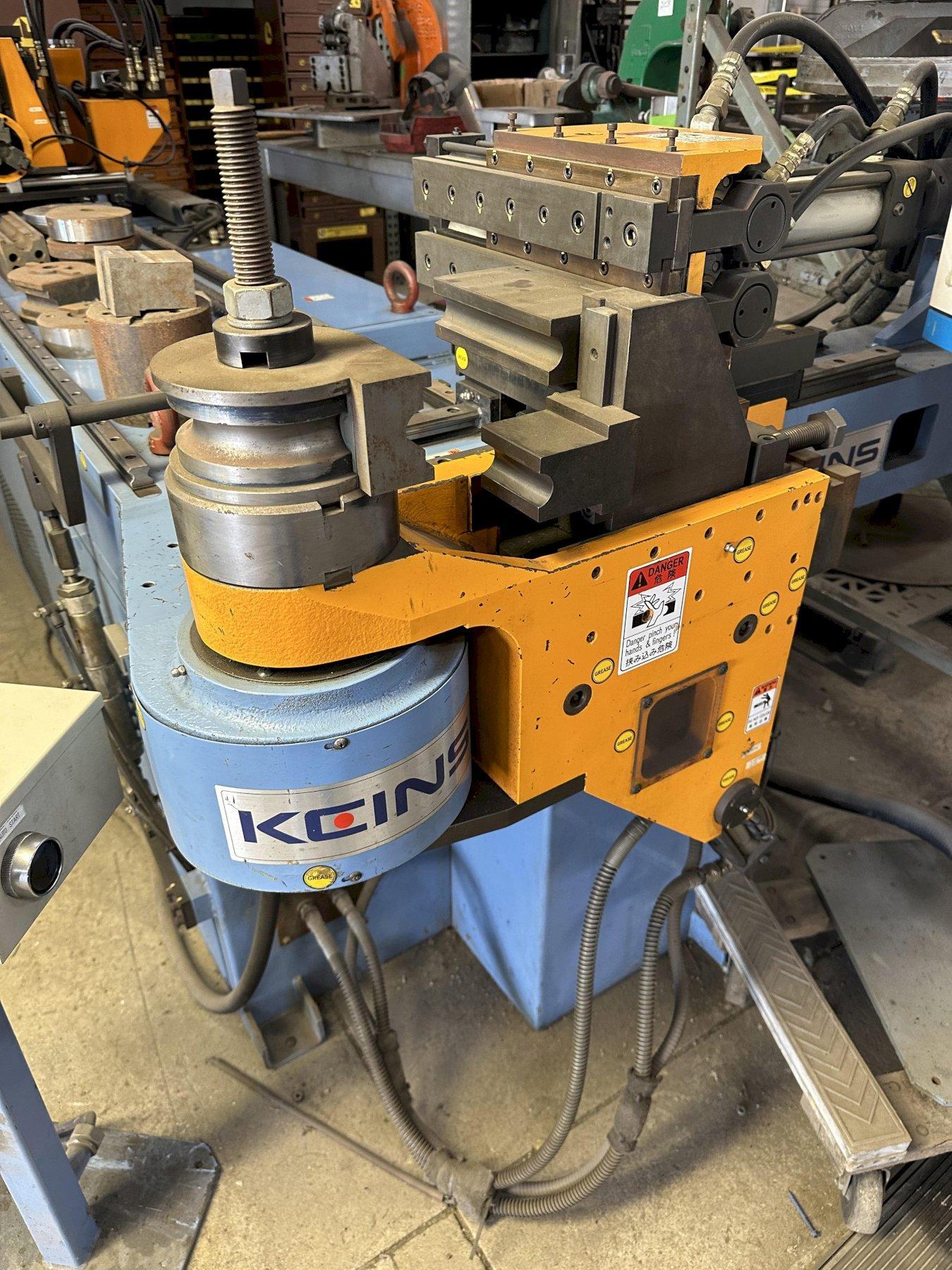

DUAL RADIUS BENDING .......... YES
AC SERVO DRIVES .............. YES

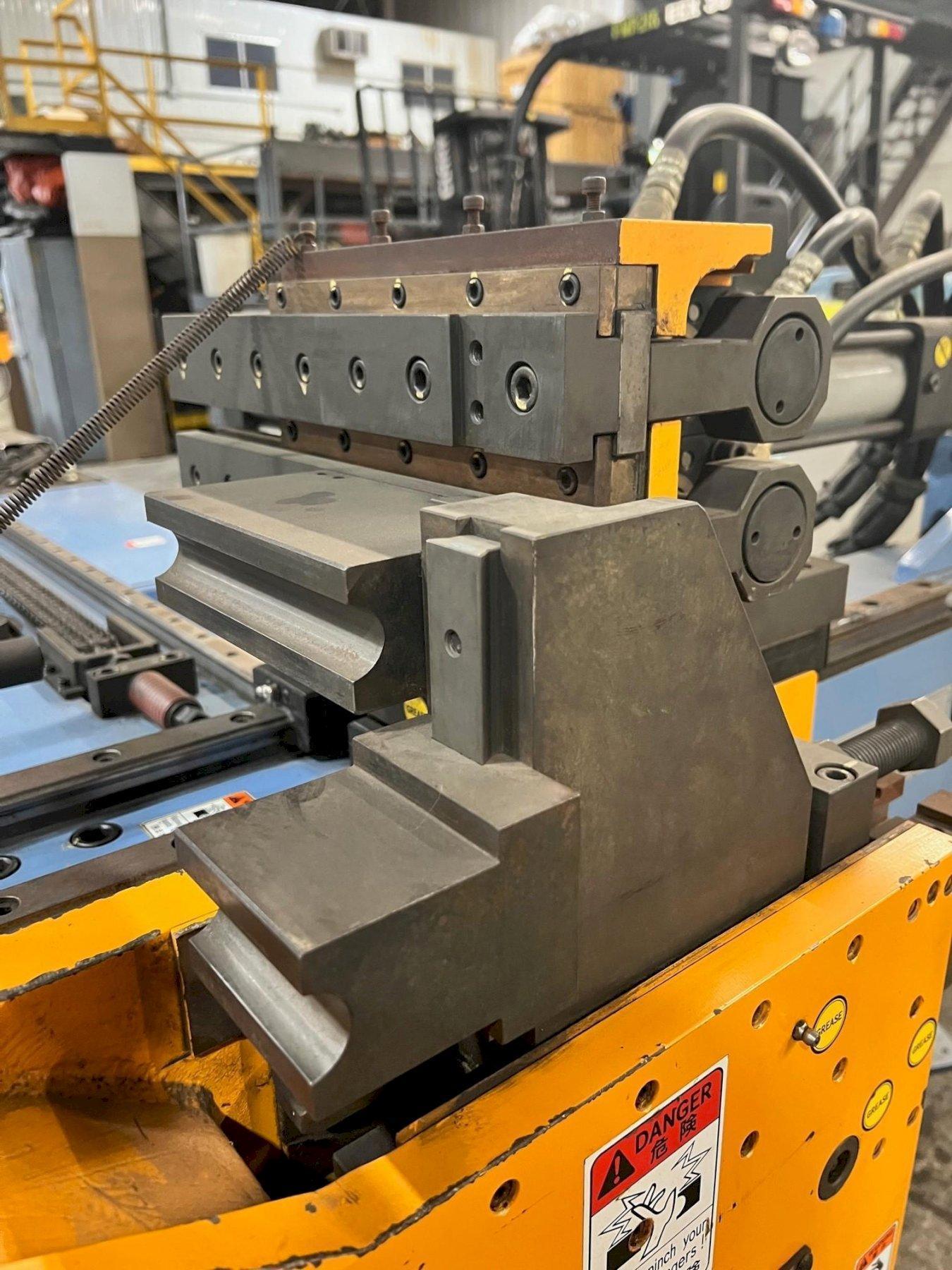

PRESSURE DIE ASSIST .......... YES, HYDRAULIC

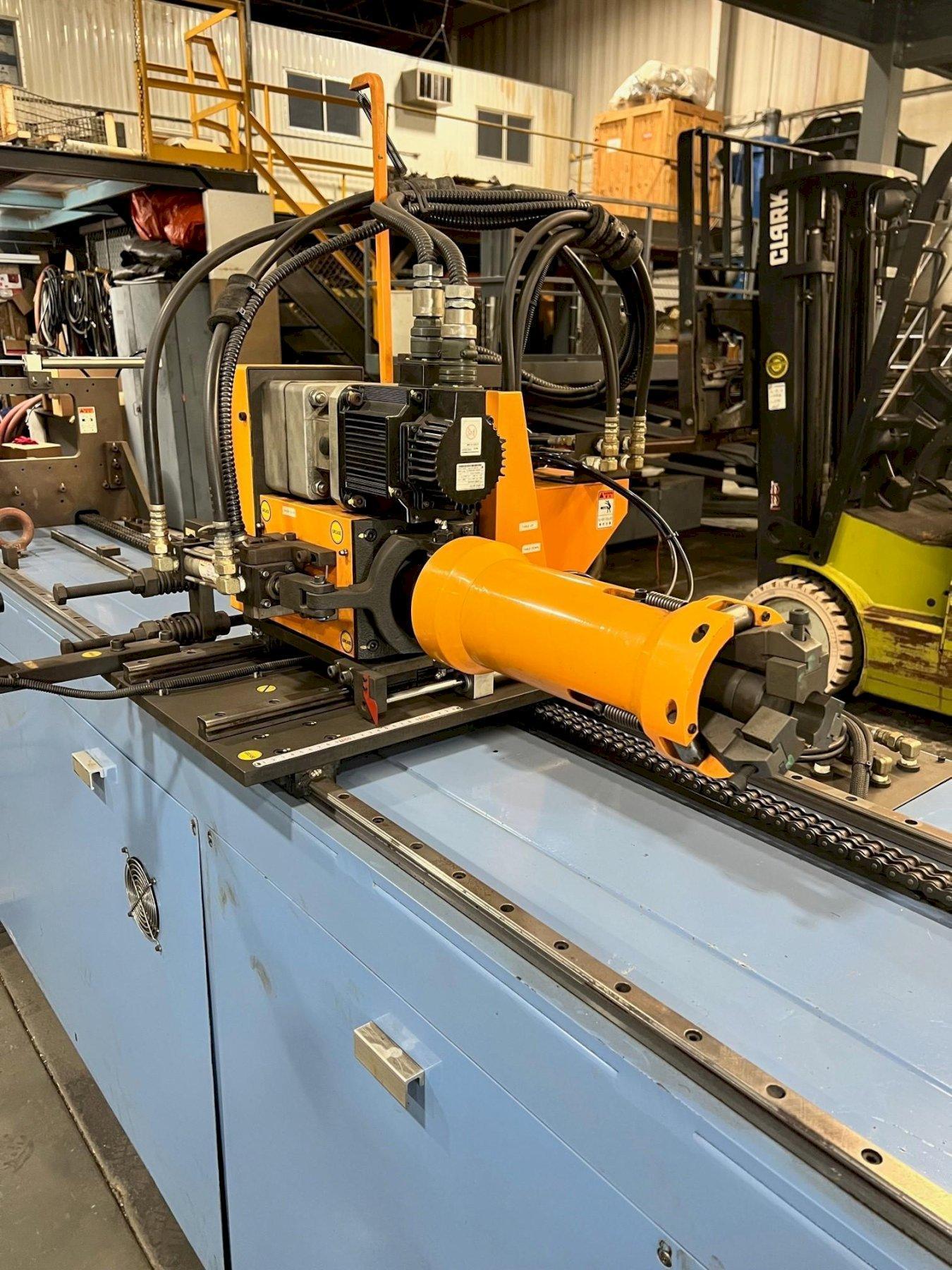

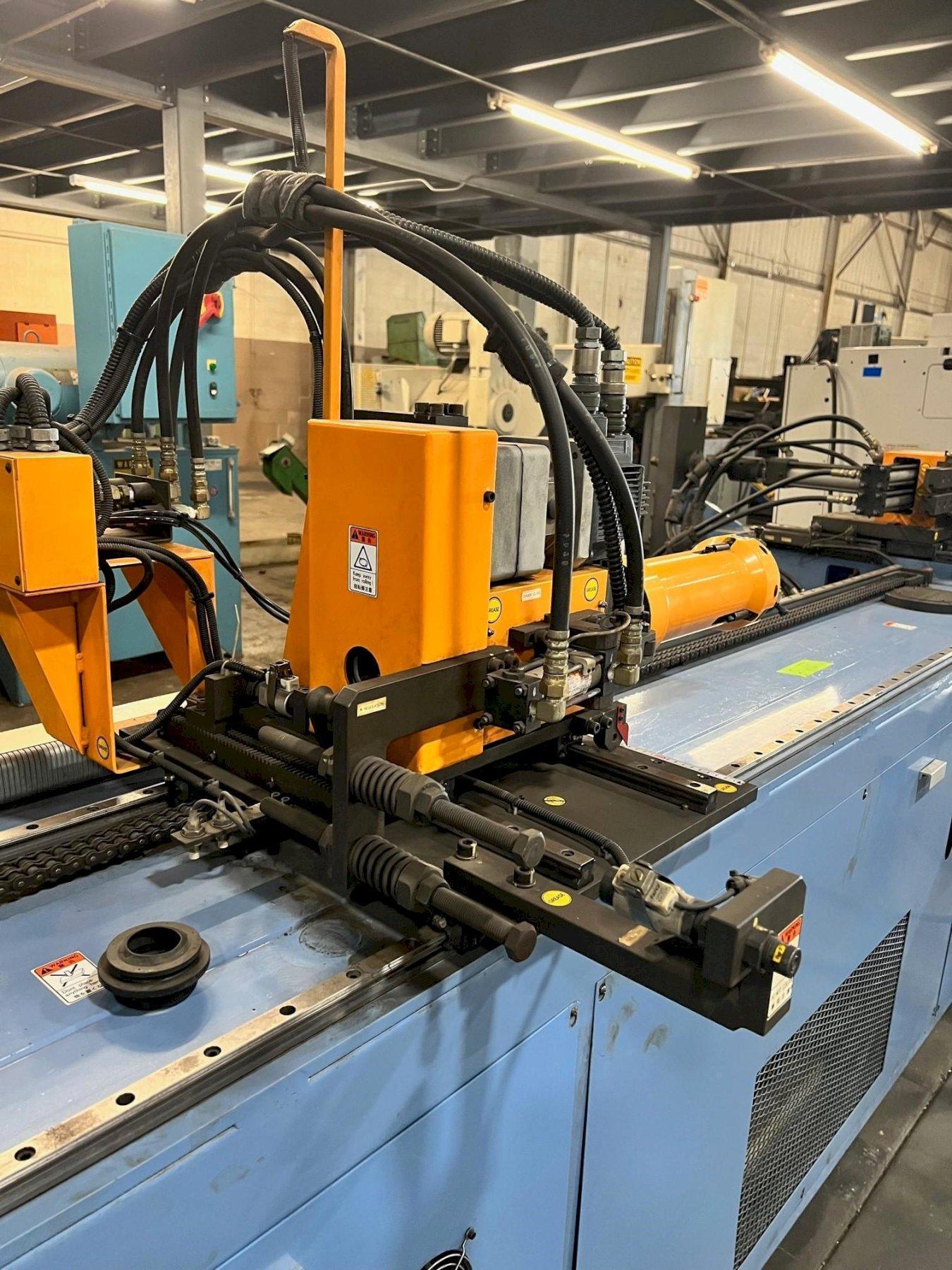

MANDREL EXTRACTOR ............ YES

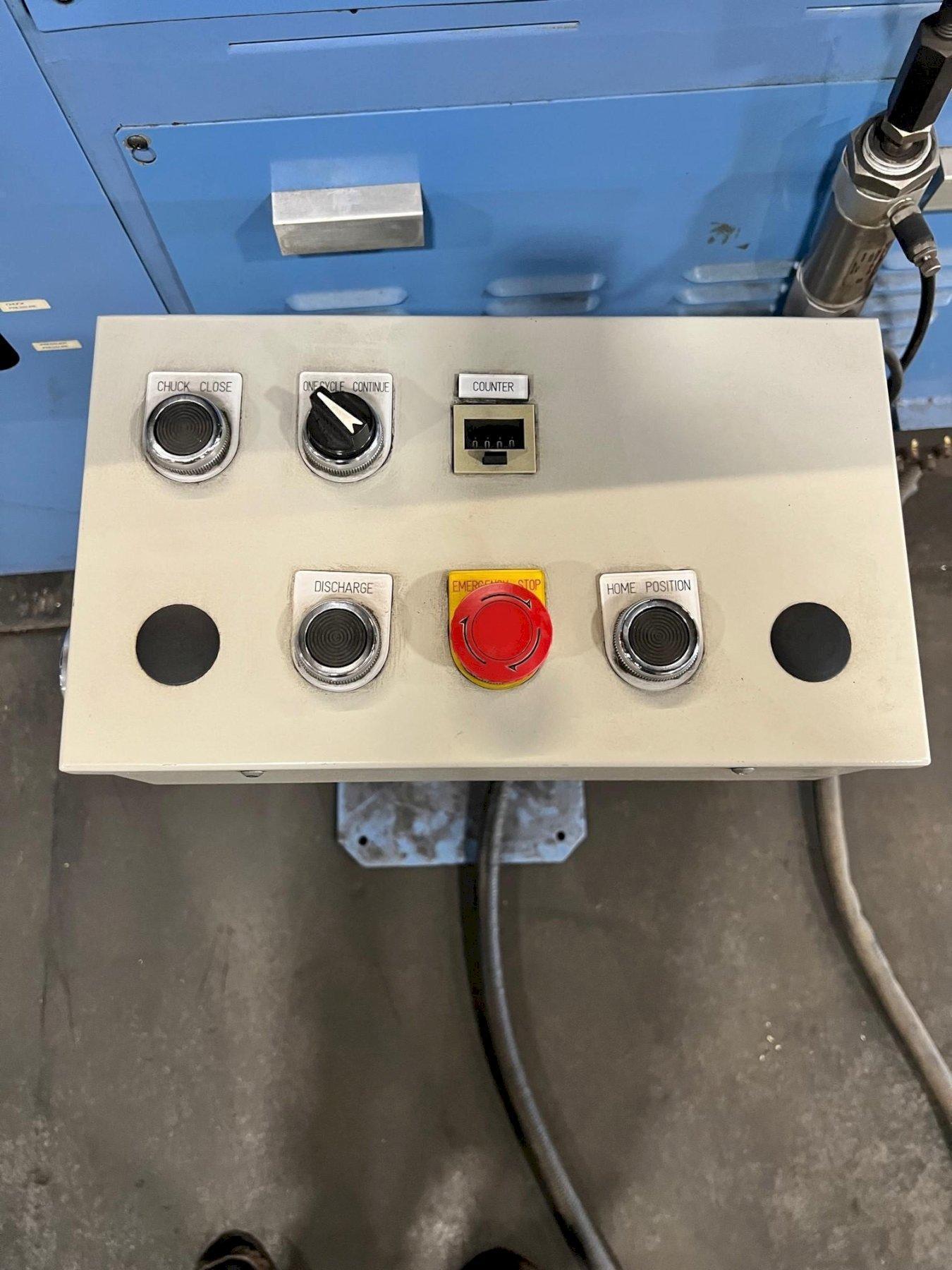

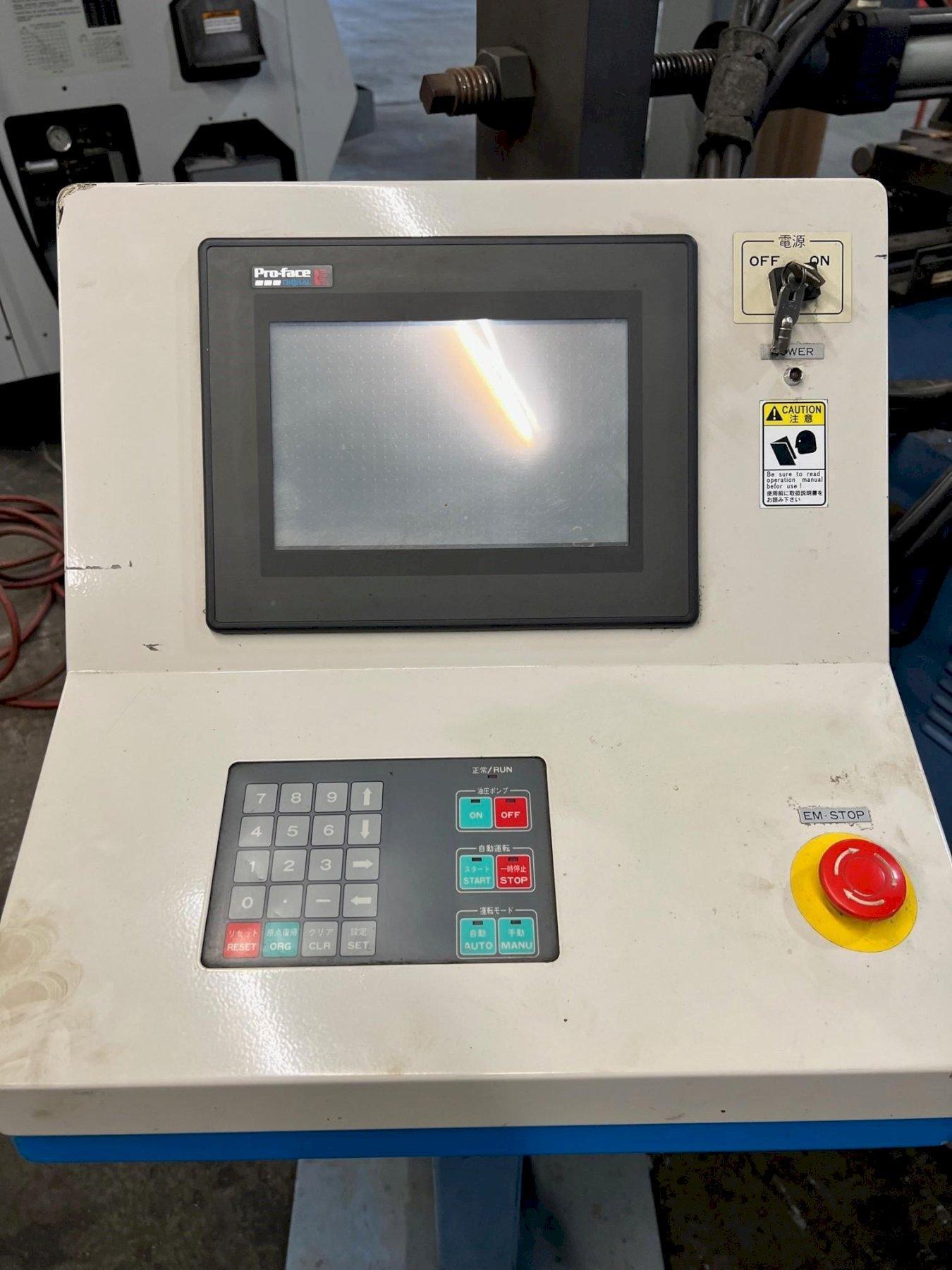

CONSOLE & OPERATOR PEDESTAL .. YES
