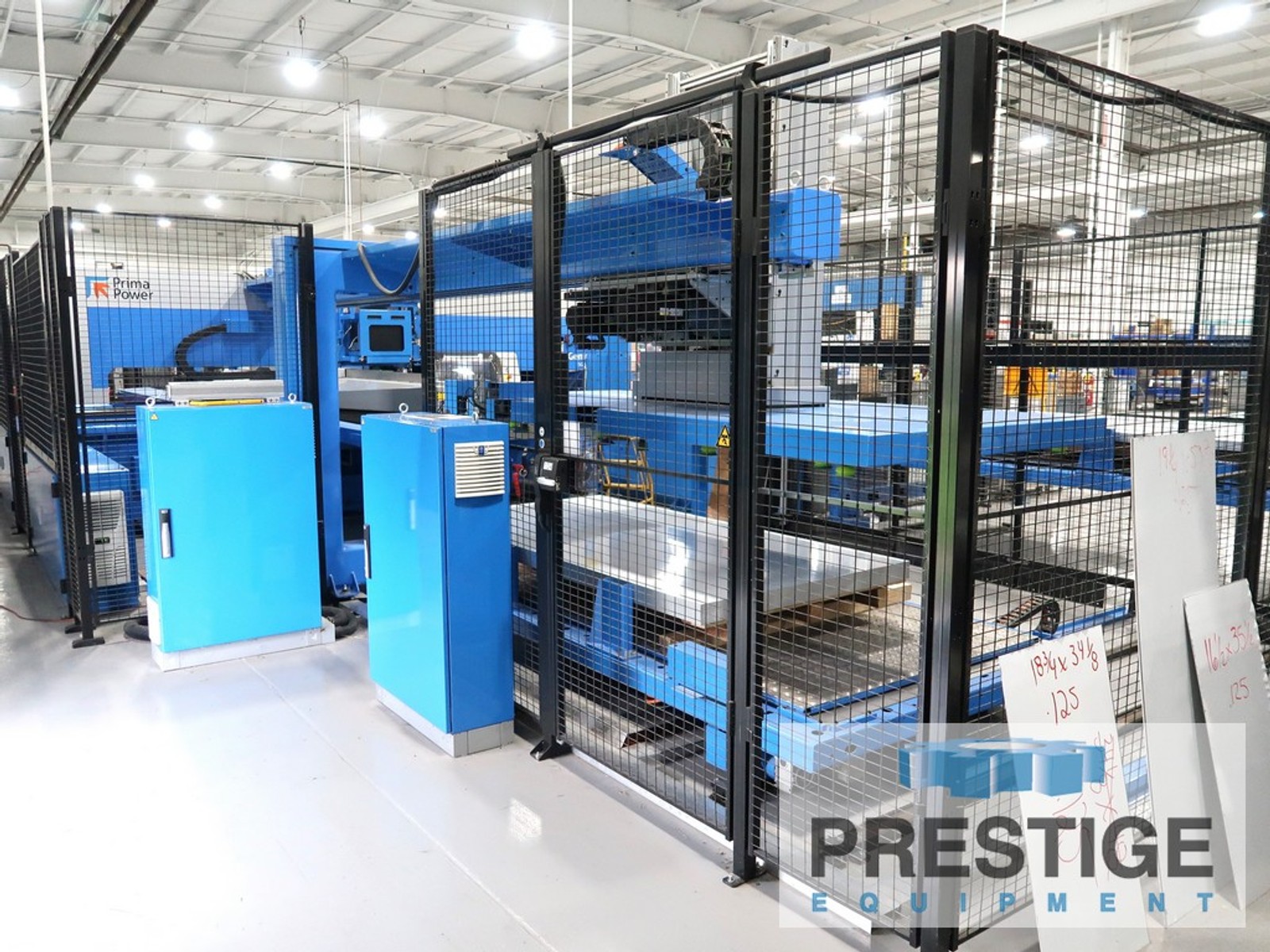

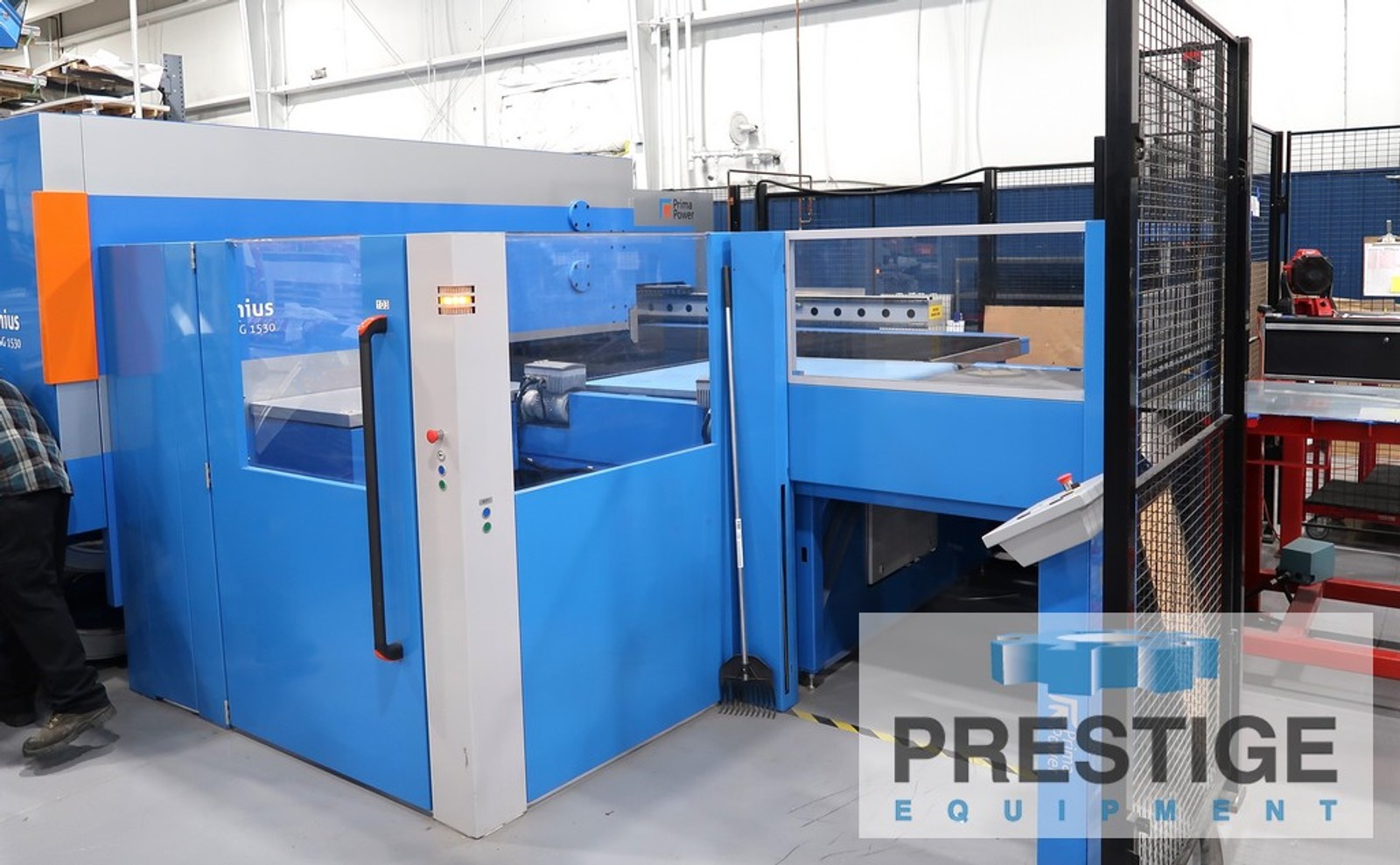

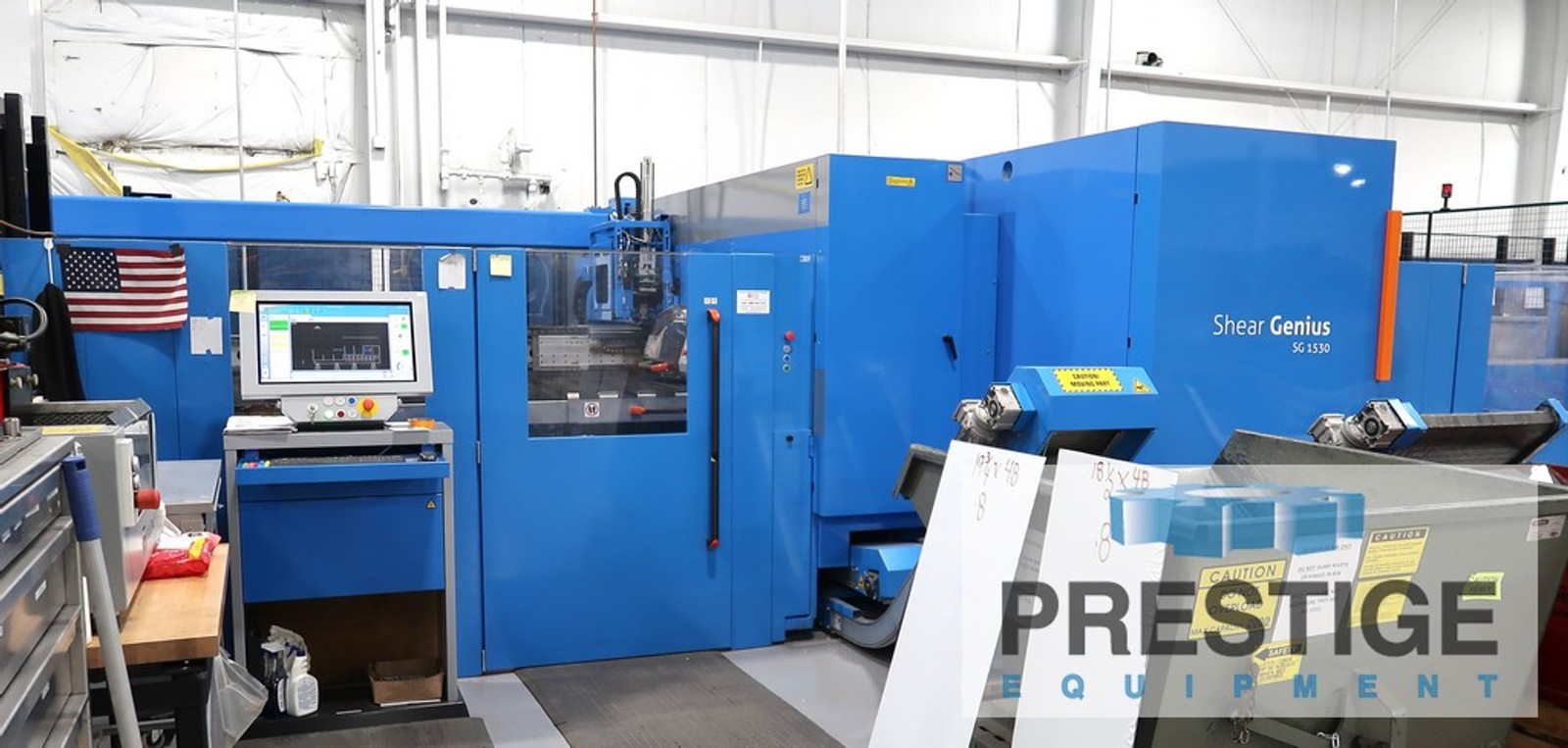

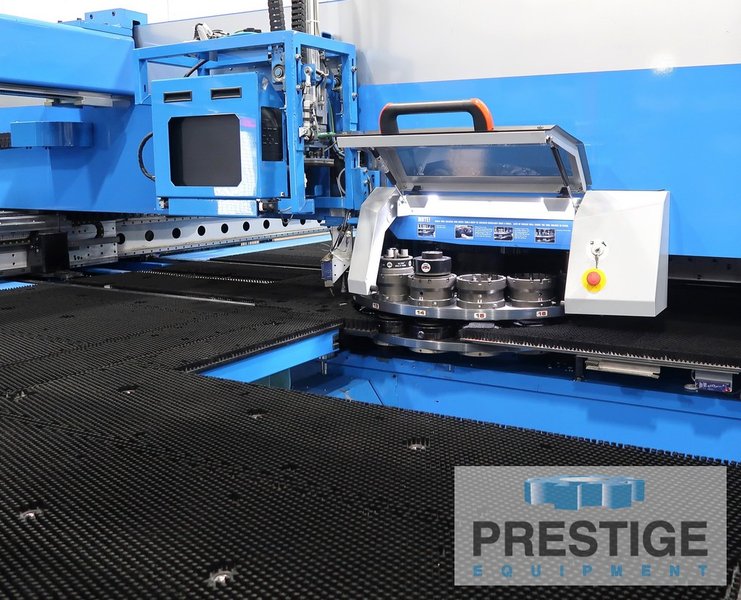

Prima Power Shear Genius SG1530, 33 Ton 16-Sta. Electro-Servo Trt, 60" Y, 120" X, Integrated R.A Shear, 2020 #43048

Manufacturer

PRIMA

Category

Punches

Type

PUNCHES, TURRET, CNC (incl. PUNCH PRESSES)

Stock

43048

Model

Shear Genius SG1530

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43048

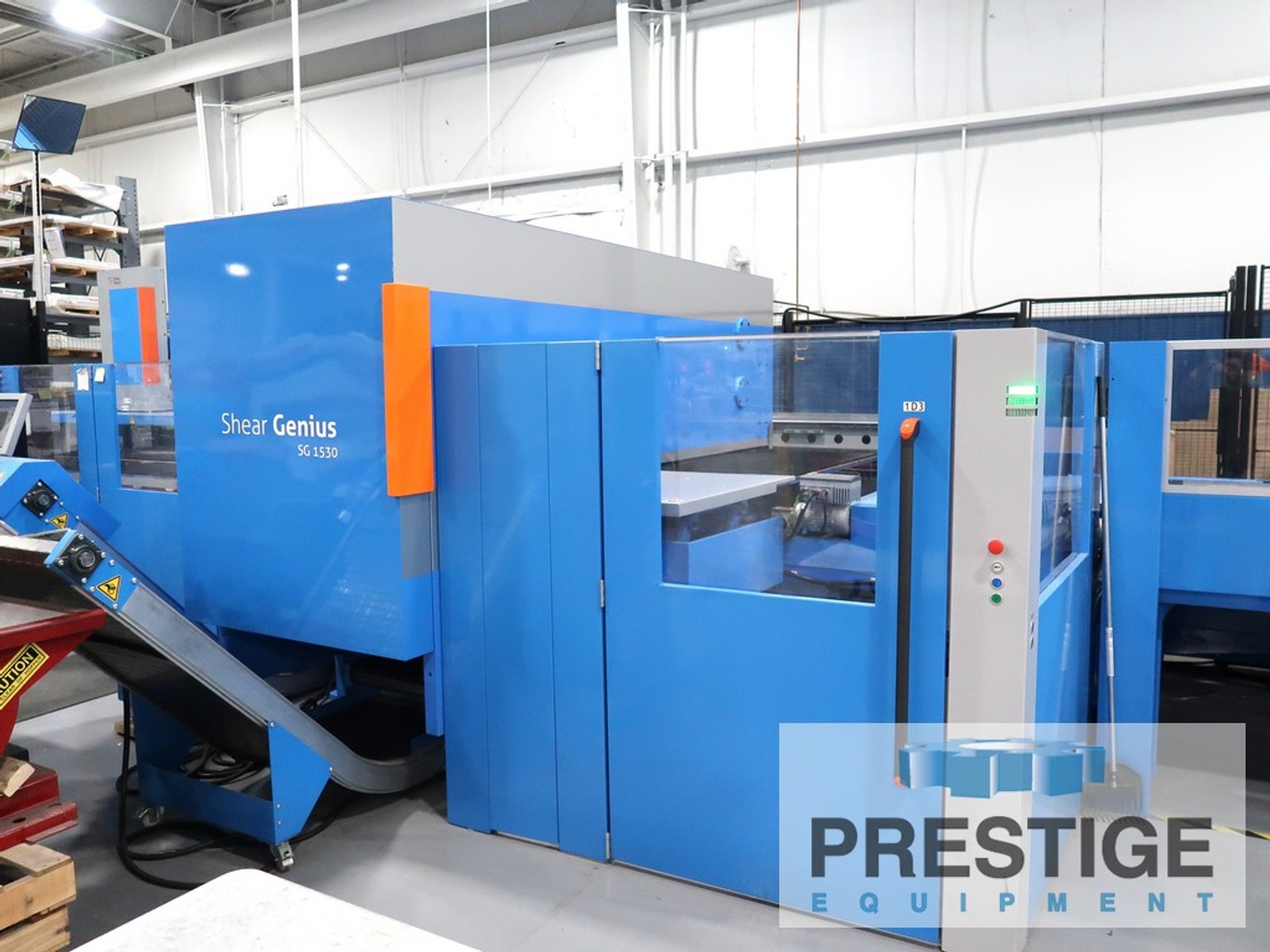

Prima-Power Shear Genius SG1530 33 Ton CNC Servo-Electric Turret Punch With Integrated Shear

FEATURES:
Servo Electric Punch

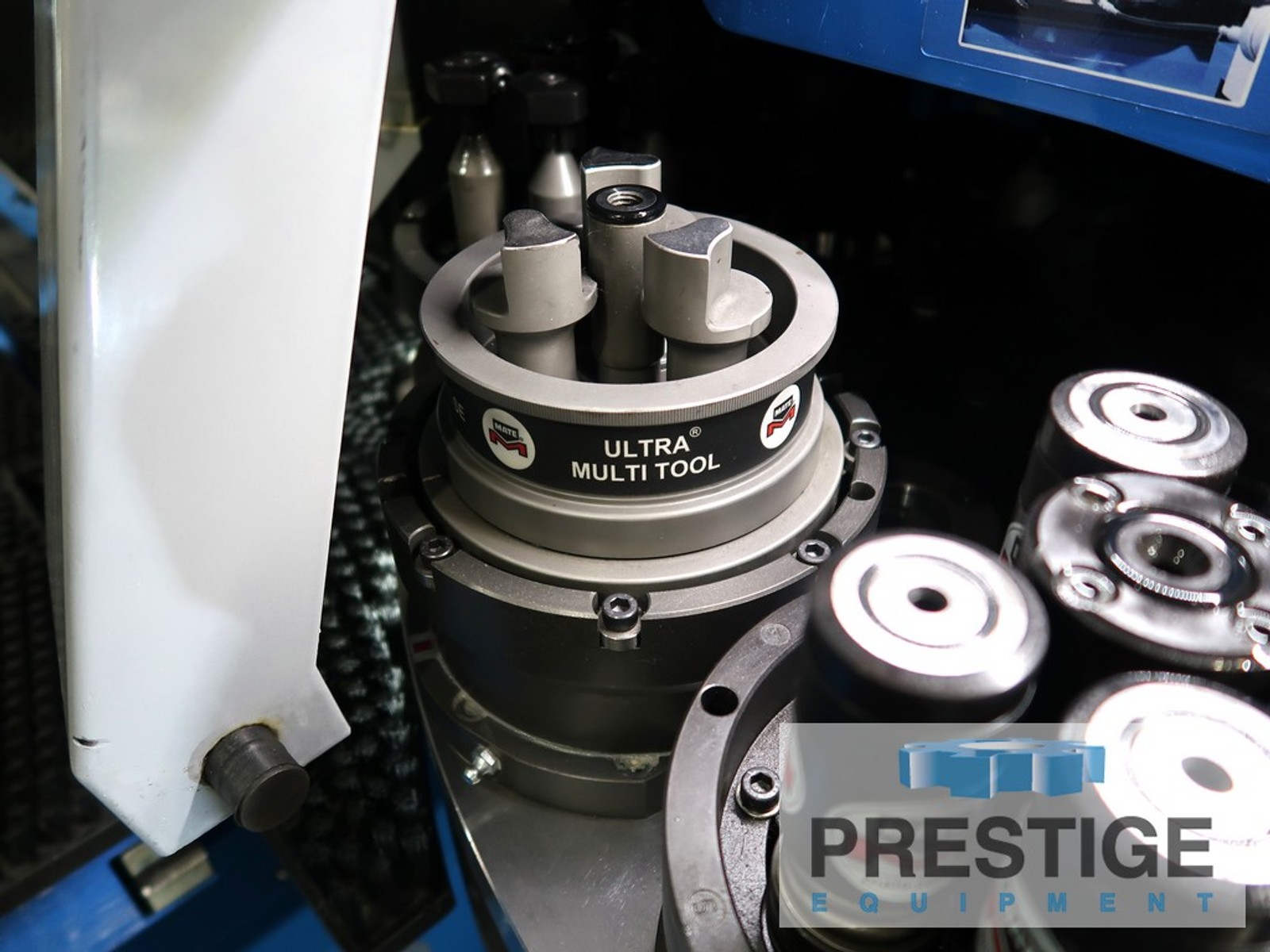

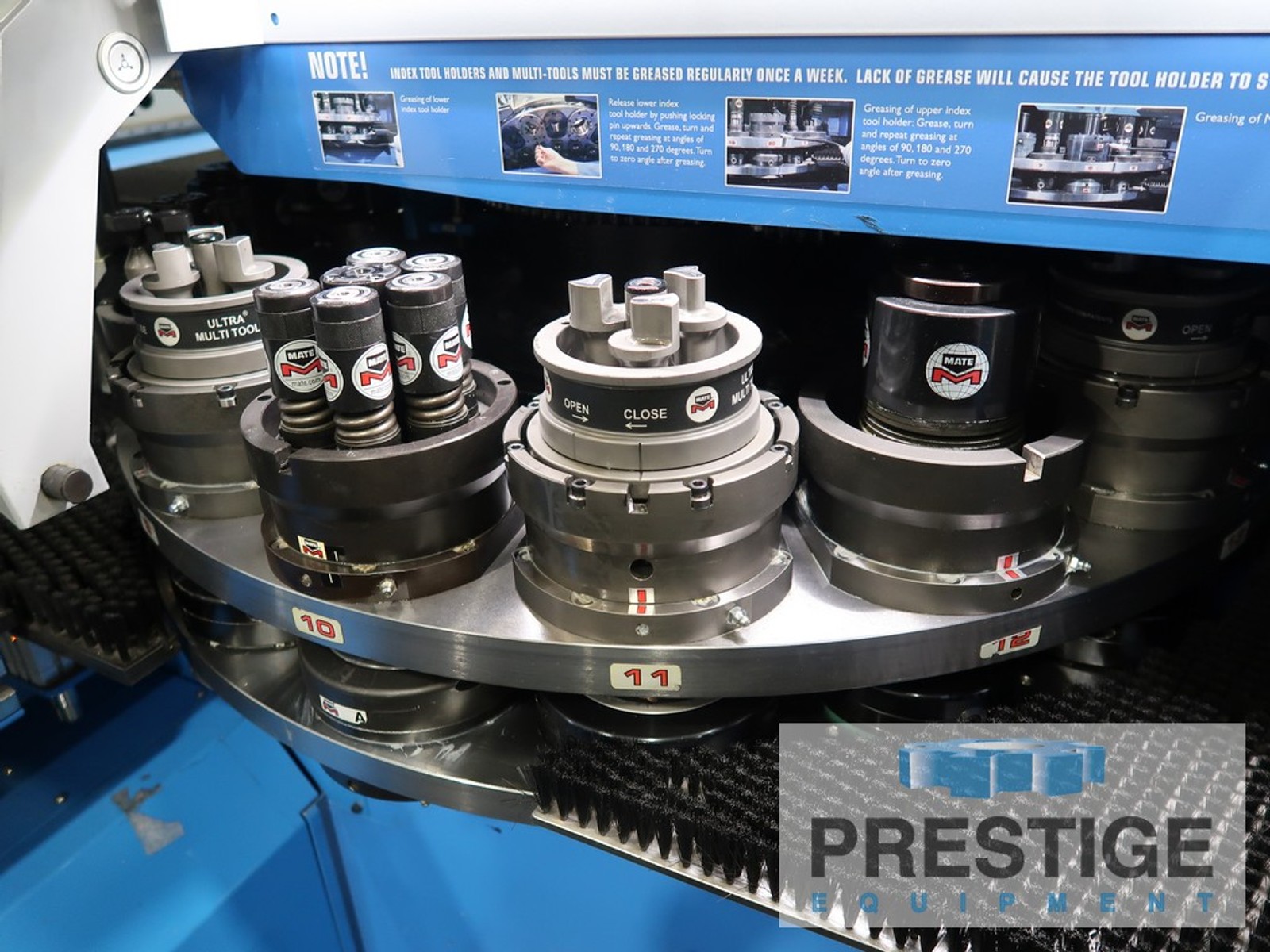

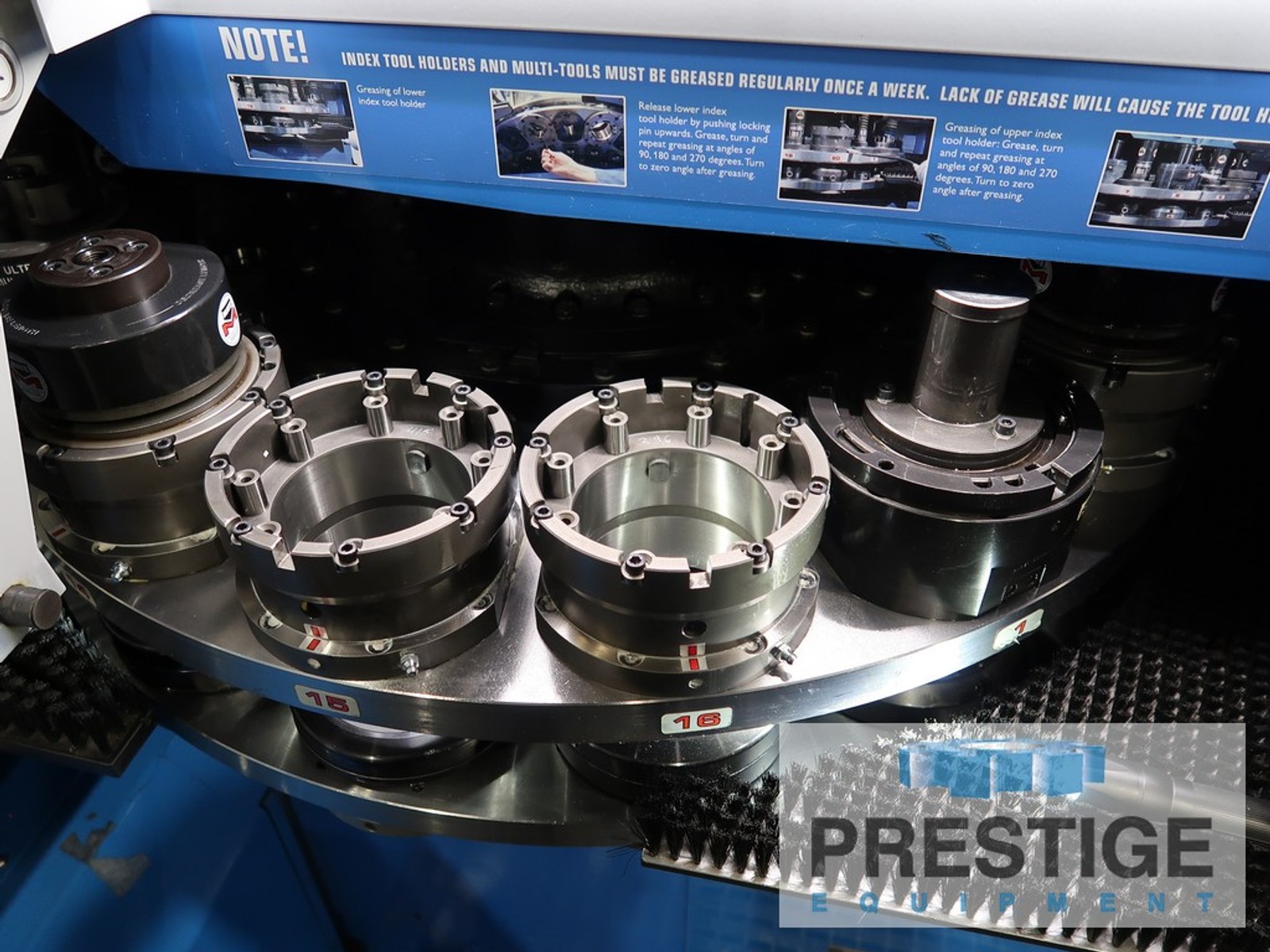

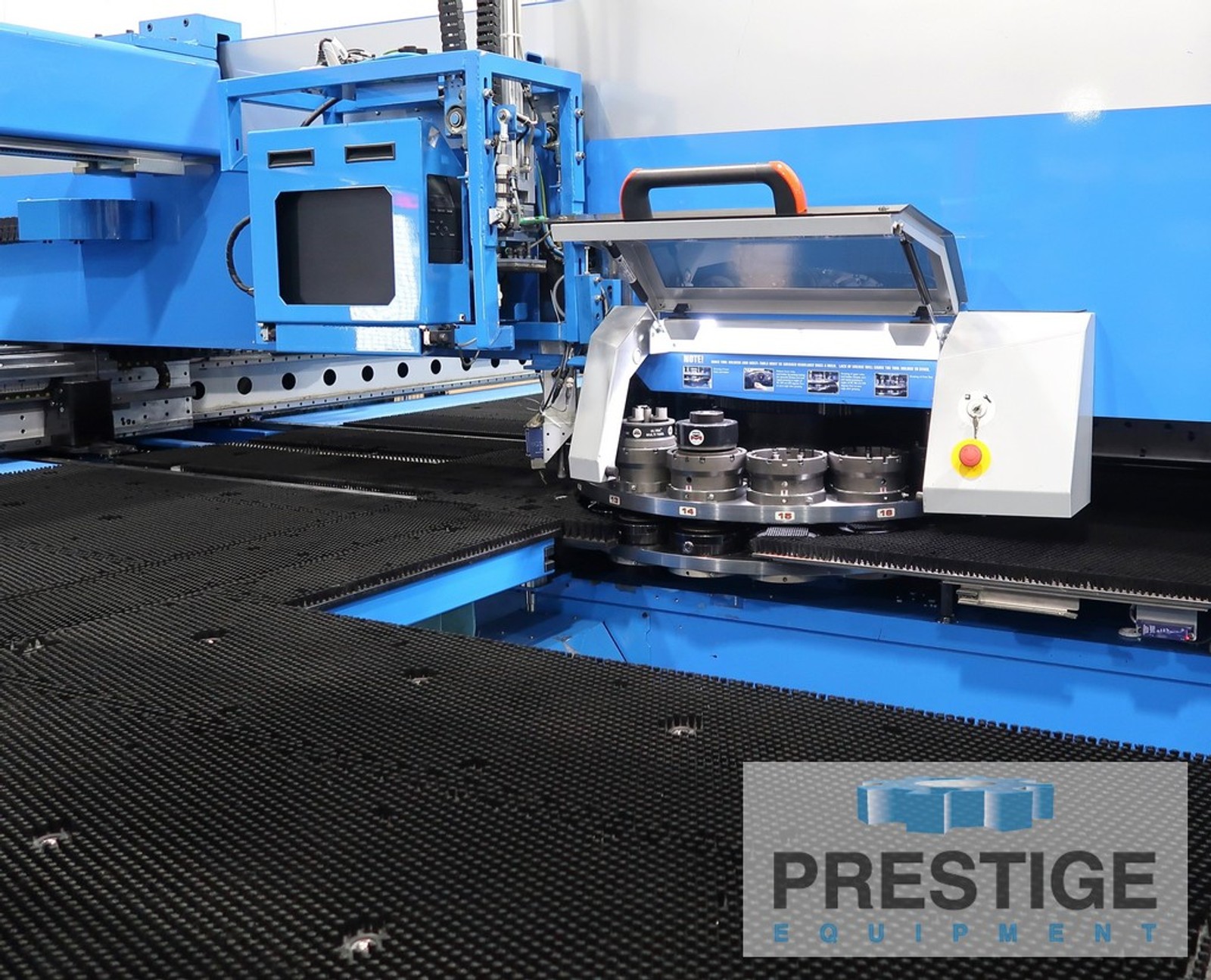

16-Station Turret W/ 9-Multistations

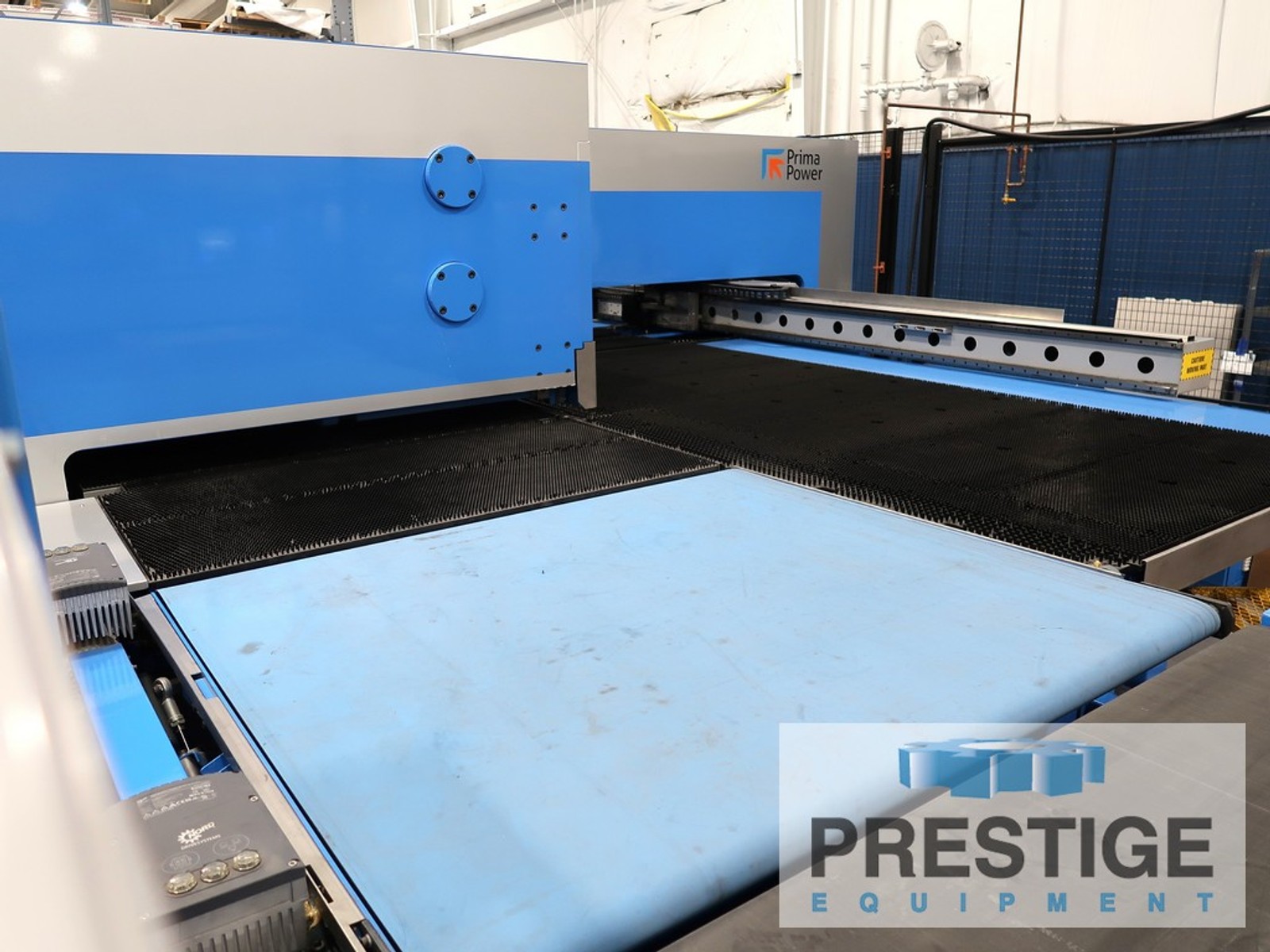

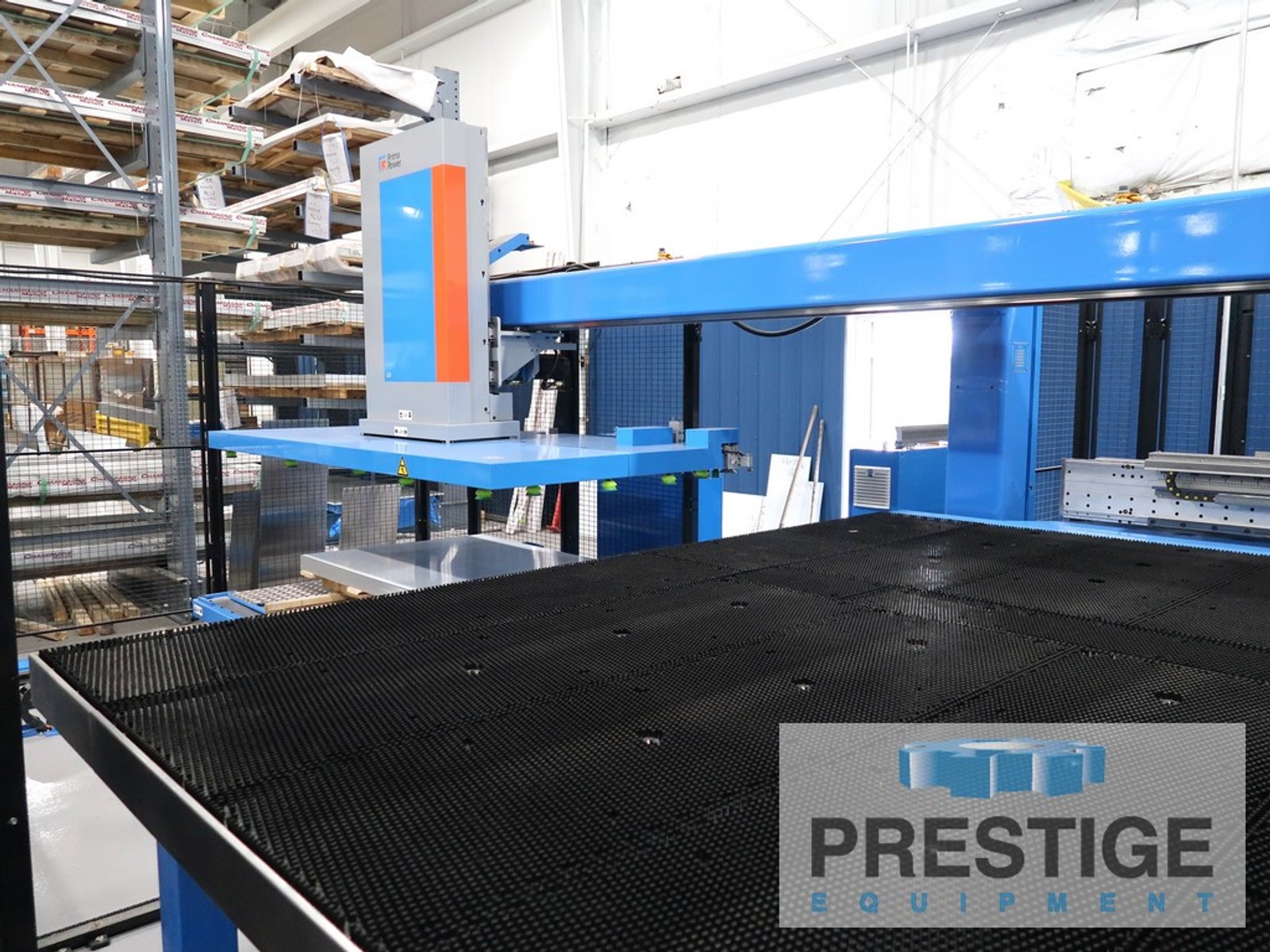

Scratch Free Brush Table

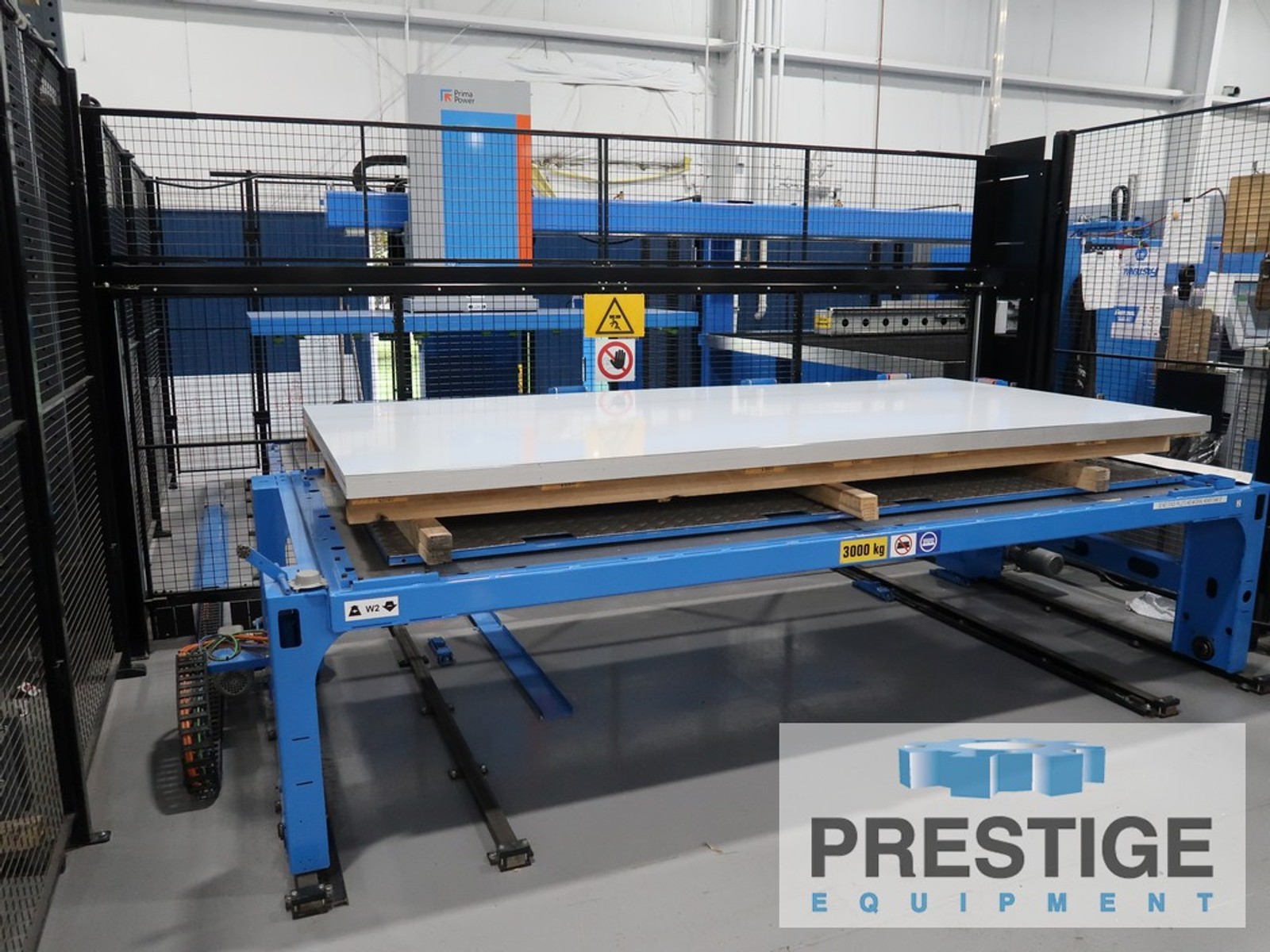

Automatics Parts Loader
Integrated Right Angle Shear

CAPACITY:
Tonnage Capacity ...................... 33 Ton
Max. Sheet Size ....................... 120" x 60"
Max. Material Thickness, Punch ........ 0.31"
Axis Positioning Speed ................ 5905 IPM
Max. Hit Speed ........................ 1000 HPM
Index Speed ........................... 250 RPM
Max. Sheet Weight ..................... 551 Lbs

INTEGRATED RIGHT ANGLE SHEAR:
Max. Sheet Size ....................... 39.37" x 59.06"
Max. Cutting Capacity, MS ............. 0.157
Max. Cutting Capacity, Aluminum ....... 0.196"
Max. Cutting Capacity, Stainless ...... 0.118"
Automatic Blade Clearance ............. Yes

EQUIPPED WITH:

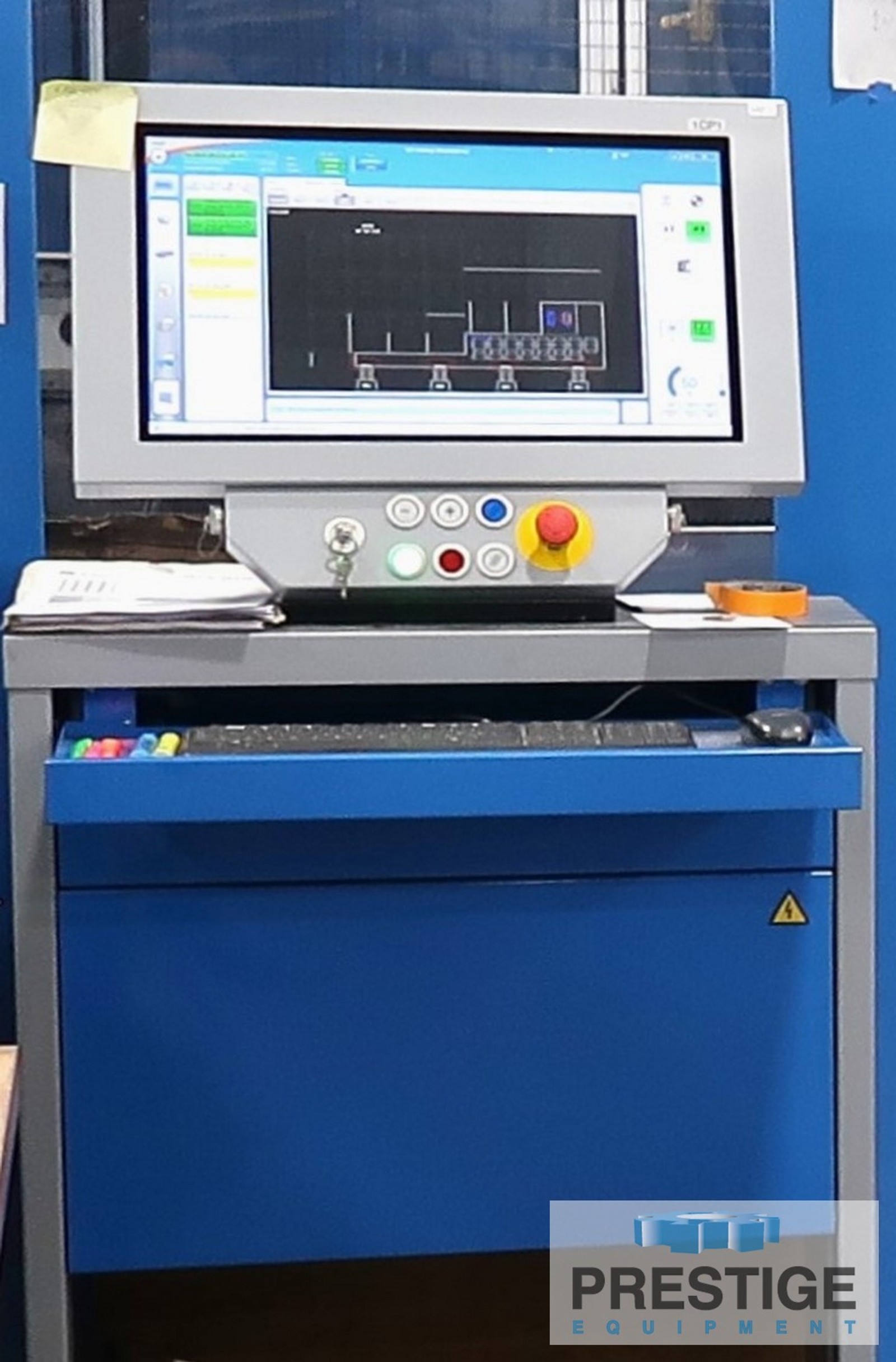

Prima CNC Control
Servo Electric Punch

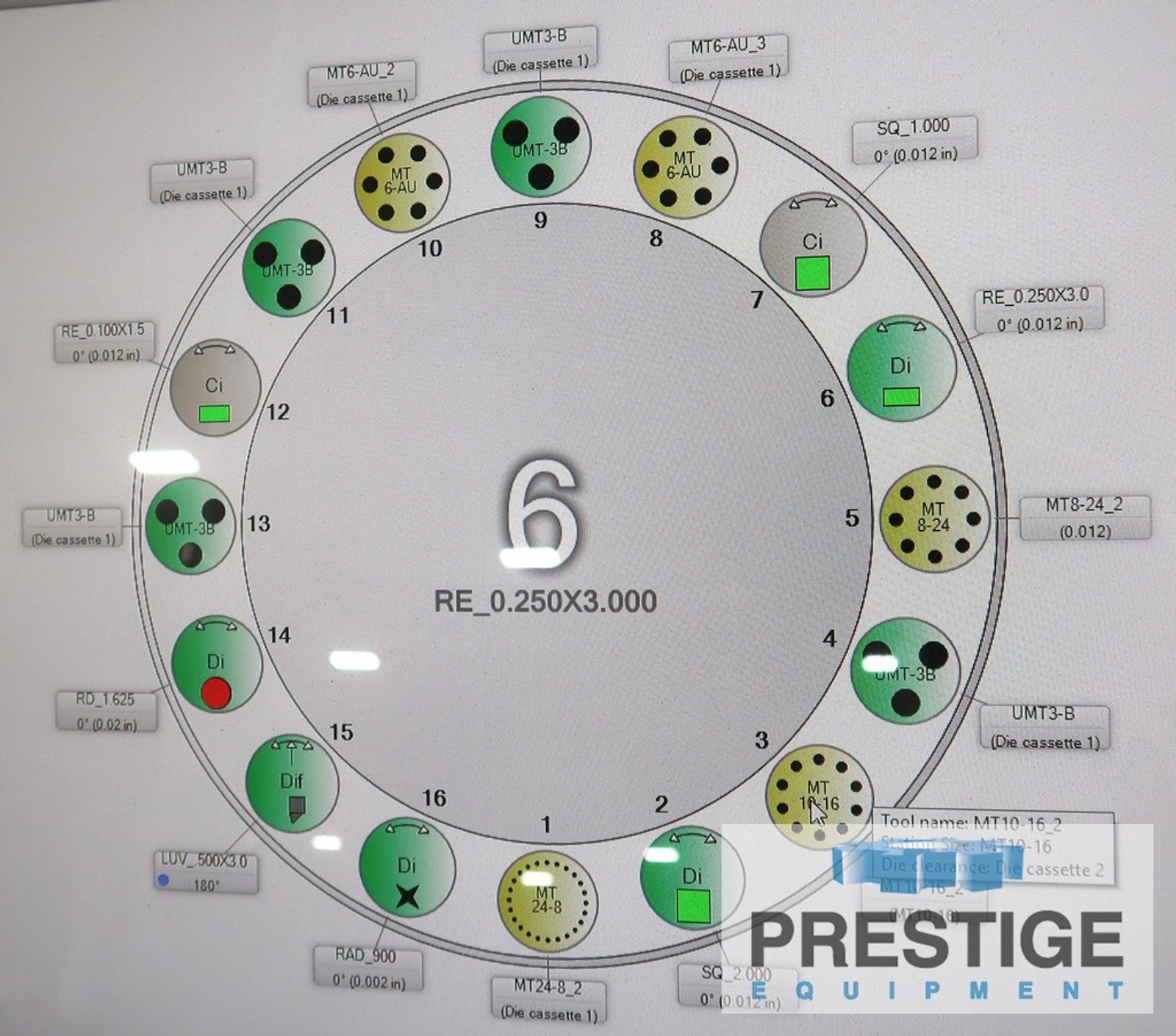

16-Station Turret W/ 9-Multistations
Scratch Free Brush Table
Automatic Clamp Setting & Movement
Automatics Parts Loader
Integrated Right Angle Shear
Tooling

NOTE:

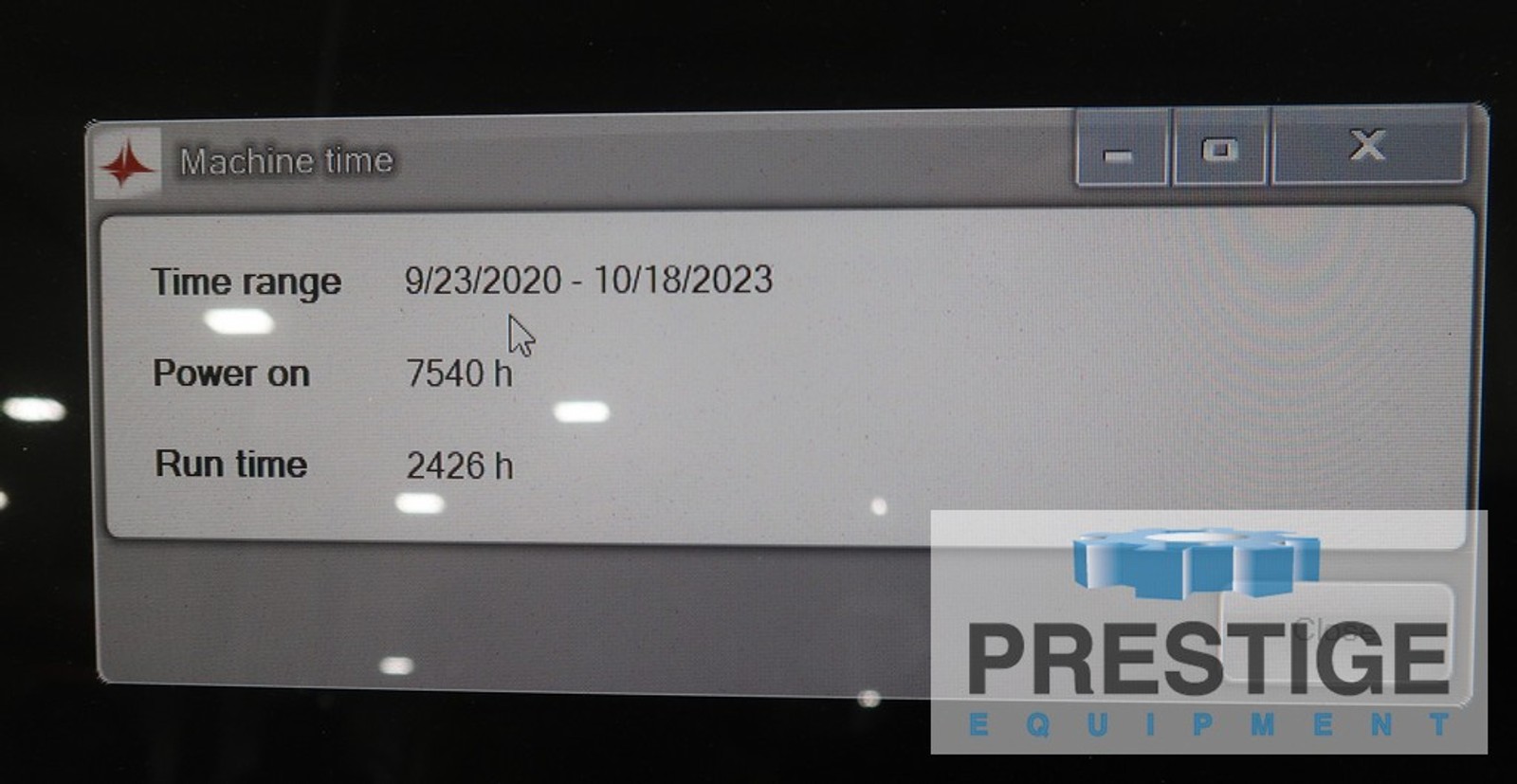

Low Hours, Approx. 7540 Power On, 2426 Run Time
Inspect In Plant Under Power

No Video Available
