Amada Pulsar LC 2415A4NT, Fanuc NT CNC, 2,000 Watt, 61" x 99" Travel, Chiller, Dust Collector, 2008, #43056

Manufacturer

AMADA

Category

Laser Cutting

Type

LASERS

Stock

43056

Model

Pulsar LC 2415A4NT

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43056

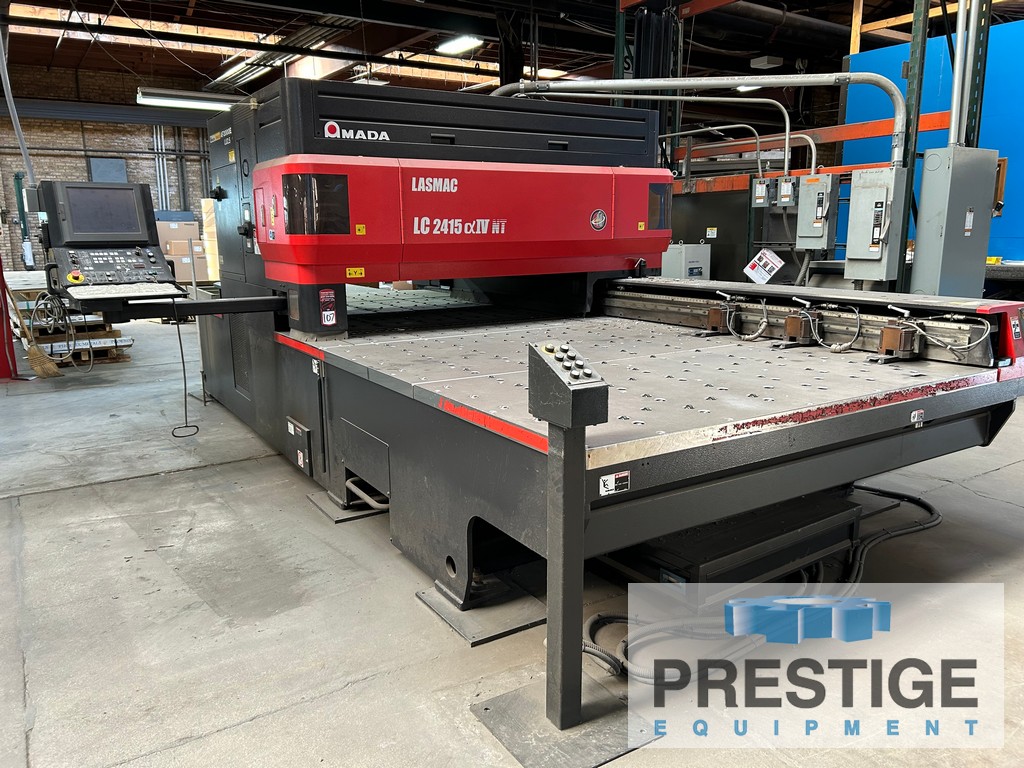

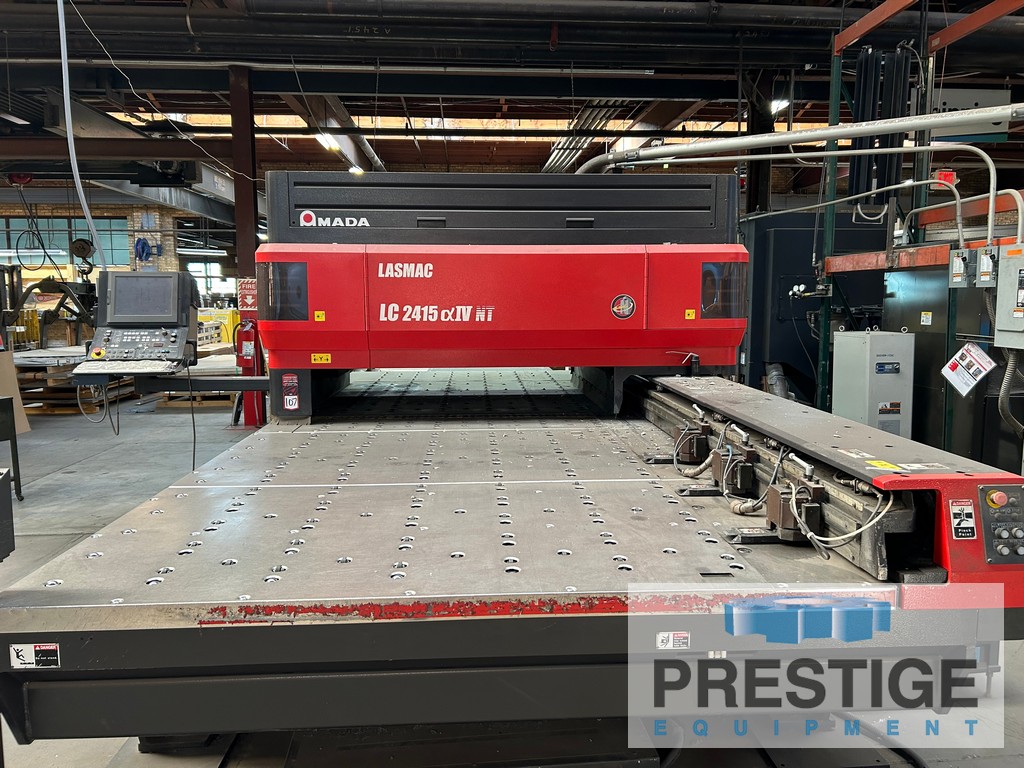

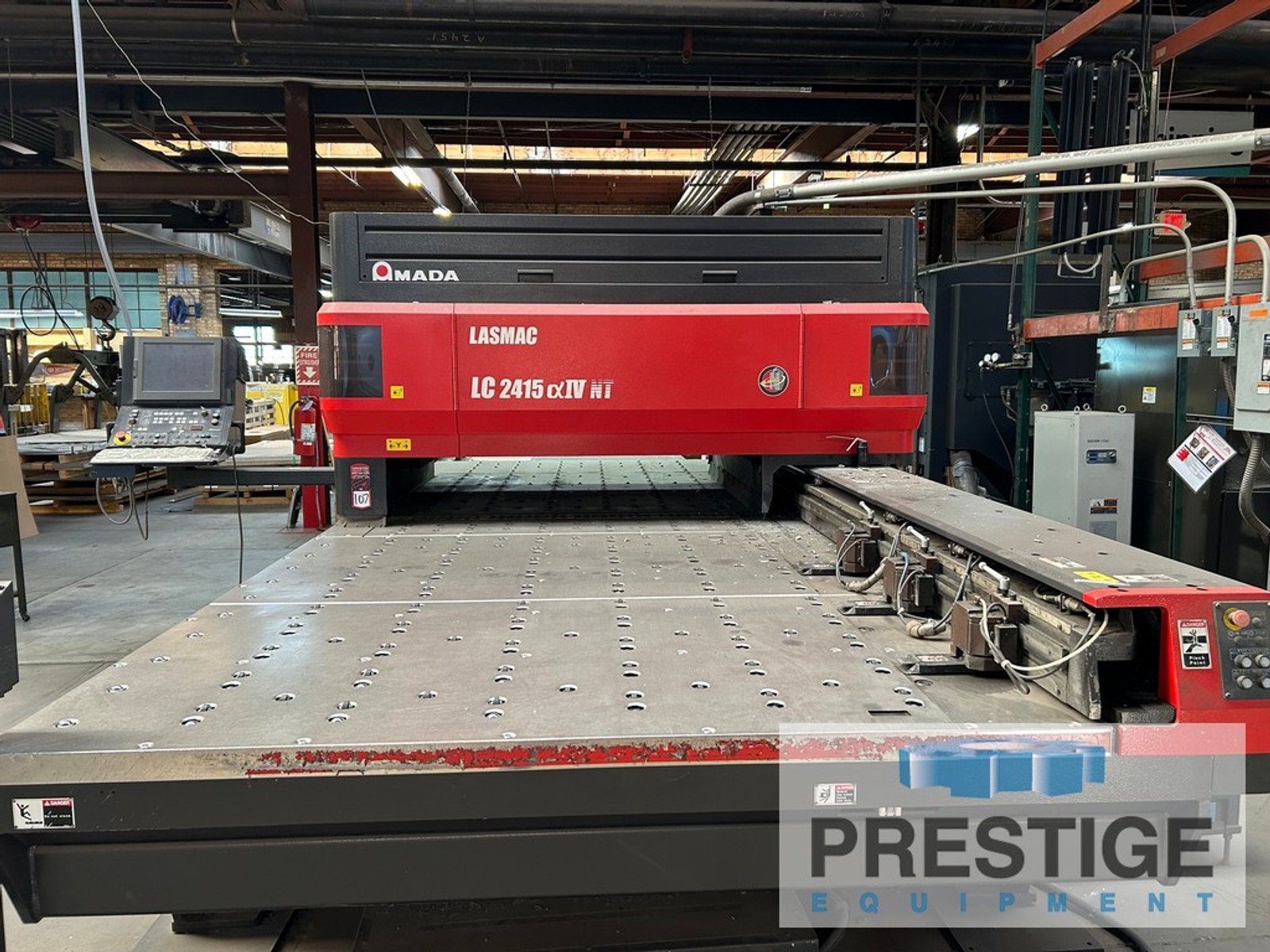

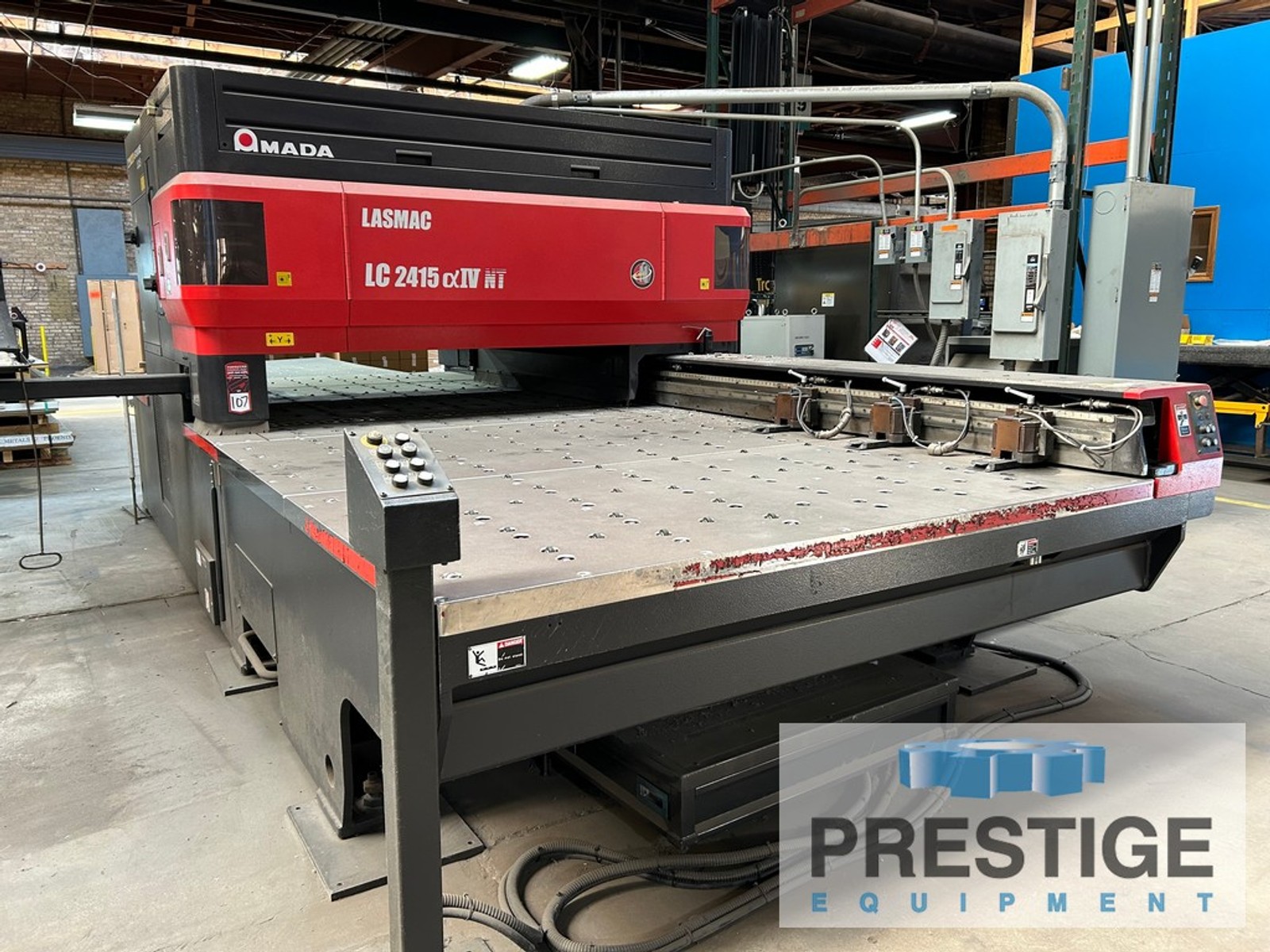

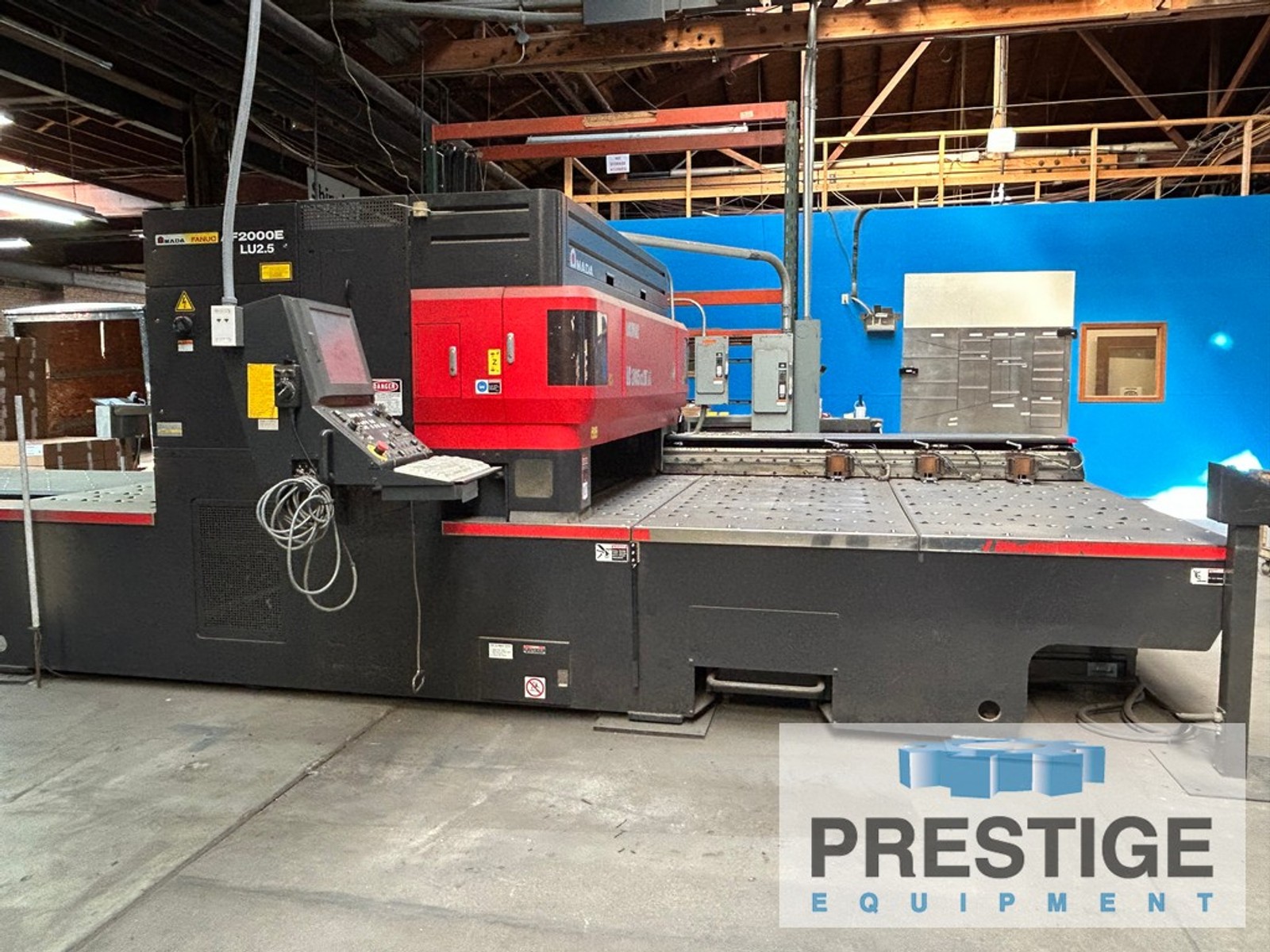

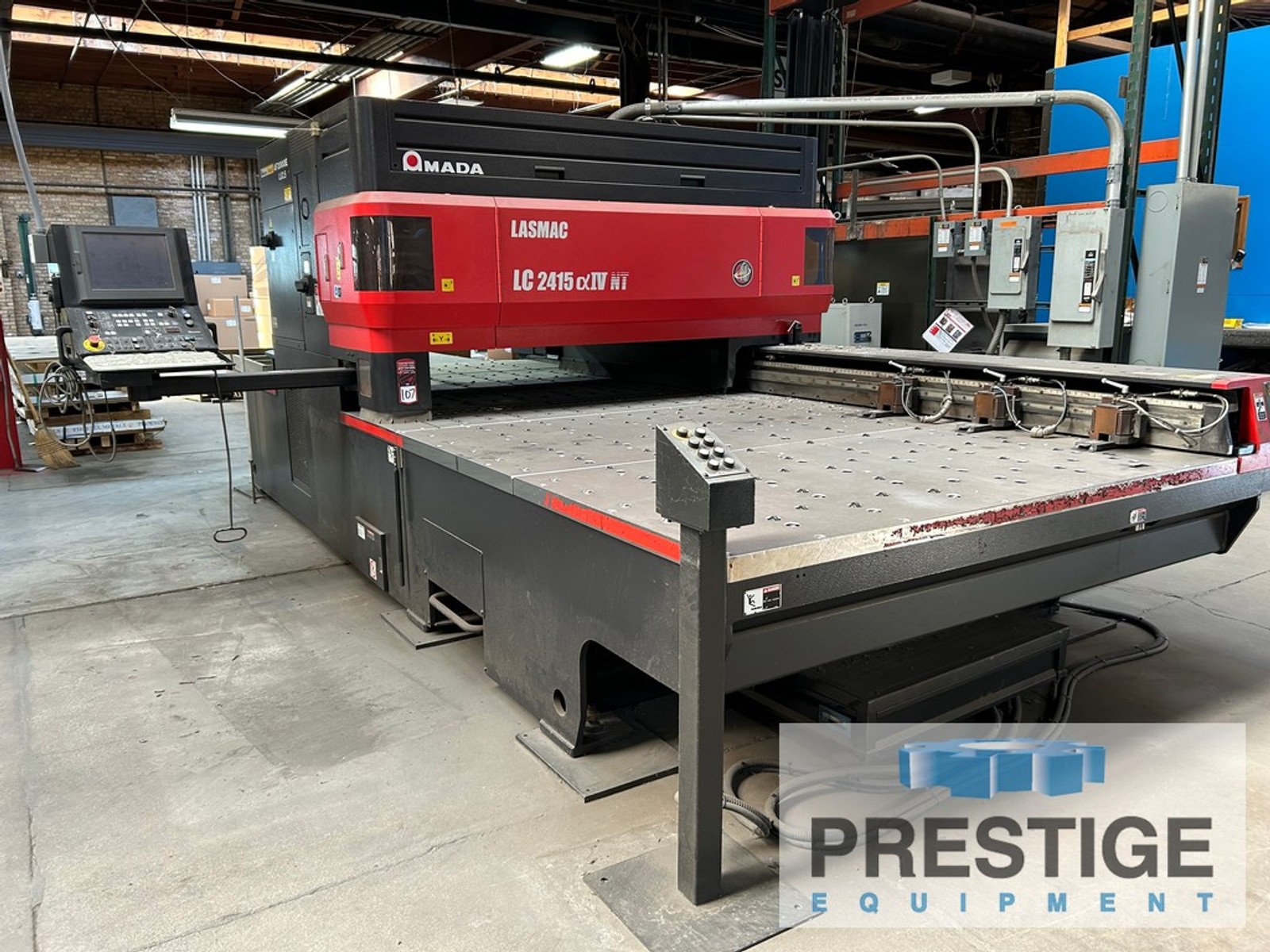

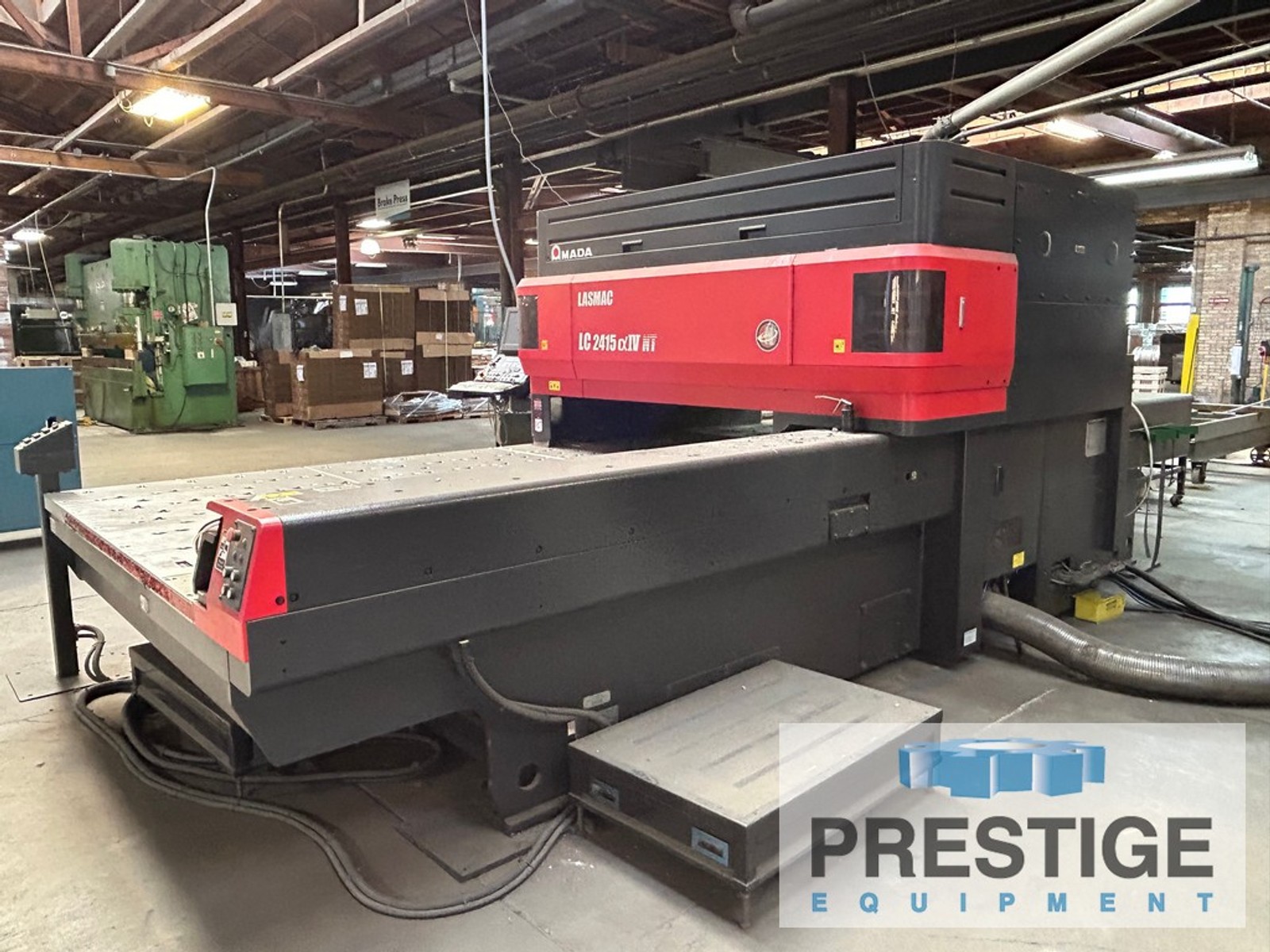

Amada Pulsar LC2415aIV-NT 2,000 Watt CO2 Laser Cutting System

FEATURES:

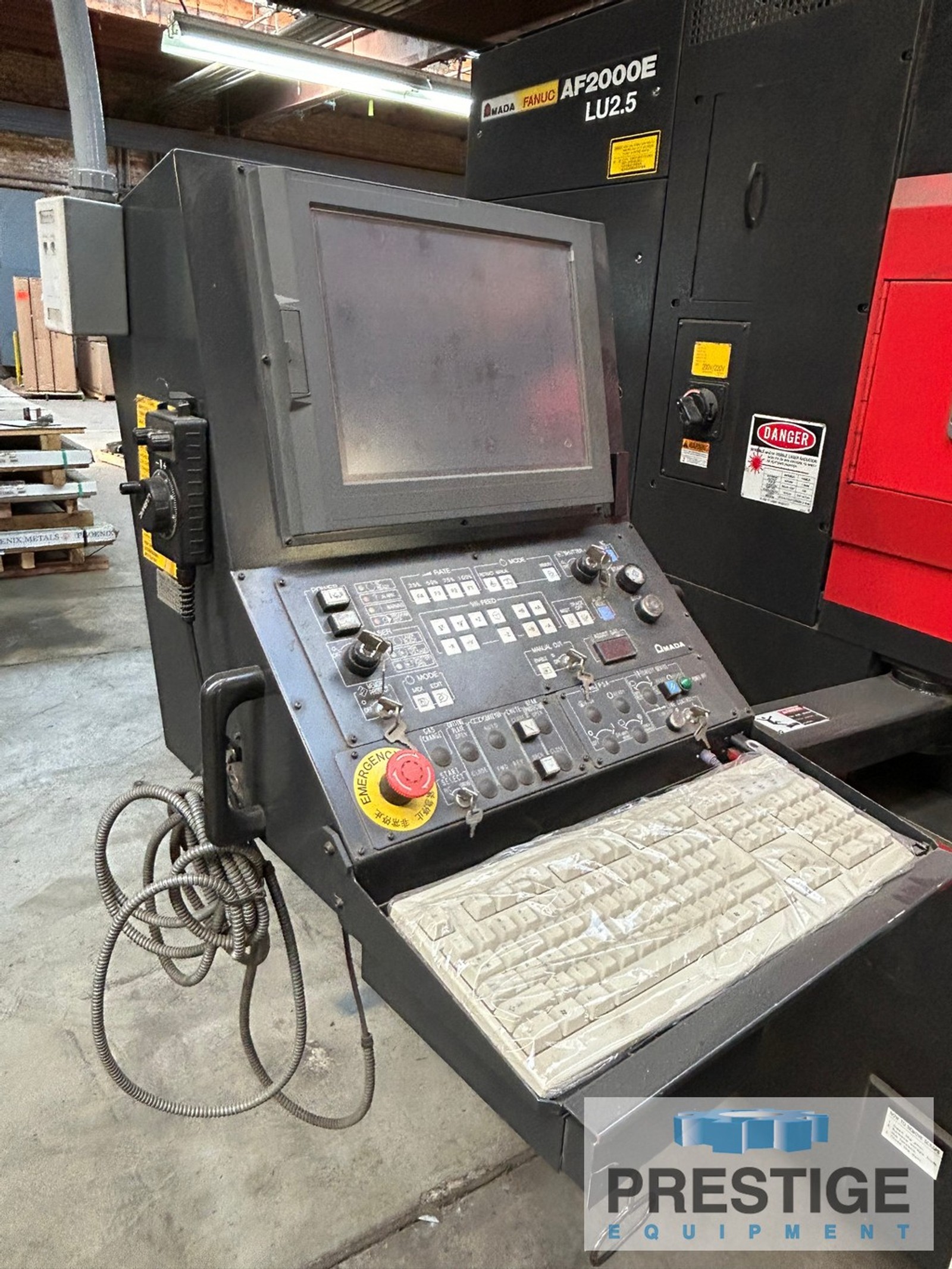

Amada Fanuc PC Based NT CNC Control

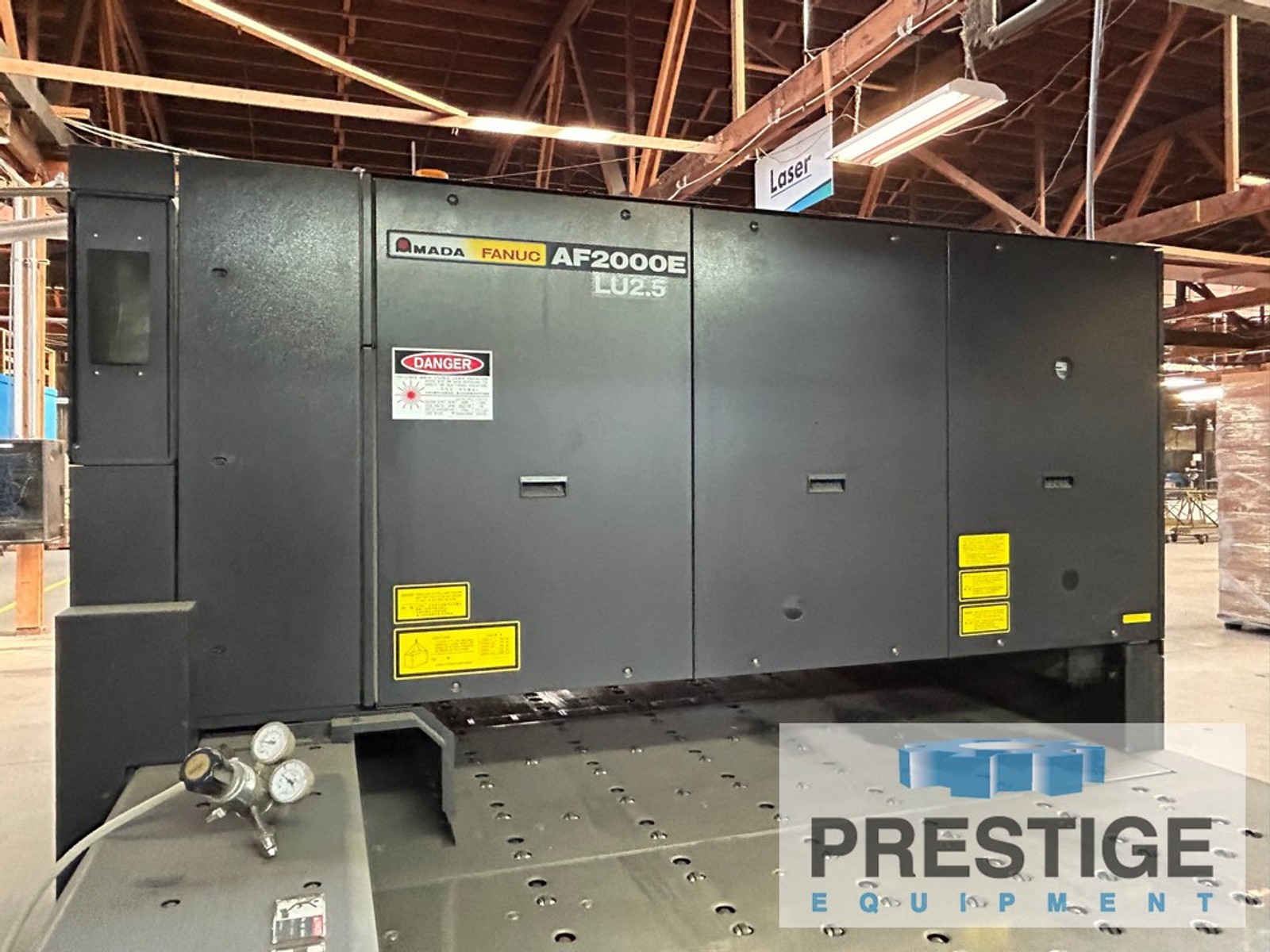

Fanuc LU2.5 AF2000E, 2KW Watt Resonator
Torit ADF4 Downflow Type Dust Collector

CAPACITY:
Maximum Laser Output .................. 2,000 Watt
X-Axis Travel ......................... 99"
Y-Axis Travel ......................... 61"
Z-Axis Travel ......................... 11.8"
Maximum Sheet Size (One Reposition).... 61" X 198"
Maximum Positioning Speed ............. 3,150 IPM
Work Chute ............................ 69" x 22"
Positioning Accuracy .................. +/- .0004"
Approximate Shipping Weight (Laser) ... 15,400 Lbs.

EQUIPPED WITH:
Amada Fanuc PC Based NT CNC Control
Fanuc LU2.5 AF2000E, 2KW Resonator
60" x 120" Max. Sheet Size
Automatic Sheet Repositioning

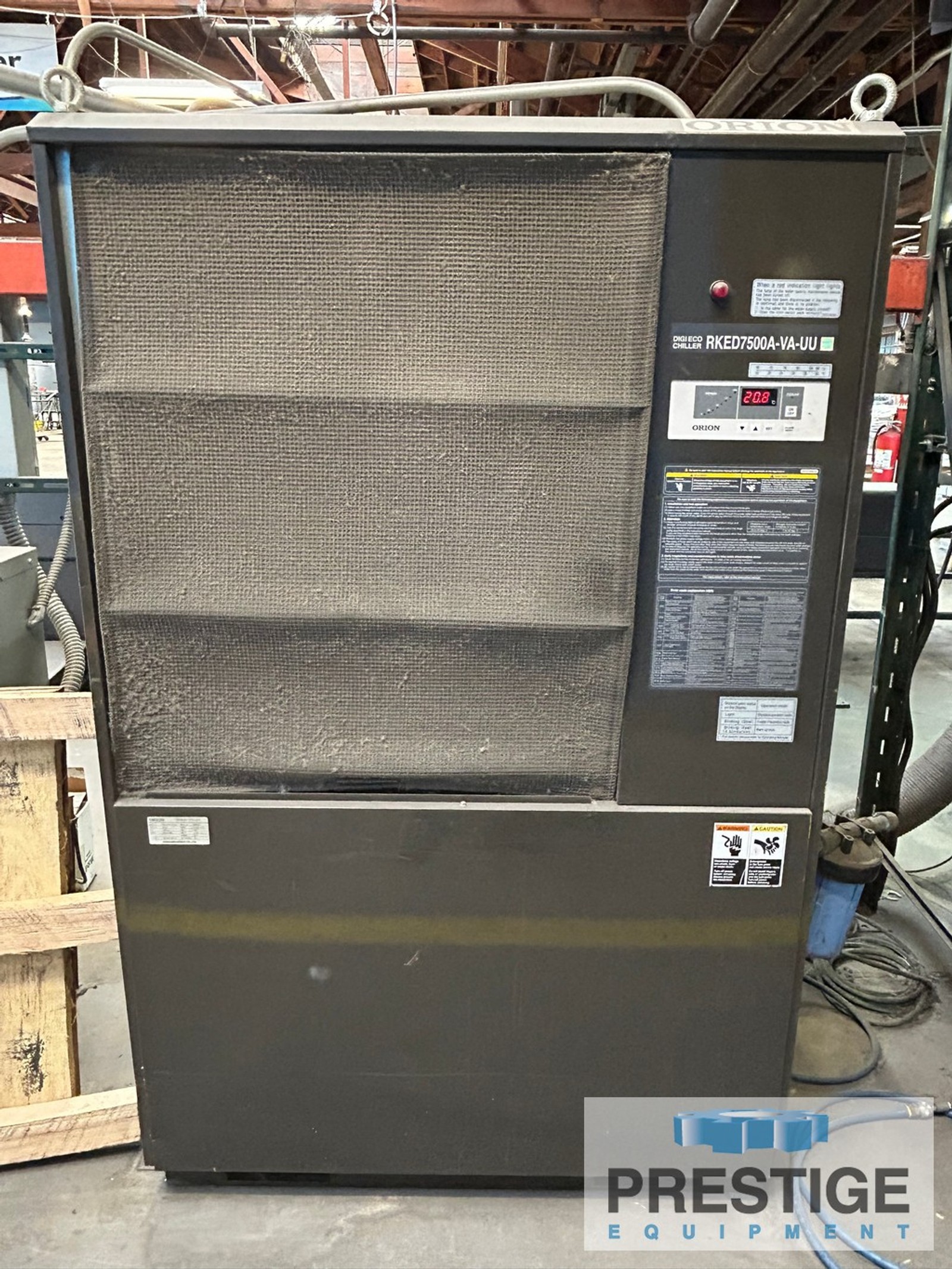

Orion RKED7500A-VA-UU Chiller

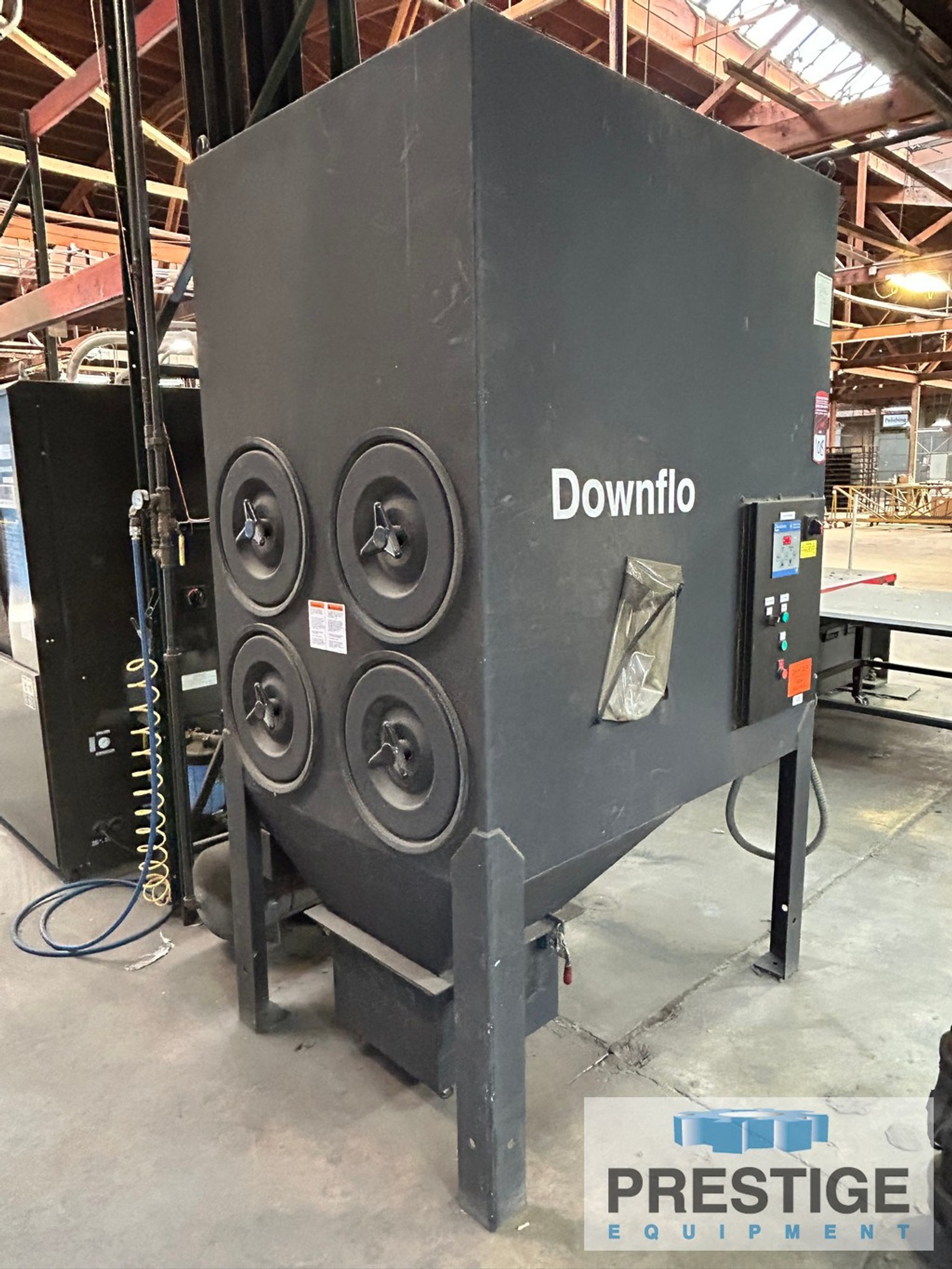

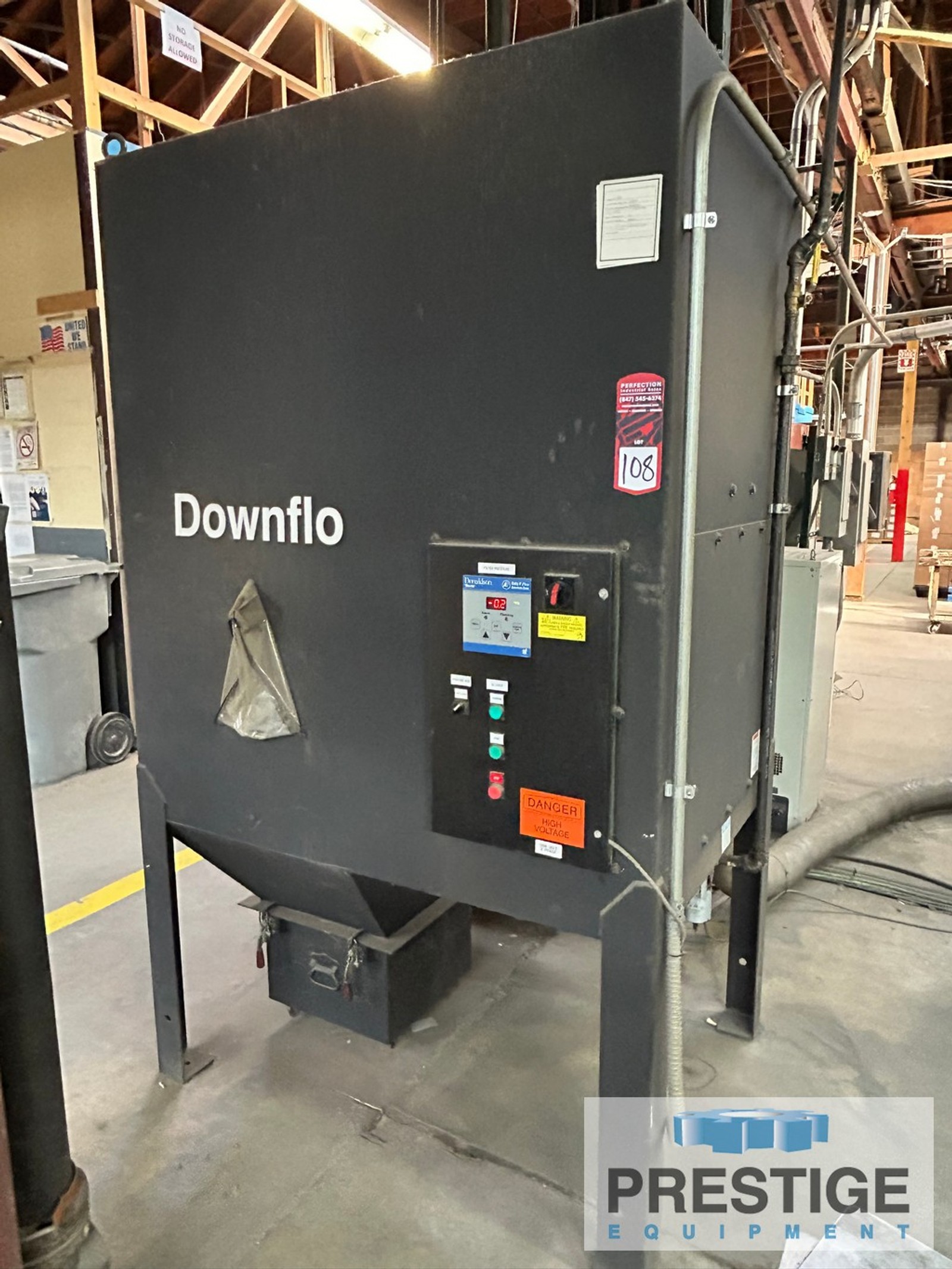

Torit ADF4 Downflow Type Dust Collector

NOTE:
Fanuc 24K Turbo Replaced December 5, 2016 at 11,710 Hours
Current On Time Hours 24,704 with 11,006 Hrs. Left on Turbo
