Okuma M460V-5AX, 5-Axis, OSP300MA-H CNC, 15.75" Rotary Trunnion Table, 32 ATC, 15K RPM, Chip Conv, TSC, 2018, #43053

Manufacturer

OKUMA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

43053

Model

M460V-5AX

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43053

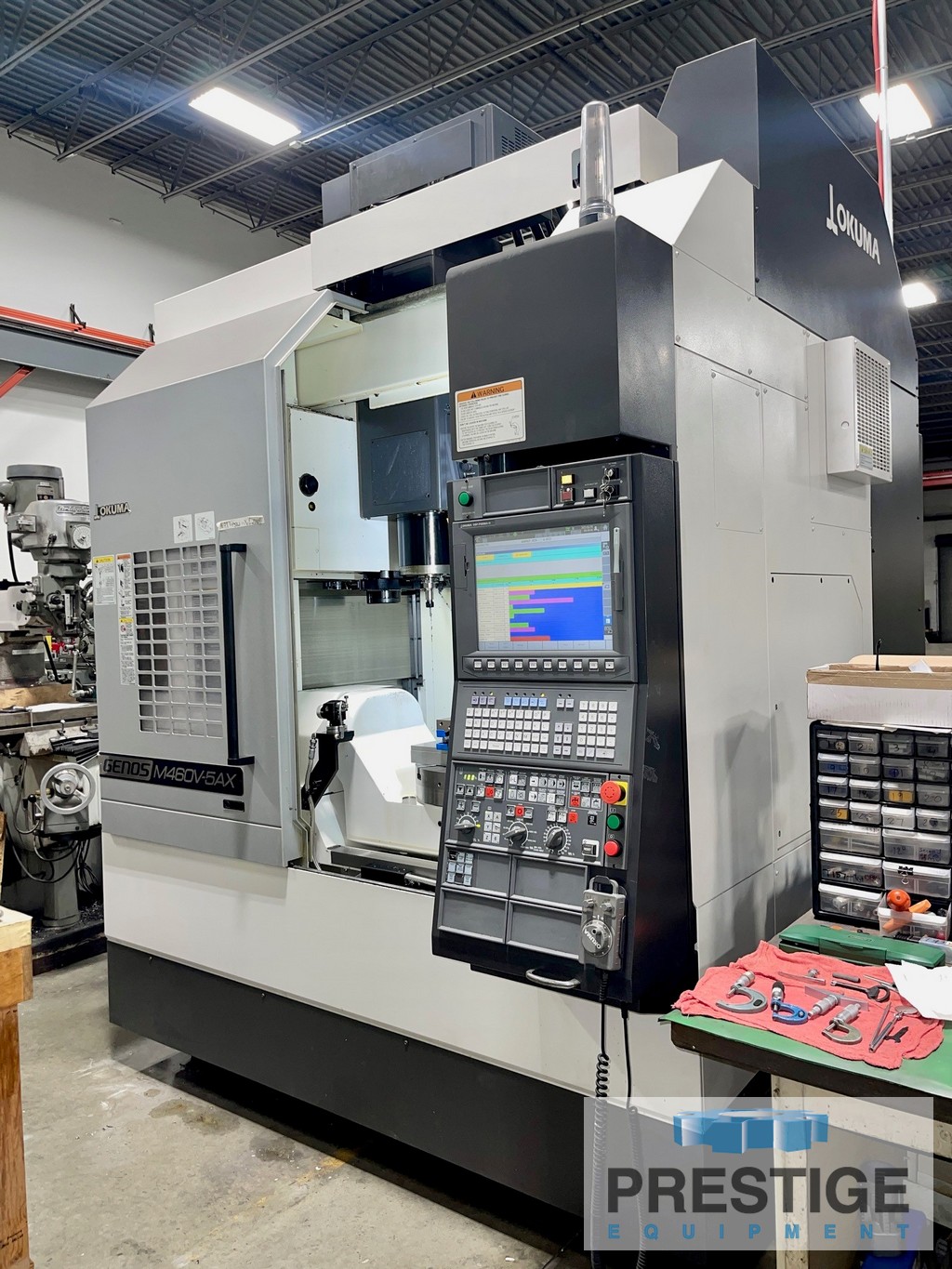

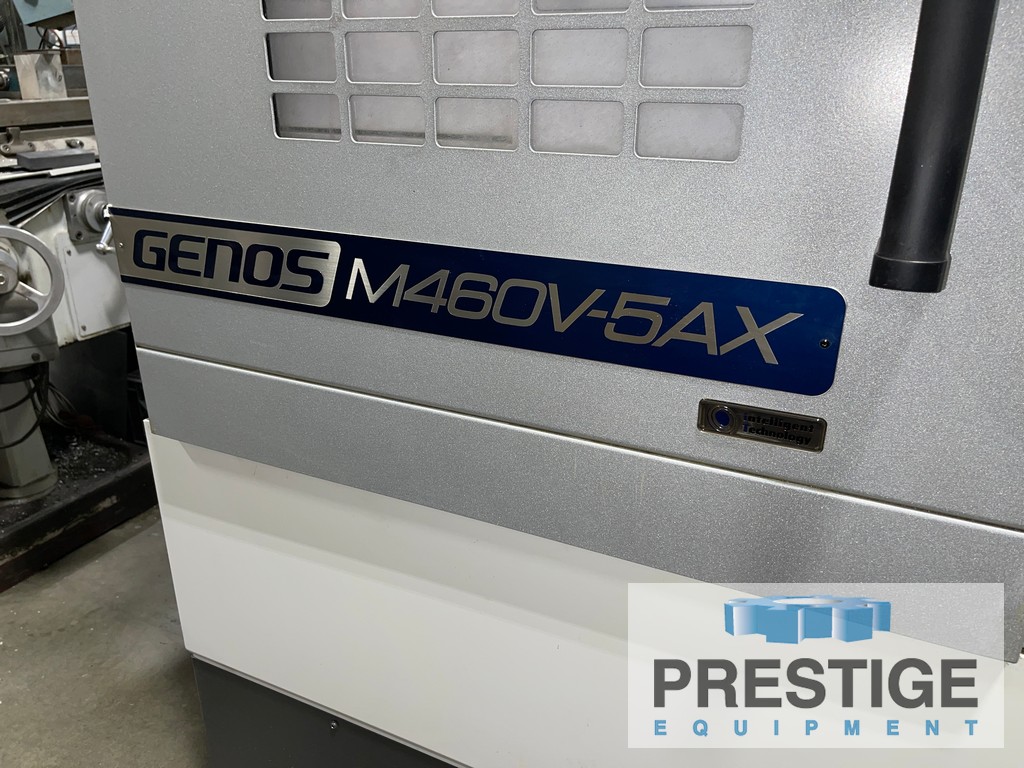

Okuma Genos M460V-AX 5-Axis CNC Vertical Machining Center

FEATURES:
OSP-P300MA-H CNC Control
A/C-Axis Rotary Trunnion Table
32-Position ATC
15,000 RPM Spindle
Thru-Spindle Coolant
LNS Turbo Chip Conveyor

CAPACITIES:
X-Axis Travel ......................... 30.00"
Y-Axis Travel ......................... 18.11"
Z-Axis Travel ......................... 18.11"
A-Axis Swivel ......................... +20/-110 Degrees
C-Axis Rotation ....................... 360 Degrees
Table Surface to Spindle Nose ......... 3.94"-22.05"

TABLE:
Rotary Table Diameter ................. 15.75"
Max Work Size ......................... 23.62" x 15.75"
Floor To Table Top .................... 41.34"
Max. Work Weight ...................... 660 Lbs.

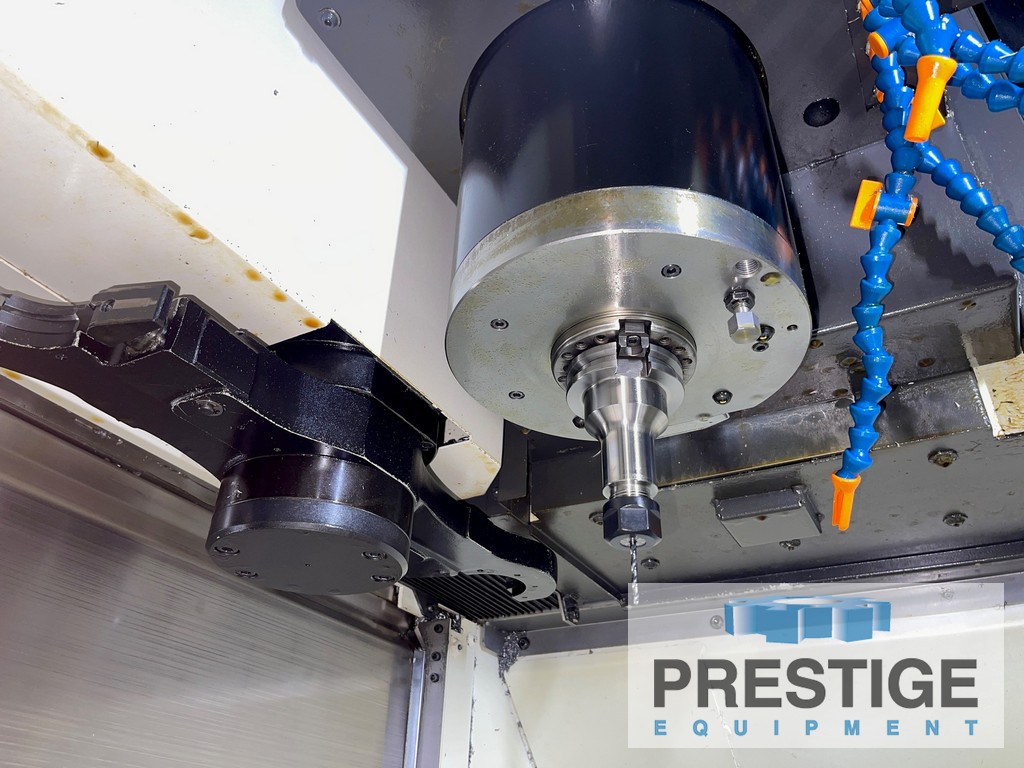

SPINDLE:
Spindle Speed ......................... 50-15,000 RPM
No. Of Spindle Ranges ................. Infinitely Variable
Spindle Taper ......................... CAT 40 Big Plus
Spindle Motor ......................... 30 HP/25 HP

FEEDS:
Rapid Traverse, X & Y Axes ............ 1575 IPM
Rapid Traverse, Z-Axis ................ 1260 IPM
Rapid Traverse, A-Axis ................ 14,400 Deg. Per Minute
Rapid Traverse, C-Axis ................ 18,000 Deg. Per Minute
Cutting Feedrate ...................... 1260 IPM

TOOL CHANGER:
Tool Capacity ......................... 48 ATC
Max. Tool Dia., Adjacent Full/Empty ... 3.54"/4.92"
Max. Tool Length ...................... 9.45"
Max. Tool Weight ...................... 18 Lbs.

MACHINE SIZE:
Floor Space ........................... 85" x 111"
Machine Height ........................ 115.98"
Approx. Weight ........................ 16,675 Lbs.

EQUIPPED WITH:

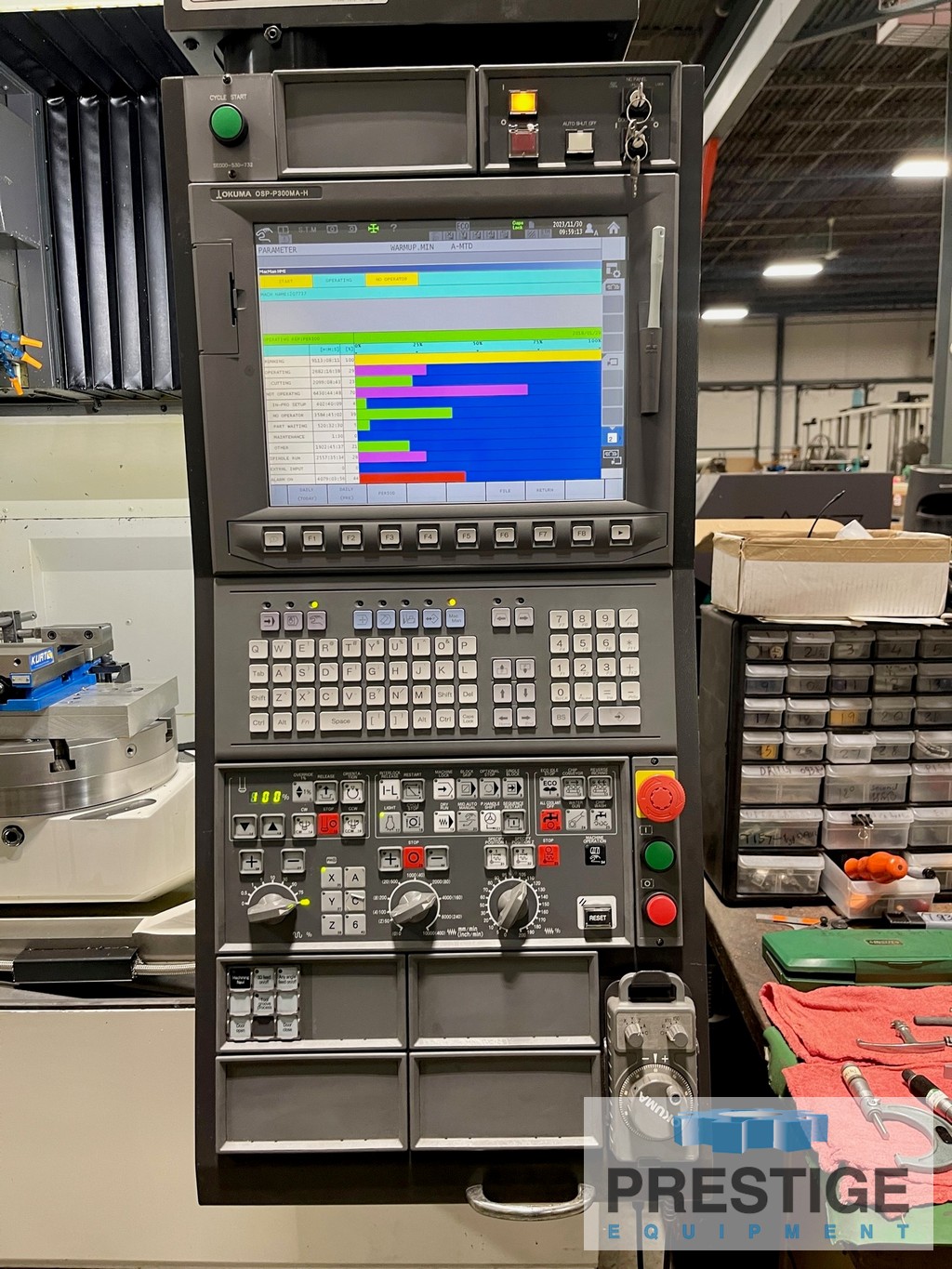

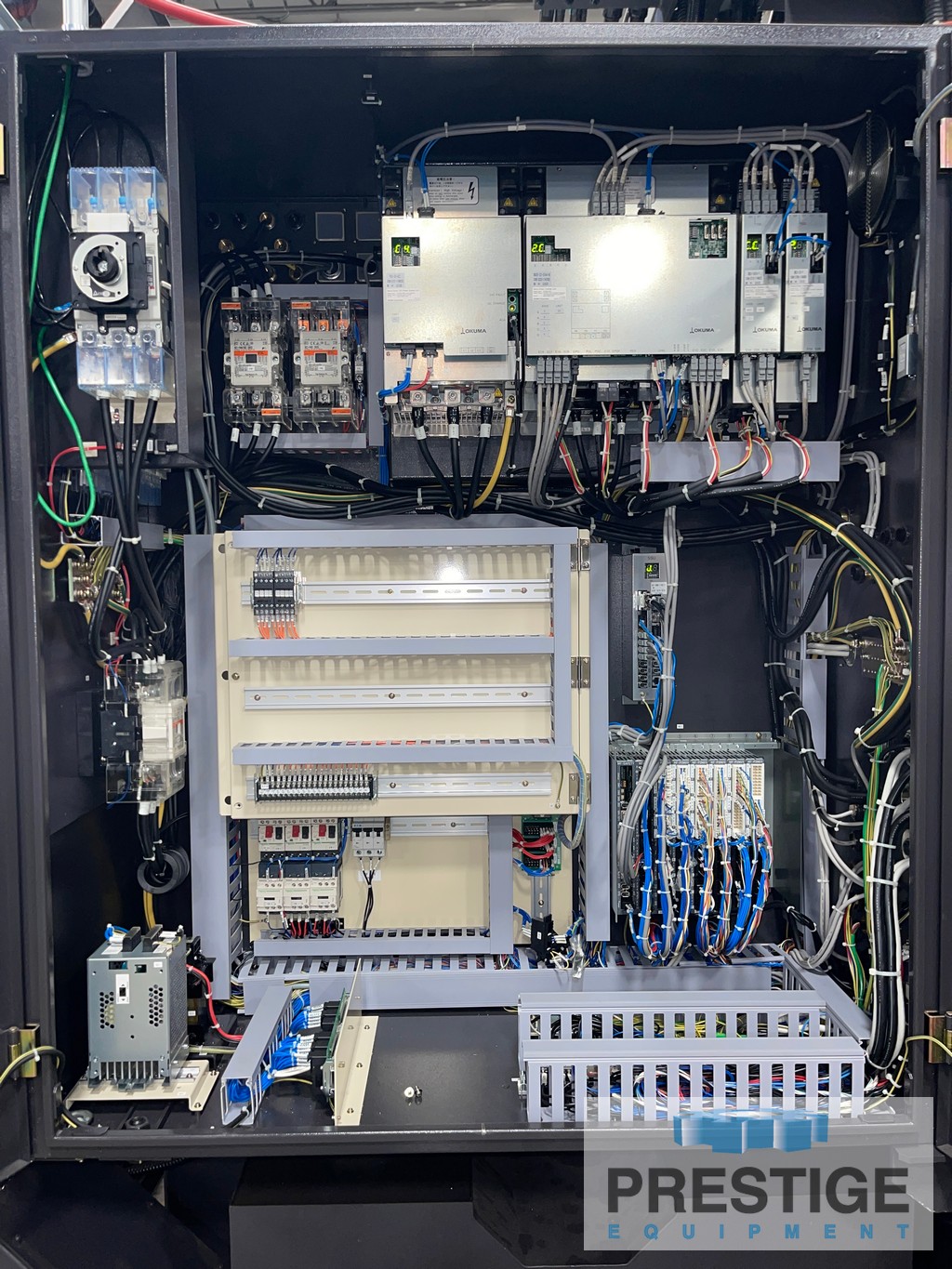

OSP-P300MA-H 5-Axis CNC Control with Pulse Handle

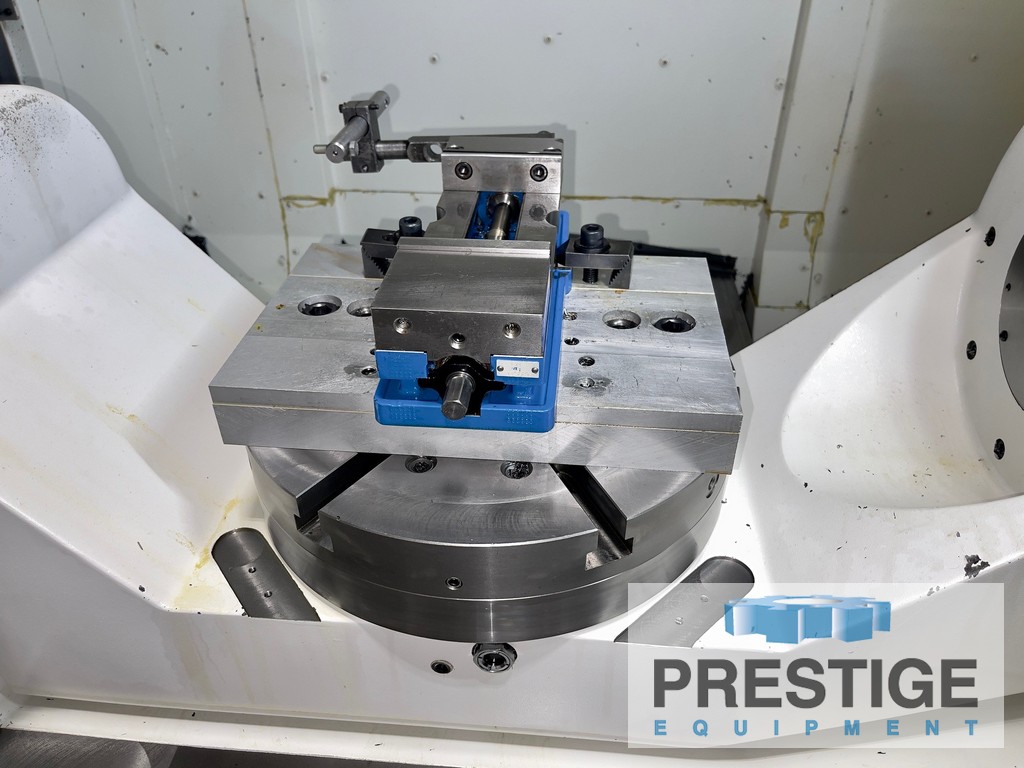

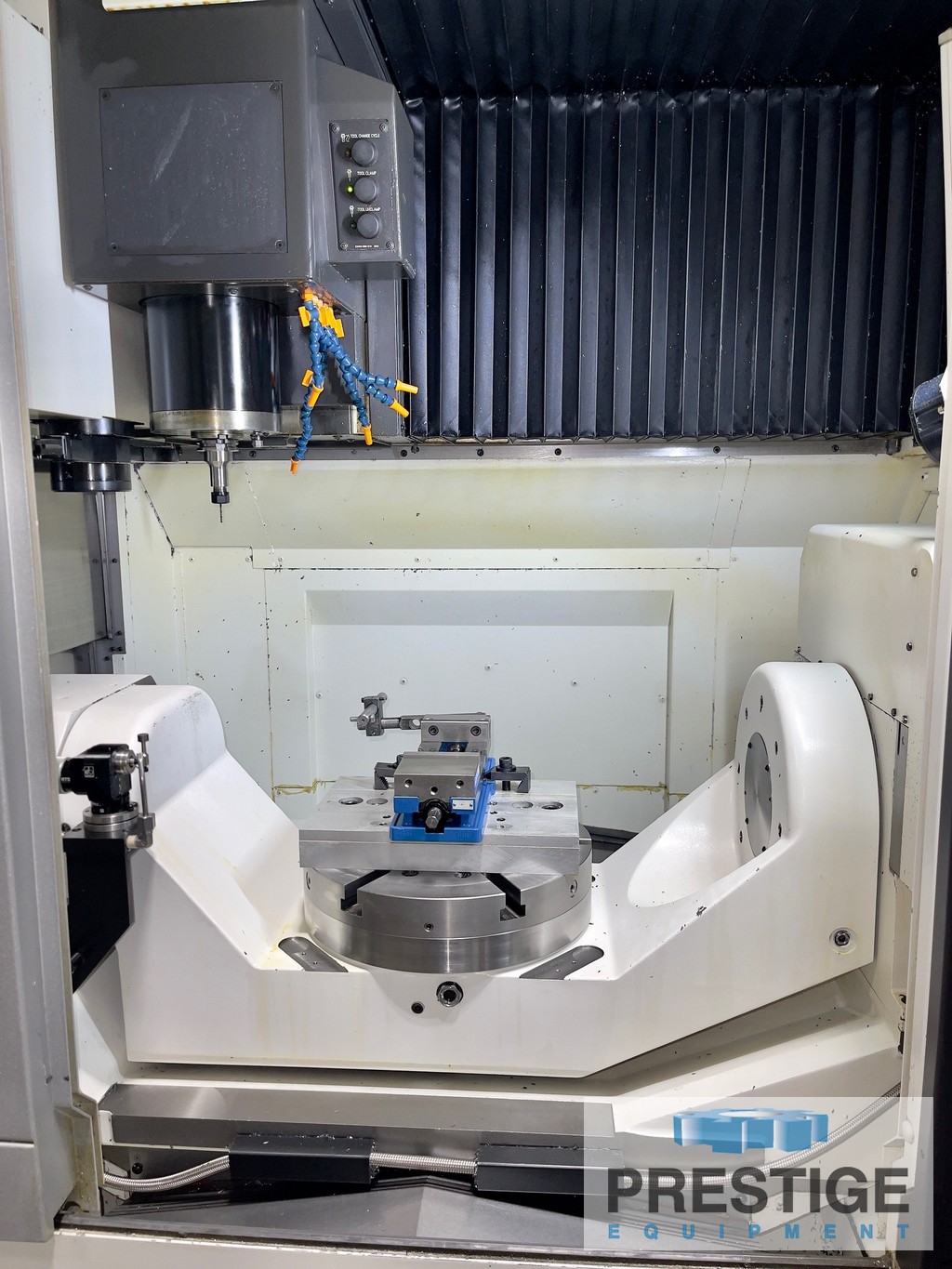

15.75" A/C-Axis Rotary Trunnion Table

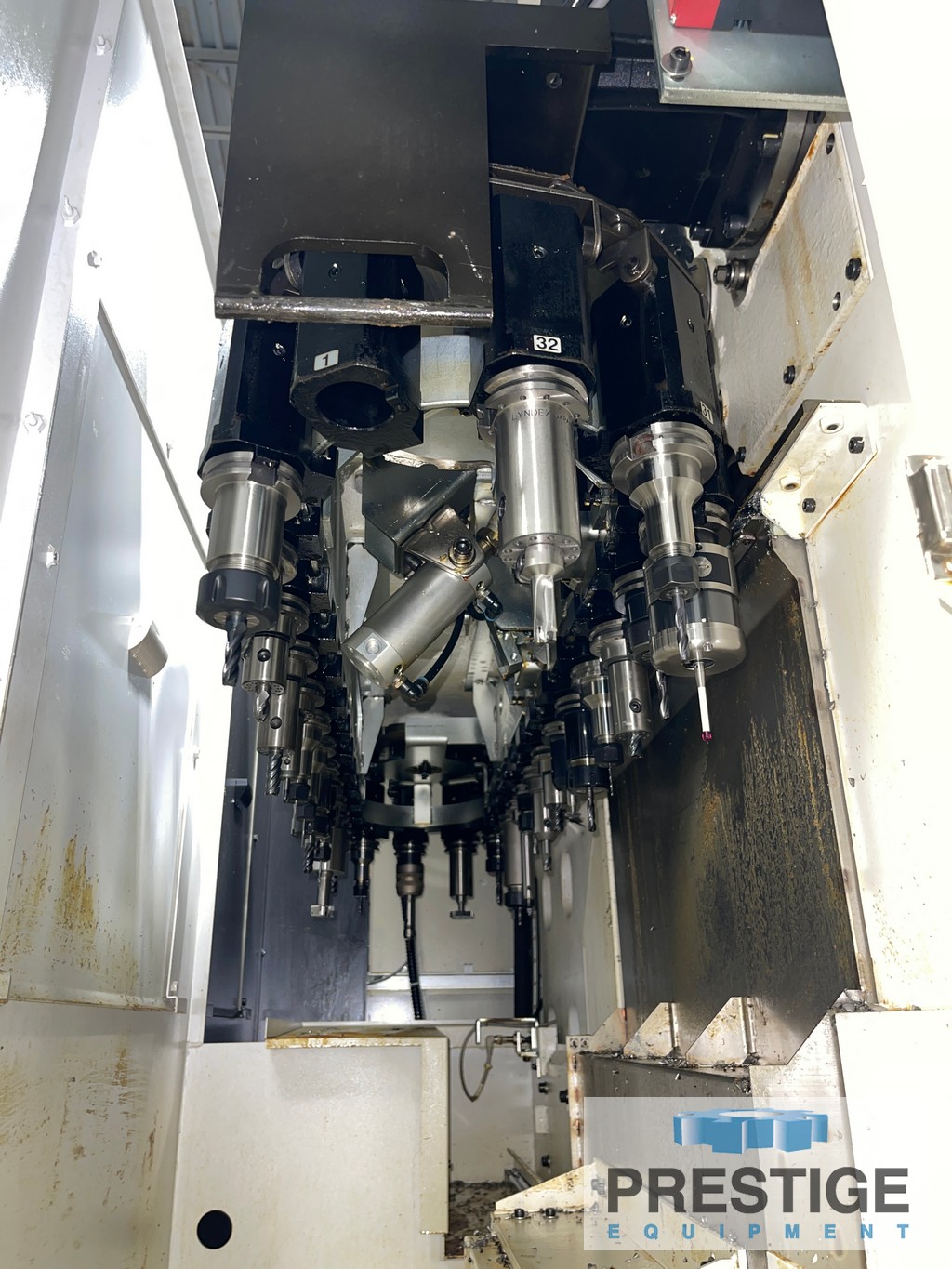

32-Position Automatic Tool Changer

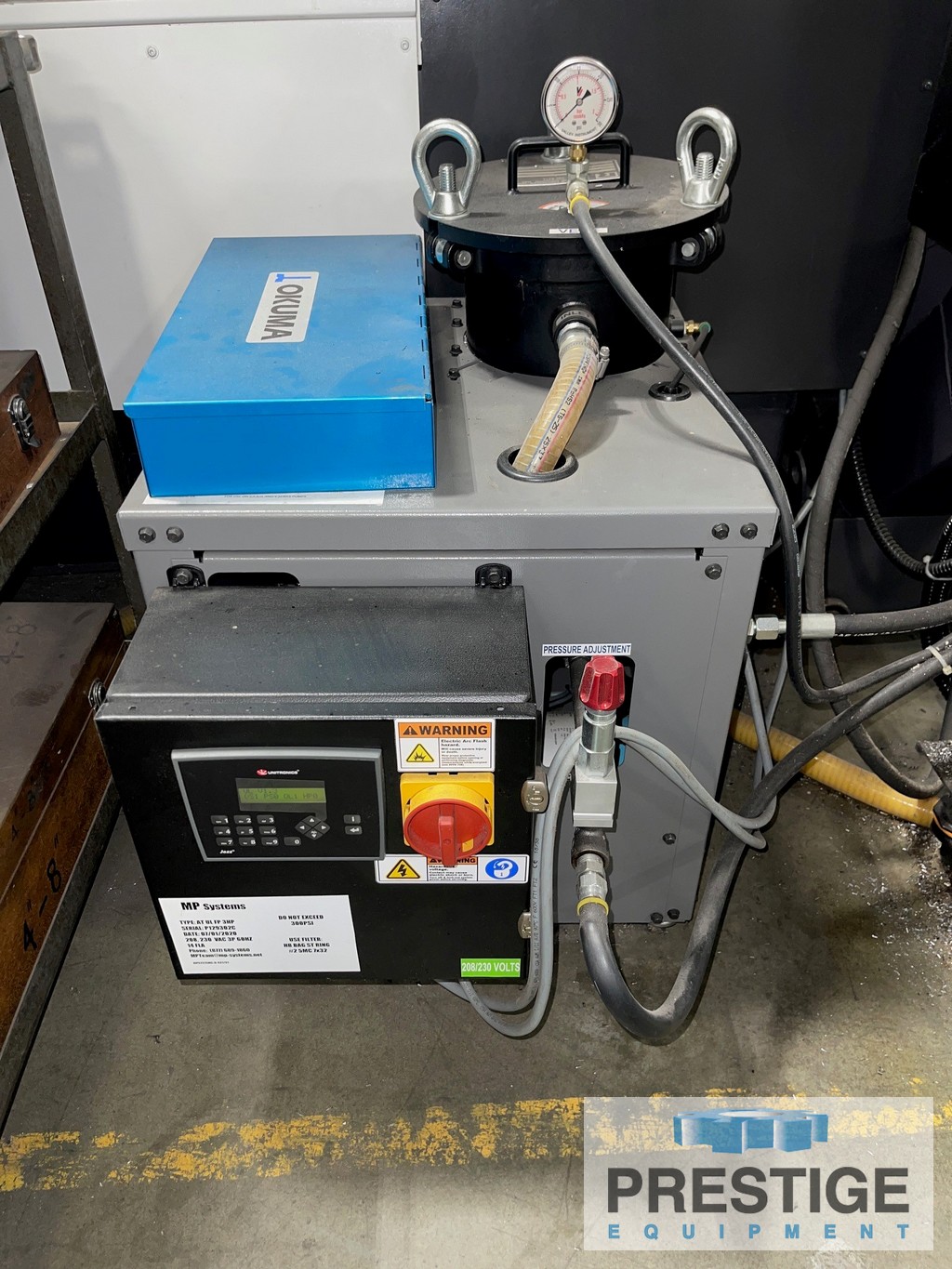

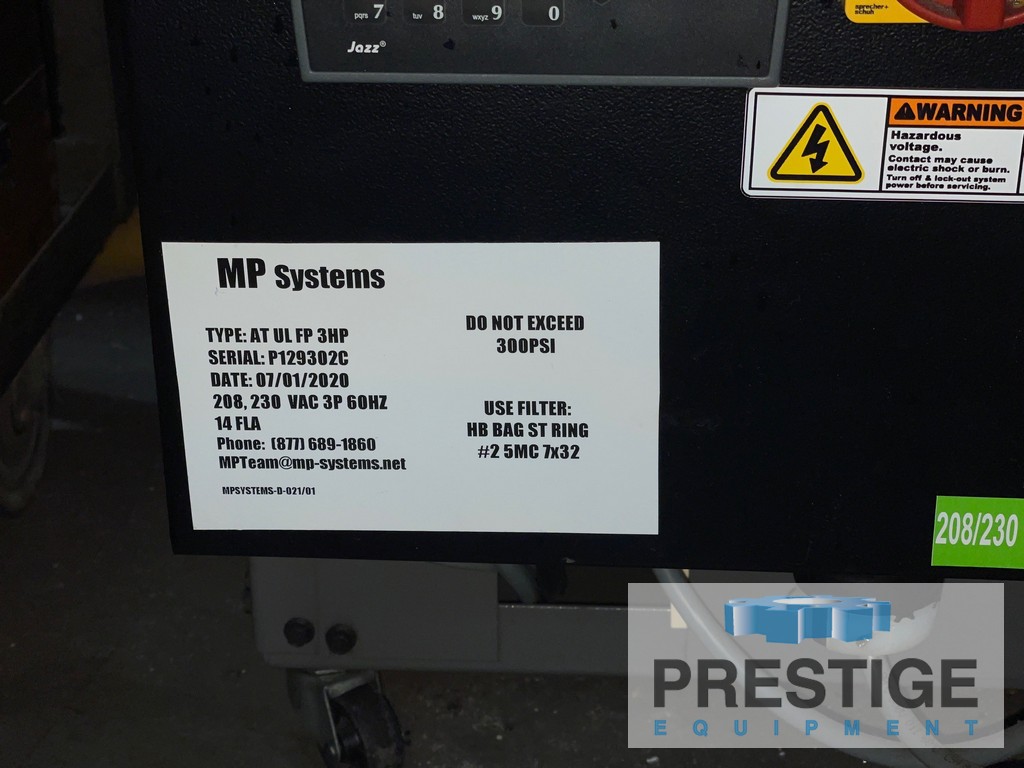

MP Systems 300 PSI Thru-Spindle Coolant

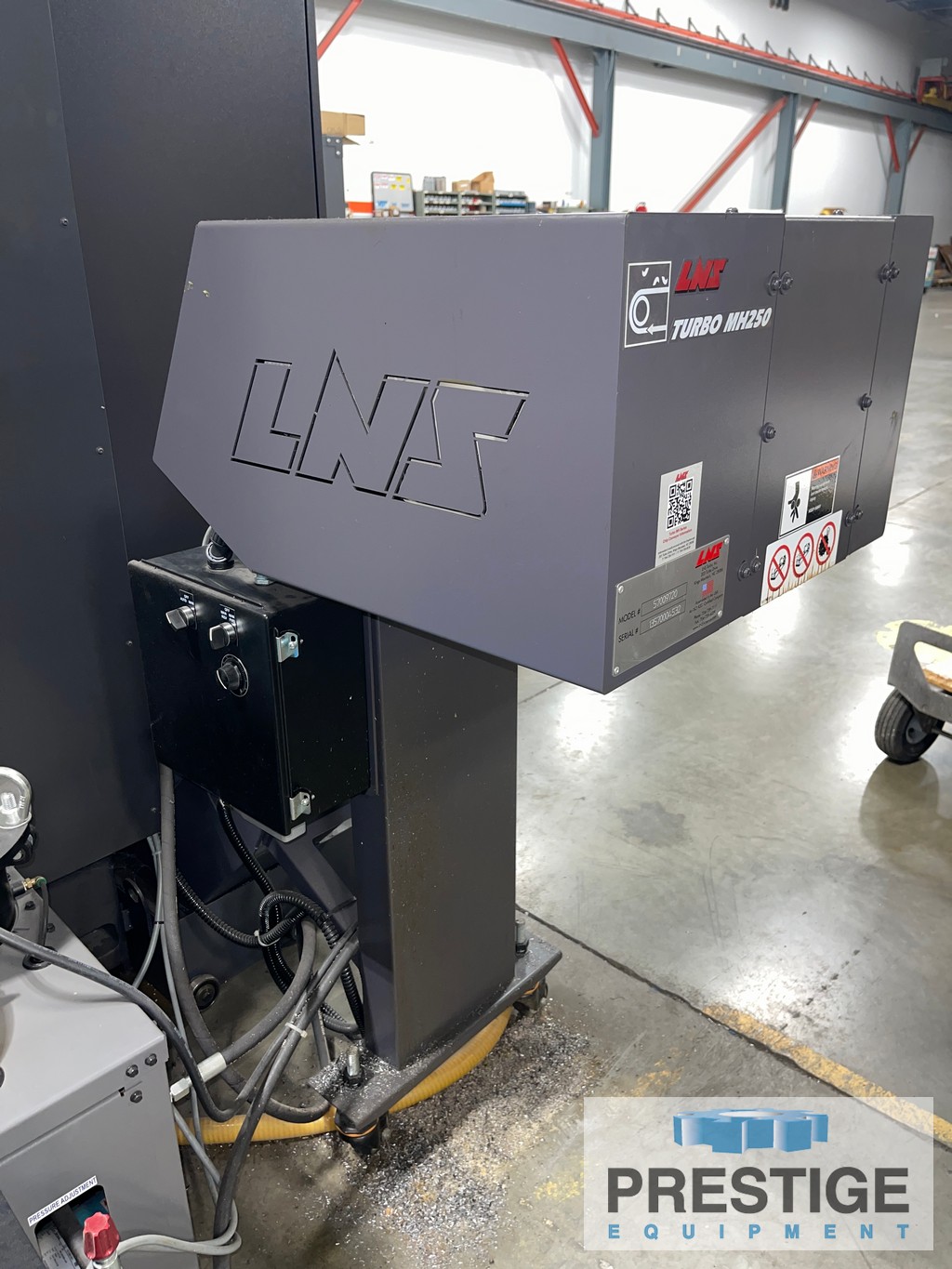

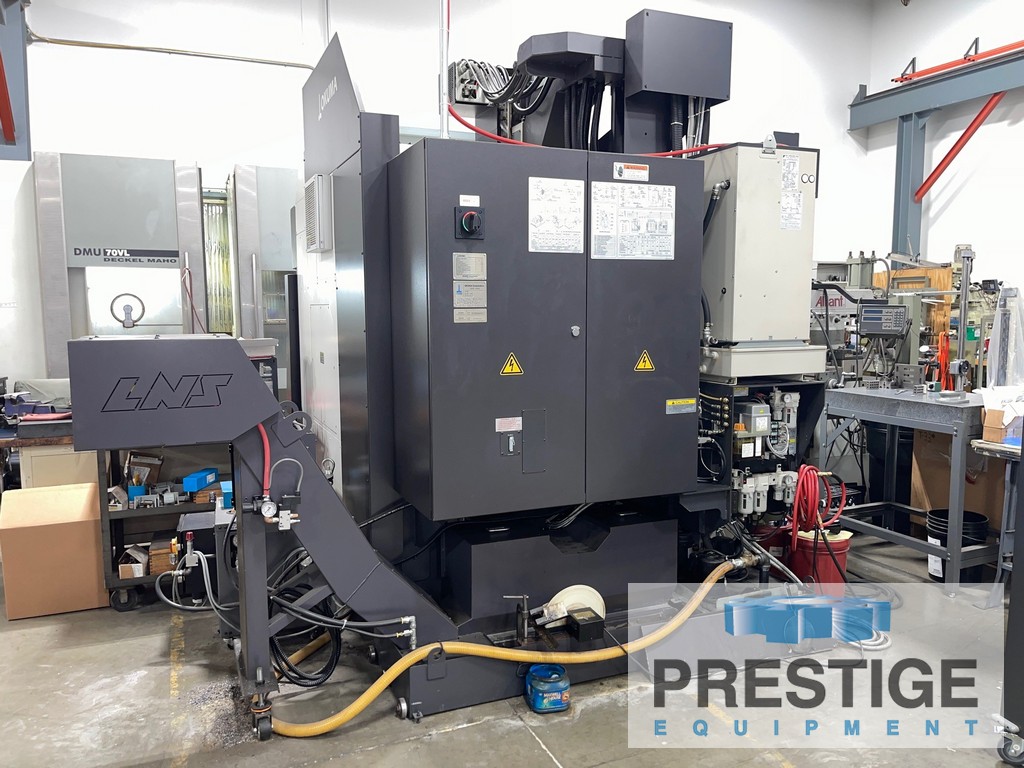

LNS Turbo MH250 Chip Conveyor
Full Enclosures

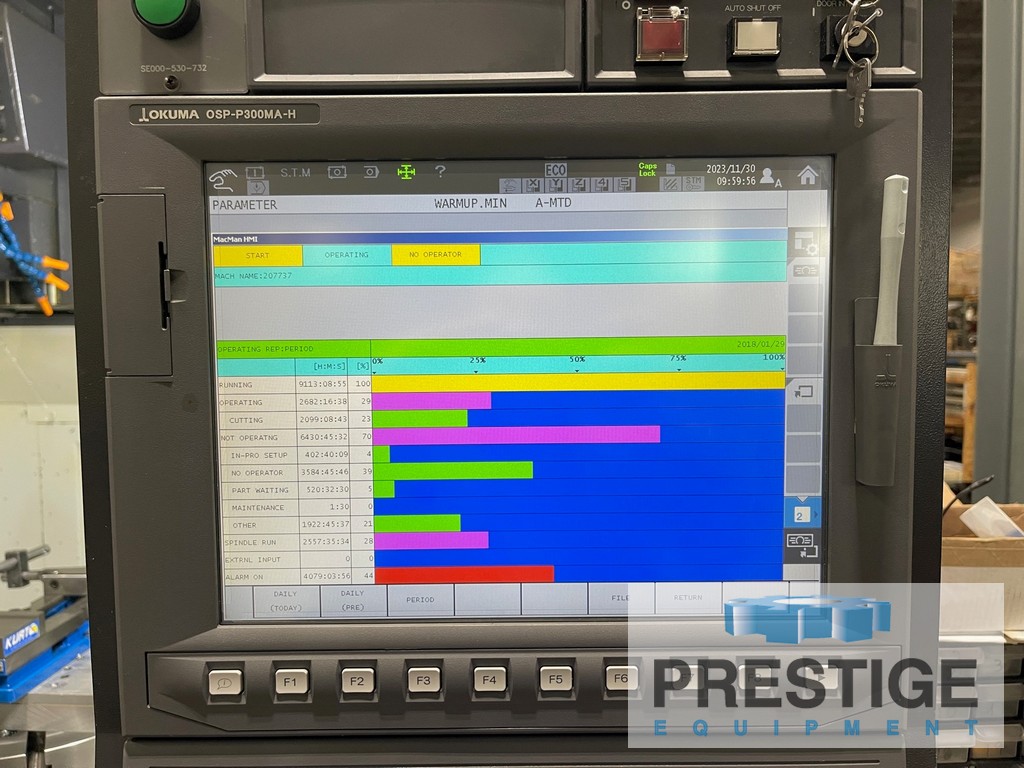

MACHINE HOURS:
2682 Operating Hours
2099 Cutting Hours
2557 Spindle Run Hours

NOTE:
Under Power In Precision CNC Job Shop
